FERTILITY 5
9147332 | 3FFM7 | 9147332 by ********* Last update: Thu May 09 2024
General Info
Ship Name:FERTILITY 5
IMO Code:9147332
Call Sign:3FFM7
Line Operator:9147332
Class Name for Sister Ships:ZHEHAI 316
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:017
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:298
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

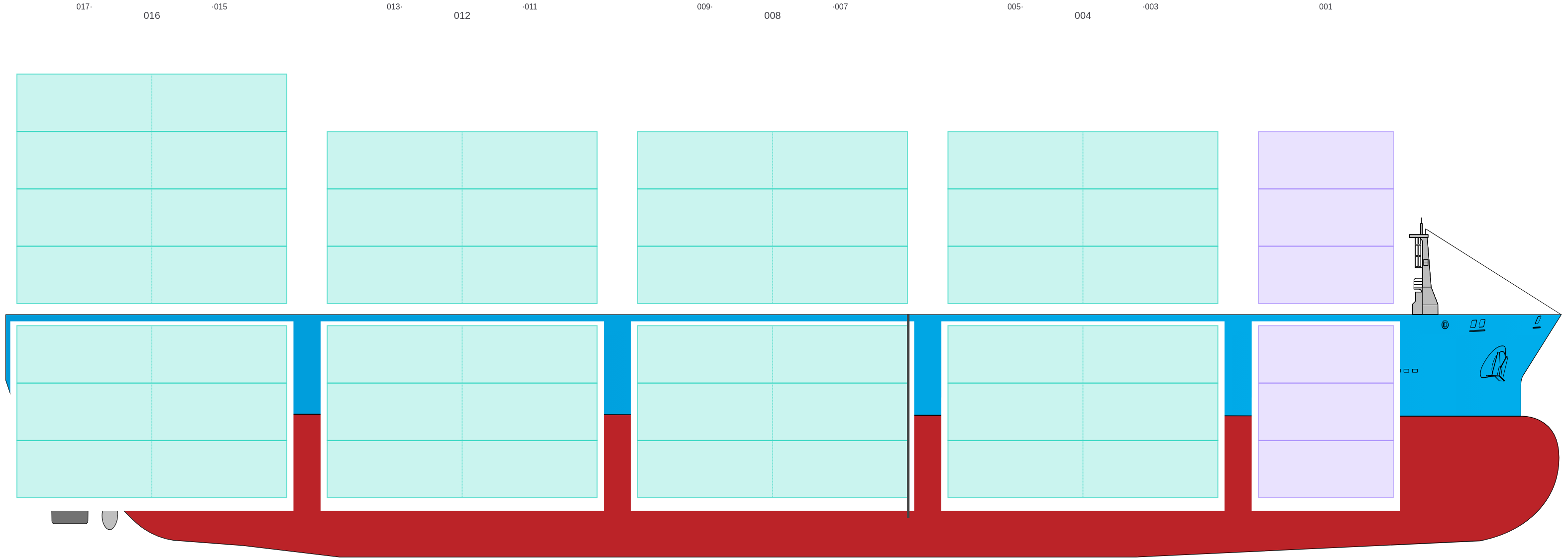

Side View
![Side view of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-sideView.png?v=1715283911526)

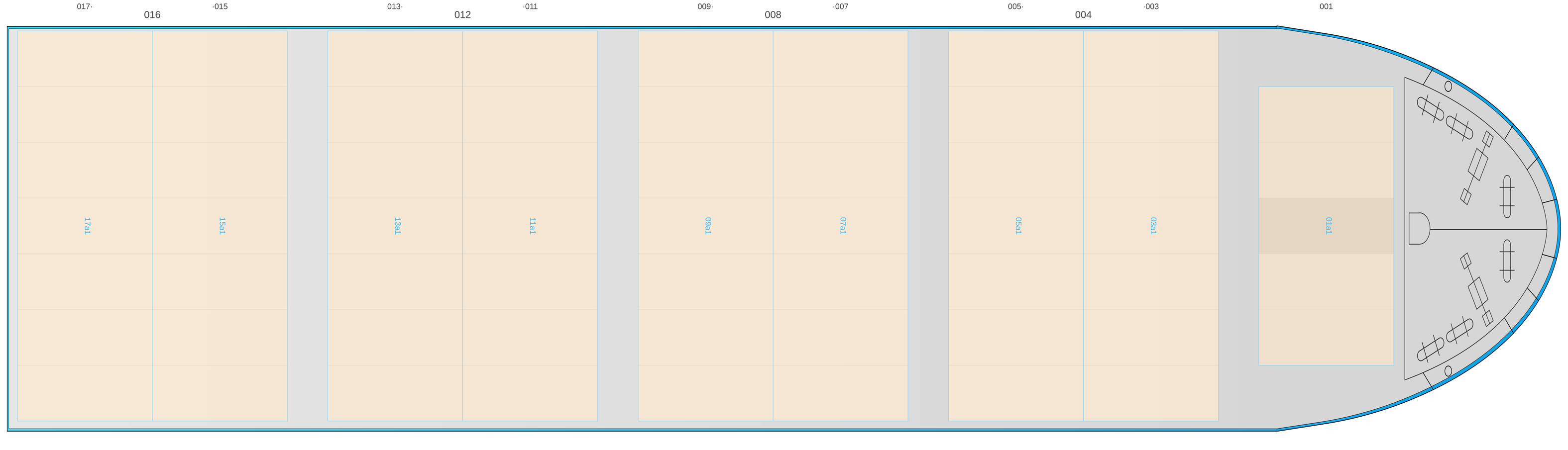

Hatch-Covers View
![Deck view of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-deckView.png?v=1715283911526)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

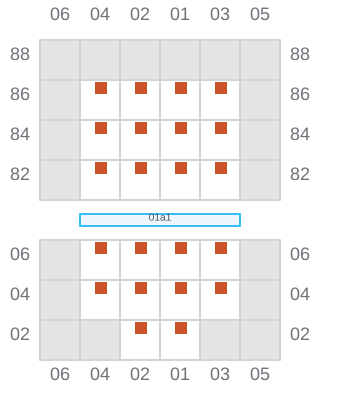

001
![Bay 001 view and slots of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-b001.png?v=1715283911526)

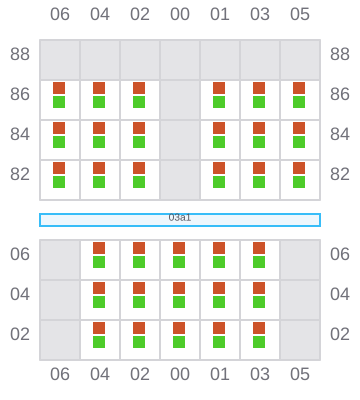

003 (004)
- →
![Bay 003 view and slots of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-b003.png?v=1715283911526)
005
- ←
![Bay 005 view and slots of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-b005.png?v=1715283911526)
007 (008)
- →
![Bay 007 view and slots of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-b007.png?v=1715283911526)
009
- ←
![Bay 009 view and slots of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-b009.png?v=1715283911526)
011 (012)
- →
![Bay 011 view and slots of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-b011.png?v=1715283911526)

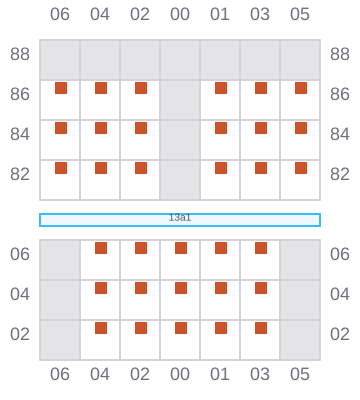

013
- ←
![Bay 013 view and slots of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-b013.png?v=1715283911526)

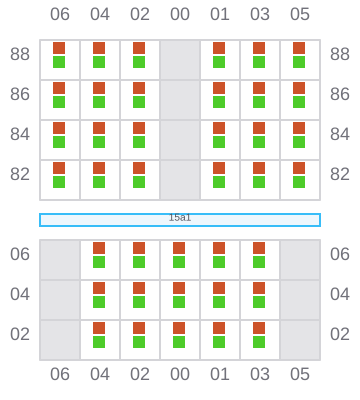

015 (016)
- →
![Bay 015 view and slots of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-b015.png?v=1715283911526)

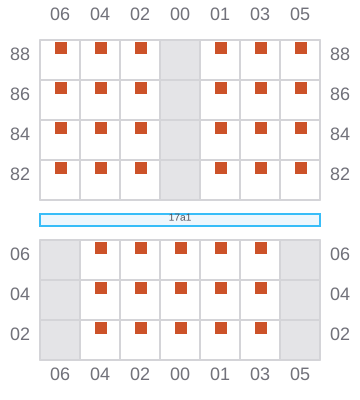

017
- ←
![Bay 017 view and slots of FERTILITY 5](/vessel-images/a2652795-646f-4bc4-ac66-8d11132bd335-b017.png?v=1715283911526)
