The TEDIVO Vessel Designer allows you to create and download your own vessel
definitions.
FESCO MONERON
9277412 | UBHT4 | 9277412 by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:FESCO MONERON
IMO Code:9277412
Call Sign:UBHT4
Line Operator:9277412
Class Name for Sister Ships:05B
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:822
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

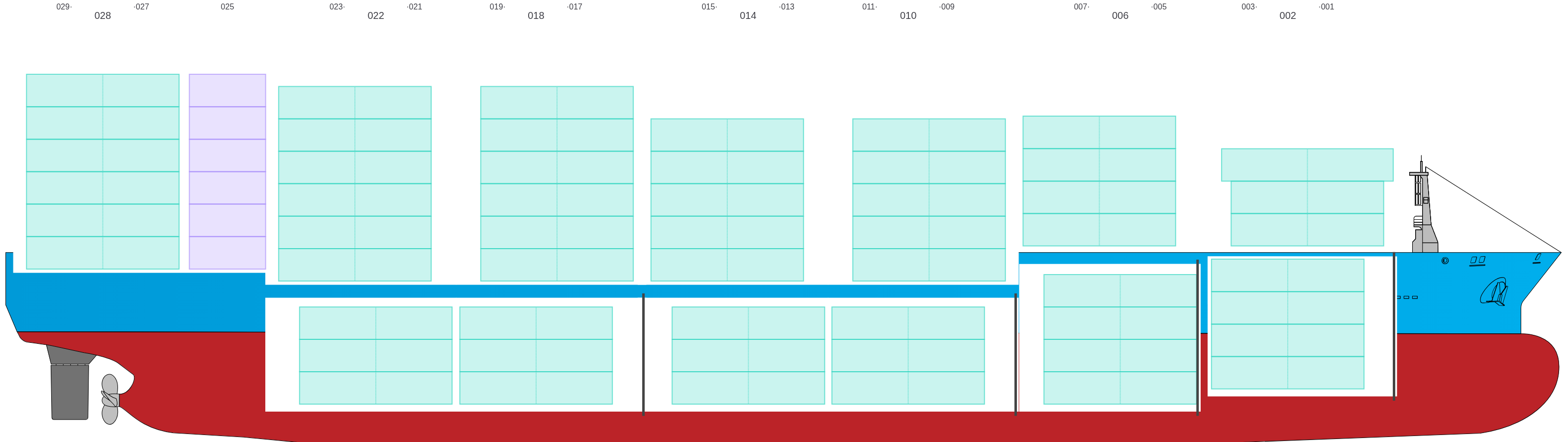

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

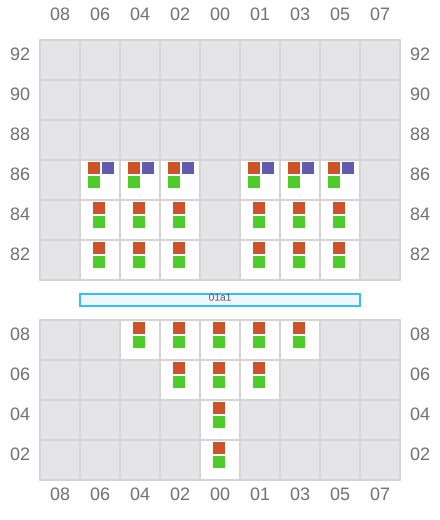

001 (002)
- →

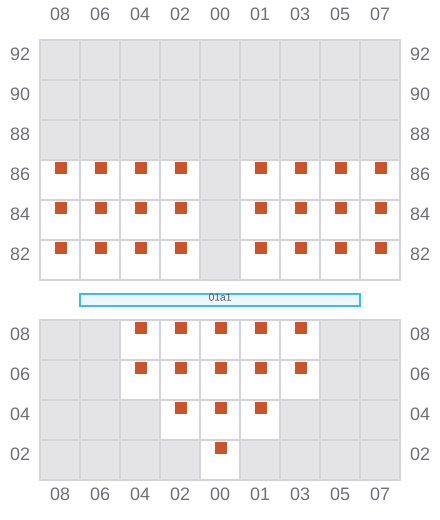

003
- ←

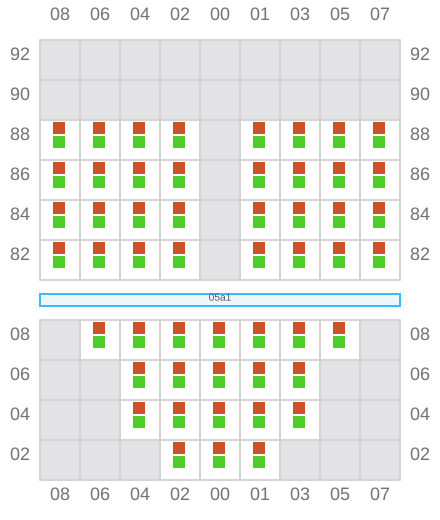

005 (006)
- →
- → / ?

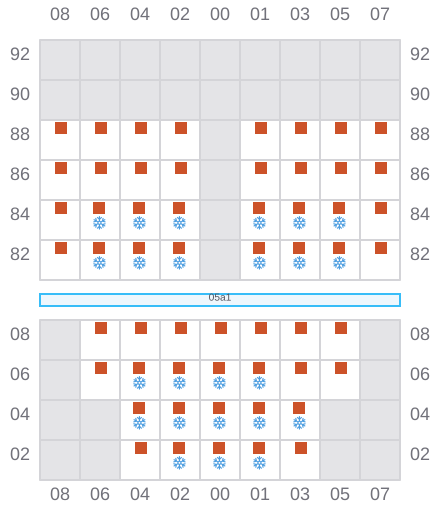

007
- ←
- →

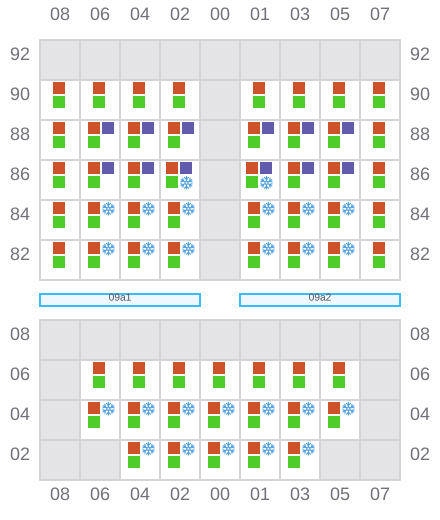

009 (010)
- →
- ←

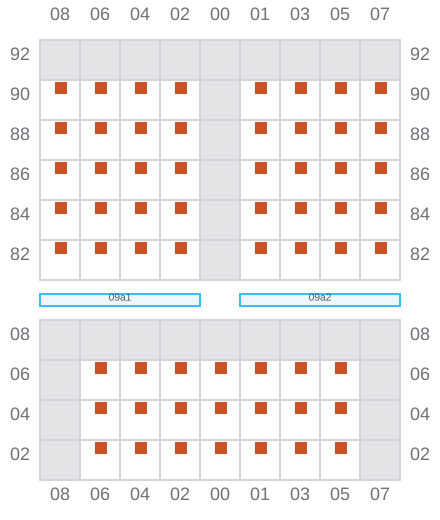

011
- ←

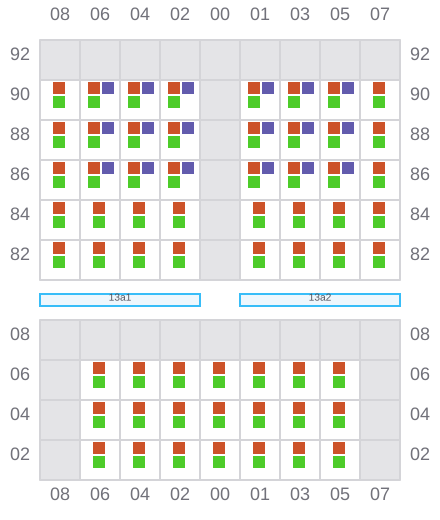

013 (014)
- →
015
- ←
- →

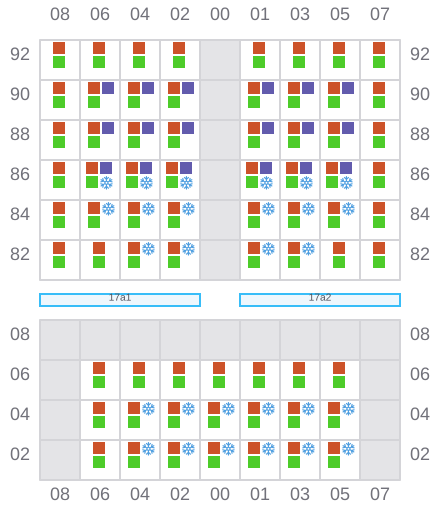

017 (018)
- →
- ←

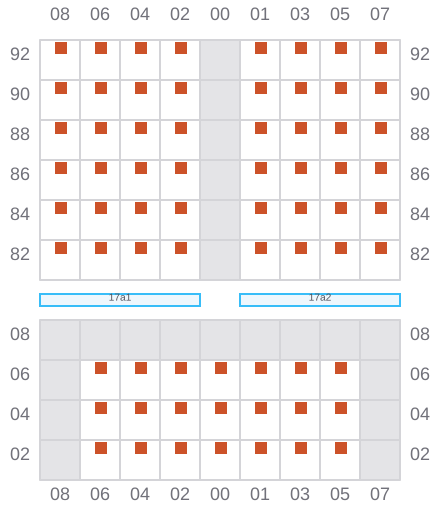

019
- ←

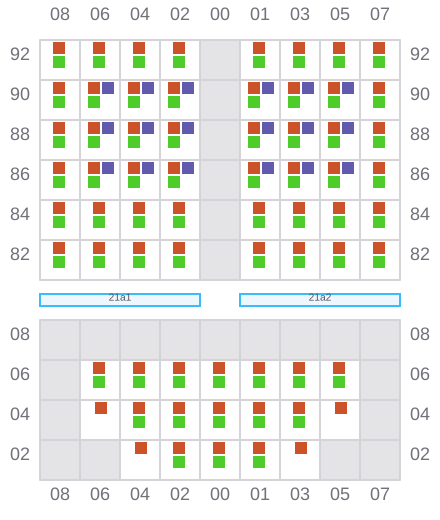

021 (022)
- →

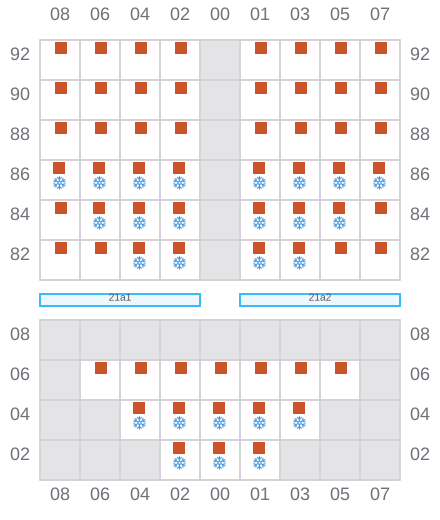

023
- ←
- →

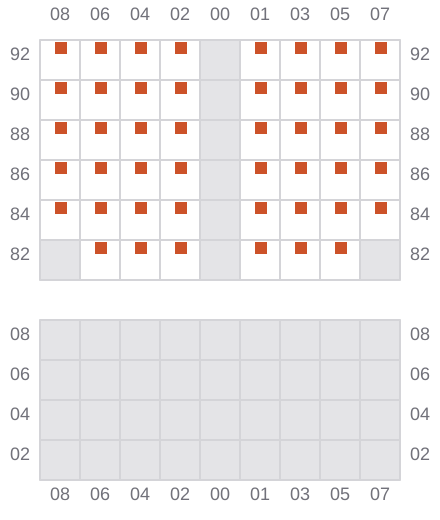

025
027 (028)
- → / ?

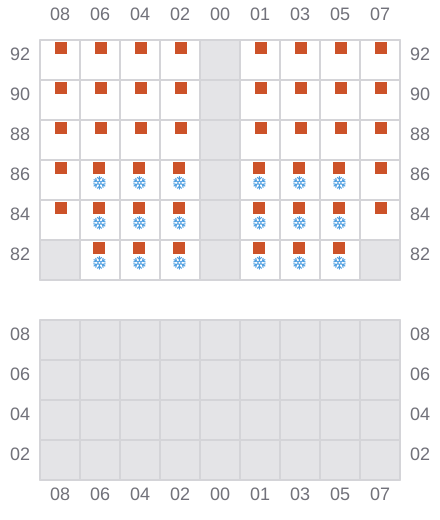

029
- ← / ?
- → / ?
