FESCO PIONER
8801606 | UHHD | 8801606 by *********** Last update: Sat Mar 02 2024

General Info

Ship Name:FESCO PIONER
IMO Code:8801606
Call Sign:UHHD
Line Operator:8801606
Class Name for Sister Ships:6JE
Year Built:1988
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:025
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:572

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of FESCO PIONER

Hatch-Covers View

Deck view of FESCO PIONER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

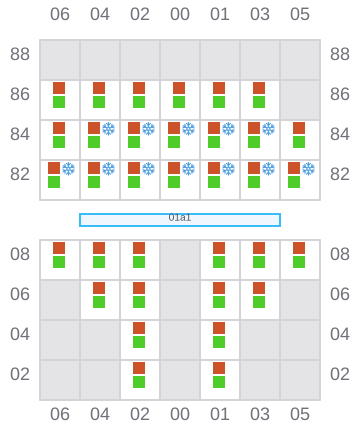

001

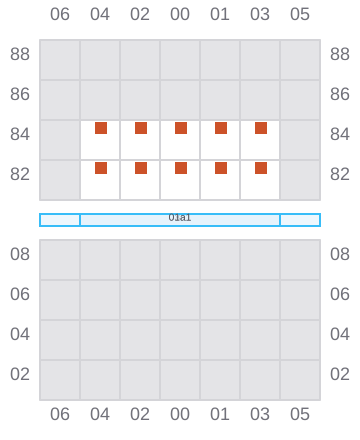

Bay 001 view and slots of FESCO PIONER

003 (004)

  • / ?
Bay 003 view and slots of FESCO PIONER

005

  • / ?

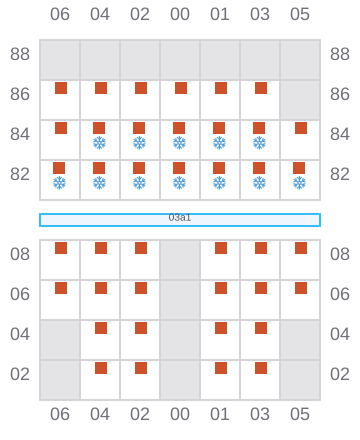

Bay 005 view and slots of FESCO PIONER

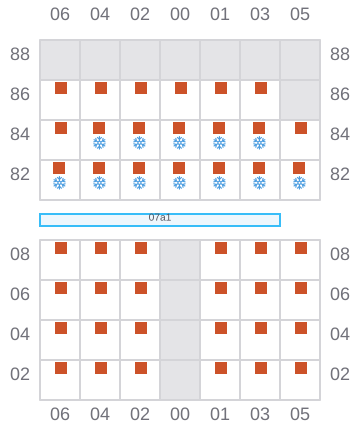

007 (008)

  • / ?

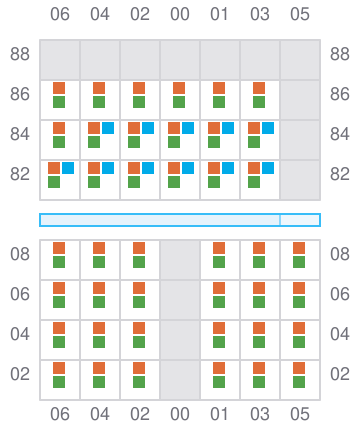

Bay 007 view and slots of FESCO PIONER

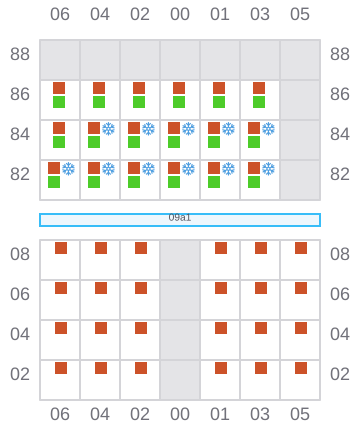

009

  • / ?
Bay 009 view and slots of FESCO PIONER

011 (012)

  • / ?
Bay 011 view and slots of FESCO PIONER

013

  • / ?

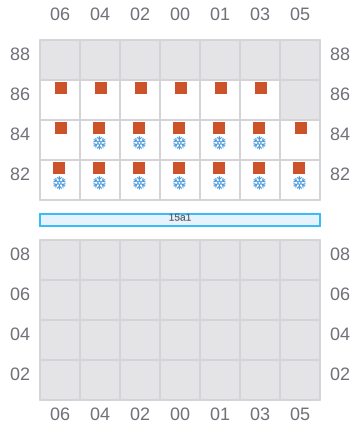

Bay 013 view and slots of FESCO PIONER

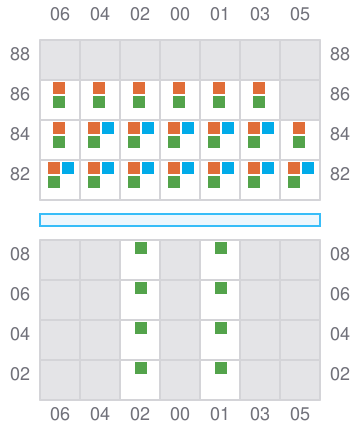

015 (016)

  • / ?
Bay 015 view and slots of FESCO PIONER

017

  • / ?

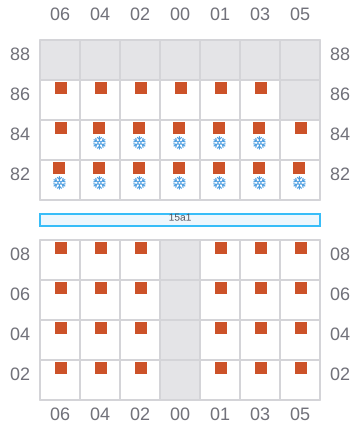

Bay 017 view and slots of FESCO PIONER

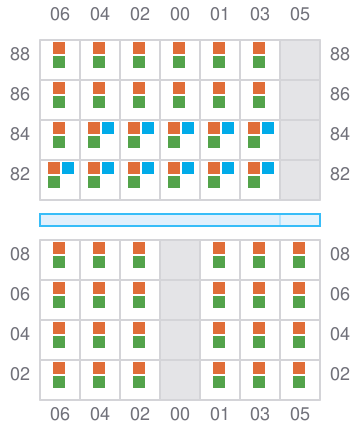

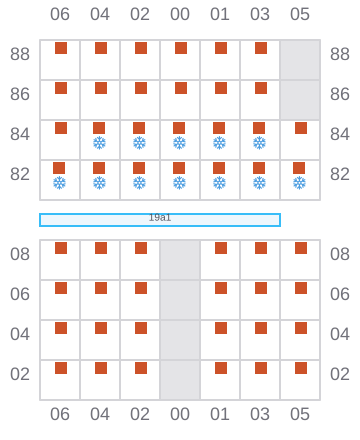

019 (020)

  • / ?
Bay 019 view and slots of FESCO PIONER

021

  • / ?
Bay 021 view and slots of FESCO PIONER

023 (024)

  • / ?
Bay 023 view and slots of FESCO PIONER

025

  • / ?
Bay 025 view and slots of FESCO PIONER
