FLORA DELMAS
9239862 | CQEZ | 9239862 by ********* Last update: Fri Apr 12 2024
General Info
Ship Name:FLORA DELMAS
IMO Code:9239862
Call Sign:CQEZ
Line Operator:9239862
Class Name for Sister Ships:CMA
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,659
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-sideView.png?v=1712949198012)
Hatch-Covers View
![Deck view of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-deckView.png?v=1712949198012)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

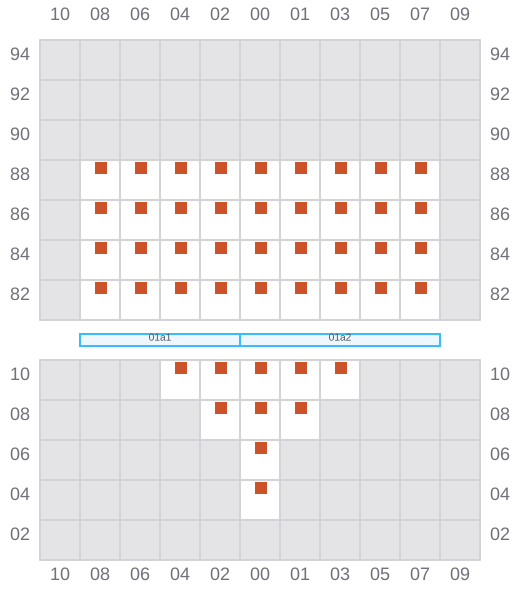

001
- →
![Bay 001 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b001.png?v=1712949198012)

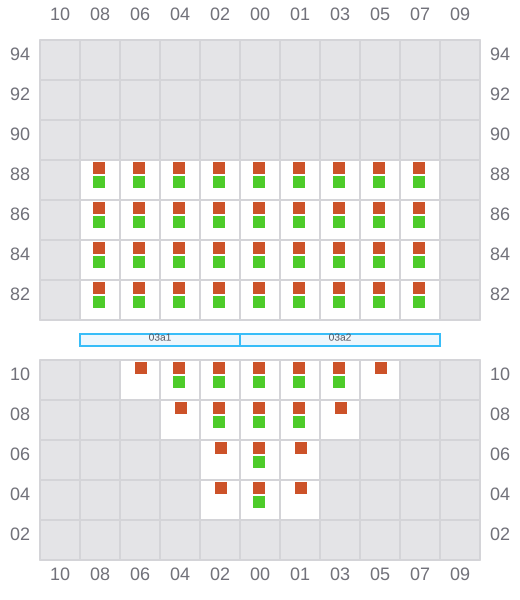

003 (002)
- ←
![Bay 003 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b003.png?v=1712949198012)

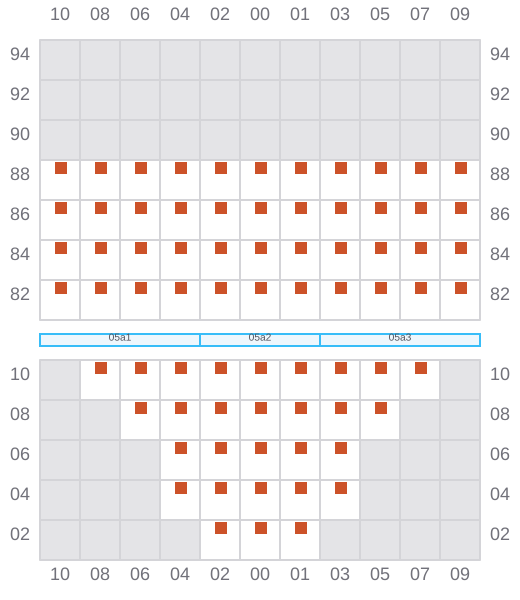

005
- →
![Bay 005 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b005.png?v=1712949198012)

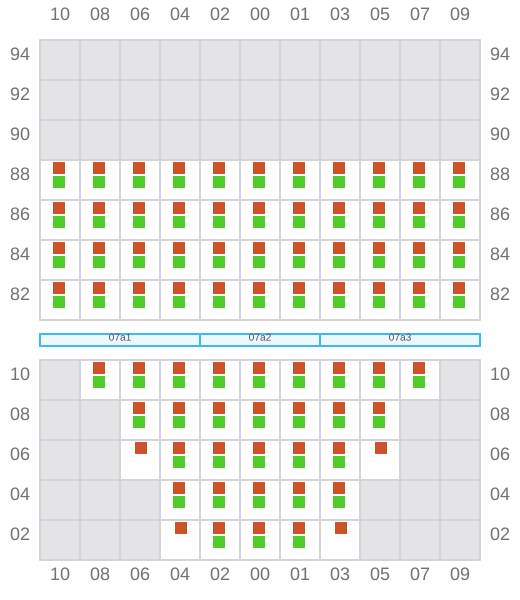

007 (006)
- ←
![Bay 007 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b007.png?v=1712949198012)

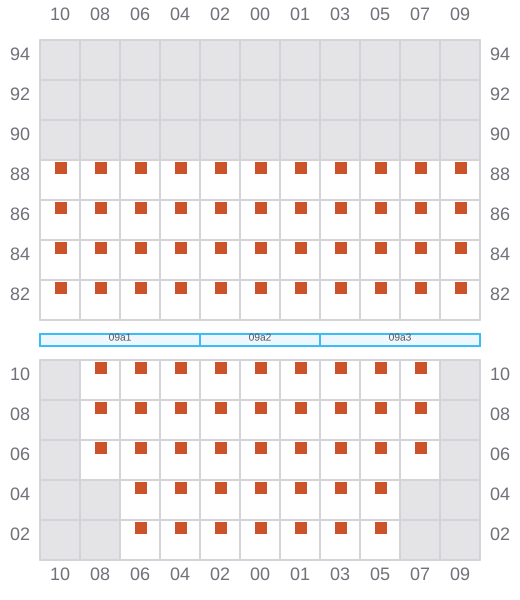

009
- →
![Bay 009 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b009.png?v=1712949198012)

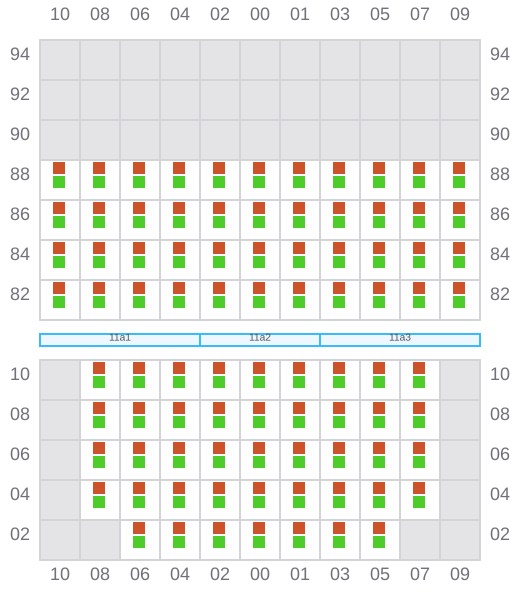

011 (010)
- ←
![Bay 011 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b011.png?v=1712949198012)
013
- →
![Bay 013 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b013.png?v=1712949198012)

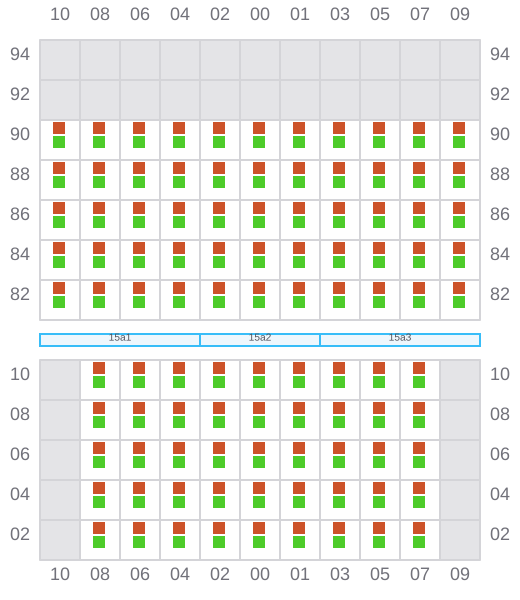

015 (014)
- ←
![Bay 015 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b015.png?v=1712949198012)
017
- →
![Bay 017 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b017.png?v=1712949198012)

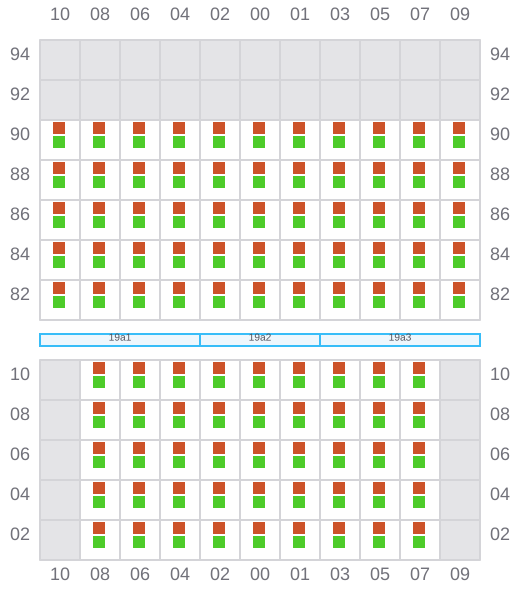

019 (018)
- ←
![Bay 019 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b019.png?v=1712949198012)

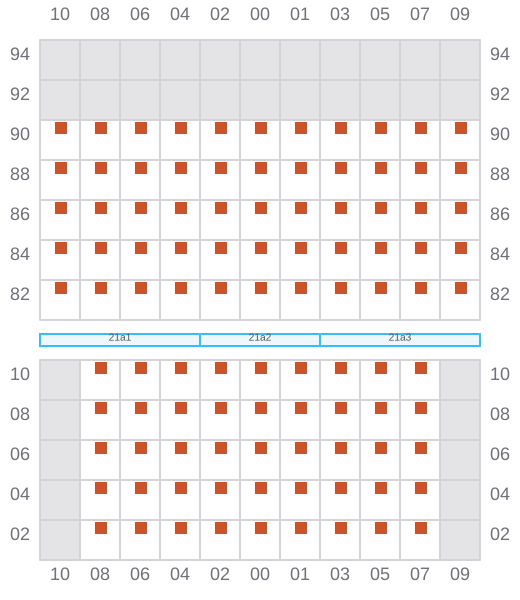

021
- →
![Bay 021 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b021.png?v=1712949198012)
023 (022)
- ←
![Bay 023 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b023.png?v=1712949198012)

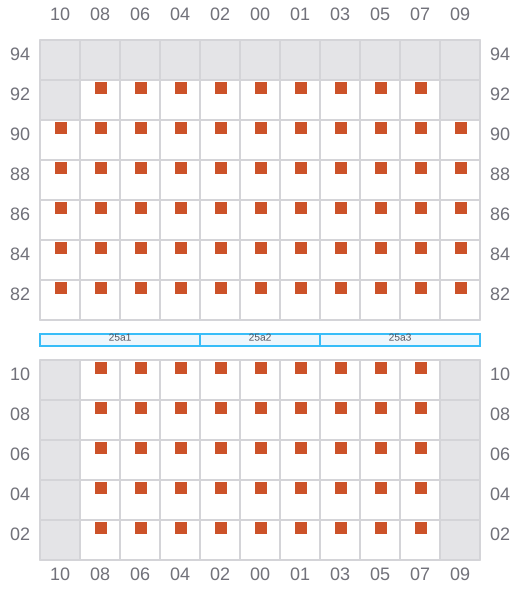

025
- →
![Bay 025 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b025.png?v=1712949198012)

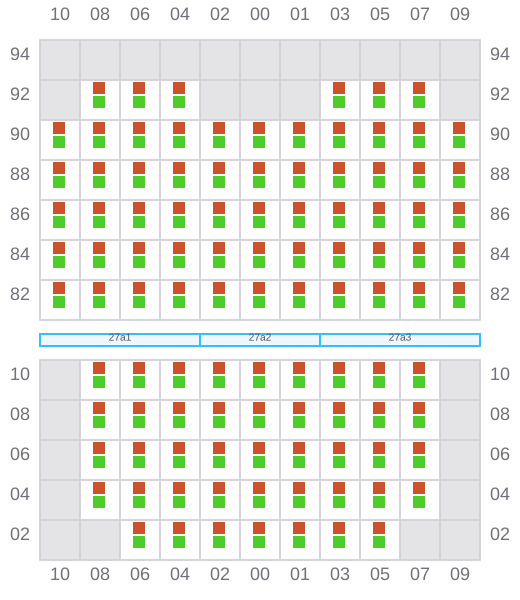

027 (026)
- ←
![Bay 027 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b027.png?v=1712949198012)

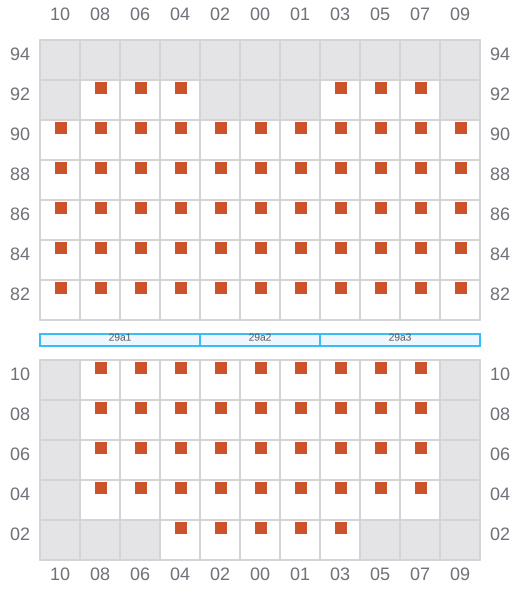

029
- →
![Bay 029 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b029.png?v=1712949198012)

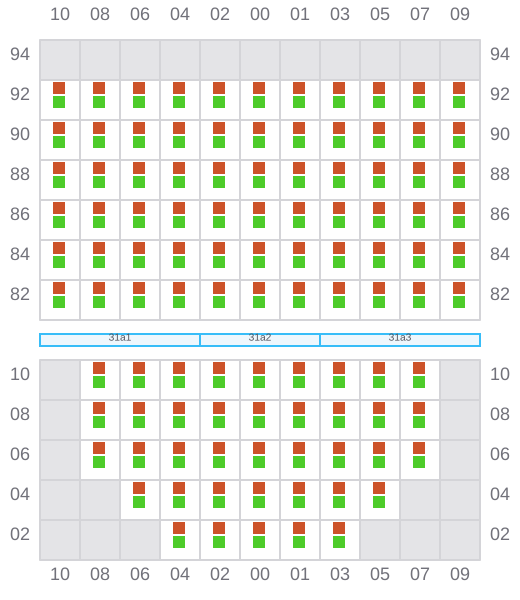

031 (030)
- ←
![Bay 031 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b031.png?v=1712949198012)

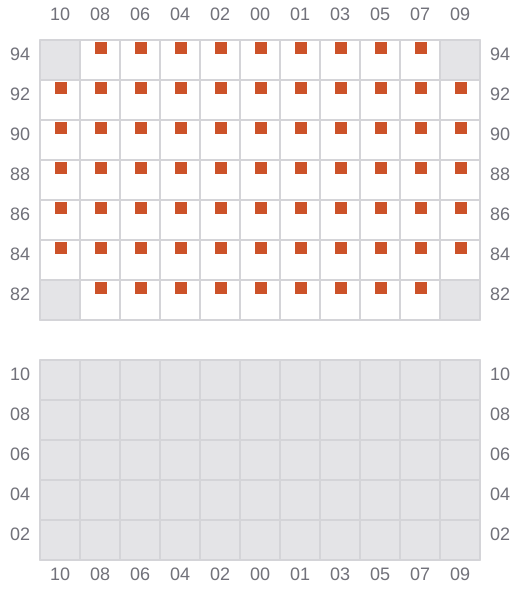

033
- → / ?
![Bay 033 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b033.png?v=1712949198012)

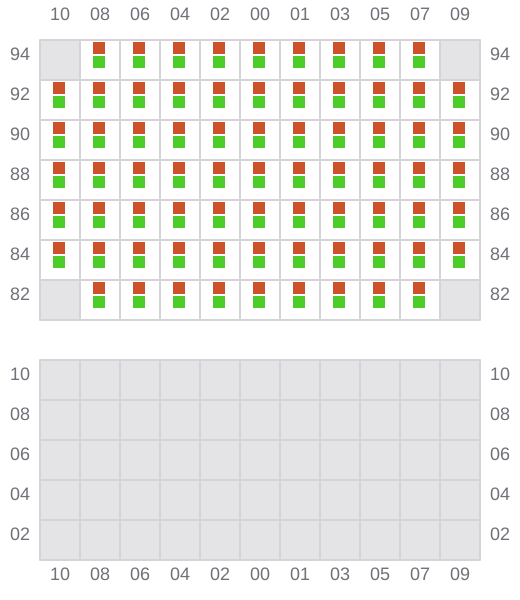

035 (034)
- ← / ?
![Bay 035 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b035.png?v=1712949198012)

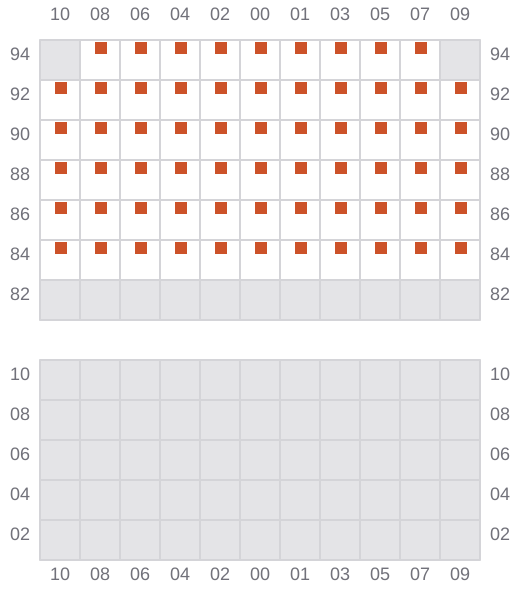

037
- → / ?
![Bay 037 view and slots of FLORA DELMAS](/vessel-images/80086b30-76e9-4fce-b08b-ea12696fa437-b037.png?v=1712949198012)
