FORT DESAIX
9400174 | 9HA5478 | MSK by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:FORT DESAIX
IMO Code:9400174
Call Sign:9HA5478
Line Operator:MSK
Class Name for Sister Ships:FDX
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):256.50
LOA (Length Overall):268.80
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:059
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,178
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

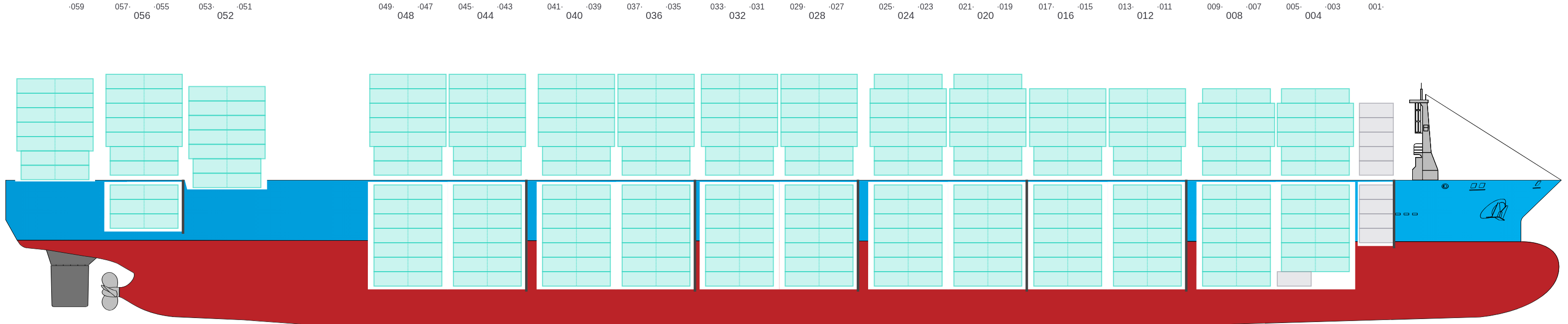

Side View
![Side view of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-sideView.png?v=1687480483880)

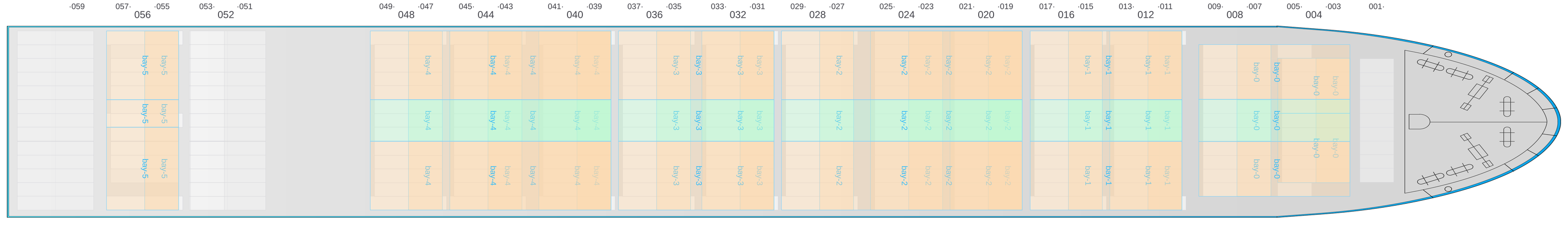

Hatch-Covers View
![Deck view of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-deckView.png?v=1687480483880)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

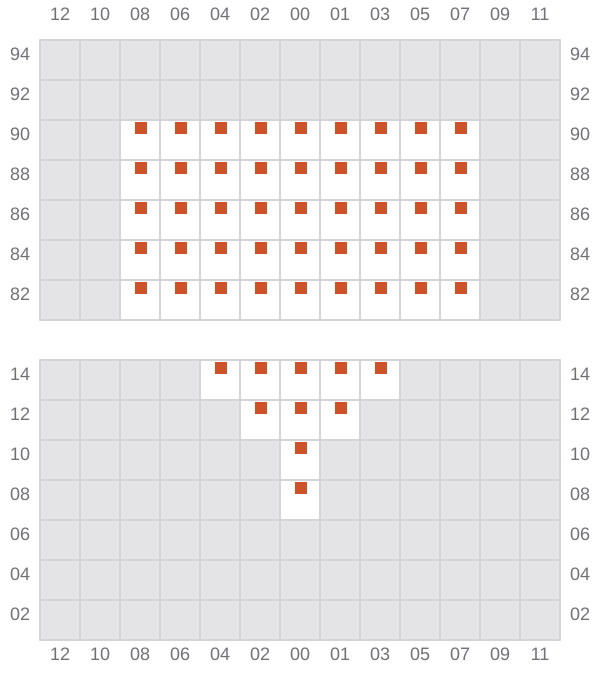

001
- ←
![Bay 001 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b001.png?v=1687480483880)

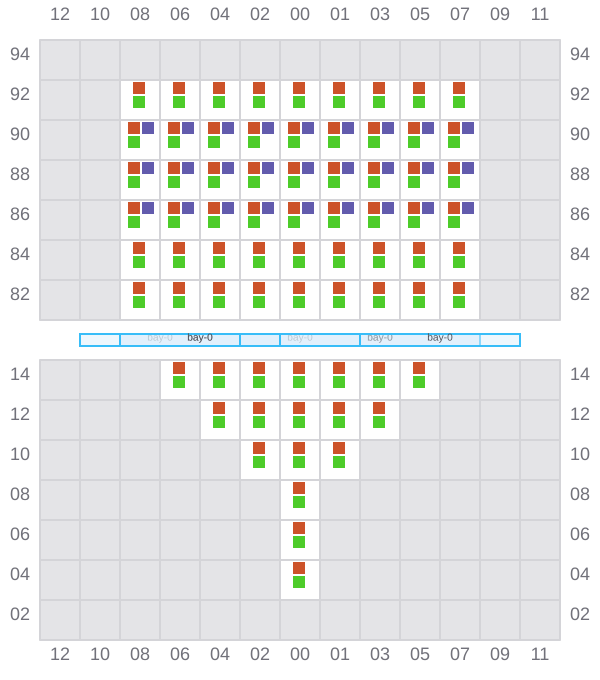

003 (004)
- →
![Bay 003 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b003.png?v=1687480483880)

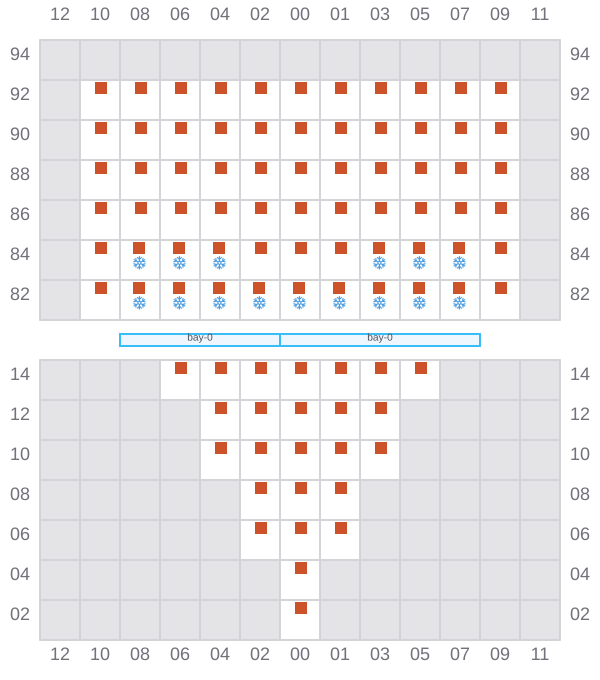

005
- ←
- → / ?
![Bay 005 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b005.png?v=1687480483880)

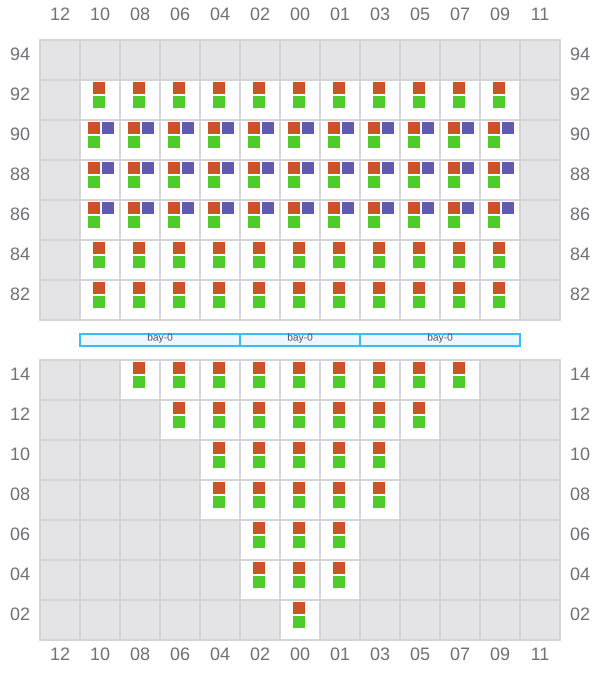

007 (008)
- →
![Bay 007 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b007.png?v=1687480483880)

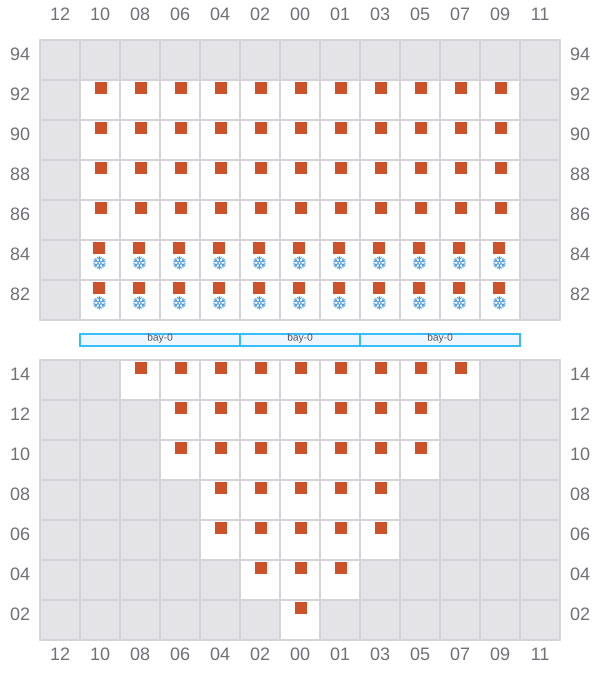

009
- ←
- → / ?
![Bay 009 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b009.png?v=1687480483880)

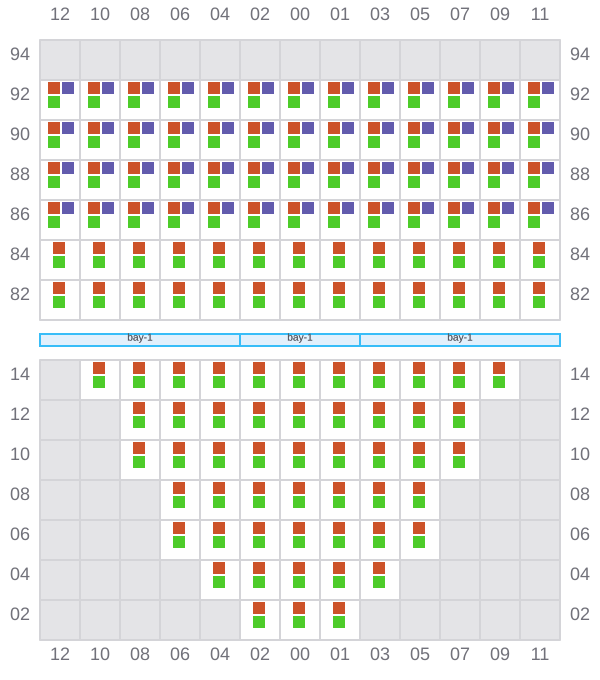

011 (012)
- →
![Bay 011 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b011.png?v=1687480483880)

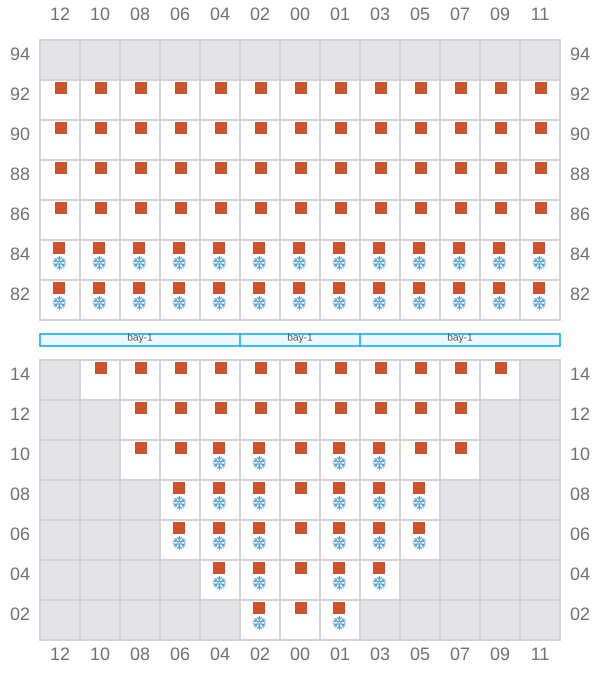

013
- ←
- →
![Bay 013 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b013.png?v=1687480483880)

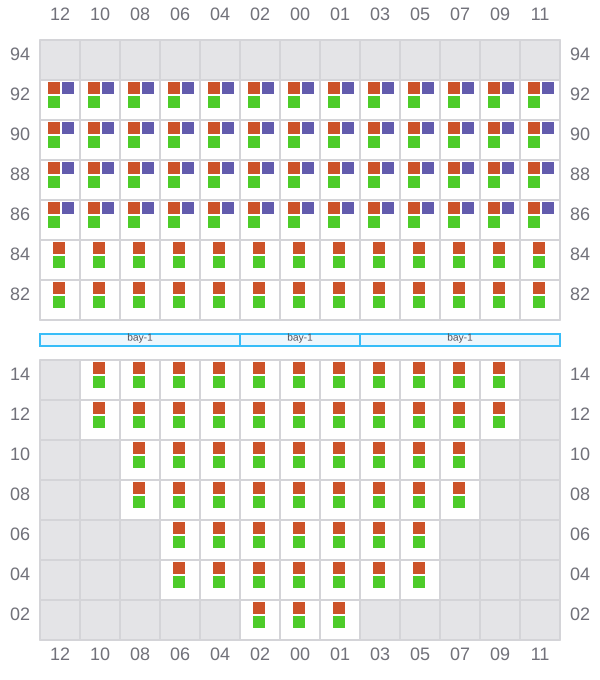

015 (016)
- →
![Bay 015 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b015.png?v=1687480483880)

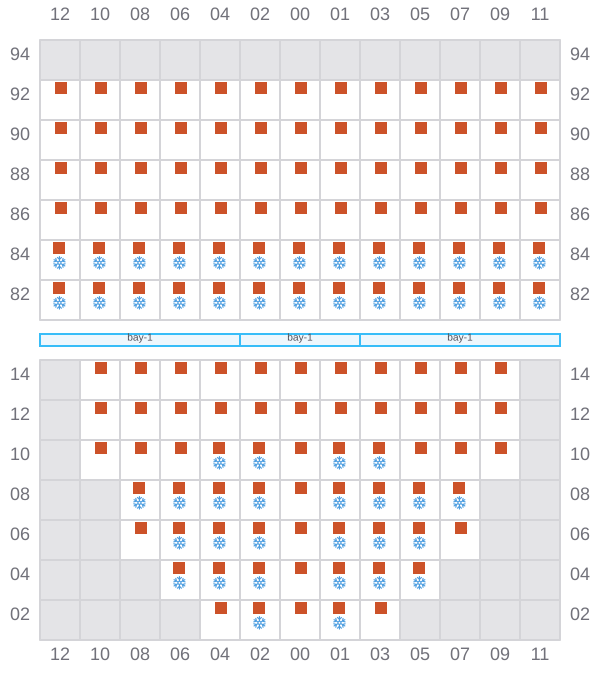

017
- ←
- →
![Bay 017 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b017.png?v=1687480483880)

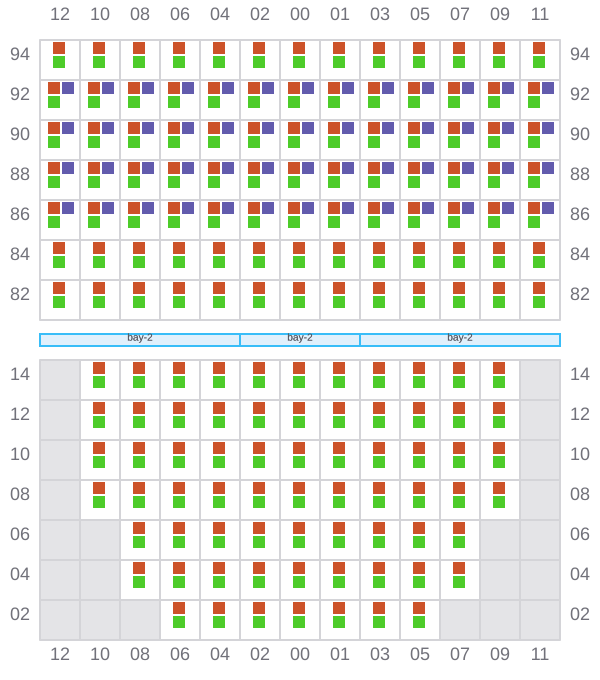

019 (020)
- →
![Bay 019 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b019.png?v=1687480483880)

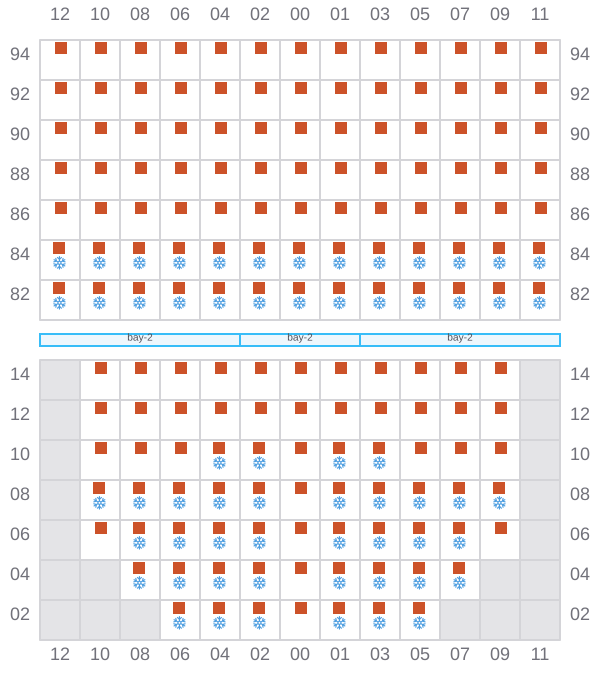

021
- ←
- →
![Bay 021 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b021.png?v=1687480483880)

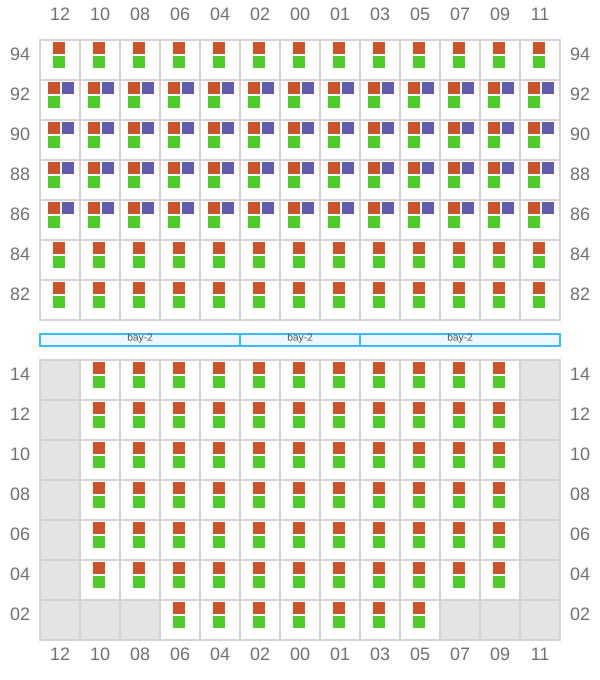

023 (024)
- →
![Bay 023 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b023.png?v=1687480483880)
025
- ←
- →
![Bay 025 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b025.png?v=1687480483880)

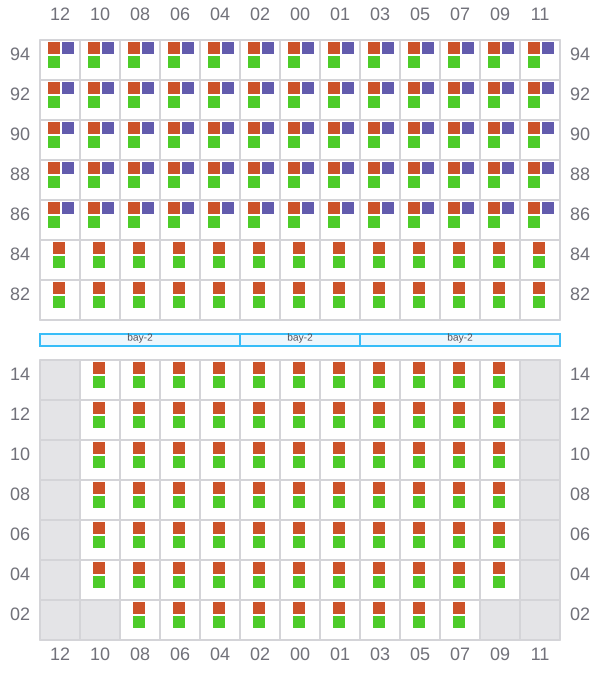

027 (028)
- →
![Bay 027 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b027.png?v=1687480483880)
029
- ←
- →
![Bay 029 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b029.png?v=1687480483880)

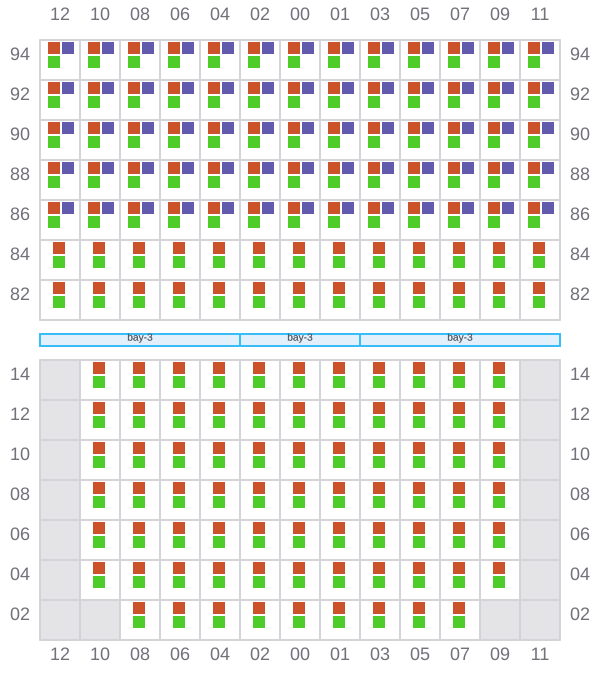

031 (032)
- →
![Bay 031 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b031.png?v=1687480483880)
033
- ←
- →
![Bay 033 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b033.png?v=1687480483880)
035 (036)
- →
![Bay 035 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b035.png?v=1687480483880)
037
- ←
- →
![Bay 037 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b037.png?v=1687480483880)

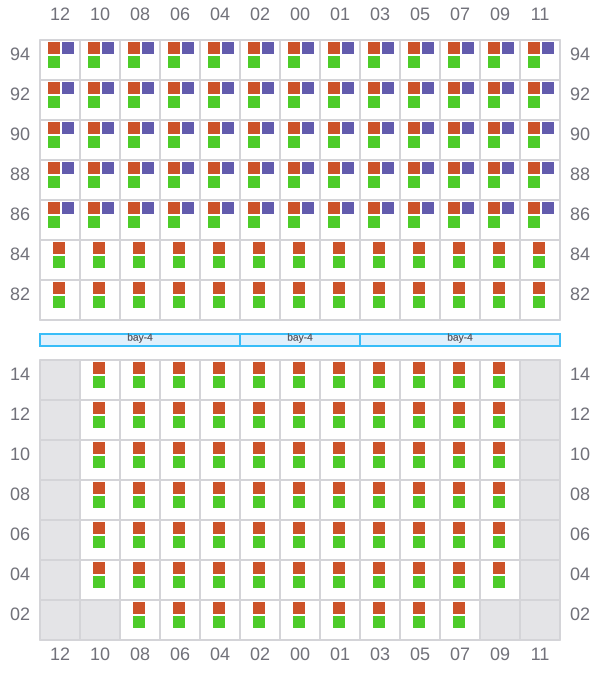

039 (040)
- →
![Bay 039 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b039.png?v=1687480483880)

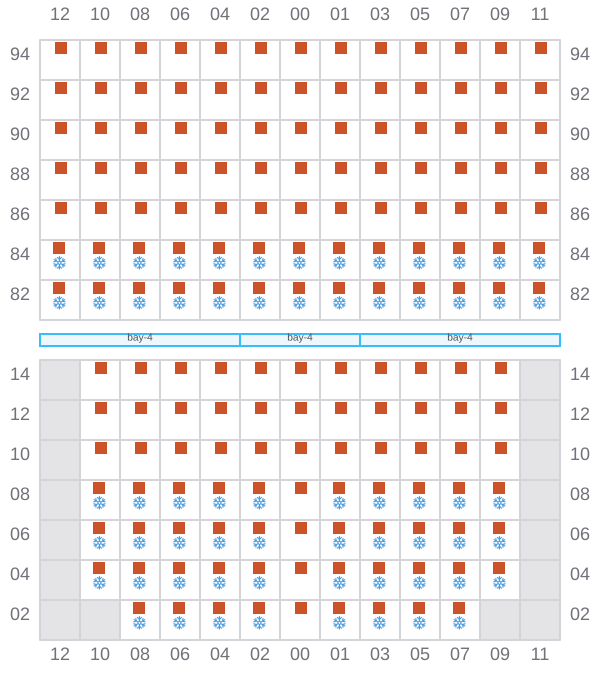

041
- ←
- →
![Bay 041 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b041.png?v=1687480483880)

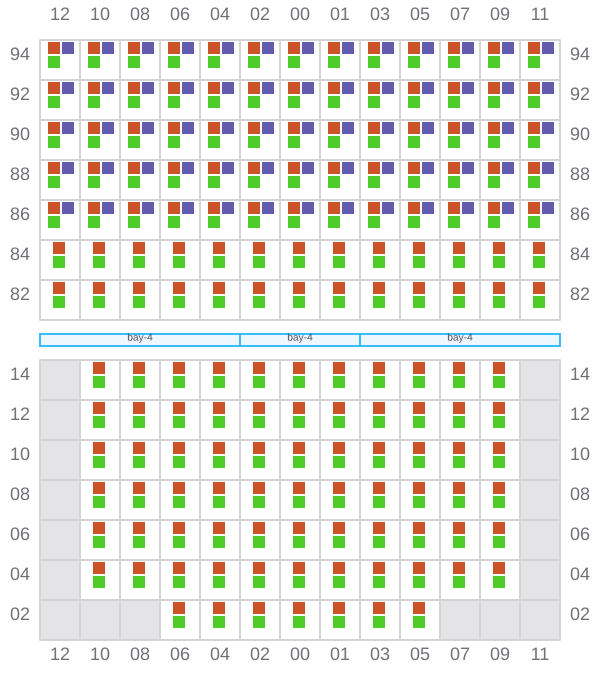

043 (044)
- →
![Bay 043 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b043.png?v=1687480483880)

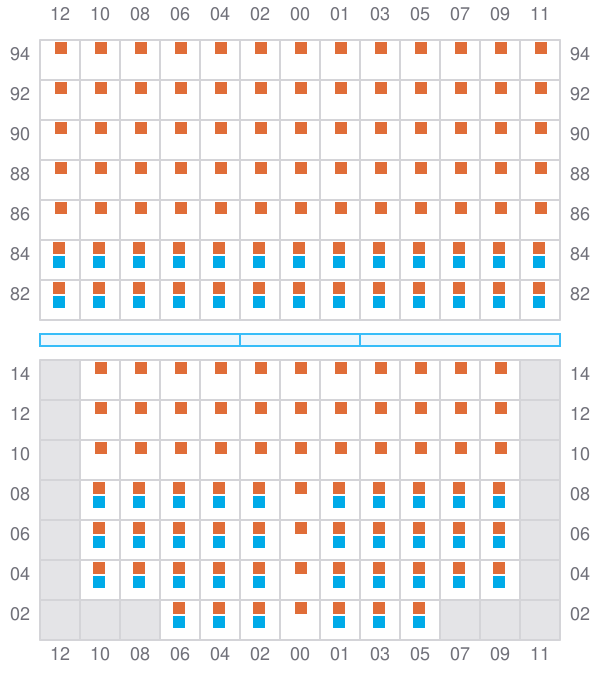

045
- ←
- →
![Bay 045 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b045.png?v=1687480483880)

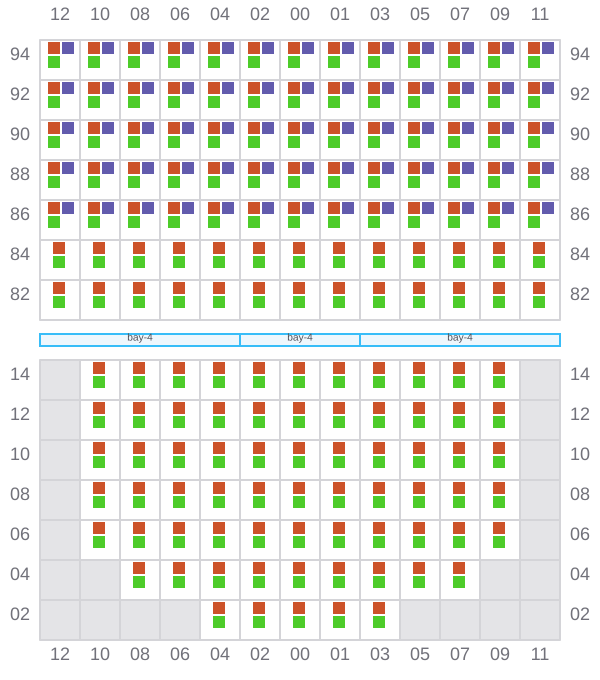

047 (048)
- →
![Bay 047 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b047.png?v=1687480483880)

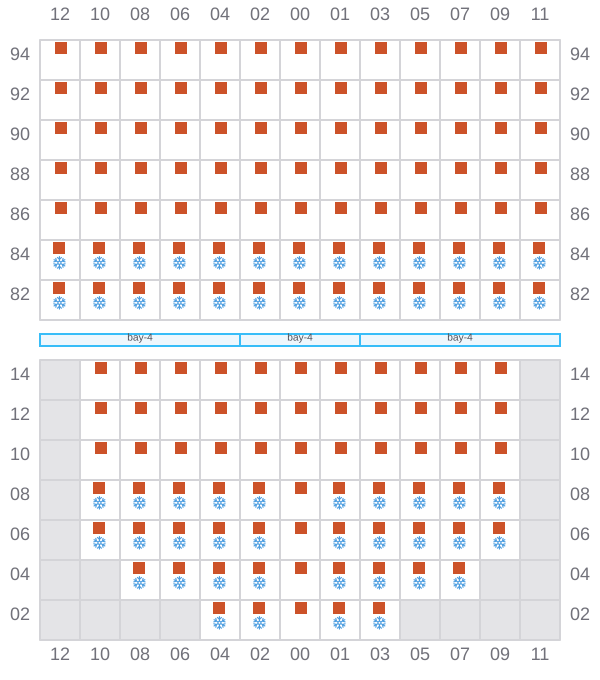

049
- ←
- →
![Bay 049 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b049.png?v=1687480483880)

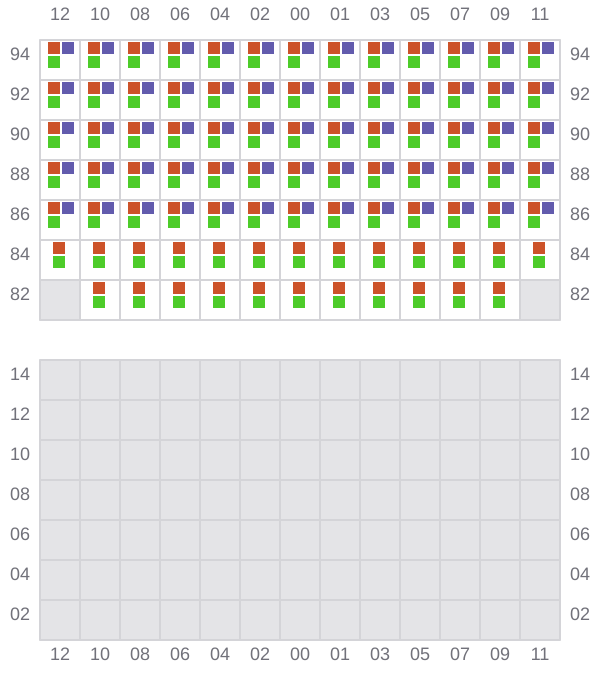

051 (052)
- → / ?
![Bay 051 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b051.png?v=1687480483880)

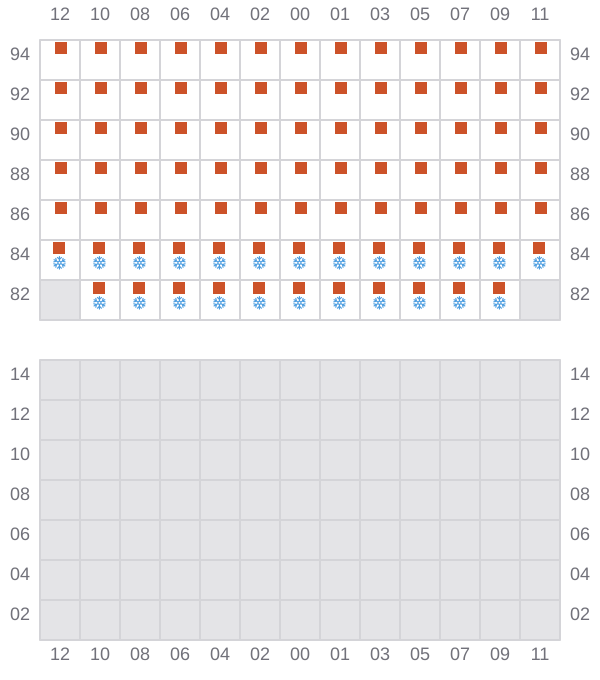

053
- ← / ?
- → / ?
![Bay 053 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b053.png?v=1687480483880)

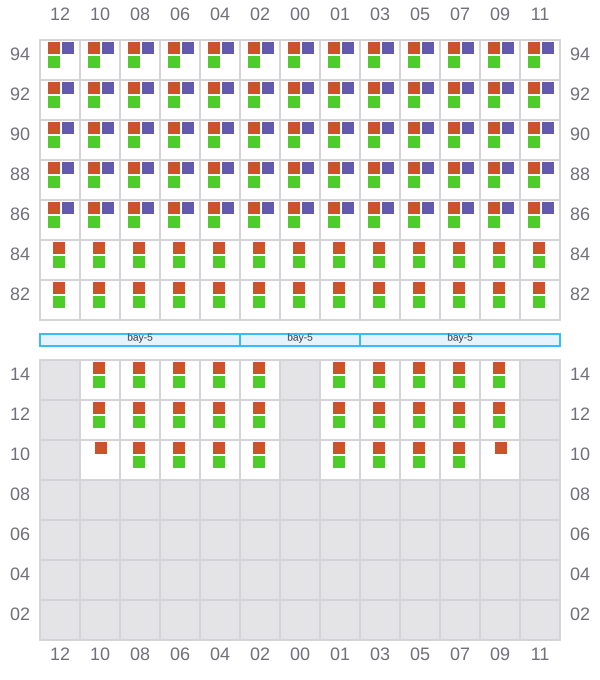

055 (056)
- →
![Bay 055 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b055.png?v=1687480483880)

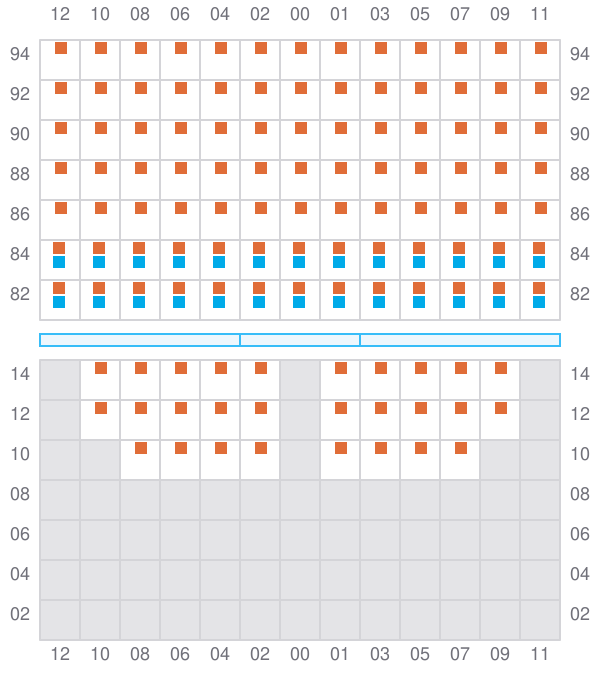

057
- ←
- → / ?
![Bay 057 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b057.png?v=1687480483880)

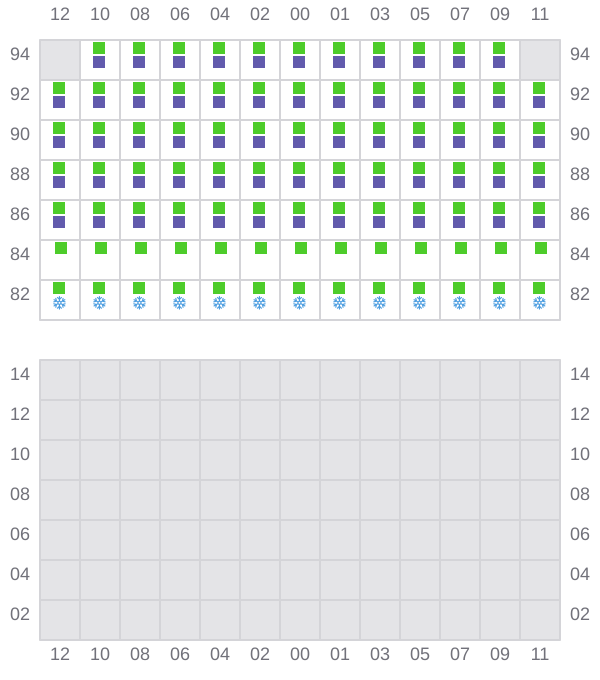

059 (060)
- → / ?
- → / ?
![Bay 059 view and slots of FORT DESAIX](/vessel-images/691fb746-822d-48de-a95e-93c222611694-b059.png?v=1687480483880)
