FORTUNE I
9336323 | T7BJ2 | GARDA MARITIME CORP by *** Last update: Fri Aug 08 2025
General Info
Ship Name:FORTUNE I
IMO Code:9336323
Call Sign:T7BJ2
Line Operator:GARDA MARITIME CORP
Class Name for Sister Ships:ADAM FORTUNE
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):115.74
LOA (Length Overall):124.80
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:027
Max ISO Row:07
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:614
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

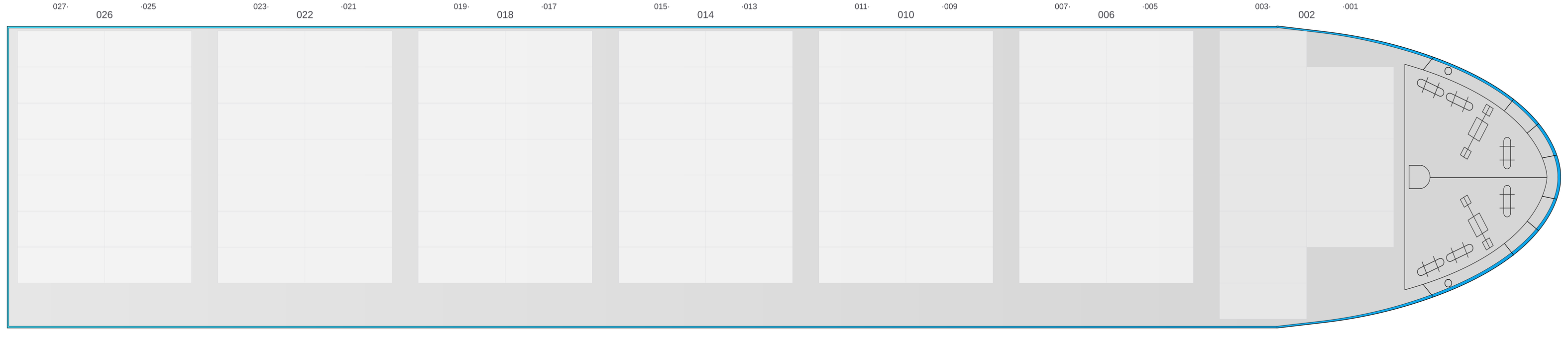

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

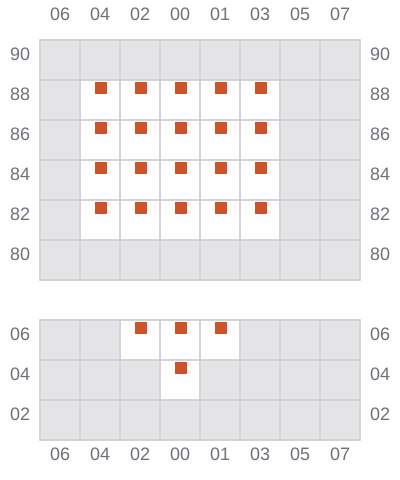

001
- →
- ✓

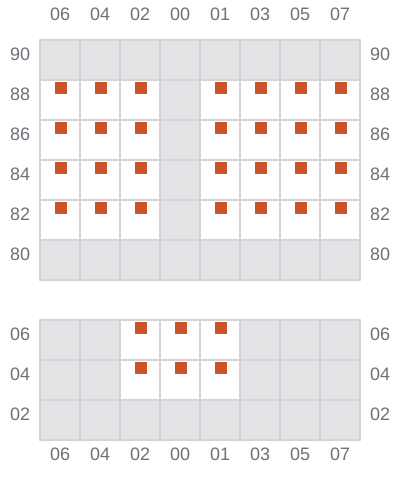

003
- ←
- ✓
005 (006)
- →
- ✓

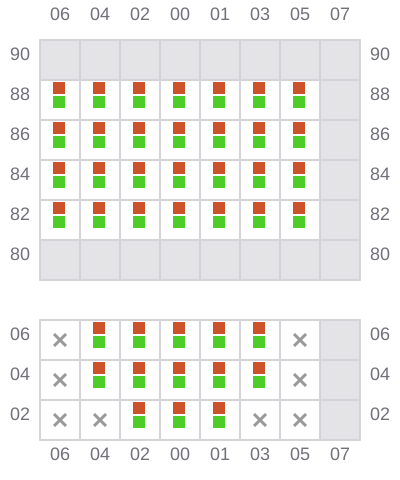

007 (006)
- ←
- ✓
009 (010)
- →
- ✓

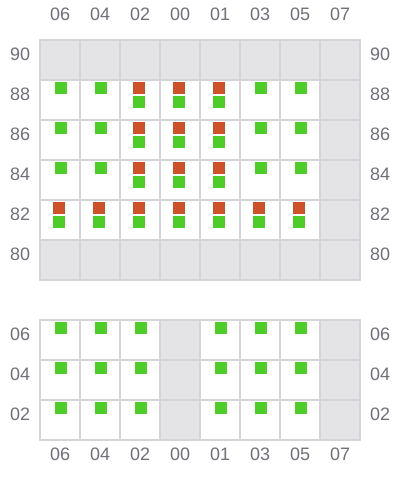

011 (010)
- ←
- ✓
013 (014)
- →
- ✓

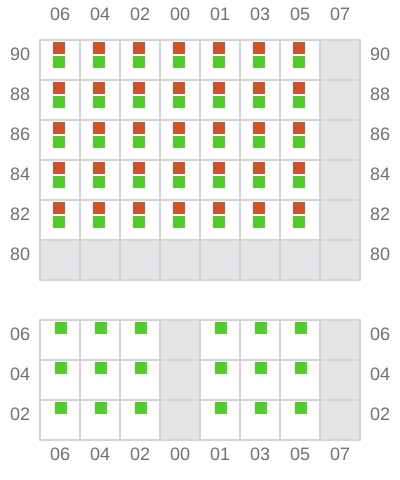

015 (014)
- ←
- ✓
017 (018)
- →
- ✓
019 (018)
- ←
- ✓

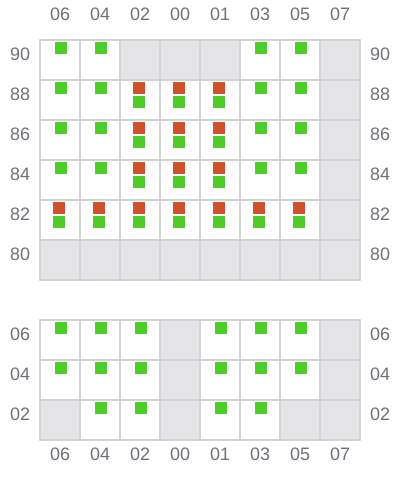

021 (022)
- →
- ✓

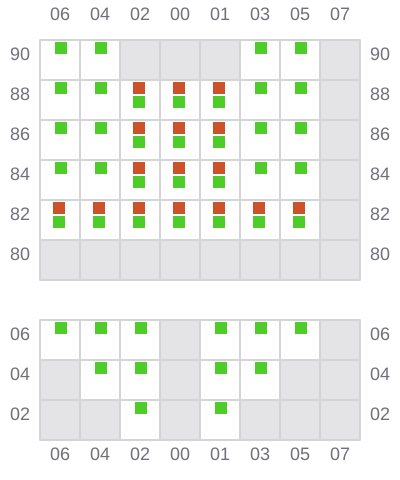

023 (022)
- ←
- ✓

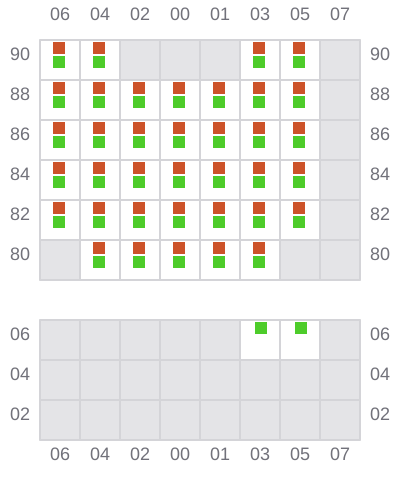

025 (026)
- →
- ✓
027 (026)
- ←
- ✓
