FOS EXPRESS
9348699 | A8PX5 | MSC by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:FOS EXPRESS
IMO Code:9348699
Call Sign:A8PX5
Line Operator:MSC
Class Name for Sister Ships:DHA
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,089
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-sideView.png?v=1687543299686)
Hatch-Covers View
![Deck view of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-deckView.png?v=1687543299686)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

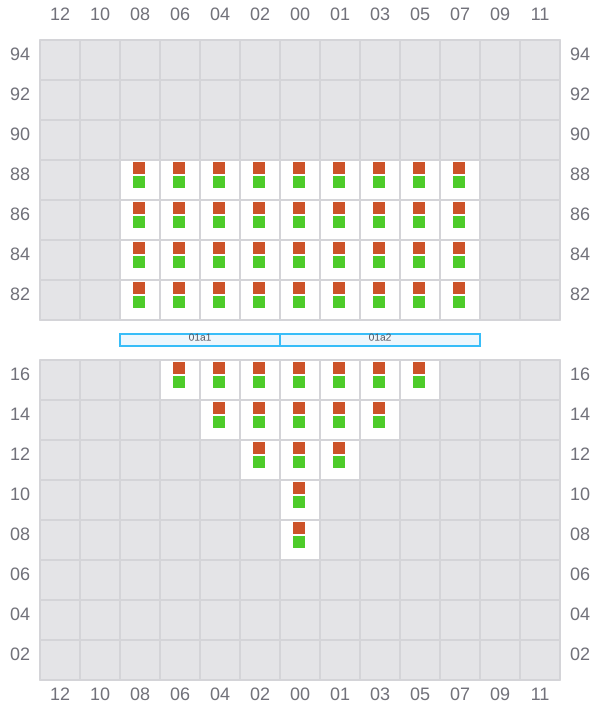

001 (002)
- →
![Bay 001 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b001.png?v=1687543299686)

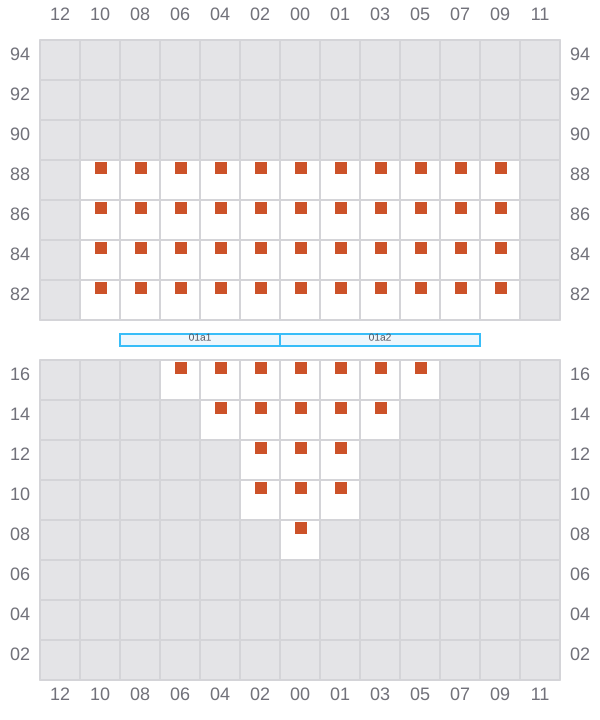

003
- ←
![Bay 003 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b003.png?v=1687543299686)

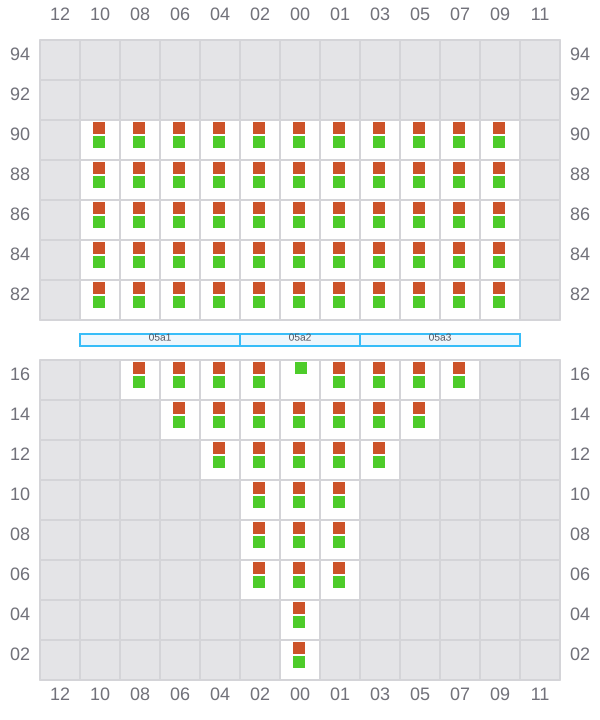

005 (006)
- →
![Bay 005 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b005.png?v=1687543299686)
007
- ←
![Bay 007 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b007.png?v=1687543299686)

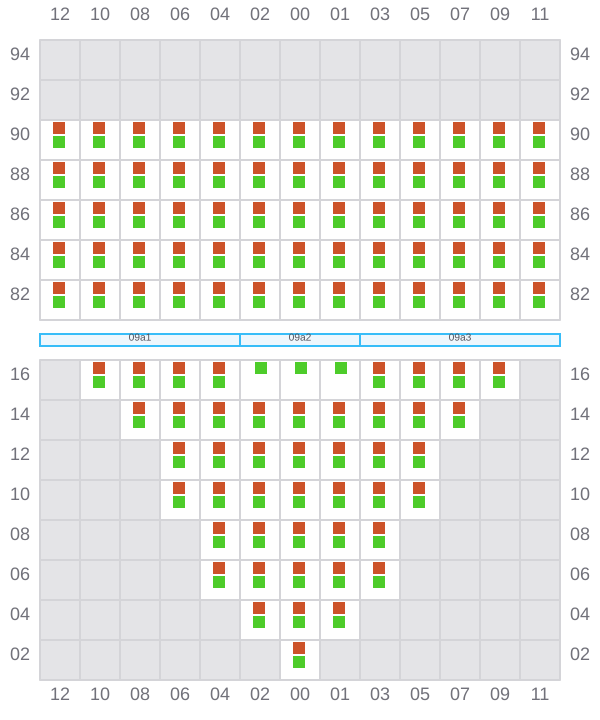

009 (010)
- →
![Bay 009 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b009.png?v=1687543299686)

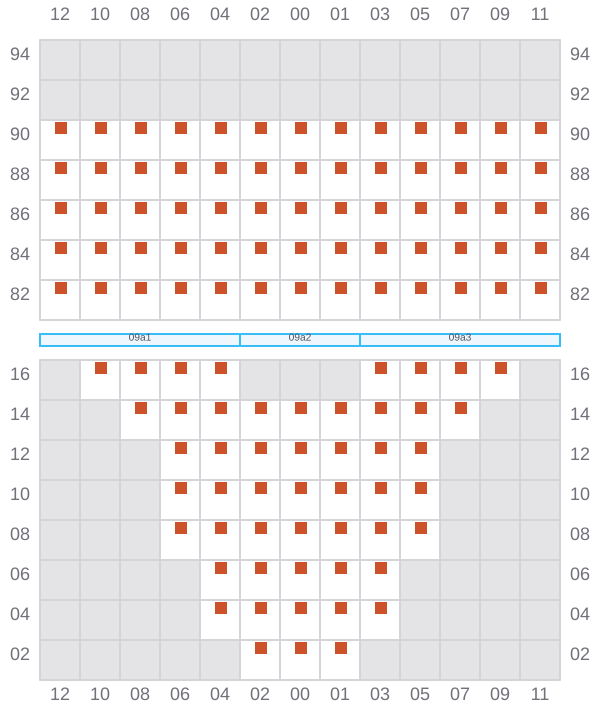

011
- ←
![Bay 011 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b011.png?v=1687543299686)

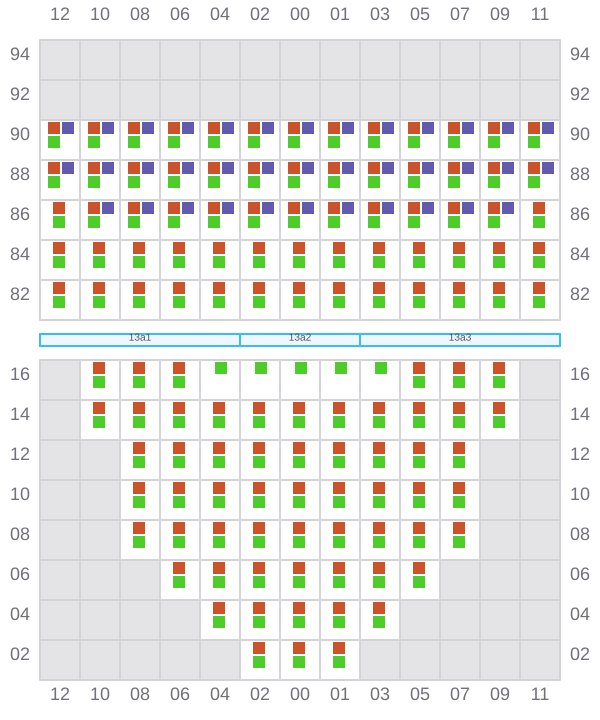

013 (014)
- →
![Bay 013 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b013.png?v=1687543299686)

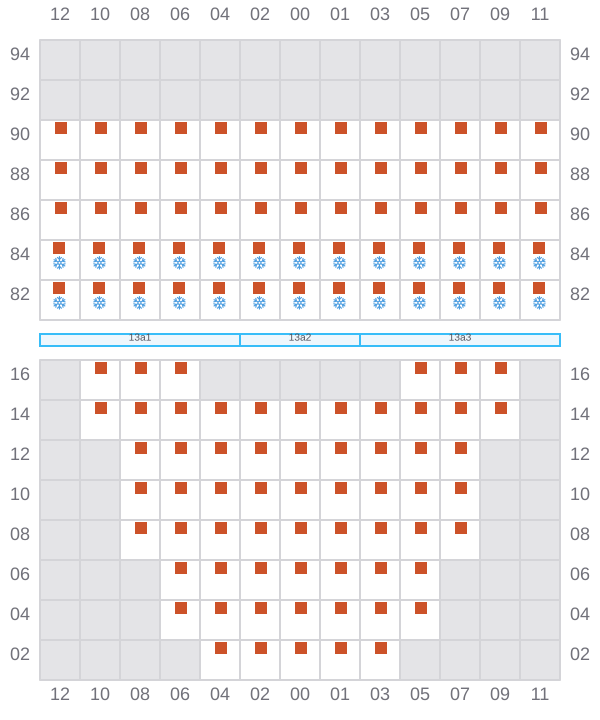

015
- ←
- → / ?
![Bay 015 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b015.png?v=1687543299686)

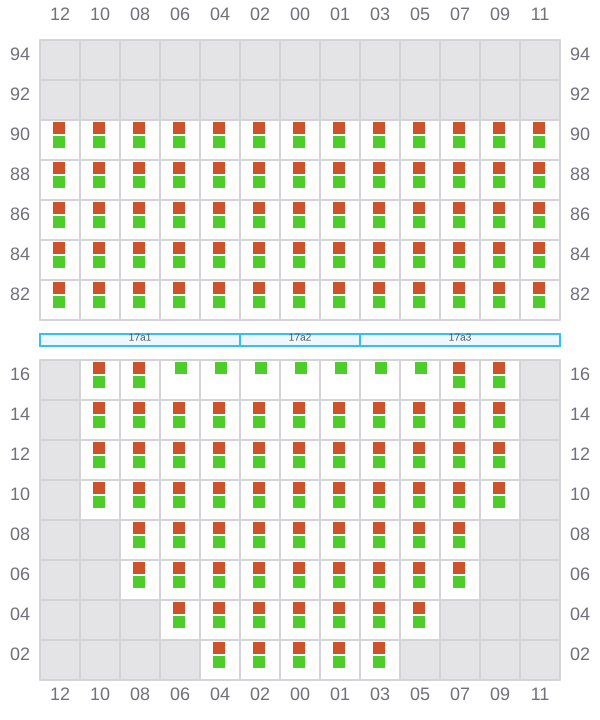

017 (018)
- →
- →
![Bay 017 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b017.png?v=1687543299686)

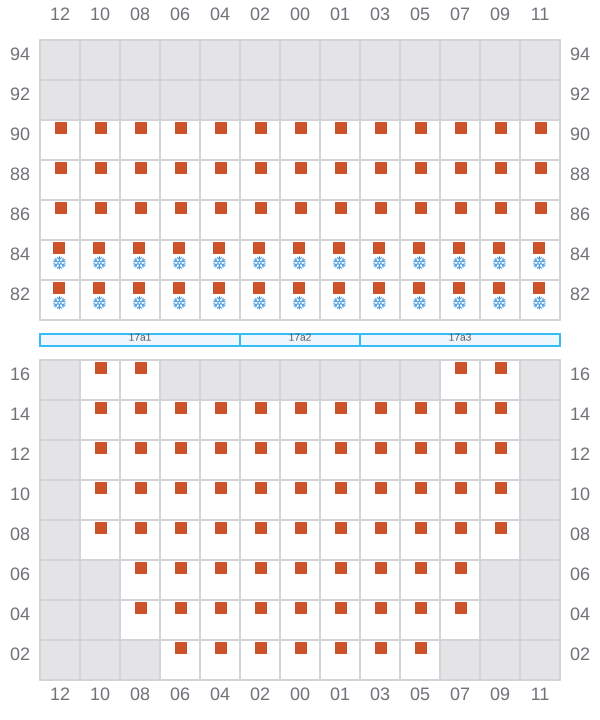

019
- ←
- → / ?
![Bay 019 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b019.png?v=1687543299686)

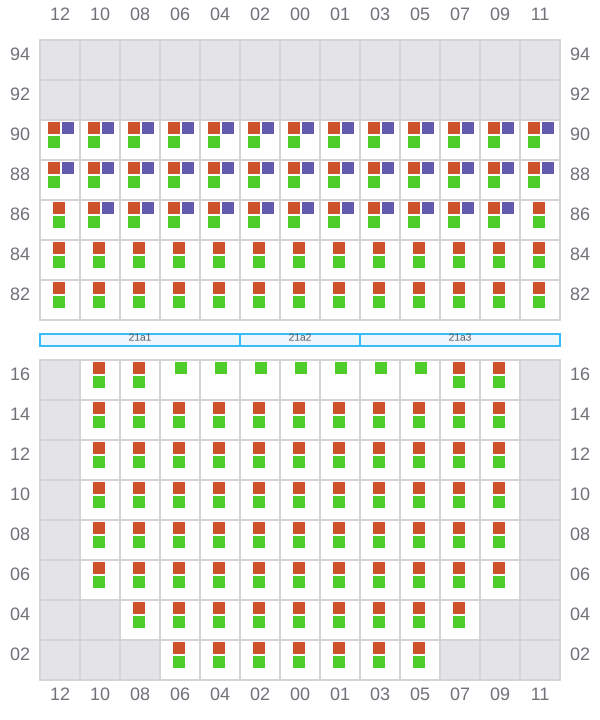

021 (022)
- →
- → / ?
![Bay 021 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b021.png?v=1687543299686)
023
- ←
- → / ?
![Bay 023 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b023.png?v=1687543299686)
025 (026)
- →
- →
![Bay 025 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b025.png?v=1687543299686)
027
- ←
- → / ?
![Bay 027 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b027.png?v=1687543299686)

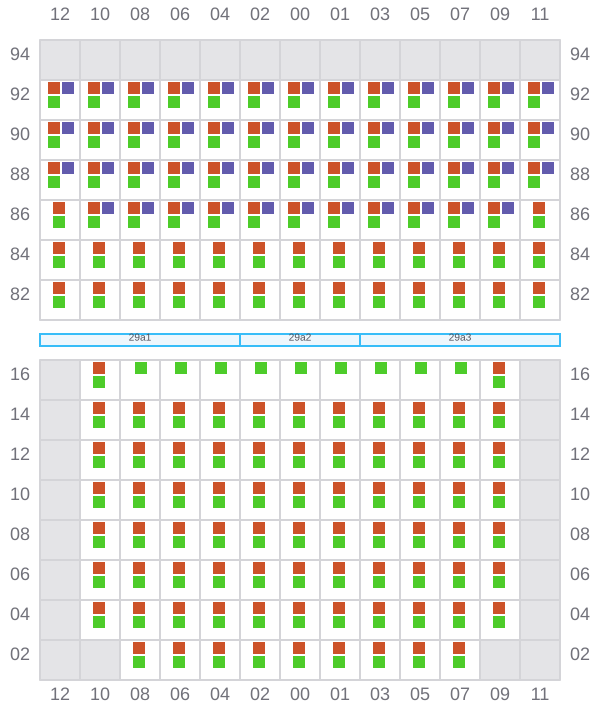

029 (030)
- →
- → / ?
![Bay 029 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b029.png?v=1687543299686)

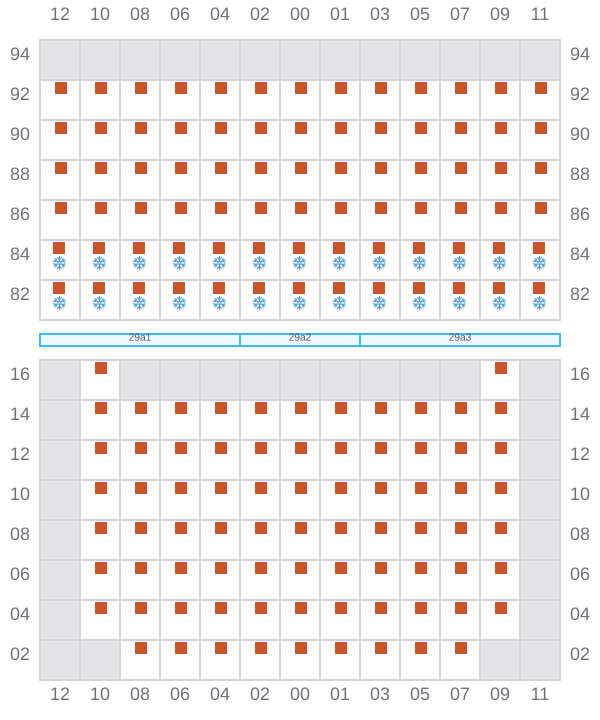

031
- ←
- → / ?
![Bay 031 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b031.png?v=1687543299686)

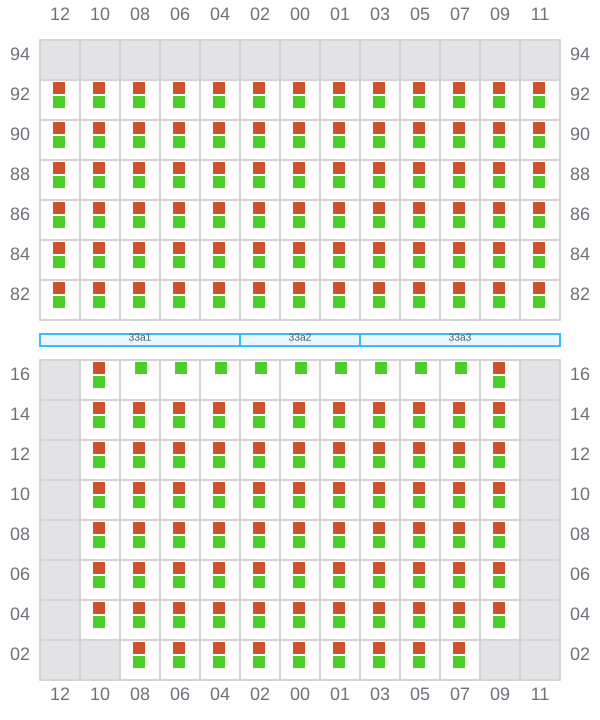

033 (034)
- →
- →
![Bay 033 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b033.png?v=1687543299686)
035
- ←
- → / ?
![Bay 035 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b035.png?v=1687543299686)
037 (038)
- →
- → / ?
![Bay 037 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b037.png?v=1687543299686)
039
- ←
- → / ?
![Bay 039 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b039.png?v=1687543299686)

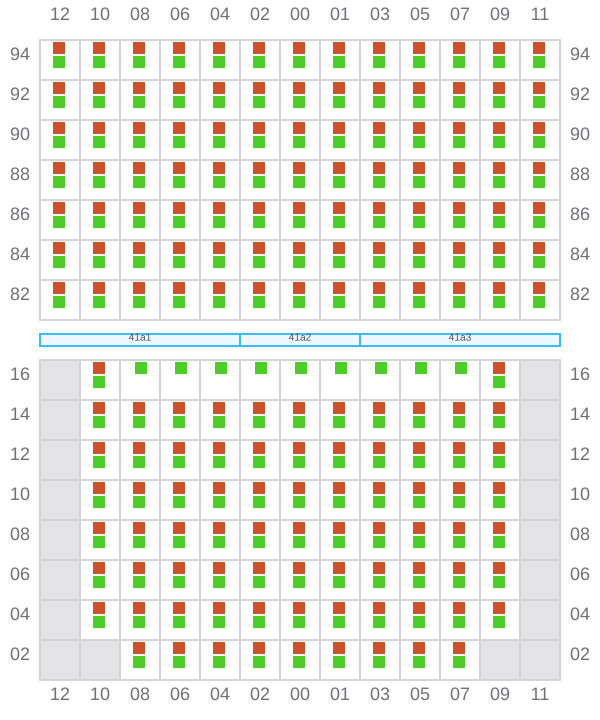

041 (042)
- →
- → / ?
![Bay 041 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b041.png?v=1687543299686)
043
- ←
- →
![Bay 043 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b043.png?v=1687543299686)

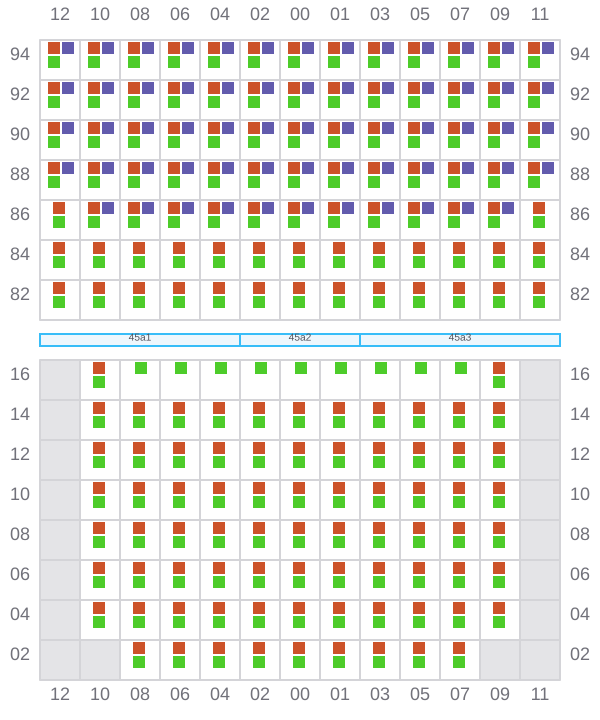

045 (046)
- →
- →
![Bay 045 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b045.png?v=1687543299686)

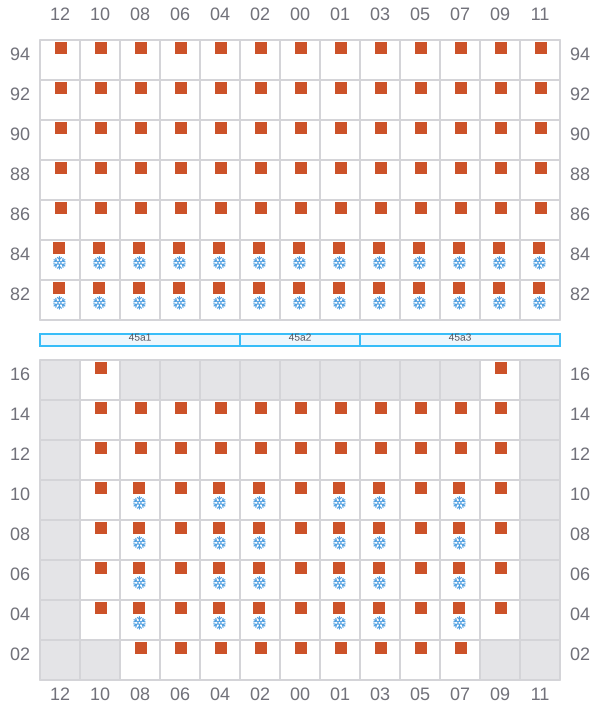

047
- ←
- ? / →
![Bay 047 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b047.png?v=1687543299686)
049 (050)
- →
- → / ?
![Bay 049 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b049.png?v=1687543299686)

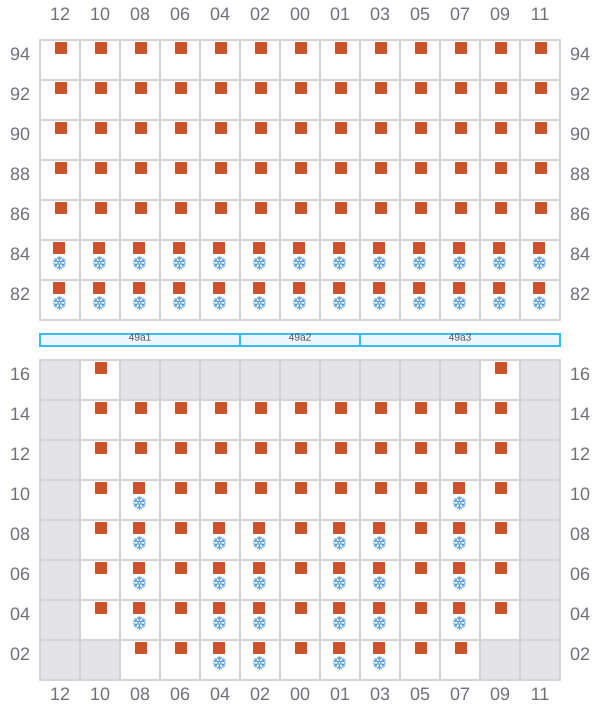

051
- ←
- ? / →
![Bay 051 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b051.png?v=1687543299686)

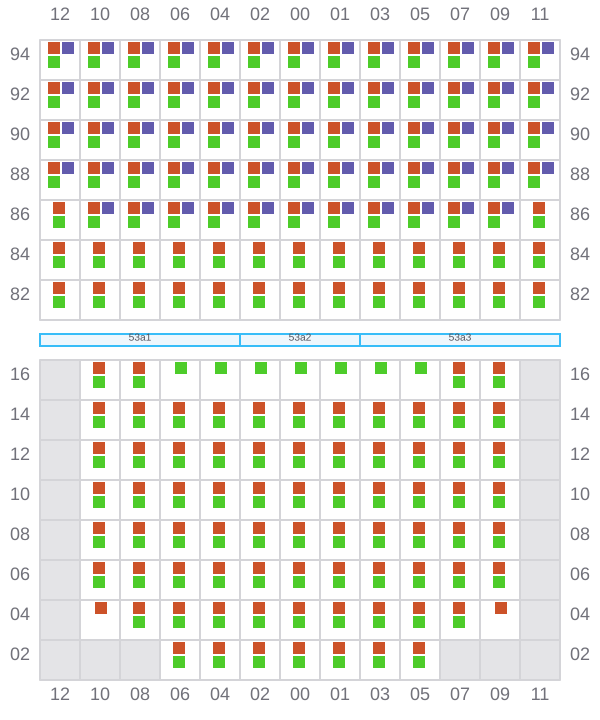

053 (054)
- →
- → / ?
![Bay 053 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b053.png?v=1687543299686)

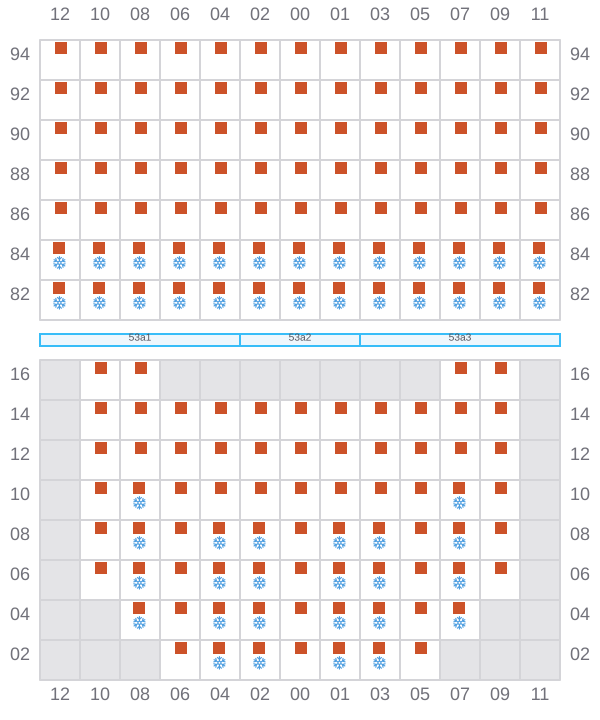

055
- ←
- ? / →
![Bay 055 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b055.png?v=1687543299686)

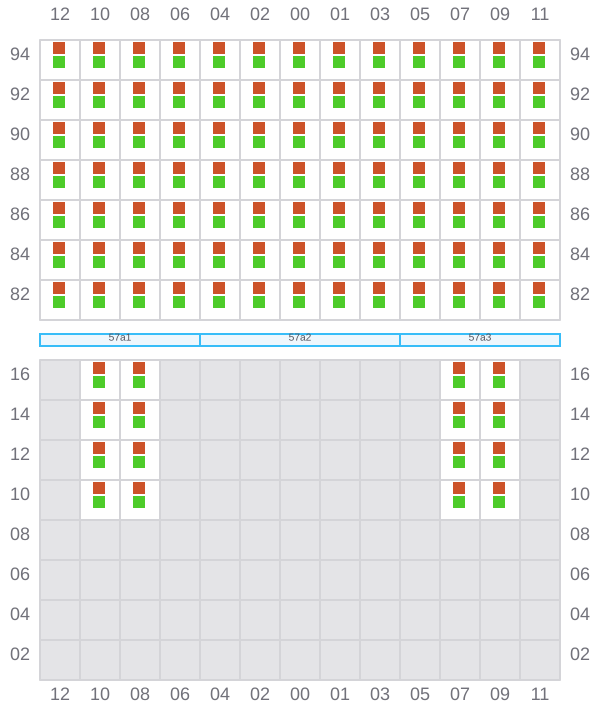

057 (058)
- →
- → / ?
![Bay 057 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b057.png?v=1687543299686)

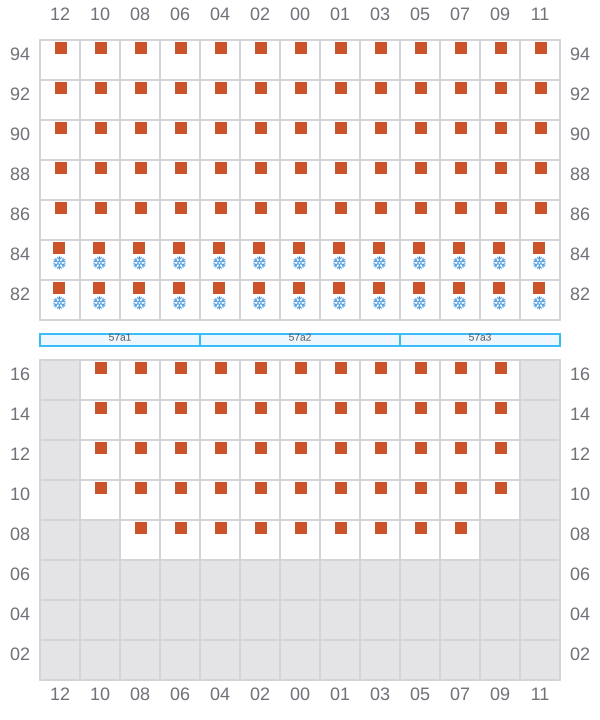

059
- ←
![Bay 059 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b059.png?v=1687543299686)

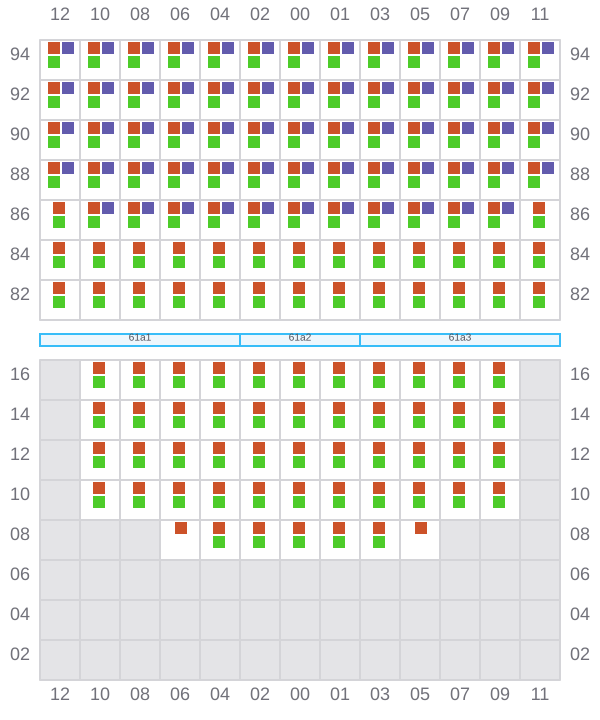

061 (062)
- →
- → / ?
![Bay 061 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b061.png?v=1687543299686)
063
- ←
![Bay 063 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b063.png?v=1687543299686)

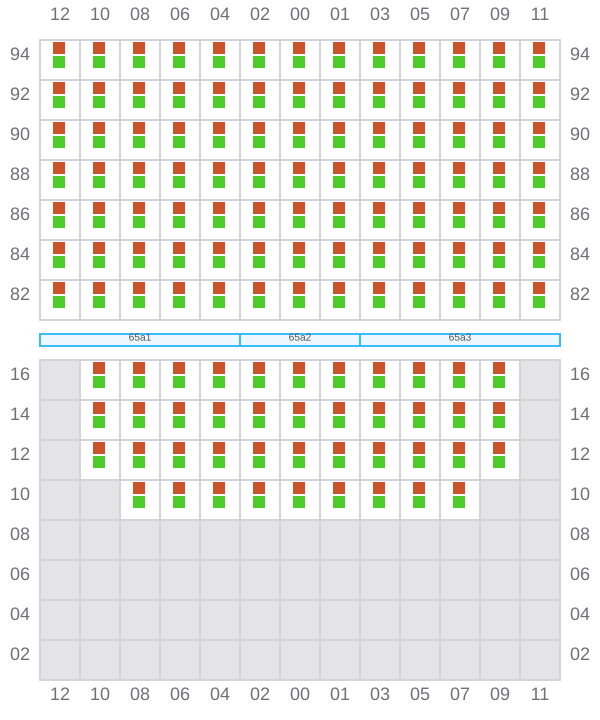

065 (066)
- →
- → / ?
![Bay 065 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b065.png?v=1687543299686)

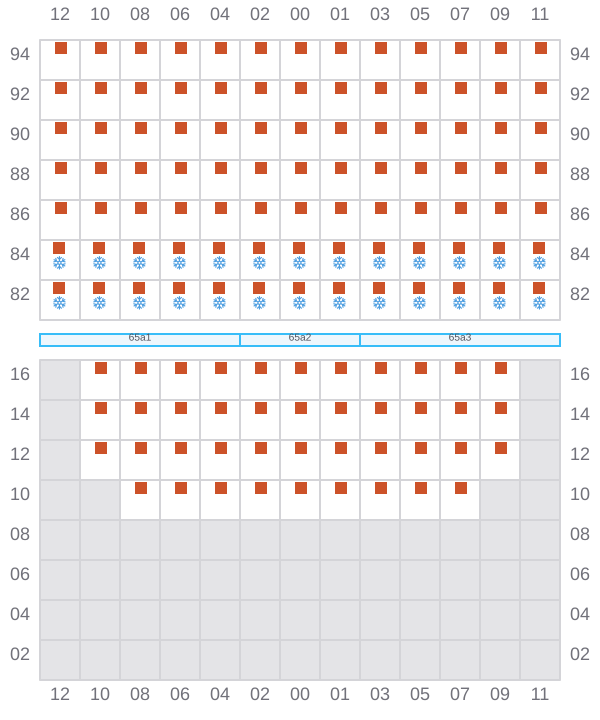

067
- ←
- ← / ?
![Bay 067 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b067.png?v=1687543299686)

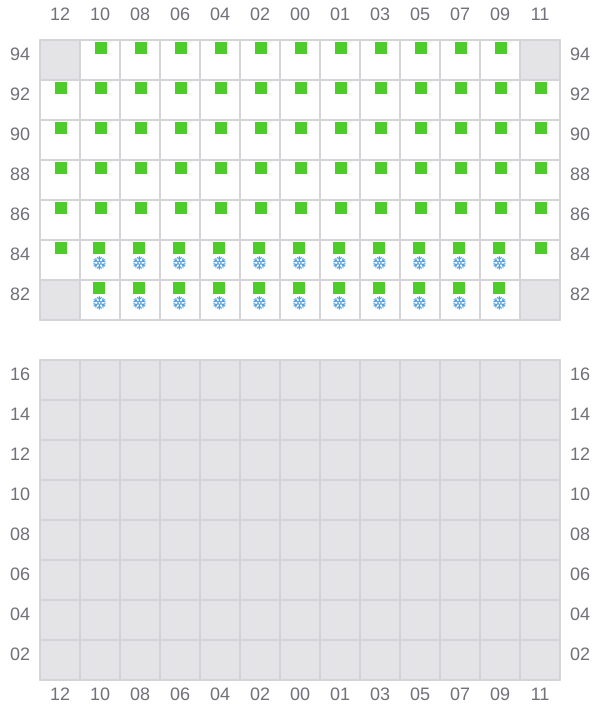

069 (070)
- → / ?
- ← / ?
![Bay 069 view and slots of FOS EXPRESS](/vessel-images/2f20856a-bc61-477a-85e5-3e1beacf9dc9-b069.png?v=1687543299686)
