FOUMA
9395082 | C4WT2 | 9395082 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:FOUMA
IMO Code:9395082
Call Sign:C4WT2
Line Operator:9395082
Class Name for Sister Ships:73A
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,292
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

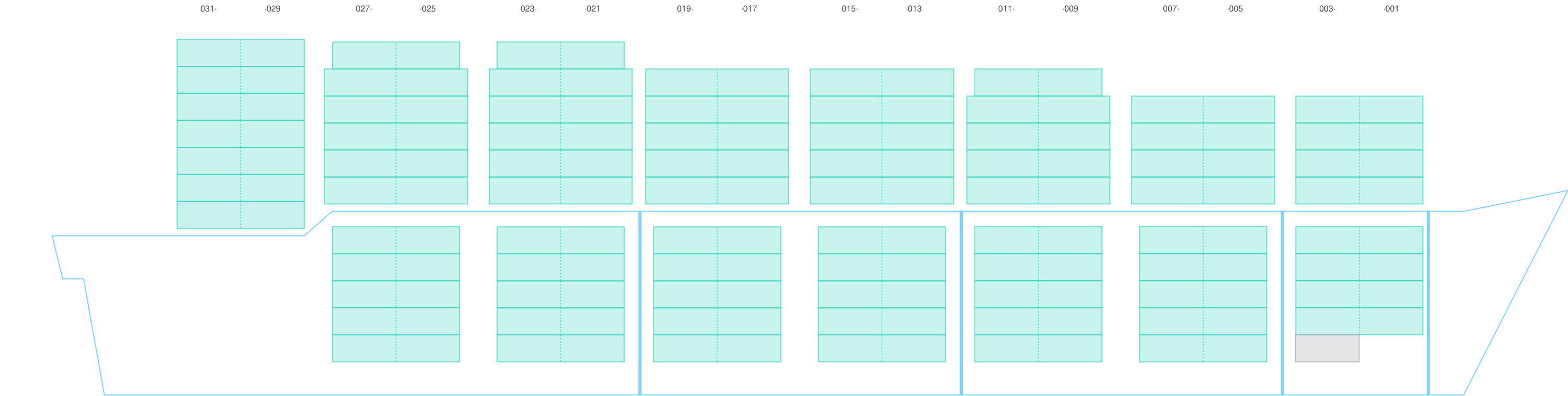

Side View
![Side view of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-sideView.png?v=1711310529424)
Hatch-Covers View
![Deck view of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-deckView.png?v=1711310529424)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

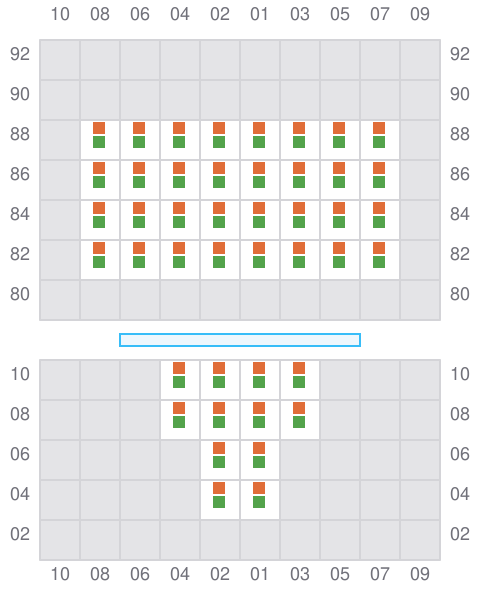

001 (002)
- →
![Bay 001 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b001.png?v=1711310529424)

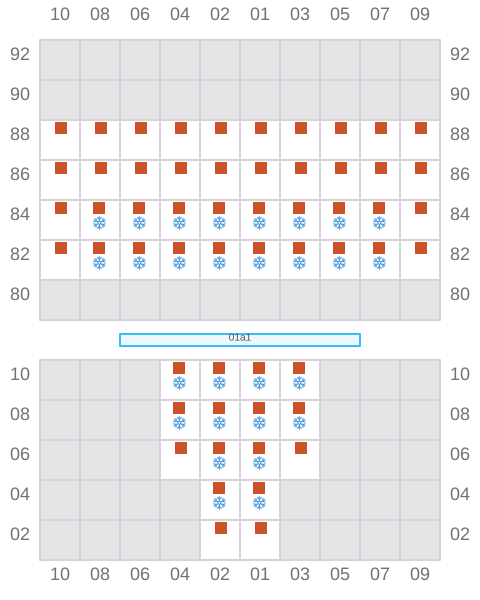

003
- ←
- →
![Bay 003 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b003.png?v=1711310529424)

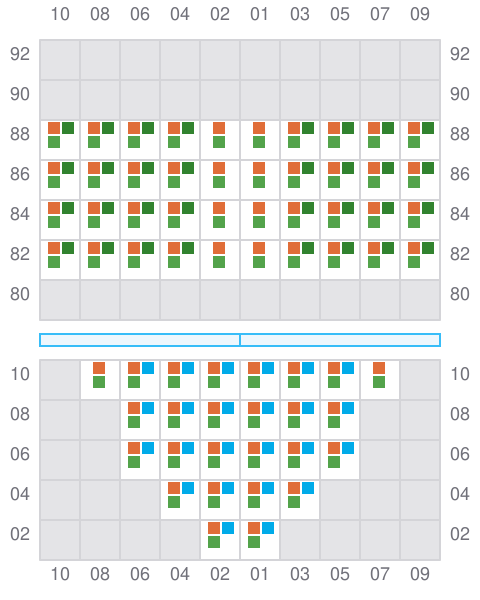

005 (006)
- →
- ? / ←
![Bay 005 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b005.png?v=1711310529424)

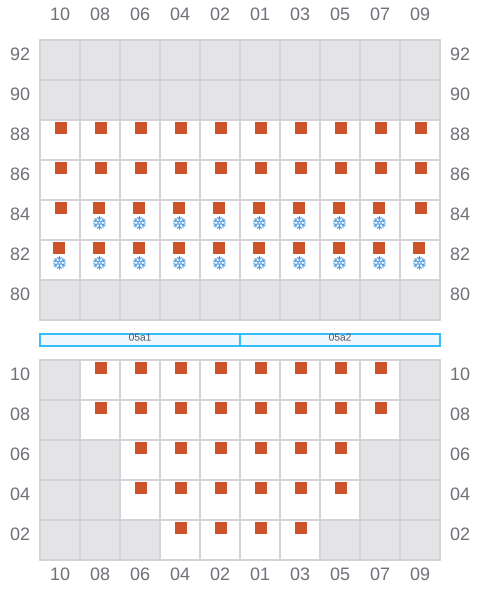

007
- ←
- → / ?
![Bay 007 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b007.png?v=1711310529424)

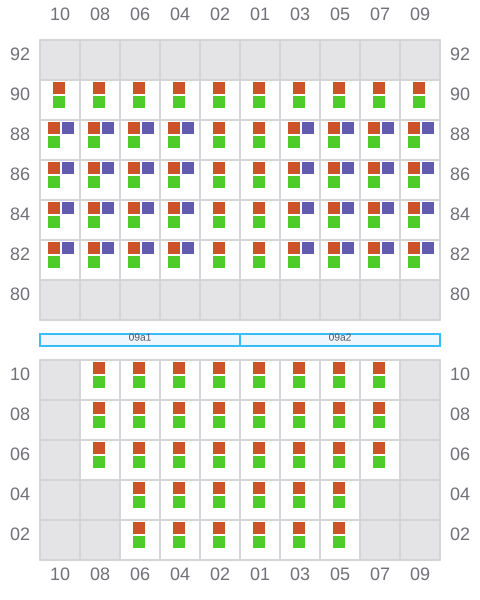

009 (010)
- →
![Bay 009 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b009.png?v=1711310529424)

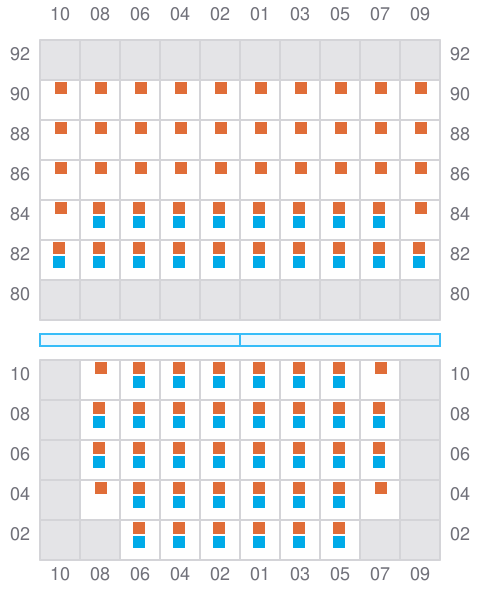

011
- ←
- →
![Bay 011 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b011.png?v=1711310529424)

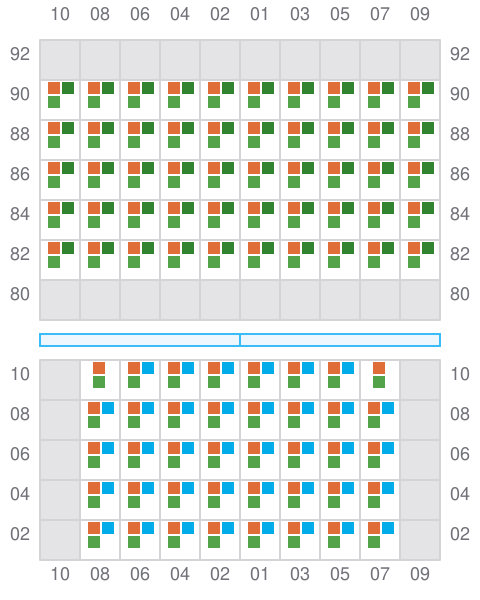

013 (014)
- →
- ? / ←
![Bay 013 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b013.png?v=1711310529424)

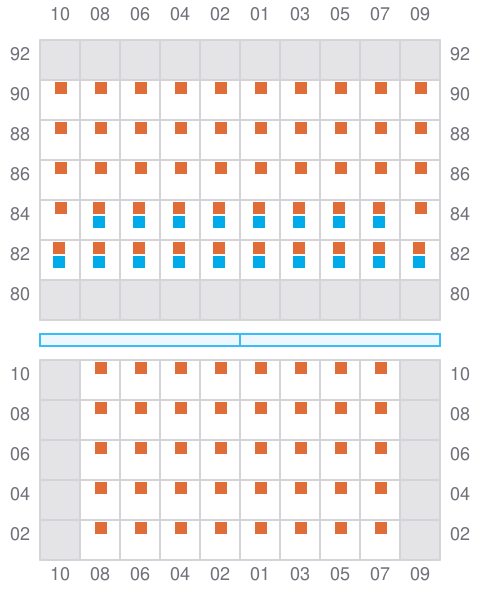

015
- ←
- → / ?
![Bay 015 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b015.png?v=1711310529424)

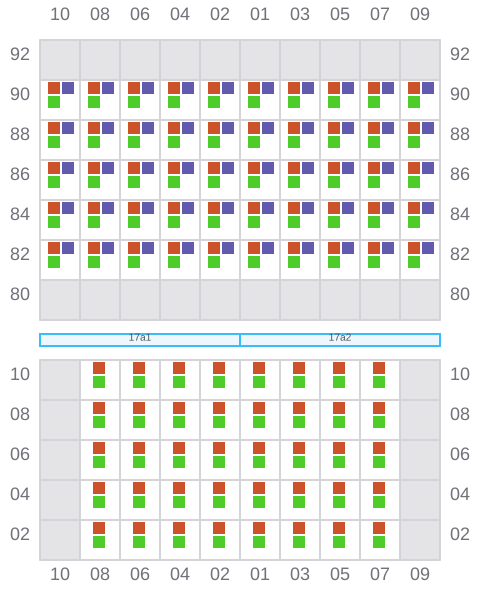

017 (018)
- →
![Bay 017 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b017.png?v=1711310529424)

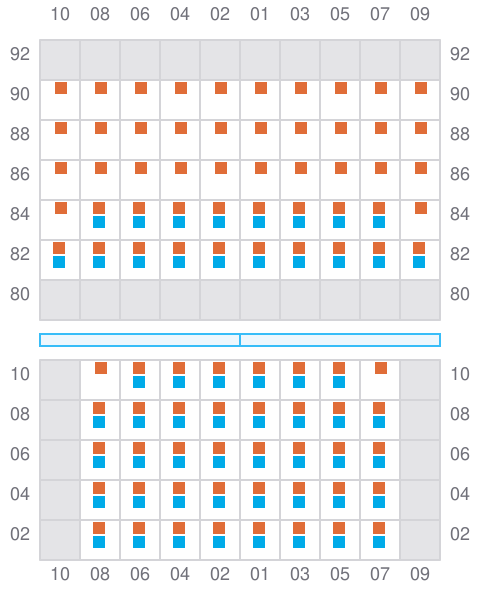

019
- ←
- →
![Bay 019 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b019.png?v=1711310529424)

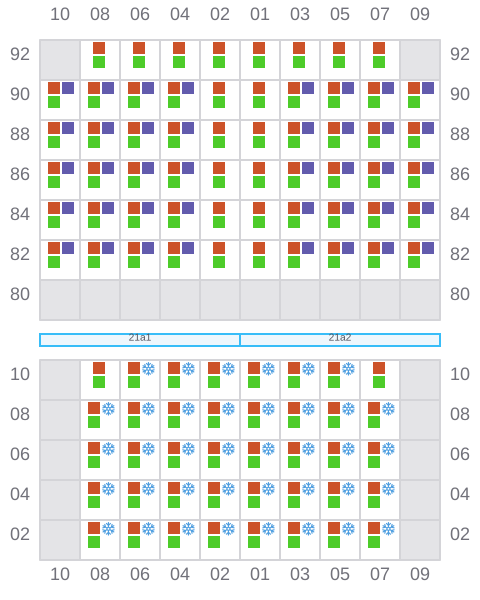

021 (022)
- →
- ? / ←
![Bay 021 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b021.png?v=1711310529424)

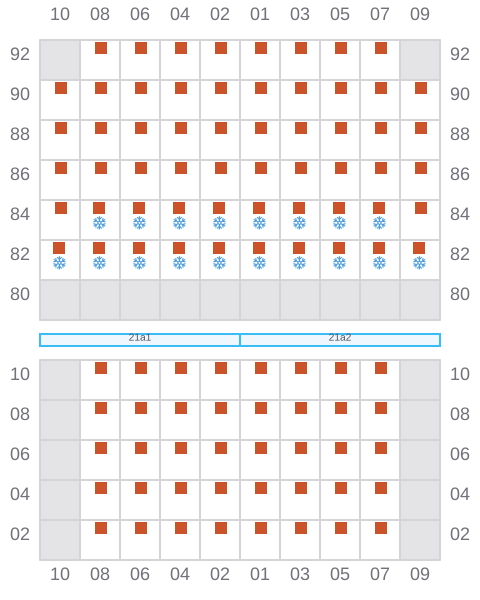

023
- ←
- → / ?
![Bay 023 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b023.png?v=1711310529424)

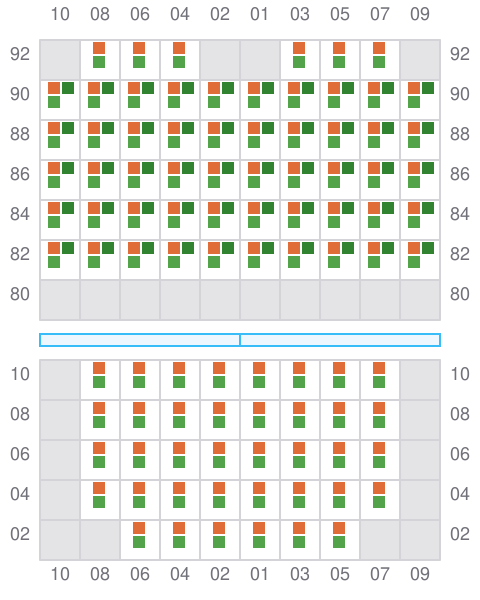

025 (026)
- →
![Bay 025 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b025.png?v=1711310529424)

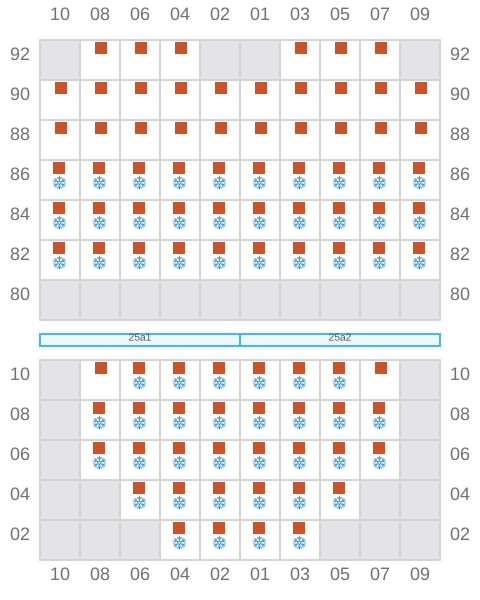

027
- ←
- →
![Bay 027 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b027.png?v=1711310529424)

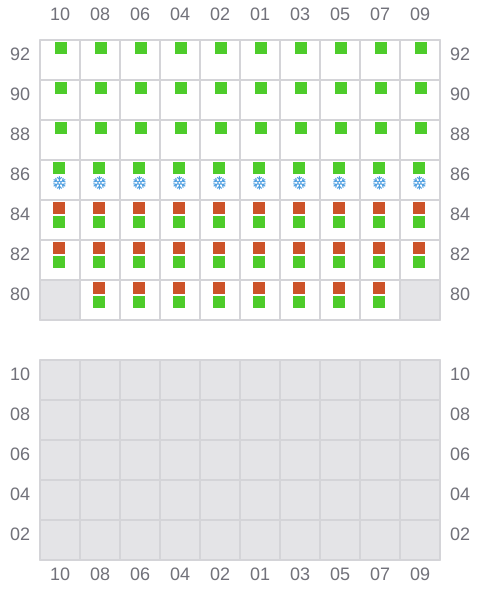

029 (030)
- → / ?
- → / ?
![Bay 029 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b029.png?v=1711310529424)

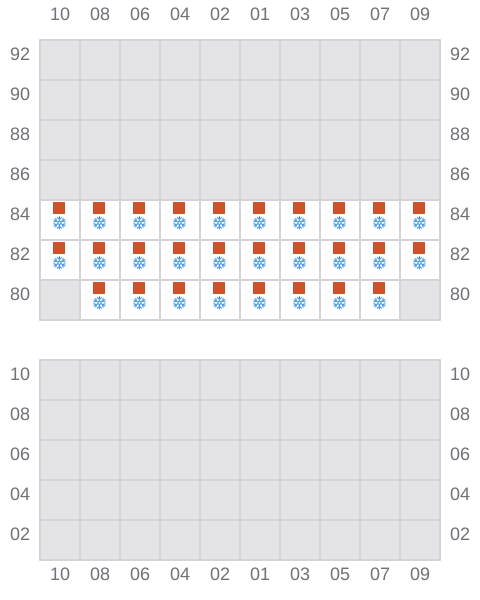

031
- ← / ?
- → / ?
![Bay 031 view and slots of FOUMA](/vessel-images/251ec824-e608-4504-94ad-09f216d4cee3-b031.png?v=1711310529424)
