FRANKFURT EXPRESS
9450442 | 5LPK5 | HLC by ************************** Last update: Sat Mar 01 2025

General Info

Ship Name:FRANKFURT EXPRESS
IMO Code:9450442
Call Sign:5LPK5
Line Operator:HLC
Class Name for Sister Ships:HFEX
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,600

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

Side view of FRANKFURT EXPRESS

Hatch-Covers View

Deck view of FRANKFURT EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
Bay 001 view and slots of FRANKFURT EXPRESS

003 (004)

  • →
  • →
Bay 003 view and slots of FRANKFURT EXPRESS

005

  • ←
  • → / ?
  • →
Bay 005 view and slots of FRANKFURT EXPRESS

007 (008)

  • →
  • →
Bay 007 view and slots of FRANKFURT EXPRESS

009

  • ←
  • → / ?
  • →

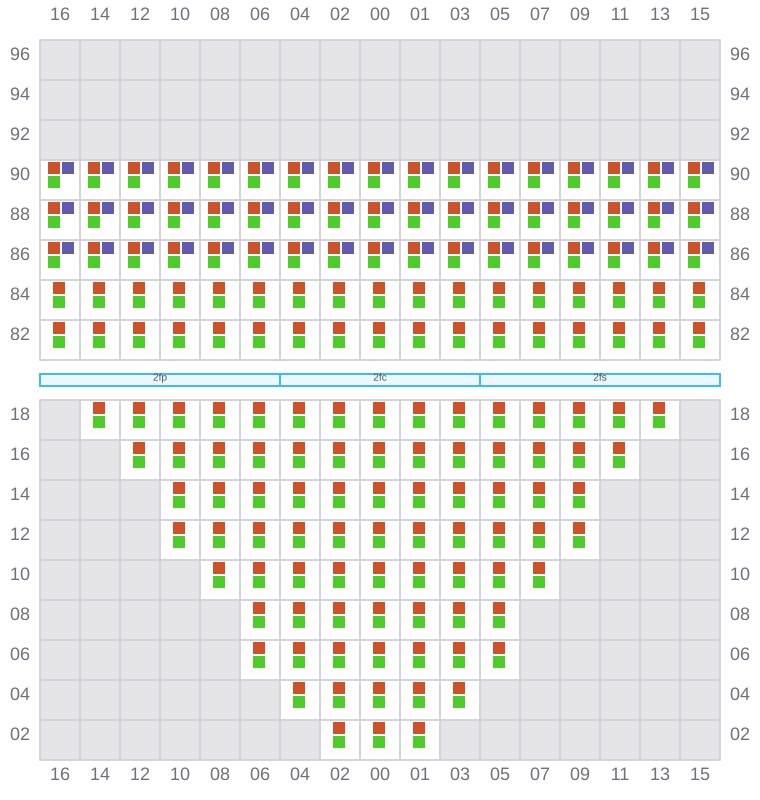

Bay 009 view and slots of FRANKFURT EXPRESS

011 (012)

  • →
  • →
Bay 011 view and slots of FRANKFURT EXPRESS

013

  • ←
  • → / ?
  • →

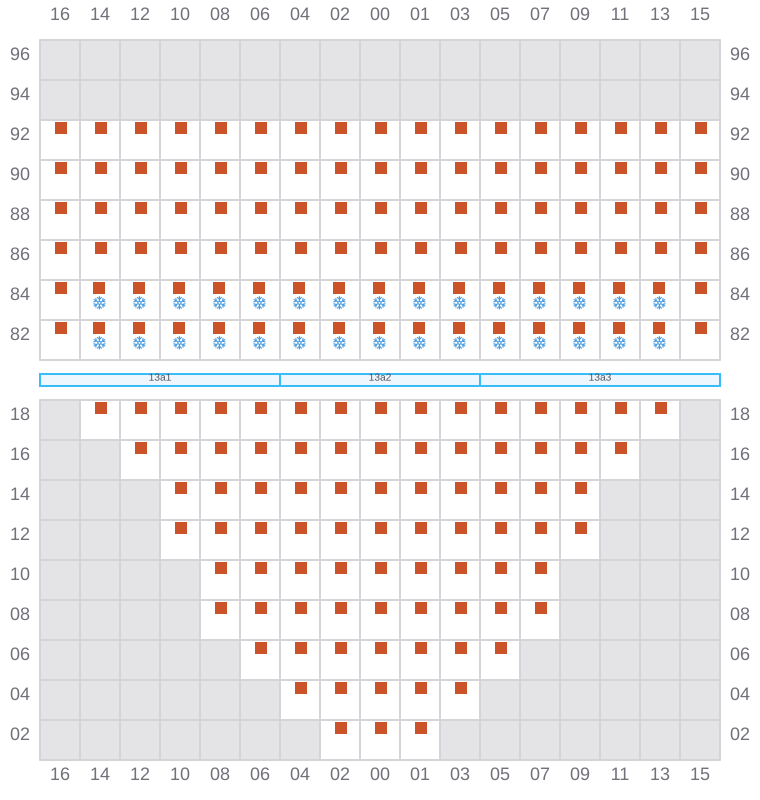

Bay 013 view and slots of FRANKFURT EXPRESS

015 (016)

  • →
  • →
Bay 015 view and slots of FRANKFURT EXPRESS

017

  • ←
  • → / ?
  • →
Bay 017 view and slots of FRANKFURT EXPRESS

019 (020)

  • →
  • →
Bay 019 view and slots of FRANKFURT EXPRESS

021

  • ←
  • → / ?
  • →
Bay 021 view and slots of FRANKFURT EXPRESS

023 (024)

  • →
  • →
Bay 023 view and slots of FRANKFURT EXPRESS

025

  • ←
  • → / ?
  • →

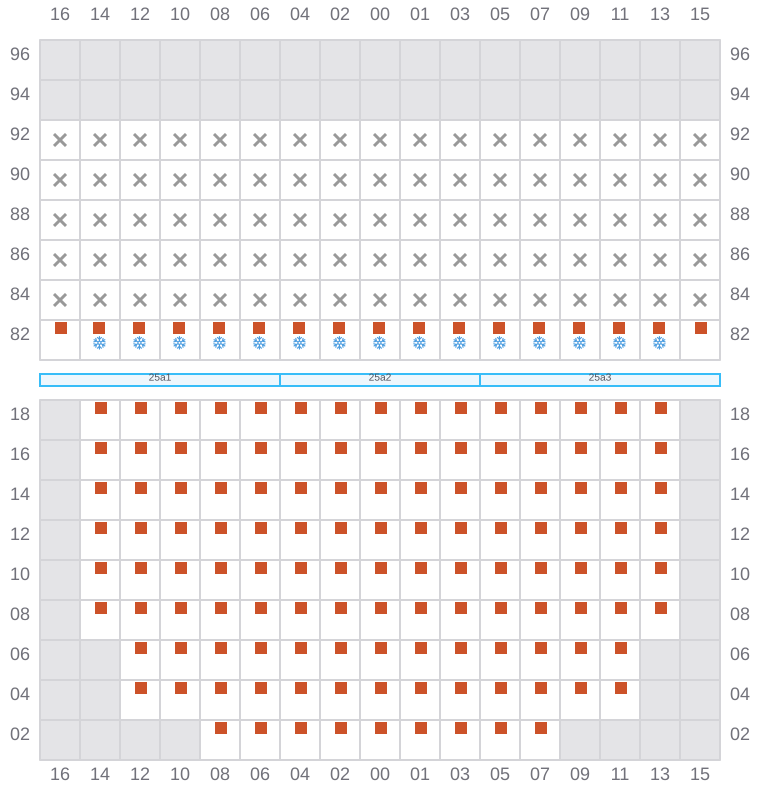

Bay 025 view and slots of FRANKFURT EXPRESS

027 (028)

  • →
  • →
Bay 027 view and slots of FRANKFURT EXPRESS

029

  • ←
  • → / ?
  • →
Bay 029 view and slots of FRANKFURT EXPRESS

031

  • ← / ?
  • →
Bay 031 view and slots of FRANKFURT EXPRESS

033 (034)

  • →
  • →
Bay 033 view and slots of FRANKFURT EXPRESS

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of FRANKFURT EXPRESS

037 (038)

  • →
  • →
Bay 037 view and slots of FRANKFURT EXPRESS

039

  • ←
  • →
  • →
Bay 039 view and slots of FRANKFURT EXPRESS

041 (042)

  • →
  • →
Bay 041 view and slots of FRANKFURT EXPRESS

043

  • ←
  • → / ?
  • →

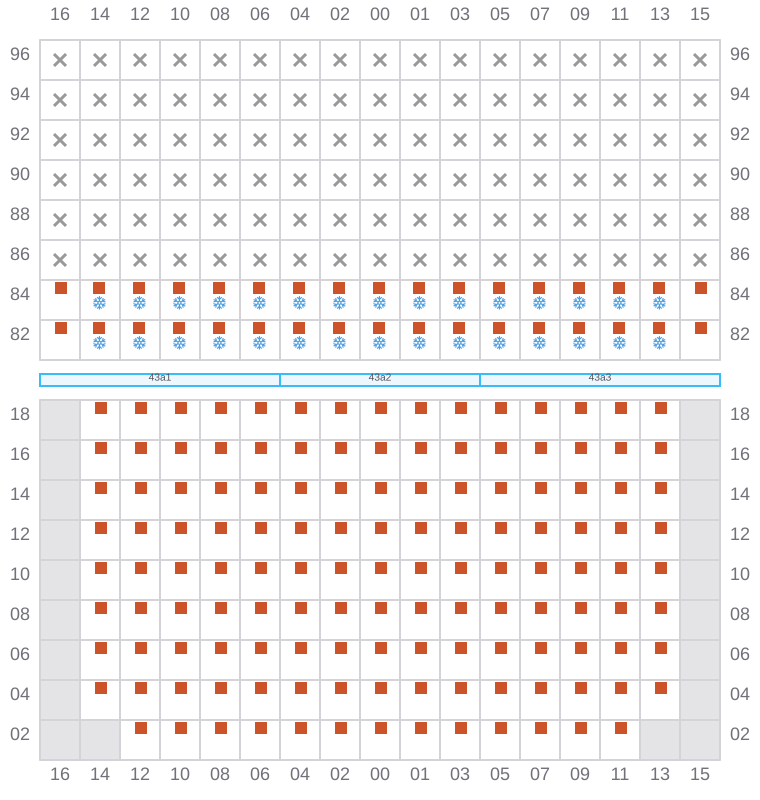

Bay 043 view and slots of FRANKFURT EXPRESS

045 (046)

  • →
  • →

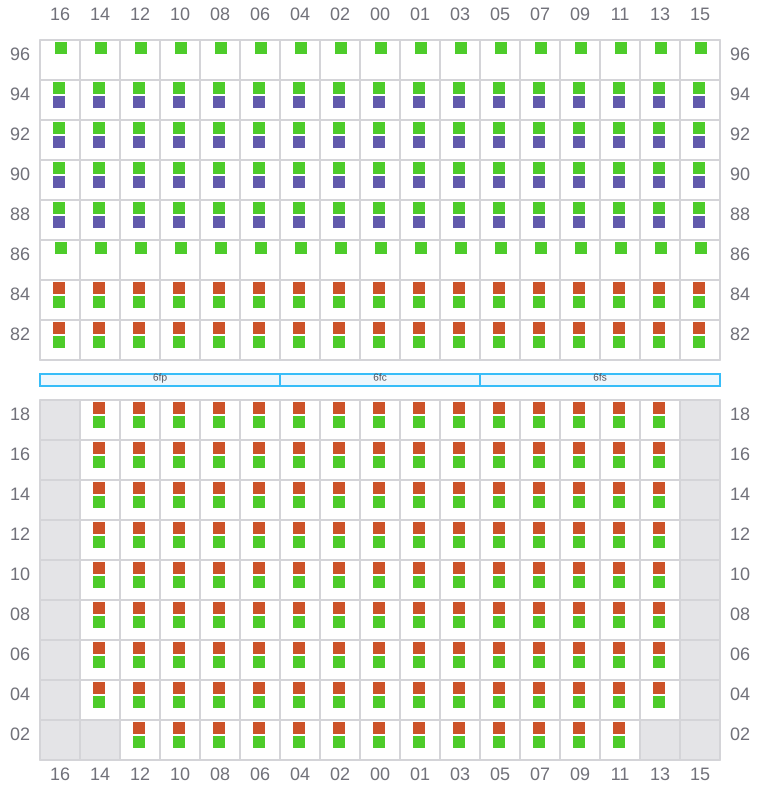

Bay 045 view and slots of FRANKFURT EXPRESS

047

  • ←
  • →
  • →
Bay 047 view and slots of FRANKFURT EXPRESS

049 (050)

  • →
  • →
Bay 049 view and slots of FRANKFURT EXPRESS

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of FRANKFURT EXPRESS

053 (054)

  • →
  • →
Bay 053 view and slots of FRANKFURT EXPRESS

055

  • ←
  • →
  • →
Bay 055 view and slots of FRANKFURT EXPRESS

057 (058)

  • →
  • →
Bay 057 view and slots of FRANKFURT EXPRESS

059

  • ←
  • → / ?
  • →

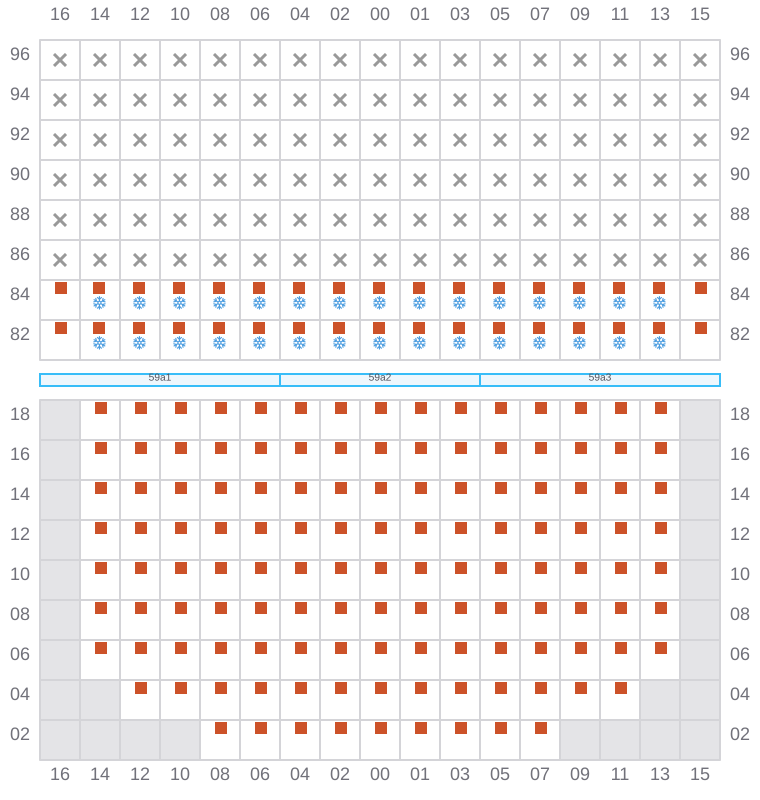

Bay 059 view and slots of FRANKFURT EXPRESS

061 (062)

  • →
  • →
Bay 061 view and slots of FRANKFURT EXPRESS

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of FRANKFURT EXPRESS

065 (066)

  • →
  • →
Bay 065 view and slots of FRANKFURT EXPRESS

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of FRANKFURT EXPRESS

069 (070)

  • →
  • →
Bay 069 view and slots of FRANKFURT EXPRESS

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of FRANKFURT EXPRESS

073 (074)

  • →
  • →
Bay 073 view and slots of FRANKFURT EXPRESS

075

  • ←
  • → / ?
  • →
Bay 075 view and slots of FRANKFURT EXPRESS

077 (078)

  • → / ?
  • ← / ?
  • →
Bay 077 view and slots of FRANKFURT EXPRESS

079

  • ← / ?
  • → / ?
Bay 079 view and slots of FRANKFURT EXPRESS
