FRIEDA
9435117 | V2DK8 | BBH by ************************** Last update: Thu Jun 01 2023
General Info
Ship Name:FRIEDA
IMO Code:9435117
Call Sign:V2DK8
Line Operator:BBH
Class Name for Sister Ships:RIE
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:033
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:86
Min Above ISO Tier:78
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,188
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-sideView.png?v=1685655025079)
Hatch-Covers View
![Deck view of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-deckView.png?v=1685655025079)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

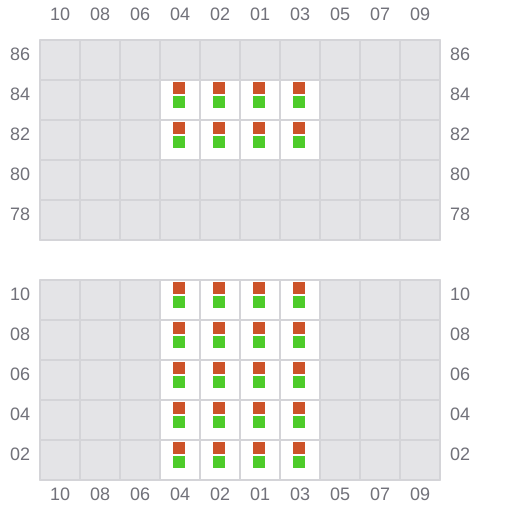

001 (002)
- →
![Bay 001 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b001.png?v=1685655025079)

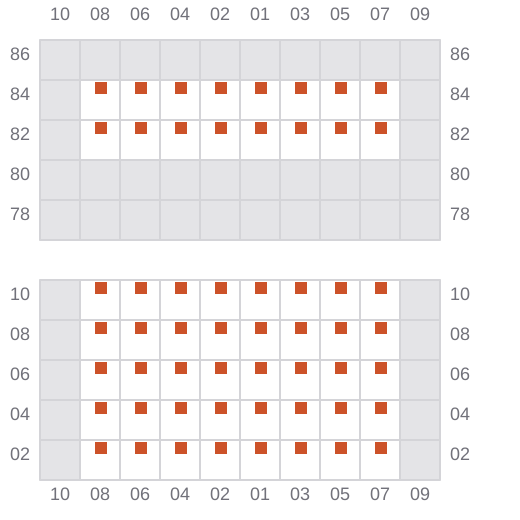

003
- ←
![Bay 003 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b003.png?v=1685655025079)
005 (006)
- →
![Bay 005 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b005.png?v=1685655025079)
007
- ←
![Bay 007 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b007.png?v=1685655025079)

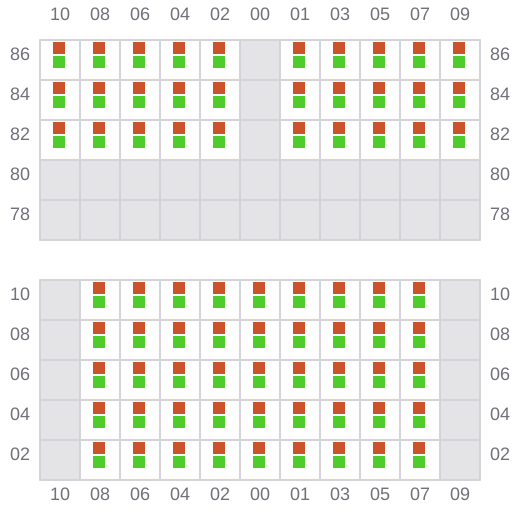

009 (010)
- →
![Bay 009 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b009.png?v=1685655025079)
011
- ←
![Bay 011 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b011.png?v=1685655025079)
013 (014)
- →
![Bay 013 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b013.png?v=1685655025079)
015
- ←
![Bay 015 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b015.png?v=1685655025079)
017 (018)
- →
![Bay 017 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b017.png?v=1685655025079)

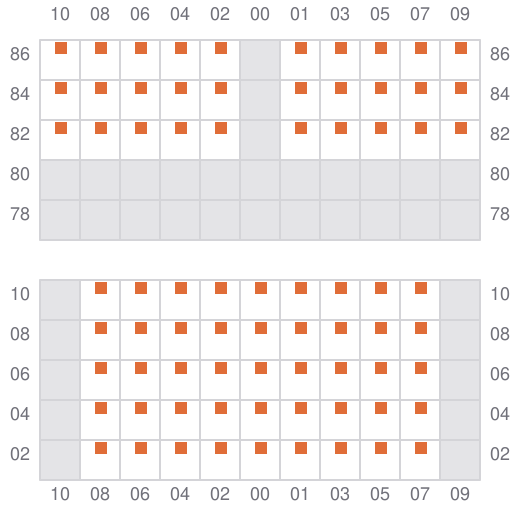

019
- ←
![Bay 019 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b019.png?v=1685655025079)
021 (022)
- →
![Bay 021 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b021.png?v=1685655025079)
023
- ←
![Bay 023 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b023.png?v=1685655025079)
025 (026)
- →
![Bay 025 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b025.png?v=1685655025079)

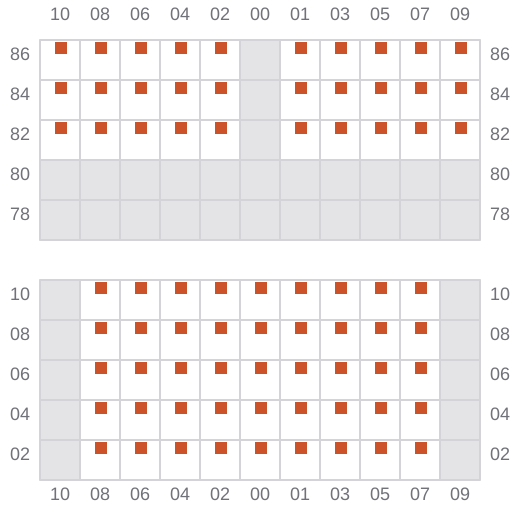

027
- ←
![Bay 027 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b027.png?v=1685655025079)
029 (030)
- →
![Bay 029 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b029.png?v=1685655025079)

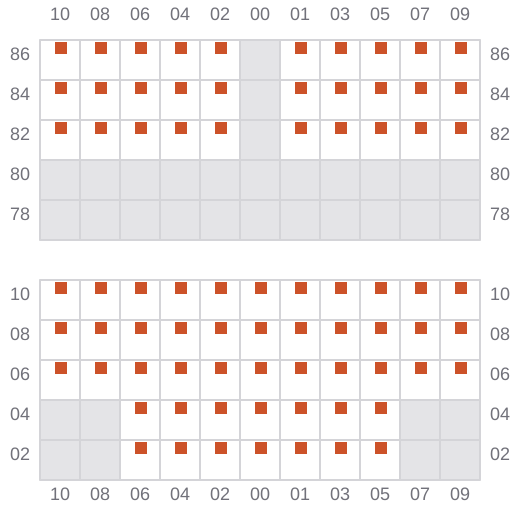

031
- ←
![Bay 031 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b031.png?v=1685655025079)

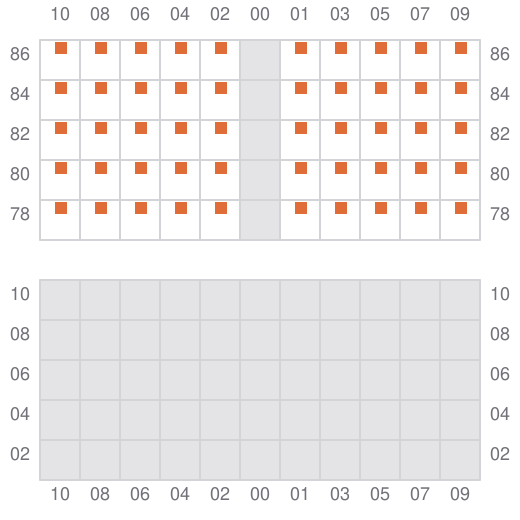

033
- → / ?
![Bay 033 view and slots of FRIEDA](/vessel-images/0132f847-c31c-4d94-8ac5-af314b45c49c-b033.png?v=1685655025079)
