FS IPANEMA
9433145 | A8PT6 | 9433145 by ********* Last update: Mon Mar 25 2024
General Info
Ship Name:FS IPANEMA
IMO Code:9433145
Call Sign:A8PT6
Line Operator:9433145
Class Name for Sister Ships:07C
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,794
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-sideView.png?v=1711391596355)

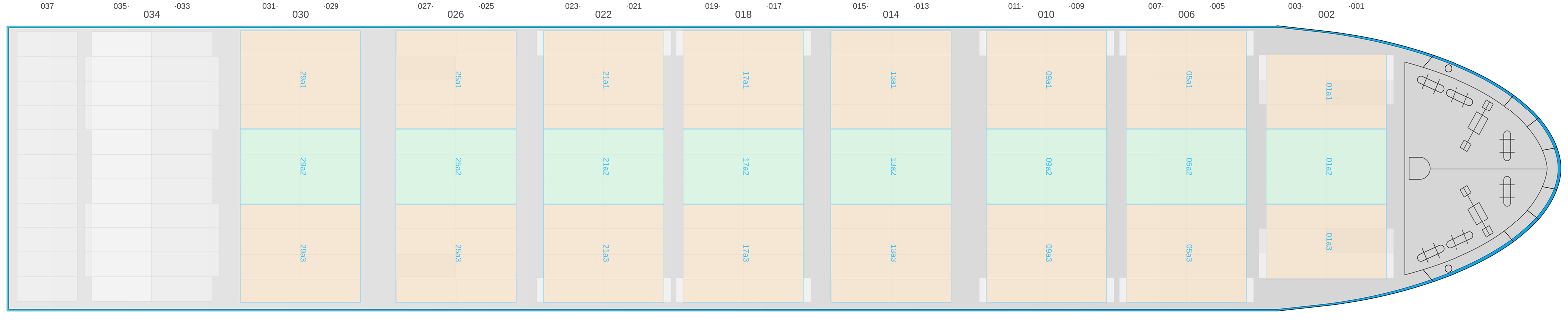

Hatch-Covers View
![Deck view of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-deckView.png?v=1711391596355)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

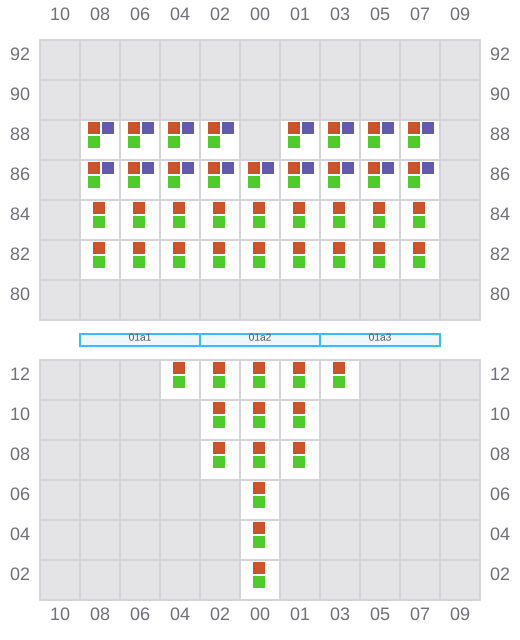

001 (002)
- →
![Bay 001 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b001.png?v=1711391596355)

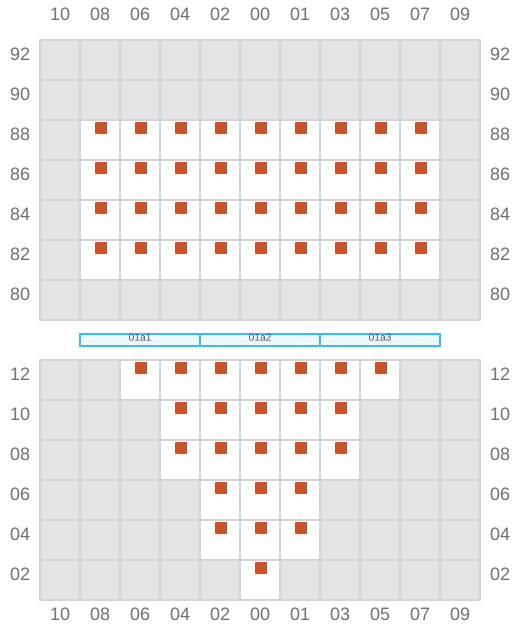

003
- ←
![Bay 003 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b003.png?v=1711391596355)

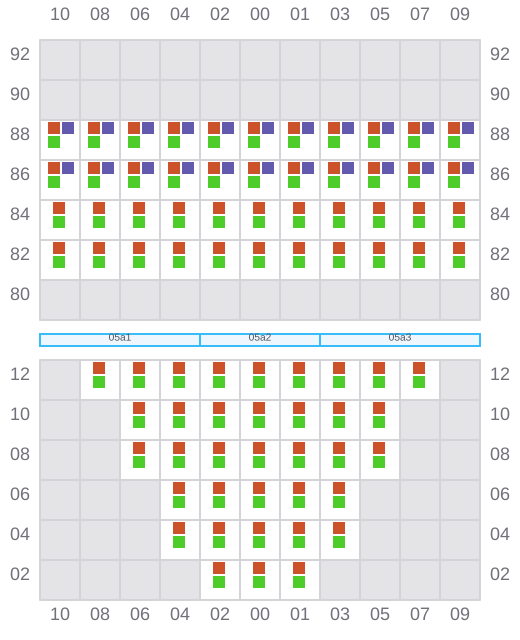

005 (006)
- →
![Bay 005 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b005.png?v=1711391596355)

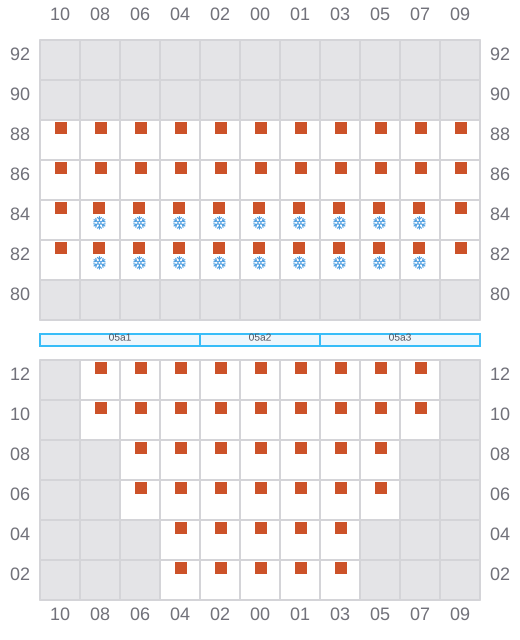

007
- ←
- → / ?
![Bay 007 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b007.png?v=1711391596355)

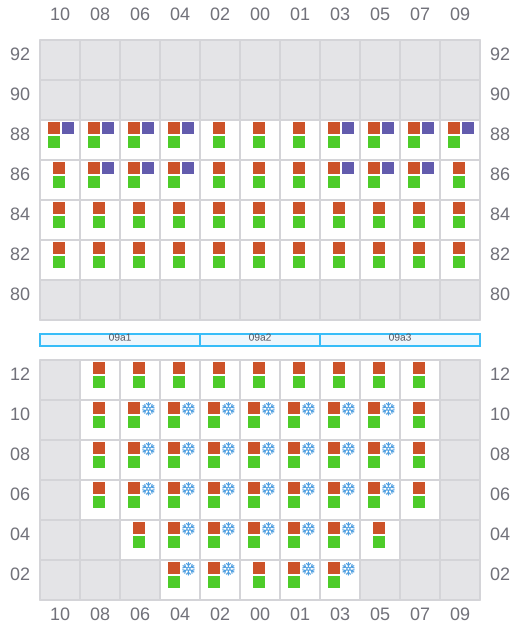

009 (010)
- →
- ? / ←
![Bay 009 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b009.png?v=1711391596355)

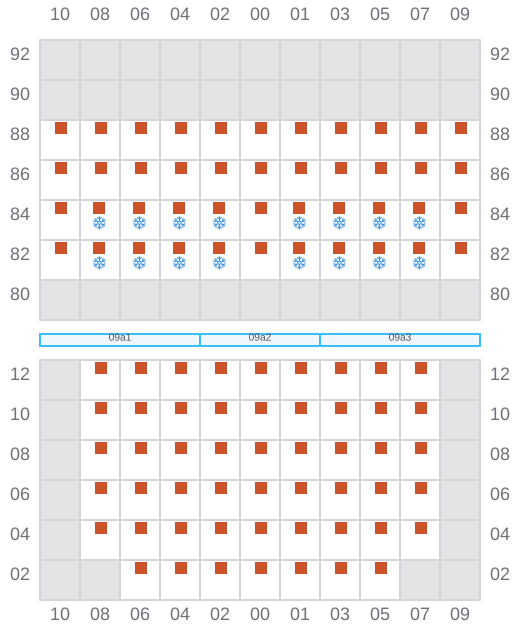

011
- ←
- → / ?
![Bay 011 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b011.png?v=1711391596355)

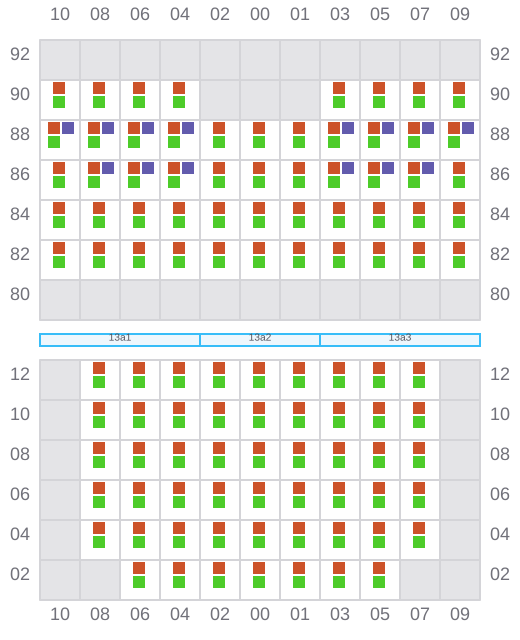

013 (014)
- →
![Bay 013 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b013.png?v=1711391596355)
015
- ←
- →
![Bay 015 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b015.png?v=1711391596355)

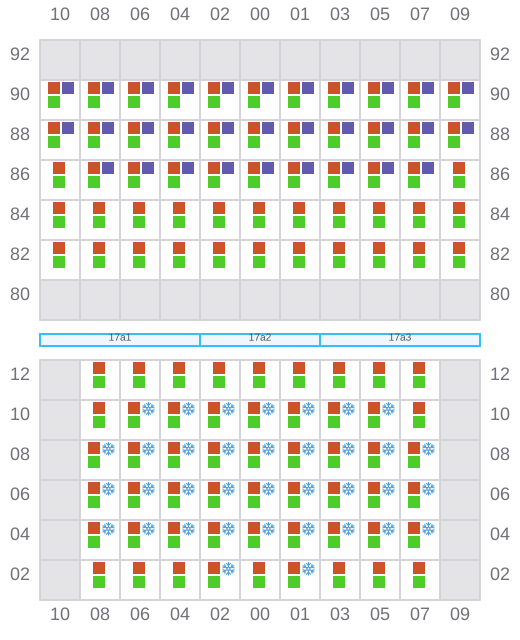

017 (018)
- →
- ? / ←
![Bay 017 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b017.png?v=1711391596355)

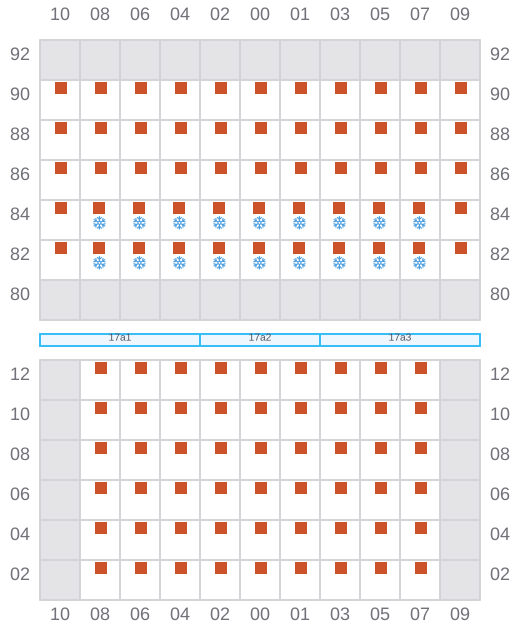

019
- ←
- → / ?
![Bay 019 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b019.png?v=1711391596355)

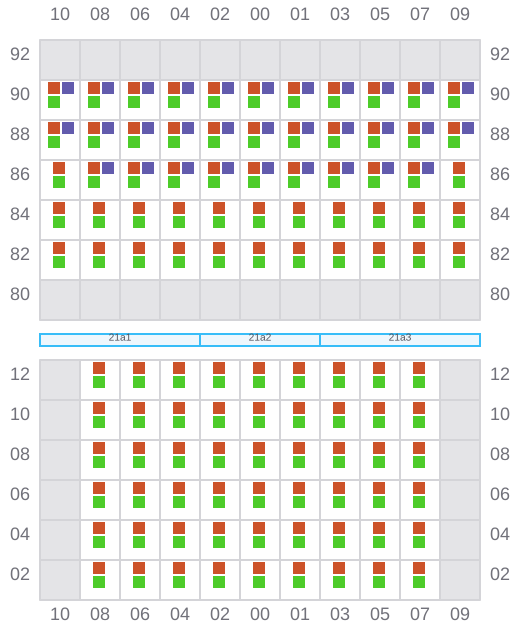

021 (022)
- →
![Bay 021 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b021.png?v=1711391596355)

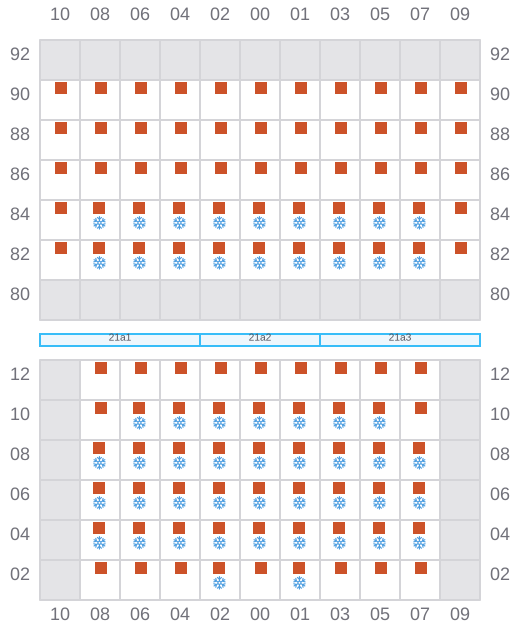

023
- ←
- →
![Bay 023 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b023.png?v=1711391596355)

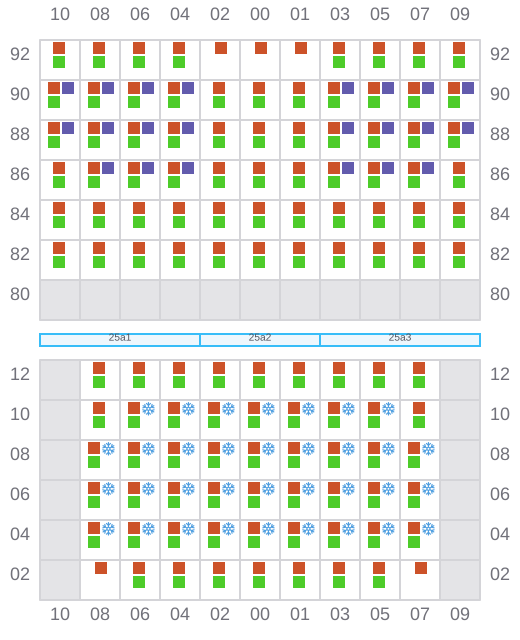

025 (026)
- →
- ? / ←
![Bay 025 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b025.png?v=1711391596355)

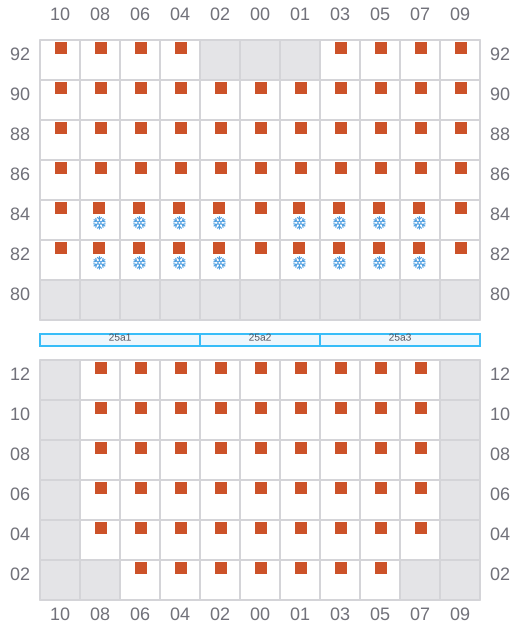

027
- ←
- → / ?
![Bay 027 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b027.png?v=1711391596355)

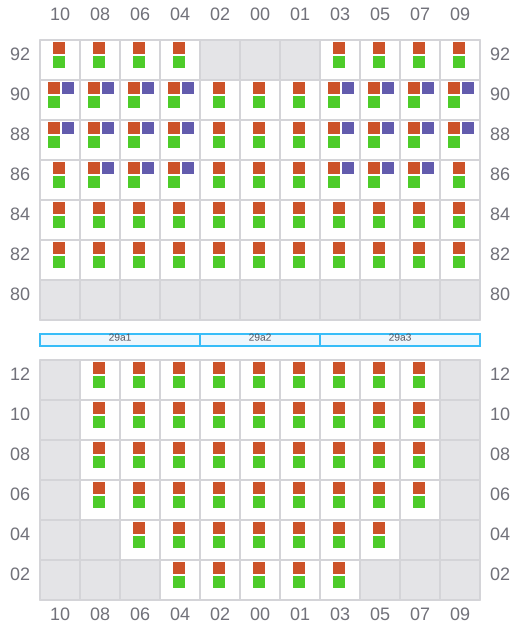

029 (030)
- →
![Bay 029 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b029.png?v=1711391596355)

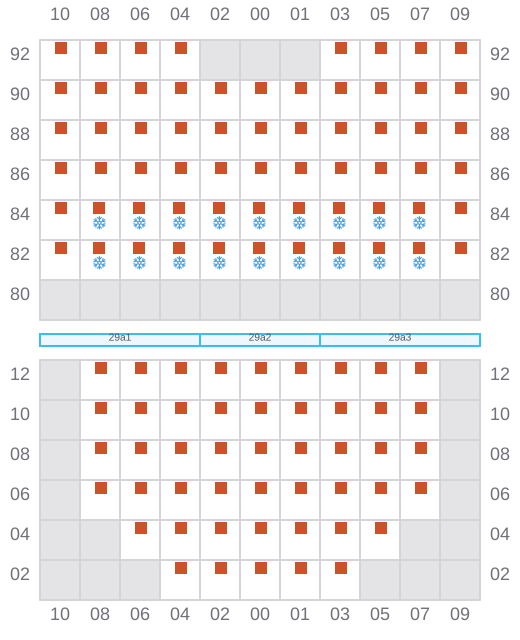

031
- ←
- → / ?
![Bay 031 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b031.png?v=1711391596355)

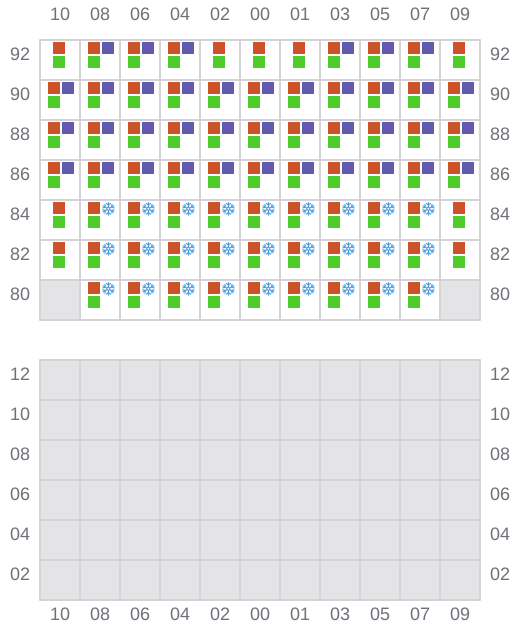

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b033.png?v=1711391596355)

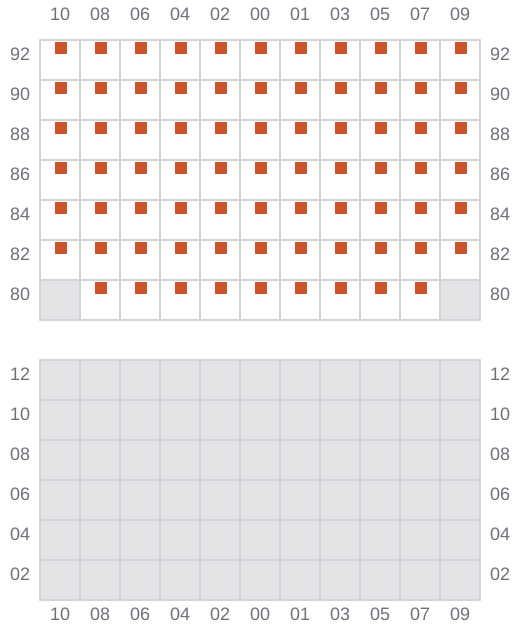

035
- ← / ?
![Bay 035 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b035.png?v=1711391596355)
037
![Bay 037 view and slots of FS IPANEMA](/vessel-images/b2fedb87-5936-4375-888d-9a4cbdd1362f-b037.png?v=1711391596355)
