FUTURE
9149847 | 3FSC7 | 9149847 by ********* Last update: Mon May 06 2024
General Info
Ship Name:FUTURE
IMO Code:9149847
Call Sign:3FSC7
Line Operator:9149847
Class Name for Sister Ships:HYUNDAI FUTURE
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:041
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,174
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

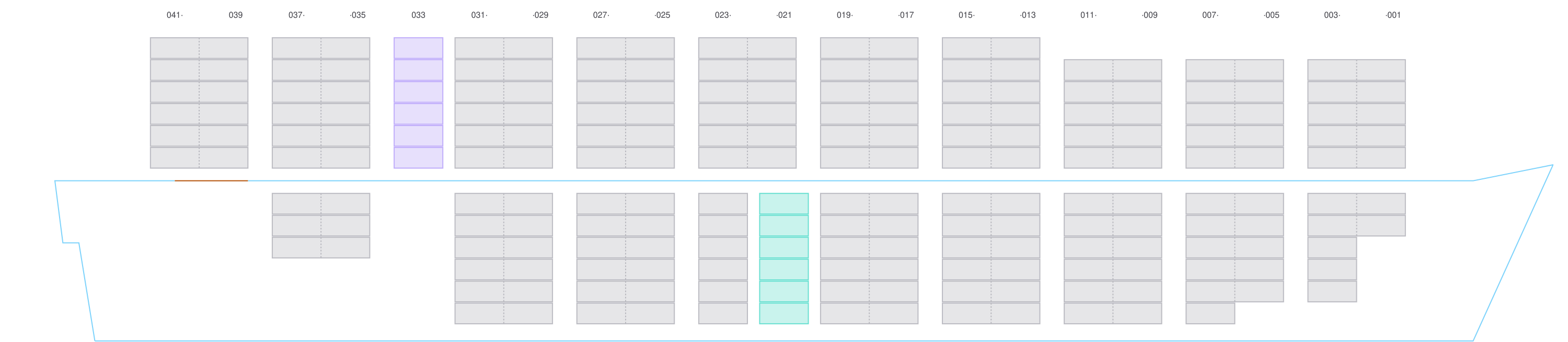

Side View
![Side view of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-sideView.png?v=1715015977592)

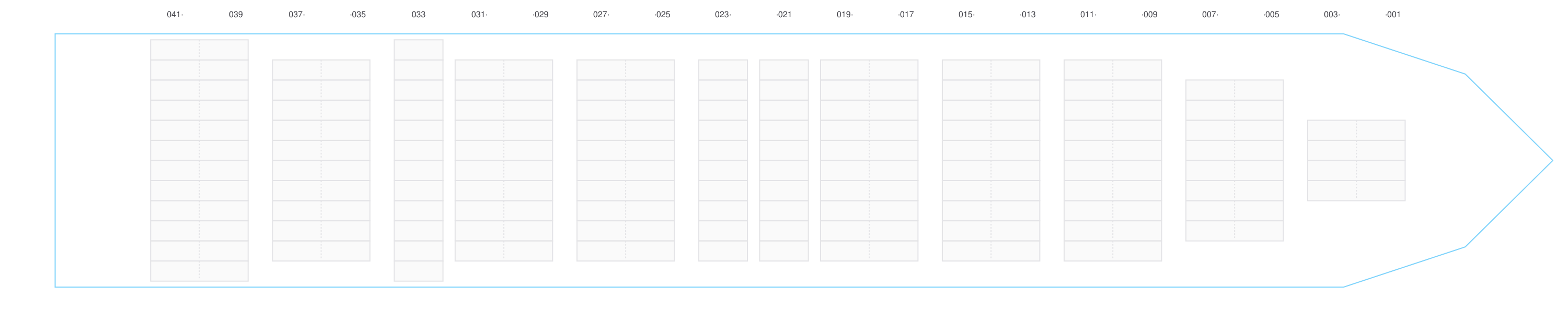

Hatch-Covers View
![Deck view of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-deckView.png?v=1715015977592)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

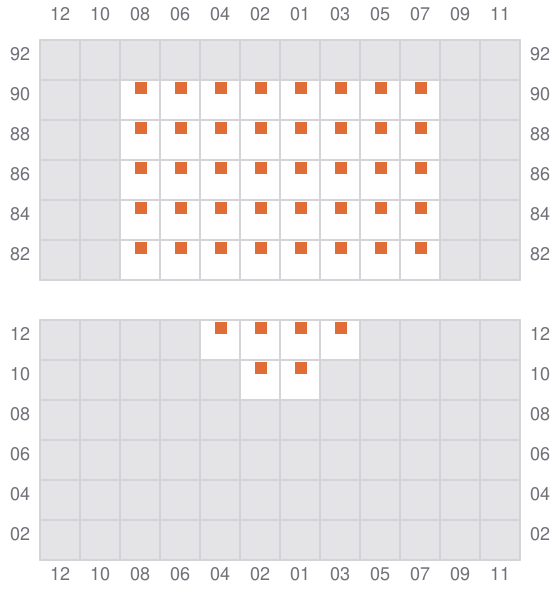

001
- →
![Bay 001 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b001.png?v=1715015977592)

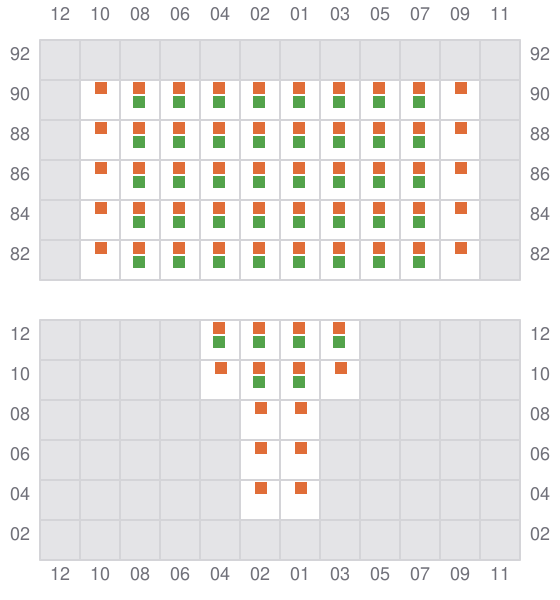

003 (002)
- ←
![Bay 003 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b003.png?v=1715015977592)

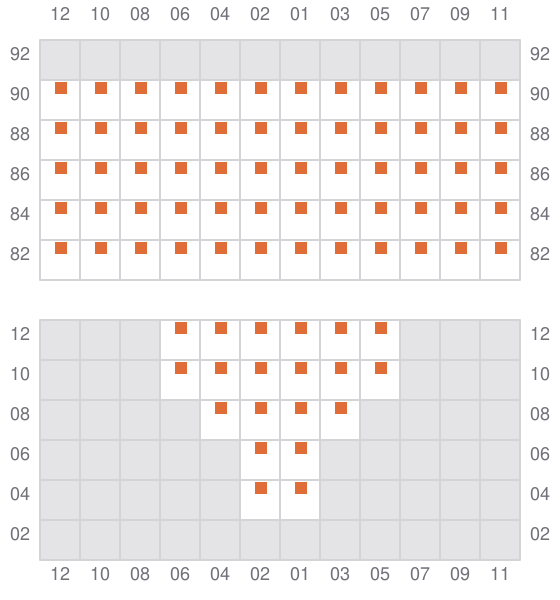

005
- →
![Bay 005 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b005.png?v=1715015977592)

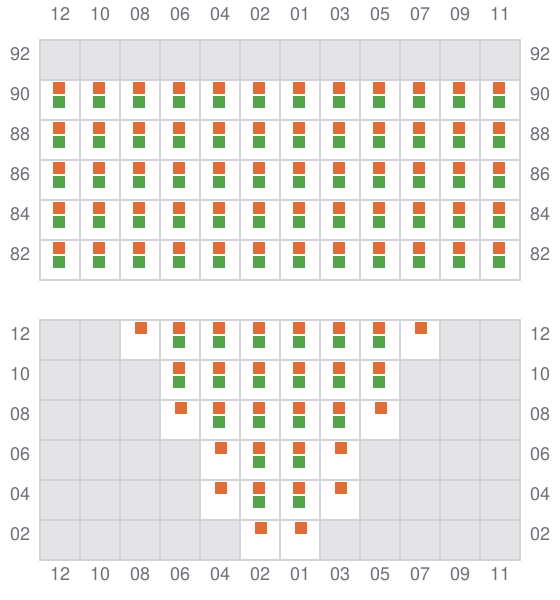

007 (006)
- ←
![Bay 007 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b007.png?v=1715015977592)
009
- →
![Bay 009 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b009.png?v=1715015977592)

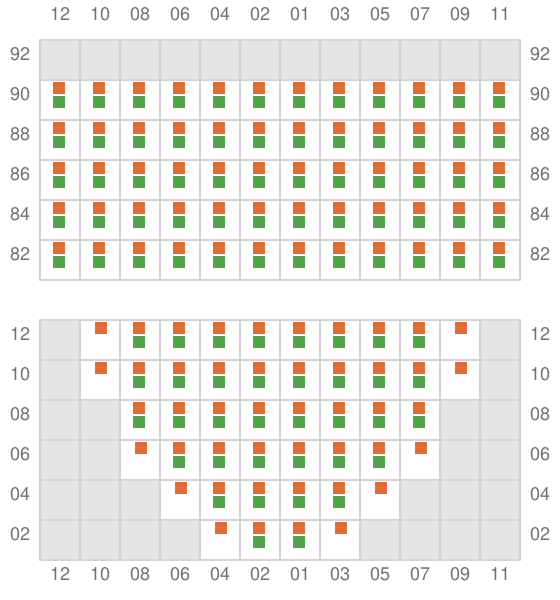

011 (010)
- ←
![Bay 011 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b011.png?v=1715015977592)

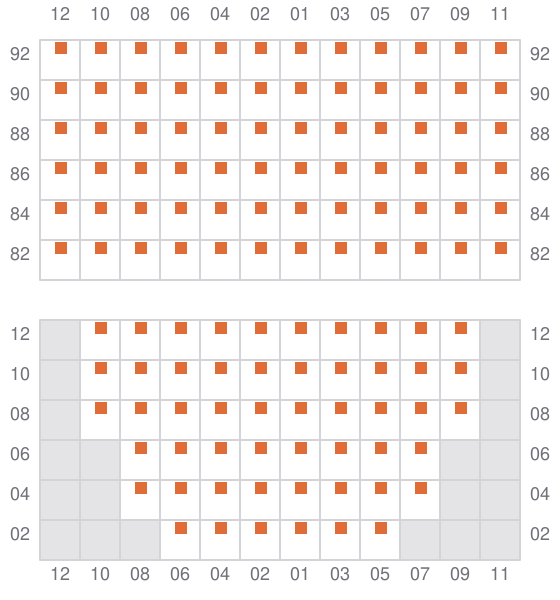

013
- →
![Bay 013 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b013.png?v=1715015977592)

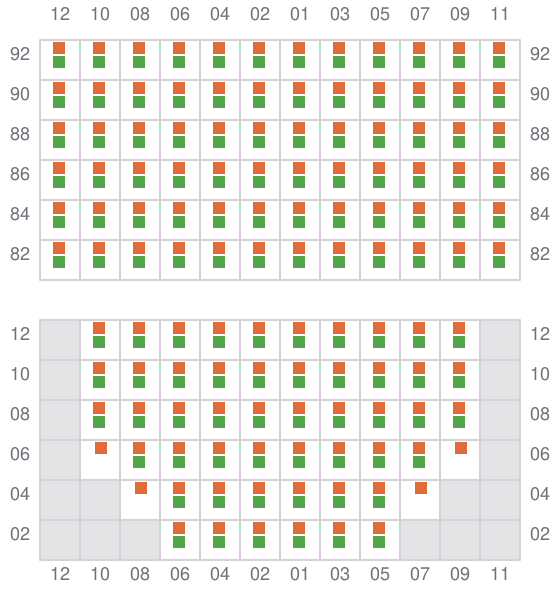

015 (014)
- ←
![Bay 015 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b015.png?v=1715015977592)
017
- →
![Bay 017 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b017.png?v=1715015977592)

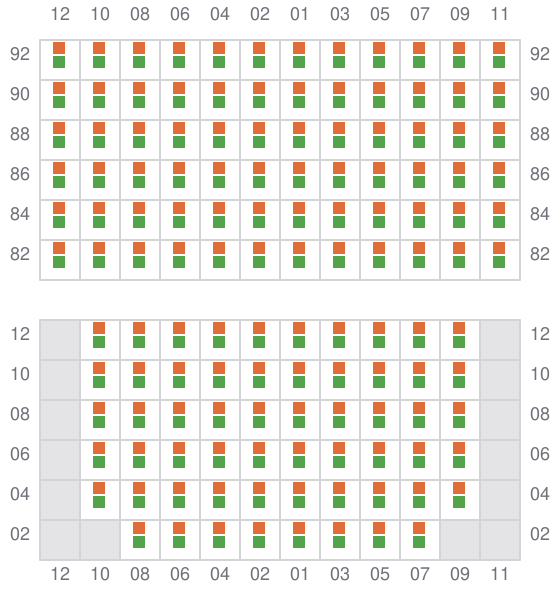

019 (018)
- ←
![Bay 019 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b019.png?v=1715015977592)
021
- →
![Bay 021 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b021.png?v=1715015977592)

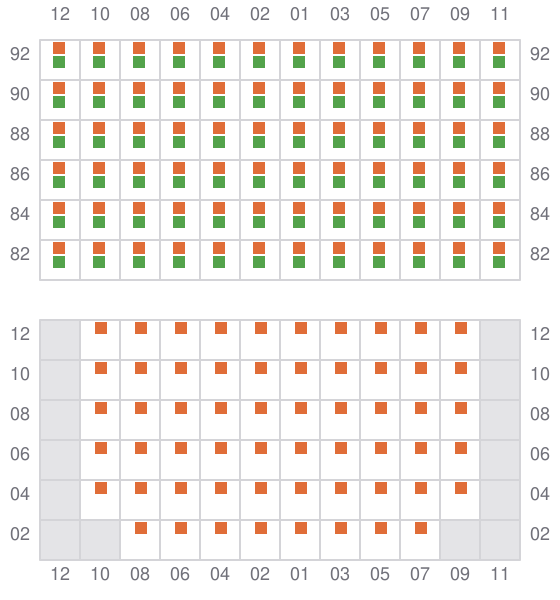

023 (022)
- ←
![Bay 023 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b023.png?v=1715015977592)
025
- →
![Bay 025 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b025.png?v=1715015977592)
027 (026)
- ←
![Bay 027 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b027.png?v=1715015977592)

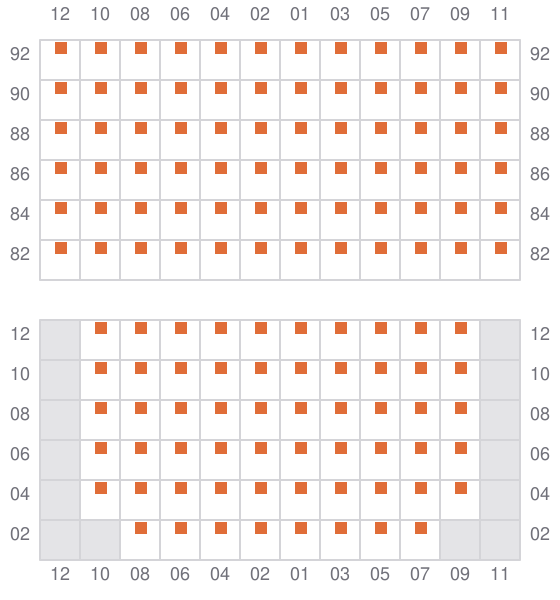

029
- →
![Bay 029 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b029.png?v=1715015977592)

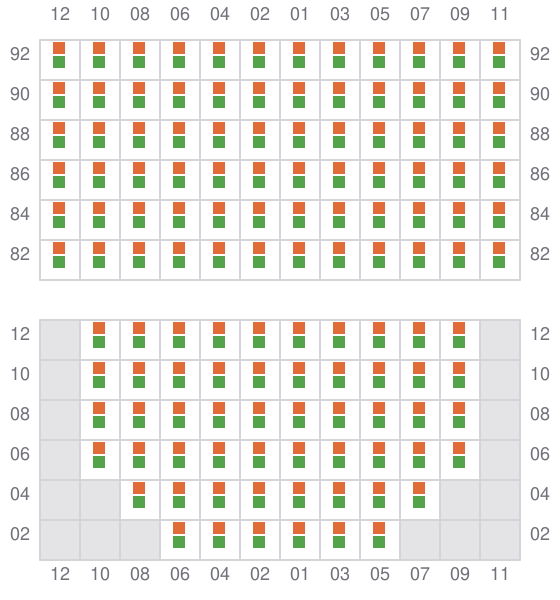

031 (030)
- ←
![Bay 031 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b031.png?v=1715015977592)

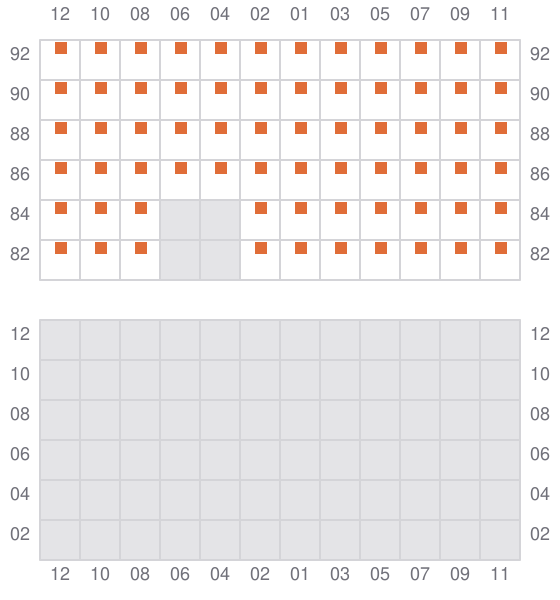

033
![Bay 033 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b033.png?v=1715015977592)

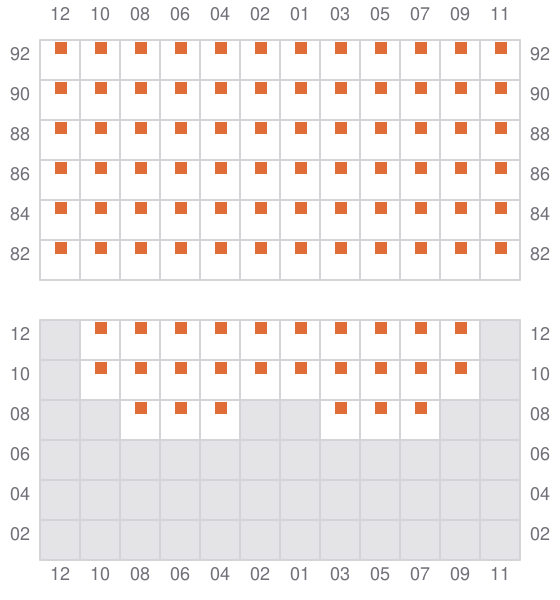

035
- →
![Bay 035 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b035.png?v=1715015977592)

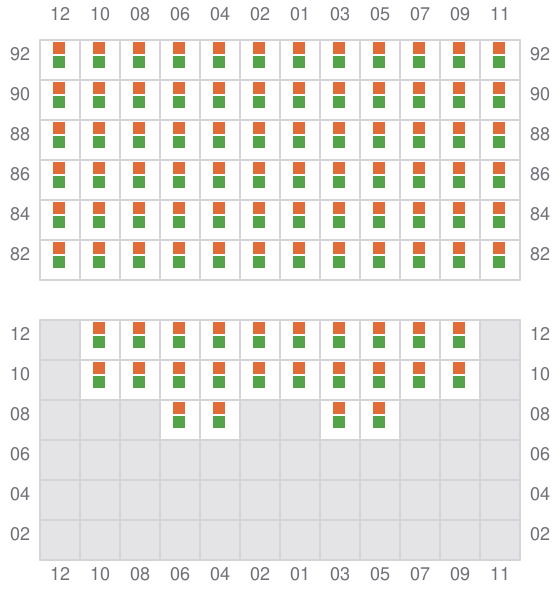

037 (036)
- ←
![Bay 037 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b037.png?v=1715015977592)

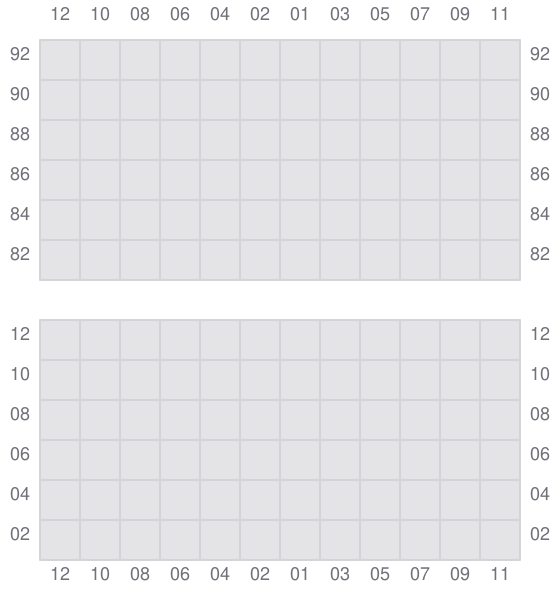

039
![Bay 039 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b039.png?v=1715015977592)

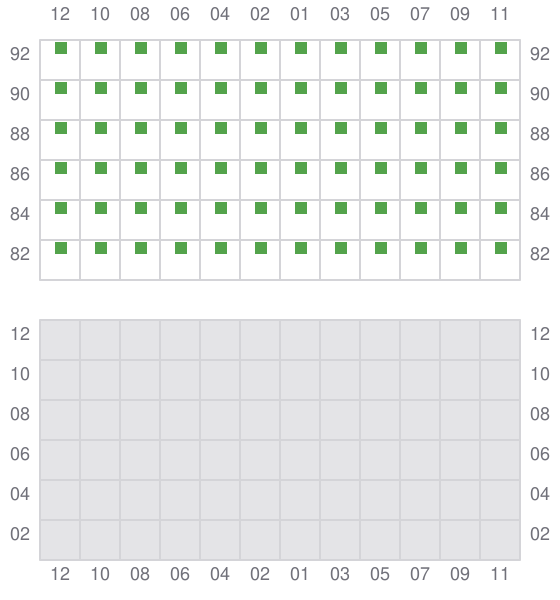

041 (040)
- ← / ?
![Bay 041 view and slots of FUTURE](/vessel-images/17ece8d3-7b83-432a-9150-258d33ac82a6-b041.png?v=1715015977592)
