G. CROWN
9982483 | 5LJZ5 | HDS by ******************** Last update: Wed Feb 12 2025

General Info

Ship Name:G. CROWN

IMO Code:9982483

Call Sign:5LJZ5

Line Operator:HDS

Class Name for Sister Ships:GCRW

Year Built:2023

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):169.02

LOA (Length Overall):172.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:039

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:92

Min Above ISO Tier:80

Max Below ISO Tier:10

Min Below ISO Tier:02

Total TEU:1,770

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

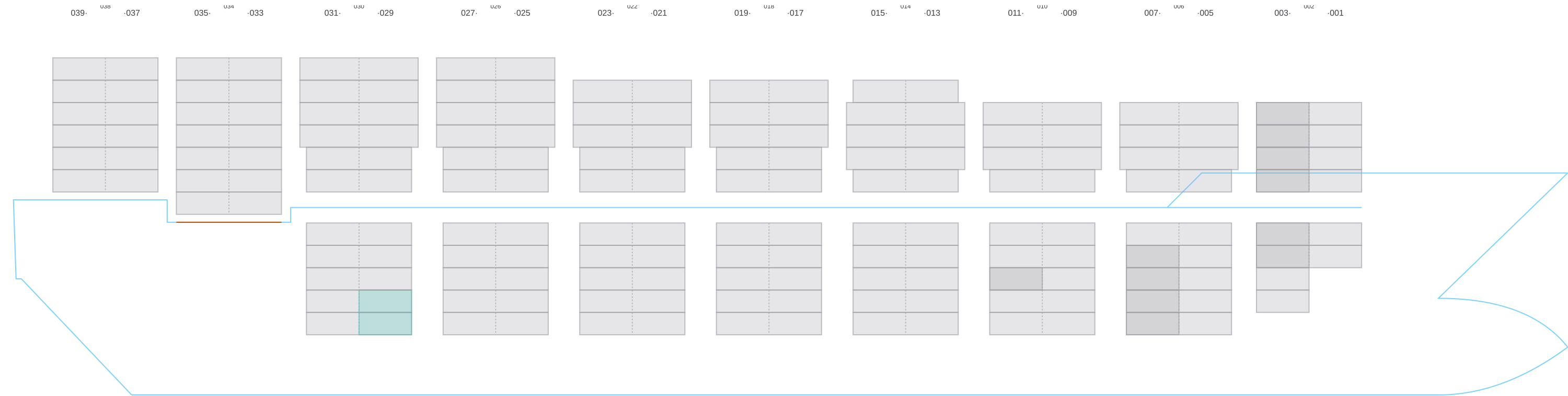

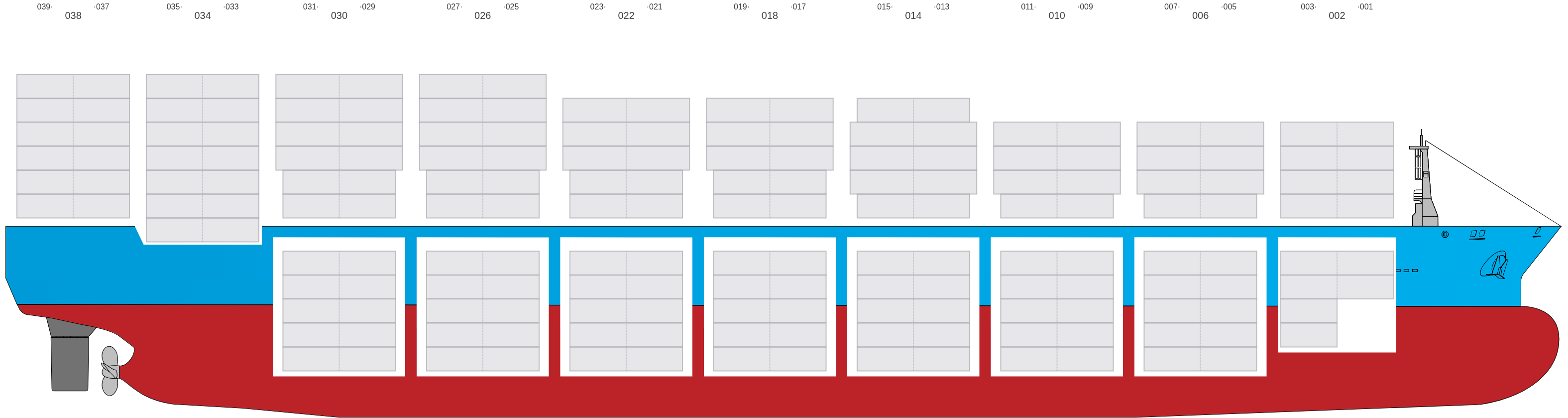

Side view of G. CROWN

Hatch-Covers View

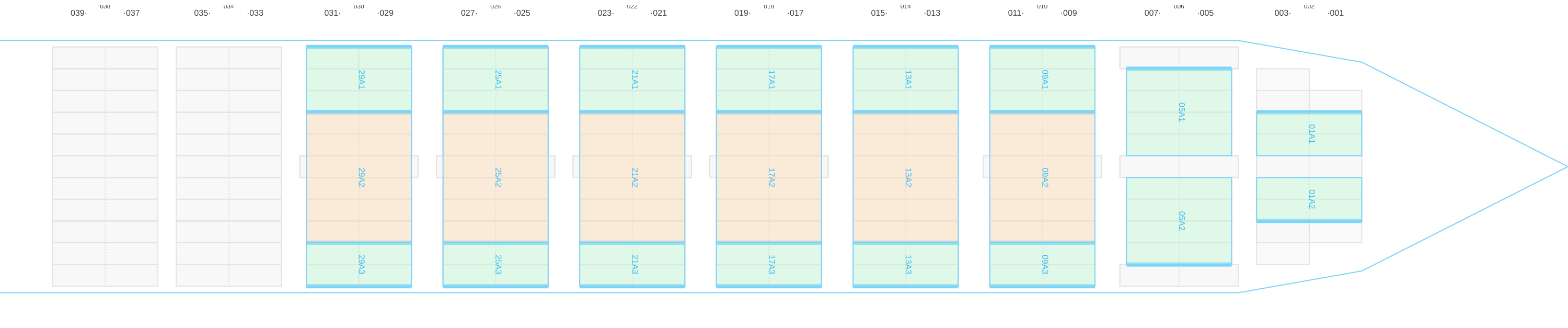

Deck view of G. CROWN

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→
✓

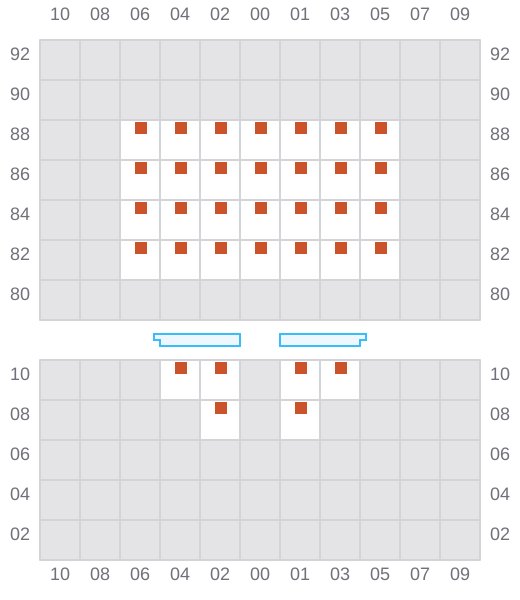

Bay 001 view and slots of G. CROWN

003 (002)

←
✓

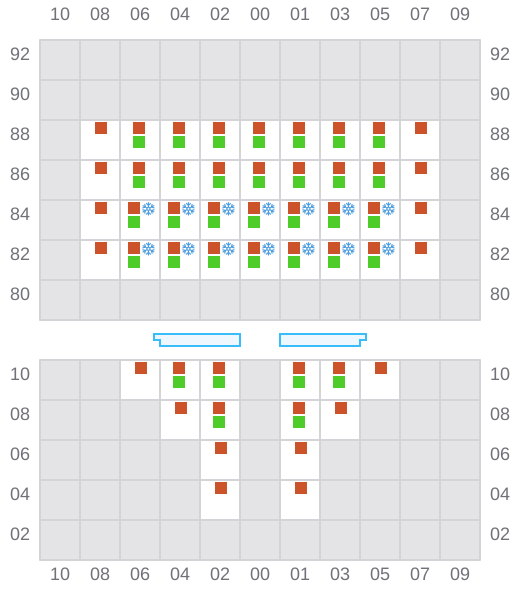

Bay 003 view and slots of G. CROWN

005

→
✓

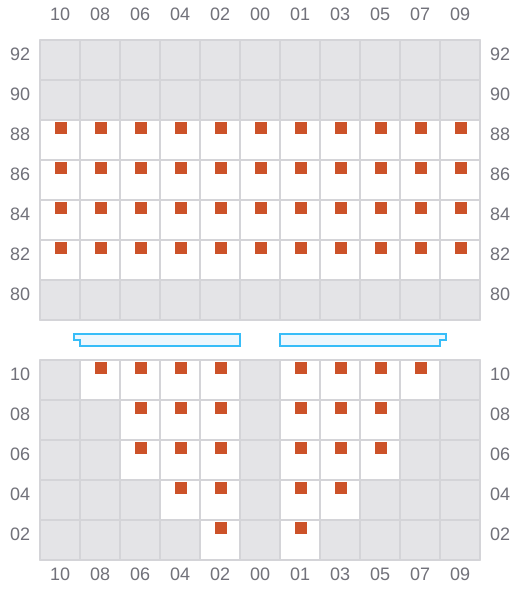

Bay 005 view and slots of G. CROWN

007 (006)

←
✓

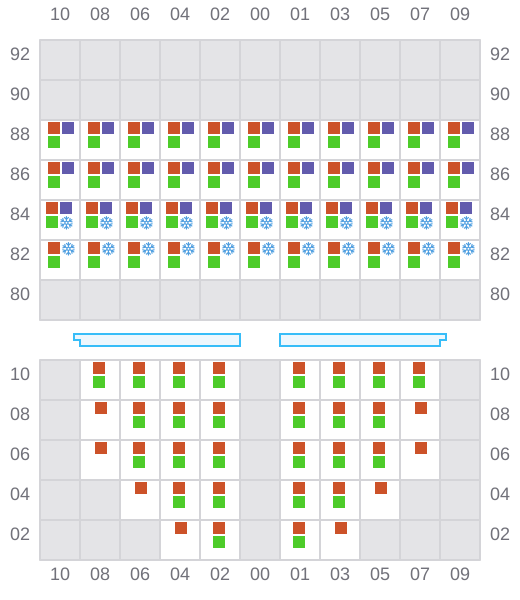

Bay 007 view and slots of G. CROWN

009

→
✓

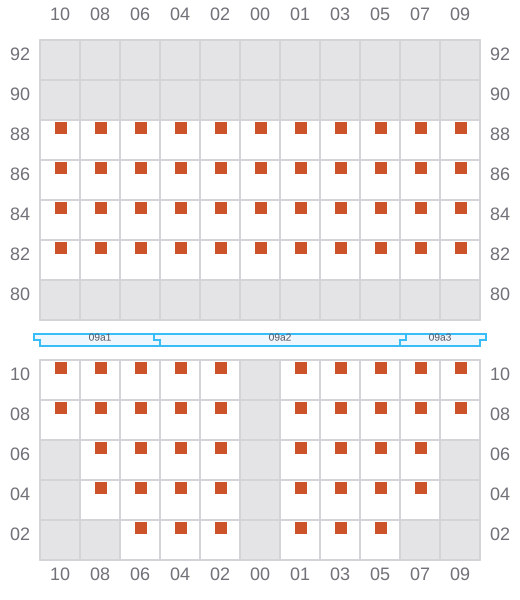

Bay 009 view and slots of G. CROWN

011 (010)

←
✓

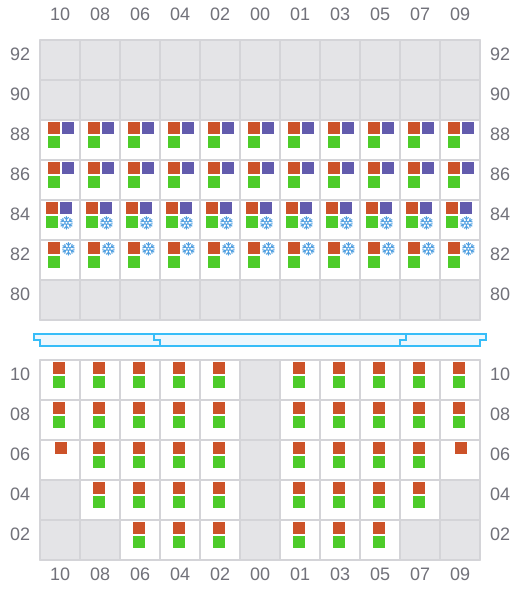

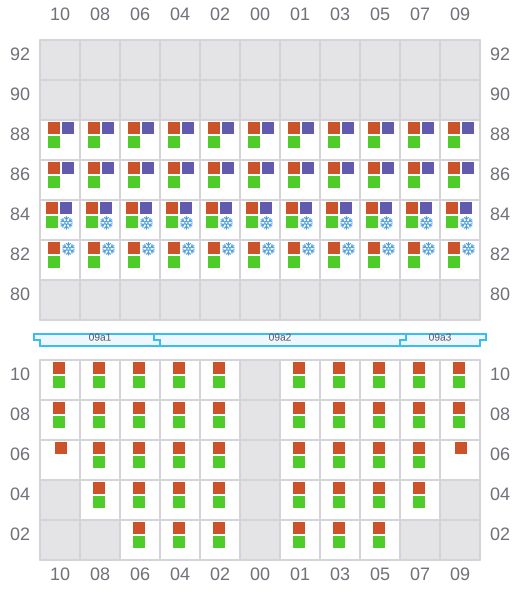

Bay 011 view and slots of G. CROWN

013

→
✓

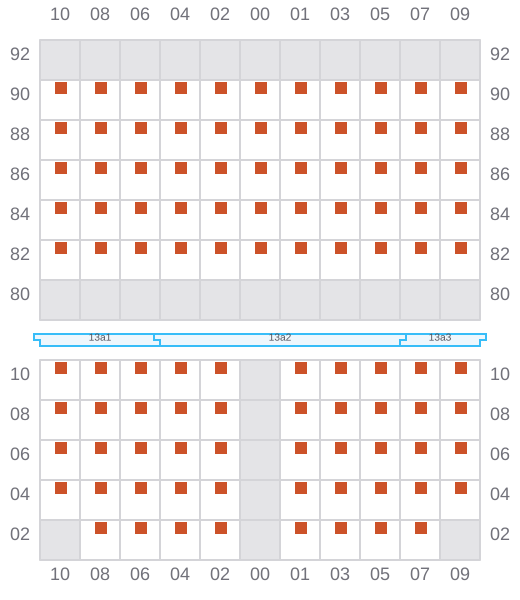

Bay 013 view and slots of G. CROWN

015 (014)

←
✓

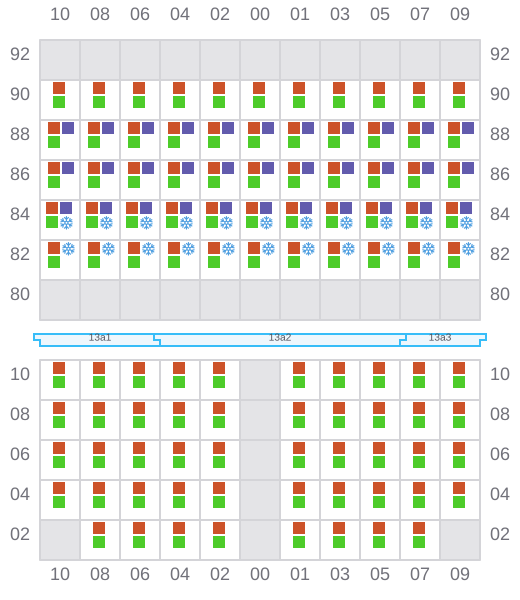

Bay 015 view and slots of G. CROWN

017

→
✓

Bay 017 view and slots of G. CROWN

019 (018)

←
✓

Bay 019 view and slots of G. CROWN

021

→
✓

Bay 021 view and slots of G. CROWN

023 (022)

←
✓

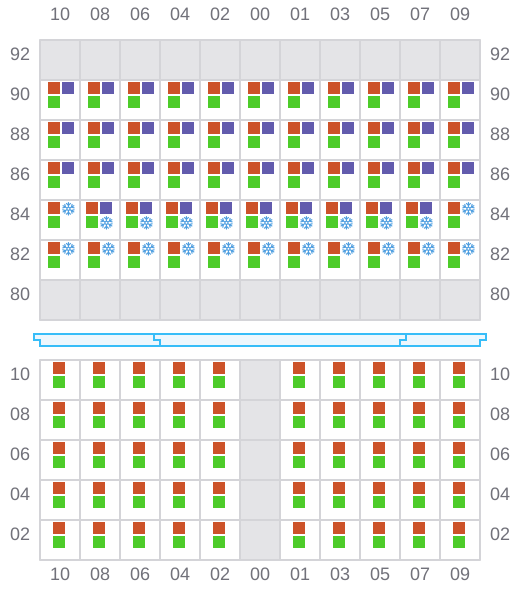

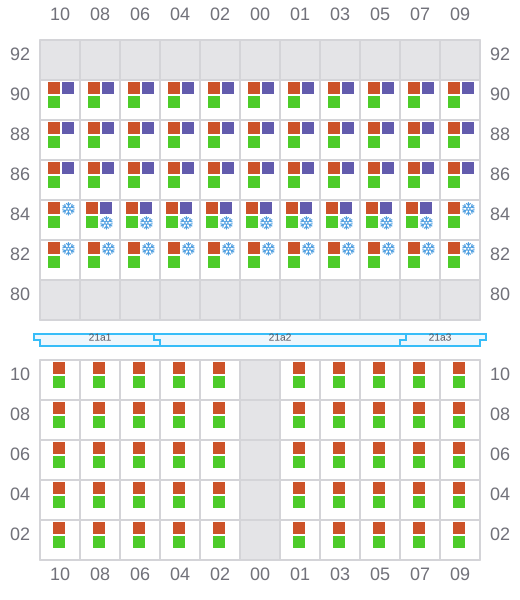

Bay 023 view and slots of G. CROWN

025

→
✓

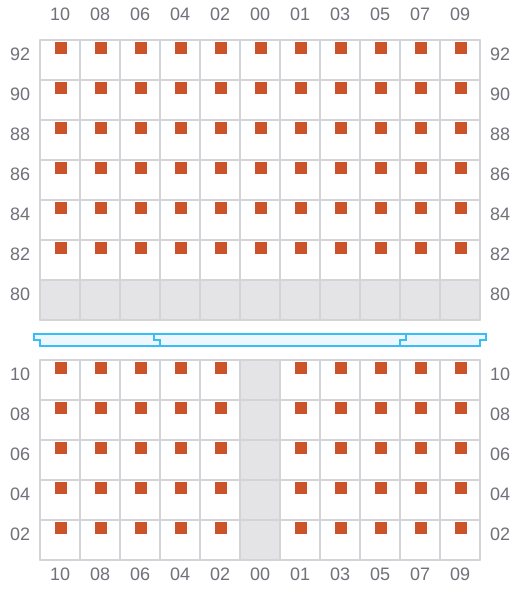

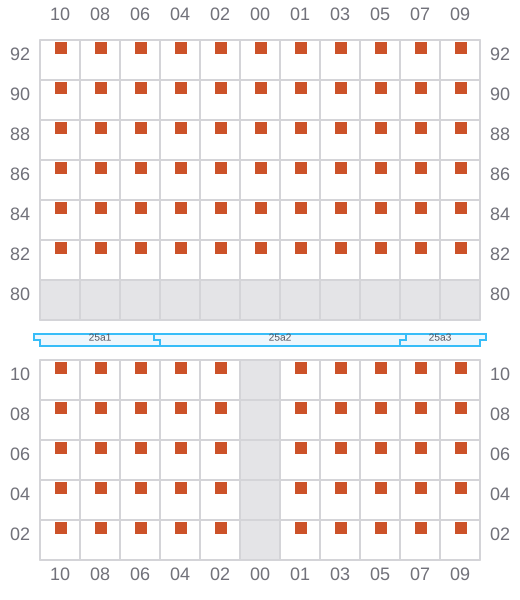

Bay 025 view and slots of G. CROWN

027 (026)

←
✓

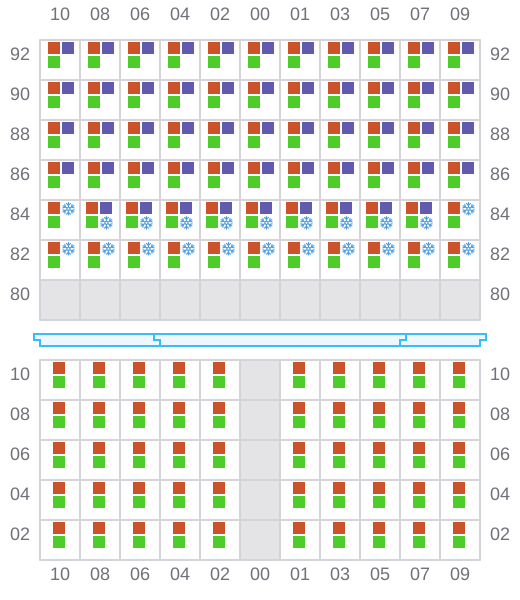

Bay 027 view and slots of G. CROWN

029

→
✓

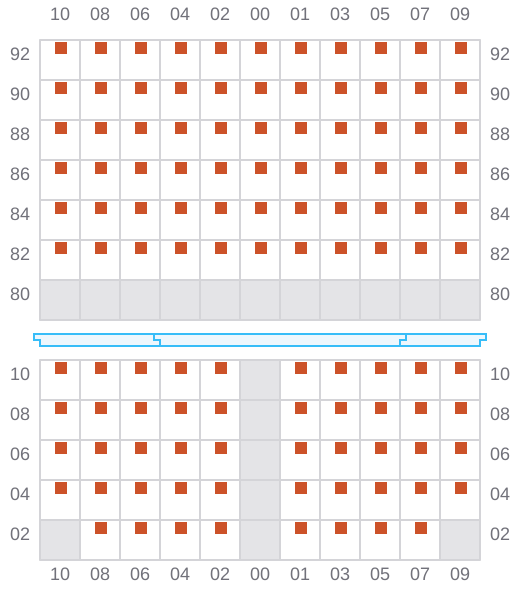

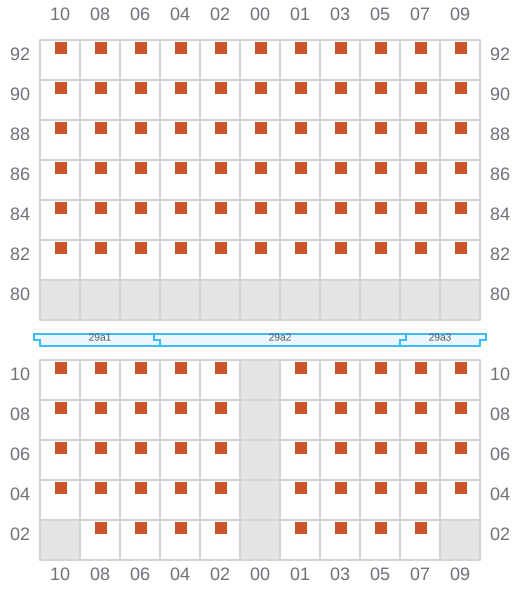

Bay 029 view and slots of G. CROWN

031 (030)

←
✓

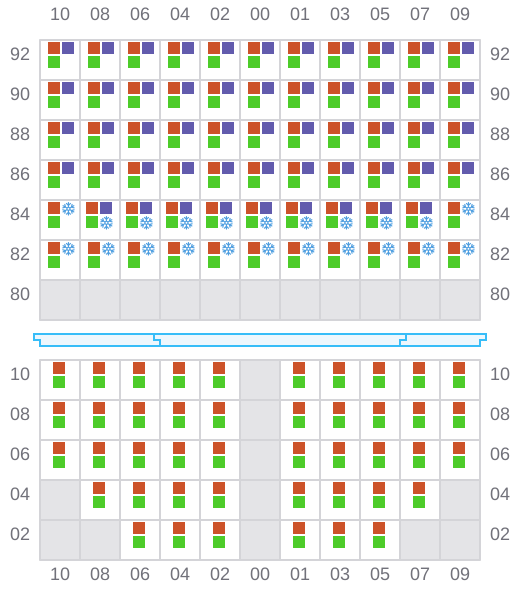

Bay 031 view and slots of G. CROWN

033

→
✓

Bay 033 view and slots of G. CROWN

035 (034)

^← / _→
^? / _?
^? / _?
✓

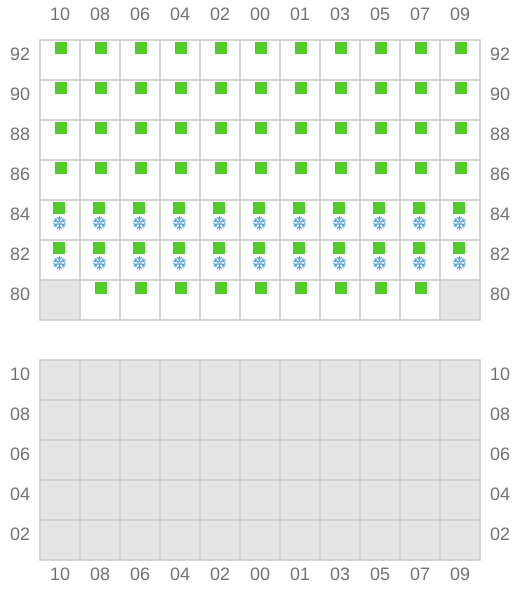

Bay 035 view and slots of G. CROWN

037

→
✓

Bay 037 view and slots of G. CROWN

039 (038)

←
✓

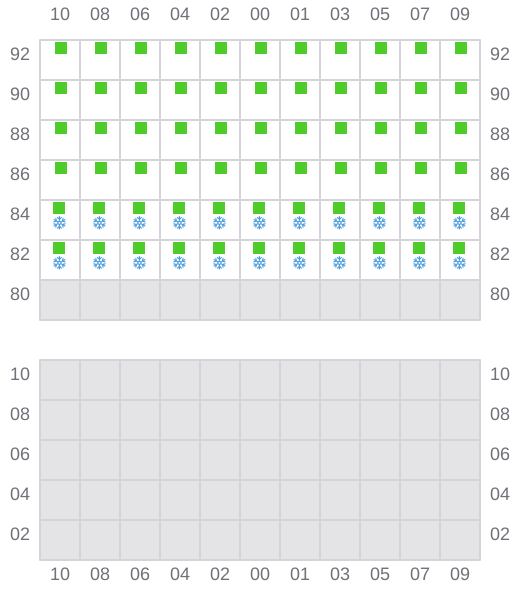

Bay 039 view and slots of G. CROWN
