GABRIELA A
9312432 | V7A4845 | 9312432 by ********* Last update: Tue Apr 30 2024
General Info
Ship Name:GABRIELA A
IMO Code:9312432
Call Sign:V7A4845
Line Operator:9312432
Class Name for Sister Ships:COSCO BRISBANE
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):205.28
LOA (Length Overall):215.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,702
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

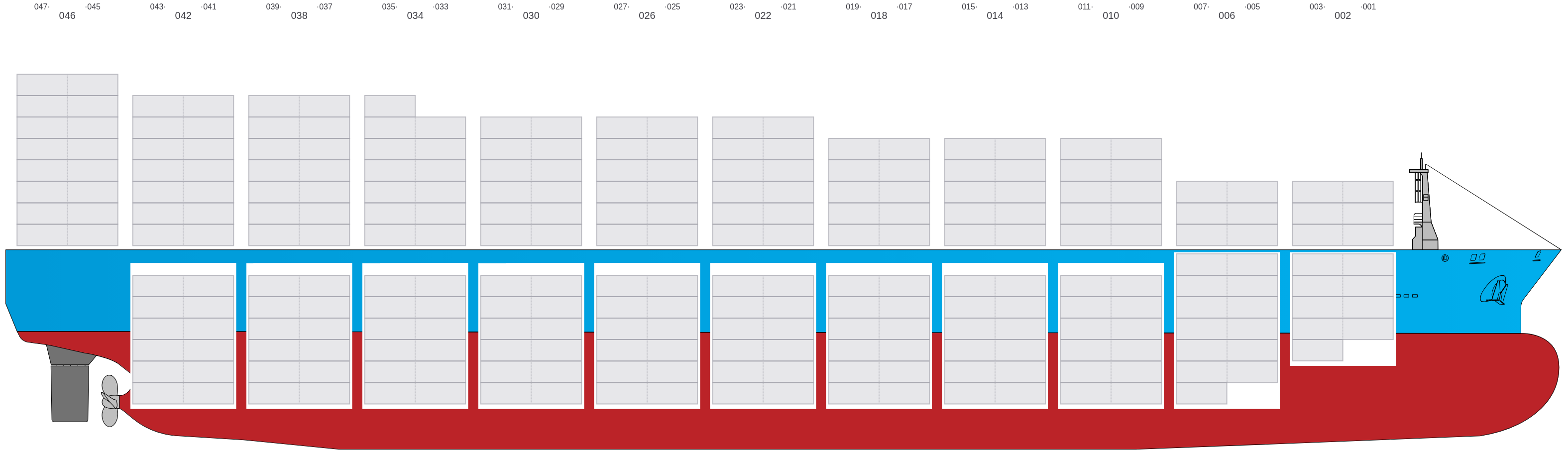

Side View
![Side view of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-sideView.png?v=1714501283809)
Hatch-Covers View
![Deck view of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-deckView.png?v=1714501283809)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

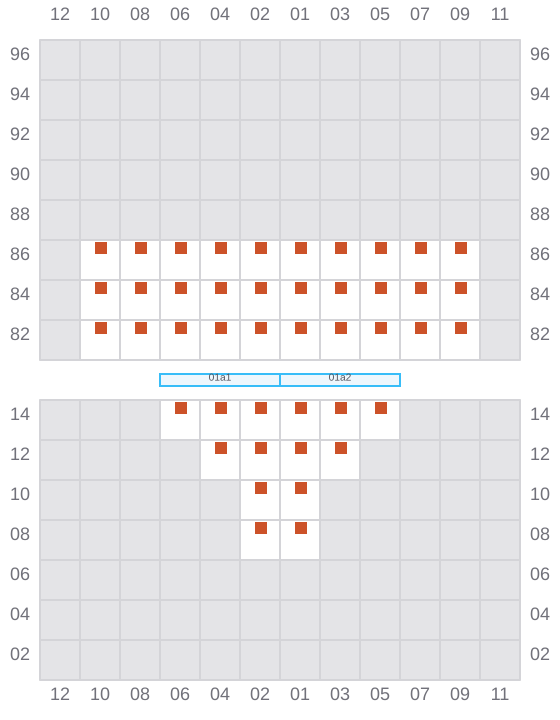

001
- →
![Bay 001 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b001.png?v=1714501283809)

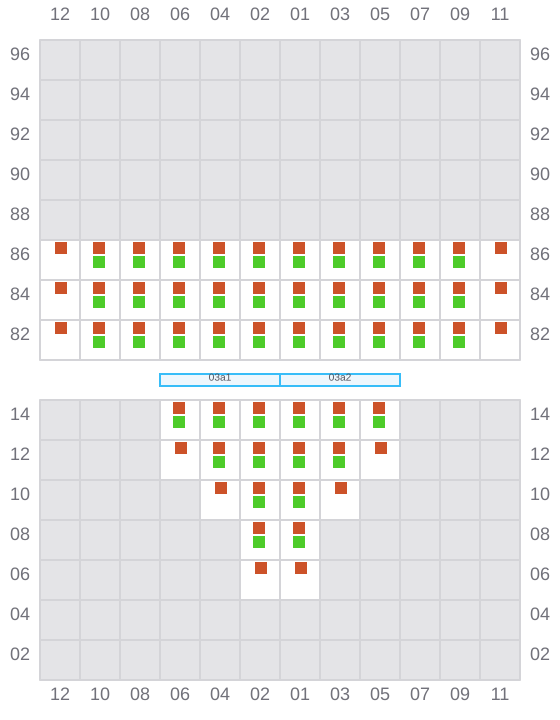

003 (002)
- ←
![Bay 003 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b003.png?v=1714501283809)

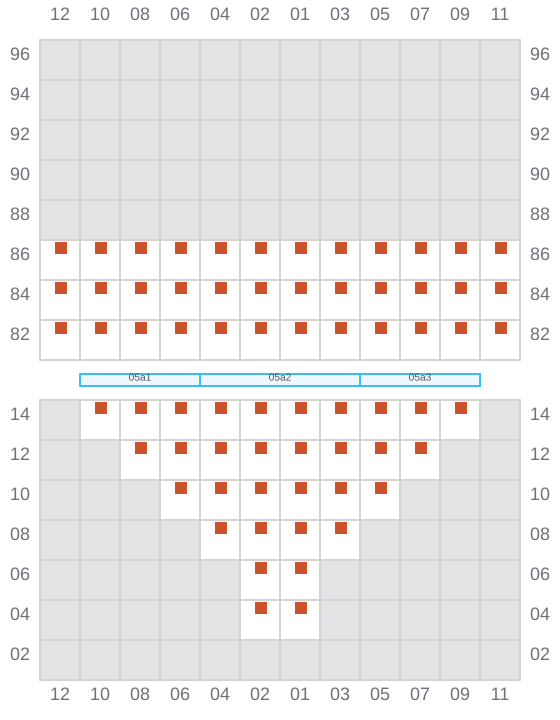

005
- →
![Bay 005 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b005.png?v=1714501283809)

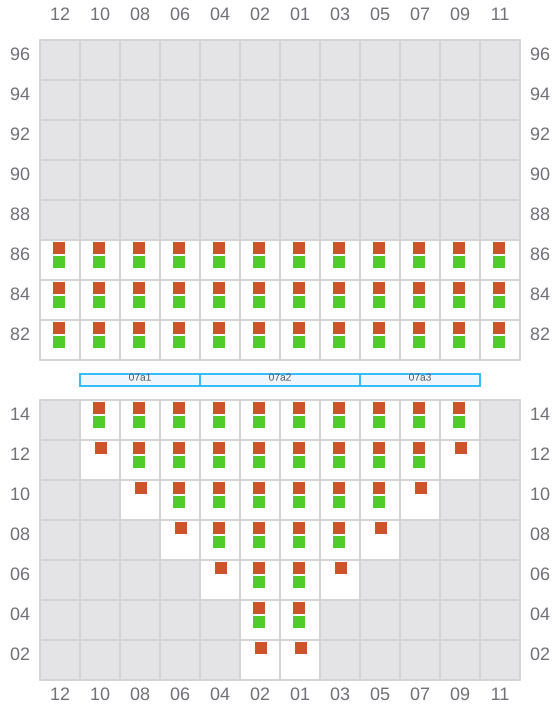

007 (006)
- ←
![Bay 007 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b007.png?v=1714501283809)

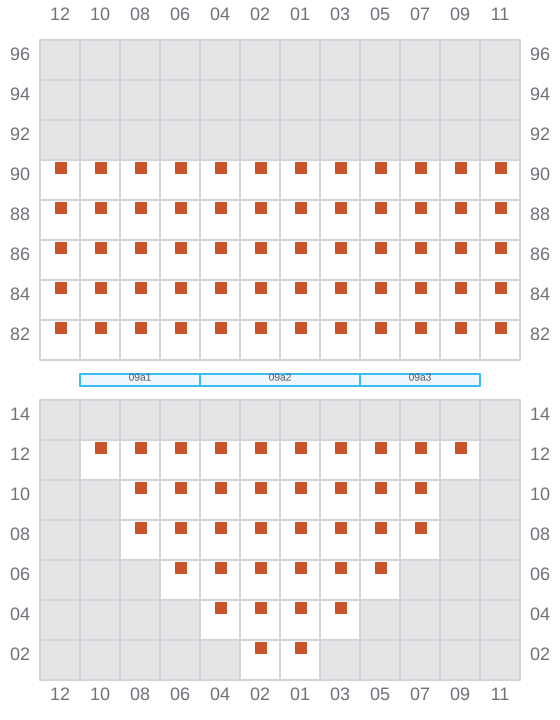

009
- →
![Bay 009 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b009.png?v=1714501283809)

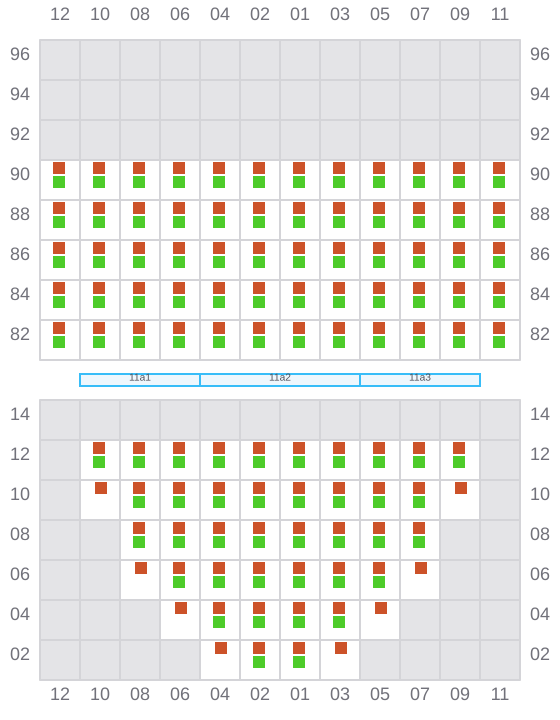

011 (010)
- ←
![Bay 011 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b011.png?v=1714501283809)

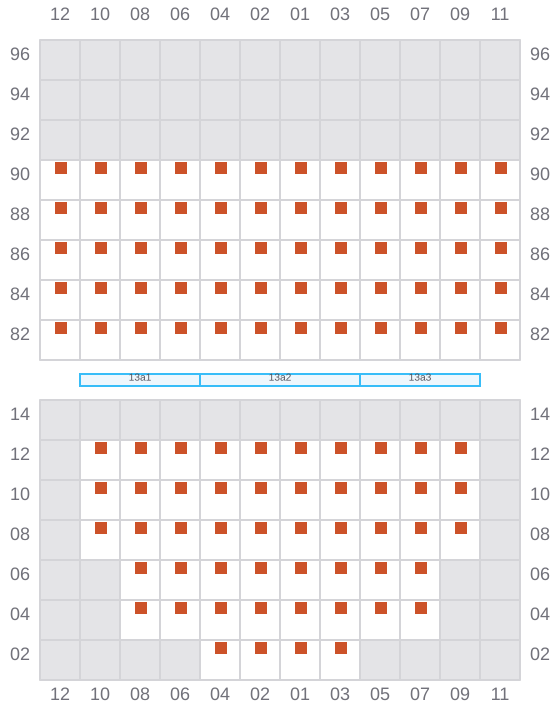

013
- →
![Bay 013 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b013.png?v=1714501283809)

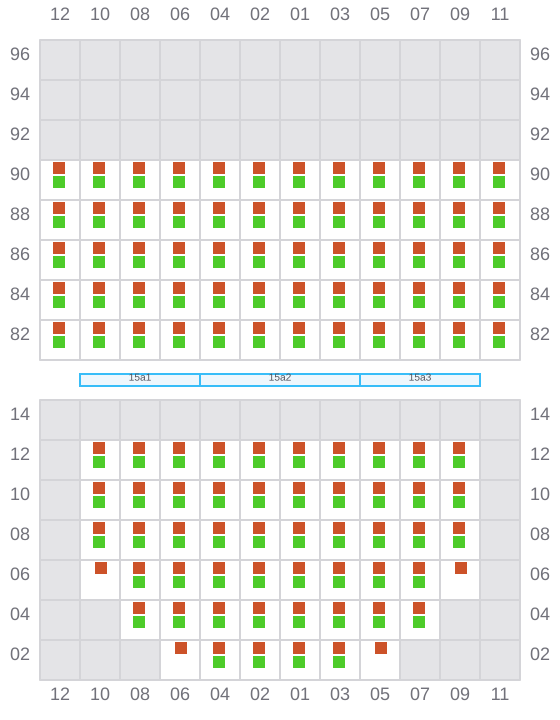

015 (014)
- ←
![Bay 015 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b015.png?v=1714501283809)

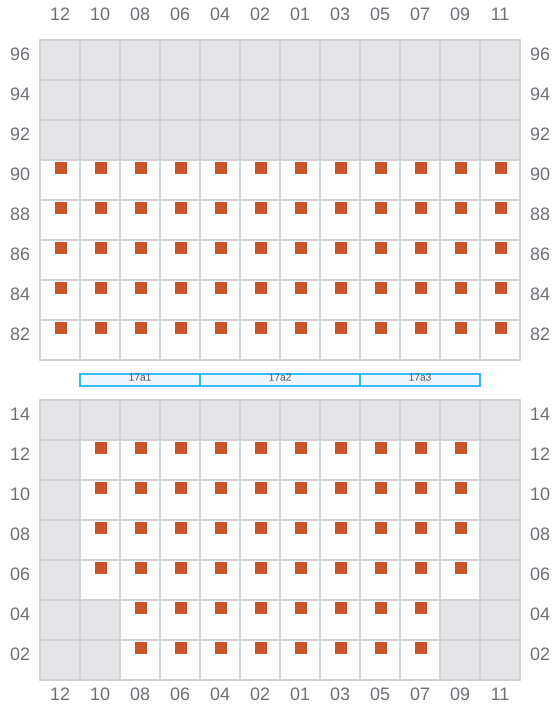

017
- →
![Bay 017 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b017.png?v=1714501283809)
019 (018)
- ←
![Bay 019 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b019.png?v=1714501283809)

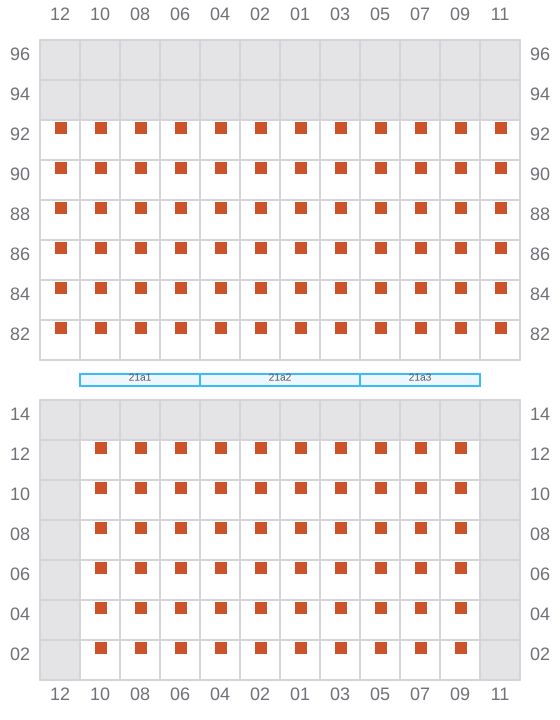

021
- →
![Bay 021 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b021.png?v=1714501283809)

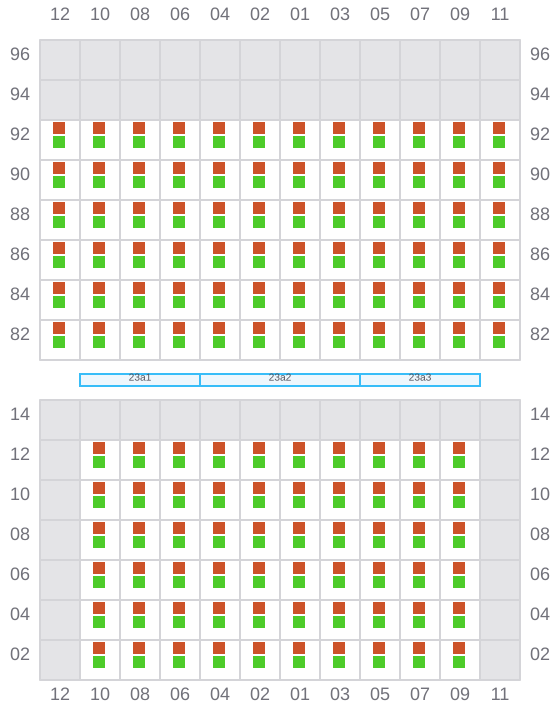

023 (022)
- ←
![Bay 023 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b023.png?v=1714501283809)
025
- →
![Bay 025 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b025.png?v=1714501283809)
027 (026)
- ←
![Bay 027 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b027.png?v=1714501283809)
029
- →
![Bay 029 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b029.png?v=1714501283809)
031 (030)
- ←
![Bay 031 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b031.png?v=1714501283809)

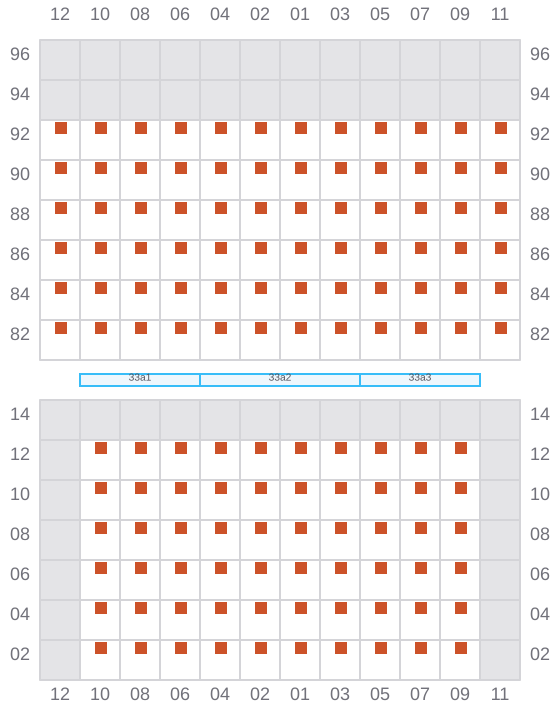

033
- →
![Bay 033 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b033.png?v=1714501283809)

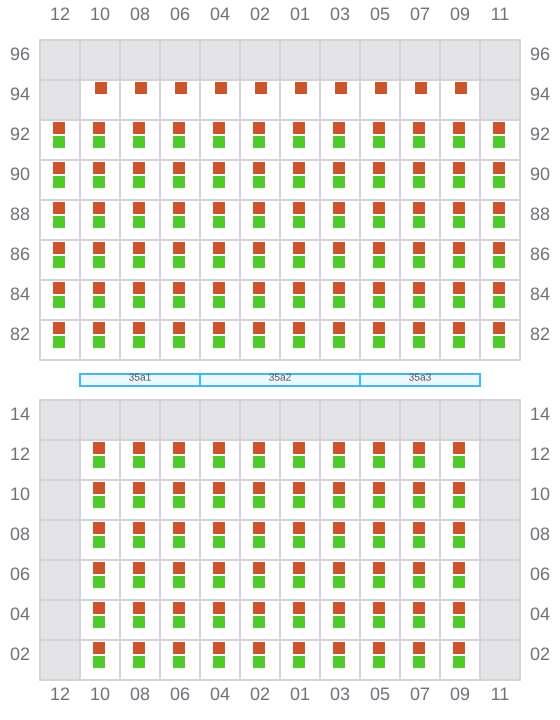

035 (034)
- ←
![Bay 035 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b035.png?v=1714501283809)

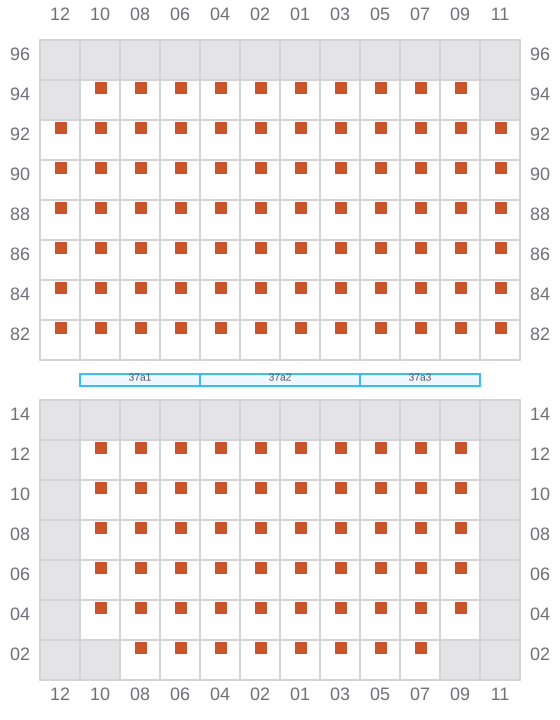

037
- →
![Bay 037 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b037.png?v=1714501283809)

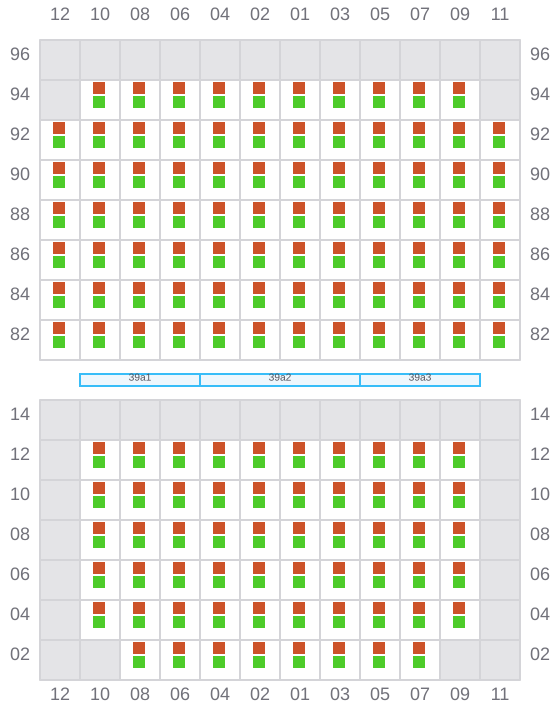

039 (038)
- ←
![Bay 039 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b039.png?v=1714501283809)
041
- →
![Bay 041 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b041.png?v=1714501283809)

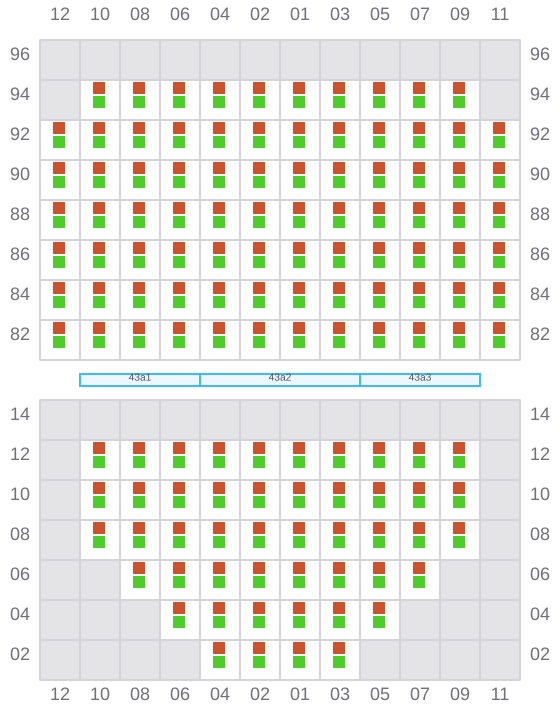

043 (042)
- ←
![Bay 043 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b043.png?v=1714501283809)
045
- → / ?
![Bay 045 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b045.png?v=1714501283809)

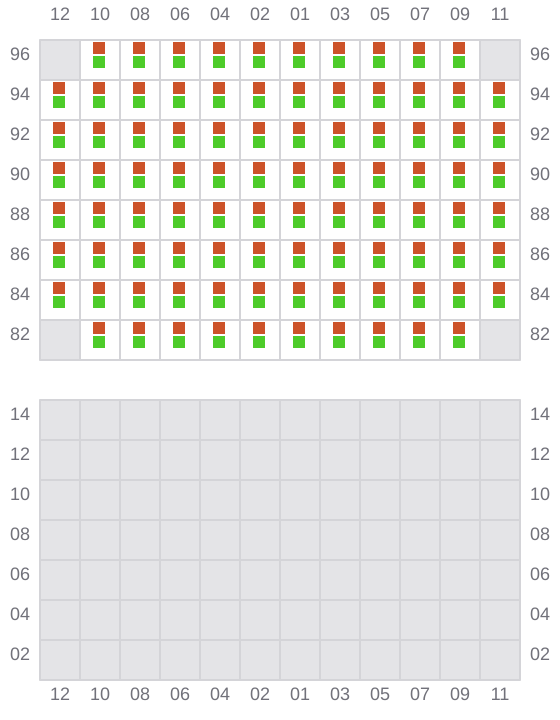

047 (046)
- ← / ?
![Bay 047 view and slots of GABRIELA A](/vessel-images/2fe5b8df-2a70-43bf-b36f-fb8472505fcd-b047.png?v=1714501283809)
