GARWOOD
9347255 | A8OK7 | 9347255 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:GARWOOD
IMO Code:9347255
Call Sign:A8OK7
Line Operator:9347255
Class Name for Sister Ships:6IW
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,819
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

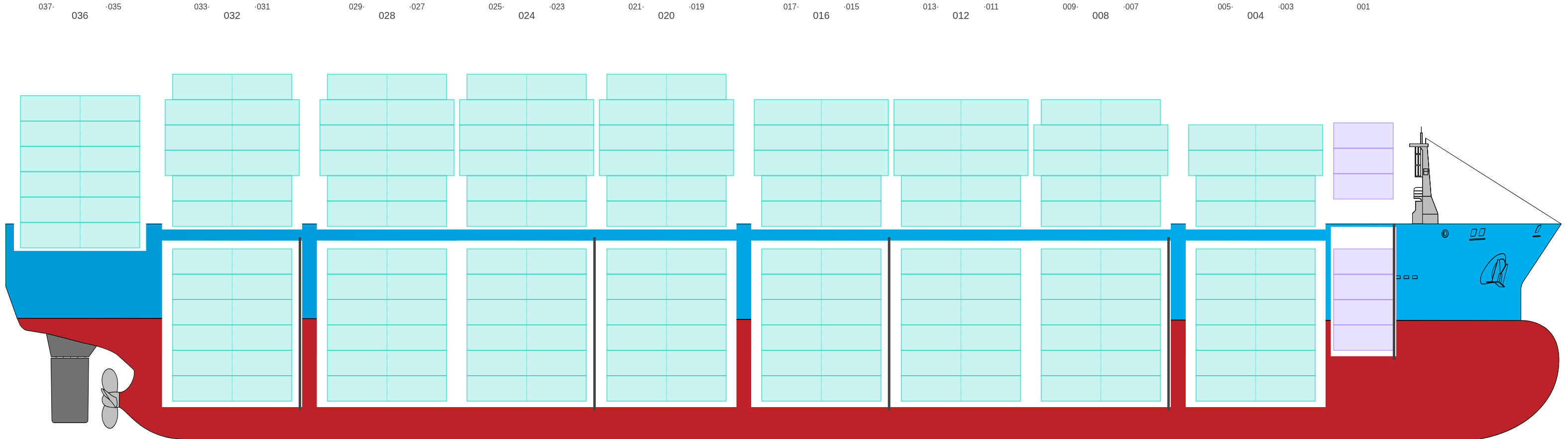

Side View
![Side view of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-sideView.png?v=1711134887137)

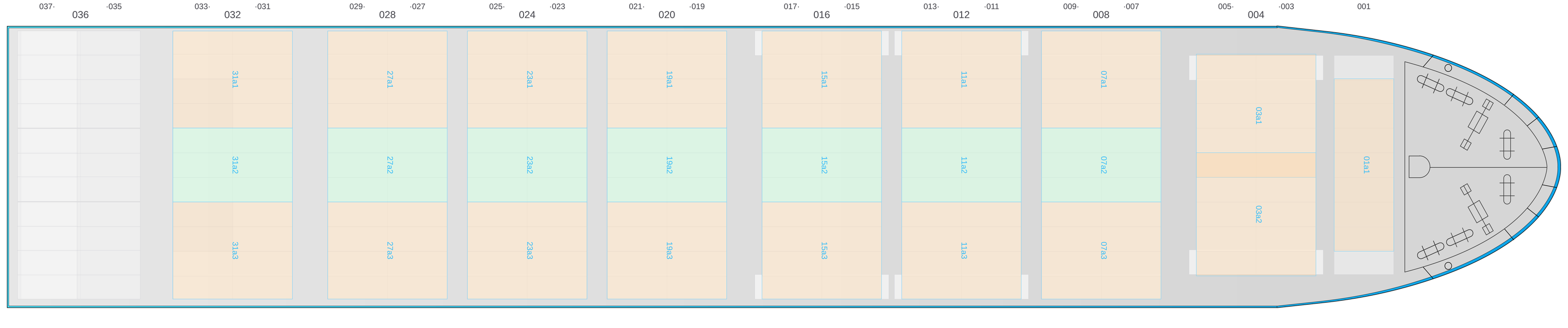

Hatch-Covers View
![Deck view of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-deckView.png?v=1711134887137)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
![Bay 001 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b001.png?v=1711134887137)

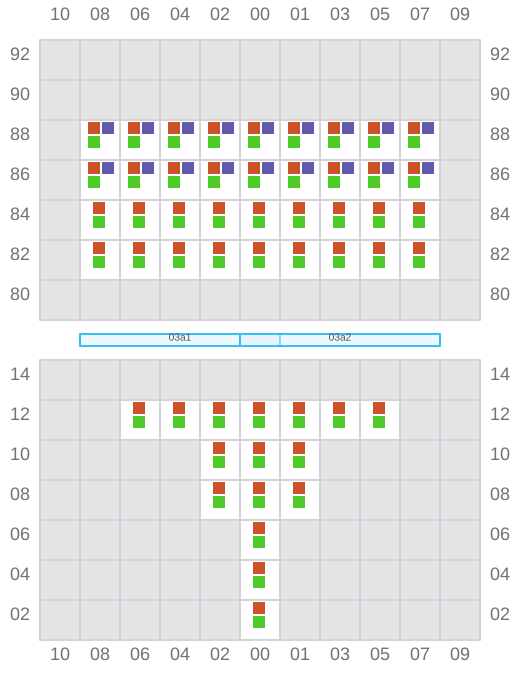

003 (004)
- →
![Bay 003 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b003.png?v=1711134887137)

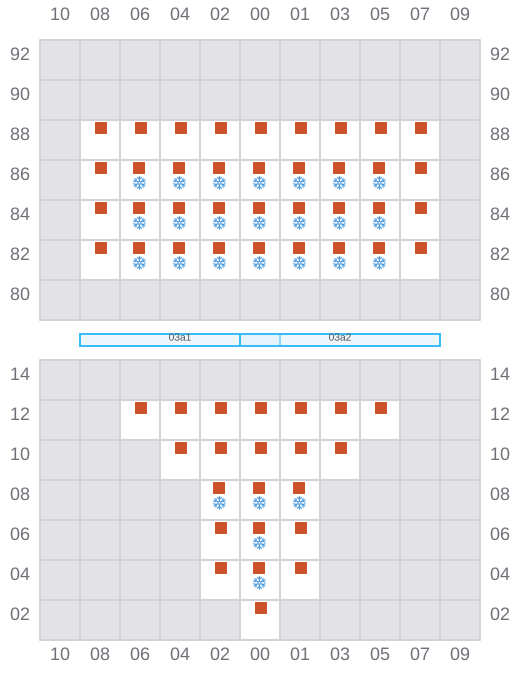

005
- ←
![Bay 005 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b005.png?v=1711134887137)

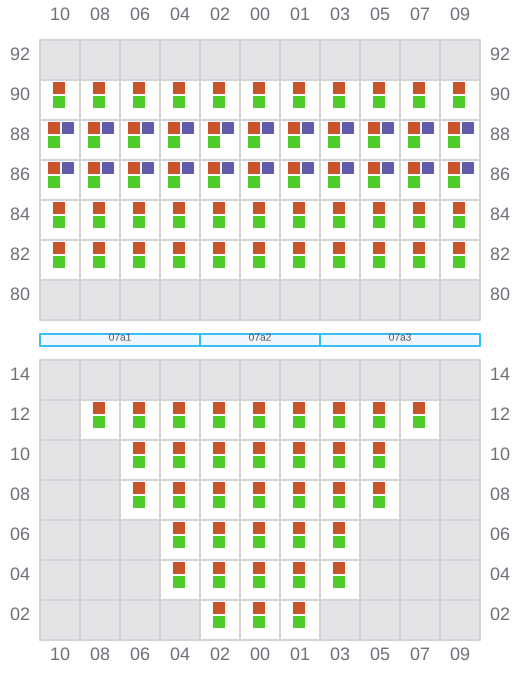

007 (008)
- →
![Bay 007 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b007.png?v=1711134887137)

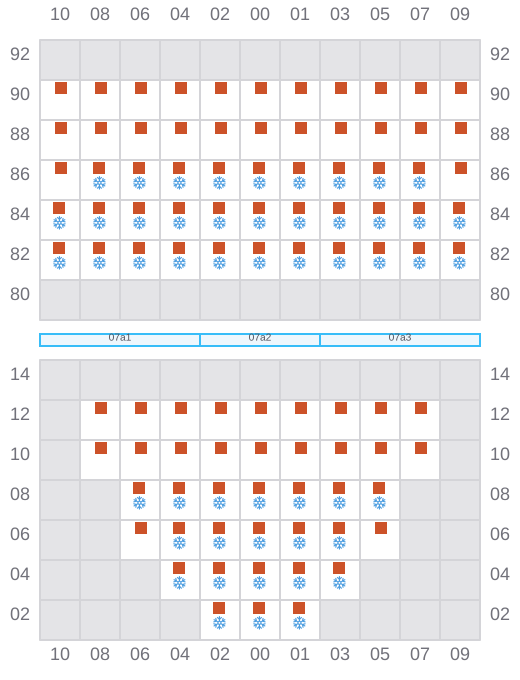

009
- ←
![Bay 009 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b009.png?v=1711134887137)

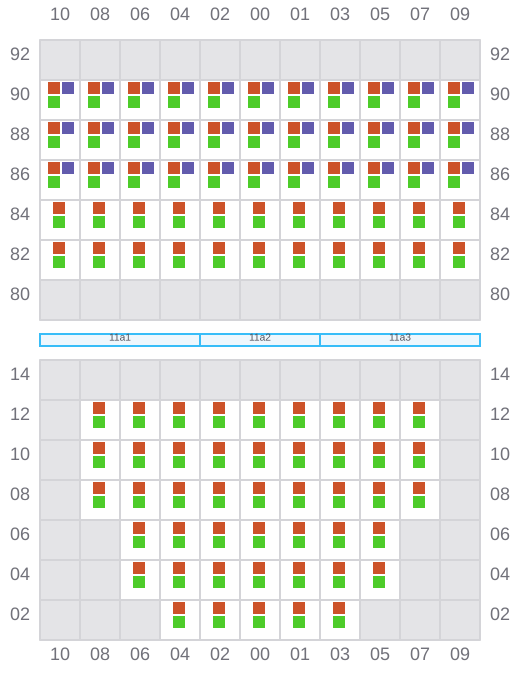

011 (012)
- →
![Bay 011 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b011.png?v=1711134887137)

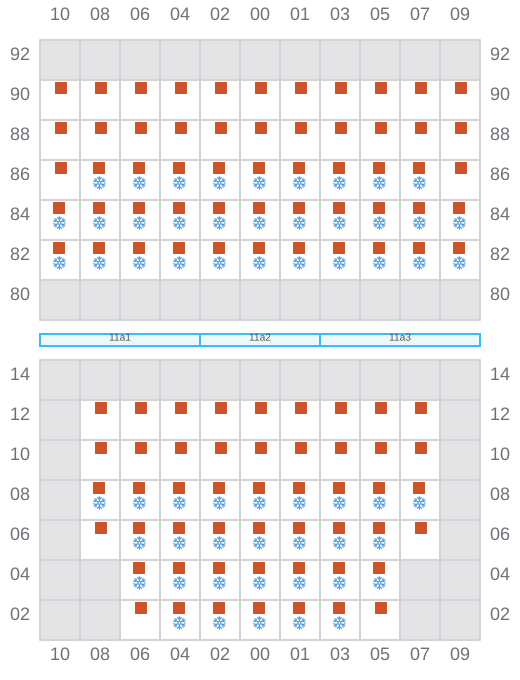

013
- ←
![Bay 013 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b013.png?v=1711134887137)

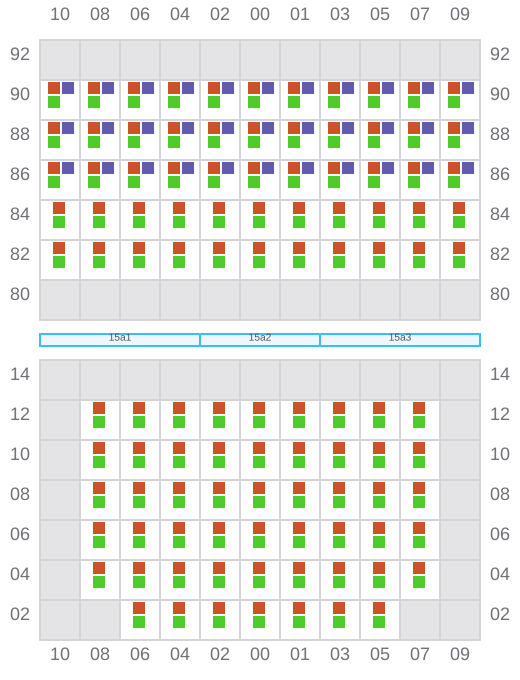

015 (016)
- →
![Bay 015 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b015.png?v=1711134887137)

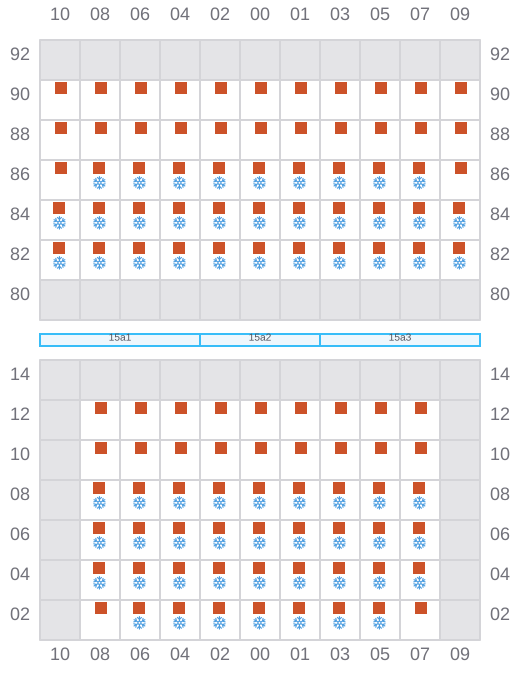

017
- ←
![Bay 017 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b017.png?v=1711134887137)

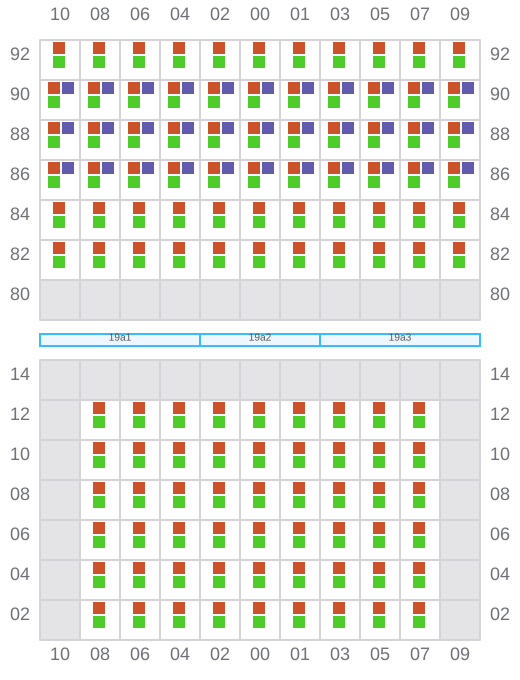

019 (020)
- →
![Bay 019 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b019.png?v=1711134887137)

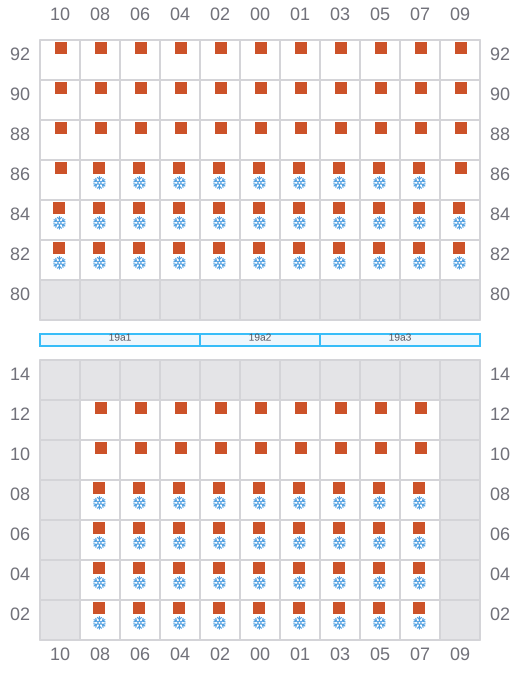

021
- ←
![Bay 021 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b021.png?v=1711134887137)

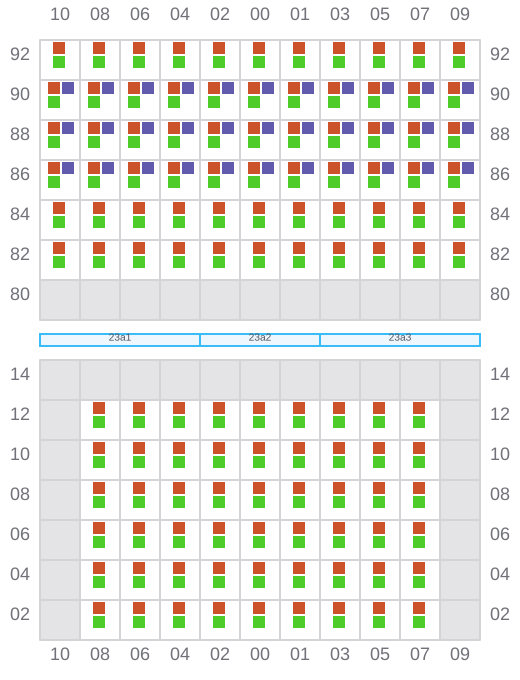

023 (024)
- →
![Bay 023 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b023.png?v=1711134887137)

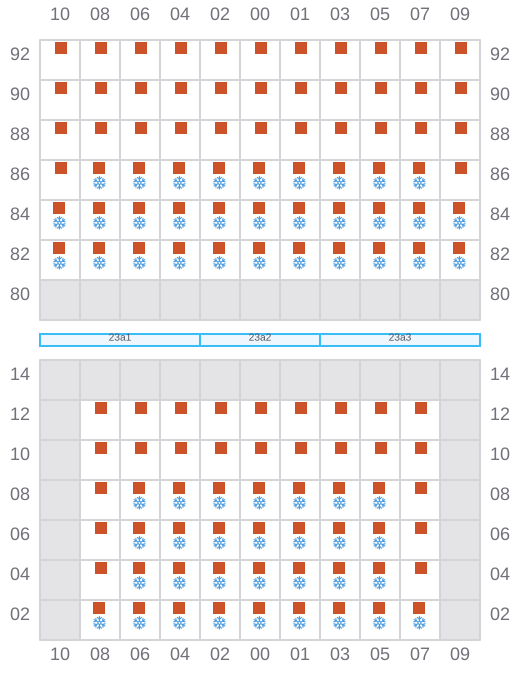

025
- ←
![Bay 025 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b025.png?v=1711134887137)

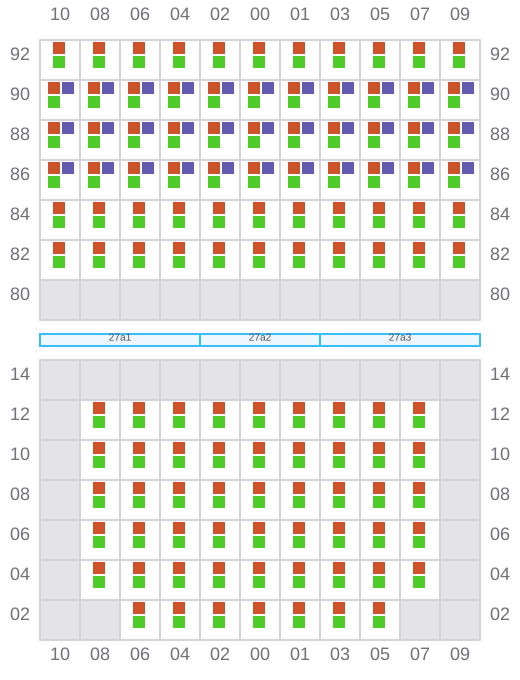

027 (028)
- →
![Bay 027 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b027.png?v=1711134887137)

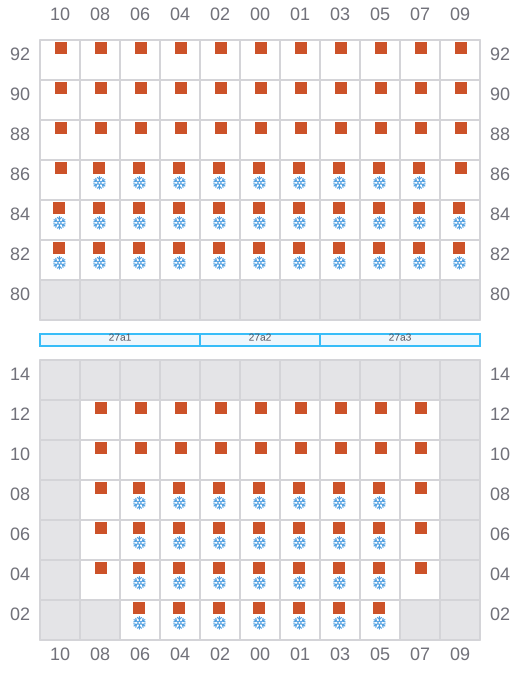

029
- ←
![Bay 029 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b029.png?v=1711134887137)

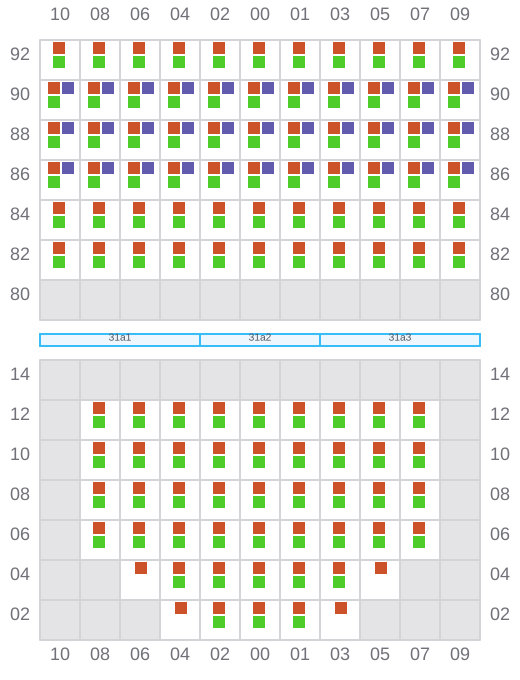

031 (032)
- →
![Bay 031 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b031.png?v=1711134887137)

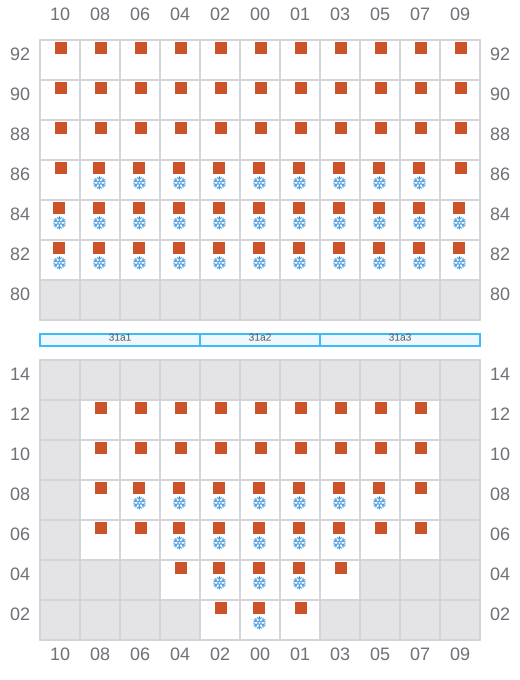

033
- ←
![Bay 033 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b033.png?v=1711134887137)

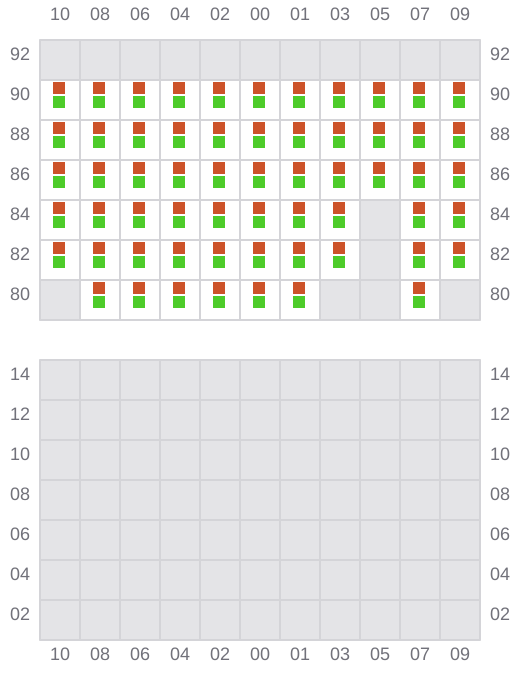

035 (036)
- → / ?
![Bay 035 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b035.png?v=1711134887137)

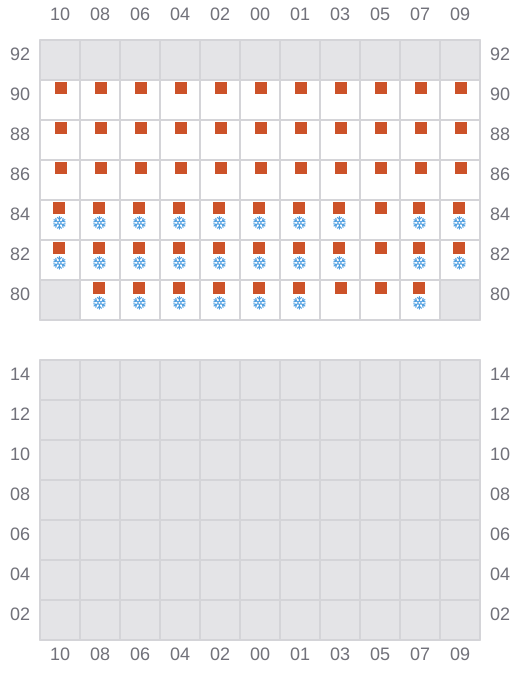

037
- ← / ?
![Bay 037 view and slots of GARWOOD](/vessel-images/23fc4fa1-9a7f-4f99-904d-3ada06a3db2b-b037.png?v=1711134887137)
