GERDA MAERSK
9359052 | OUJS2 | MSK by ************************** Last update: Sat Jun 24 2023
General Info
Ship Name:GERDA MAERSK
IMO Code:9359052
Call Sign:OUJS2
Line Operator:MSK
Class Name for Sister Ships:GDA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:085
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:10,800
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

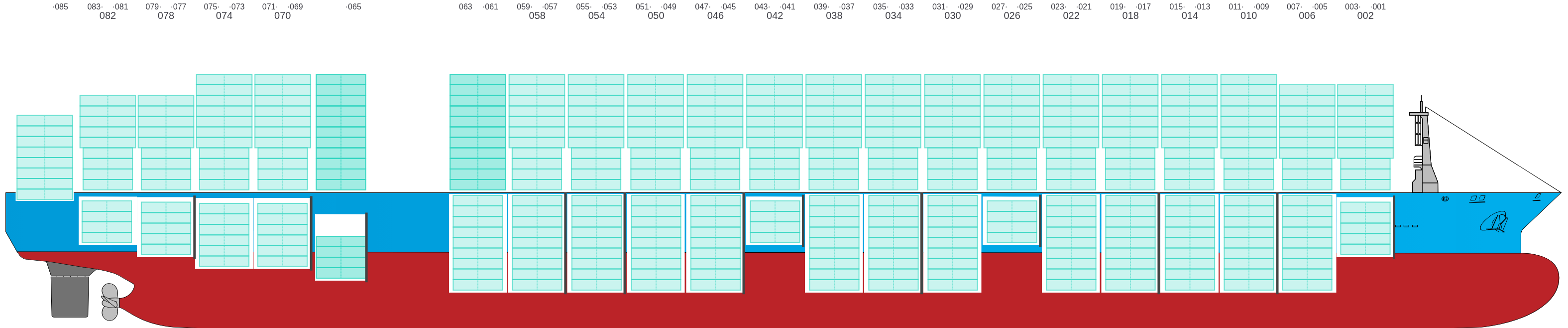

Side View
![Side view of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-sideView.png?v=1687626390058)

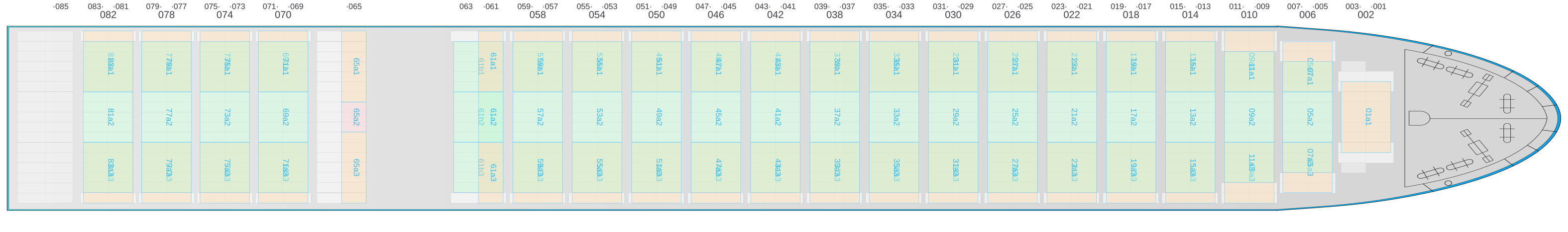

Hatch-Covers View
![Deck view of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-deckView.png?v=1687626390058)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

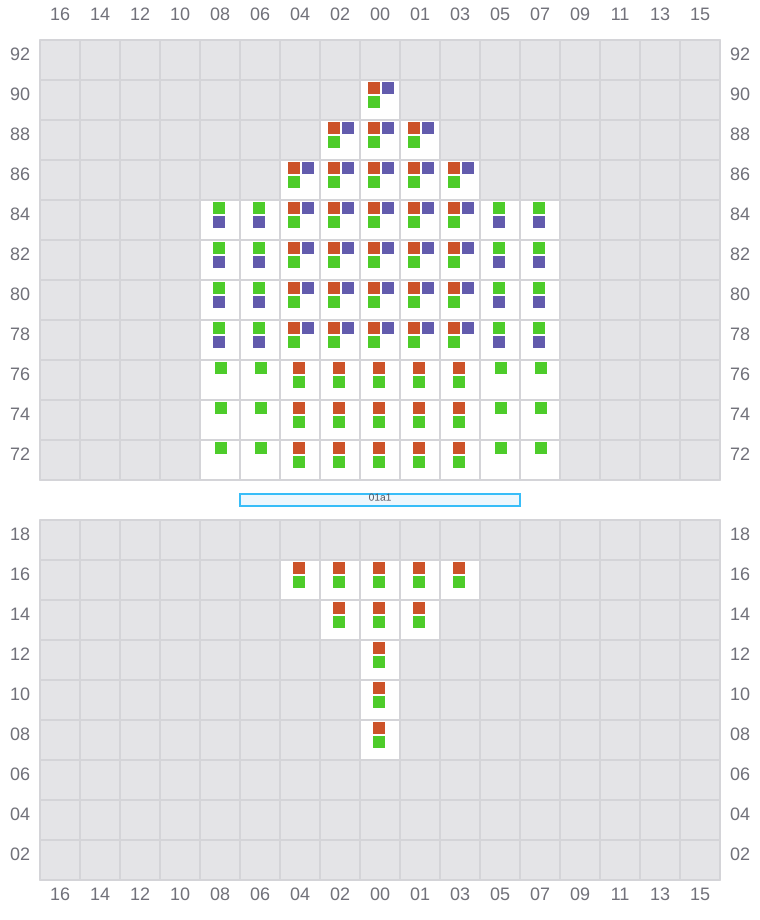

001 (002)
- →
![Bay 001 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b001.png?v=1687626390058)

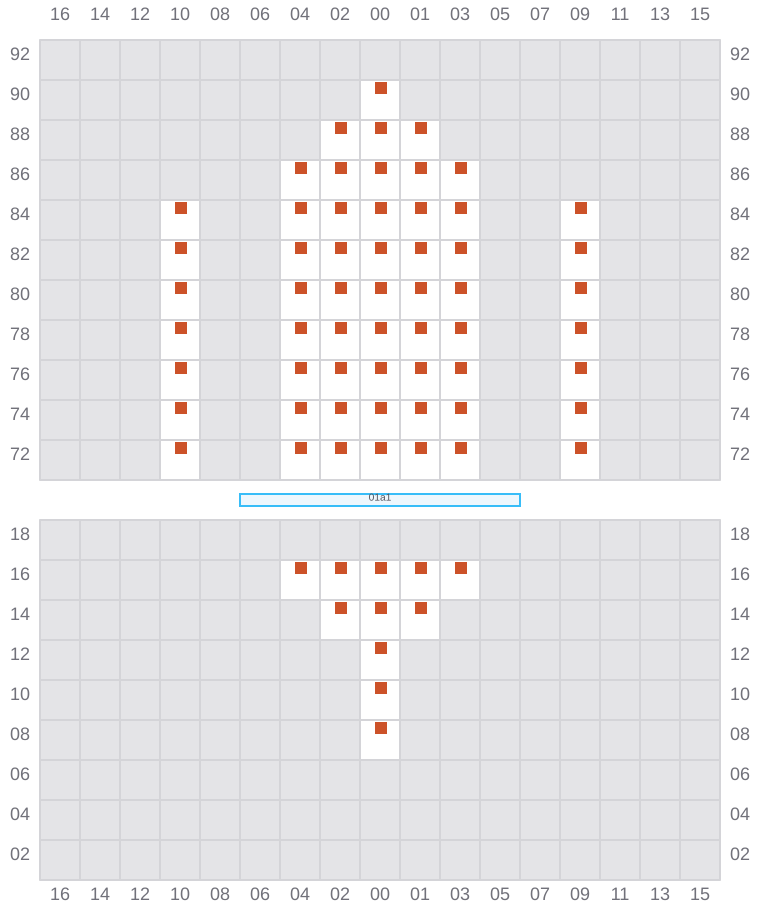

003
- ←
![Bay 003 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b003.png?v=1687626390058)

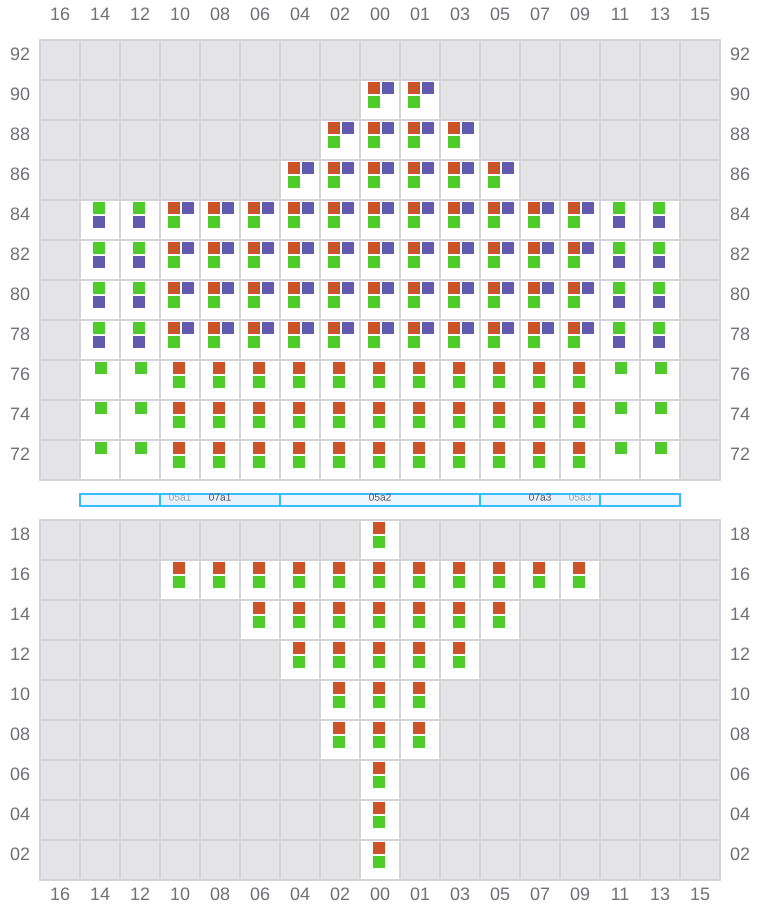

005 (006)
- →
![Bay 005 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b005.png?v=1687626390058)

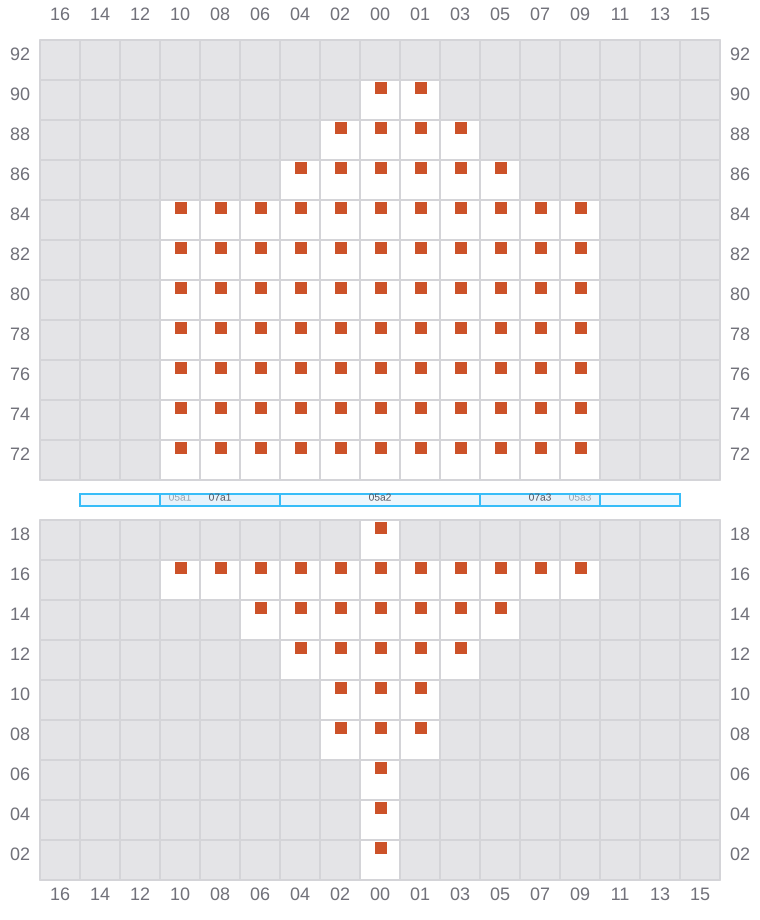

007
- ←
![Bay 007 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b007.png?v=1687626390058)

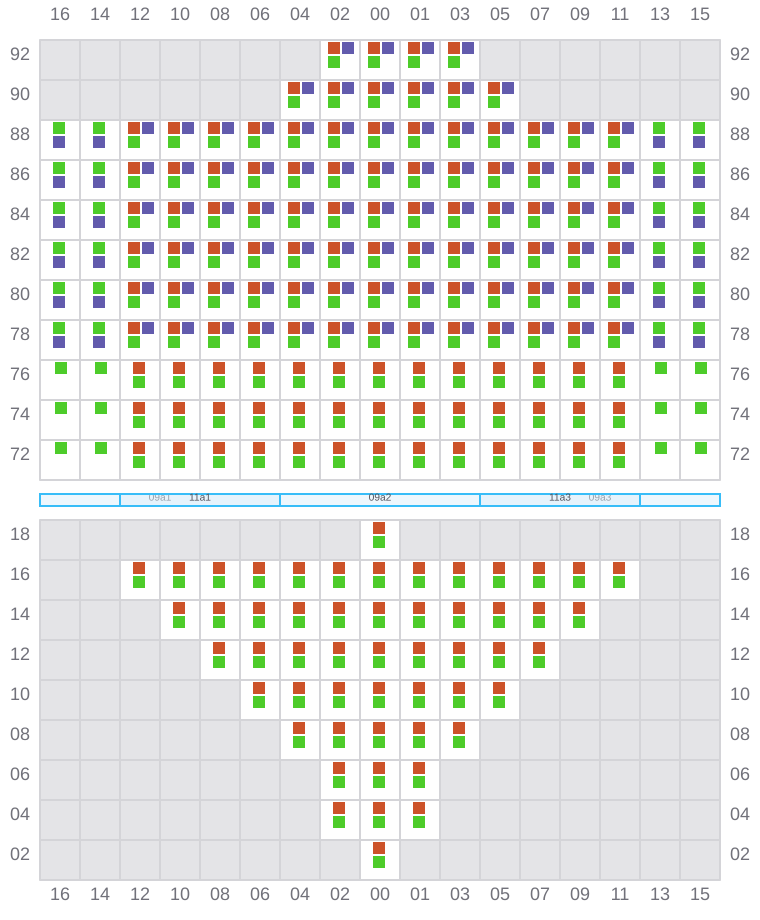

009 (010)
- →
![Bay 009 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b009.png?v=1687626390058)

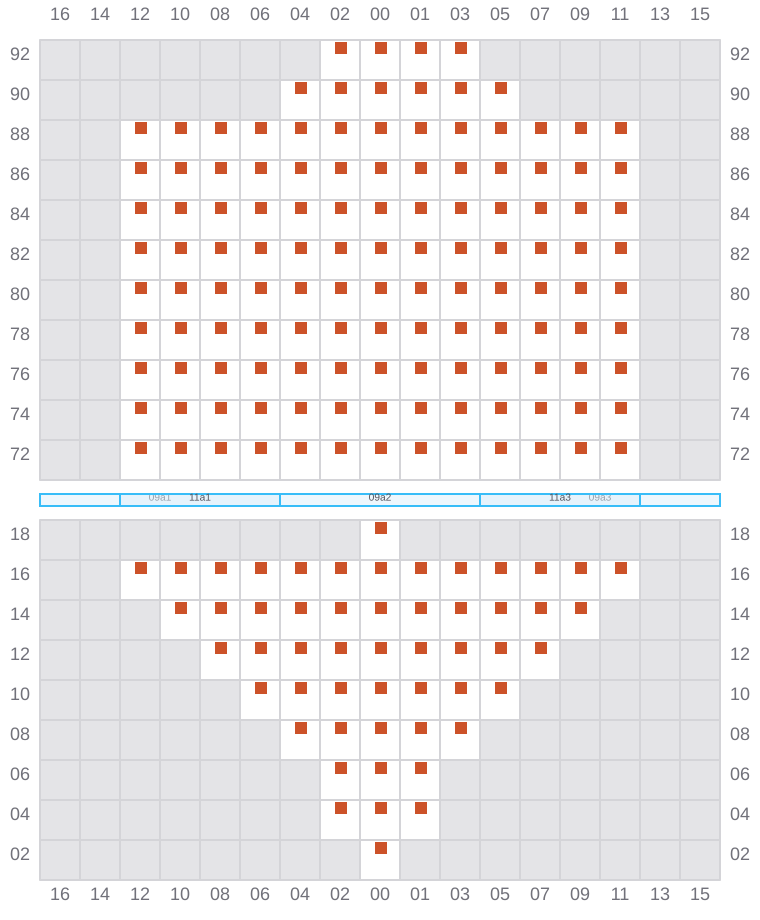

011
- ←
![Bay 011 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b011.png?v=1687626390058)

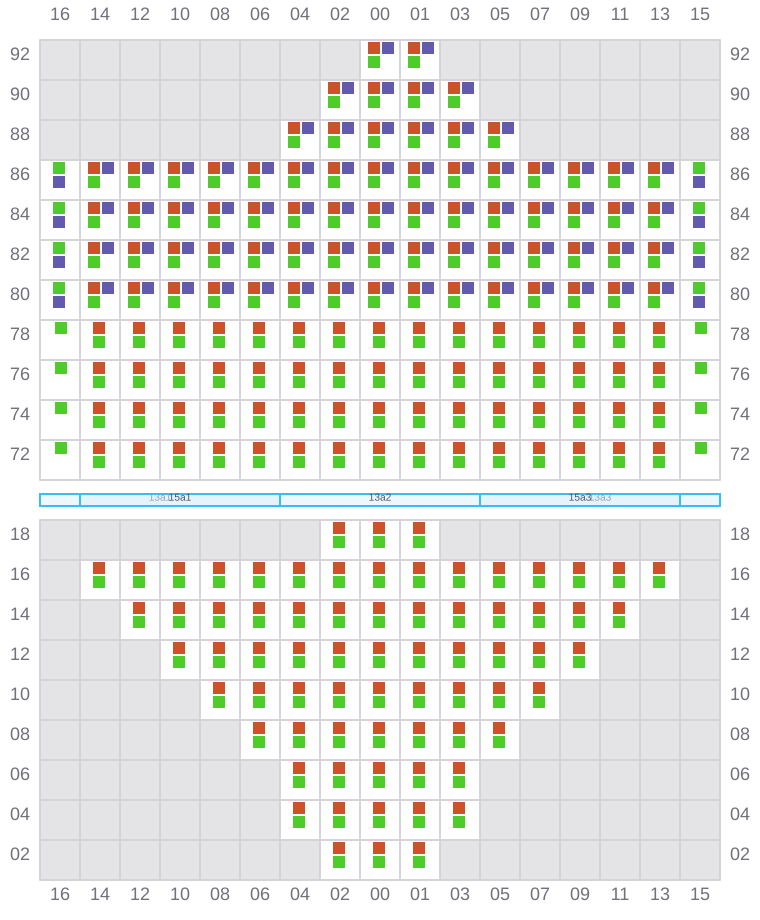

013 (014)
- →
![Bay 013 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b013.png?v=1687626390058)

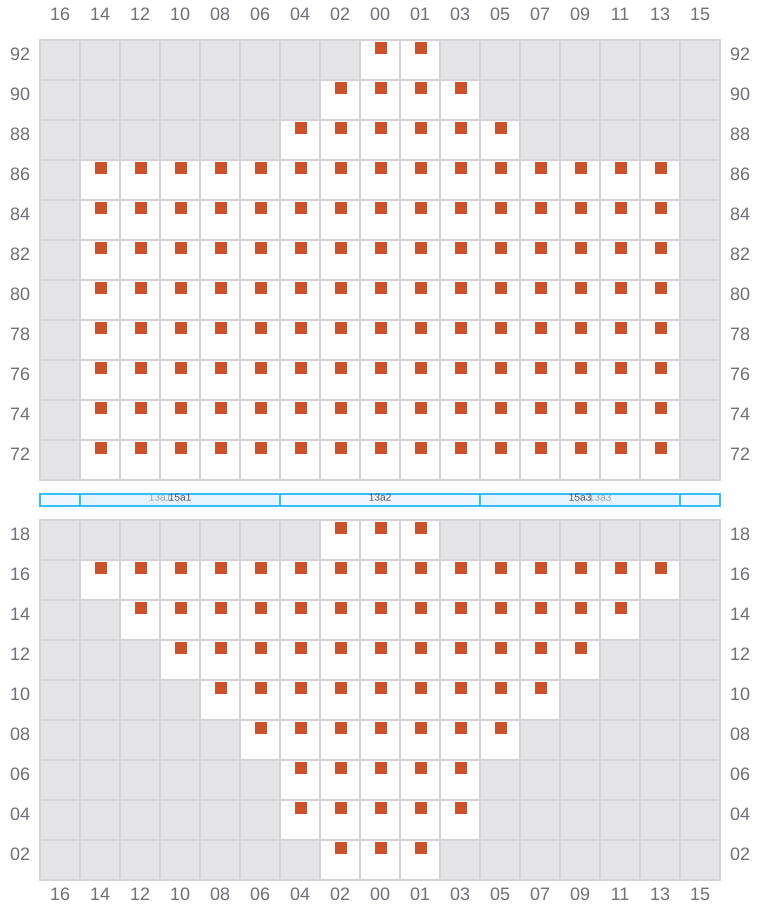

015
- ←
![Bay 015 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b015.png?v=1687626390058)

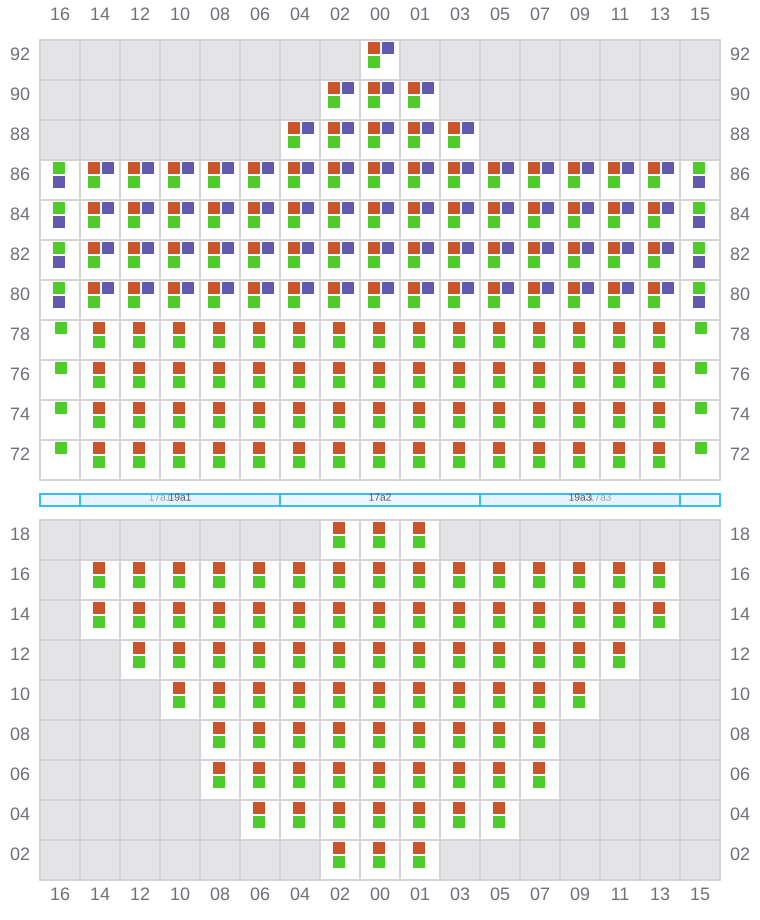

017 (018)
- →
- ? / →
![Bay 017 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b017.png?v=1687626390058)

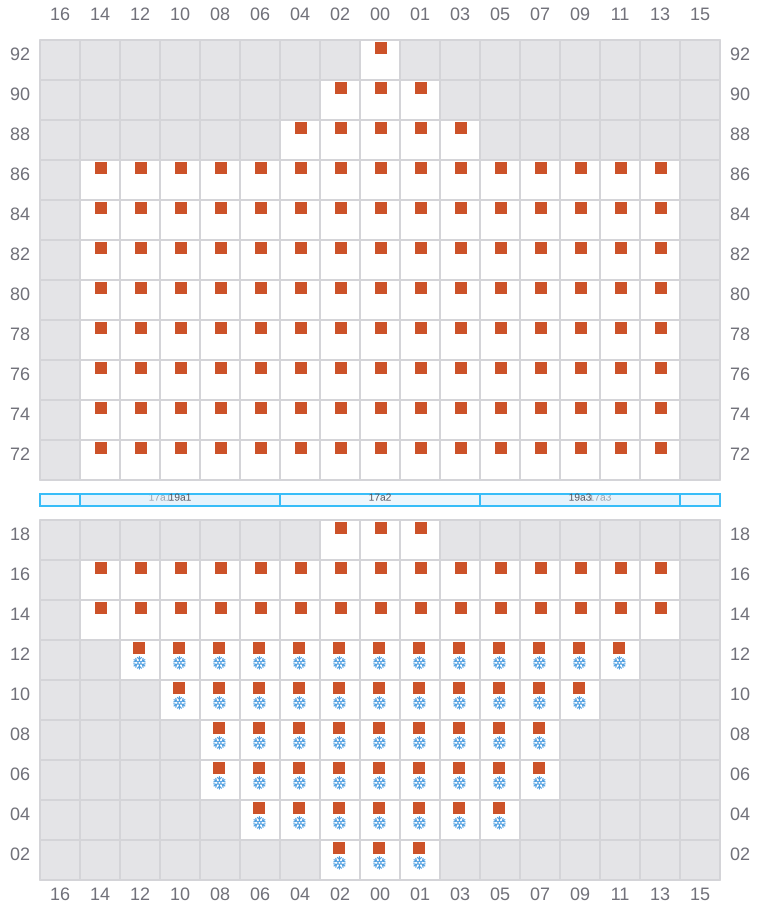

019
- ←
- ? / →
![Bay 019 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b019.png?v=1687626390058)
021 (022)
- →
![Bay 021 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b021.png?v=1687626390058)

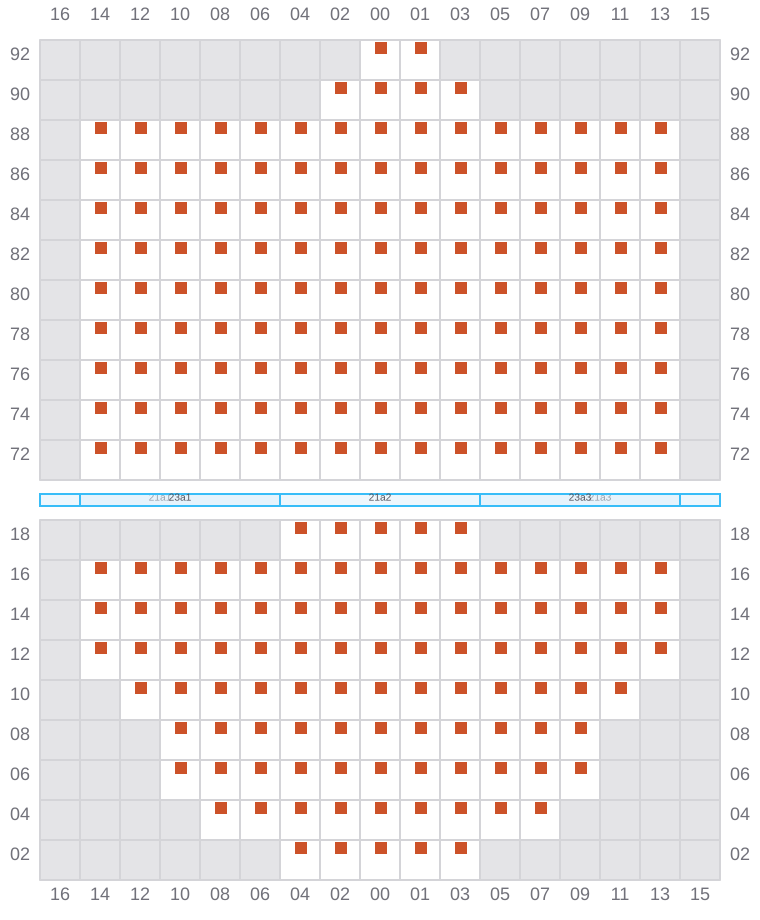

023
- ←
![Bay 023 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b023.png?v=1687626390058)

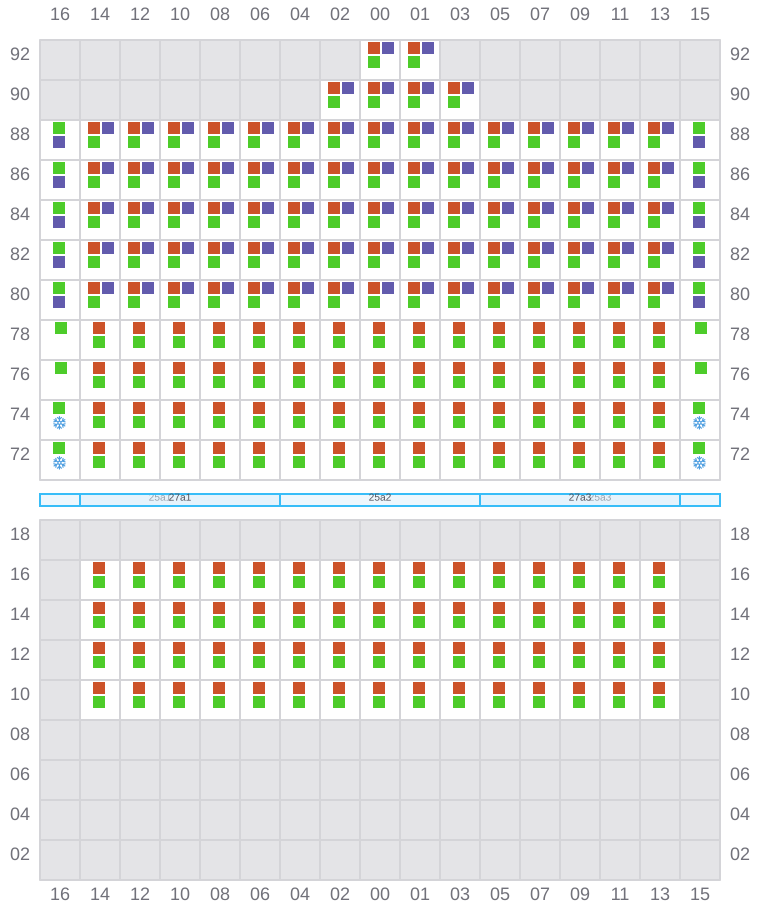

025 (026)
- →
- → / ?
![Bay 025 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b025.png?v=1687626390058)

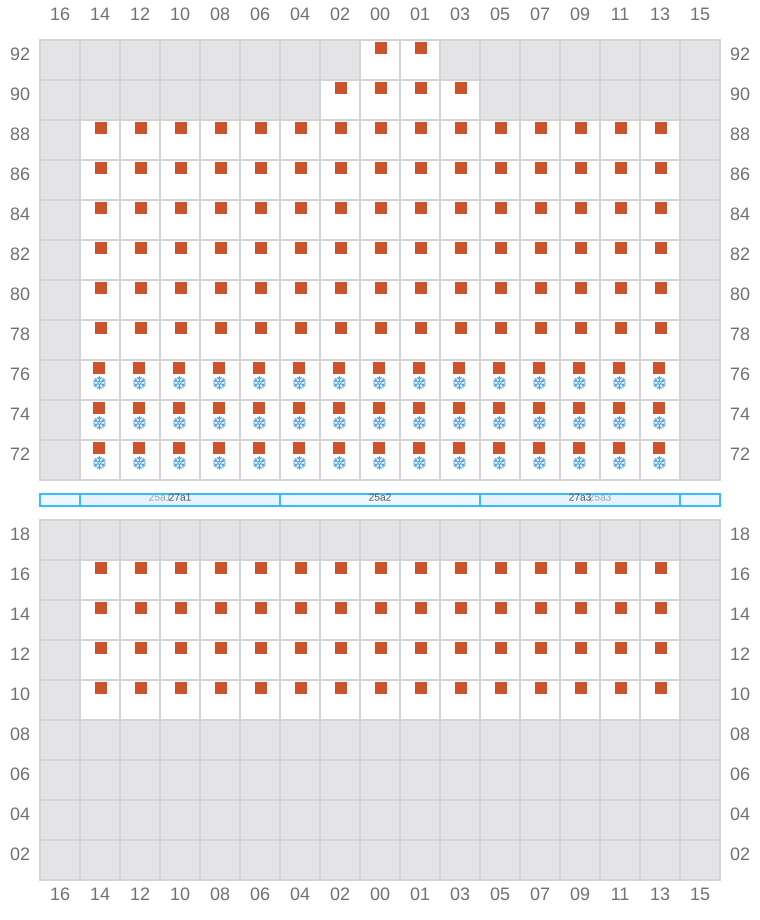

027
- ←
- → / ?
![Bay 027 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b027.png?v=1687626390058)

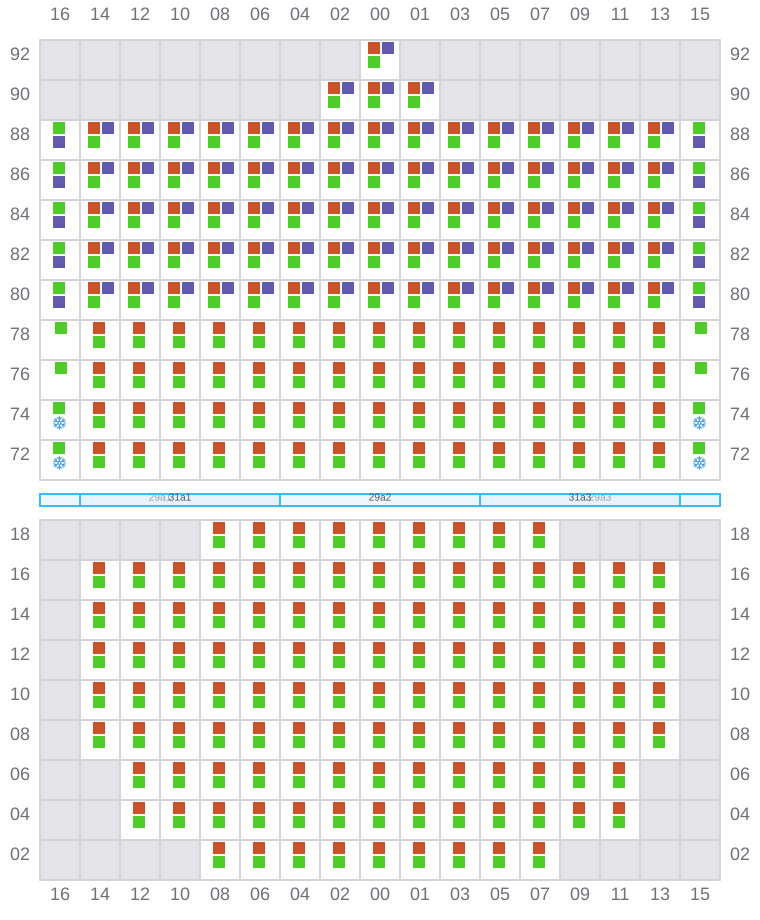

029 (030)
- →
- → / ?
![Bay 029 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b029.png?v=1687626390058)

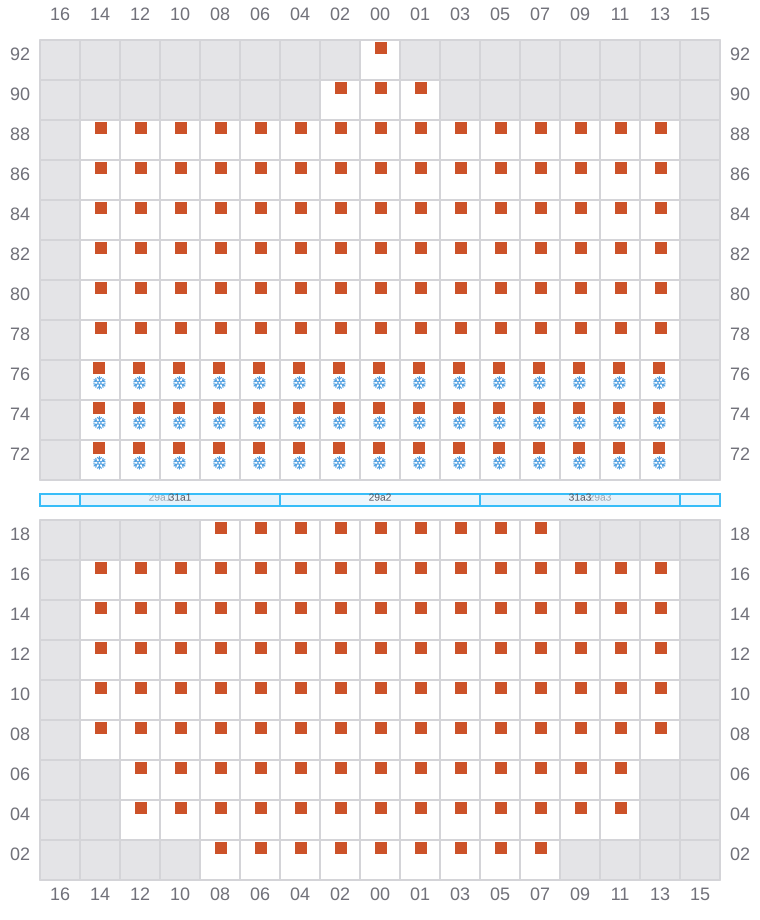

031
- ←
- → / ?
![Bay 031 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b031.png?v=1687626390058)

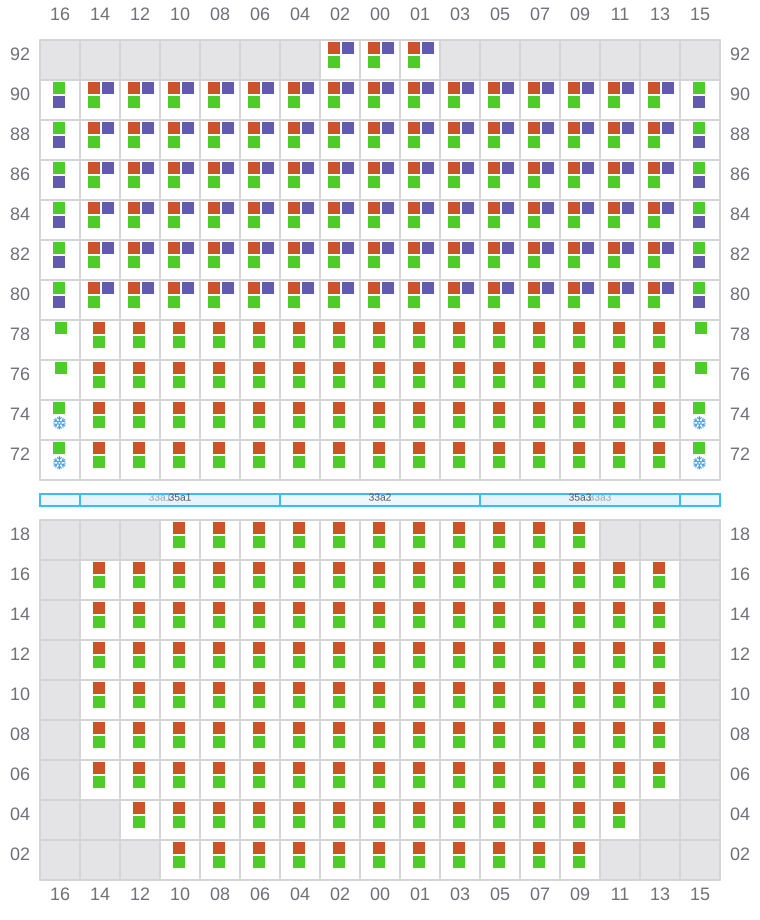

033 (034)
- →
- →
![Bay 033 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b033.png?v=1687626390058)

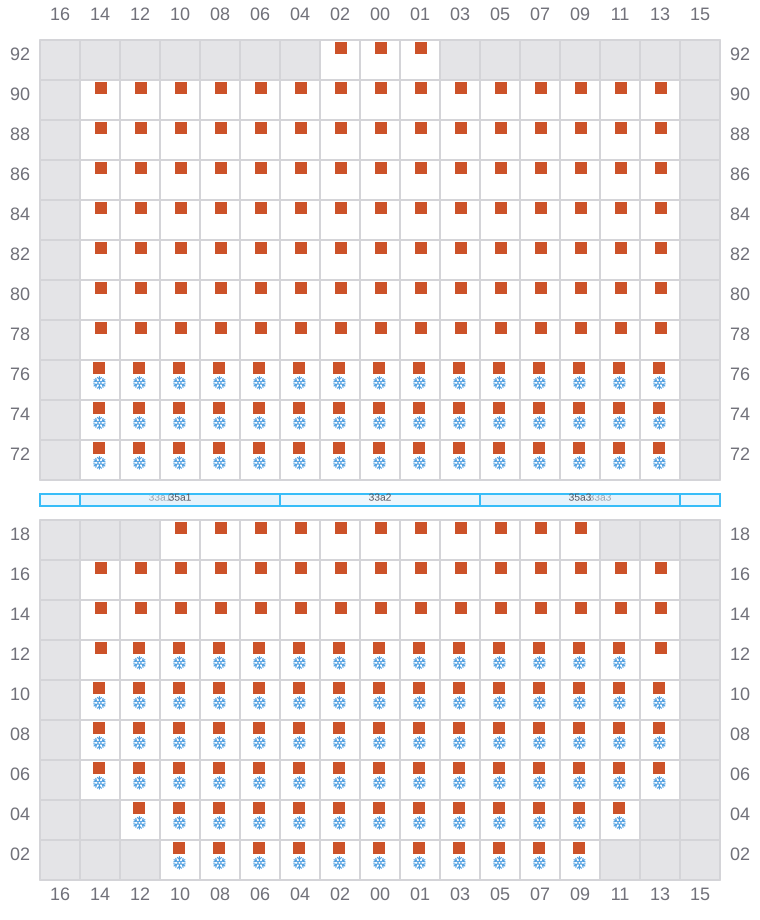

035
- ←
- →
![Bay 035 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b035.png?v=1687626390058)

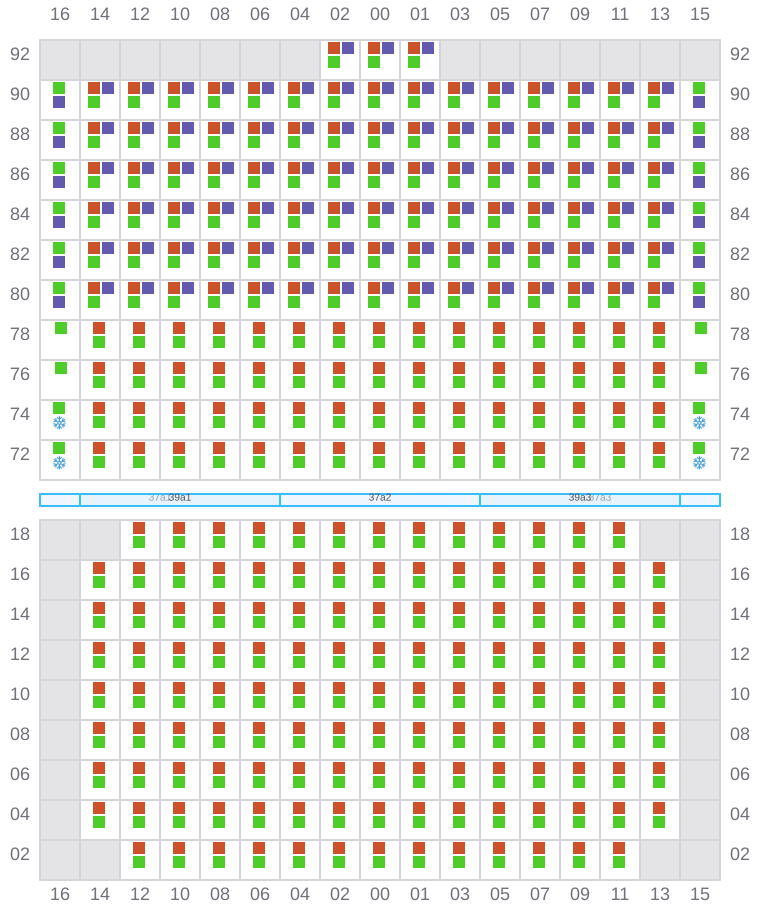

037 (038)
- →
- → / ?
![Bay 037 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b037.png?v=1687626390058)

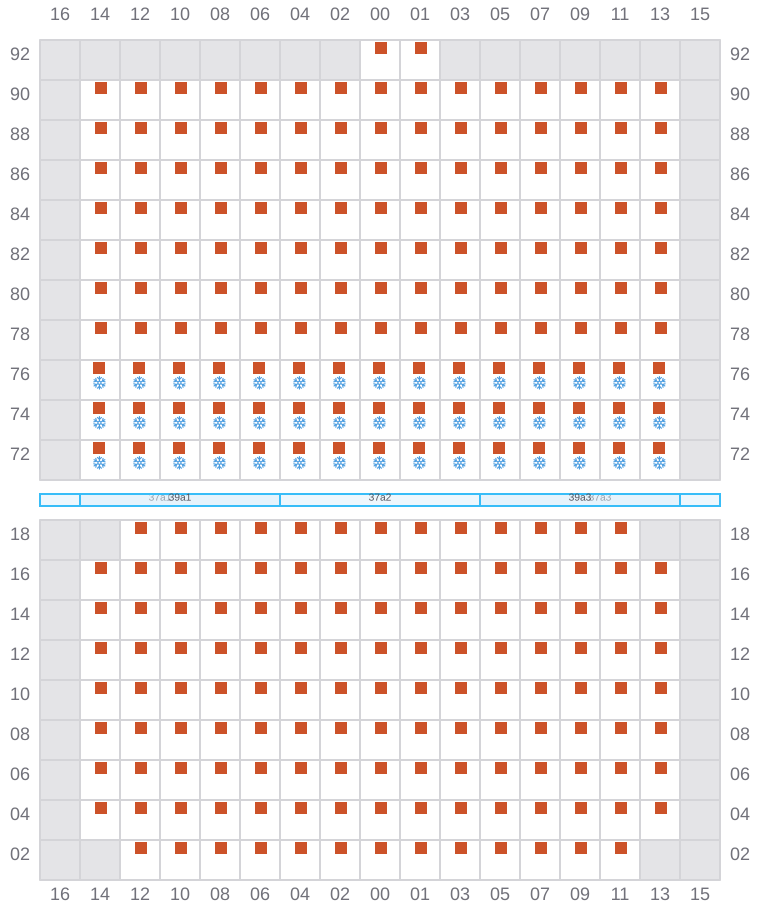

039
- ←
- → / ?
![Bay 039 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b039.png?v=1687626390058)

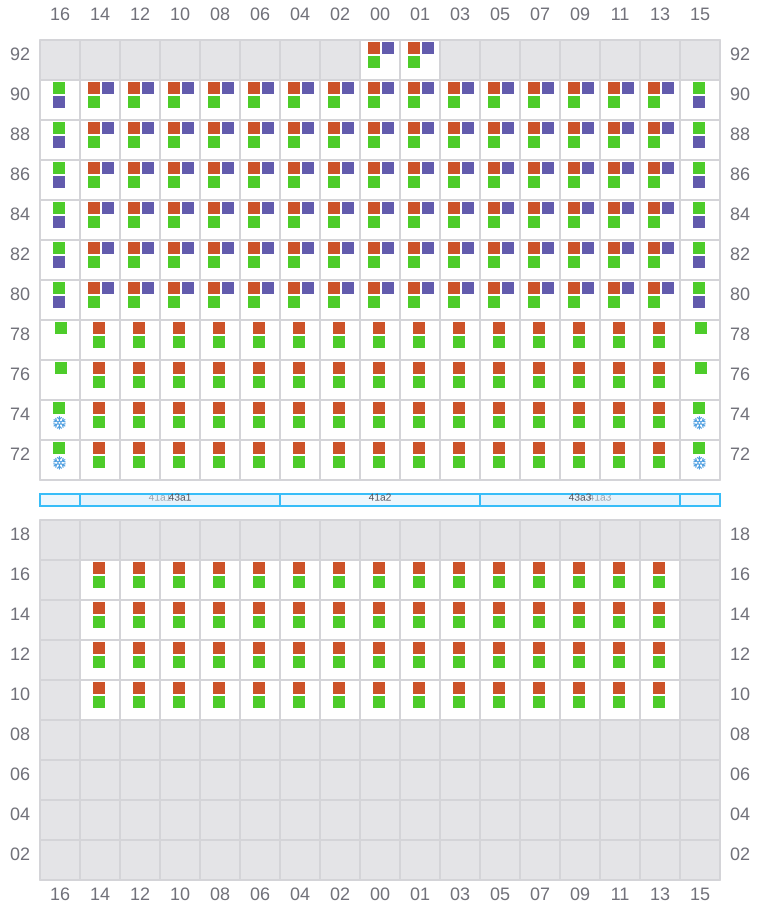

041 (042)
- →
- → / ?
![Bay 041 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b041.png?v=1687626390058)

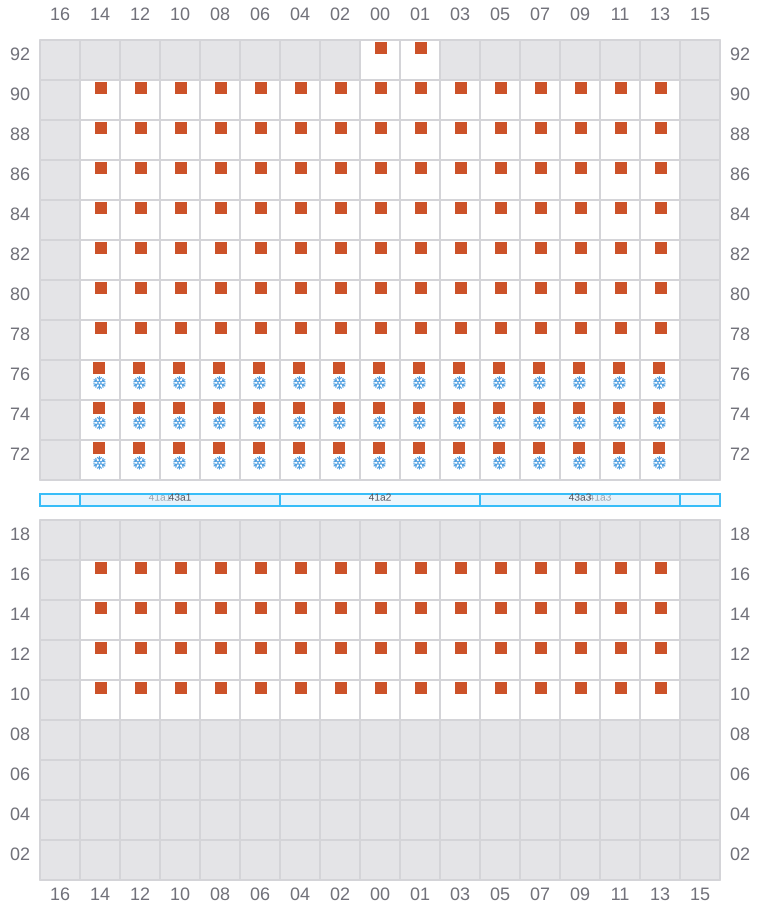

043
- ←
- → / ?
![Bay 043 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b043.png?v=1687626390058)
045 (046)
- →
- → / ?
![Bay 045 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b045.png?v=1687626390058)

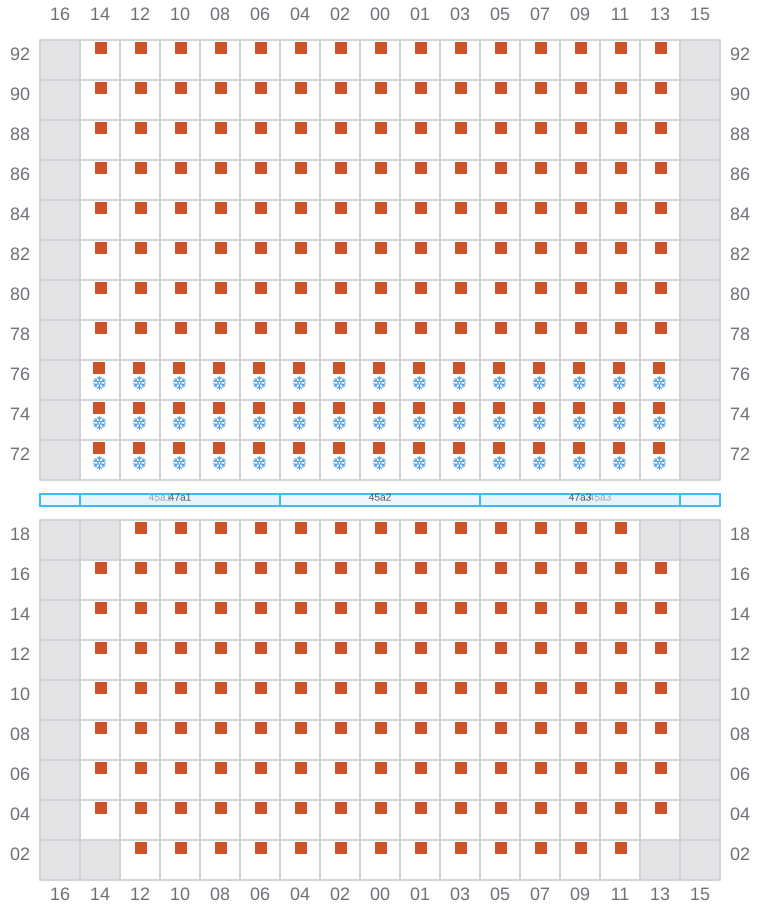

047
- ←
- → / ?
![Bay 047 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b047.png?v=1687626390058)

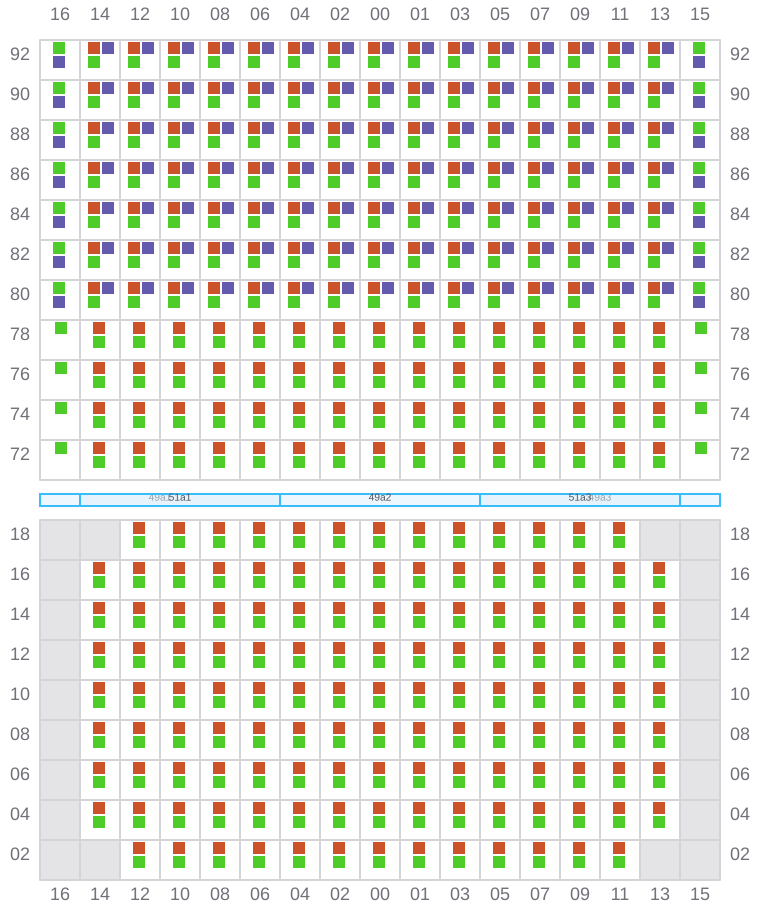

049 (050)
- →
- ? / →
![Bay 049 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b049.png?v=1687626390058)

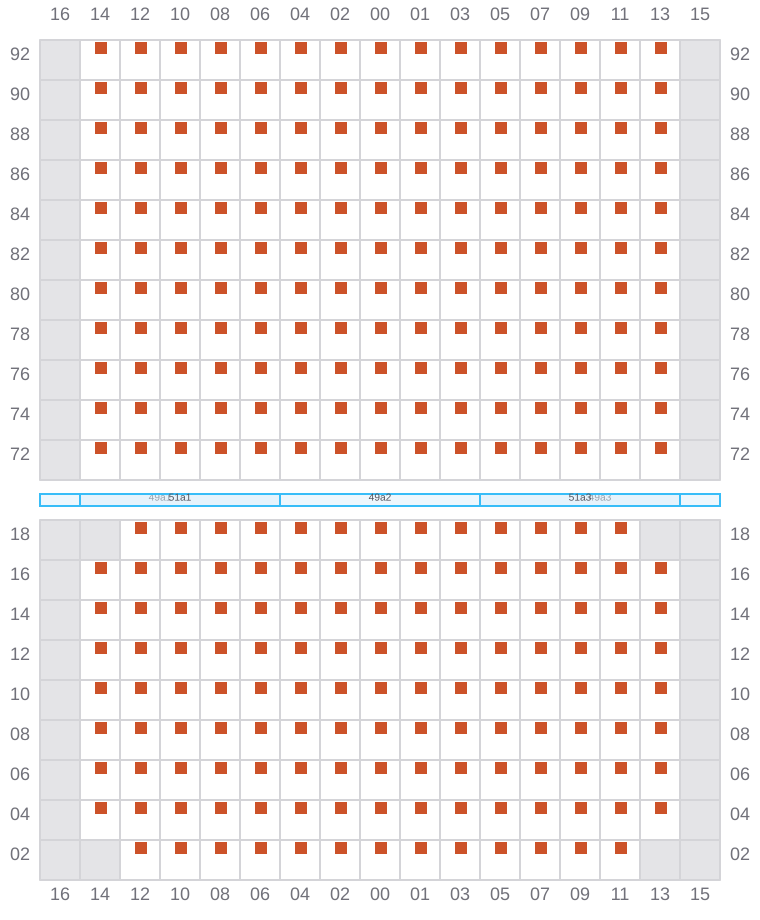

051
- ←
- →
![Bay 051 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b051.png?v=1687626390058)

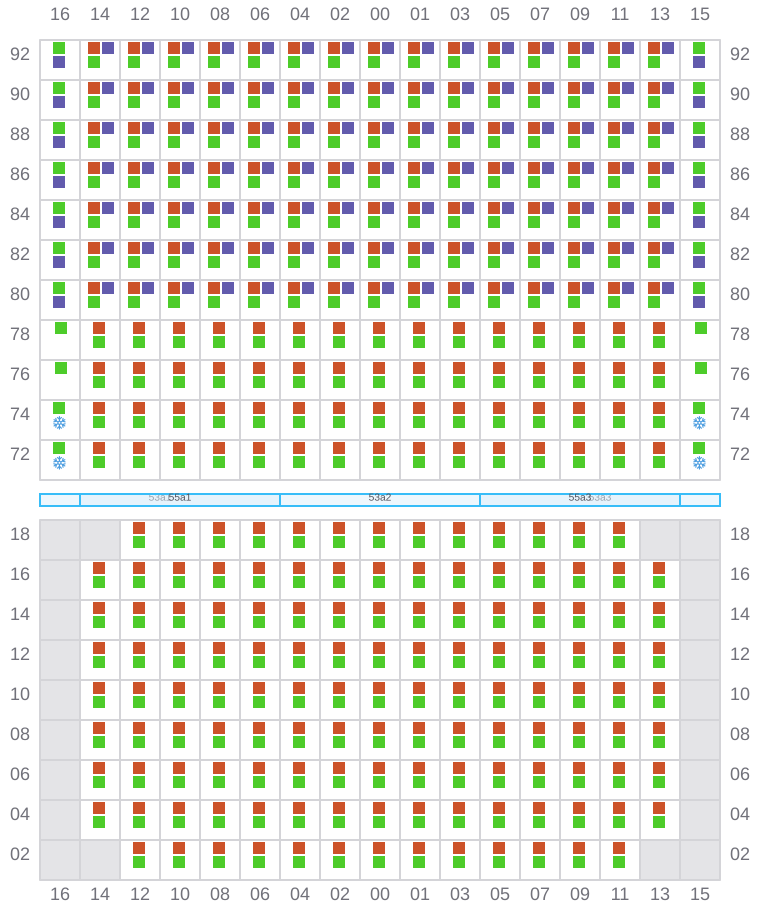

053 (054)
- →
- →
![Bay 053 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b053.png?v=1687626390058)

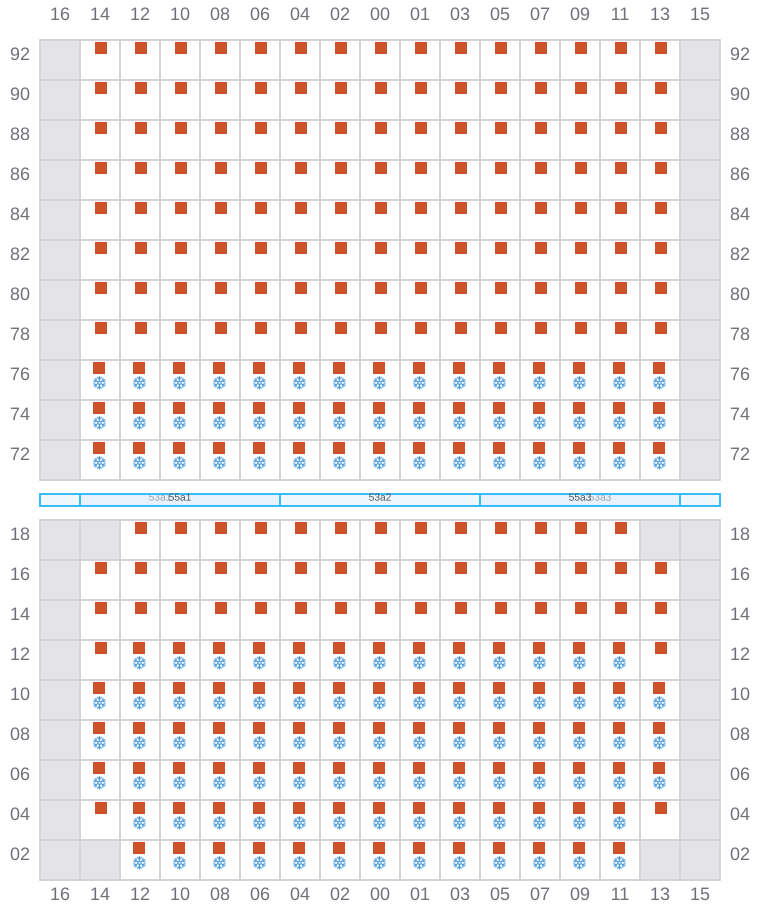

055
- ←
- →
![Bay 055 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b055.png?v=1687626390058)

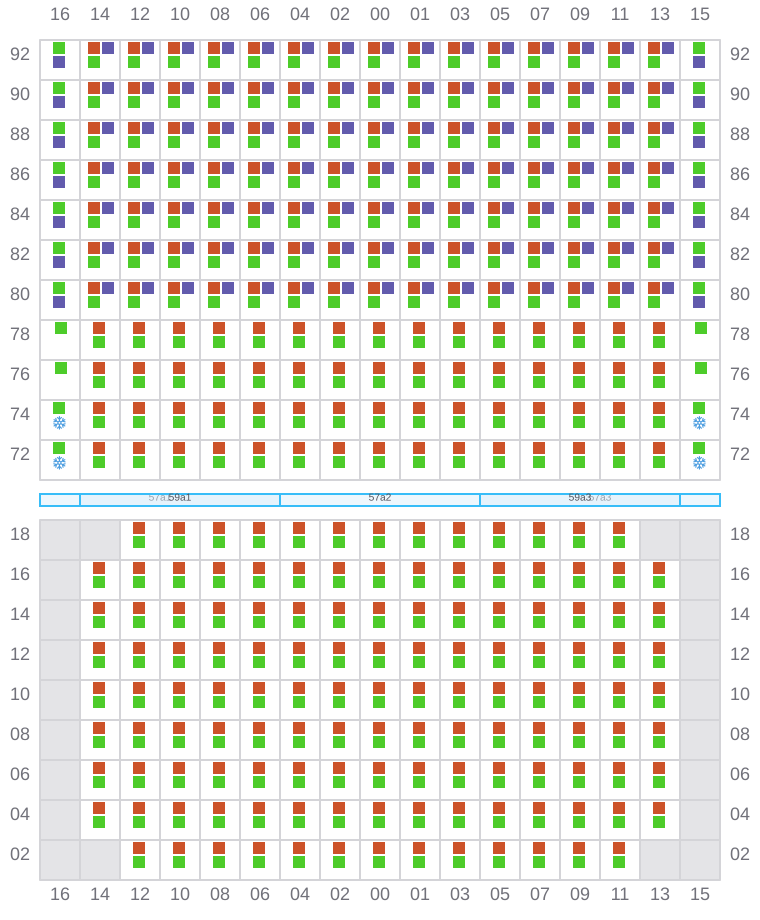

057 (058)
- →
- →
![Bay 057 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b057.png?v=1687626390058)

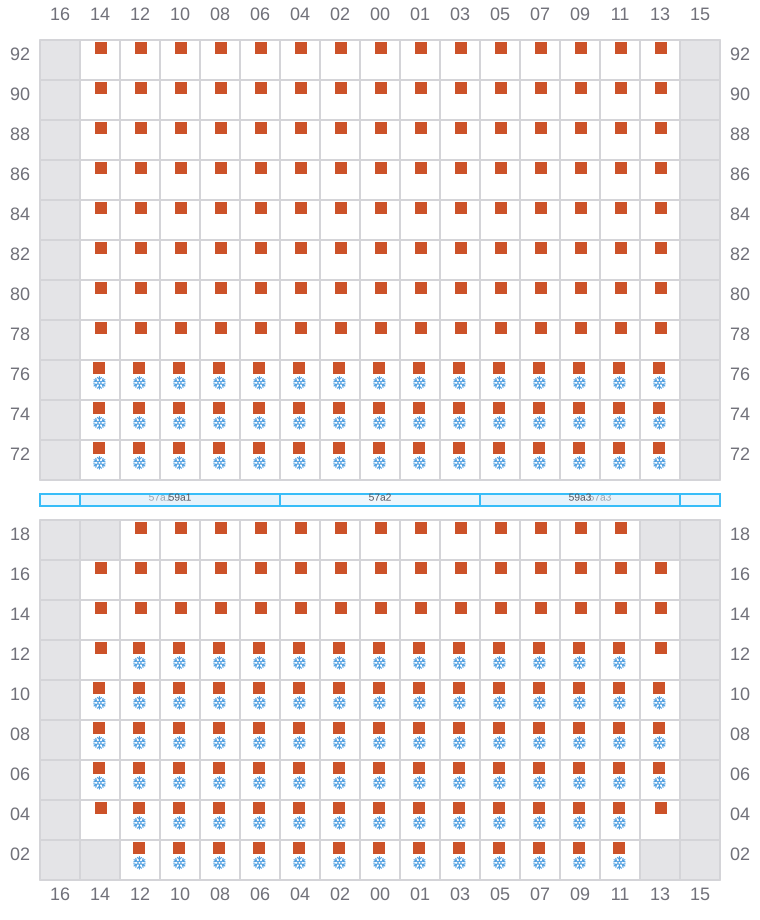

059
- ←
- →
![Bay 059 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b059.png?v=1687626390058)
061 (062)
- →
![Bay 061 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b061.png?v=1687626390058)

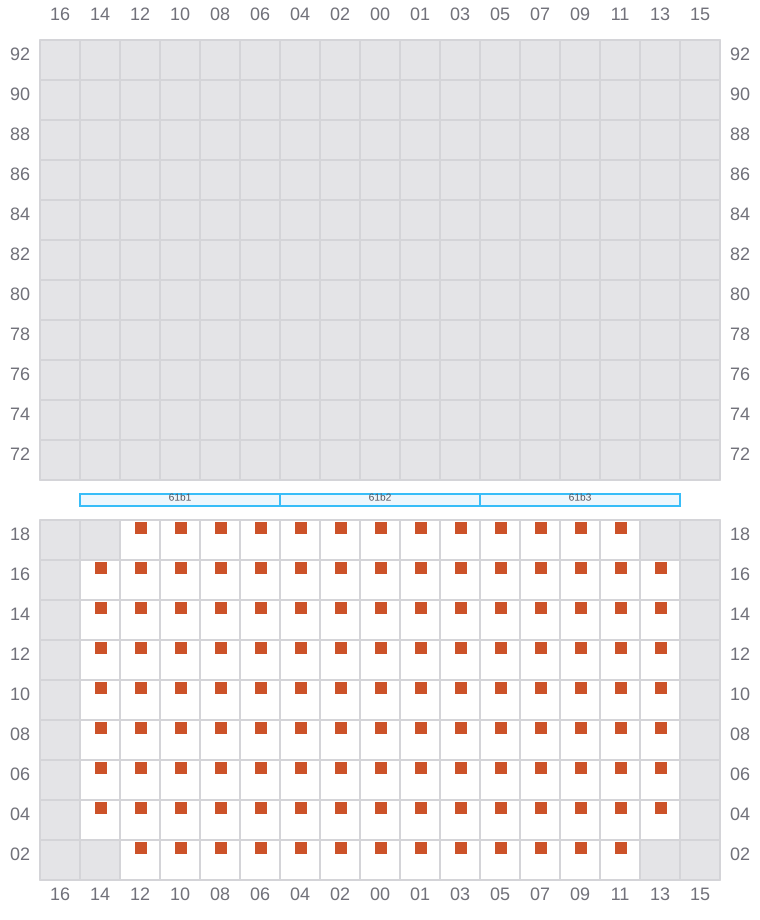

063
- ? / ←
![Bay 063 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b063.png?v=1687626390058)

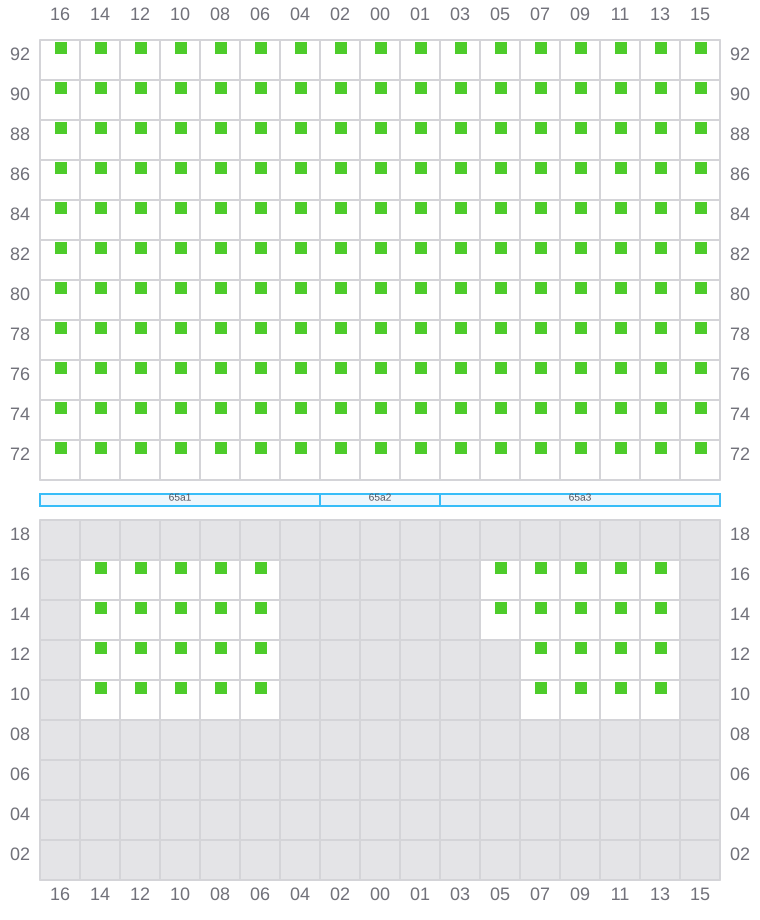

065 (066)
- →
![Bay 065 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b065.png?v=1687626390058)

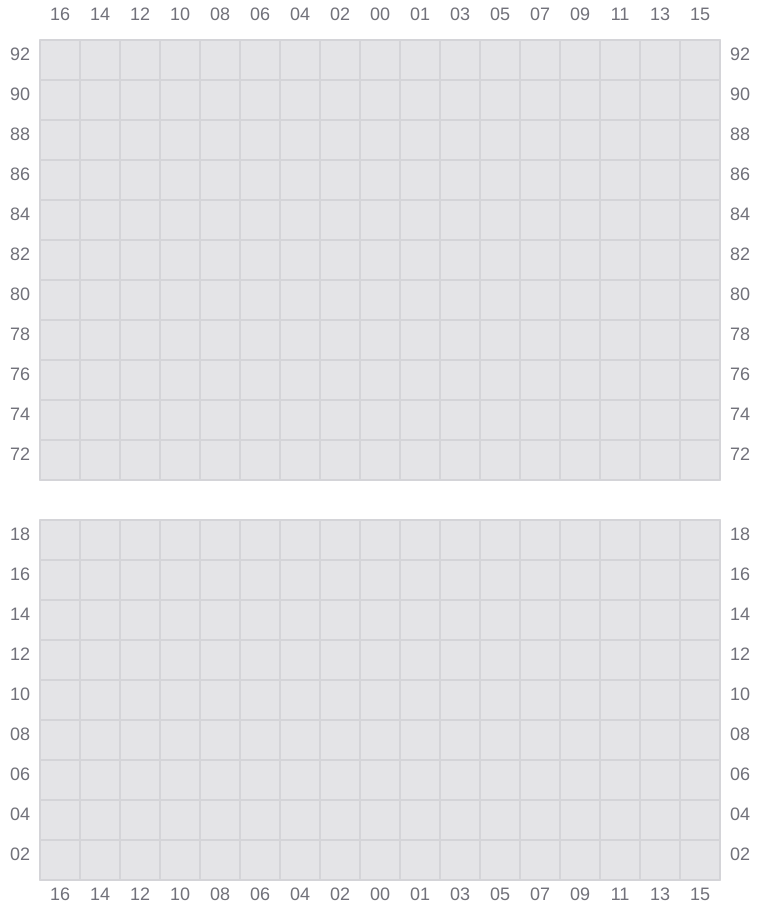

067
![Bay 067 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b067.png?v=1687626390058)

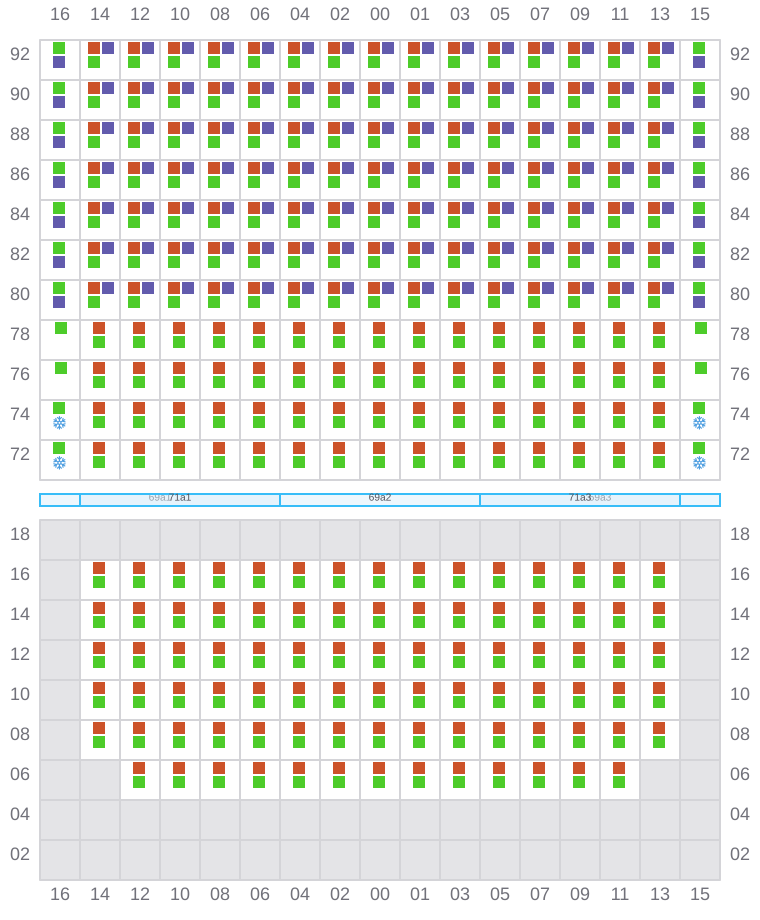

069 (070)
- →
- → / ?
![Bay 069 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b069.png?v=1687626390058)

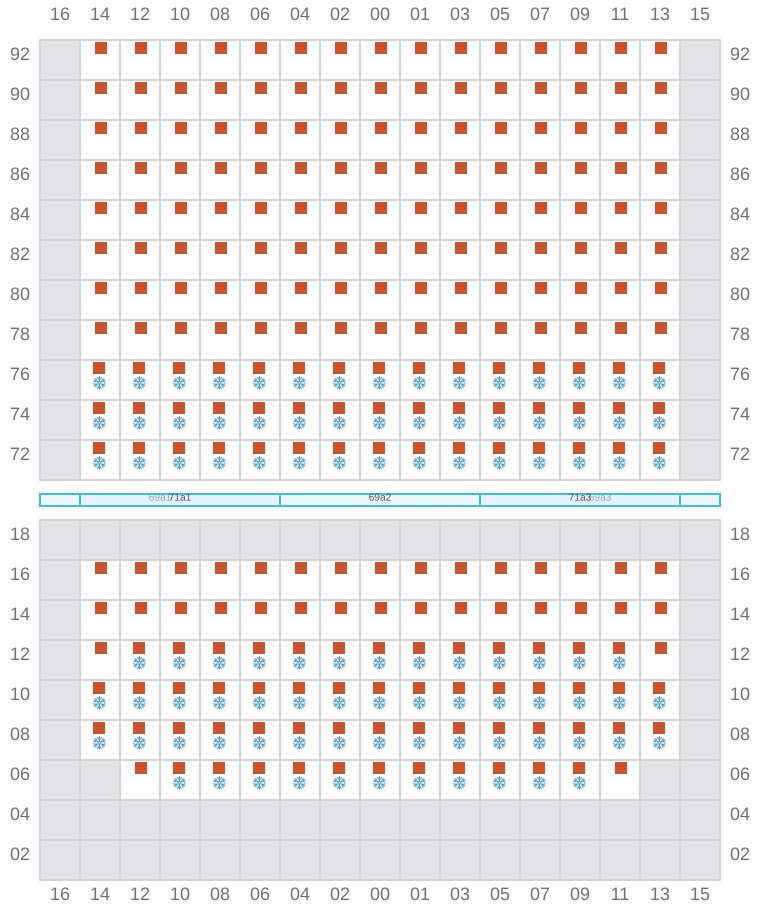

071
- ←
- →
![Bay 071 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b071.png?v=1687626390058)

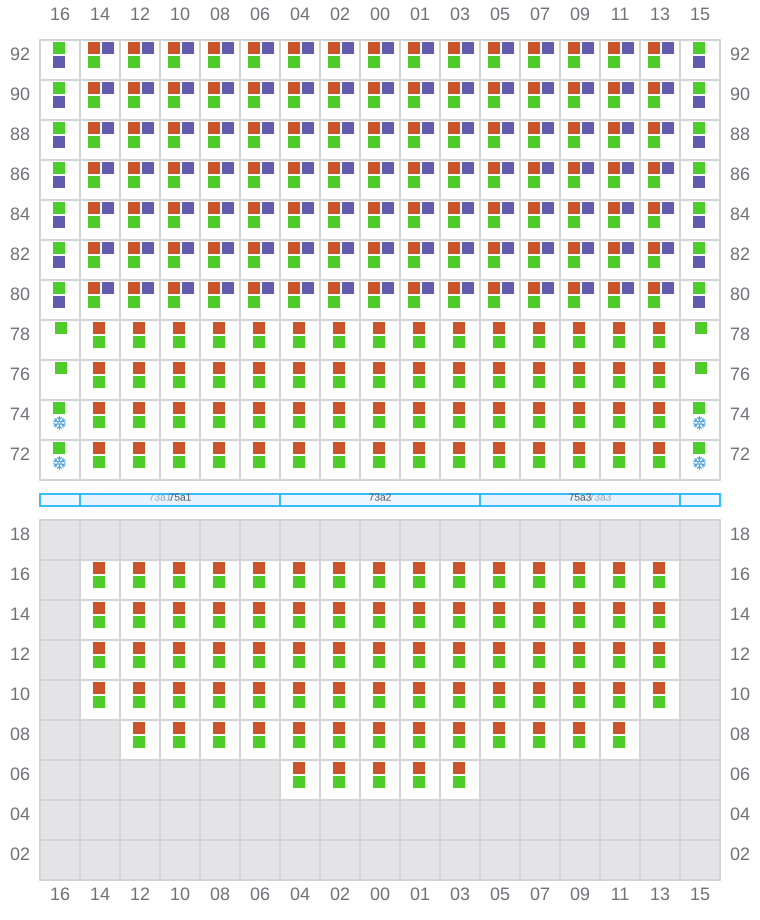

073 (074)
- →
- → / ?
![Bay 073 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b073.png?v=1687626390058)

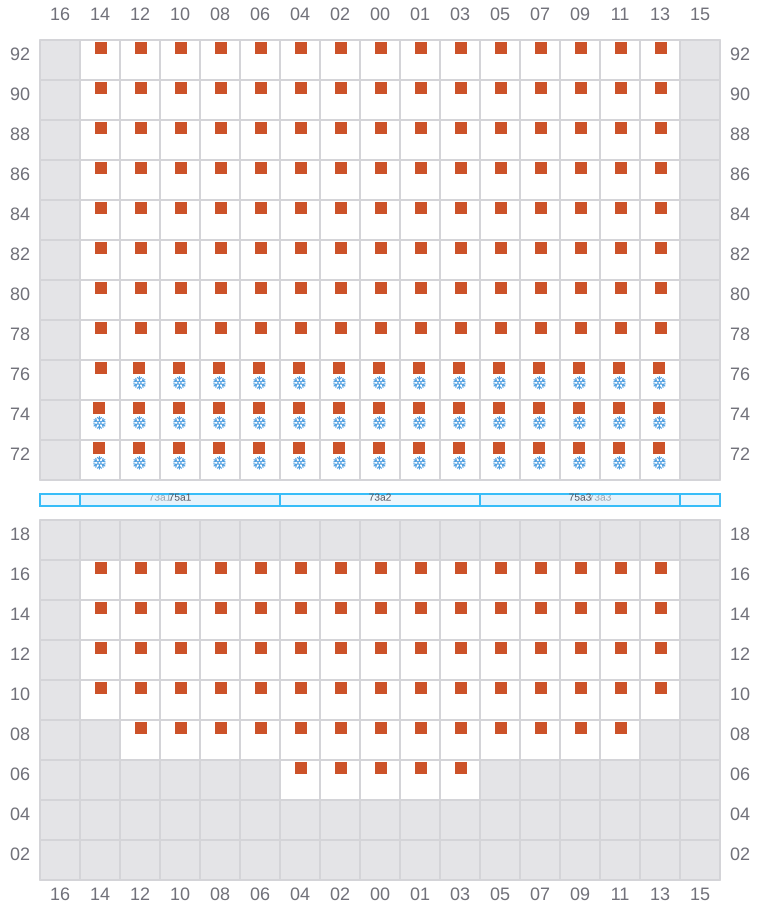

075
- ←
- → / ?
![Bay 075 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b075.png?v=1687626390058)

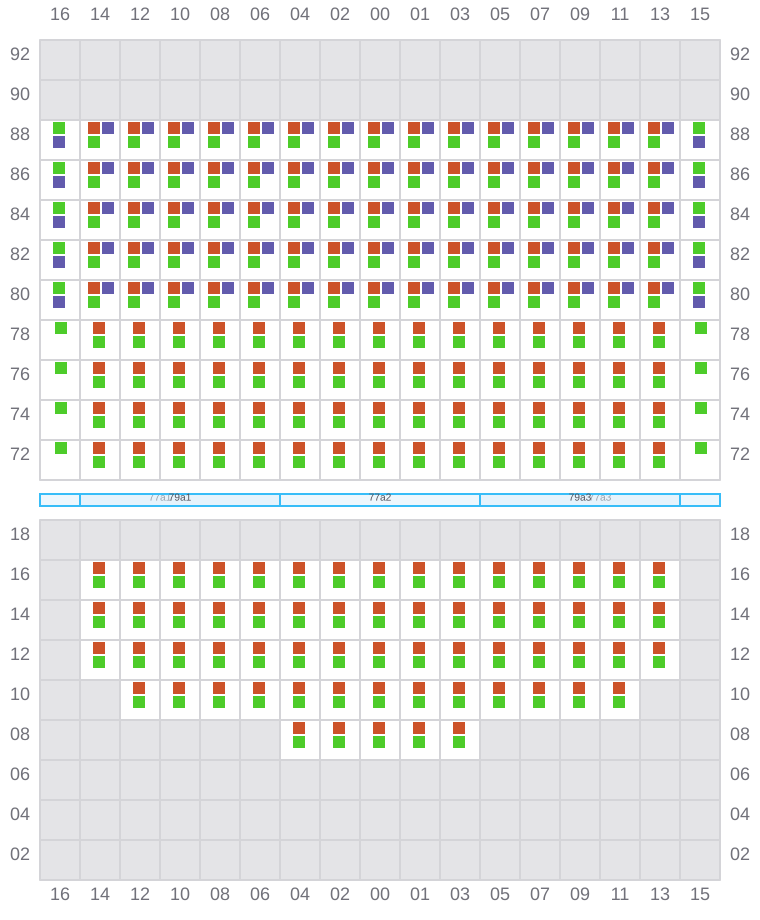

077 (078)
- →
![Bay 077 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b077.png?v=1687626390058)

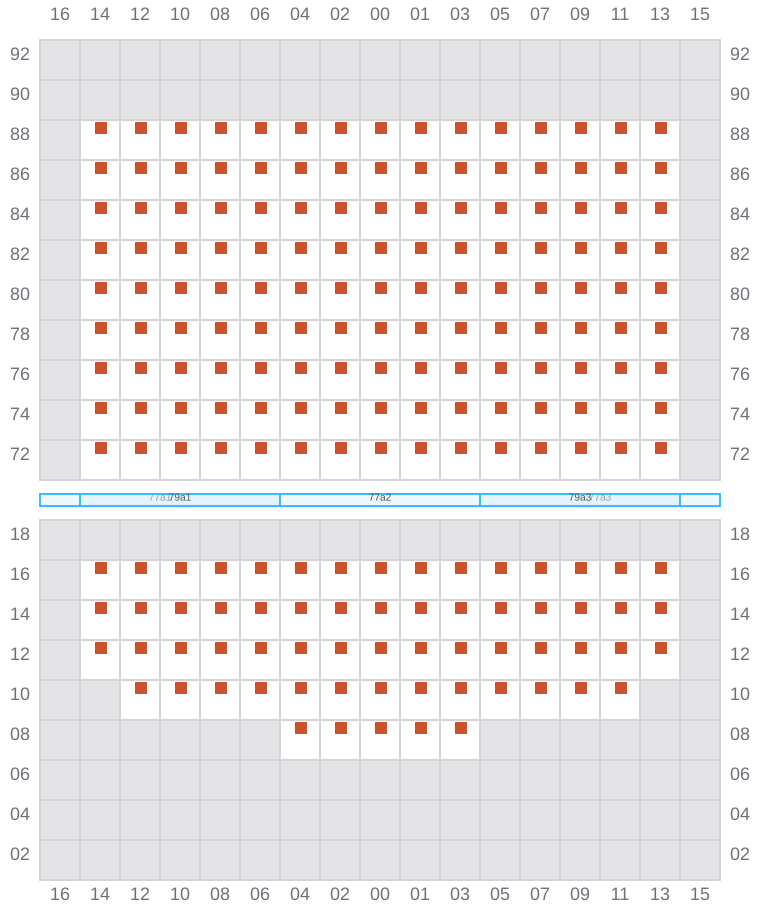

079
- ←
![Bay 079 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b079.png?v=1687626390058)

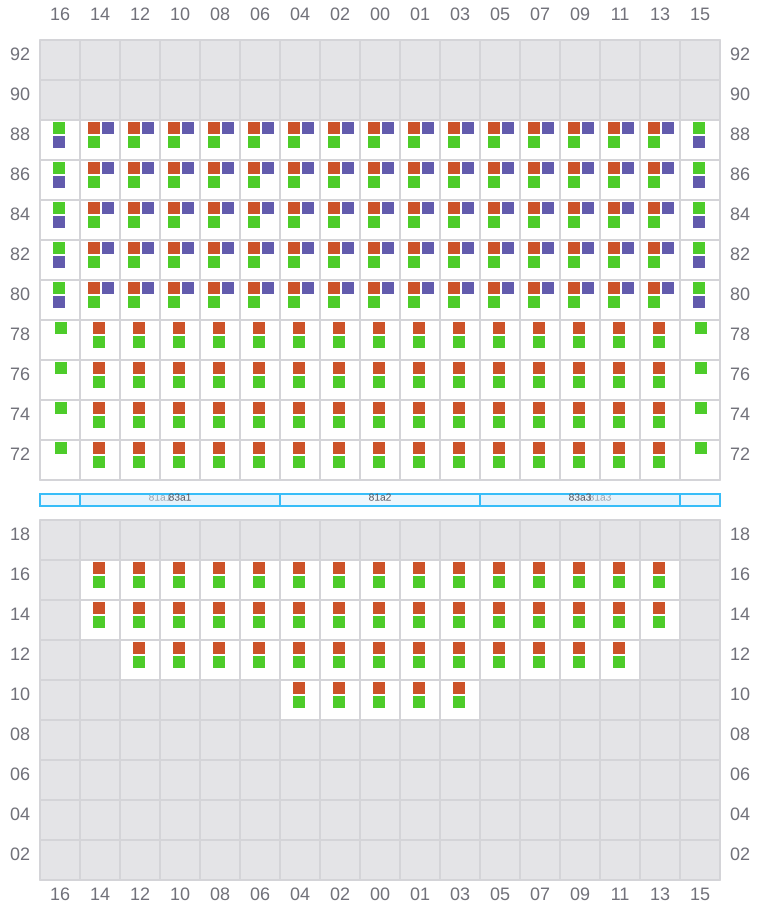

081 (082)
- →
![Bay 081 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b081.png?v=1687626390058)

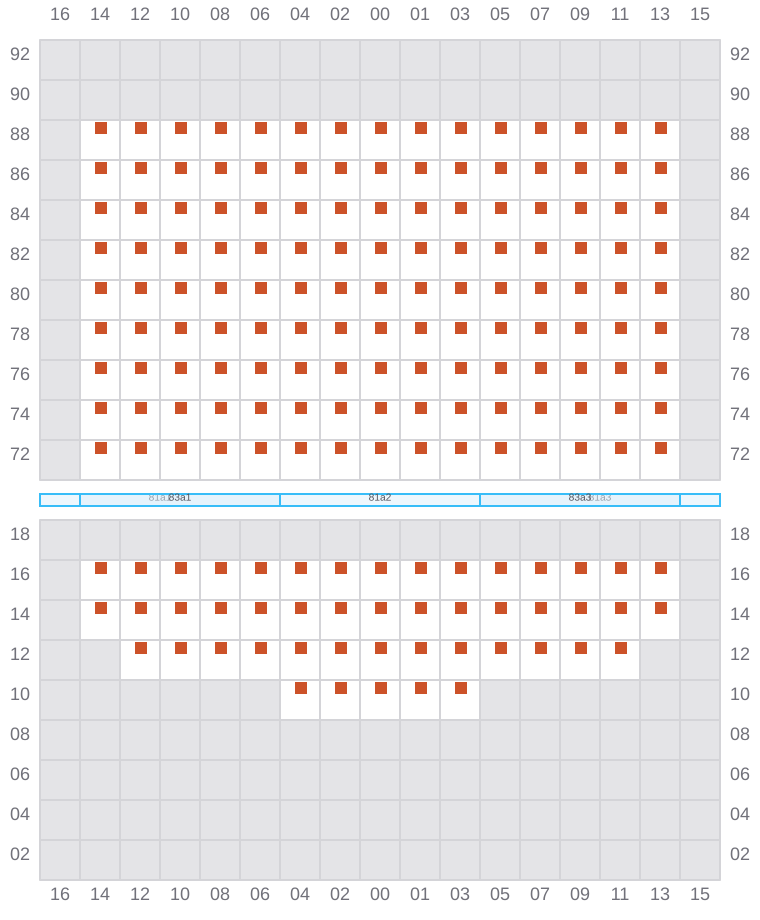

083
- ←
![Bay 083 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b083.png?v=1687626390058)

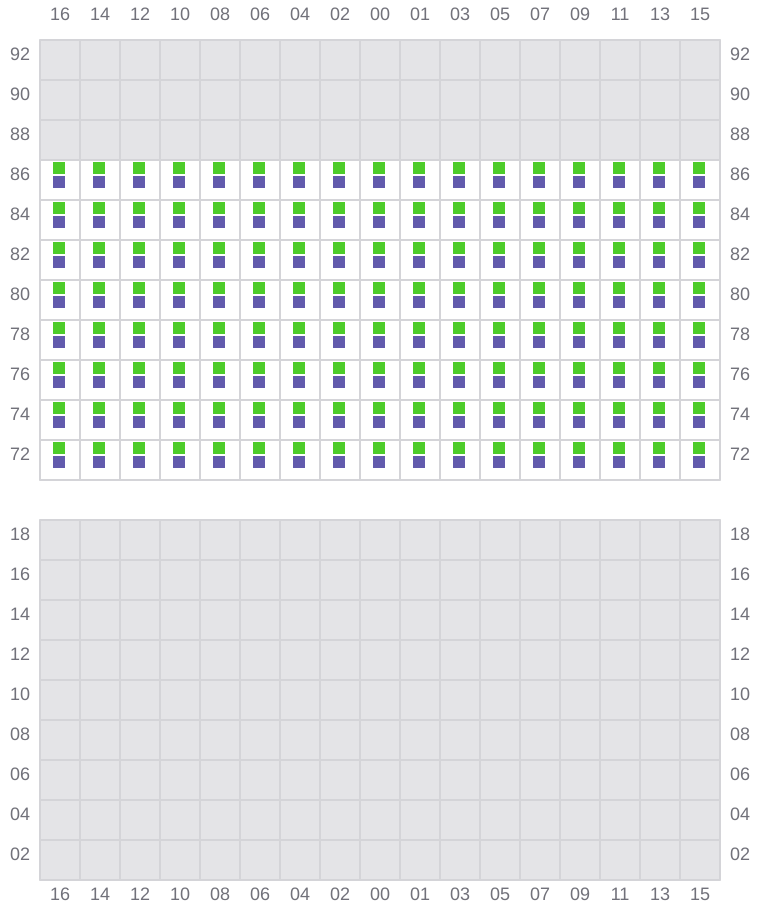

085 (086)
- → / ?
![Bay 085 view and slots of GERDA MAERSK](/vessel-images/90cb6551-db54-41b8-b133-707aa51ead95-b085.png?v=1687626390058)
