GERHARD SCHULTE
9328481 | VRBY5 | 9328481 by ********* Last update: Tue Apr 02 2024
General Info
Ship Name:GERHARD SCHULTE
IMO Code:9328481
Call Sign:VRBY5
Line Operator:9328481
Class Name for Sister Ships:APL
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):214.20
LOA (Length Overall):230.98
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,534
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

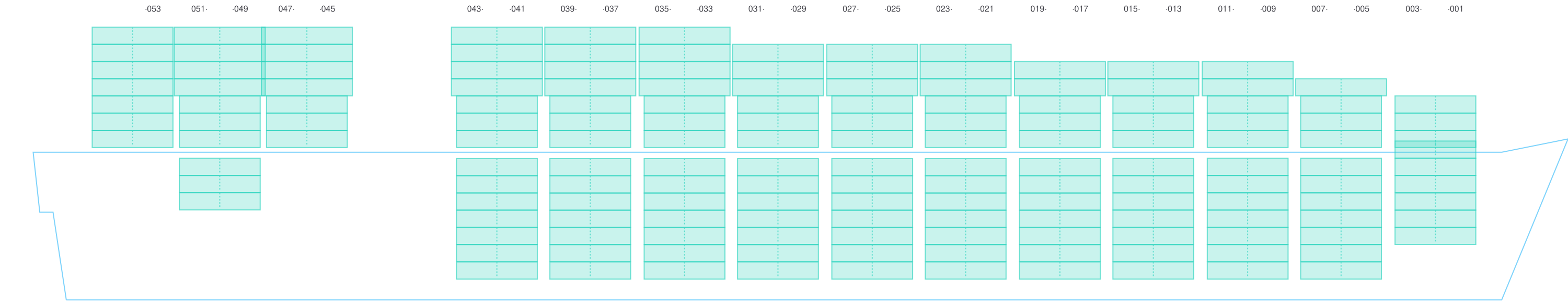

Side View
![Side view of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-sideView.png?v=1712084722049)

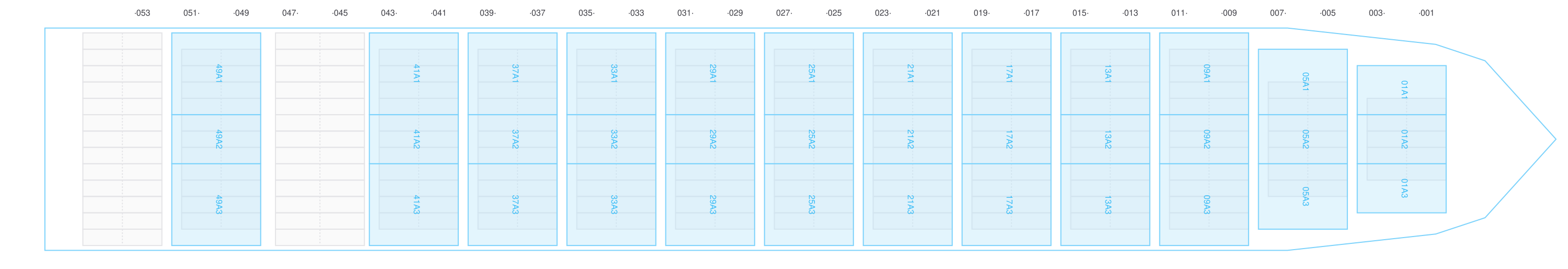

Hatch-Covers View
![Deck view of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-deckView.png?v=1712084722049)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

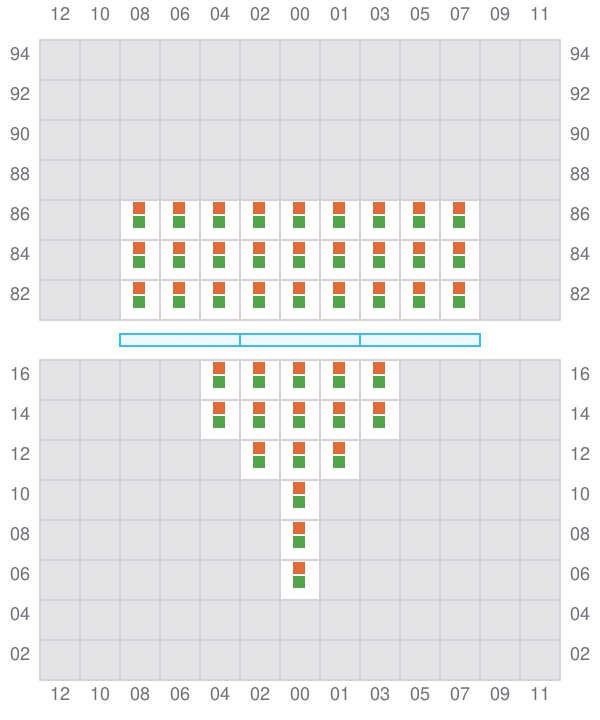

001 (002)
- →
![Bay 001 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b001.png?v=1712084722049)

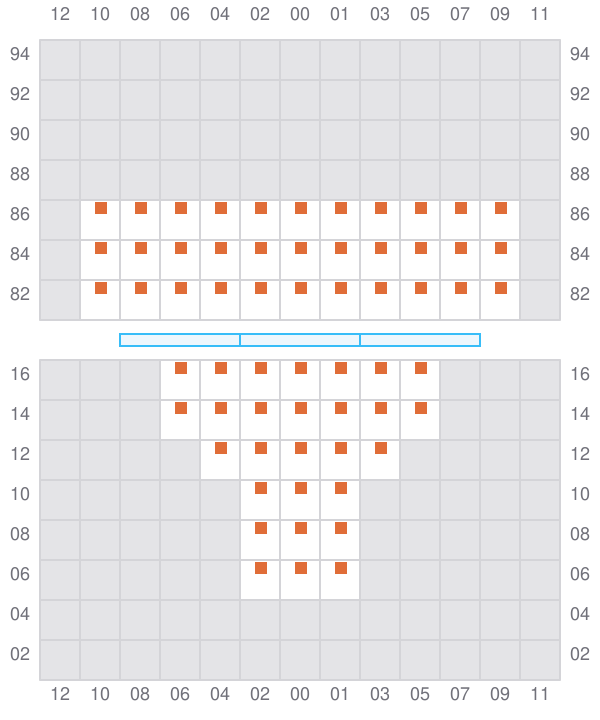

003
- ←
![Bay 003 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b003.png?v=1712084722049)

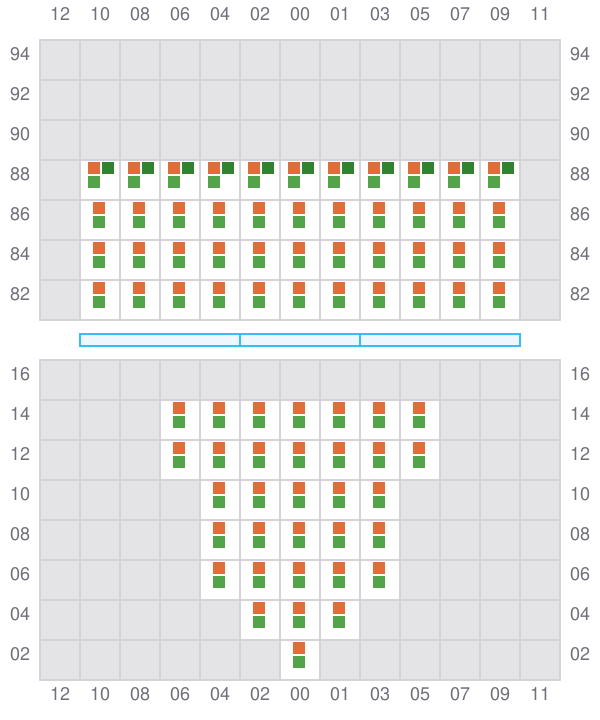

005 (006)
- →
![Bay 005 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b005.png?v=1712084722049)

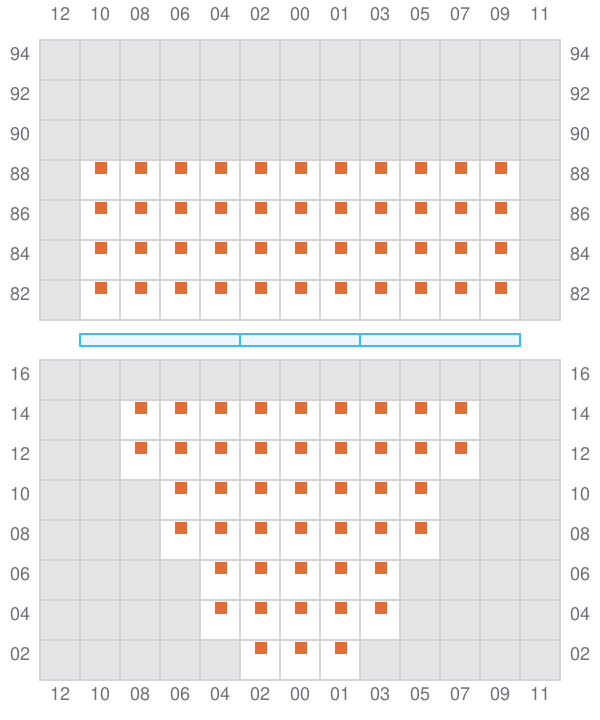

007
- ←
![Bay 007 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b007.png?v=1712084722049)

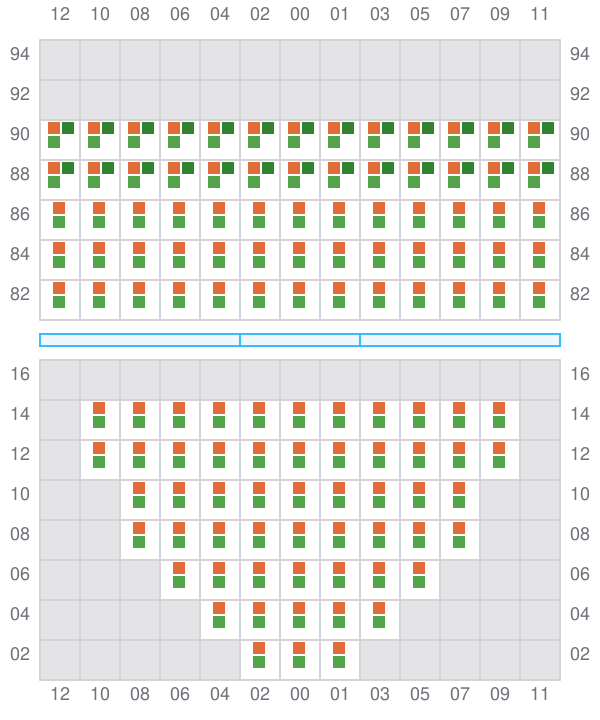

009 (010)
- →
![Bay 009 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b009.png?v=1712084722049)

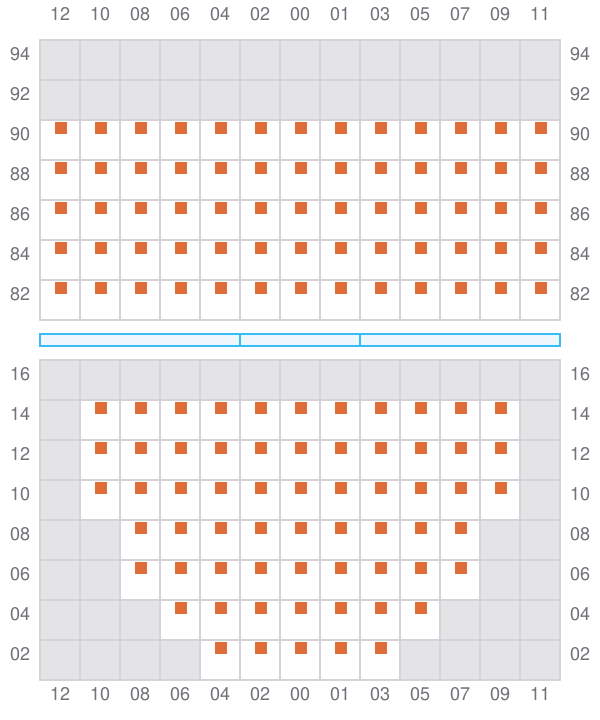

011
- ←
- → / ?
![Bay 011 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b011.png?v=1712084722049)

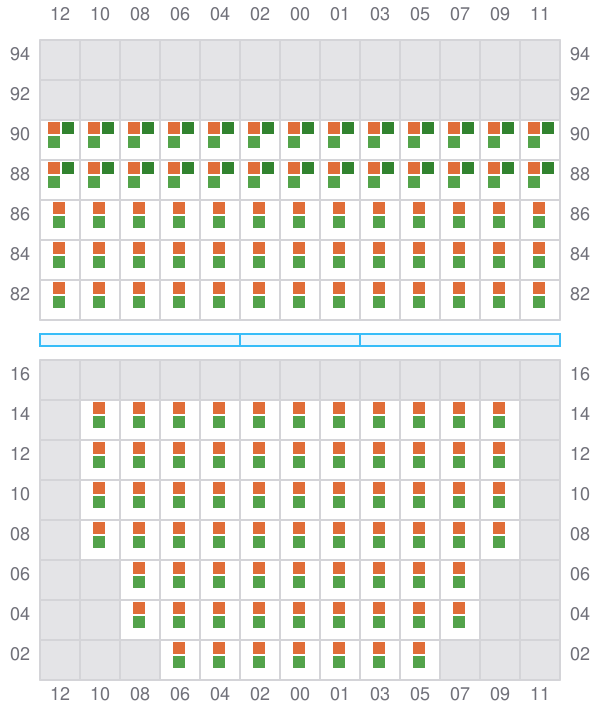

013 (014)
- →
- ← / ?
![Bay 013 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b013.png?v=1712084722049)

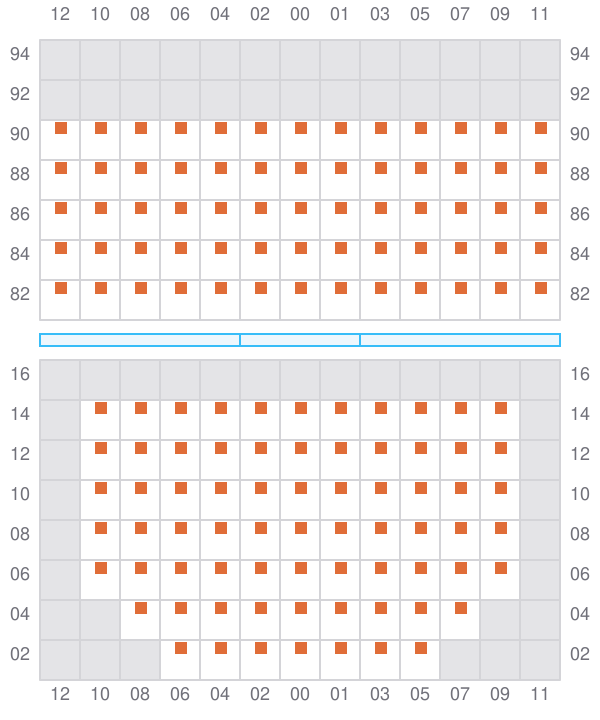

015
- ←
![Bay 015 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b015.png?v=1712084722049)

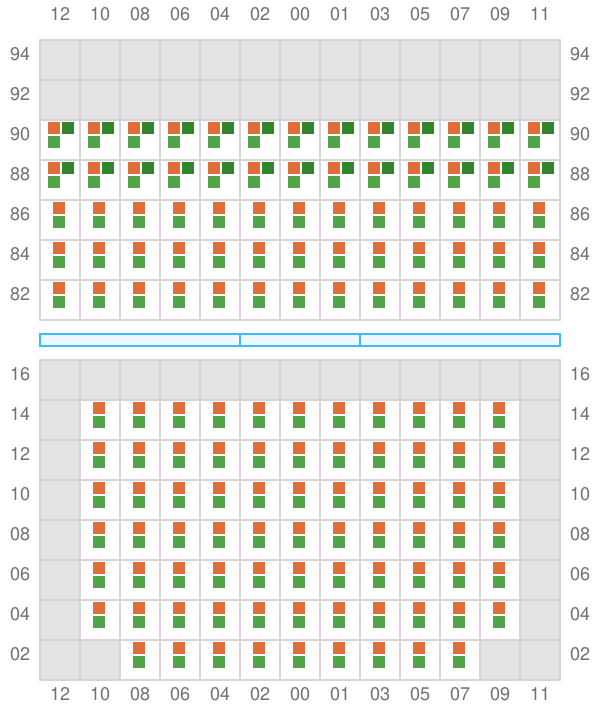

017 (018)
- →
![Bay 017 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b017.png?v=1712084722049)
019
- ←
- → / ?
![Bay 019 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b019.png?v=1712084722049)
021 (022)
- →
- ← / ?
![Bay 021 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b021.png?v=1712084722049)

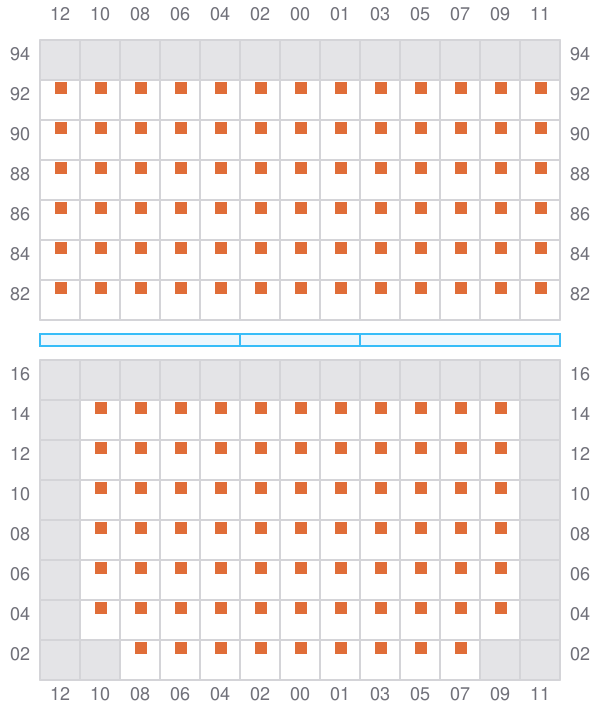

023
- ←
![Bay 023 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b023.png?v=1712084722049)
025 (026)
- →
![Bay 025 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b025.png?v=1712084722049)
027
- ←
- → / ?
![Bay 027 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b027.png?v=1712084722049)

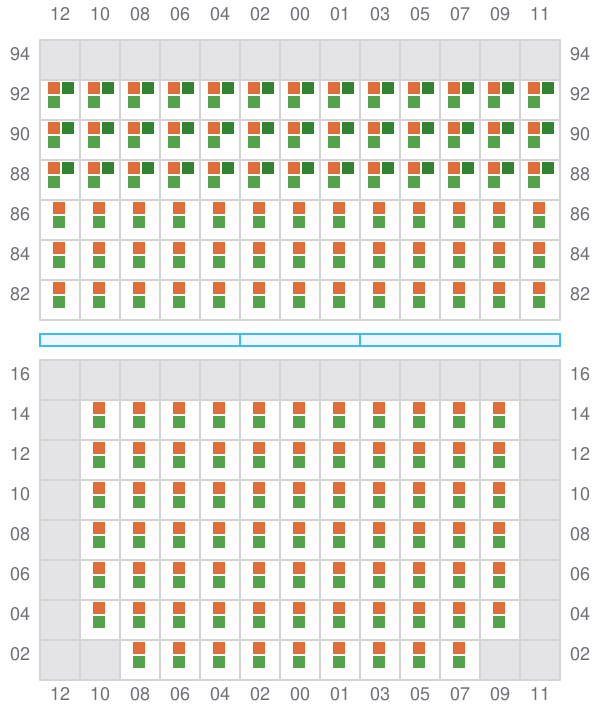

029 (030)
- →
- ← / ?
![Bay 029 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b029.png?v=1712084722049)
031
- ←
![Bay 031 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b031.png?v=1712084722049)

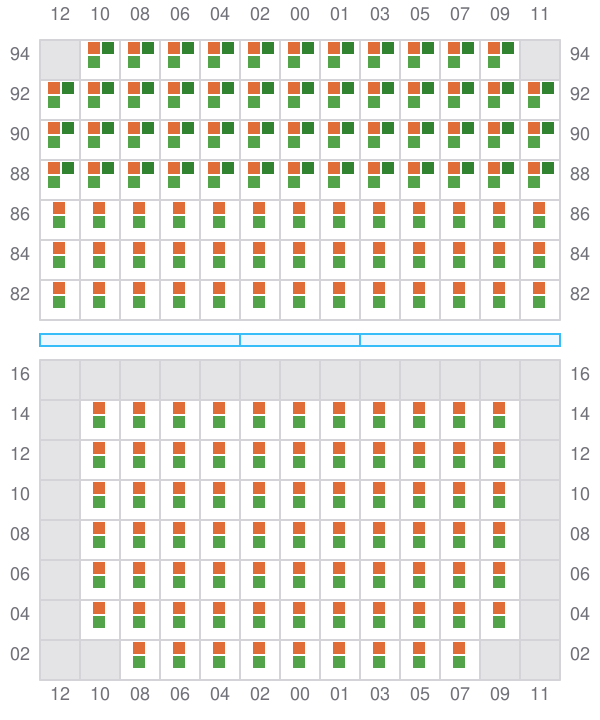

033 (034)
- →
![Bay 033 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b033.png?v=1712084722049)
035
- ←
- → / ?
![Bay 035 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b035.png?v=1712084722049)

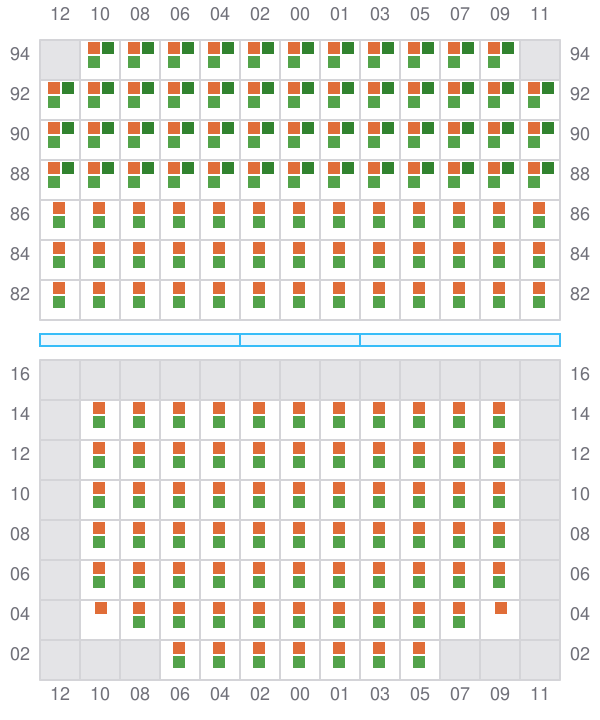

037 (038)
- →
- ← / ?
![Bay 037 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b037.png?v=1712084722049)

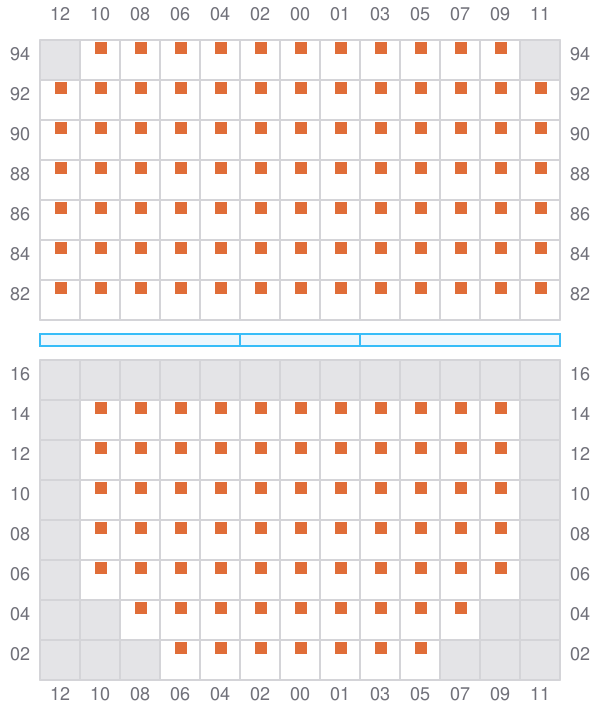

039
- ←
![Bay 039 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b039.png?v=1712084722049)

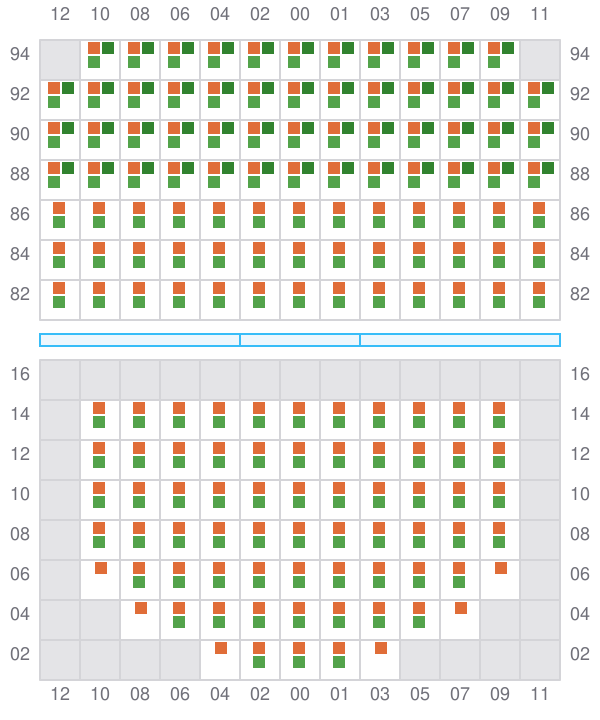

041 (042)
- →
![Bay 041 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b041.png?v=1712084722049)

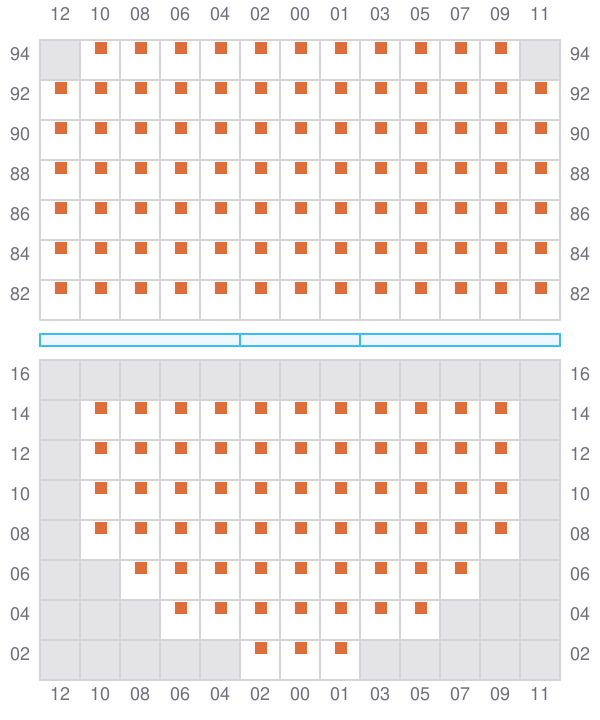

043
- ←
- → / ?
![Bay 043 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b043.png?v=1712084722049)

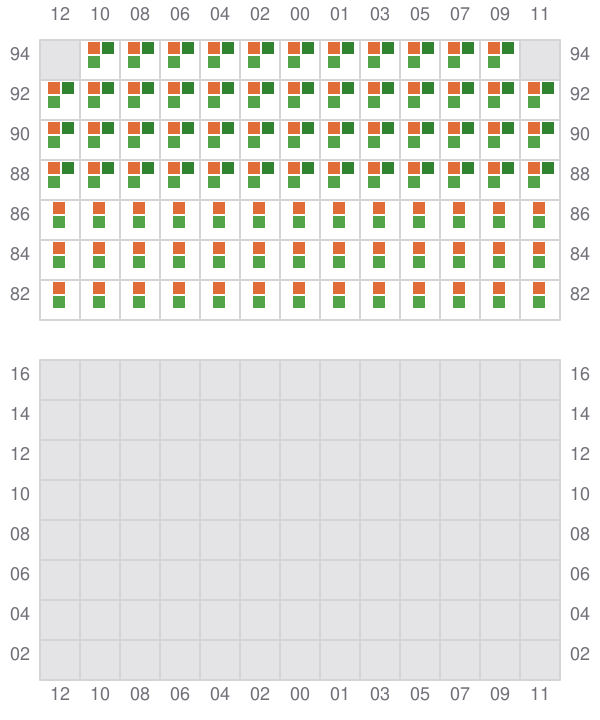

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b045.png?v=1712084722049)
047
- ← / ?
![Bay 047 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b047.png?v=1712084722049)

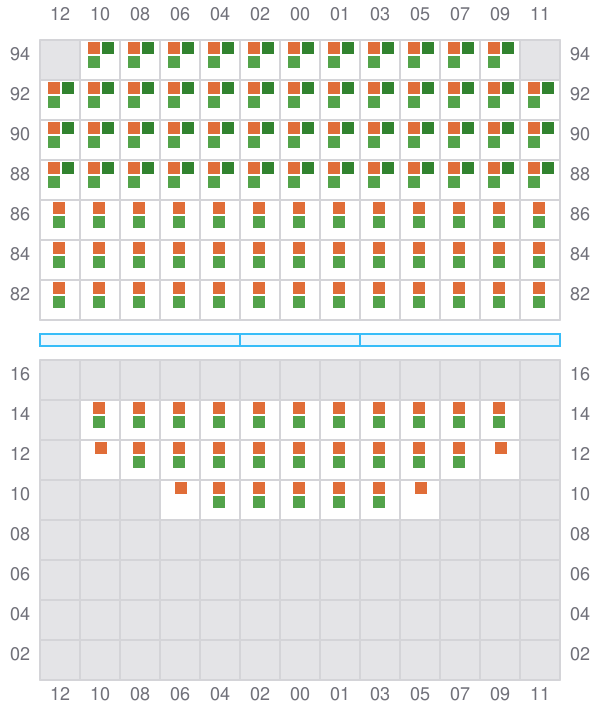

049 (050)
- →
![Bay 049 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b049.png?v=1712084722049)

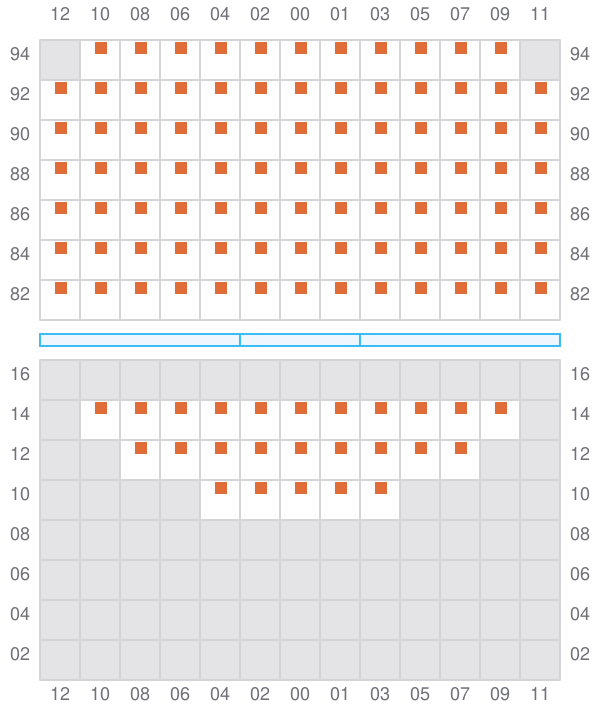

051
- ←
![Bay 051 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b051.png?v=1712084722049)

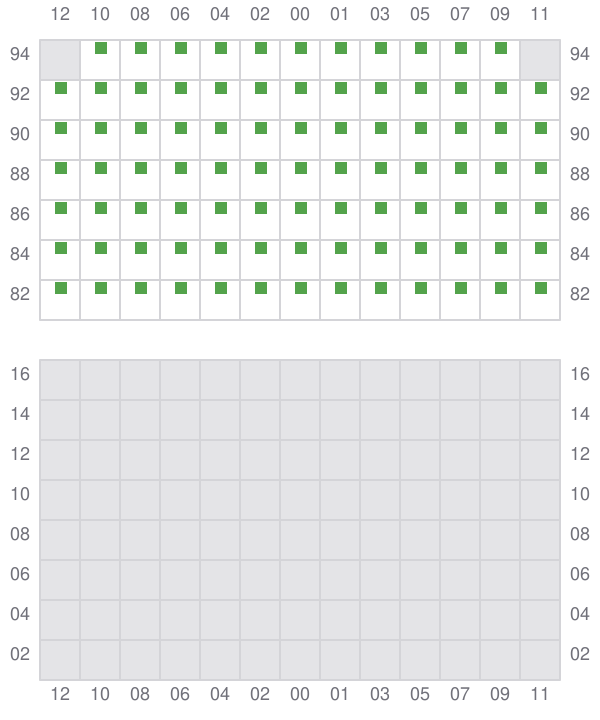

053 (054)
- → / ?
![Bay 053 view and slots of GERHARD SCHULTE](/vessel-images/1a4a06f6-6448-4606-89d9-7a93c7c02271-b053.png?v=1712084722049)
