GERHARD SCHULTE
9328481 | VRBY5 | EIS by ************************** Last update: Sat Jul 01 2023
General Info
Ship Name:GERHARD SCHULTE
IMO Code:9328481
Call Sign:VRBY5
Line Operator:EIS
Class Name for Sister Ships:GSH
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,574
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

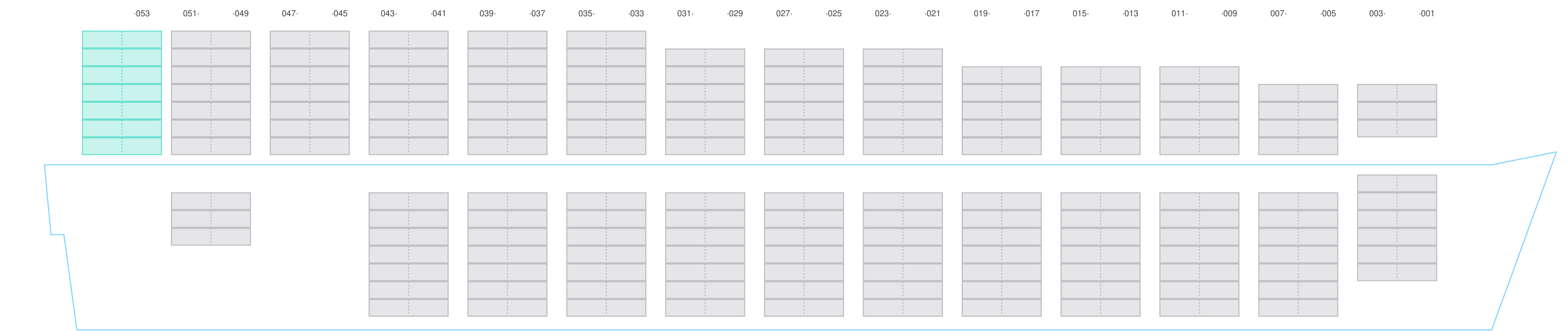

Side View

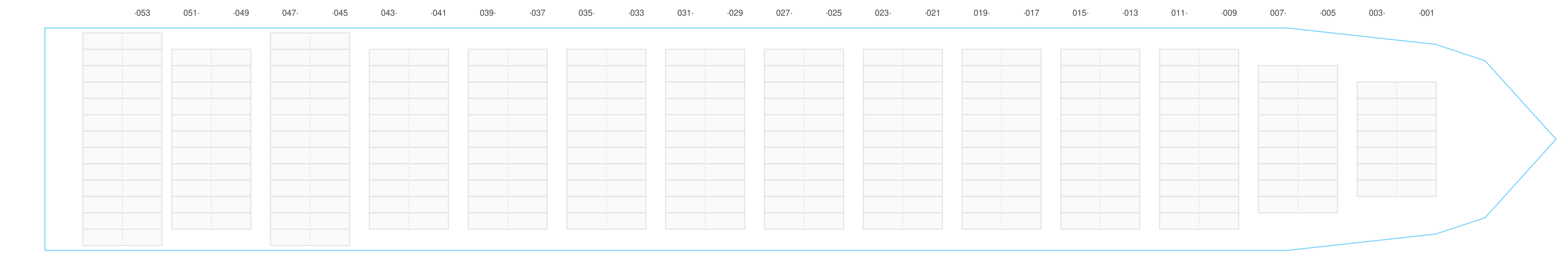

Hatch-Covers View

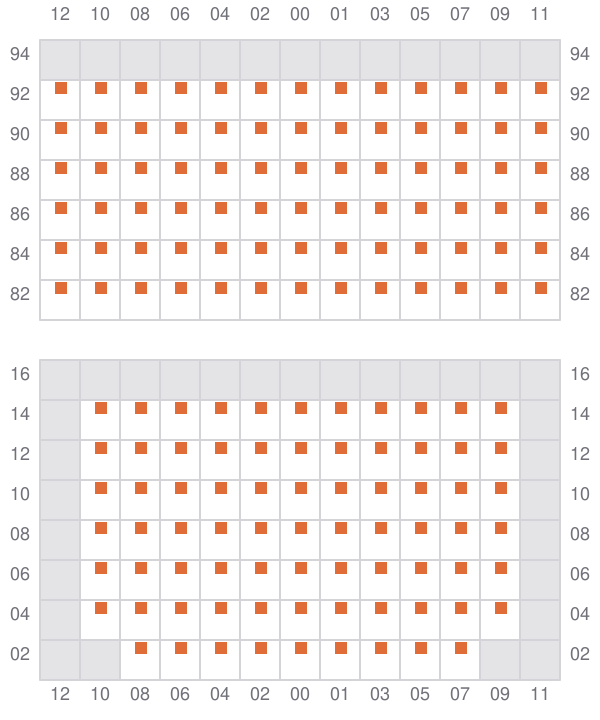

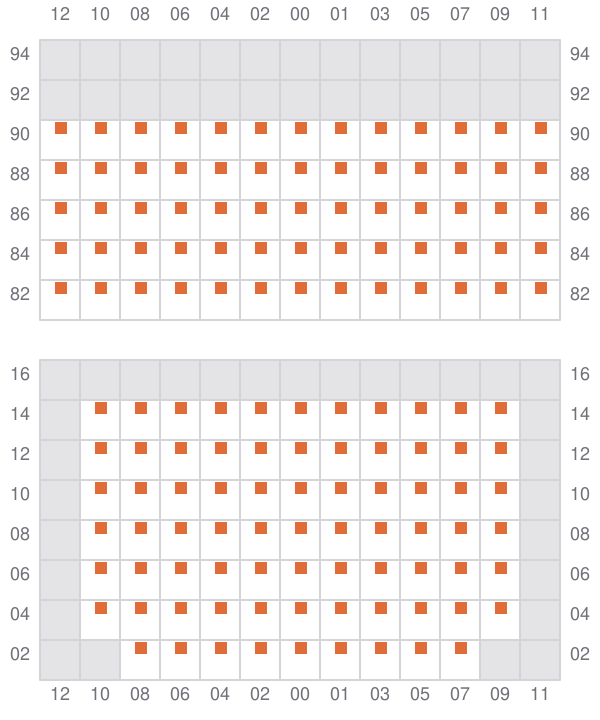

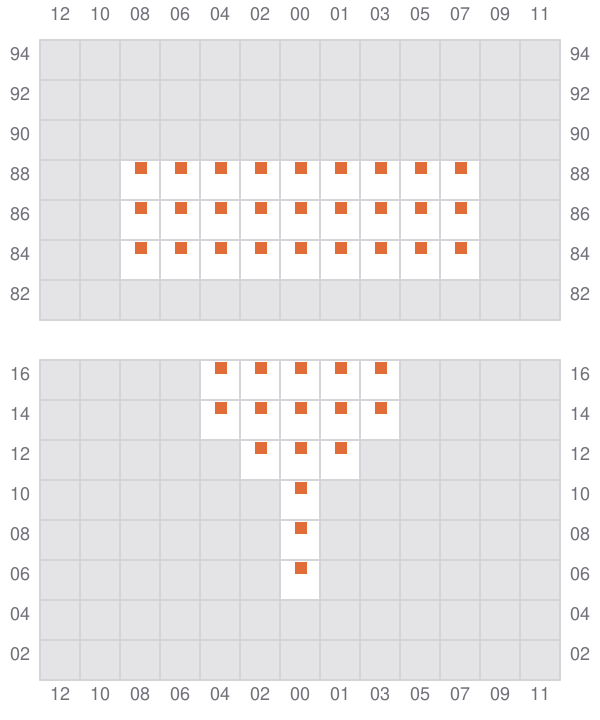

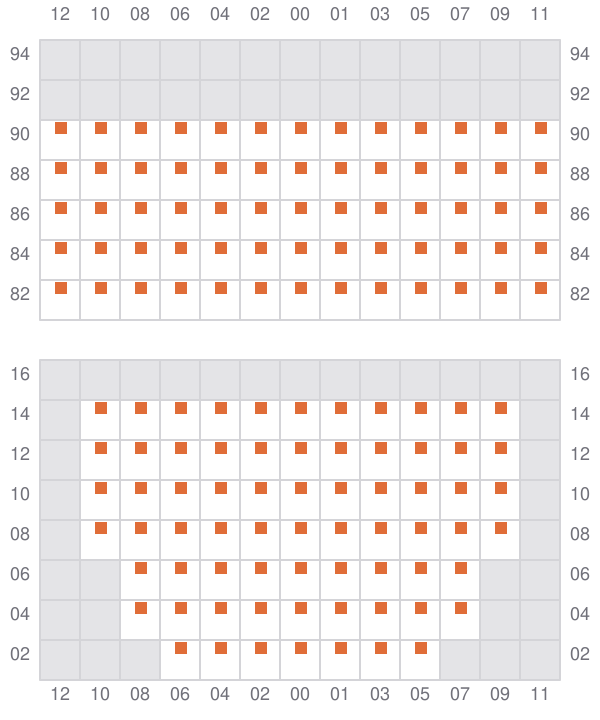

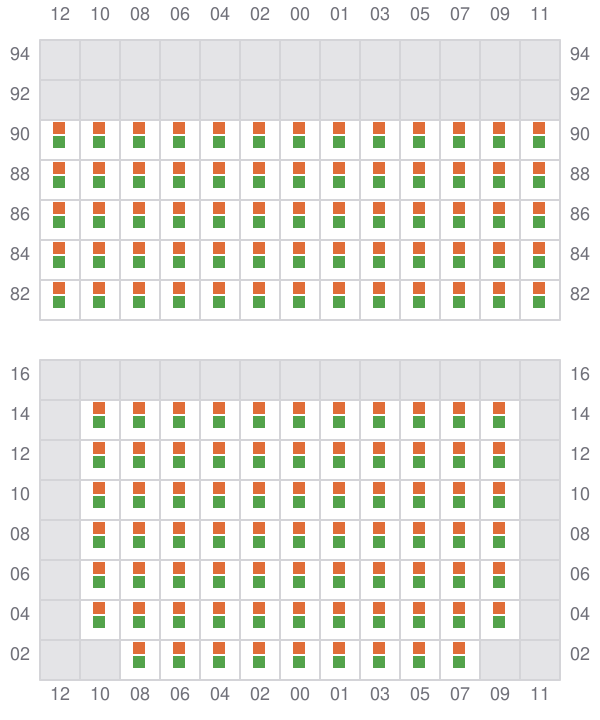

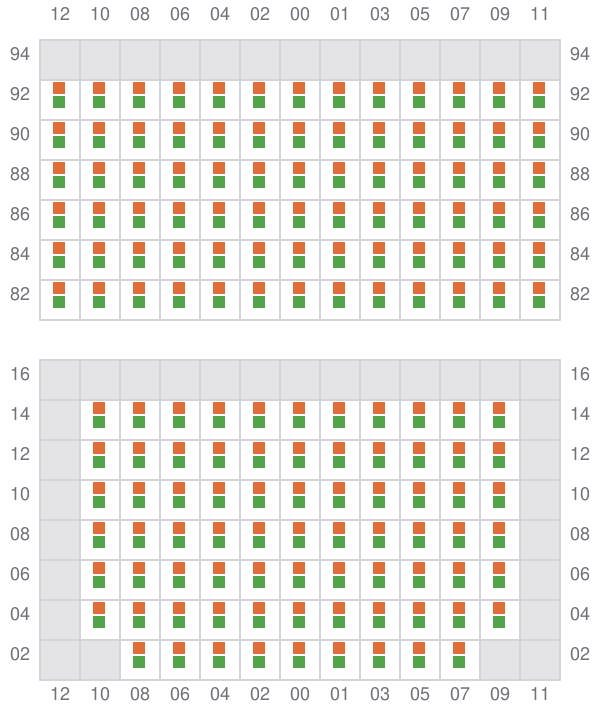

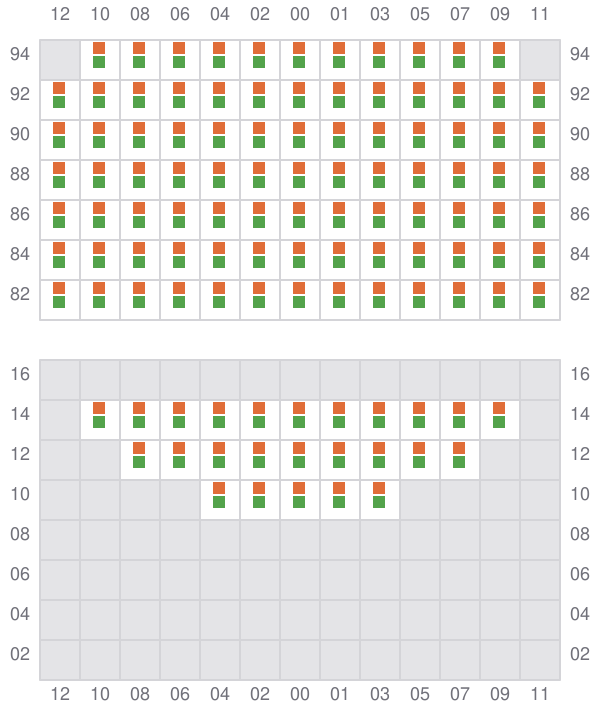

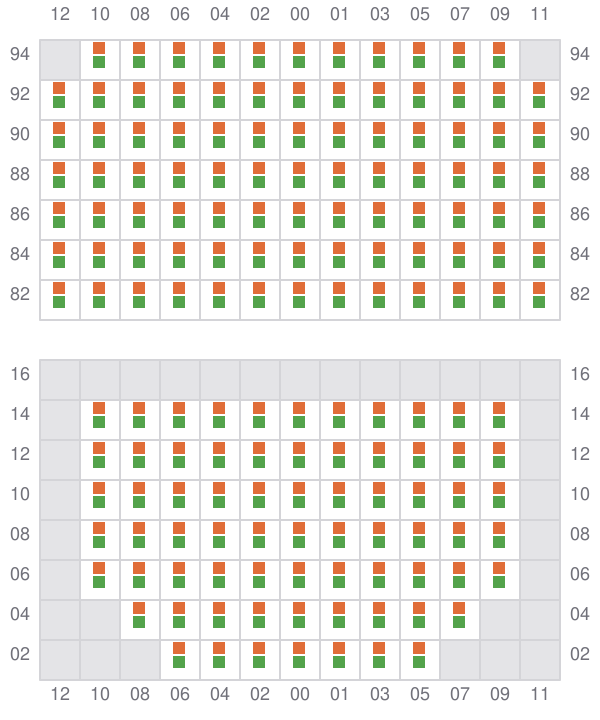

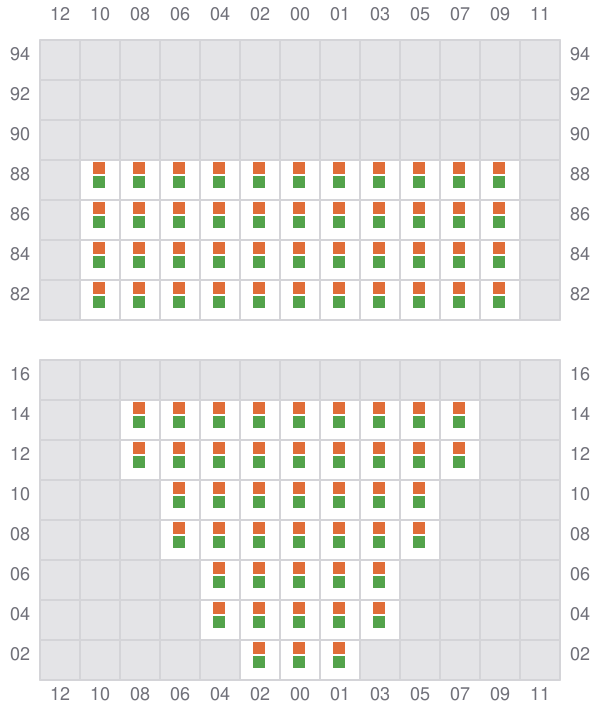

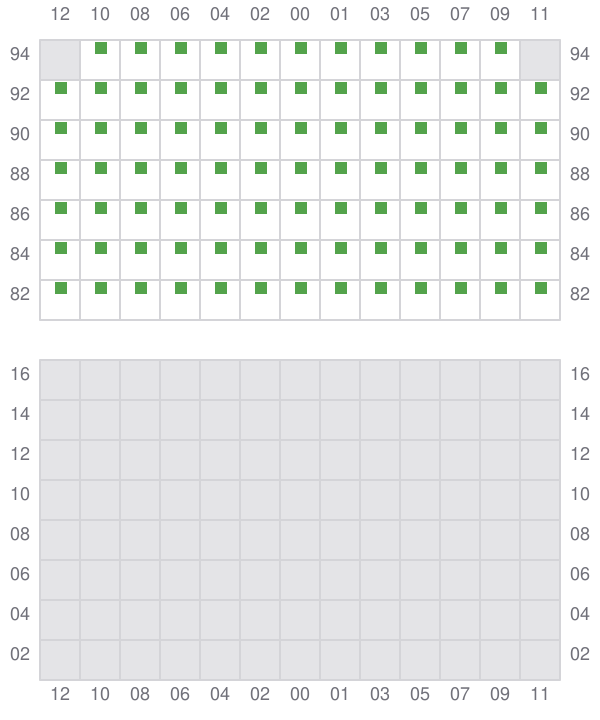

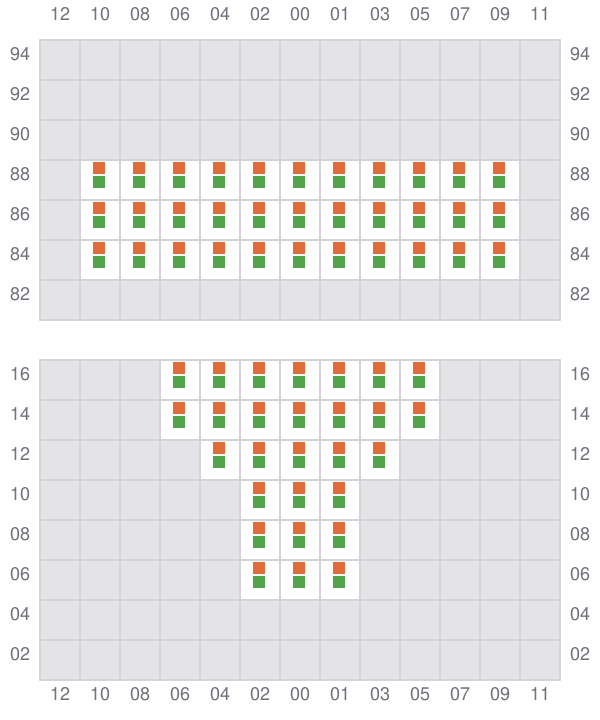

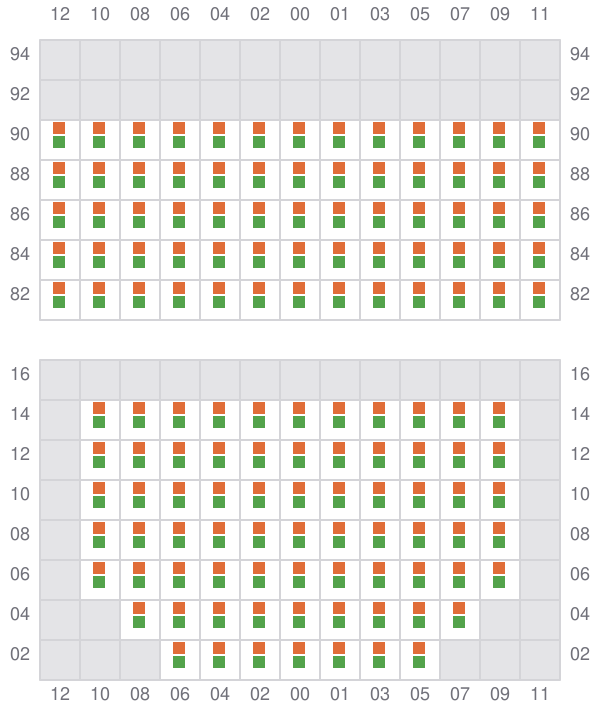

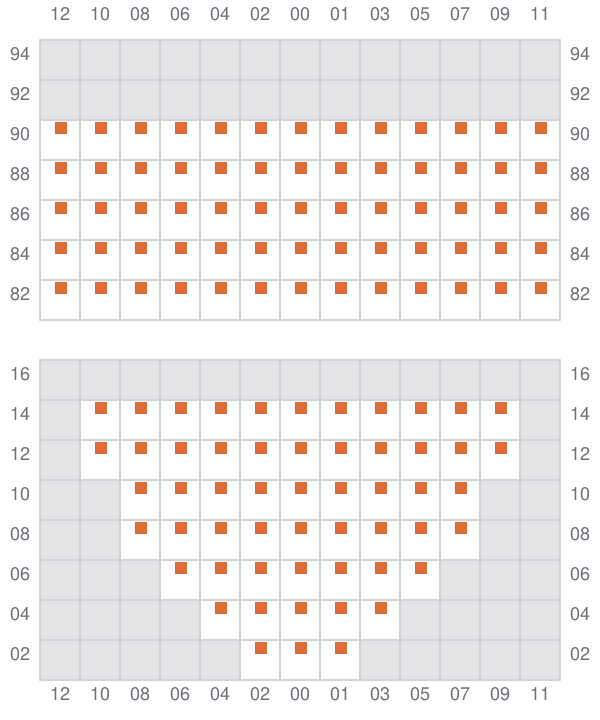

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←

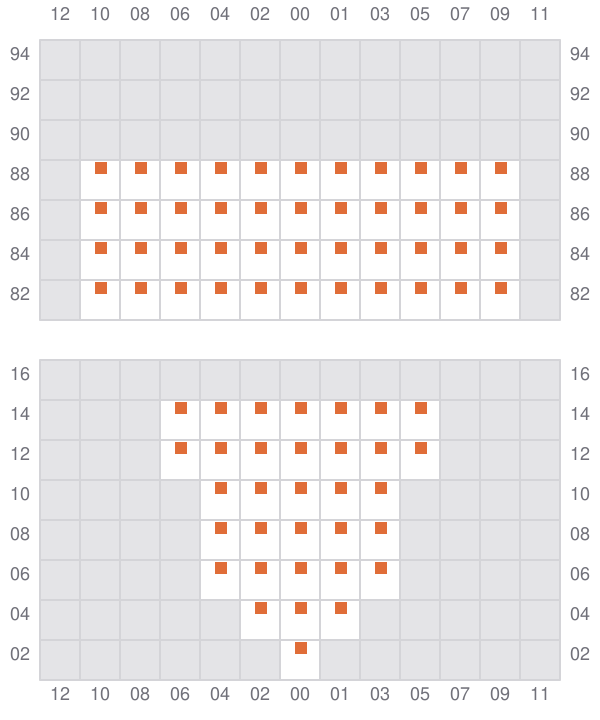

005
- →
007 (006)
- ←
009
- →

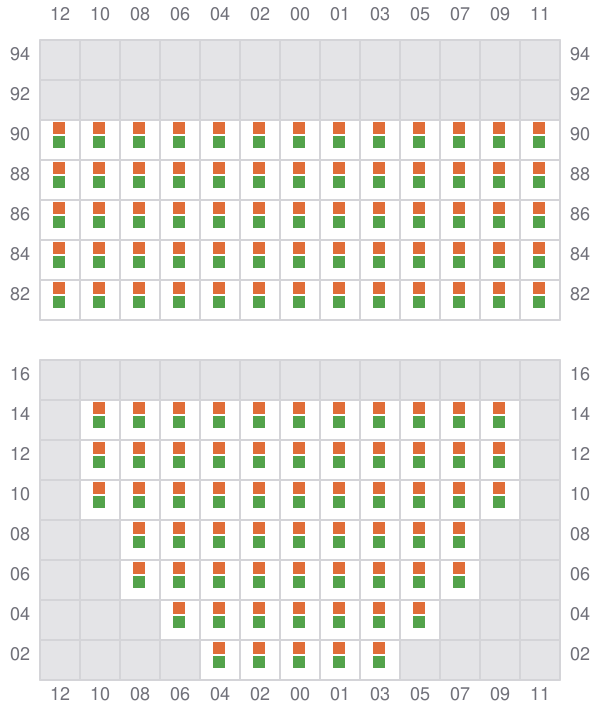

011 (010)
- ←
013
- →
015 (014)
- ←
017
- →
019 (018)
- ←
021
- →
023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←

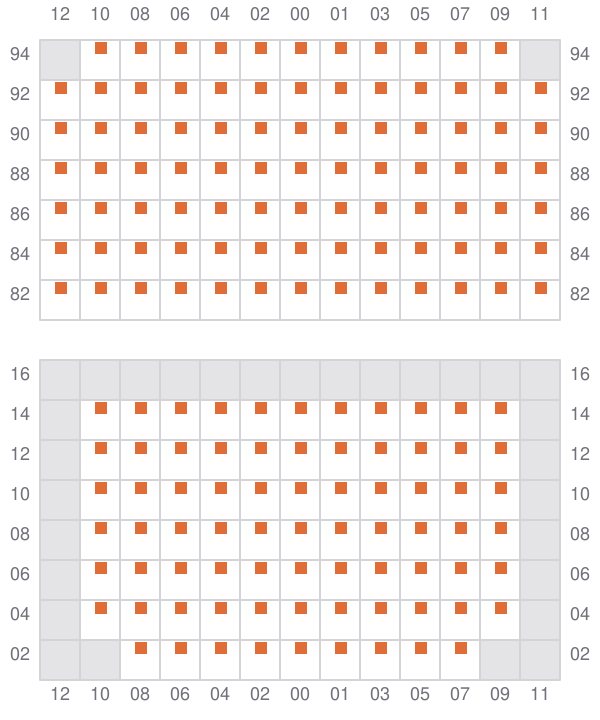

033
- →

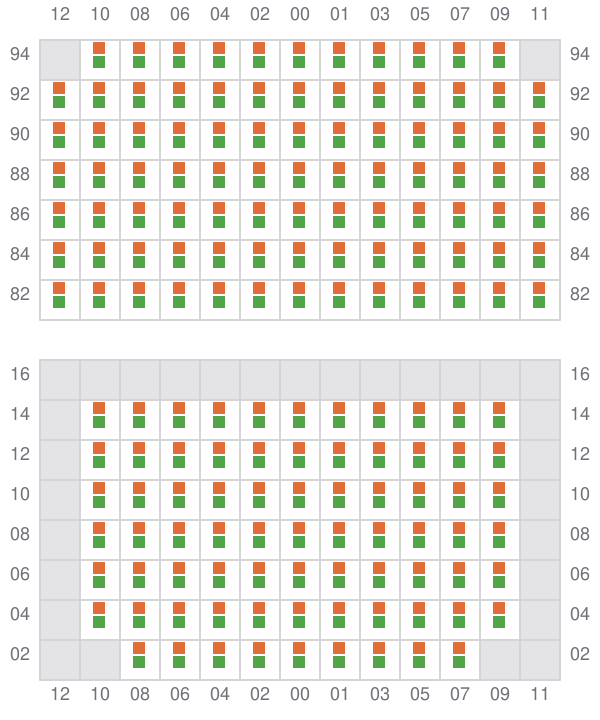

035 (034)
- ←

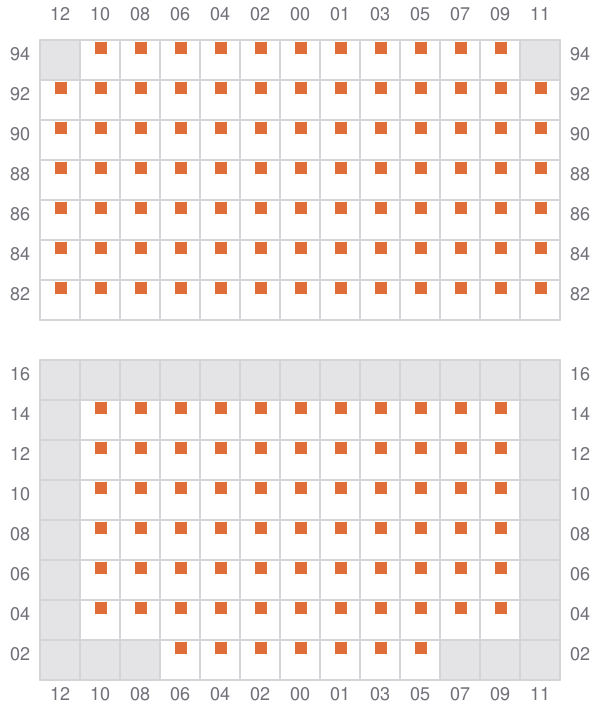

037
- →
039 (038)
- ←
041
- →

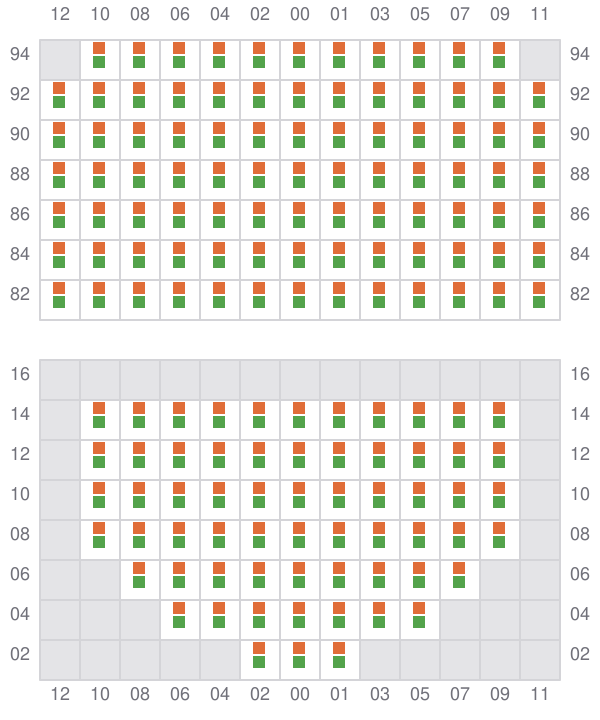

043 (042)
- ←
045
- → / ?

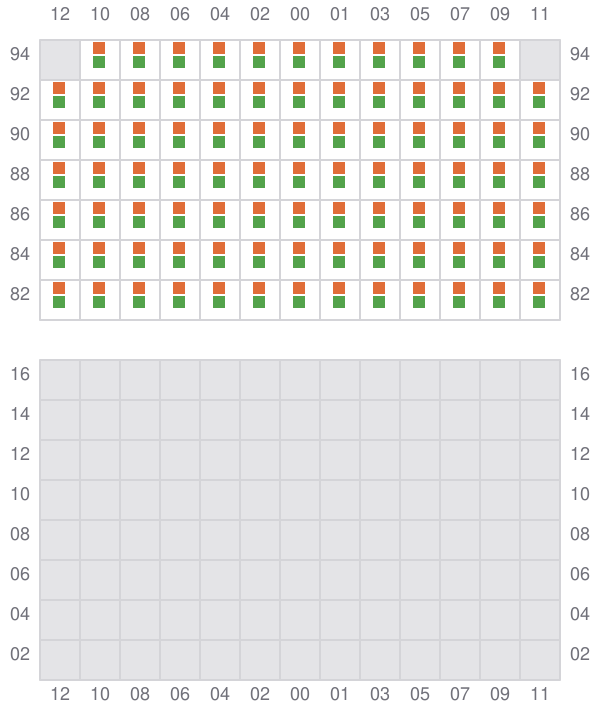

047 (046)
- ← / ?
049
- →
051 (050)
- ←
053 (054)
- → / ?
