GERNER MAERSK
9359002 | VRVO3 | 9359002 by ********* Last update: Sat Mar 23 2024
General Info
Ship Name:GERNER MAERSK
IMO Code:9359002
Call Sign:VRVO3
Line Operator:9359002
Class Name for Sister Ships:434
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:085
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,909
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

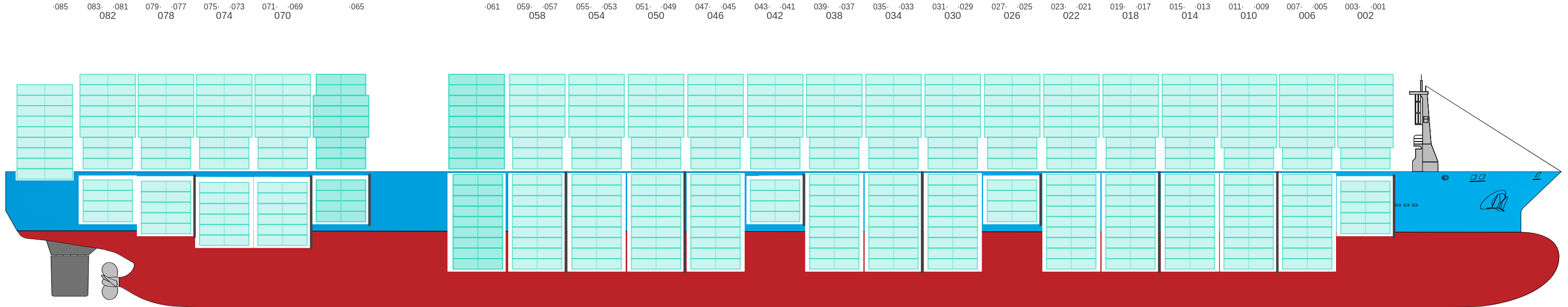

Side View
![Side view of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-sideView.png?v=1711214859150)
Hatch-Covers View
![Deck view of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-deckView.png?v=1711214859150)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b001.png?v=1711214859150)

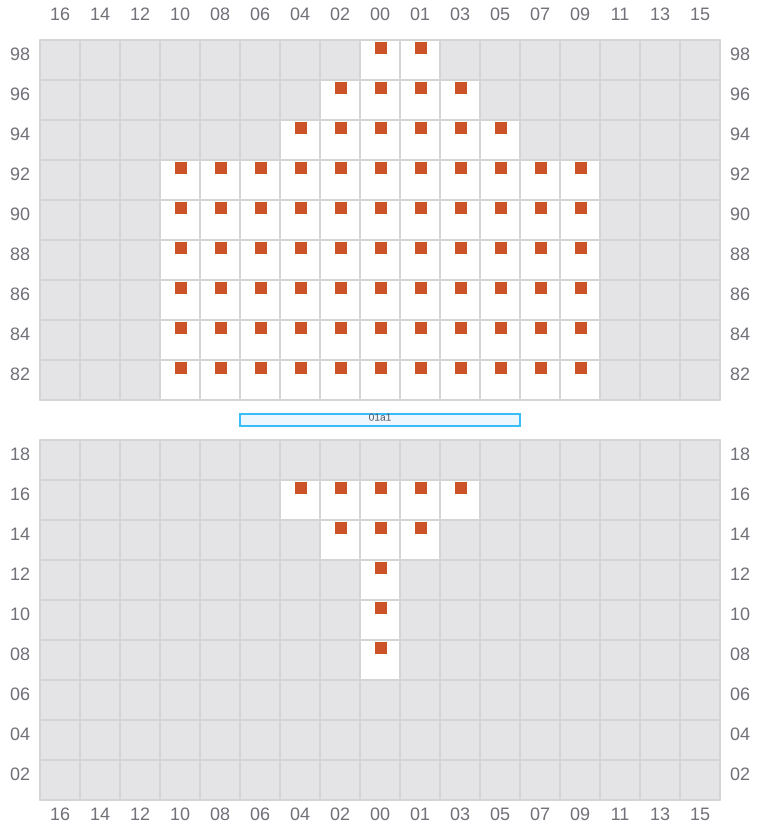

003
- ←
![Bay 003 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b003.png?v=1711214859150)

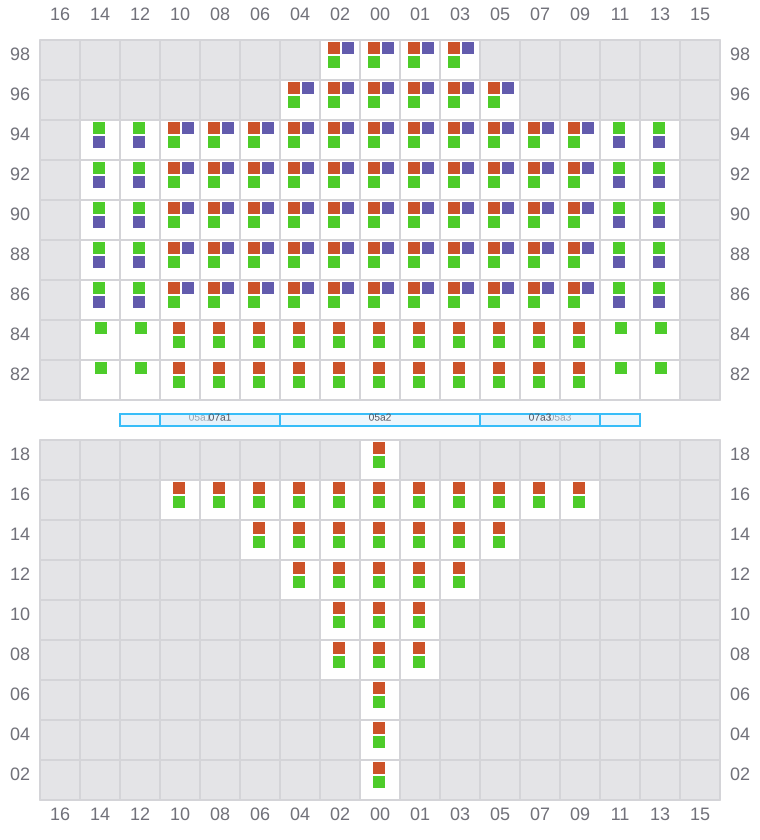

005 (006)
- →
![Bay 005 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b005.png?v=1711214859150)

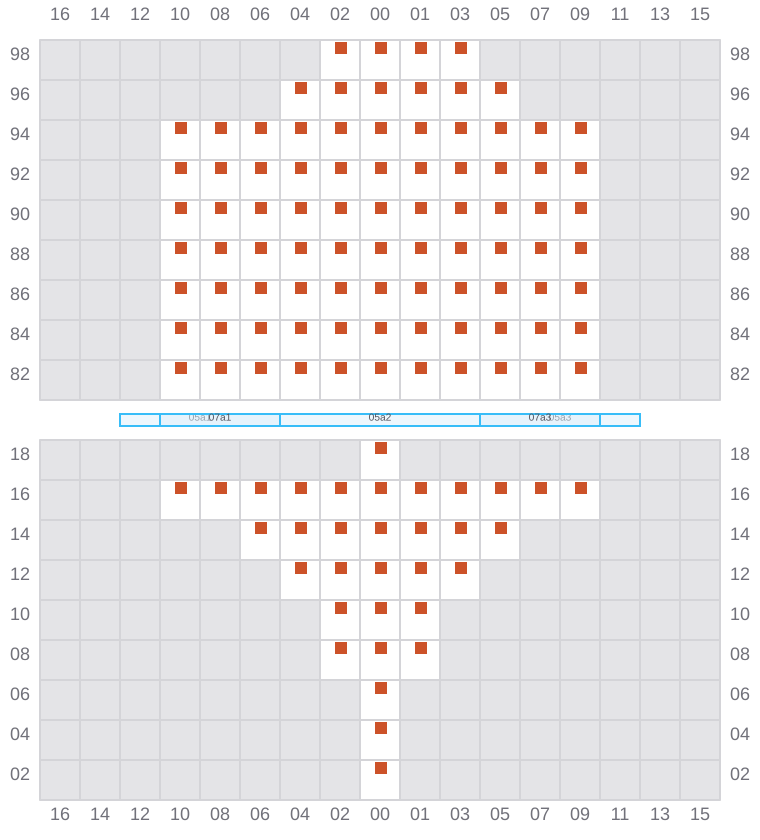

007
- ←
![Bay 007 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b007.png?v=1711214859150)

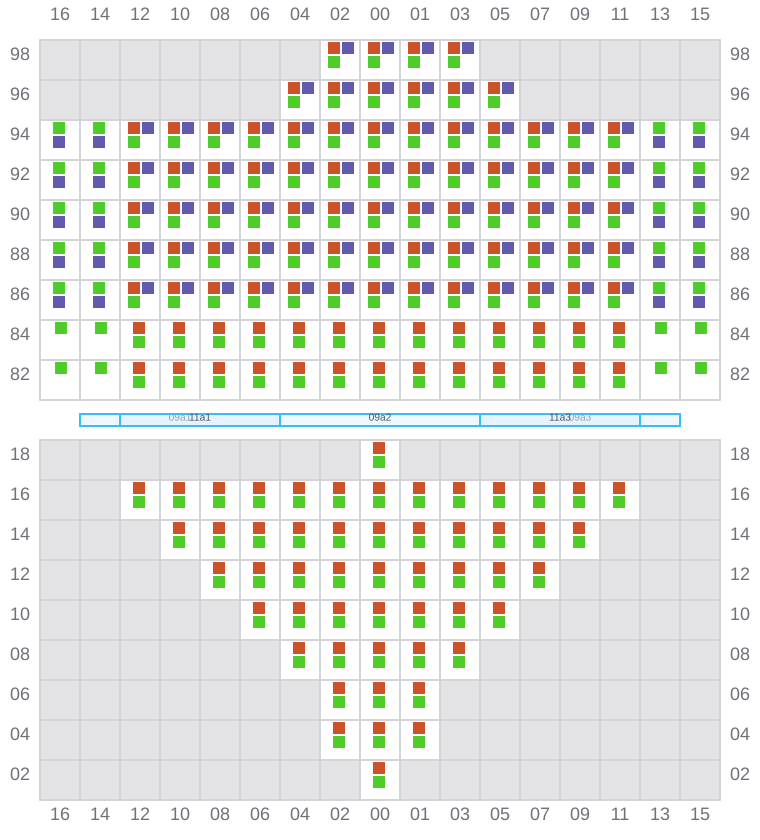

009 (010)
- →
![Bay 009 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b009.png?v=1711214859150)

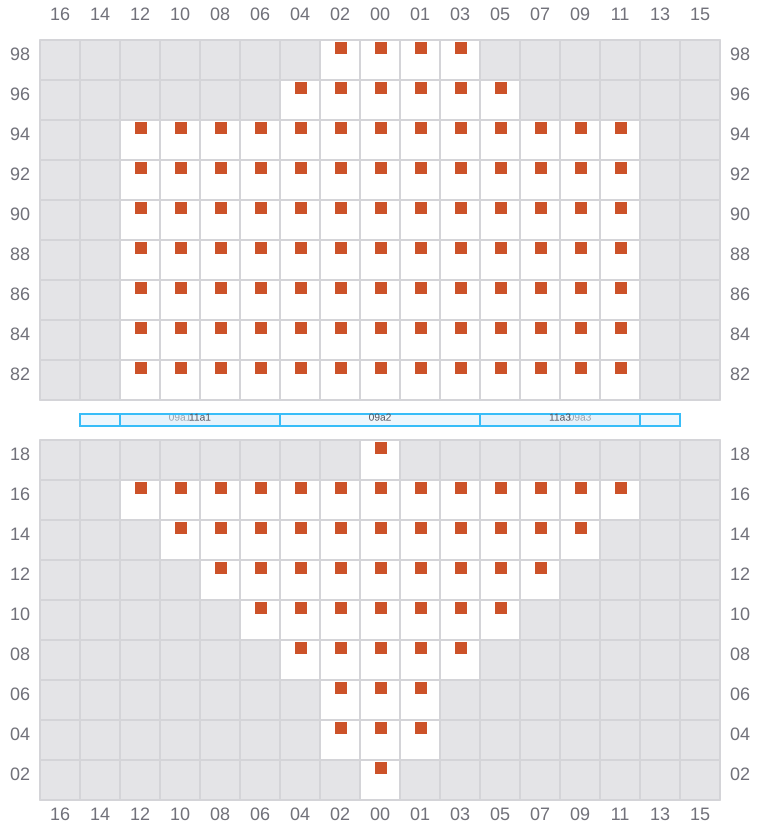

011
- ←
![Bay 011 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b011.png?v=1711214859150)

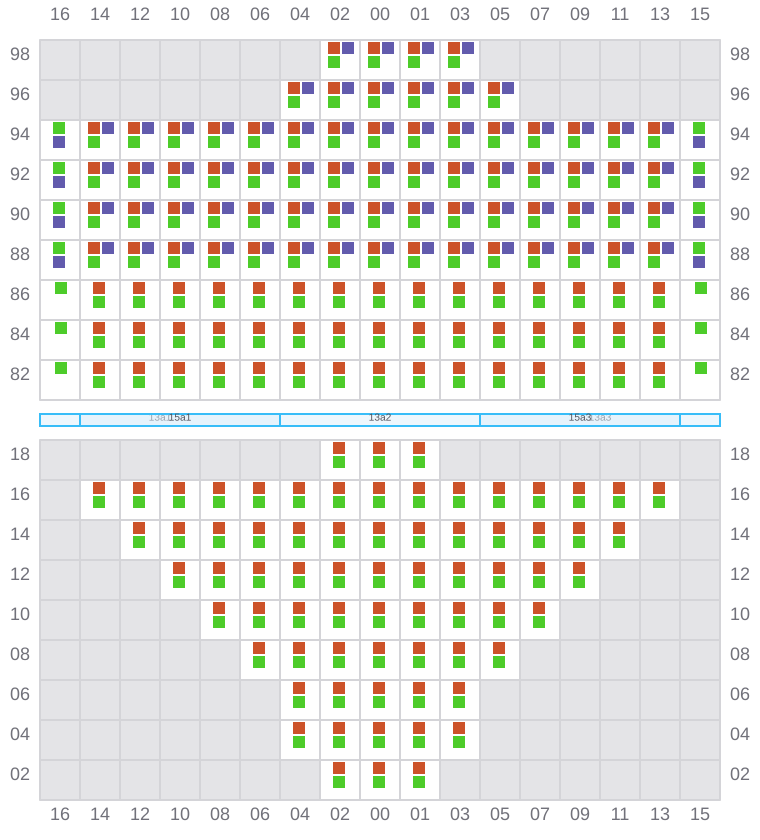

013 (014)
- →
![Bay 013 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b013.png?v=1711214859150)

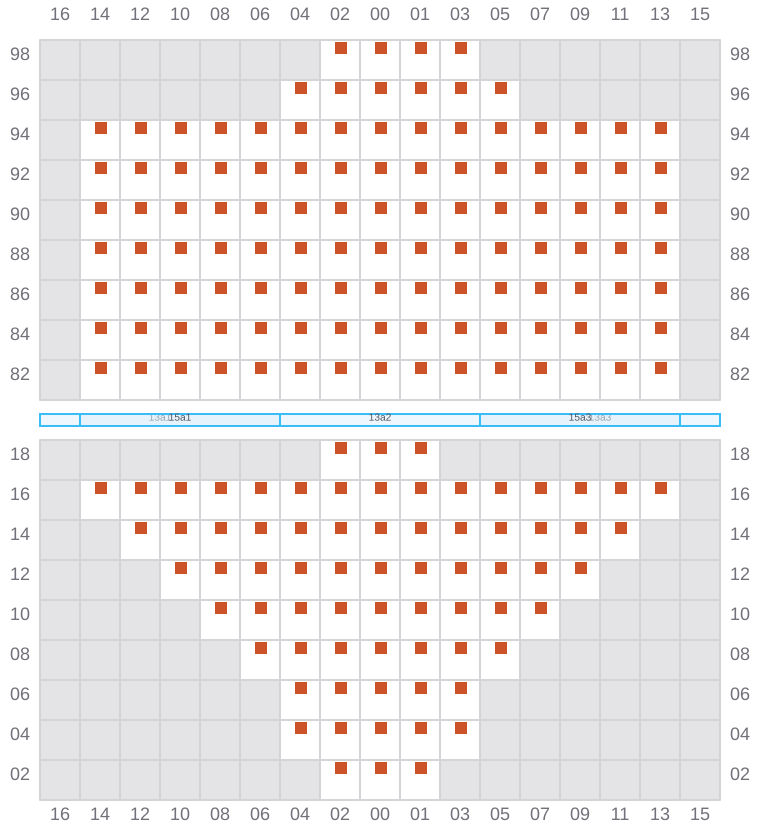

015
- ←
![Bay 015 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b015.png?v=1711214859150)

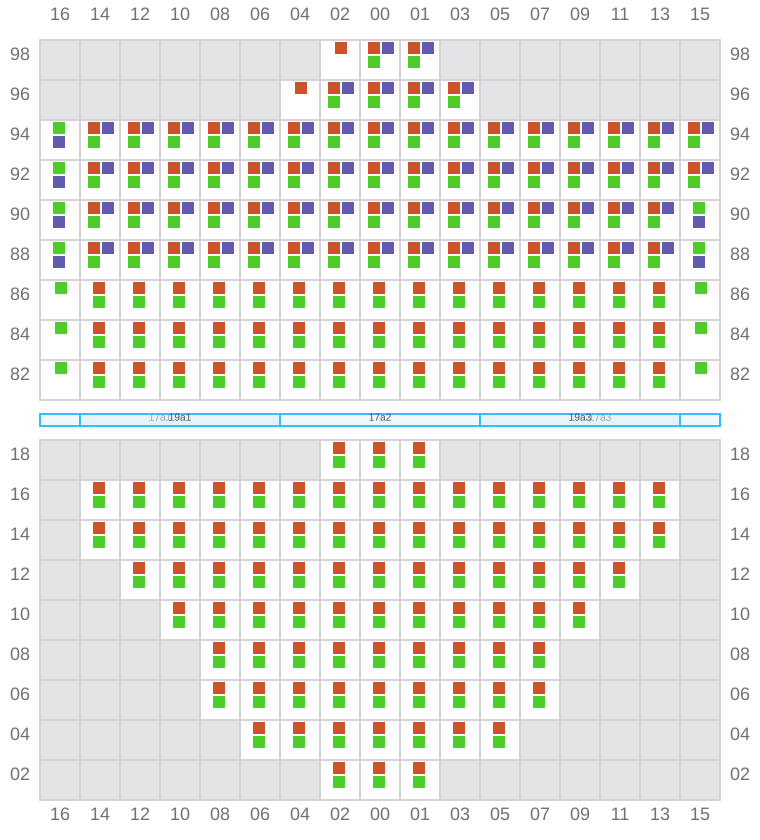

017 (018)
- →
![Bay 017 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b017.png?v=1711214859150)

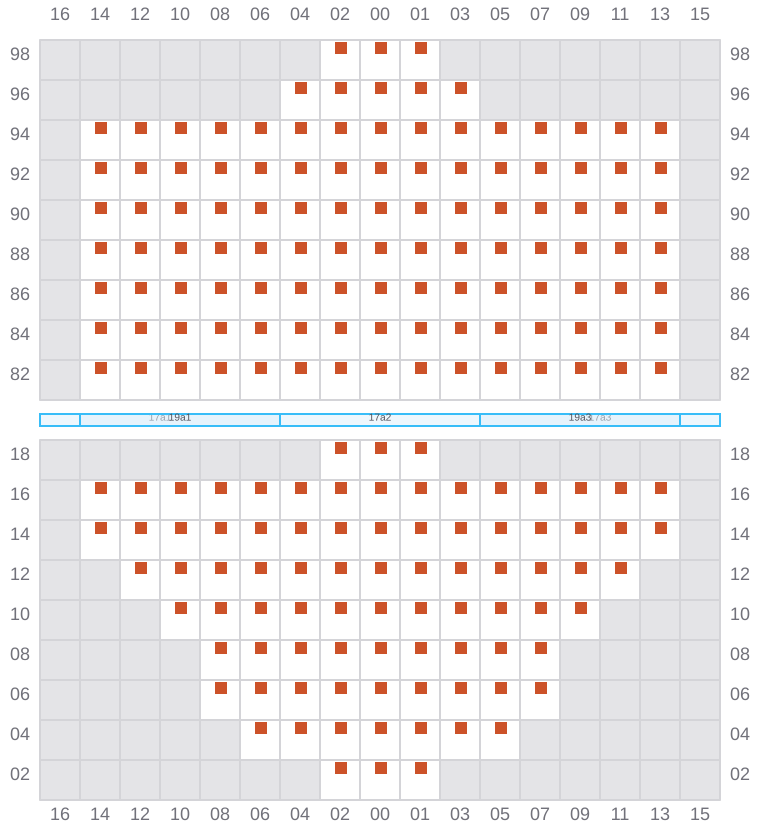

019
- ←
![Bay 019 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b019.png?v=1711214859150)

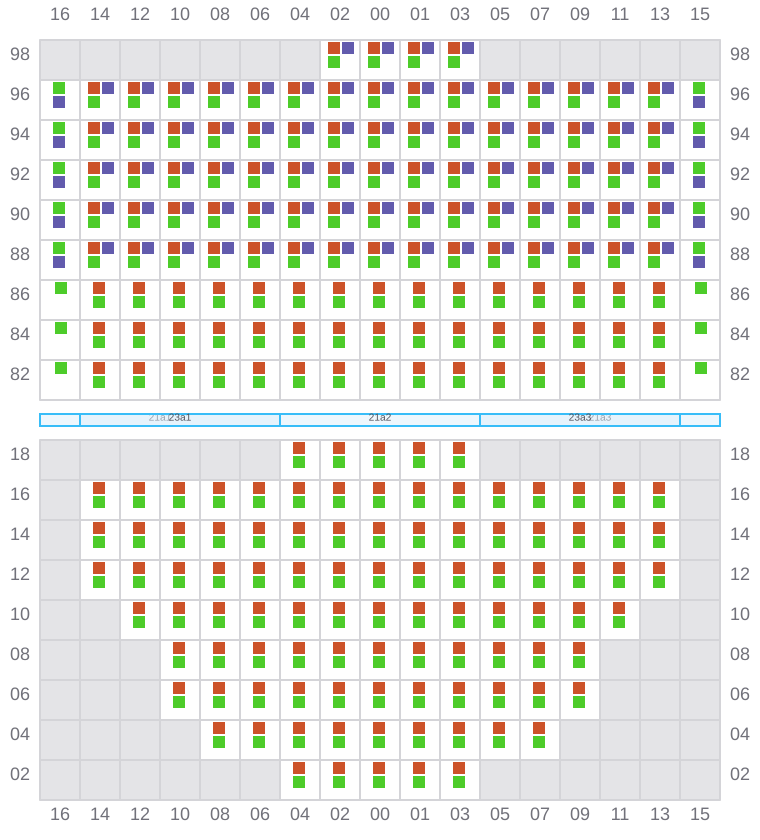

021 (022)
- →
![Bay 021 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b021.png?v=1711214859150)

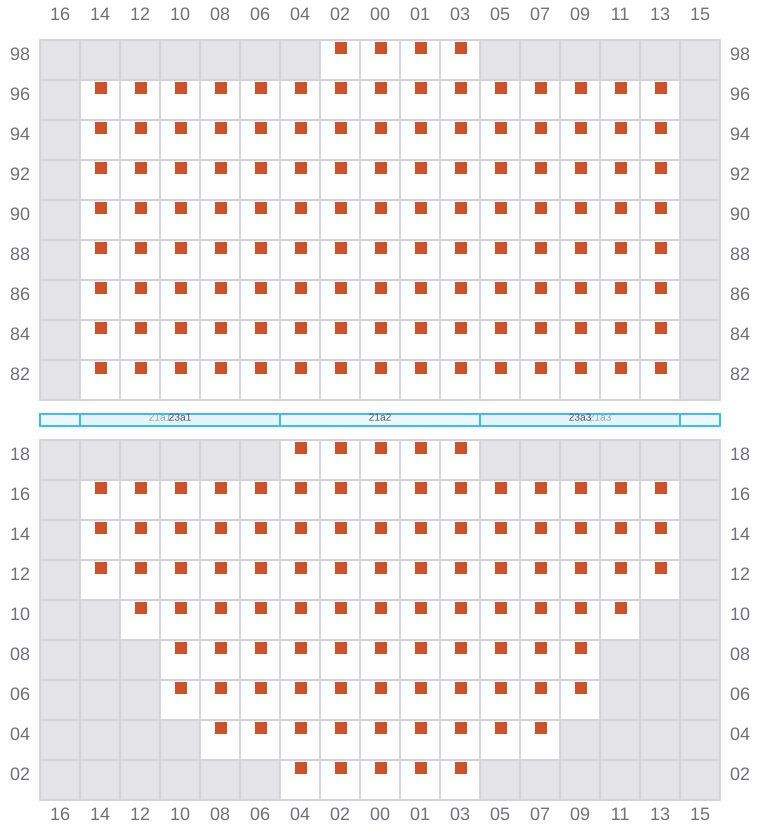

023
- ←
![Bay 023 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b023.png?v=1711214859150)
025 (026)
- →
![Bay 025 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b025.png?v=1711214859150)

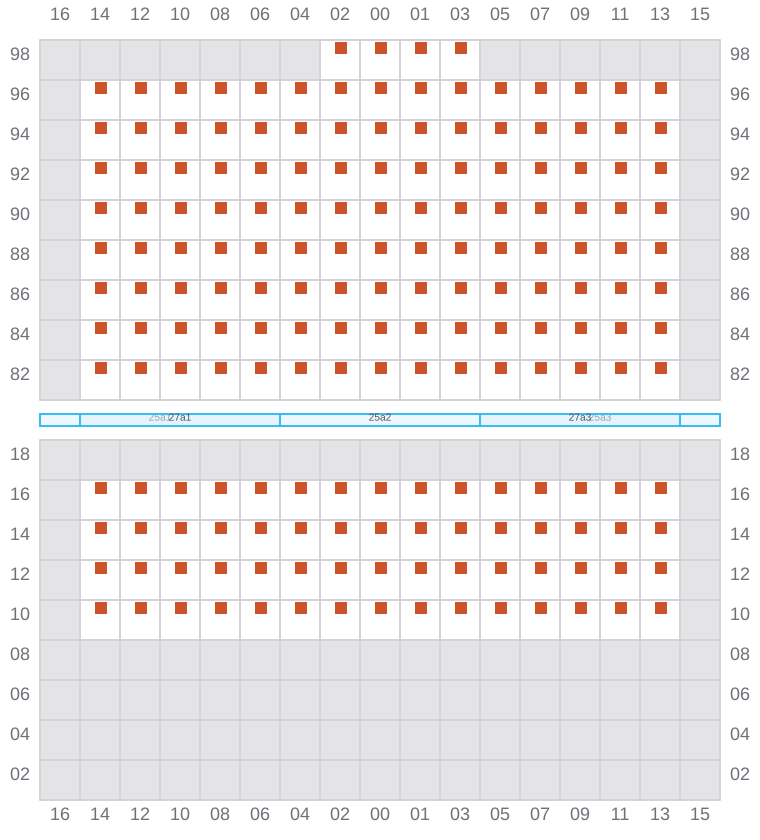

027
- ←
![Bay 027 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b027.png?v=1711214859150)

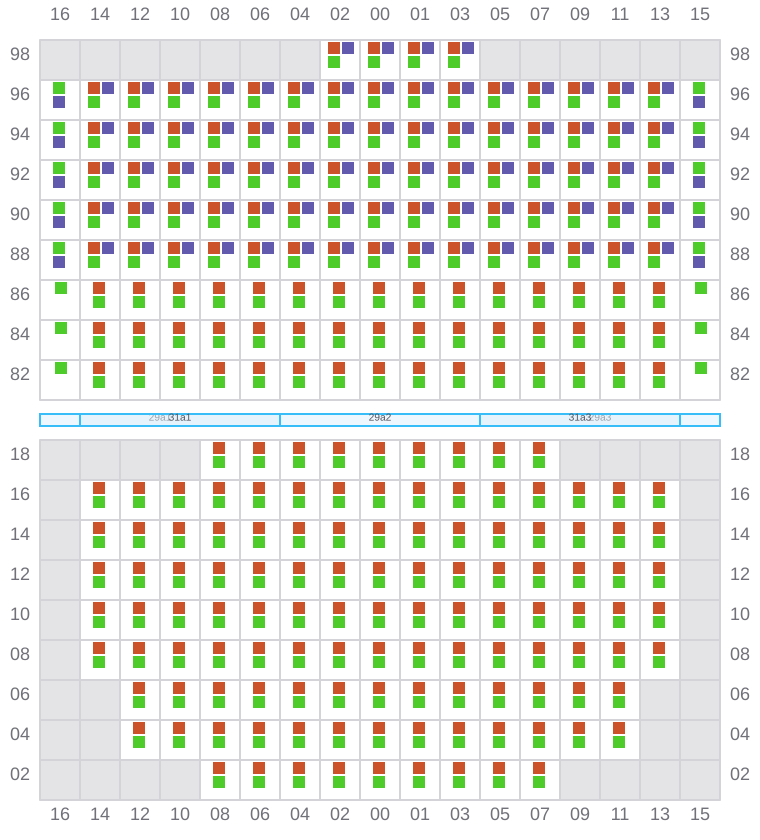

029 (030)
- →
![Bay 029 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b029.png?v=1711214859150)

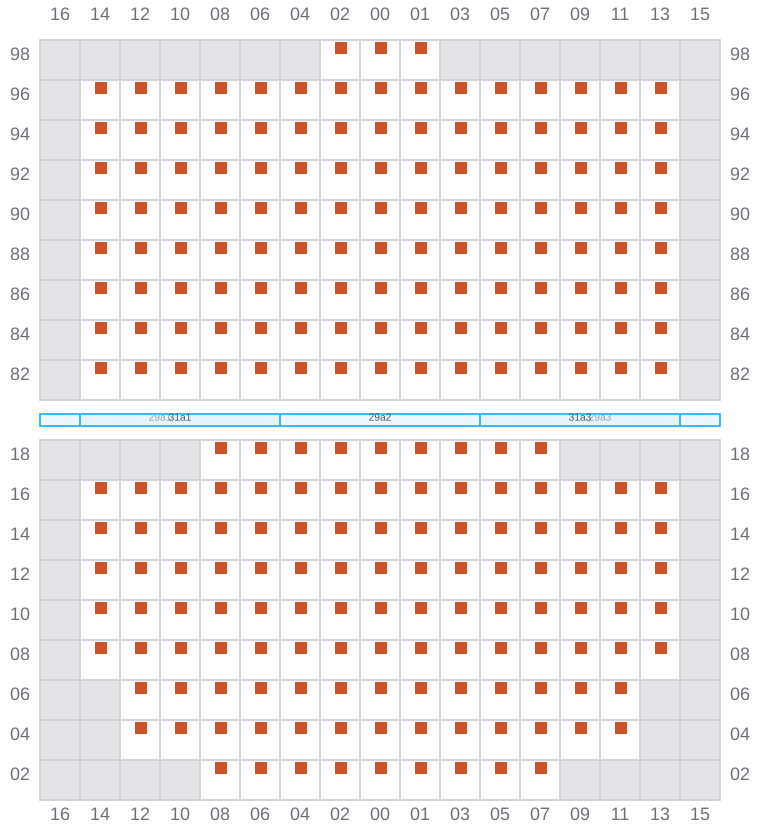

031
- ←
![Bay 031 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b031.png?v=1711214859150)

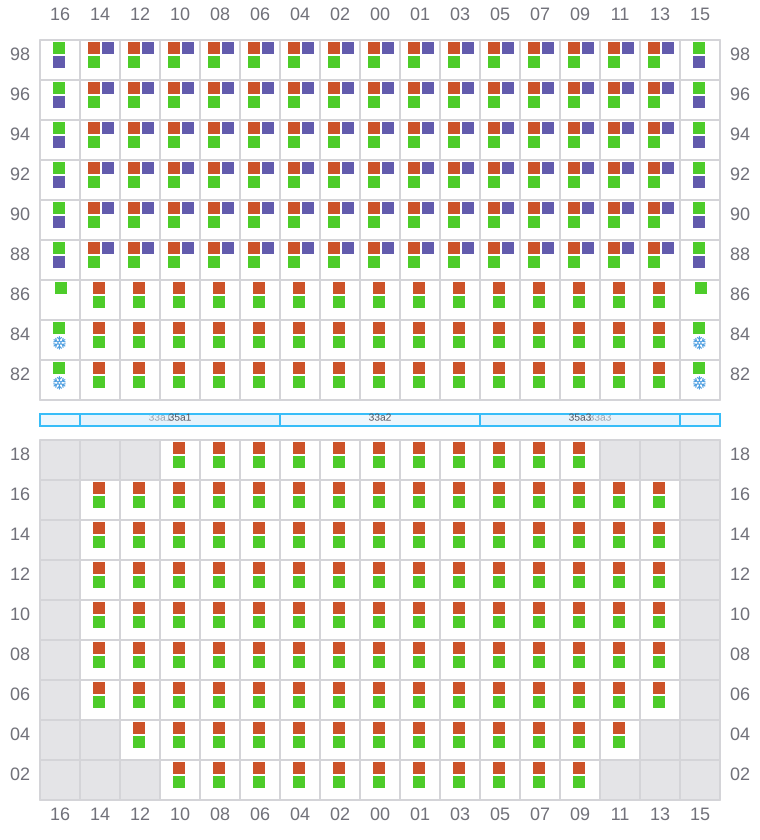

033 (034)
- →
- → / ?
![Bay 033 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b033.png?v=1711214859150)
035
- ←
- →
![Bay 035 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b035.png?v=1711214859150)

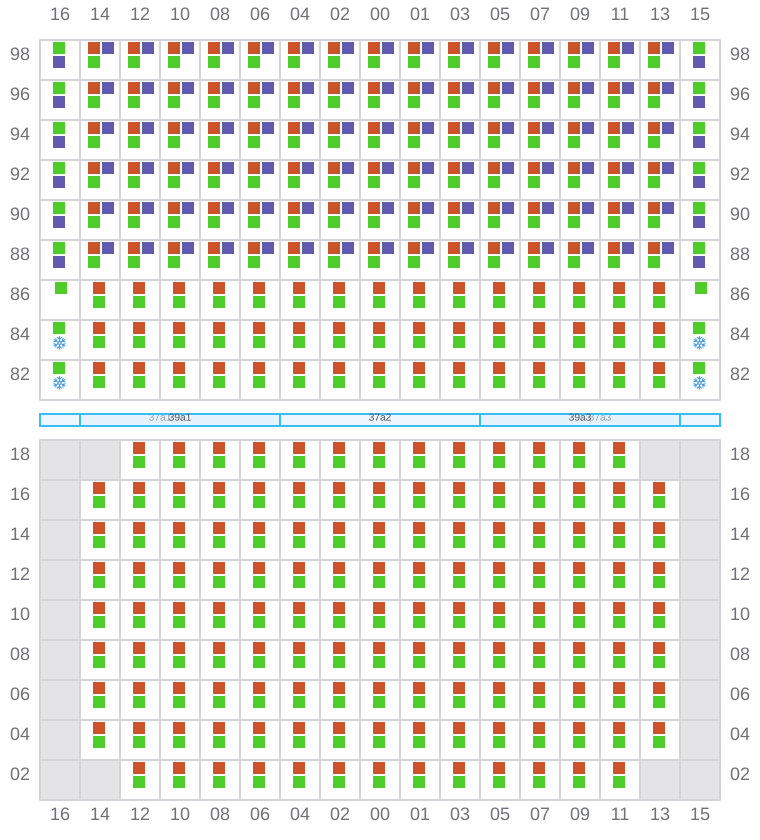

037 (038)
- →
- → / ?
![Bay 037 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b037.png?v=1711214859150)
039
- ←
- → / ?
![Bay 039 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b039.png?v=1711214859150)

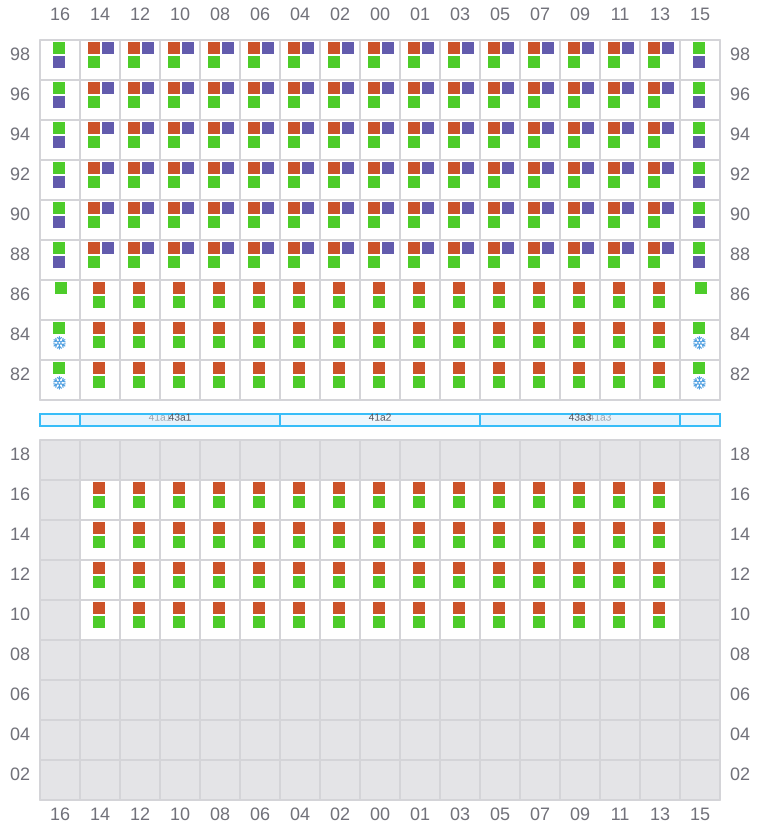

041 (042)
- →
- → / ?
![Bay 041 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b041.png?v=1711214859150)

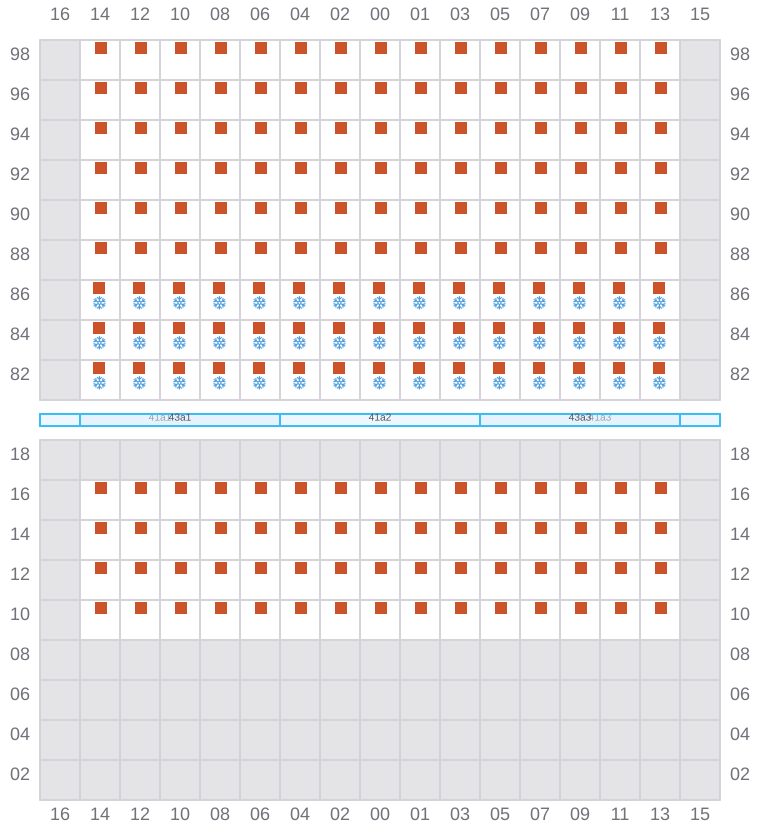

043
- ←
- → / ?
![Bay 043 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b043.png?v=1711214859150)
045 (046)
- →
- → / ?
![Bay 045 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b045.png?v=1711214859150)
047
- ←
- →
![Bay 047 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b047.png?v=1711214859150)

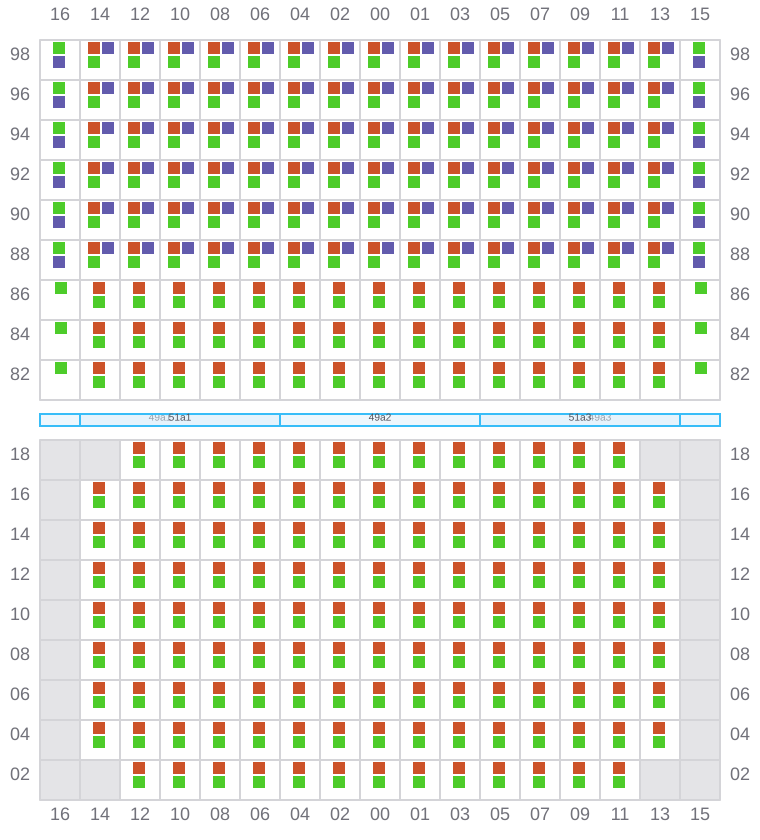

049 (050)
- →
- → / ?
![Bay 049 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b049.png?v=1711214859150)
051
- ←
- → / ?
![Bay 051 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b051.png?v=1711214859150)

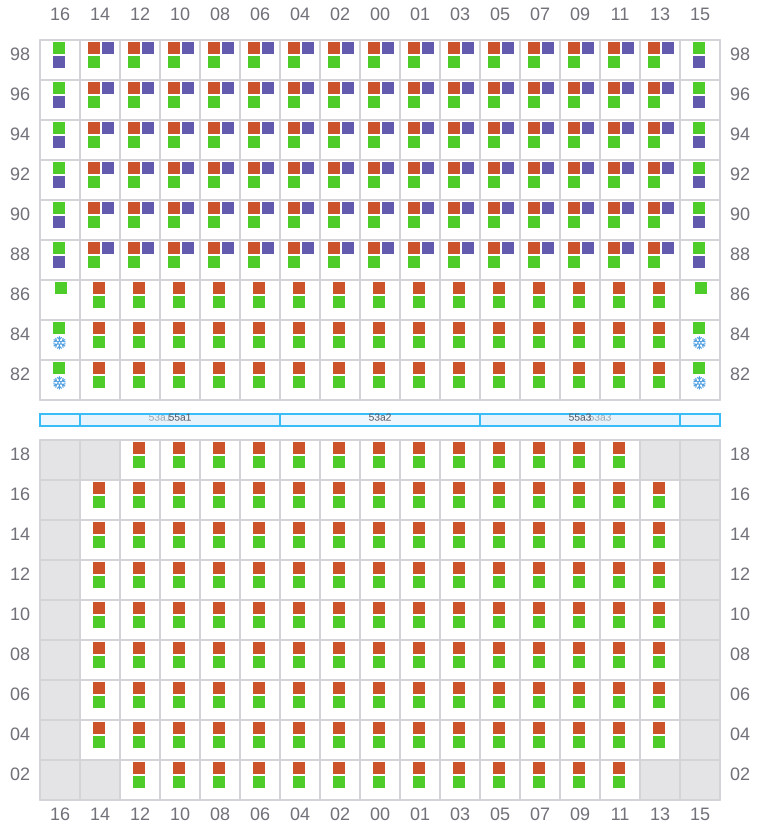

053 (054)
- →
- → / ?
![Bay 053 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b053.png?v=1711214859150)

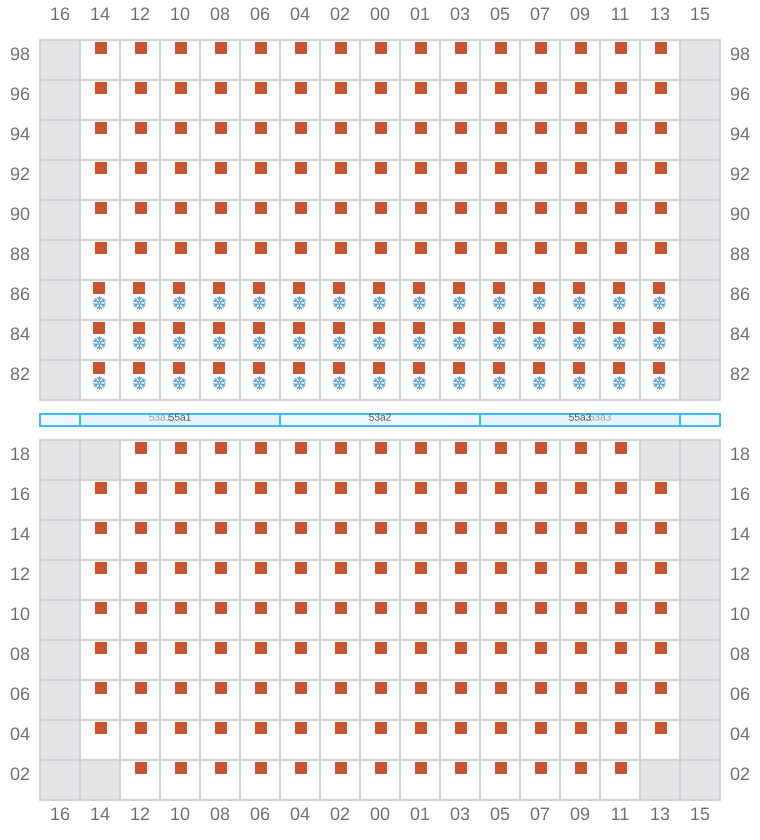

055
- ←
- → / ?
![Bay 055 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b055.png?v=1711214859150)

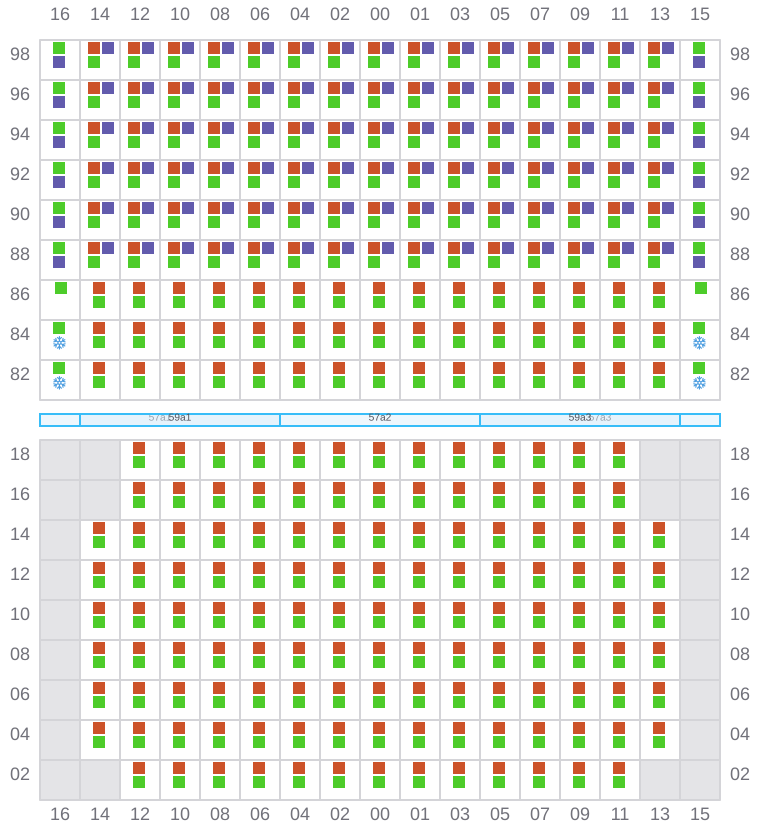

057 (058)
- →
- → / ?
![Bay 057 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b057.png?v=1711214859150)

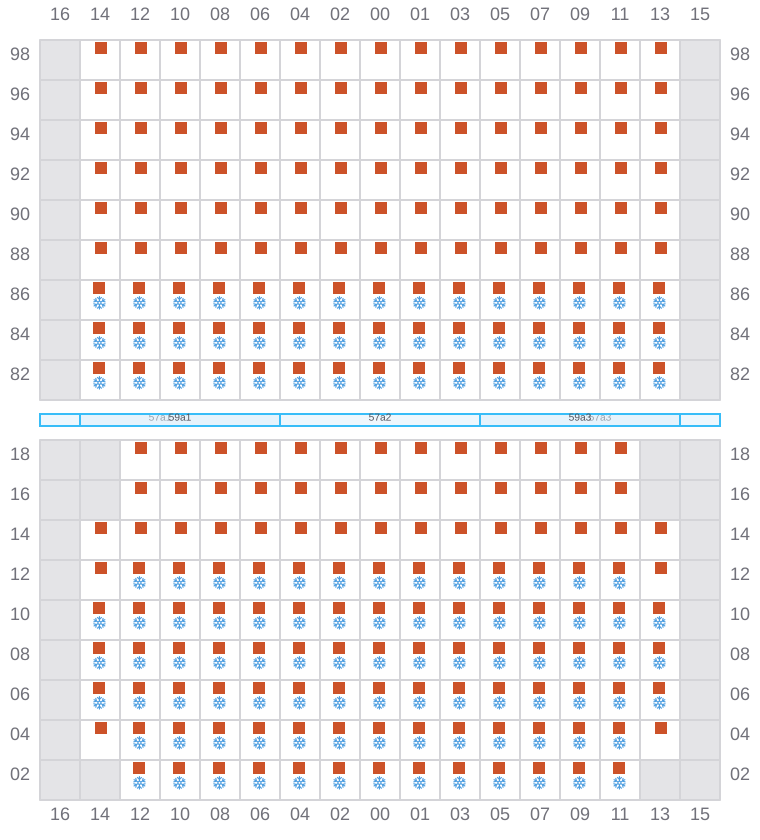

059
- ←
- →
![Bay 059 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b059.png?v=1711214859150)

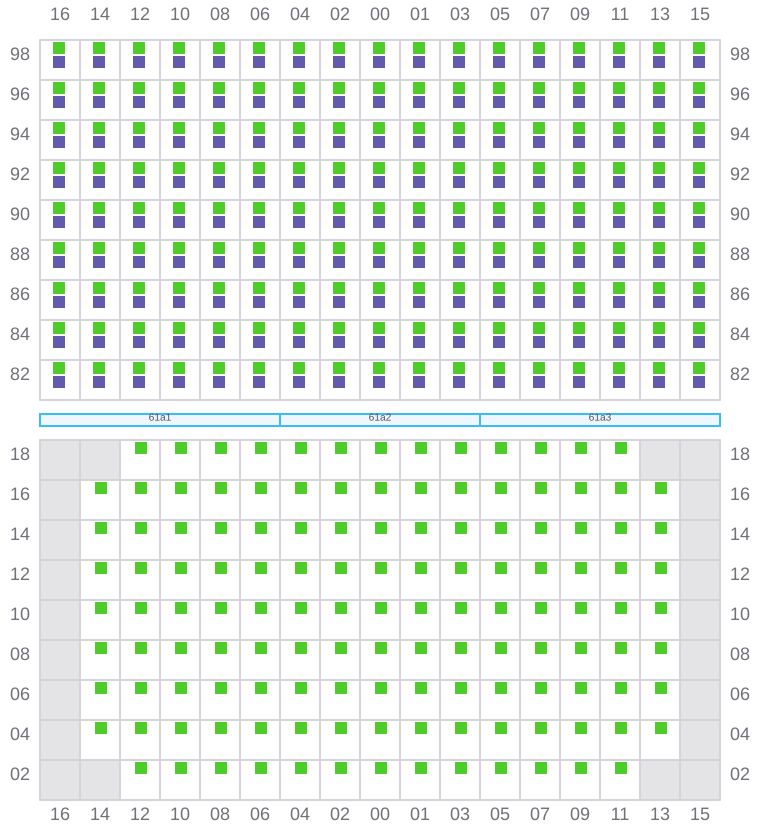

061 (062)
- →
![Bay 061 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b061.png?v=1711214859150)
063
![Bay 063 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b063.png?v=1711214859150)

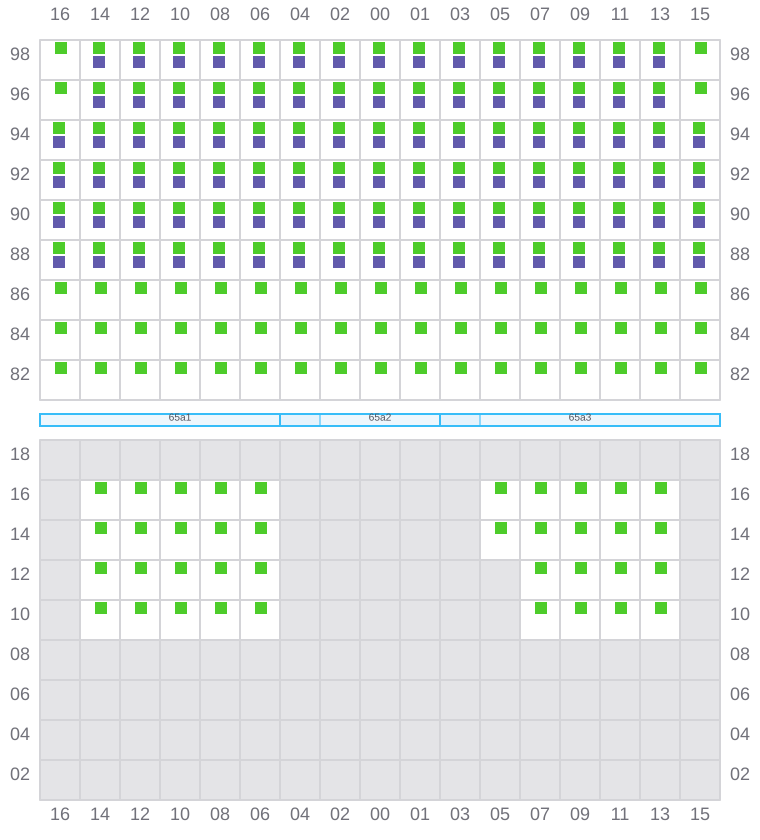

065 (066)
- →
![Bay 065 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b065.png?v=1711214859150)

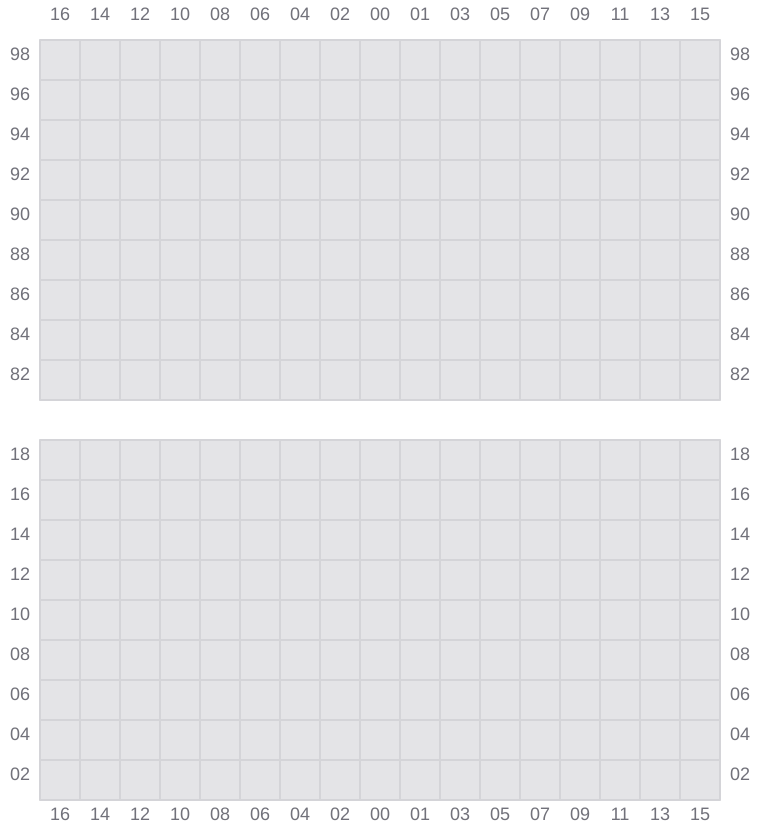

067
![Bay 067 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b067.png?v=1711214859150)

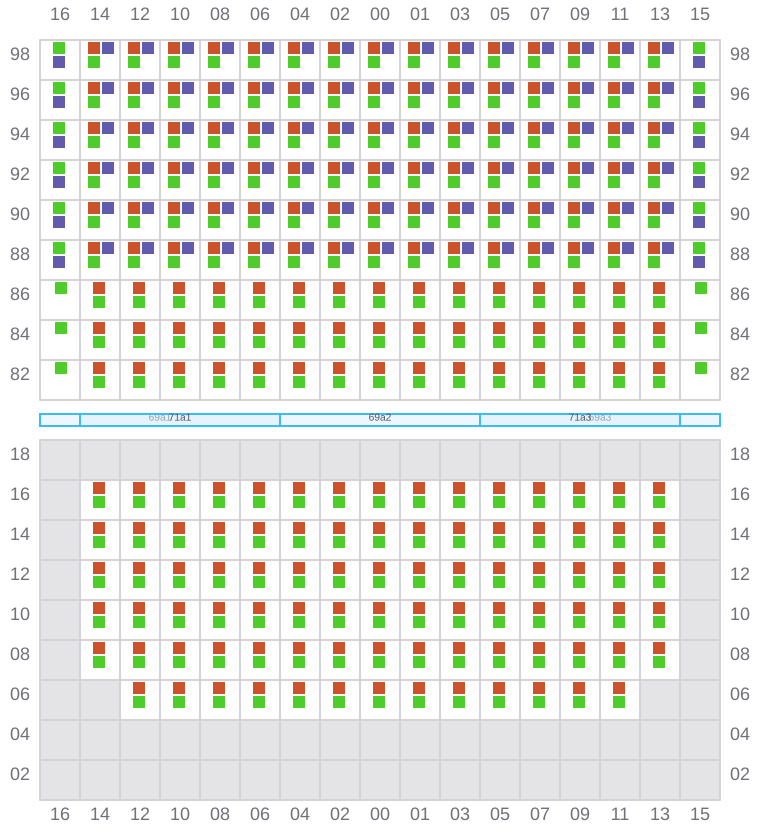

069 (070)
- →
![Bay 069 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b069.png?v=1711214859150)

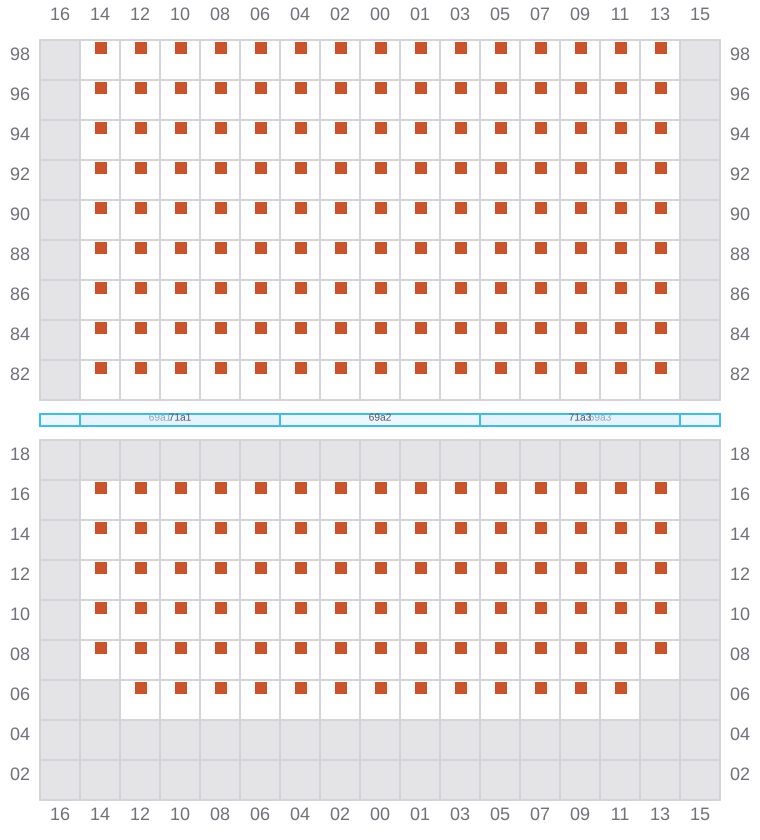

071
- ←
![Bay 071 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b071.png?v=1711214859150)

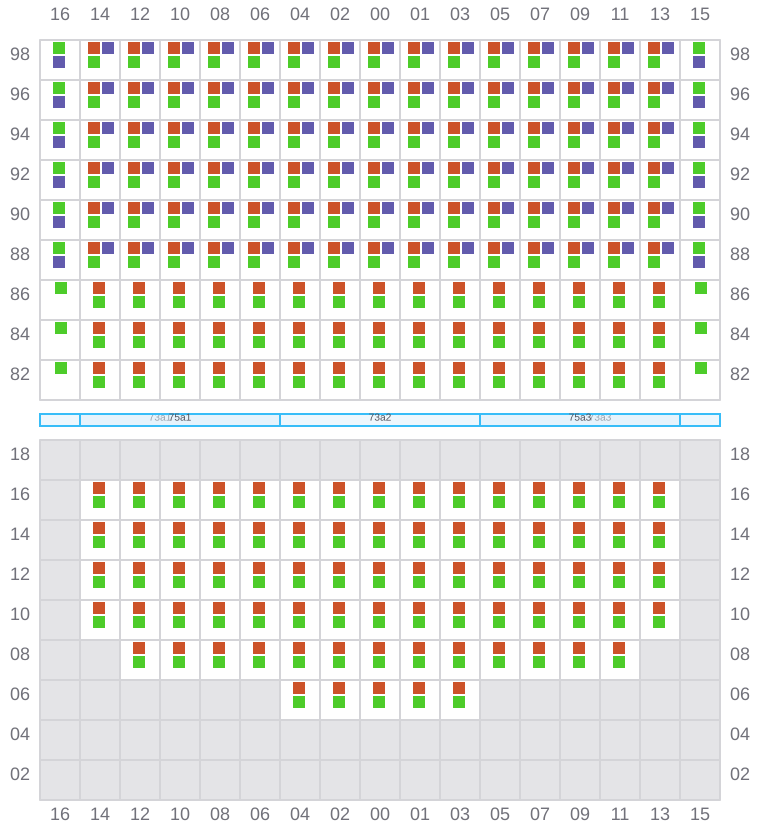

073 (074)
- →
![Bay 073 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b073.png?v=1711214859150)

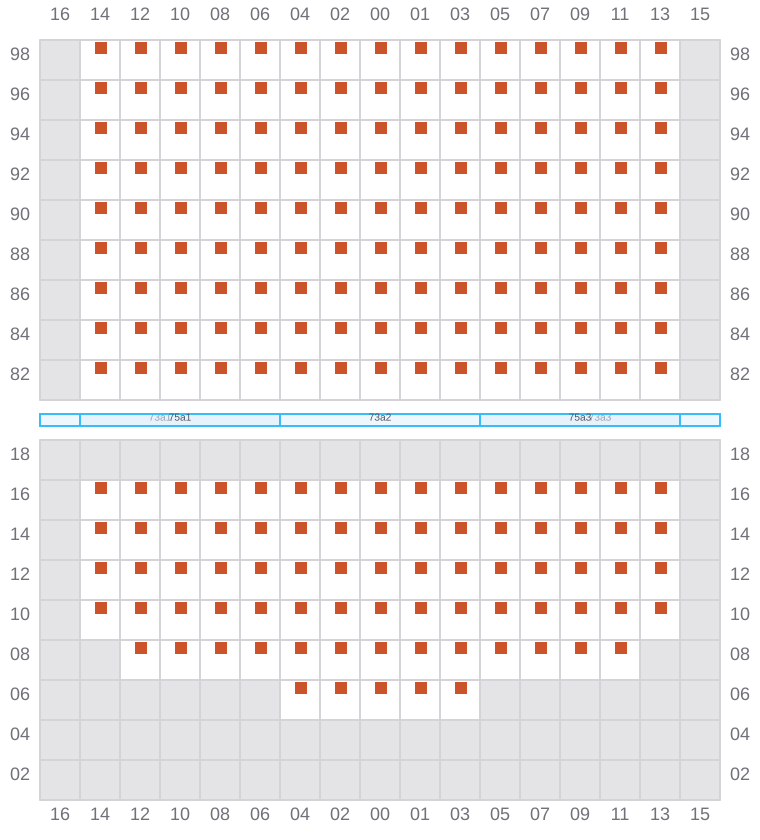

075
- ←
![Bay 075 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b075.png?v=1711214859150)

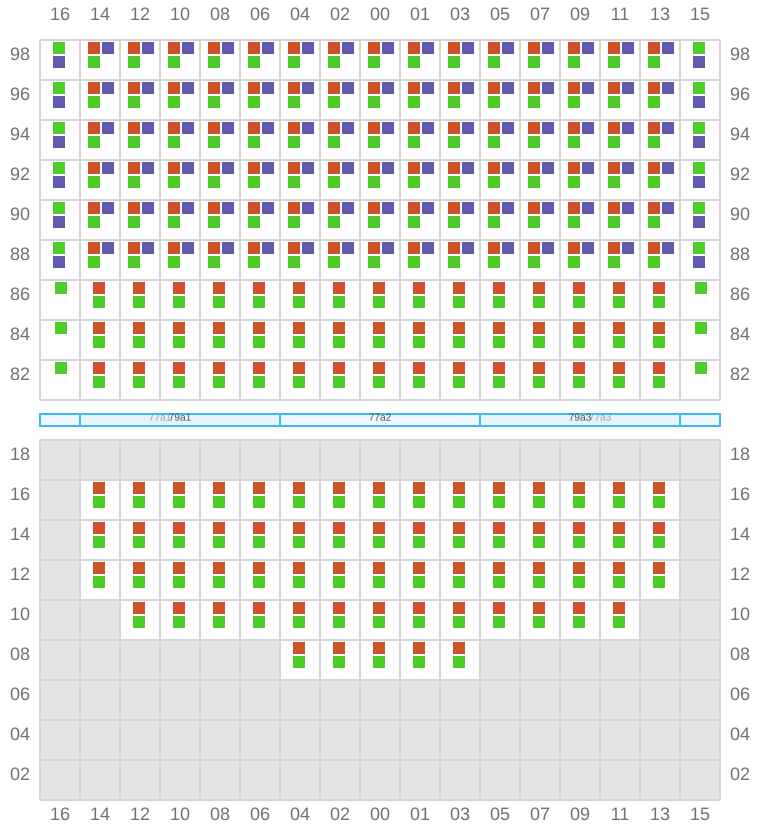

077 (078)
- →
![Bay 077 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b077.png?v=1711214859150)

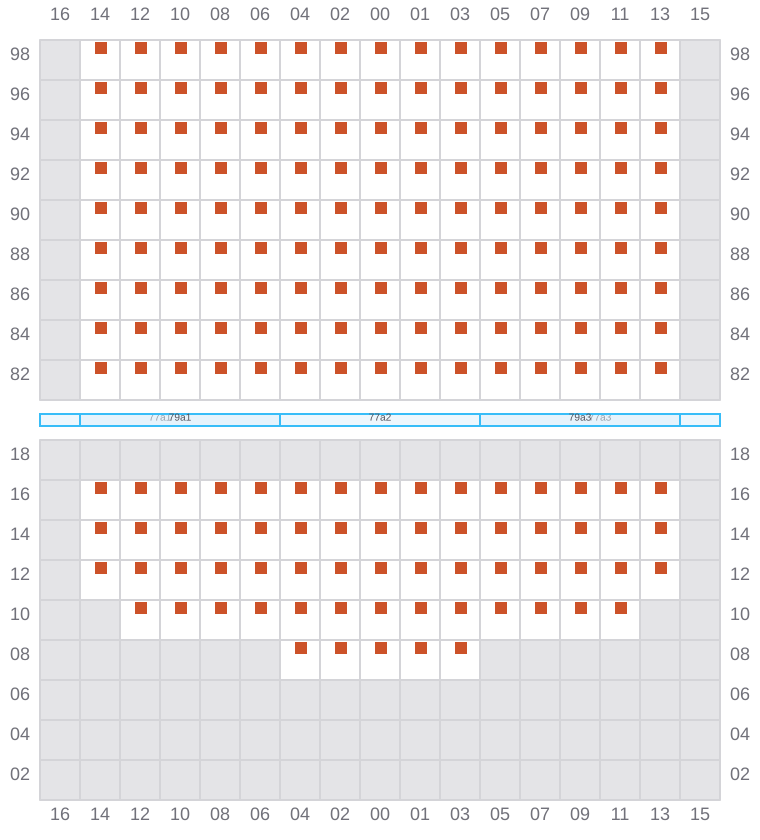

079
- ←
![Bay 079 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b079.png?v=1711214859150)

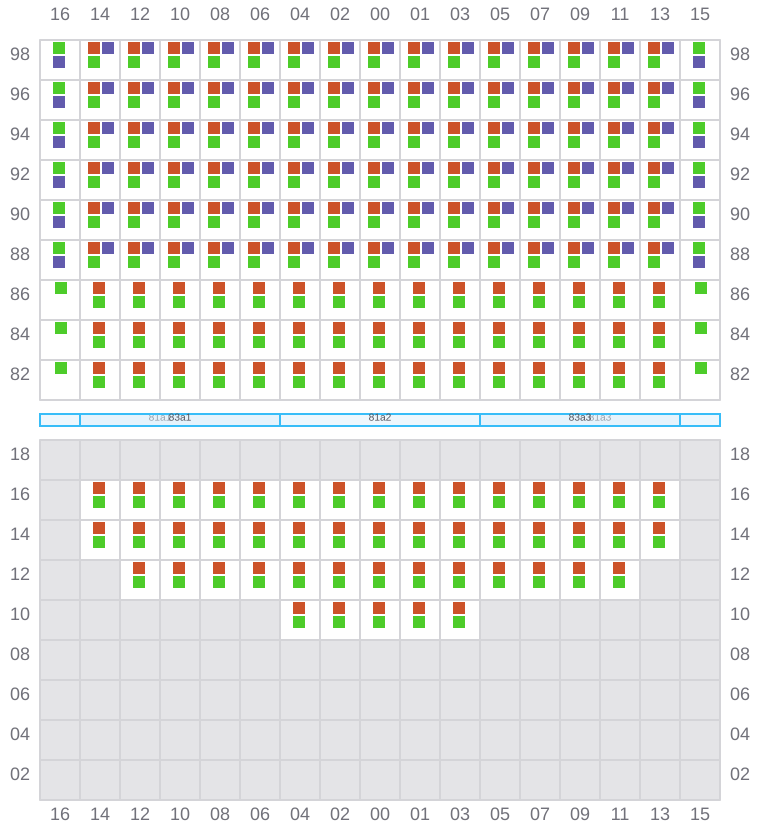

081 (082)
- →
![Bay 081 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b081.png?v=1711214859150)

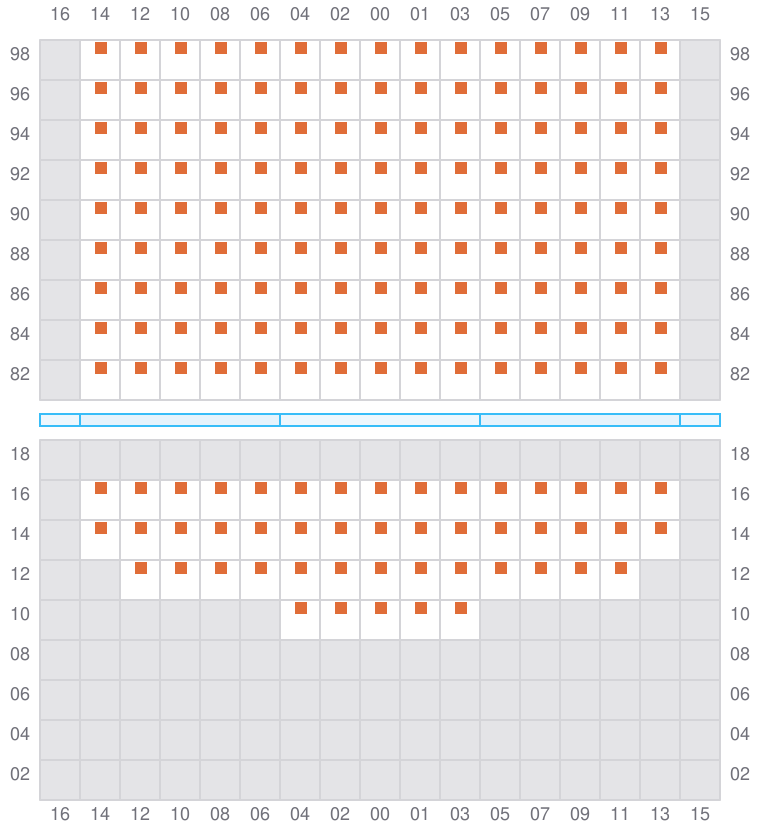

083
- ←
![Bay 083 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b083.png?v=1711214859150)

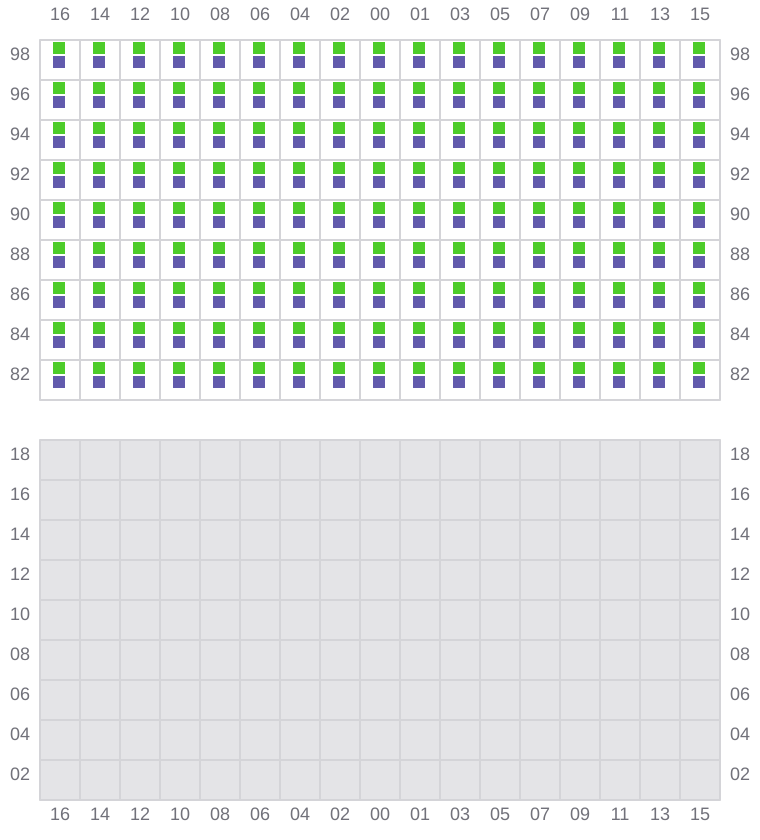

085 (086)
- → / ?
![Bay 085 view and slots of GERNER MAERSK](/vessel-images/6b5e96ea-9896-4aa4-9d06-1b8921043053-b085.png?v=1711214859150)
