GFS PERFECT
9308039 | 9V7054 | 9308039 by ********* Last update: Wed May 01 2024
General Info
Ship Name:GFS PERFECT
IMO Code:9308039
Call Sign:9V7054
Line Operator:9308039
Class Name for Sister Ships:ITAL FLORIDA
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:055
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,446
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

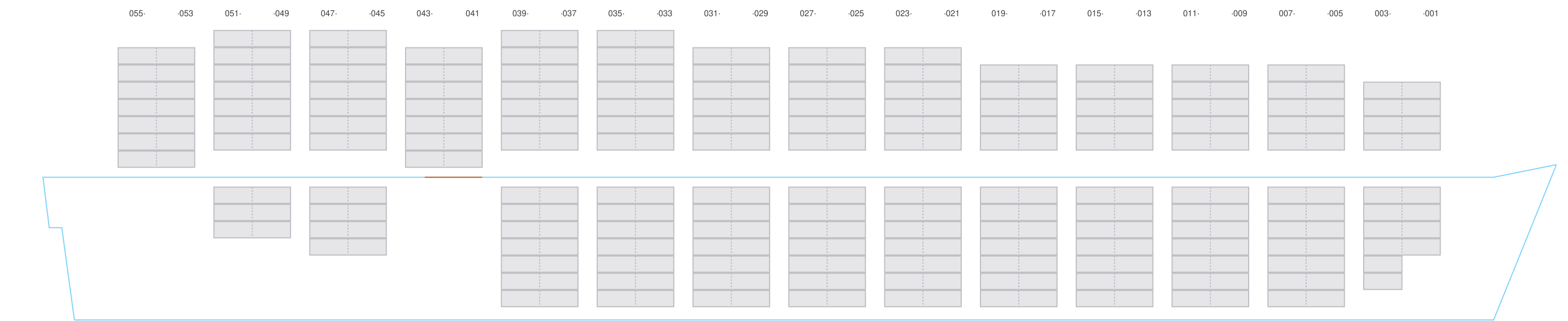

Side View
![Side view of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-sideView.png?v=1714601369061)

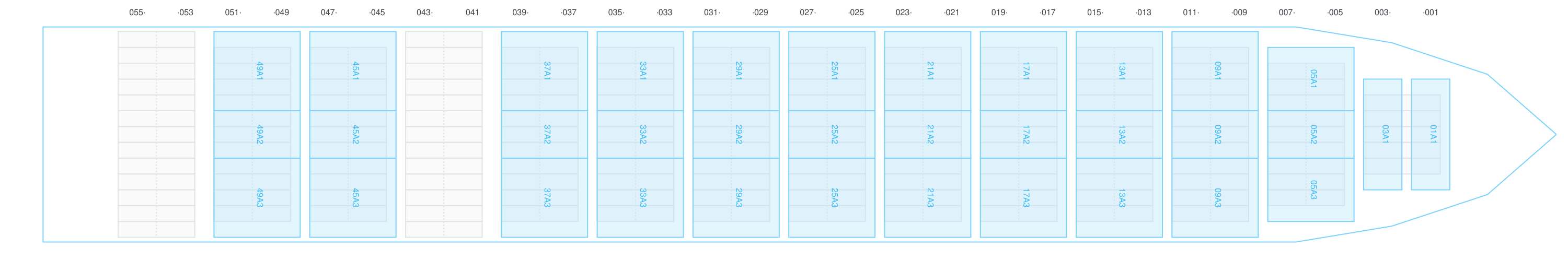

Hatch-Covers View
![Deck view of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-deckView.png?v=1714601369061)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

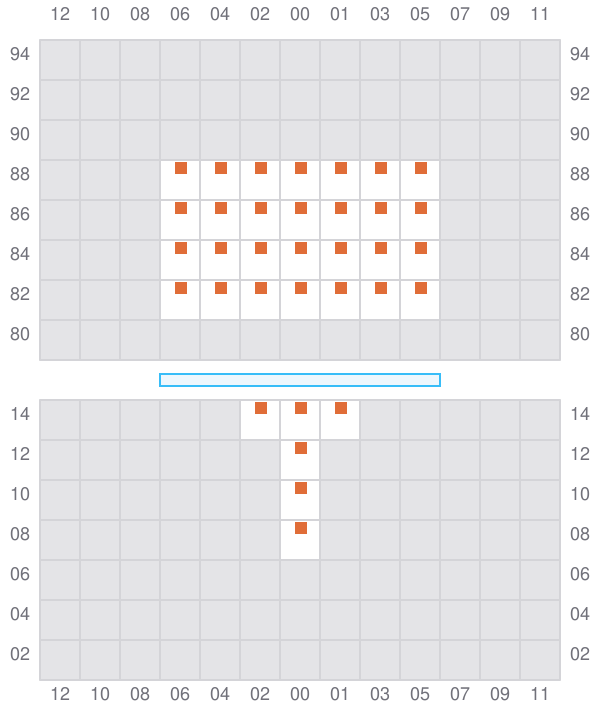

001
- →
- →
![Bay 001 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b001.png?v=1714601369061)

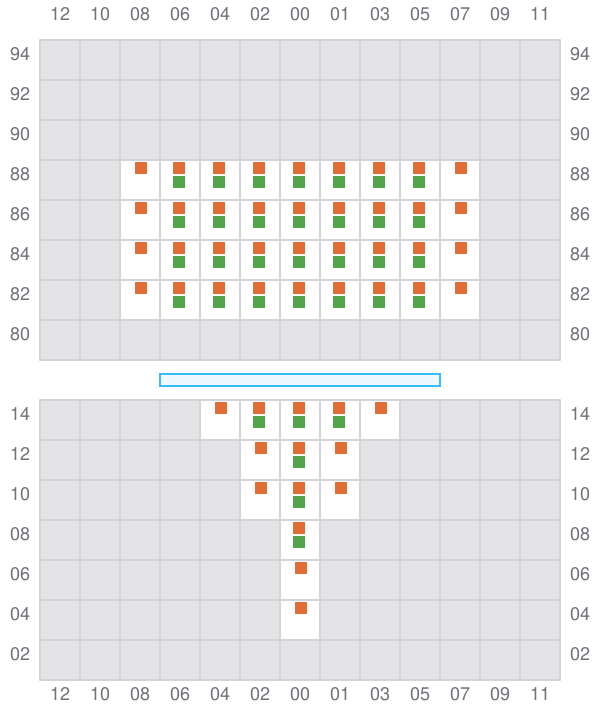

003 (002)
- ←
- →
![Bay 003 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b003.png?v=1714601369061)

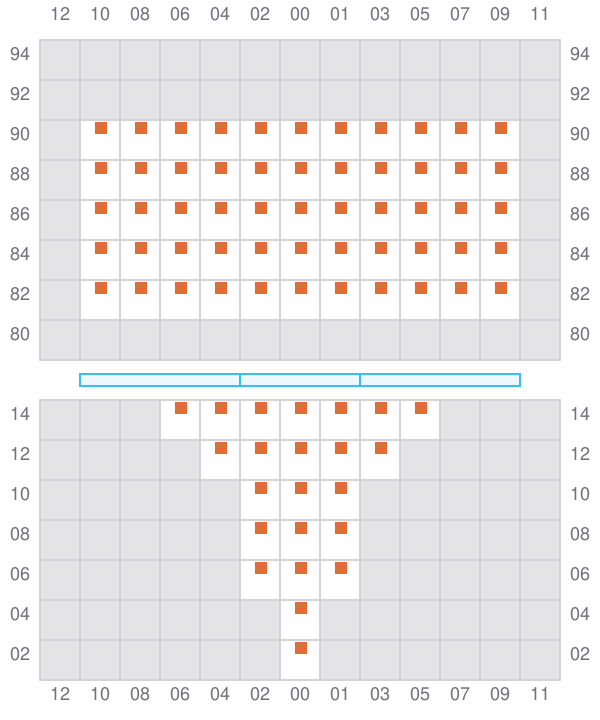

005
- →
- →
![Bay 005 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b005.png?v=1714601369061)

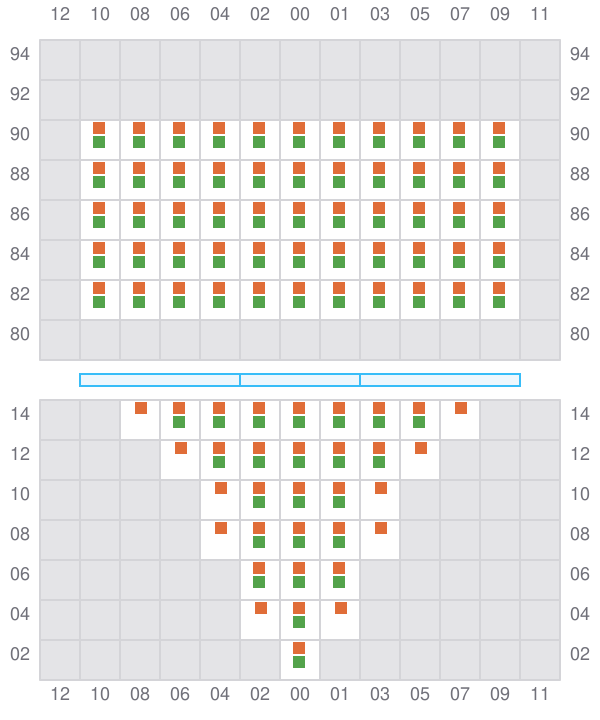

007 (006)
- ←
- →
![Bay 007 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b007.png?v=1714601369061)

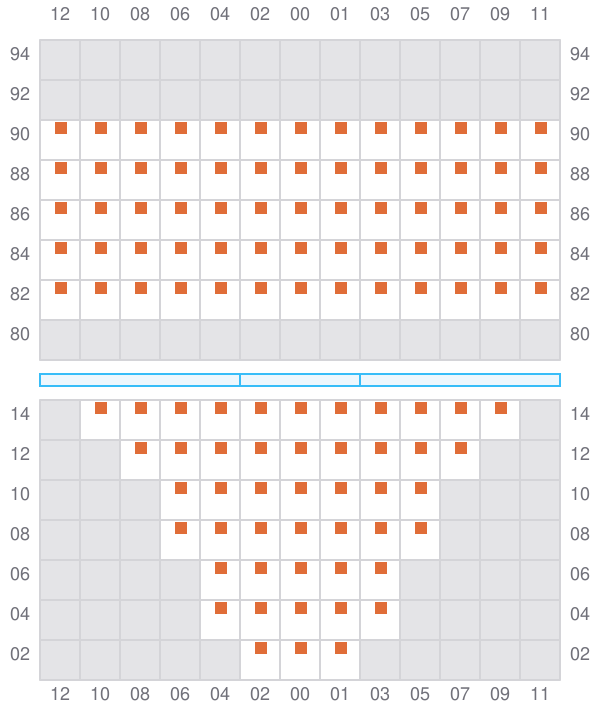

009
- →
- →
![Bay 009 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b009.png?v=1714601369061)

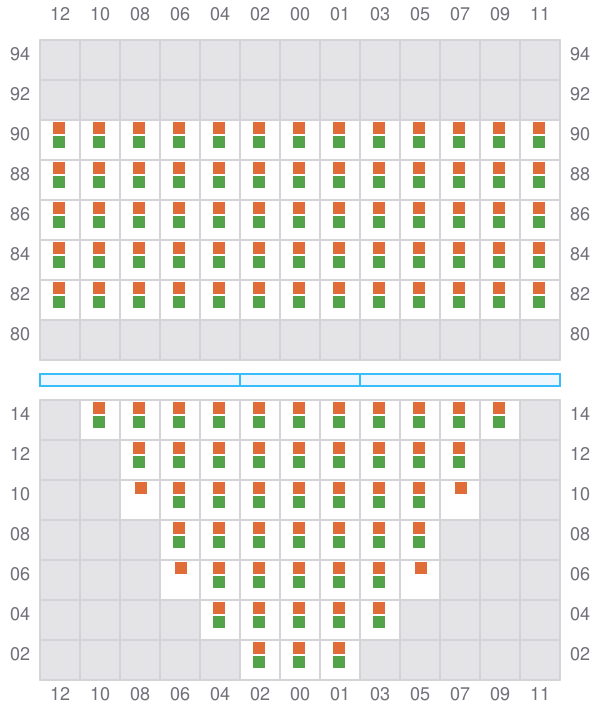

011 (010)
- ←
- →
![Bay 011 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b011.png?v=1714601369061)

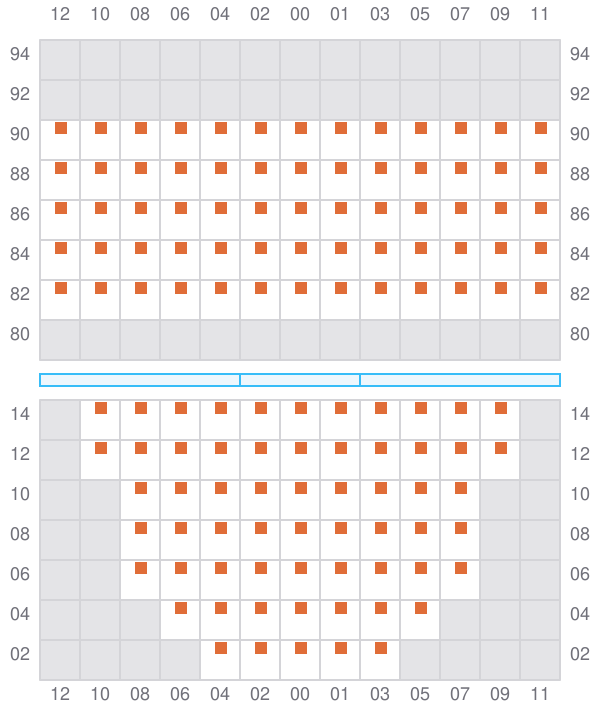

013
- →
- →
![Bay 013 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b013.png?v=1714601369061)

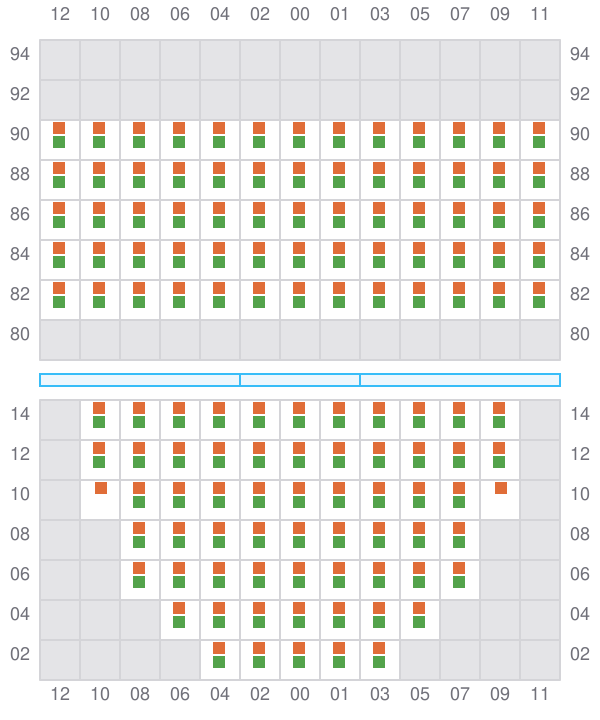

015 (014)
- ←
- →
![Bay 015 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b015.png?v=1714601369061)

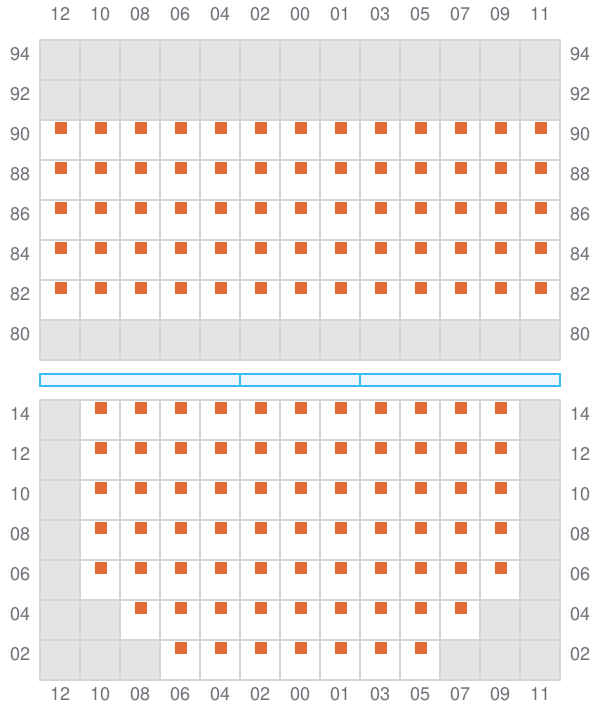

017
- →
- →
![Bay 017 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b017.png?v=1714601369061)

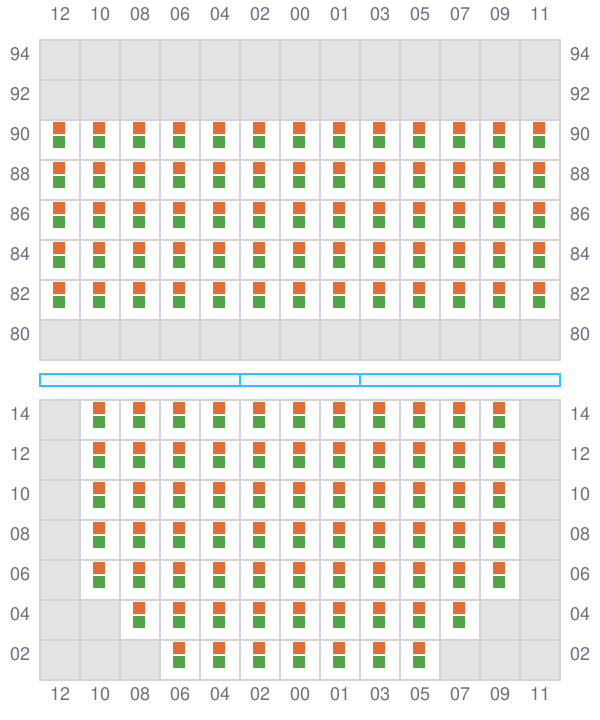

019 (018)
- ←
- →
![Bay 019 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b019.png?v=1714601369061)
021
- →
- →
![Bay 021 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b021.png?v=1714601369061)

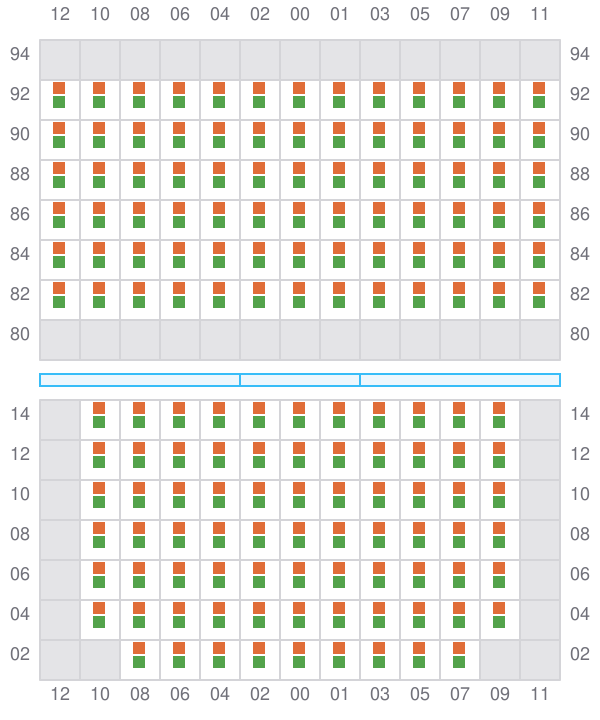

023 (022)
- ←
- →
![Bay 023 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b023.png?v=1714601369061)
025
- →
- →
![Bay 025 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b025.png?v=1714601369061)
027 (026)
- ←
- →
![Bay 027 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b027.png?v=1714601369061)

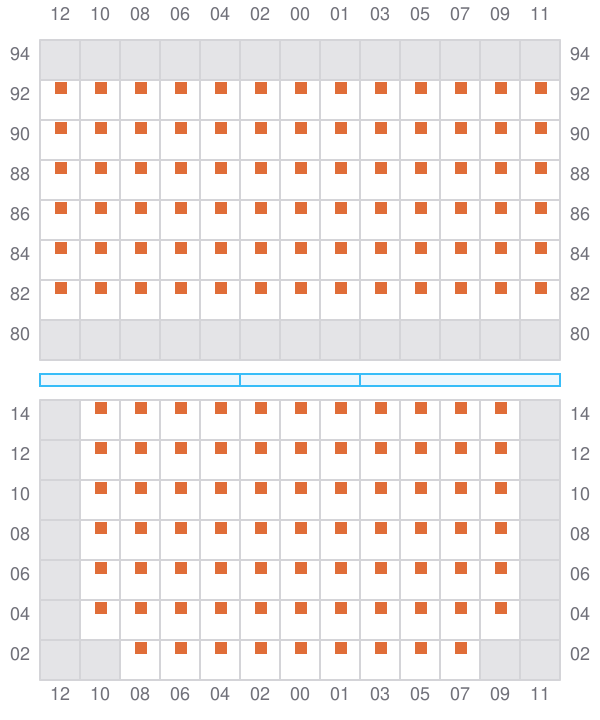

029
- →
- →
![Bay 029 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b029.png?v=1714601369061)
031 (030)
- ←
- →
![Bay 031 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b031.png?v=1714601369061)

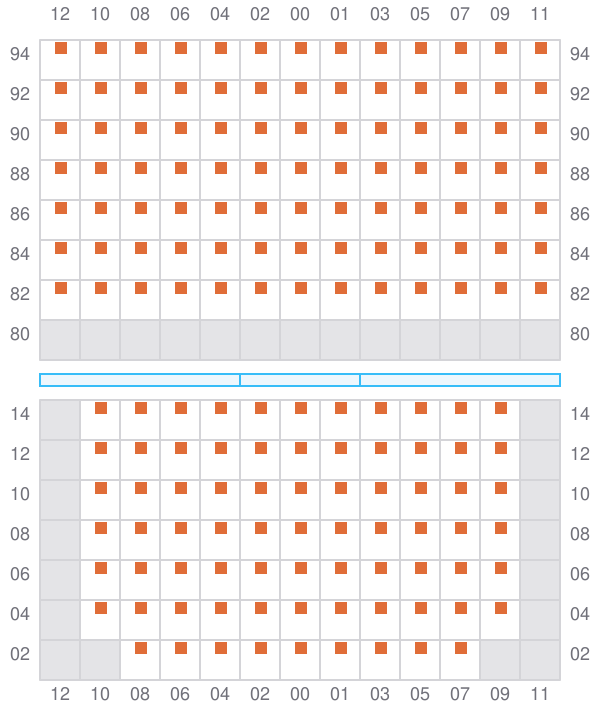

033
- →
- →
![Bay 033 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b033.png?v=1714601369061)

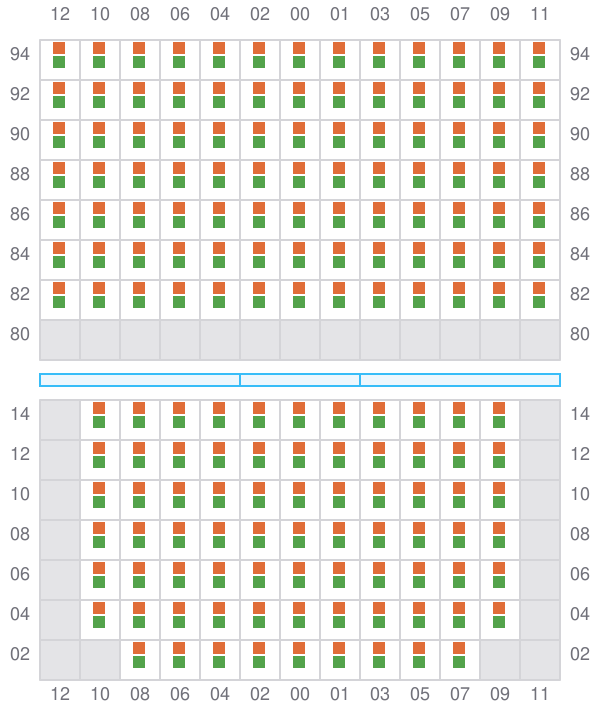

035 (034)
- ←
- →
![Bay 035 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b035.png?v=1714601369061)
037
- →
- →
![Bay 037 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b037.png?v=1714601369061)

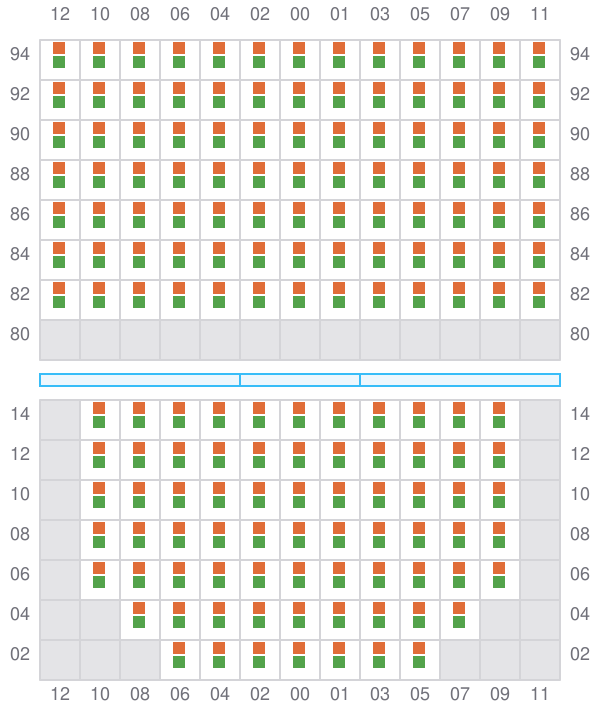

039 (038)
- ←
- →
![Bay 039 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b039.png?v=1714601369061)

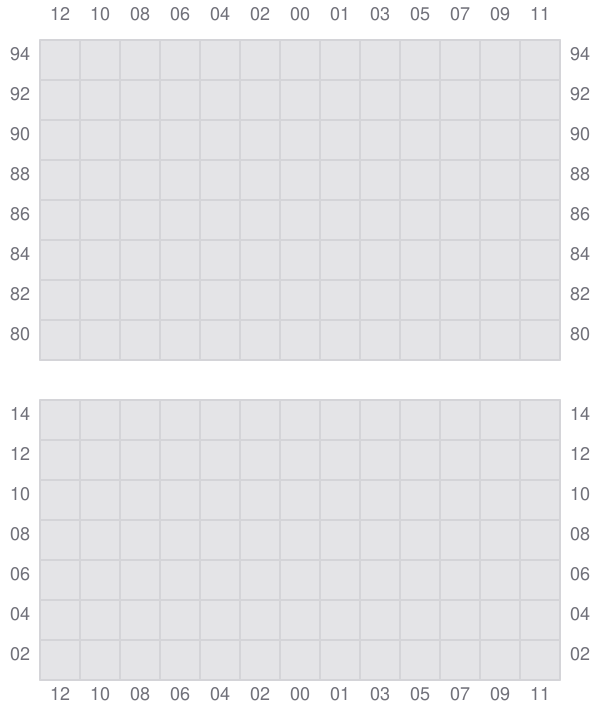

041
![Bay 041 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b041.png?v=1714601369061)

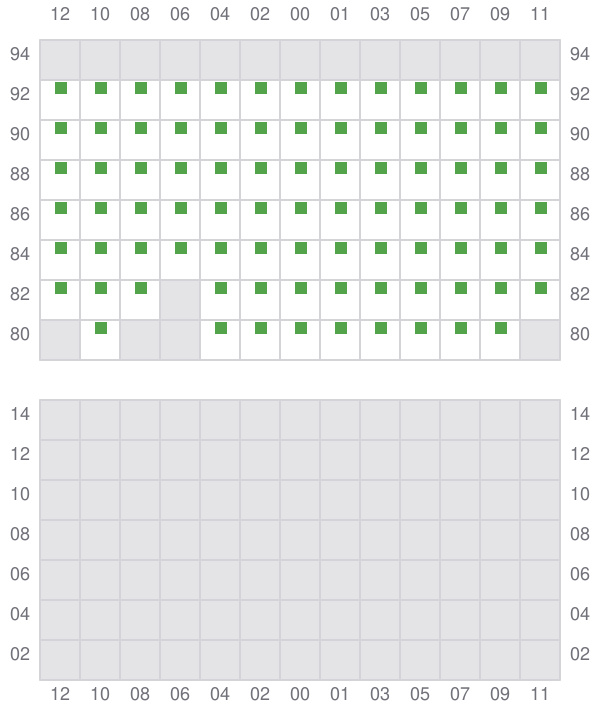

043 (042)
- ← / ?
- → / ?
![Bay 043 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b043.png?v=1714601369061)

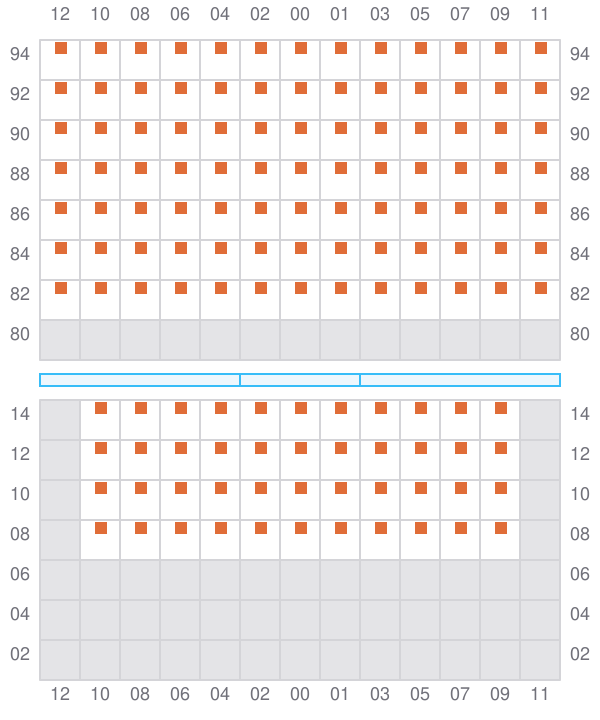

045
- →
- →
![Bay 045 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b045.png?v=1714601369061)

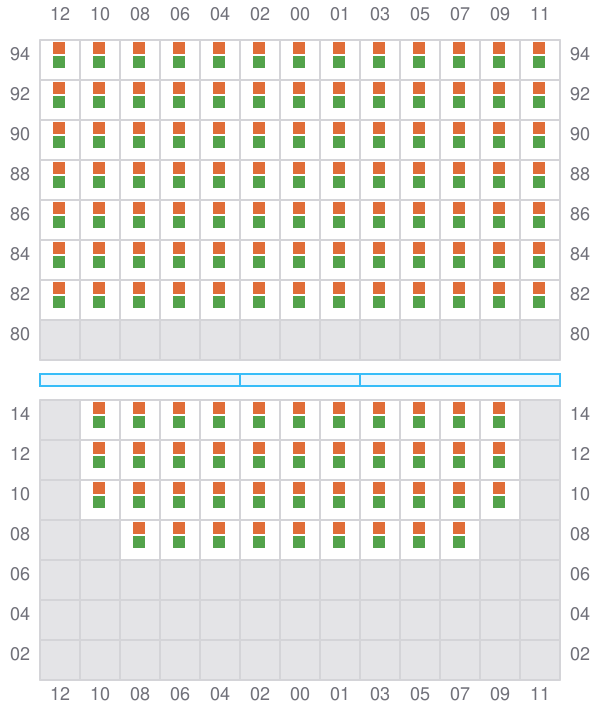

047 (046)
- ←
- →
![Bay 047 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b047.png?v=1714601369061)

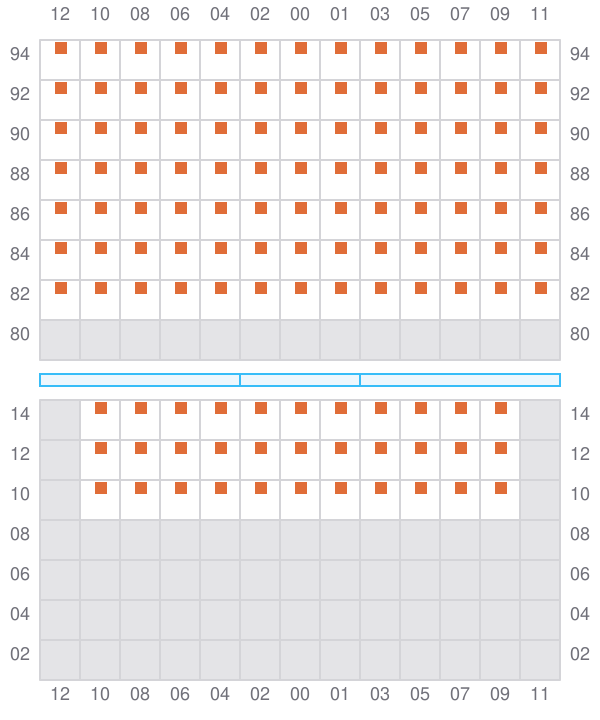

049
- →
- →
![Bay 049 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b049.png?v=1714601369061)

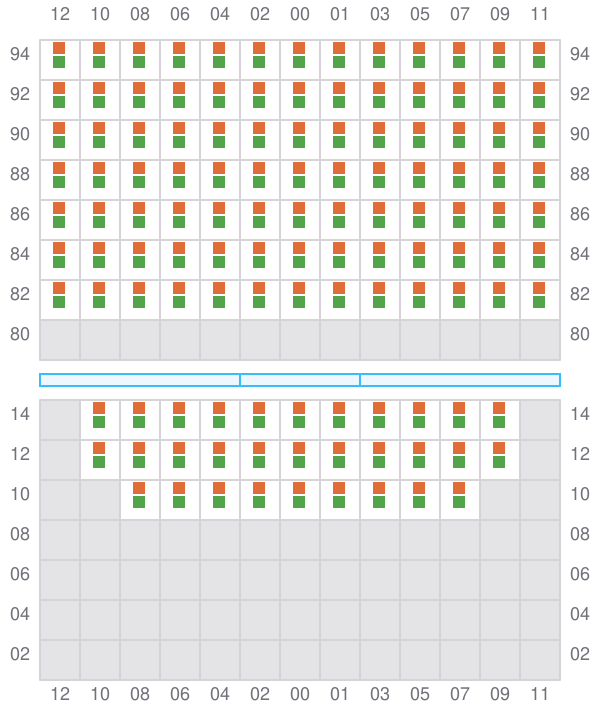

051 (050)
- ←
- →
![Bay 051 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b051.png?v=1714601369061)

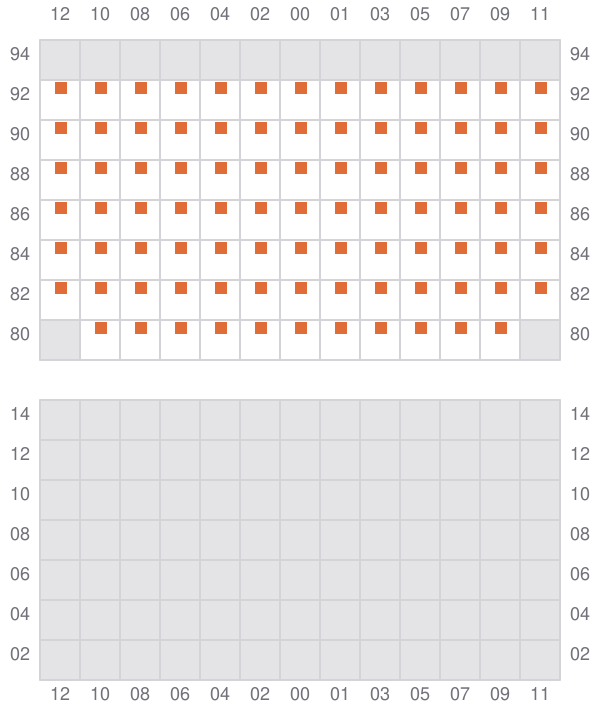

053
- → / ?
- → / ?
![Bay 053 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b053.png?v=1714601369061)

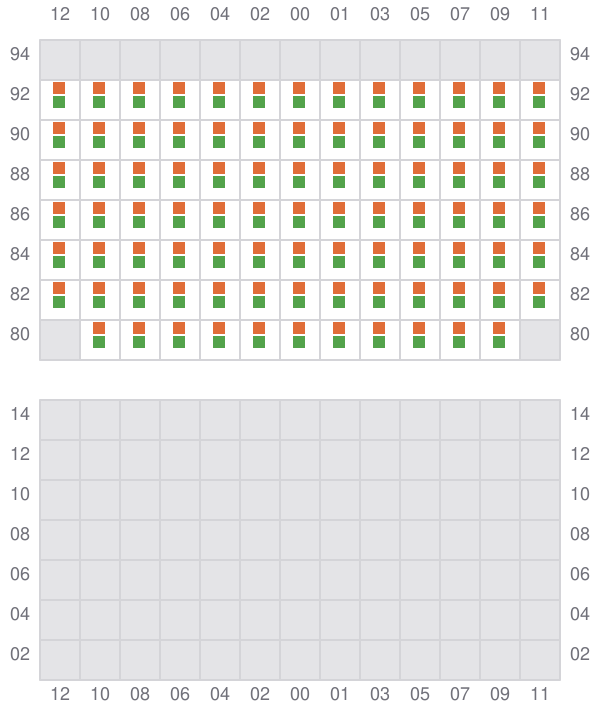

055 (054)
- ← / ?
- → / ?
![Bay 055 view and slots of GFS PERFECT](/vessel-images/990540e8-96ed-4071-ad08-742a2534c0e0-b055.png?v=1714601369061)
