GFS PRIDE
9349045 | 9V6902 | 9349045 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:GFS PRIDE
IMO Code:9349045
Call Sign:9V6902
Line Operator:9349045
Class Name for Sister Ships:74R
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,824
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

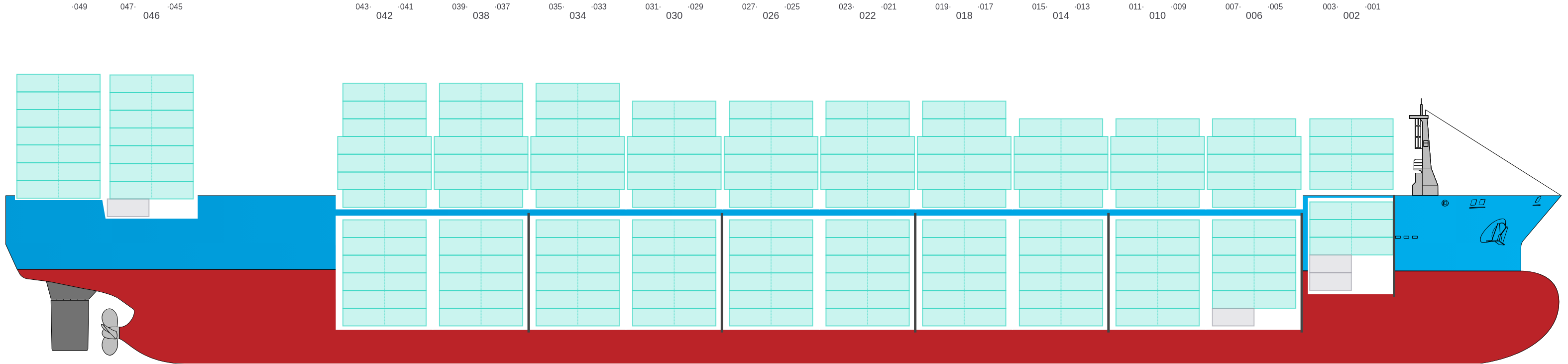

Side View
![Side view of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-sideView.png?v=1711143535055)
Hatch-Covers View
![Deck view of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-deckView.png?v=1711143535055)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b001.png?v=1711143535055)
003
- ←
![Bay 003 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b003.png?v=1711143535055)

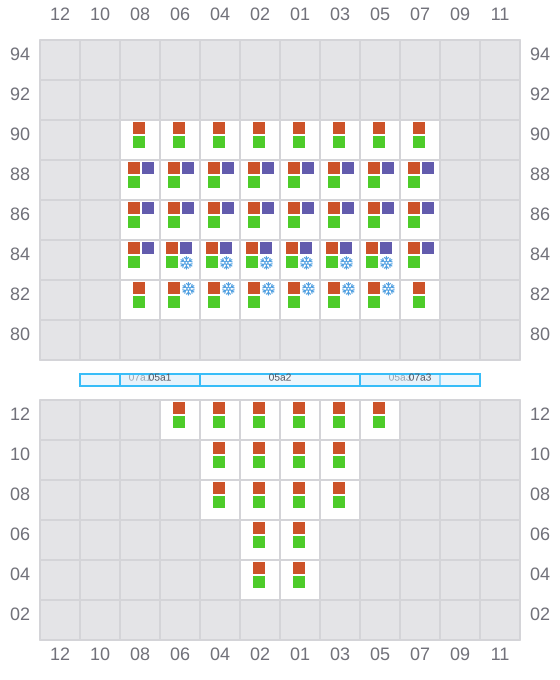

005 (006)
- →
![Bay 005 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b005.png?v=1711143535055)
007
- ←
- → / ?
![Bay 007 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b007.png?v=1711143535055)

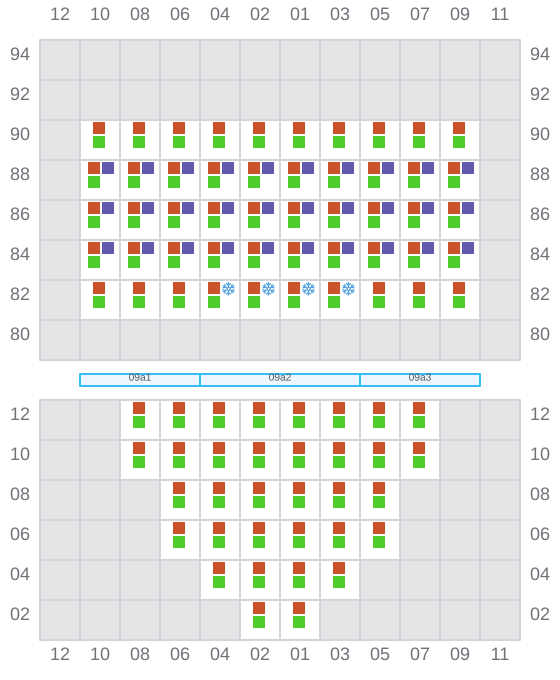

009 (010)
- →
![Bay 009 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b009.png?v=1711143535055)

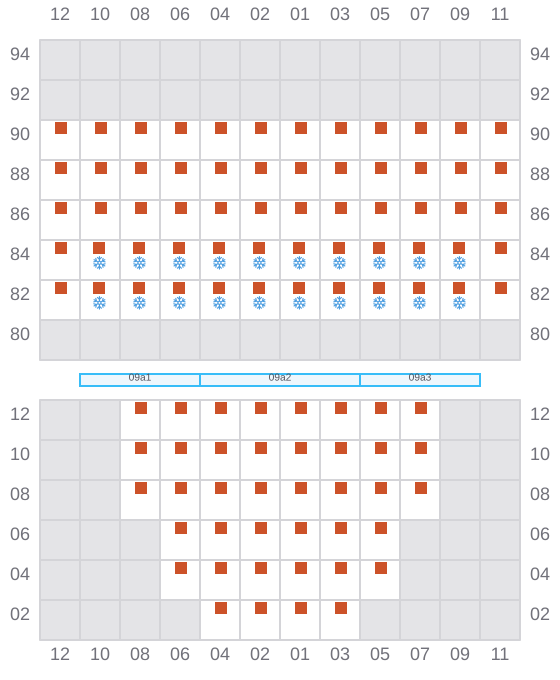

011
- ←
- → / ?
![Bay 011 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b011.png?v=1711143535055)
013 (014)
- →
- → / ?
![Bay 013 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b013.png?v=1711143535055)

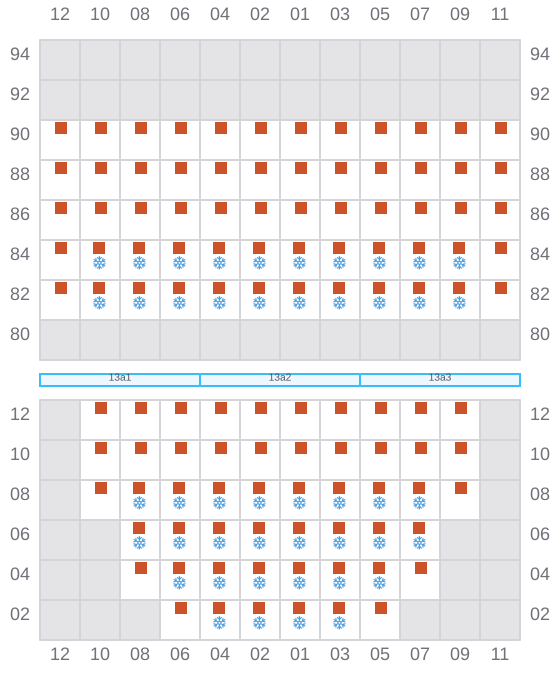

015
- ←
- →
![Bay 015 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b015.png?v=1711143535055)

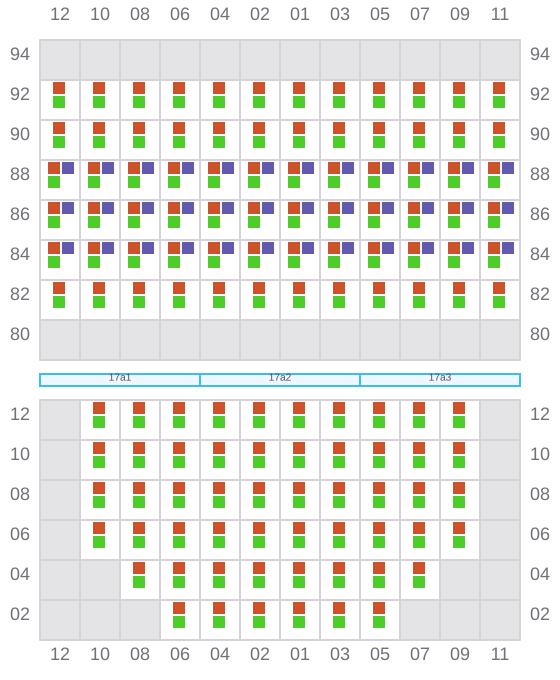

017 (018)
- →
![Bay 017 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b017.png?v=1711143535055)

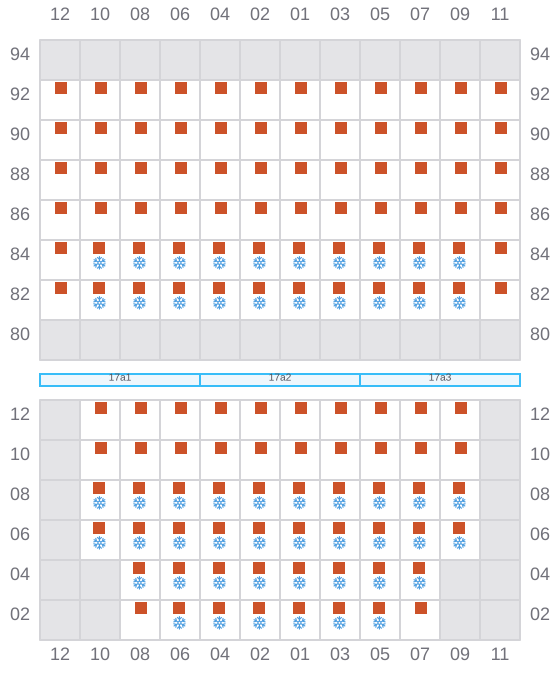

019
- ←
- →
![Bay 019 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b019.png?v=1711143535055)
021 (022)
- →
![Bay 021 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b021.png?v=1711143535055)
023
- ←
- →
![Bay 023 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b023.png?v=1711143535055)
025 (026)
- →
![Bay 025 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b025.png?v=1711143535055)
027
- ←
- →
![Bay 027 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b027.png?v=1711143535055)
029 (030)
- →
![Bay 029 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b029.png?v=1711143535055)
031
- ←
- →
![Bay 031 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b031.png?v=1711143535055)
033 (034)
- →
![Bay 033 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b033.png?v=1711143535055)

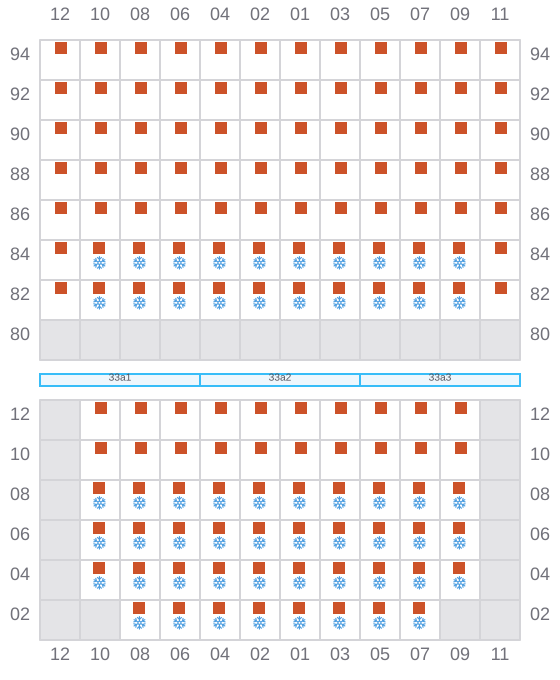

035
- ←
- → / ?
![Bay 035 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b035.png?v=1711143535055)

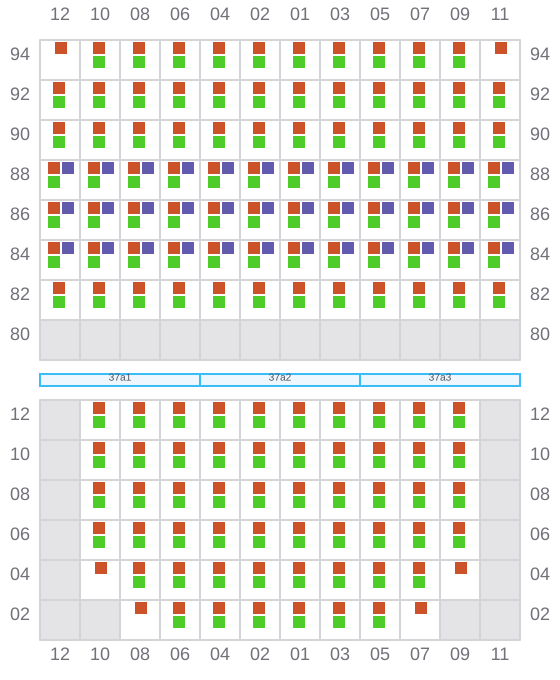

037 (038)
- →
![Bay 037 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b037.png?v=1711143535055)
039
- ←
- →
![Bay 039 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b039.png?v=1711143535055)

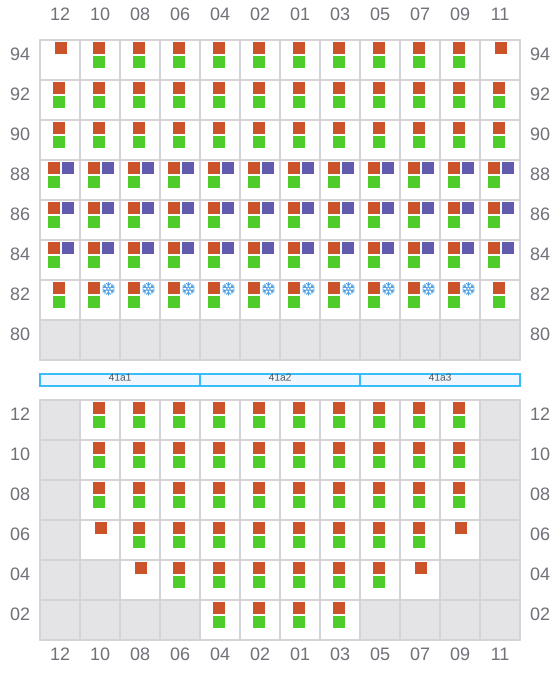

041 (042)
- →
- ← / ?
![Bay 041 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b041.png?v=1711143535055)
043
- ←
- →
![Bay 043 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b043.png?v=1711143535055)

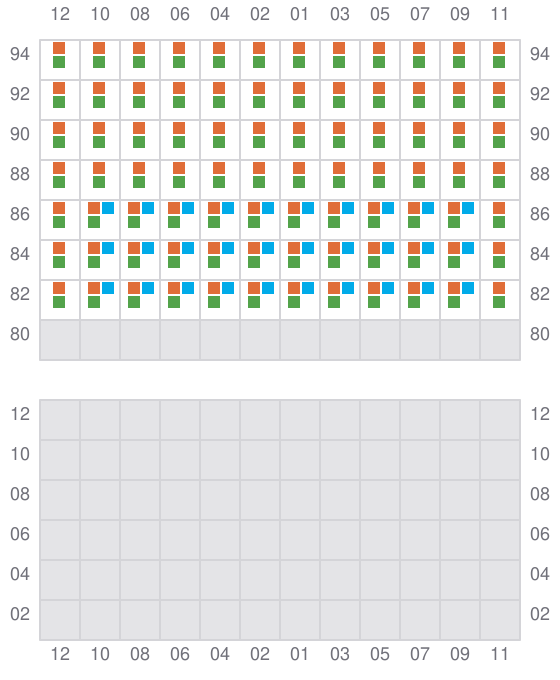

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b045.png?v=1711143535055)

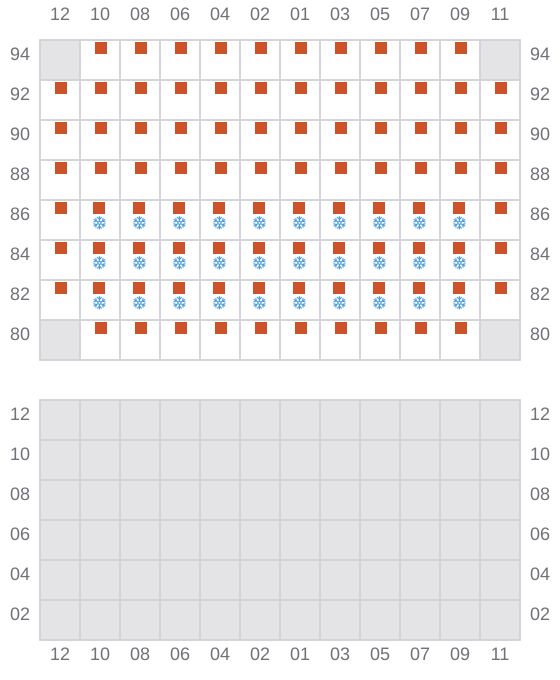

047
- ← / ?
- → / ?
![Bay 047 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b047.png?v=1711143535055)

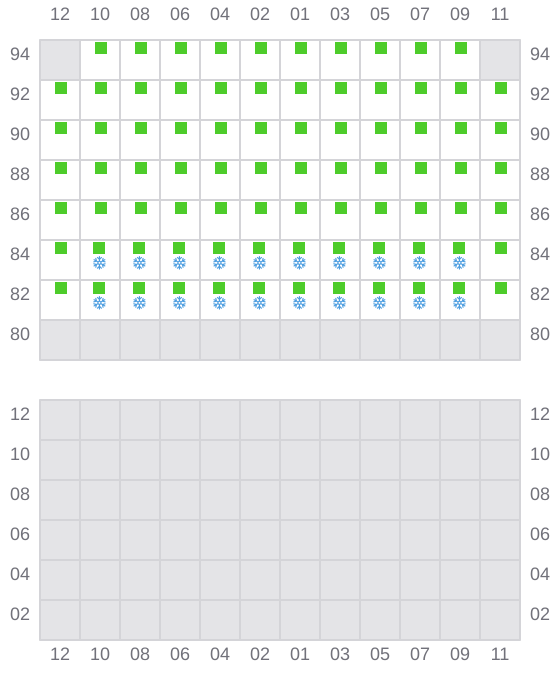

049 (050)
- → / ?
- ← / ?
![Bay 049 view and slots of GFS PRIDE](/vessel-images/a4fc5ca5-128a-4cc1-b774-34a66385d642-b049.png?v=1711143535055)
