GISELE A
9321471 | 9HA3927 | AKS by ********* Last update: Fri Mar 29 2024

General Info

Ship Name:GISELE A
IMO Code:9321471
Call Sign:9HA3927
Line Operator:AKS
Class Name for Sister Ships:GISE
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,741

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

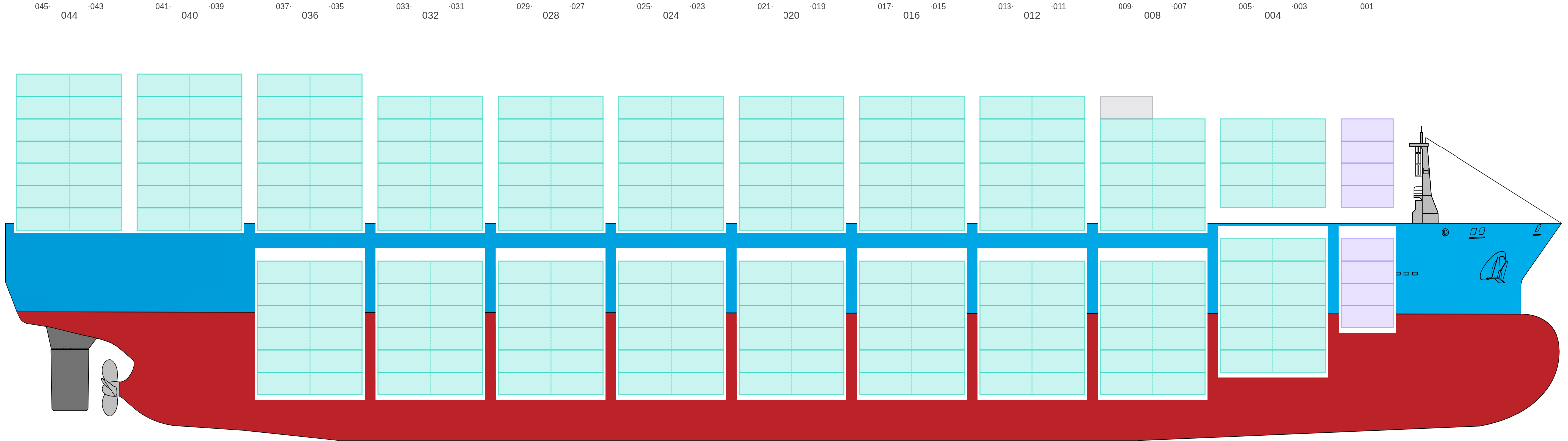

Side view of GISELE A

Hatch-Covers View

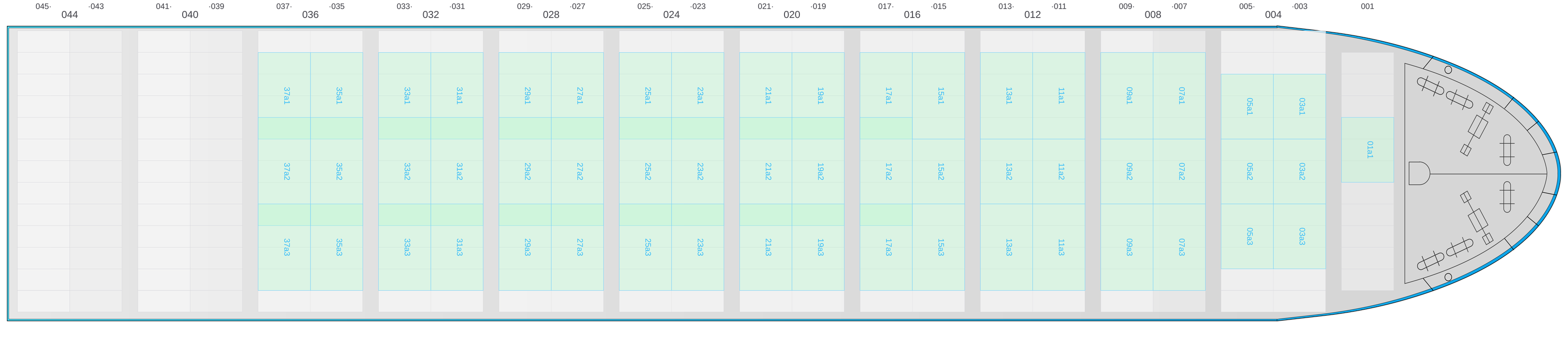

Deck view of GISELE A

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

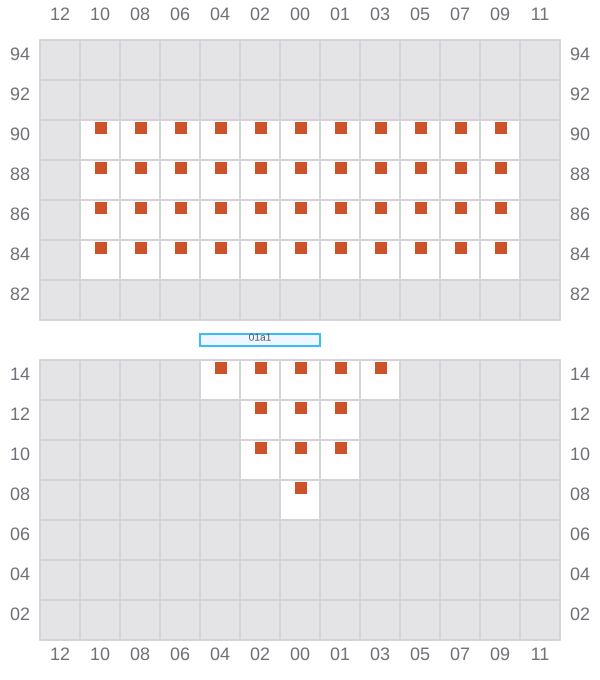

Bay 001 view and slots of GISELE A

003 (004)

  • →

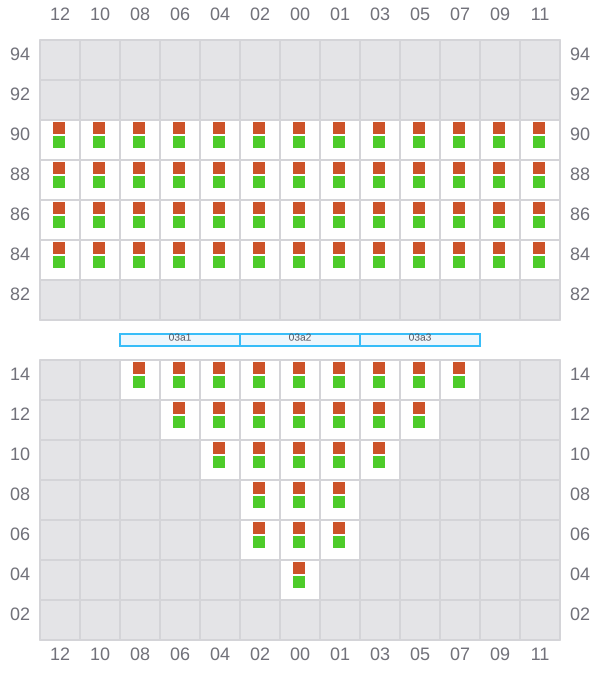

Bay 003 view and slots of GISELE A

005

  • ←

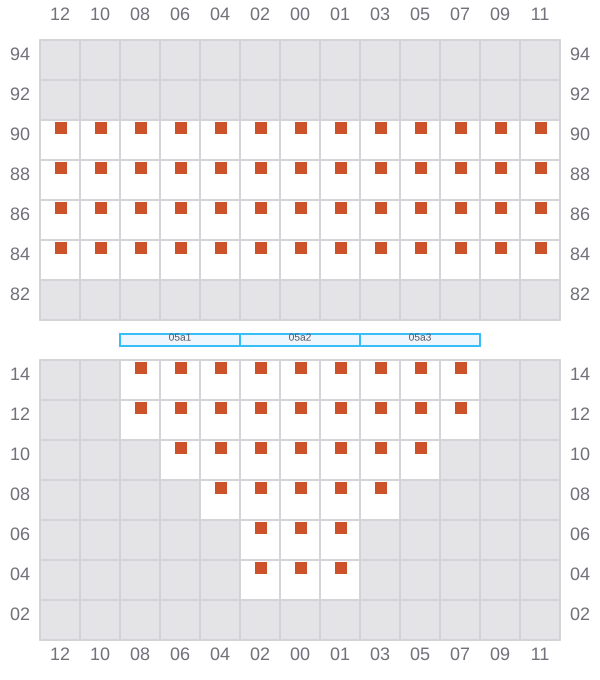

Bay 005 view and slots of GISELE A

007 (008)

  • →

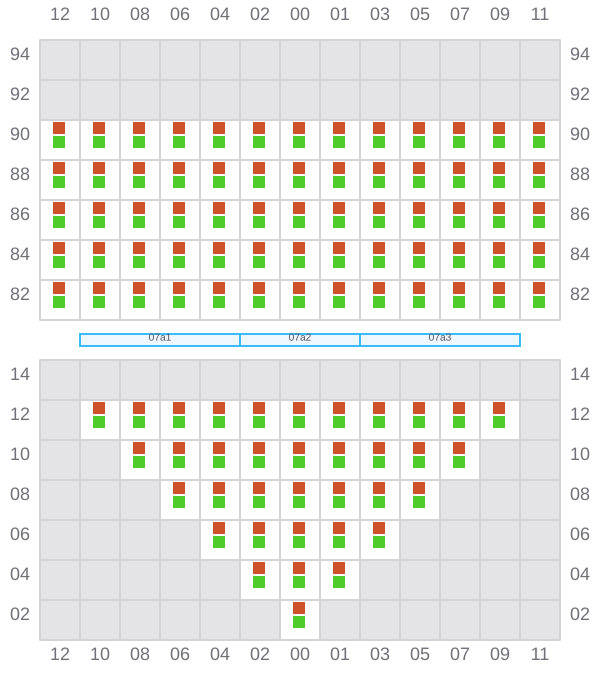

Bay 007 view and slots of GISELE A

009

  • ←

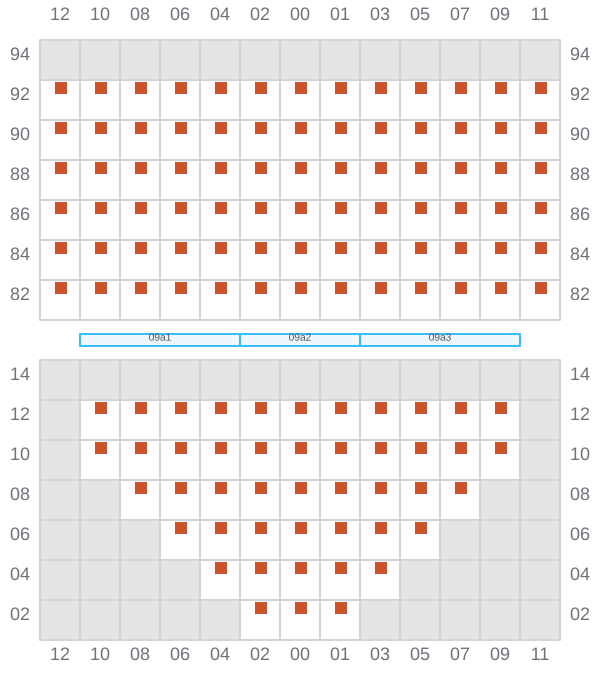

Bay 009 view and slots of GISELE A

011 (012)

  • →

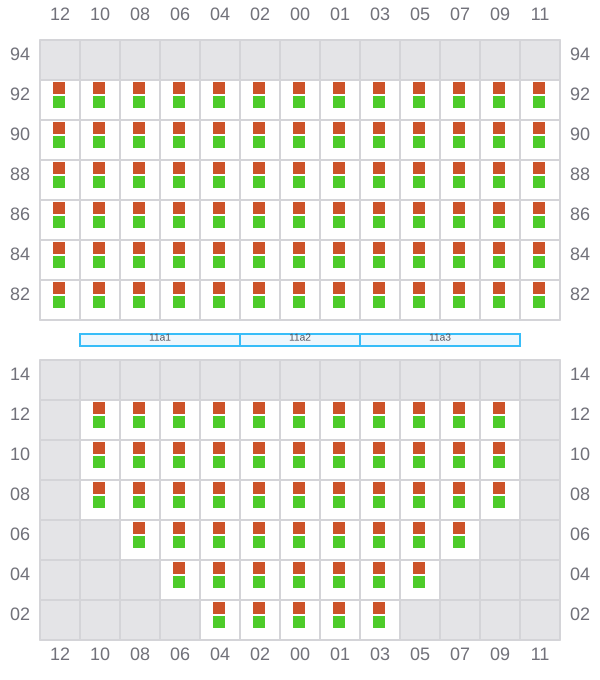

Bay 011 view and slots of GISELE A

013

  • ←

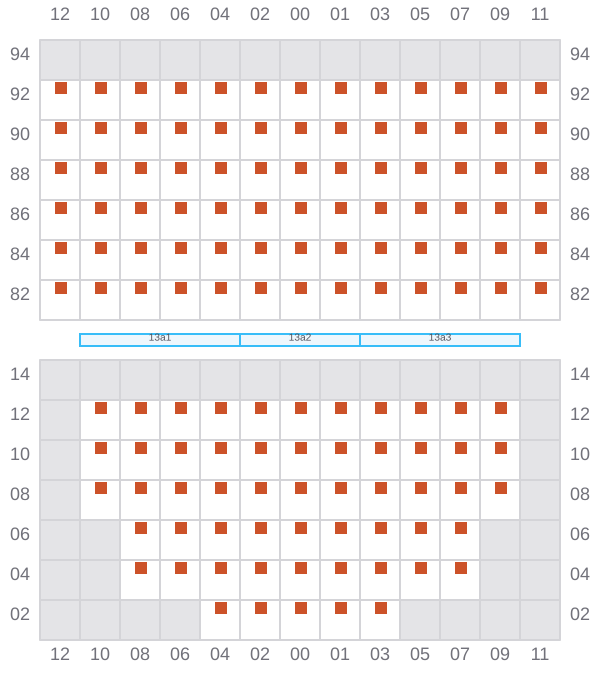

Bay 013 view and slots of GISELE A

015 (016)

  • →

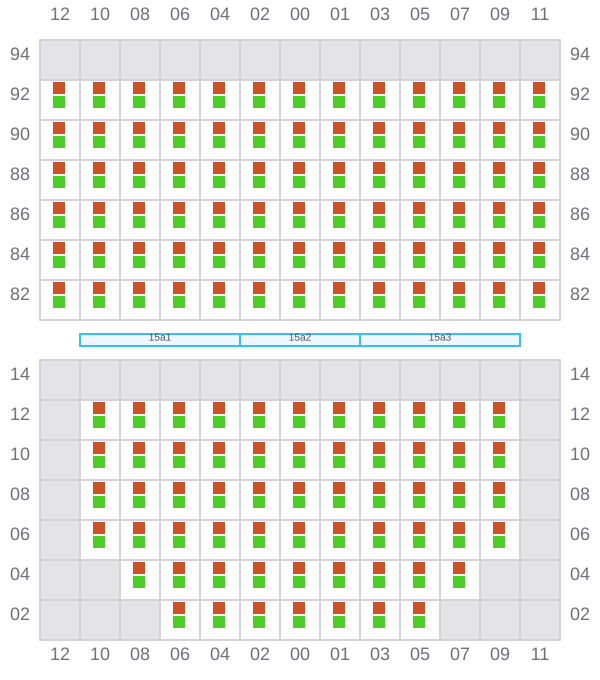

Bay 015 view and slots of GISELE A

017

  • ←

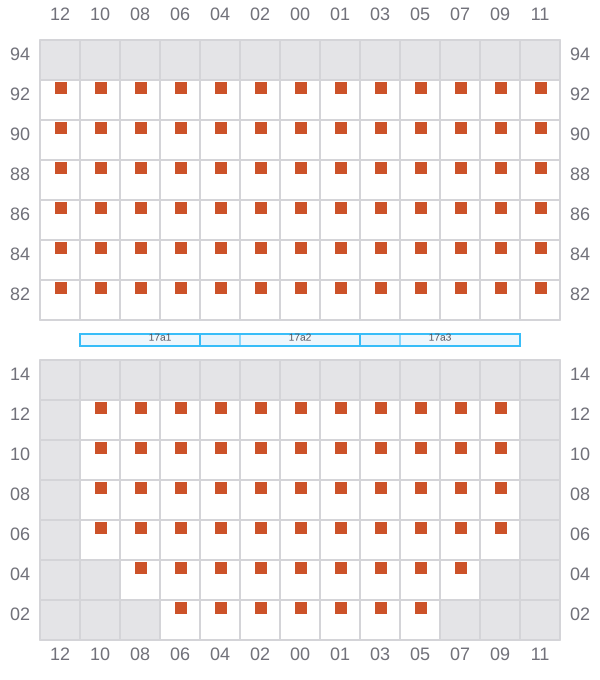

Bay 017 view and slots of GISELE A

019 (020)

  • →
Bay 019 view and slots of GISELE A

021

  • ←

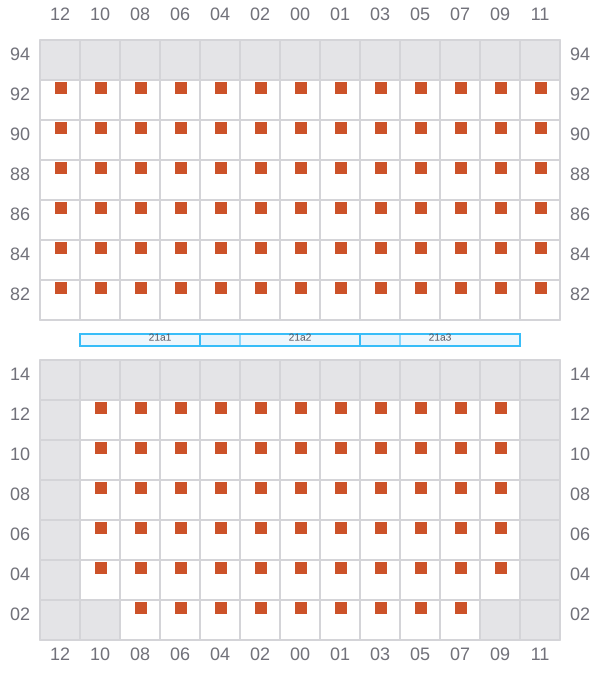

Bay 021 view and slots of GISELE A

023 (024)

  • →
Bay 023 view and slots of GISELE A

025

  • ←

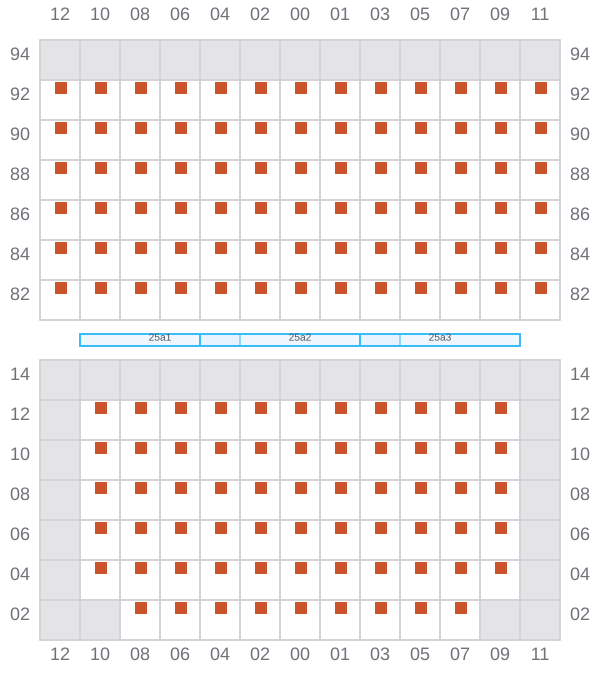

Bay 025 view and slots of GISELE A

027 (028)

  • →

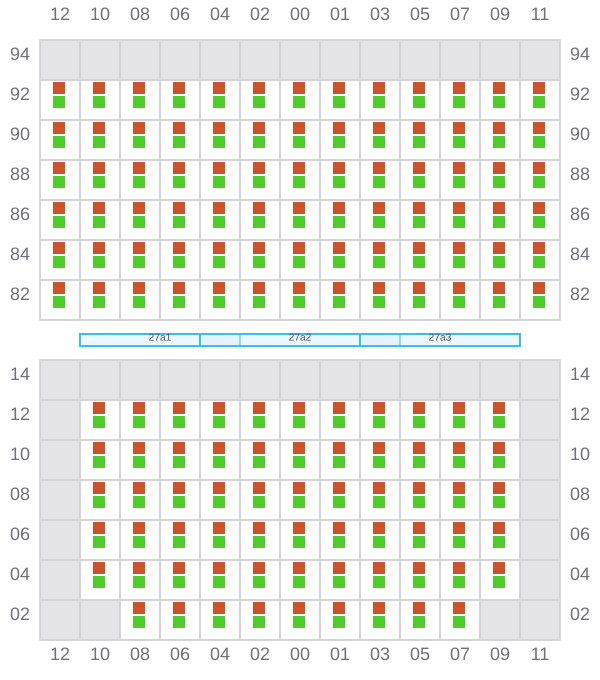

Bay 027 view and slots of GISELE A

029

  • ←
Bay 029 view and slots of GISELE A

031 (032)

  • →

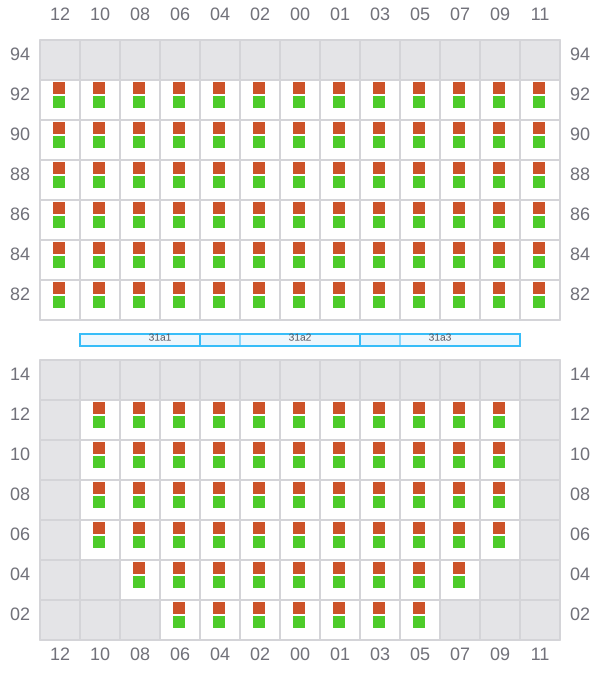

Bay 031 view and slots of GISELE A

033

  • ←

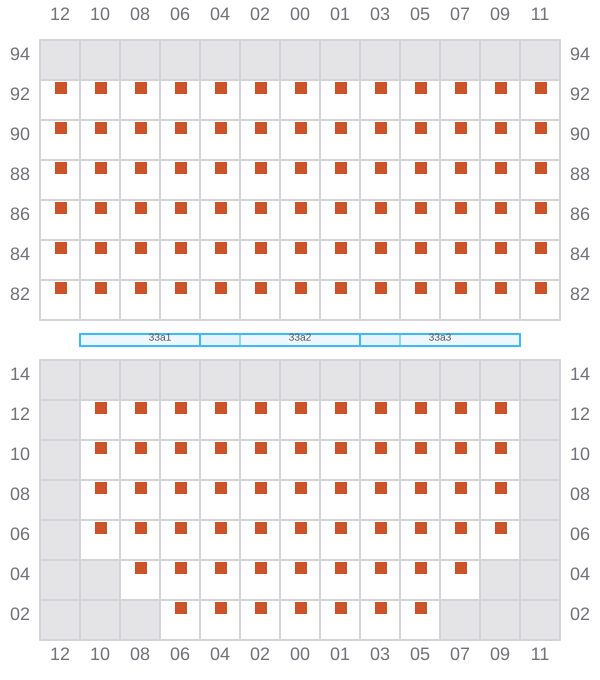

Bay 033 view and slots of GISELE A

035 (036)

  • →

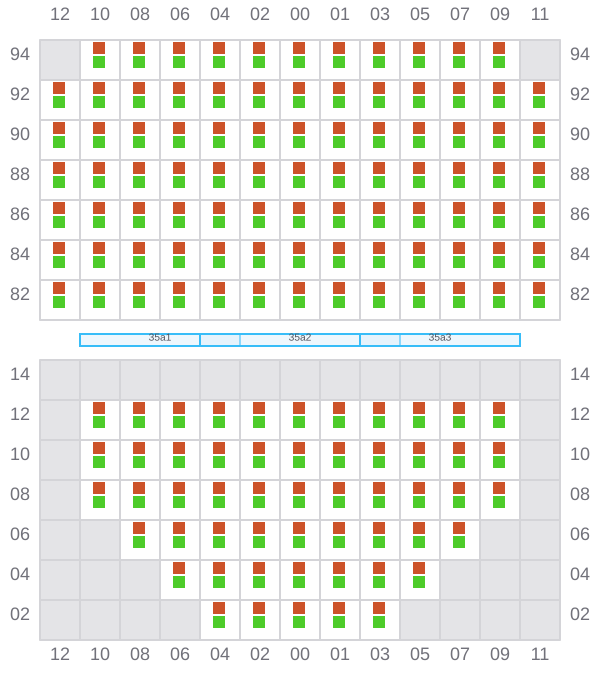

Bay 035 view and slots of GISELE A

037

  • ←

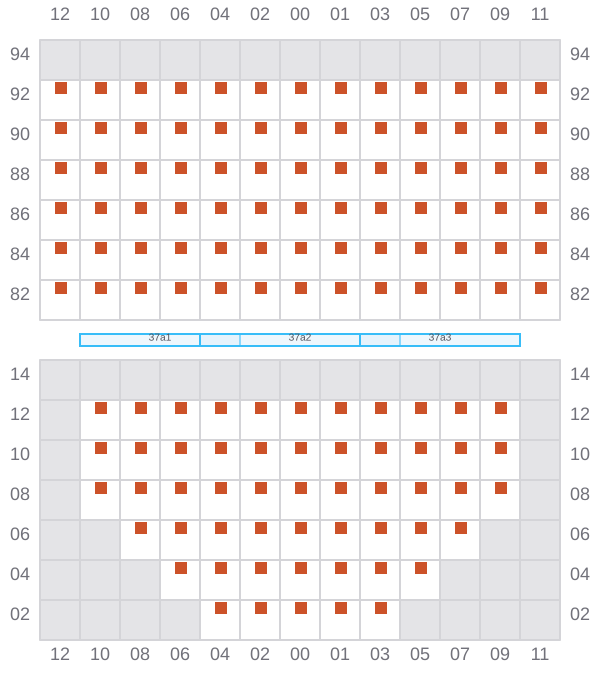

Bay 037 view and slots of GISELE A

039 (040)

  • → / ?

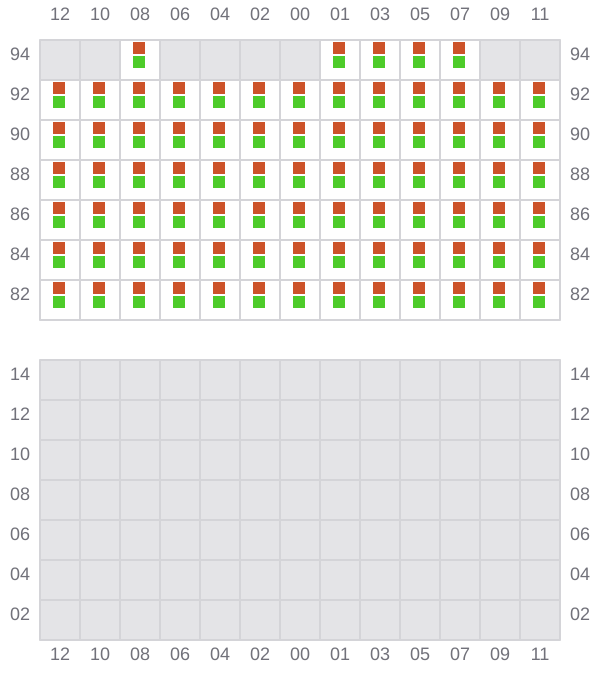

Bay 039 view and slots of GISELE A

041

  • ← / ?
Bay 041 view and slots of GISELE A

043 (044)

  • → / ?

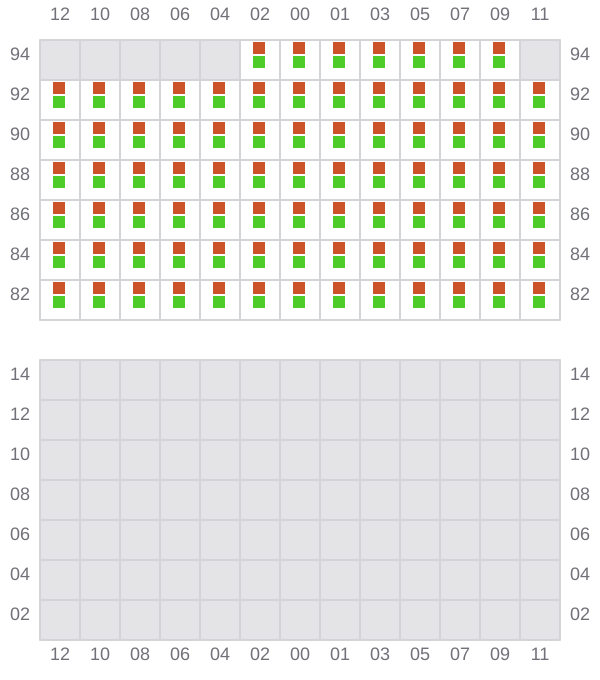

Bay 043 view and slots of GISELE A

045

  • ← / ?

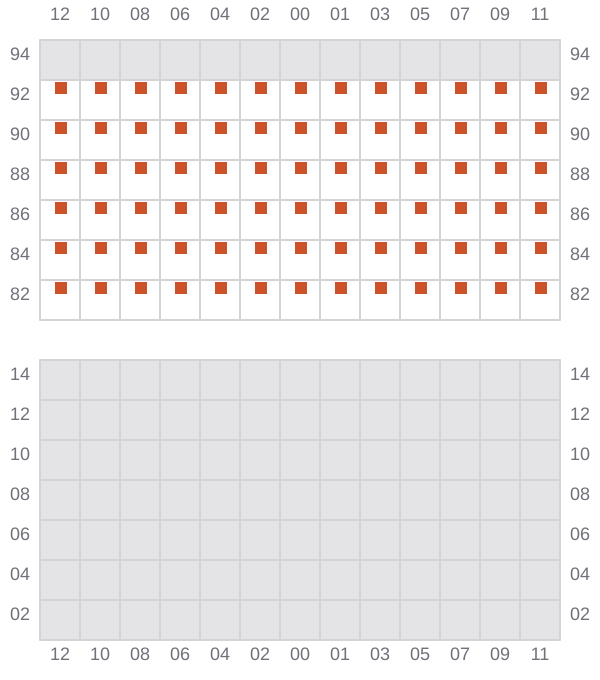

Bay 045 view and slots of GISELE A
