GLUON
9124677 | V4OW4 | 9124677 by ********* Last update: Mon Jun 03 2024
General Info
Ship Name:GLUON
IMO Code:9124677
Call Sign:V4OW4
Line Operator:9124677
Class Name for Sister Ships:MEKONGCORDELIA
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):104.90
LOA (Length Overall):114.30
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:580
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

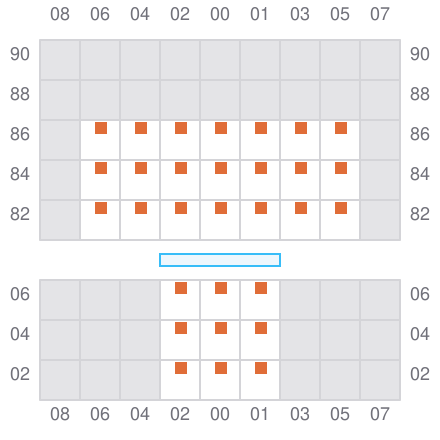

001
003 (004)
- →
005
- ←
- → / ?

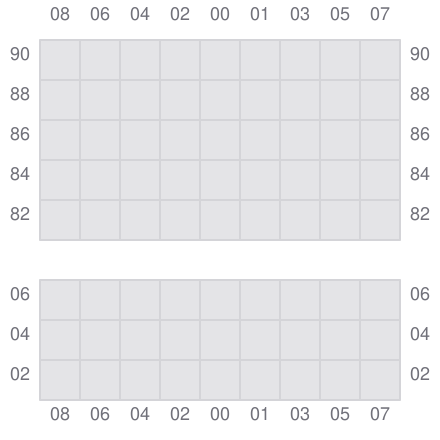

007

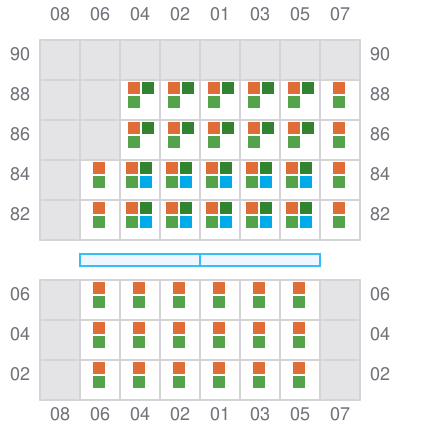

009 (010)
- →
- ← / ?
011
- ←

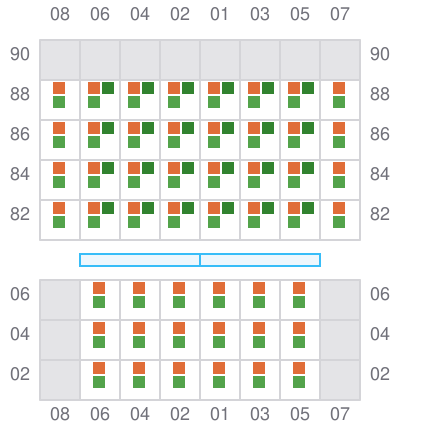

013 (014)
- →
015
- ←
- → / ?
017
019 (020)
- →
- ← / ?

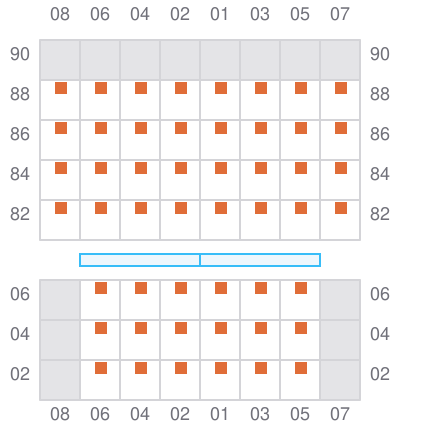

021
- ←
023 (024)
- →
- → / ?
025
- ←
- → / ?

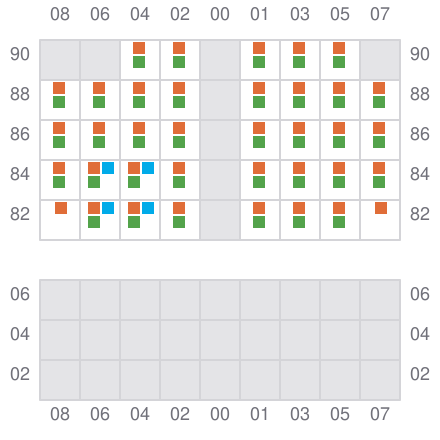

027 (028)
- → / ?
- ← / ?

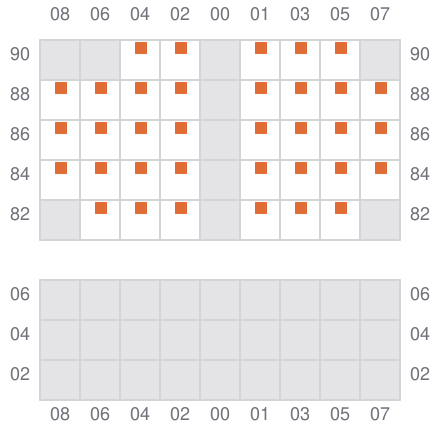

029
- ← / ?
