GLUON
9124677 | V4OW4 | 9124677 by ********* Last update: Mon Mar 18 2024
General Info
Ship Name:GLUON
IMO Code:9124677
Call Sign:V4OW4
Line Operator:9124677
Class Name for Sister Ships:80T
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):114.00
LOA (Length Overall):144.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:580
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

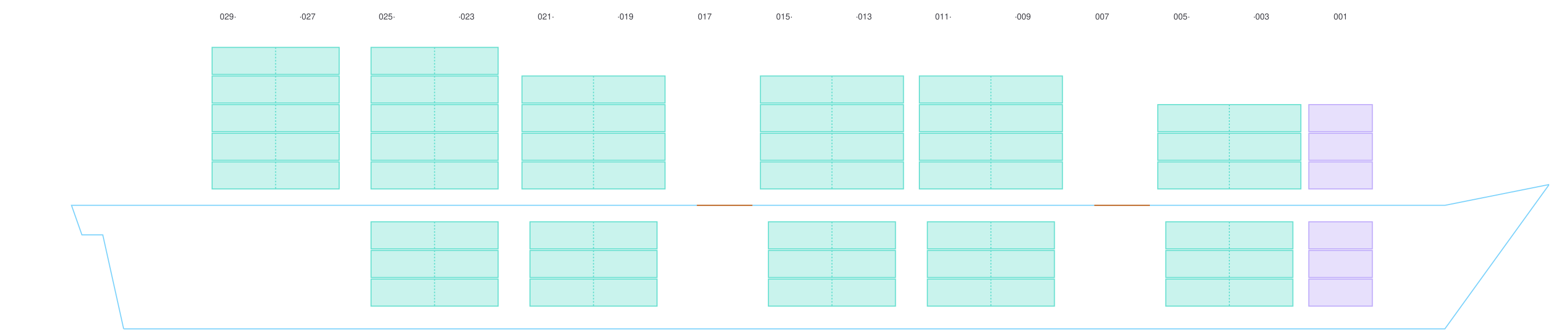

Side View
![Side view of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-sideView.png?v=1710787899980)

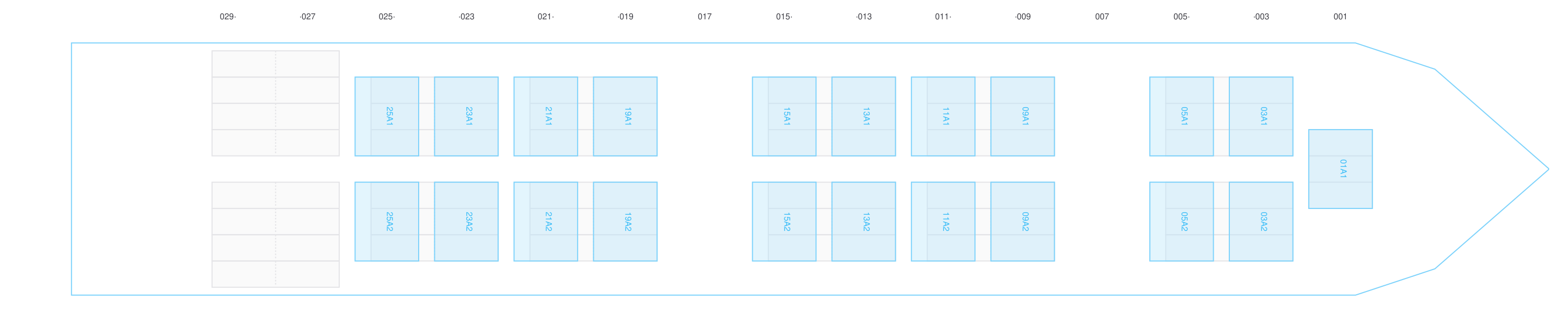

Hatch-Covers View
![Deck view of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-deckView.png?v=1710787899980)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

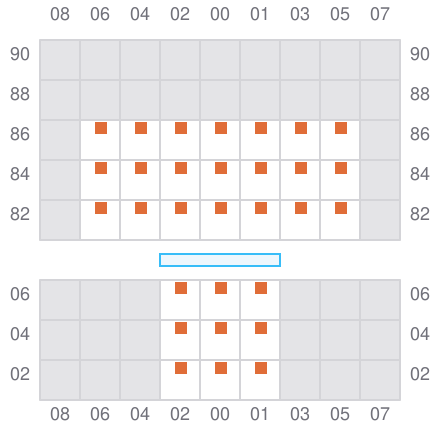

001
![Bay 001 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b001.png?v=1710787899980)

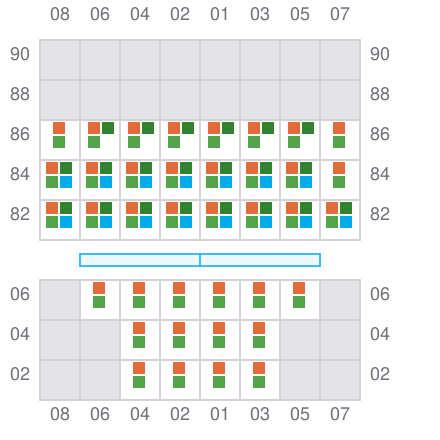

003 (004)
- →
- ← / ?
![Bay 003 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b003.png?v=1710787899980)
005
- ←
- → / ?
![Bay 005 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b005.png?v=1710787899980)
007
![Bay 007 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b007.png?v=1710787899980)
009 (010)
- →
- ←
![Bay 009 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b009.png?v=1710787899980)

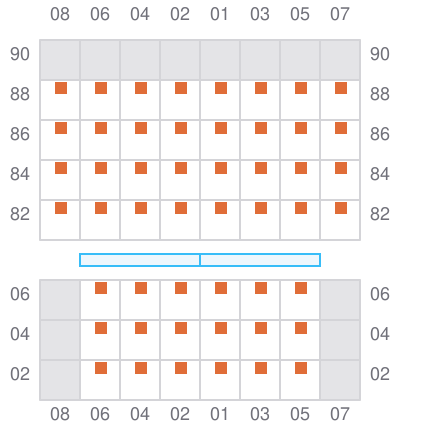

011
- ←
![Bay 011 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b011.png?v=1710787899980)
013 (014)
- →
- ←
![Bay 013 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b013.png?v=1710787899980)
015
- ←
- →
![Bay 015 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b015.png?v=1710787899980)

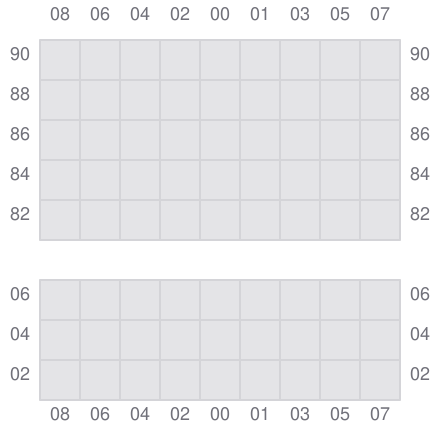

017
![Bay 017 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b017.png?v=1710787899980)
019 (020)
- →
- ← / ?
![Bay 019 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b019.png?v=1710787899980)
021
- ←
![Bay 021 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b021.png?v=1710787899980)

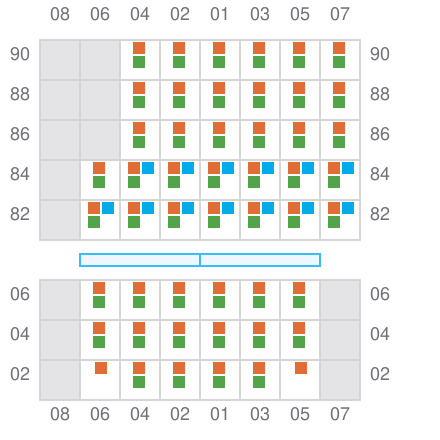

023 (024)
- →
- ← / ?
![Bay 023 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b023.png?v=1710787899980)
025
- ←
- → / ?
![Bay 025 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b025.png?v=1710787899980)

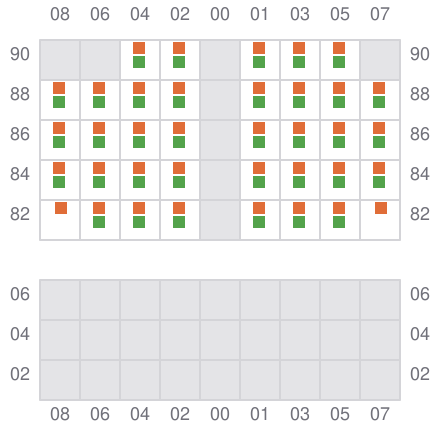

027 (028)
- → / ?
- ← / ?
![Bay 027 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b027.png?v=1710787899980)

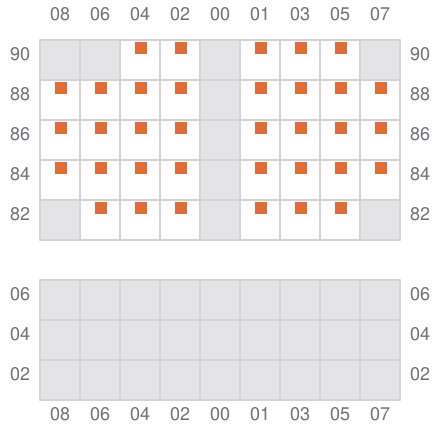

029
- ← / ?
![Bay 029 view and slots of GLUON](/vessel-images/de77afbd-5aed-488b-864f-a299f33a8b3a-b029.png?v=1710787899980)
