GRASMERE MAERSK
9193276 | 9V3820 | 9193276 by ********* Last update: Sun Mar 10 2024
General Info
Ship Name:GRASMERE MAERSK
IMO Code:9193276
Call Sign:9V3820
Line Operator:9193276
Class Name for Sister Ships:767
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,783
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

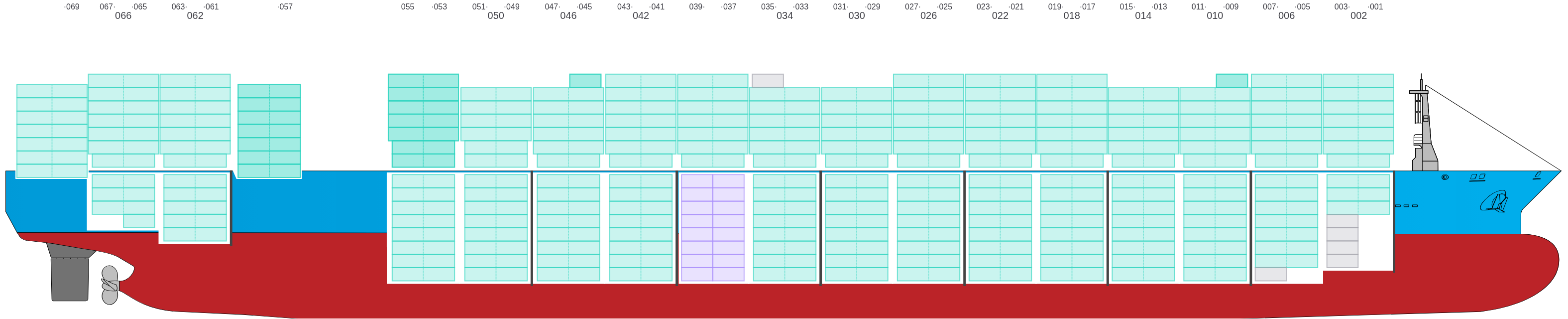

Side View
![Side view of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-sideView.png?v=1710094086651)

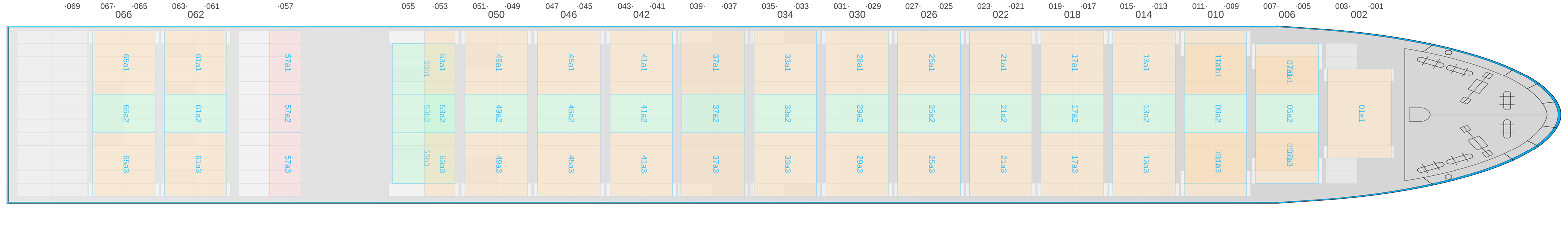

Hatch-Covers View
![Deck view of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-deckView.png?v=1710094086651)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

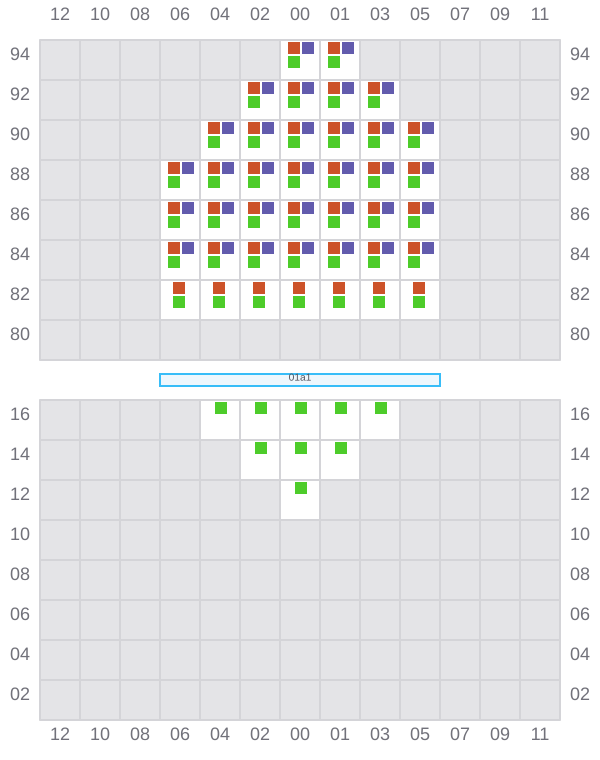

001 (002)
- →
![Bay 001 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b001.png?v=1710094086651)

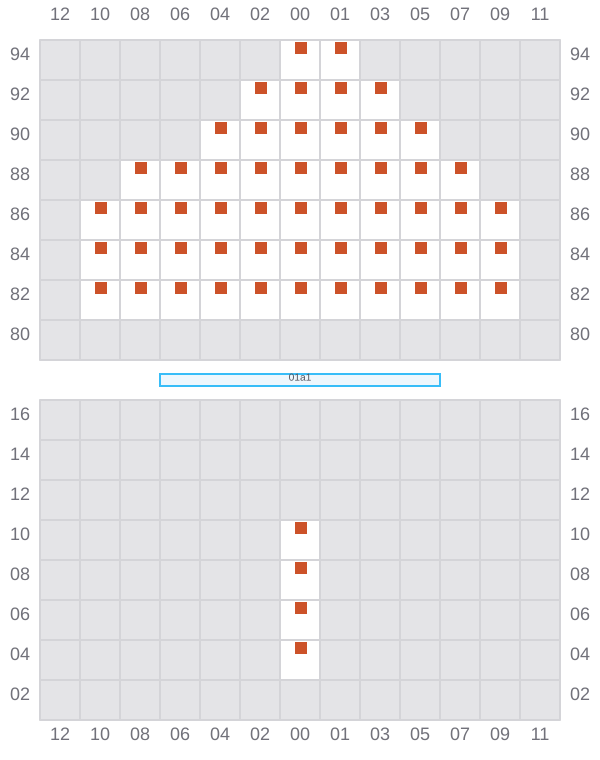

003
- ←
![Bay 003 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b003.png?v=1710094086651)

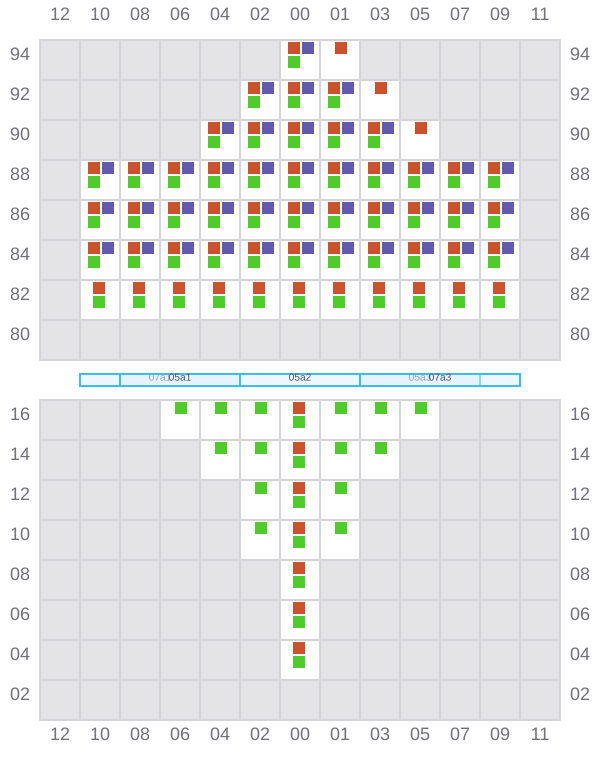

005 (006)
- →
![Bay 005 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b005.png?v=1710094086651)

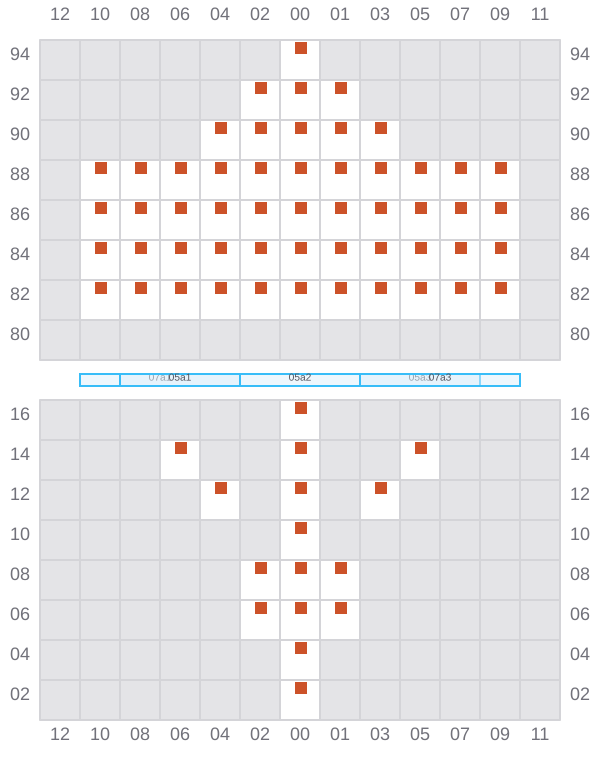

007
- ←
![Bay 007 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b007.png?v=1710094086651)

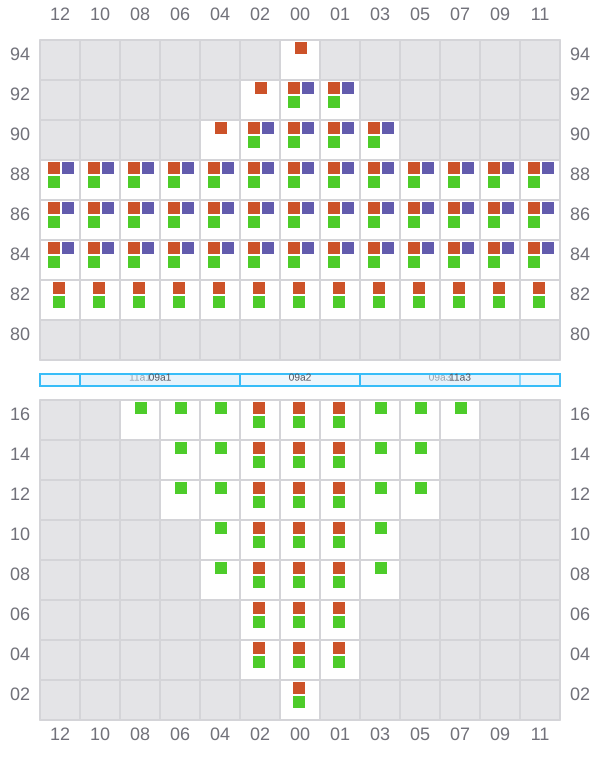

009 (010)
- →
![Bay 009 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b009.png?v=1710094086651)

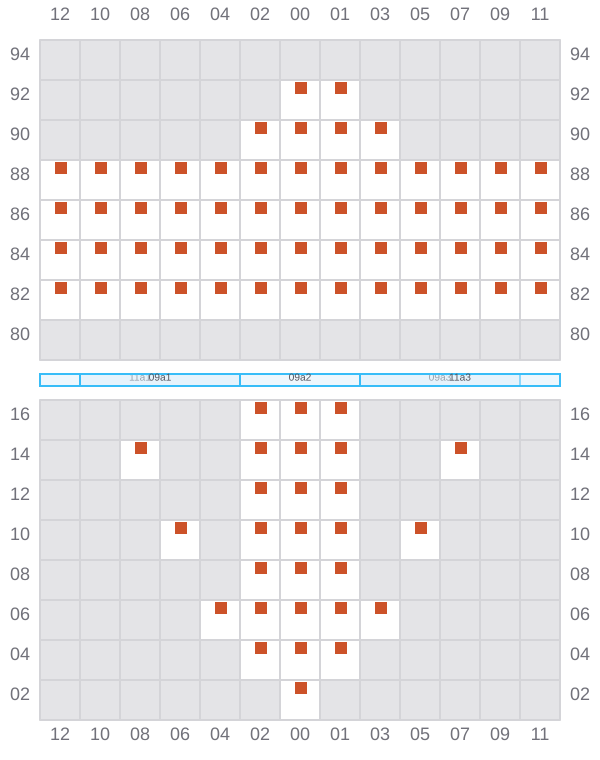

011
- ←
![Bay 011 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b011.png?v=1710094086651)

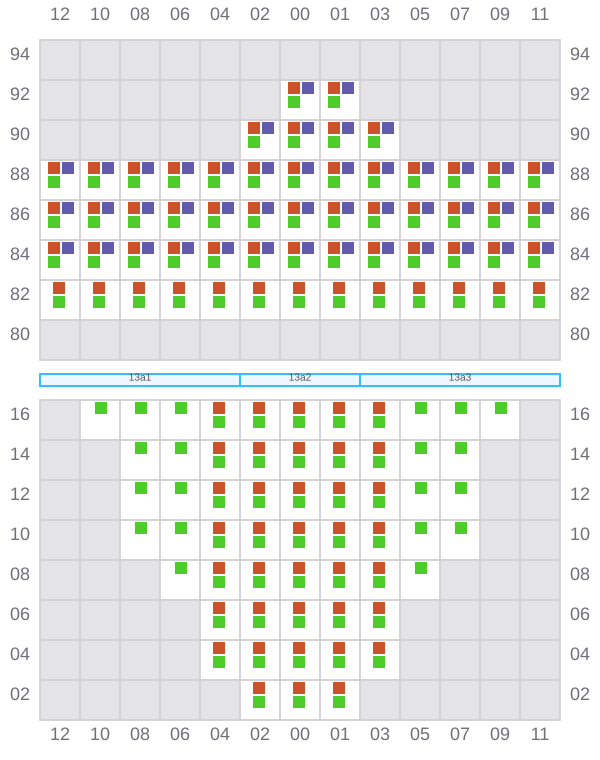

013 (014)
- →
![Bay 013 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b013.png?v=1710094086651)

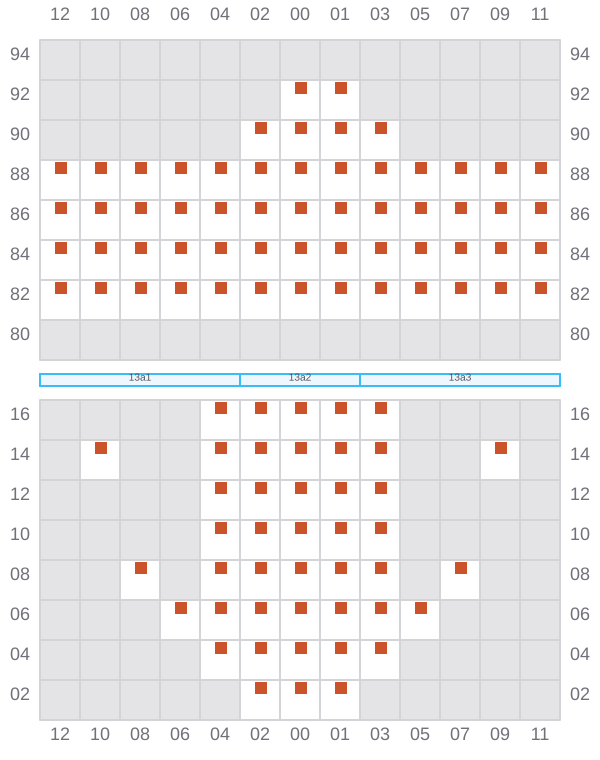

015
- ←
![Bay 015 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b015.png?v=1710094086651)

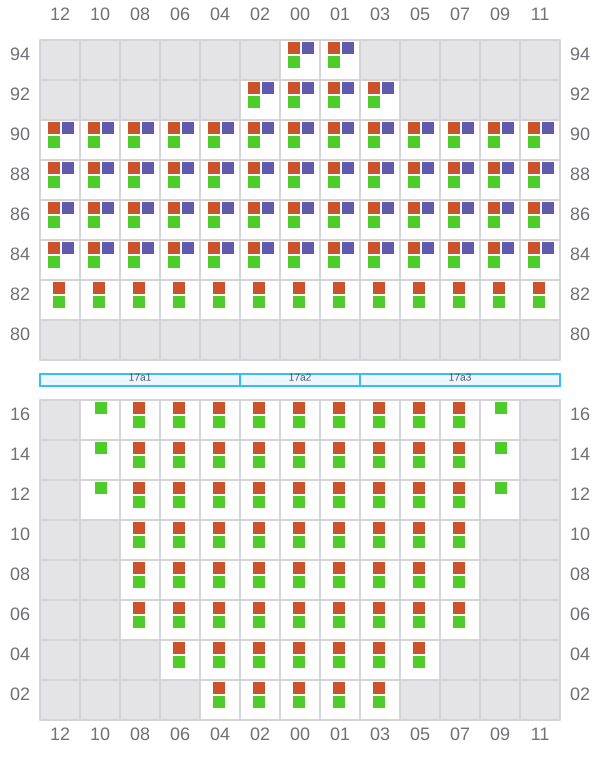

017 (018)
- →
![Bay 017 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b017.png?v=1710094086651)

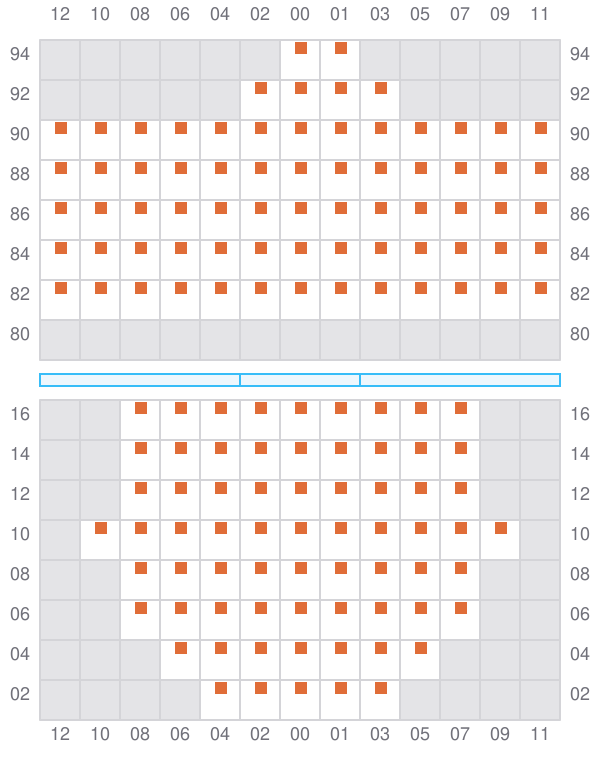

019
- ←
![Bay 019 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b019.png?v=1710094086651)

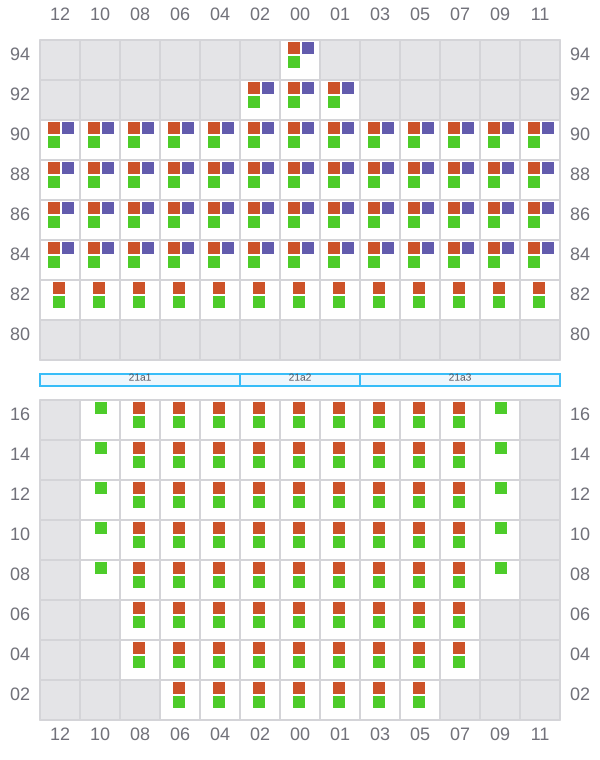

021 (022)
- →
![Bay 021 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b021.png?v=1710094086651)

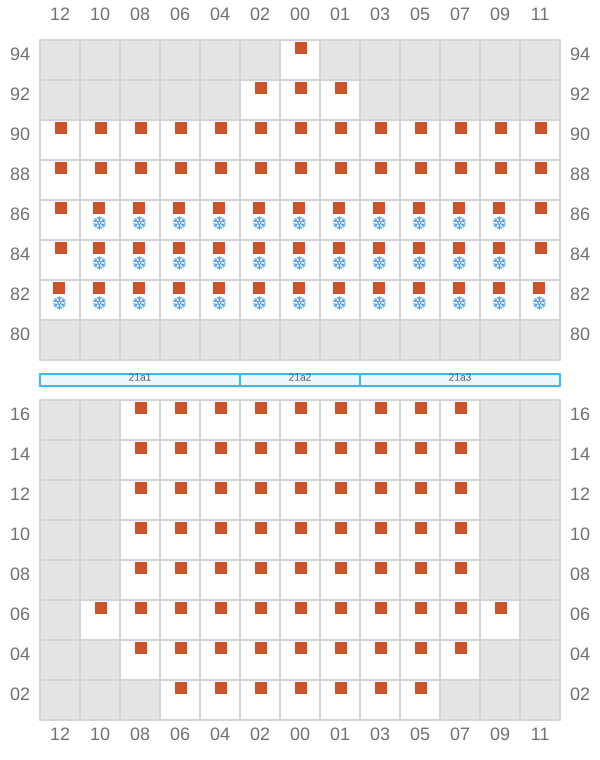

023
- ←
- → / ?
![Bay 023 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b023.png?v=1710094086651)

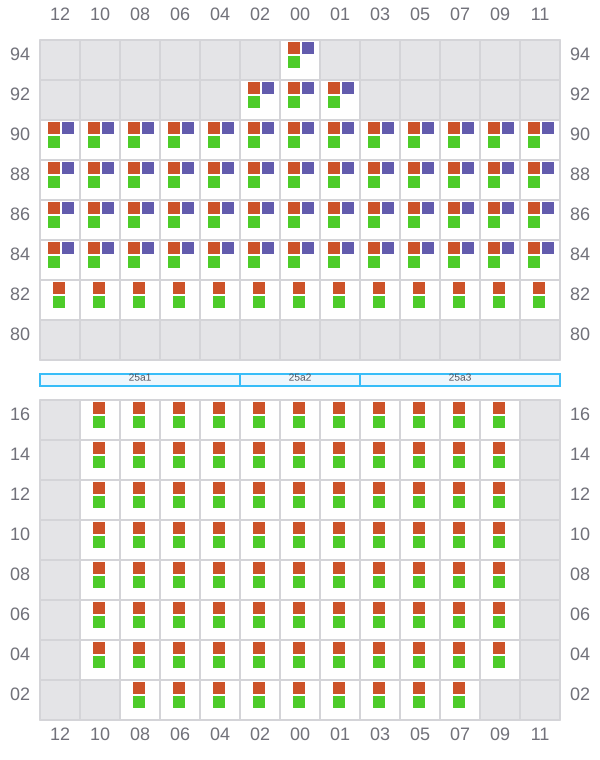

025 (026)
- →
- ? / →
![Bay 025 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b025.png?v=1710094086651)

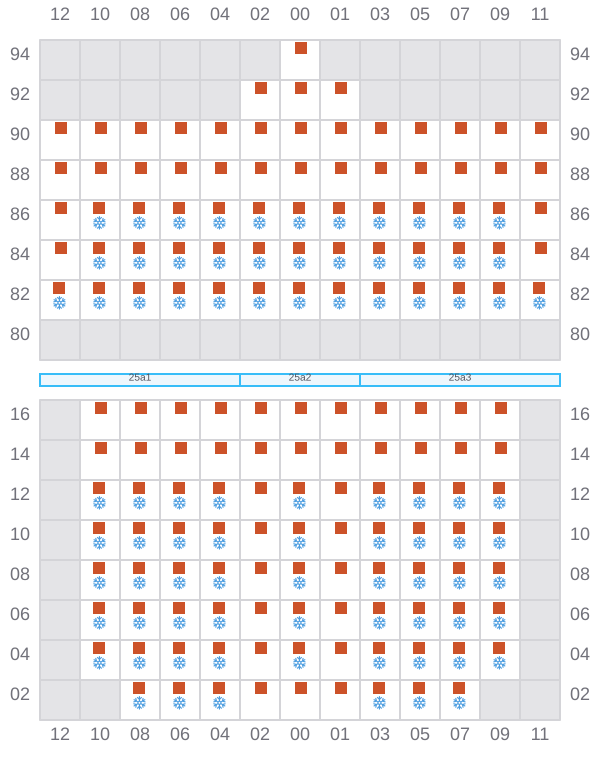

027
- ←
- →
![Bay 027 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b027.png?v=1710094086651)
029 (030)
- →
- ? / →
![Bay 029 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b029.png?v=1710094086651)

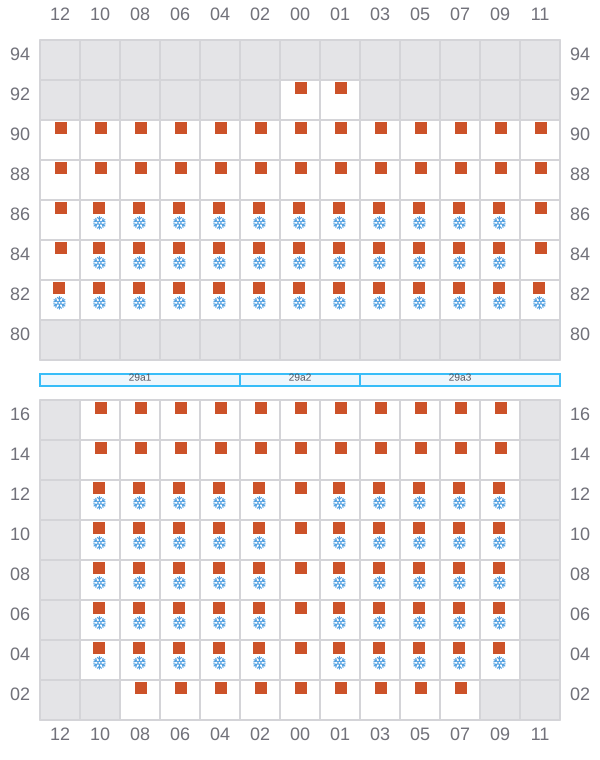

031
- ←
- →
![Bay 031 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b031.png?v=1710094086651)

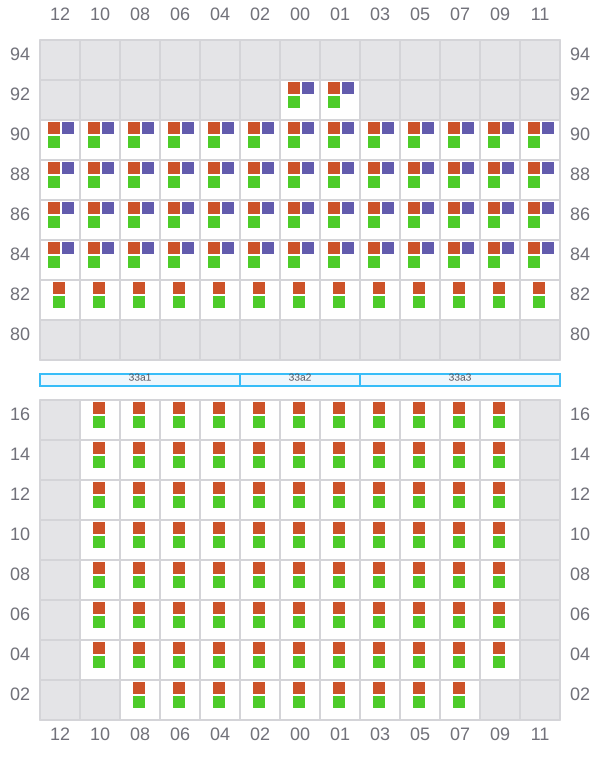

033 (034)
- →
- ? / →
![Bay 033 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b033.png?v=1710094086651)

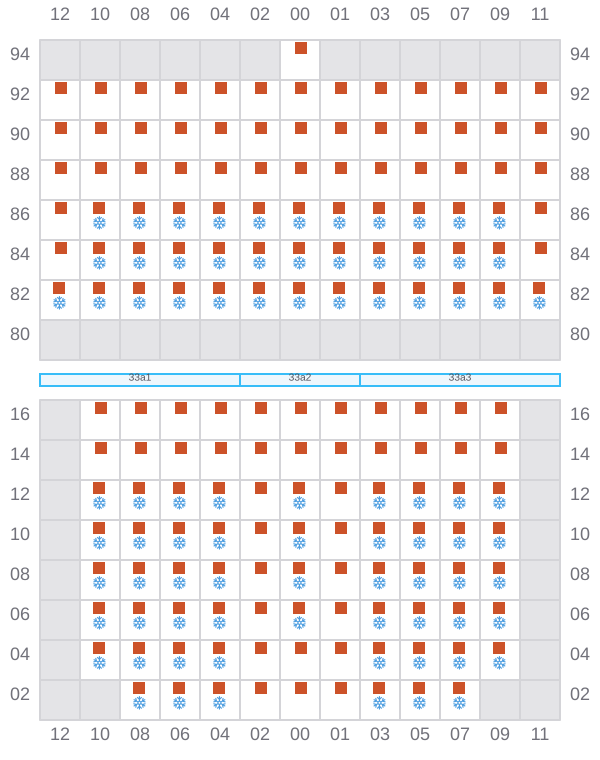

035
- ←
- →
![Bay 035 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b035.png?v=1710094086651)

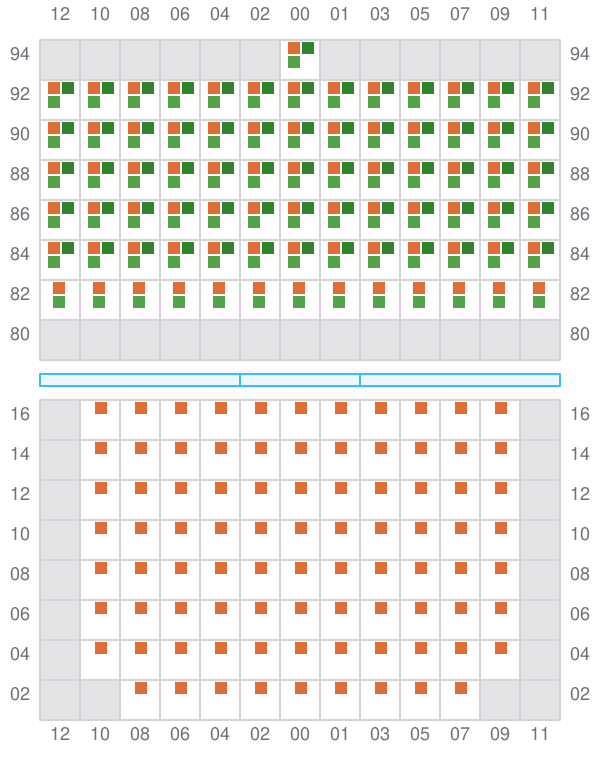

037 (038)
- → / ?
![Bay 037 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b037.png?v=1710094086651)

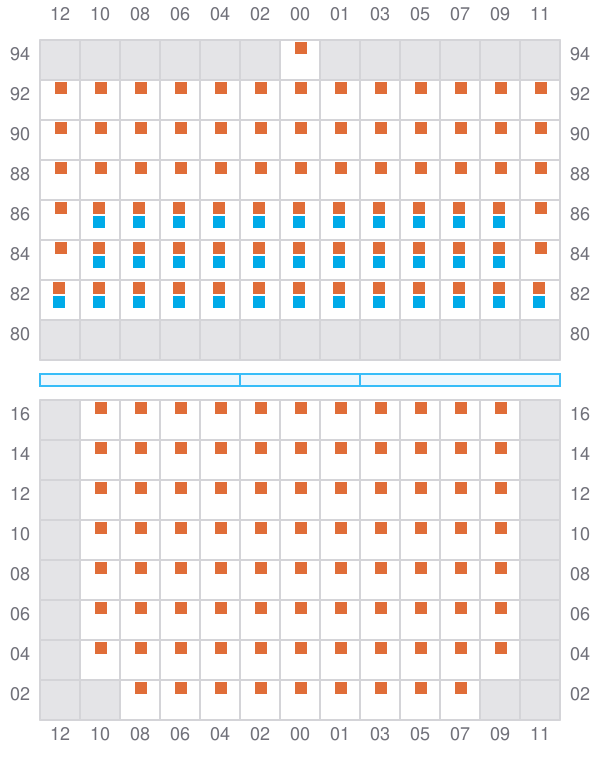

039
- ← / ?
- → / ?
![Bay 039 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b039.png?v=1710094086651)

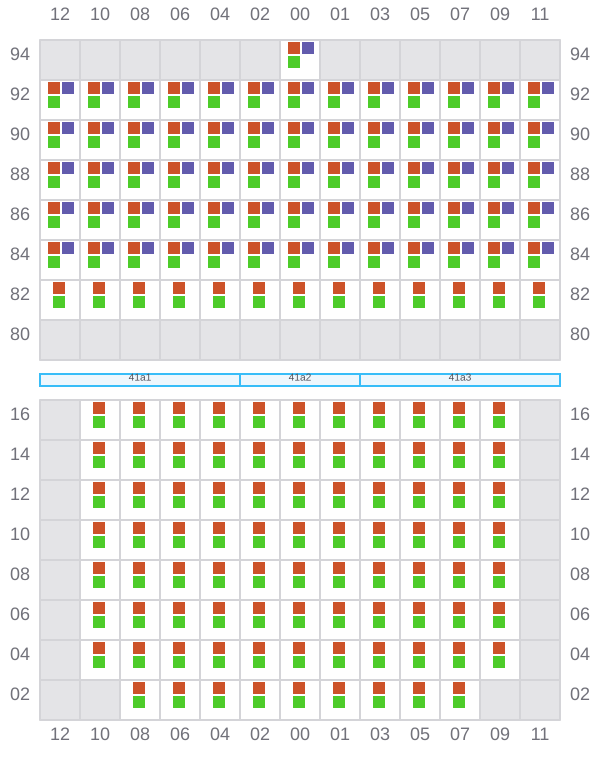

041 (042)
- →
- ? / →
![Bay 041 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b041.png?v=1710094086651)

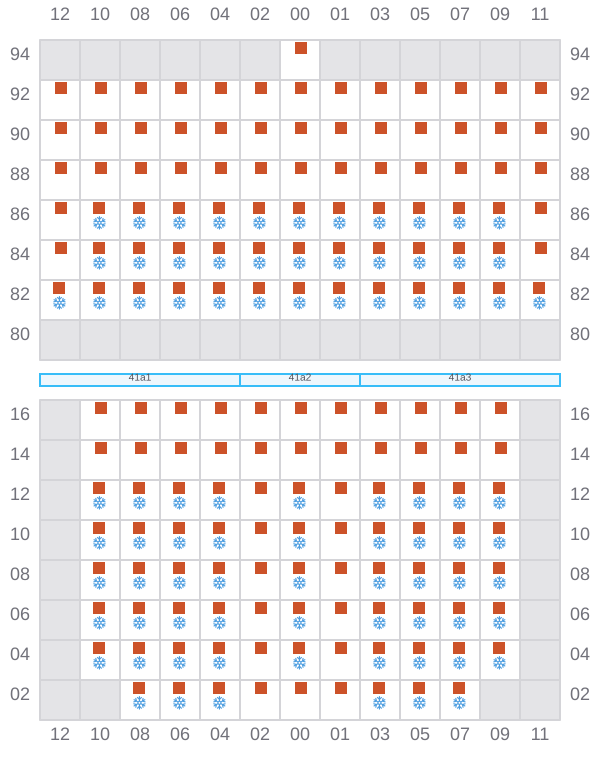

043
- ←
- →
![Bay 043 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b043.png?v=1710094086651)

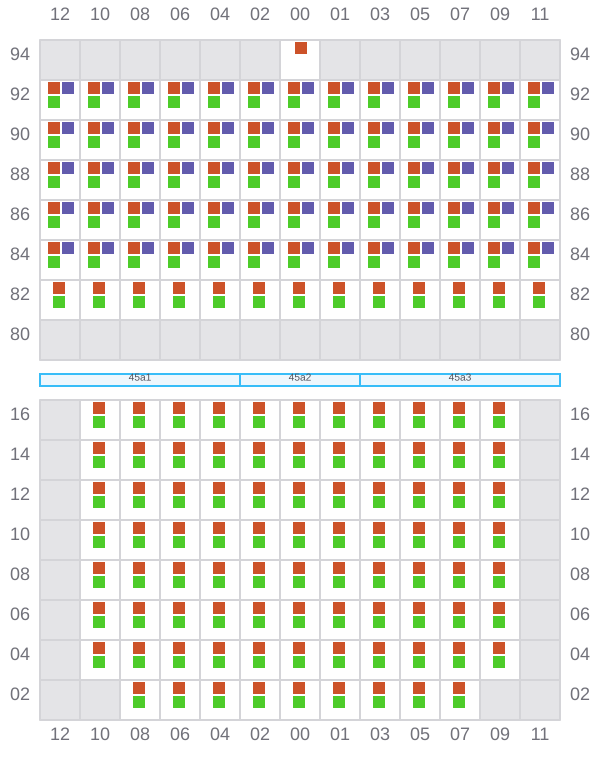

045 (046)
- →
![Bay 045 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b045.png?v=1710094086651)

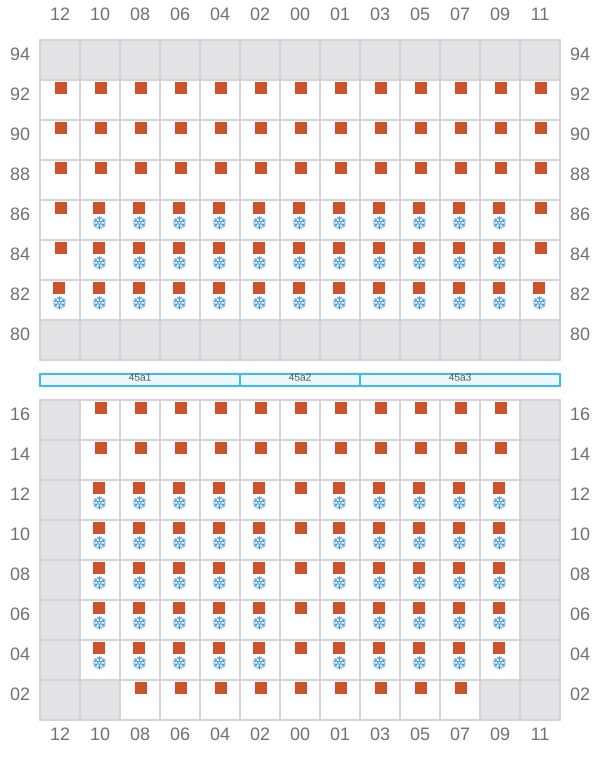

047
- ←
- →
![Bay 047 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b047.png?v=1710094086651)

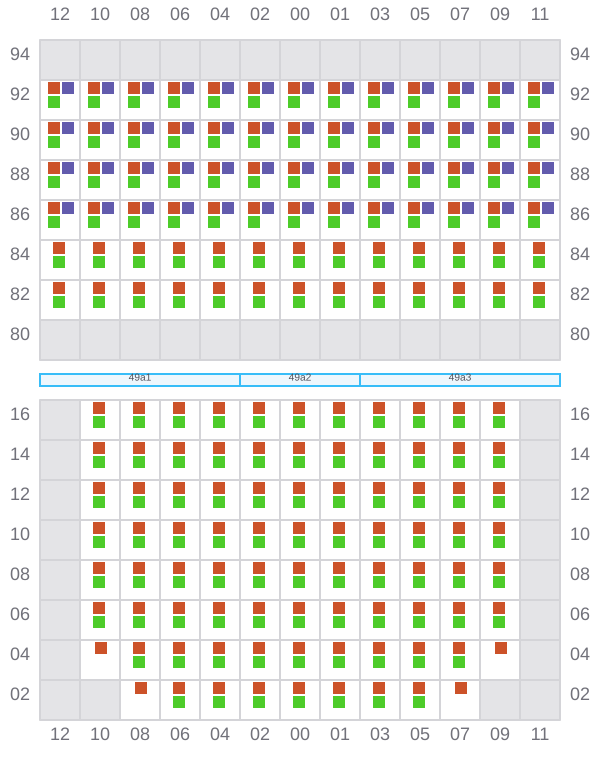

049 (050)
- →
- ? / →
![Bay 049 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b049.png?v=1710094086651)

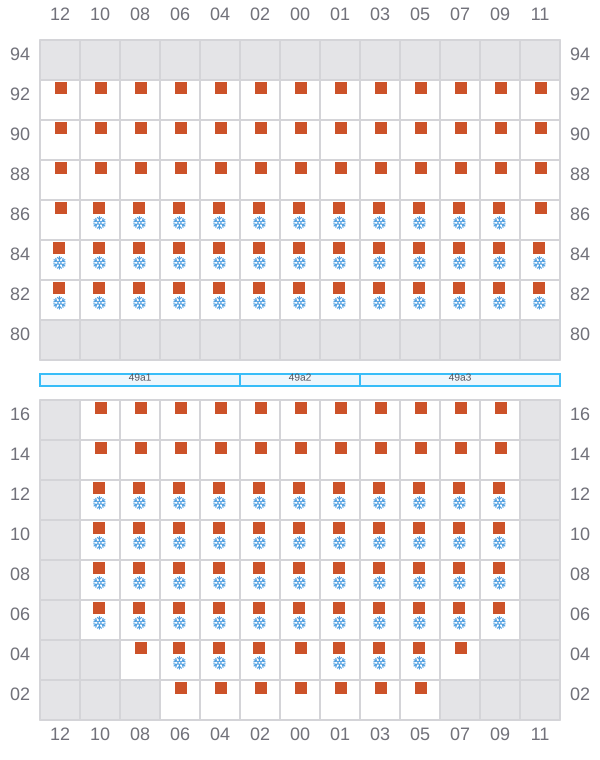

051
- ←
- →
![Bay 051 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b051.png?v=1710094086651)

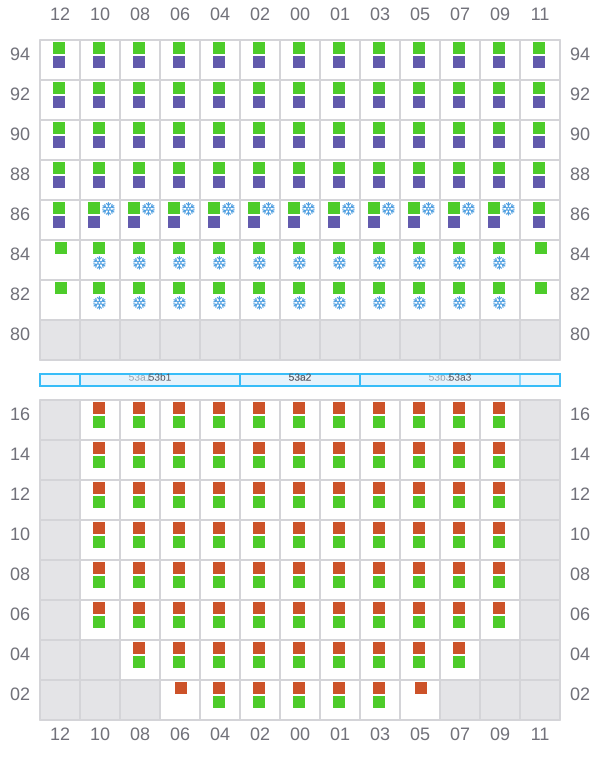

053 (054)
- →
- →
![Bay 053 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b053.png?v=1710094086651)

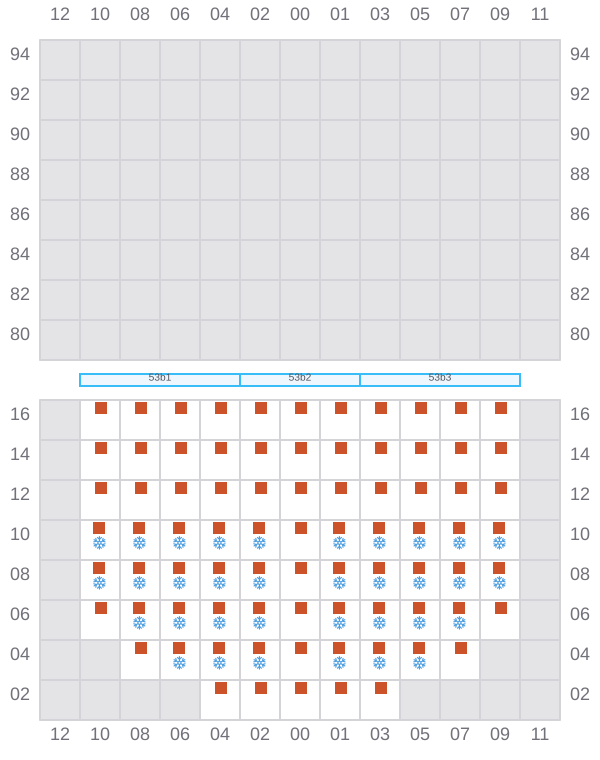

055
- ? / ←
- ? / →
![Bay 055 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b055.png?v=1710094086651)

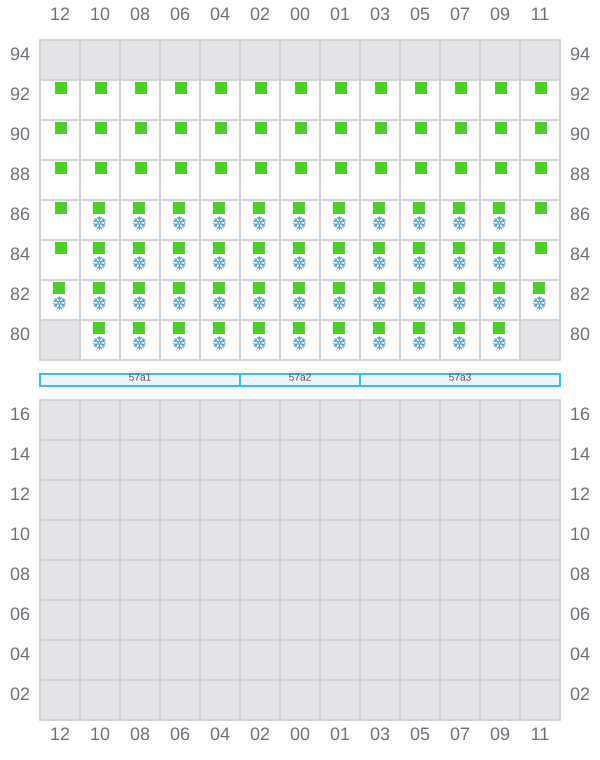

057 (058)
- → / ?
- ← / ?
![Bay 057 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b057.png?v=1710094086651)
059
![Bay 059 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b059.png?v=1710094086651)

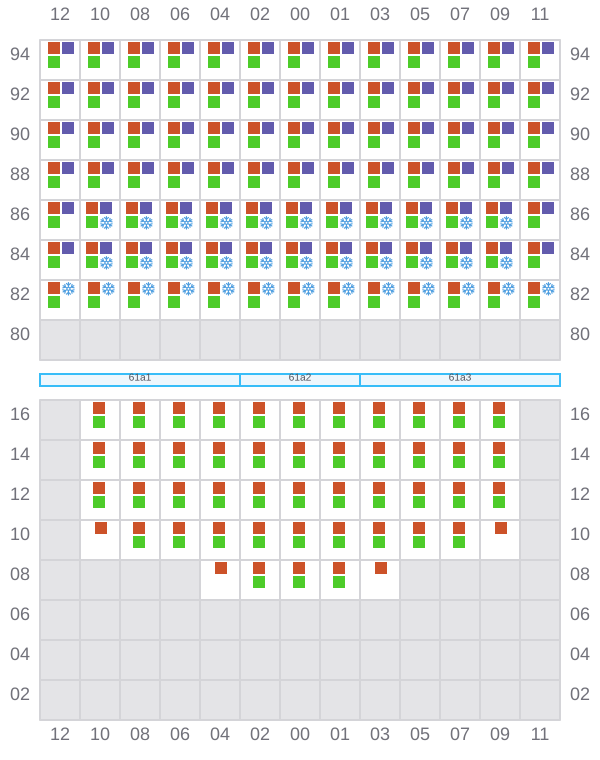

061 (062)
- →
- ← / →
![Bay 061 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b061.png?v=1710094086651)

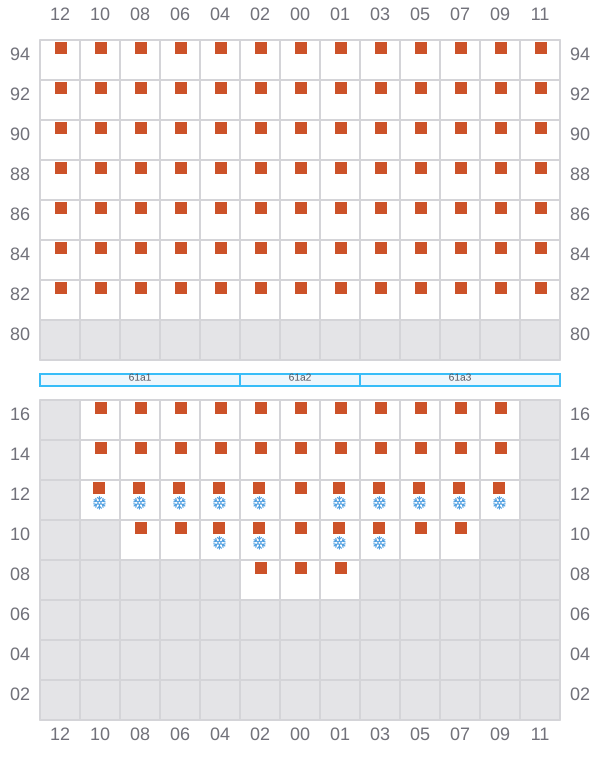

063
- ←
- ? / →
![Bay 063 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b063.png?v=1710094086651)

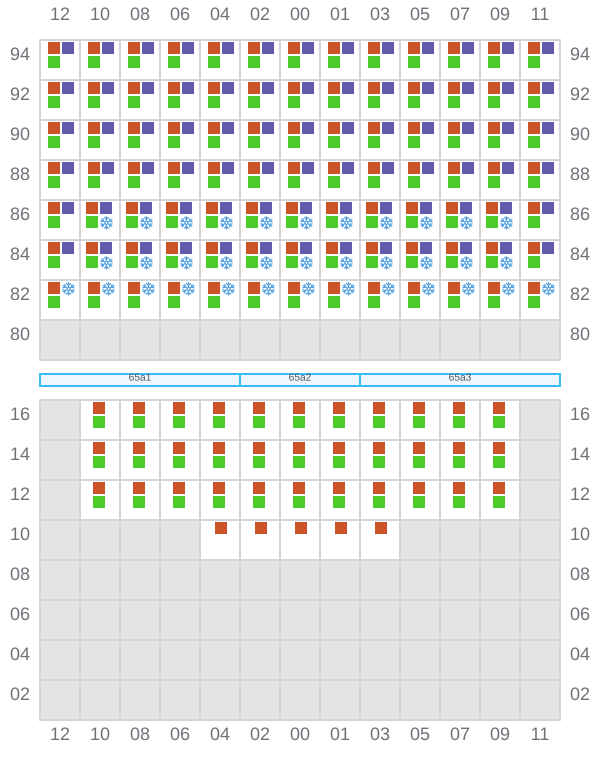

065 (066)
- →
- ← / ?
![Bay 065 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b065.png?v=1710094086651)

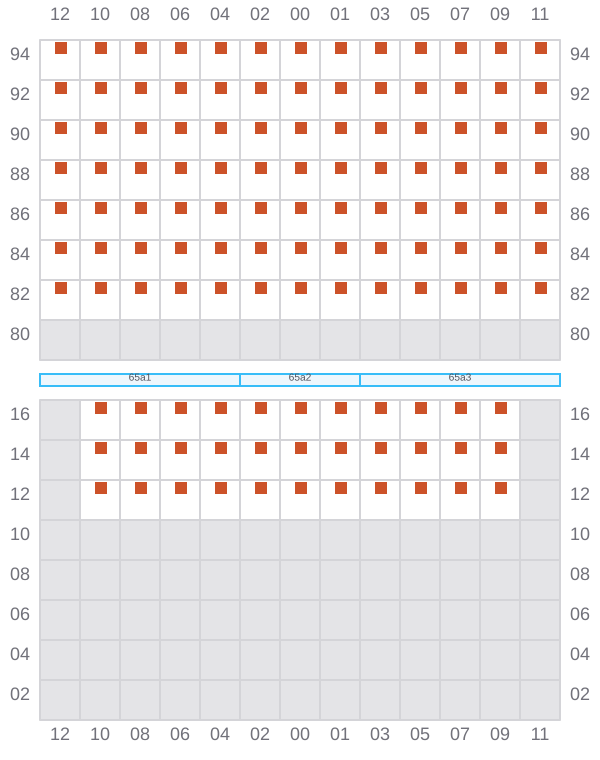

067
- ←
![Bay 067 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b067.png?v=1710094086651)

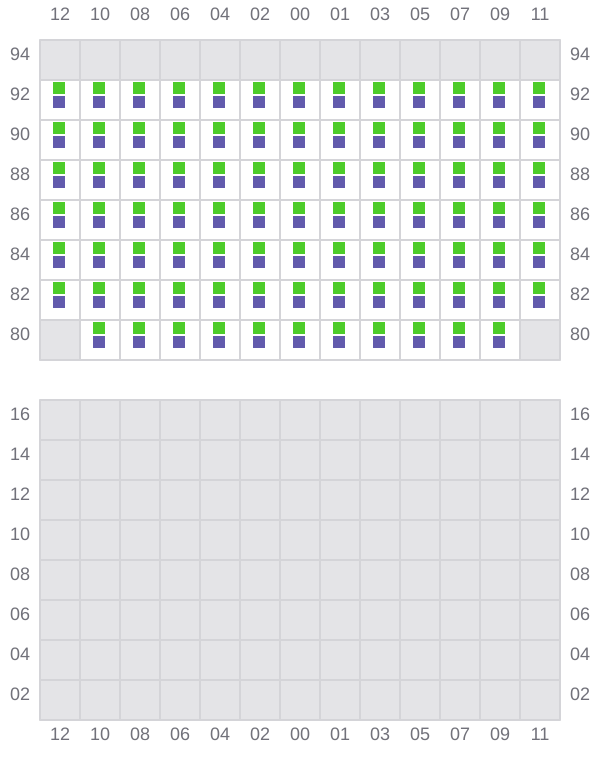

069 (070)
- → / ?
![Bay 069 view and slots of GRASMERE MAERSK](/vessel-images/6a44a67b-825d-492b-94d6-8011532f0038-b069.png?v=1710094086651)
