GREEN PARK
9522776 | XVLI9 | HEDE by ************************************** Last update: Fri Nov 20 2026

General Info

Ship Name:GREEN PARK
IMO Code:9522776
Call Sign:XVLI9
Line Operator:HEDE
Class Name for Sister Ships:N/A
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):135.00
LOA (Length Overall):147.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:Aft

Size Summary

ISO Bays:031
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,098

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of GREEN PARK

Hatch-Covers View

Deck view of GREEN PARK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

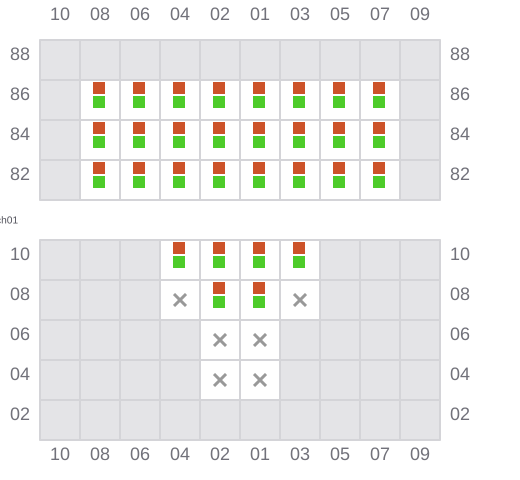

001

Bay 001 view and slots of GREEN PARK

003 (002)

Bay 003 view and slots of GREEN PARK

005

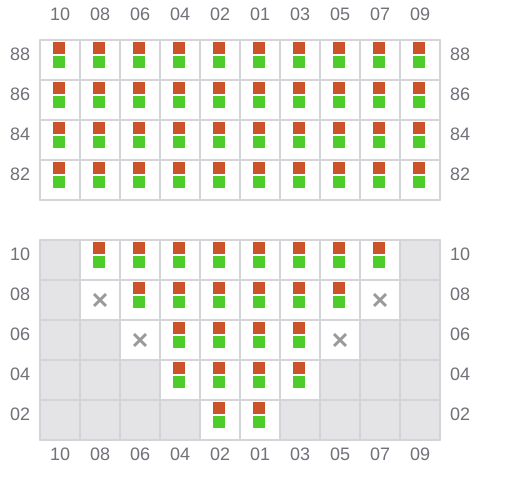

Bay 005 view and slots of GREEN PARK

007 (006)

Bay 007 view and slots of GREEN PARK

009

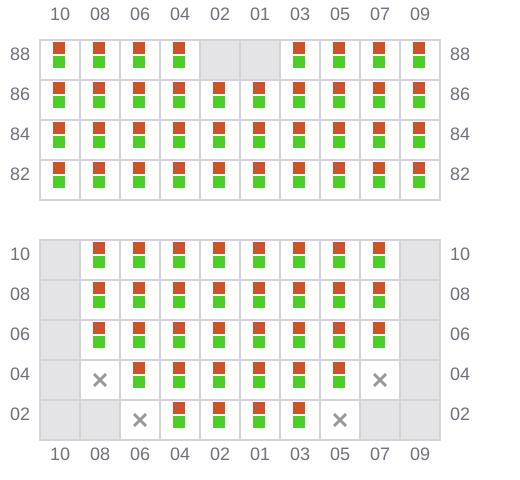

Bay 009 view and slots of GREEN PARK

011 (010)

Bay 011 view and slots of GREEN PARK

013

Bay 013 view and slots of GREEN PARK

015 (014)

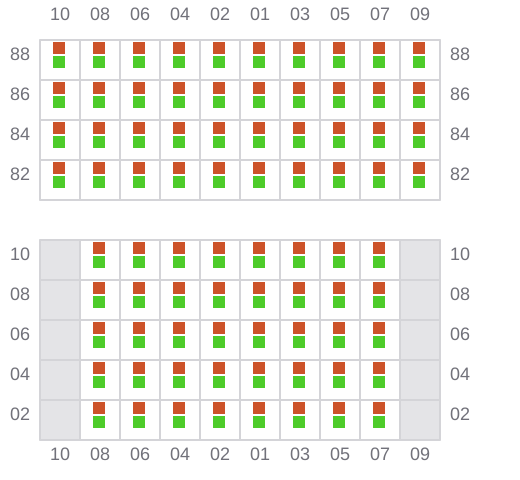

Bay 015 view and slots of GREEN PARK

017

Bay 017 view and slots of GREEN PARK

019 (018)

Bay 019 view and slots of GREEN PARK

021

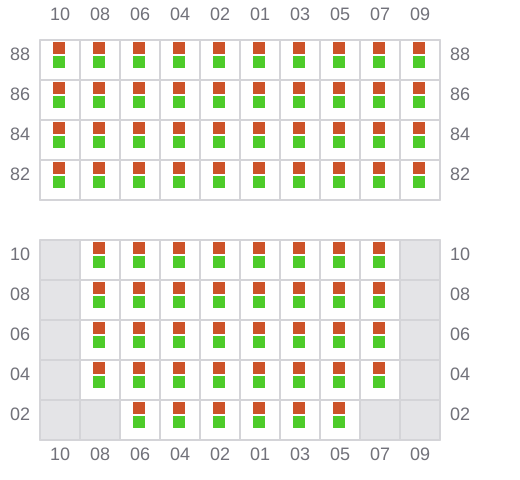

Bay 021 view and slots of GREEN PARK

023 (022)

Bay 023 view and slots of GREEN PARK

025

Bay 025 view and slots of GREEN PARK

027 (026)

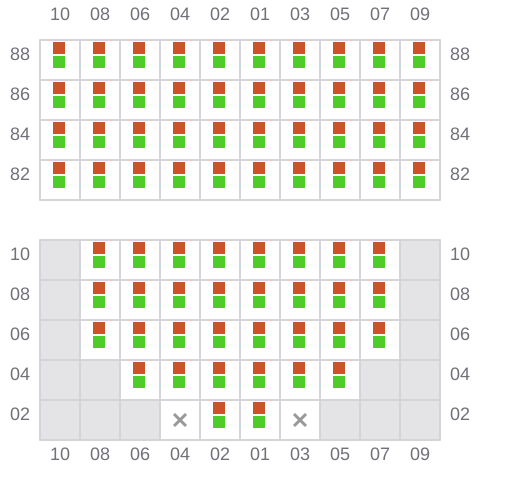

Bay 027 view and slots of GREEN PARK

029

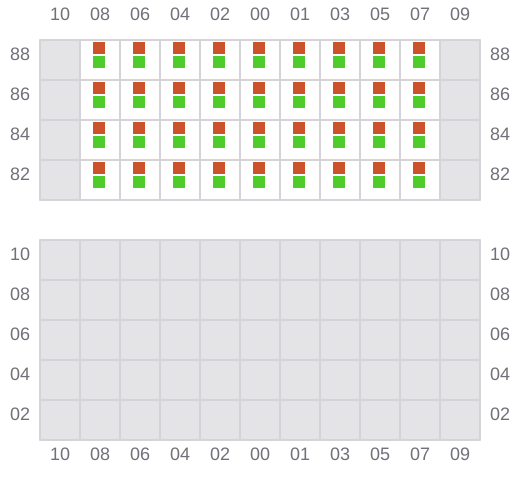

Bay 029 view and slots of GREEN PARK

031 (030)

Bay 031 view and slots of GREEN PARK
