GREENVILLE
9970014 | 9HA5994 | MSC by ******************** Last update: Thu Apr 10 2025

General Info

Ship Name:GREENVILLE
IMO Code:9970014
Call Sign:9HA5994
Line Operator:MSC
Class Name for Sister Ships:GREENVILLE
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):259.00
LOA (Length Overall):272.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,996

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of GREENVILLE

Hatch-Covers View

Deck view of GREENVILLE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

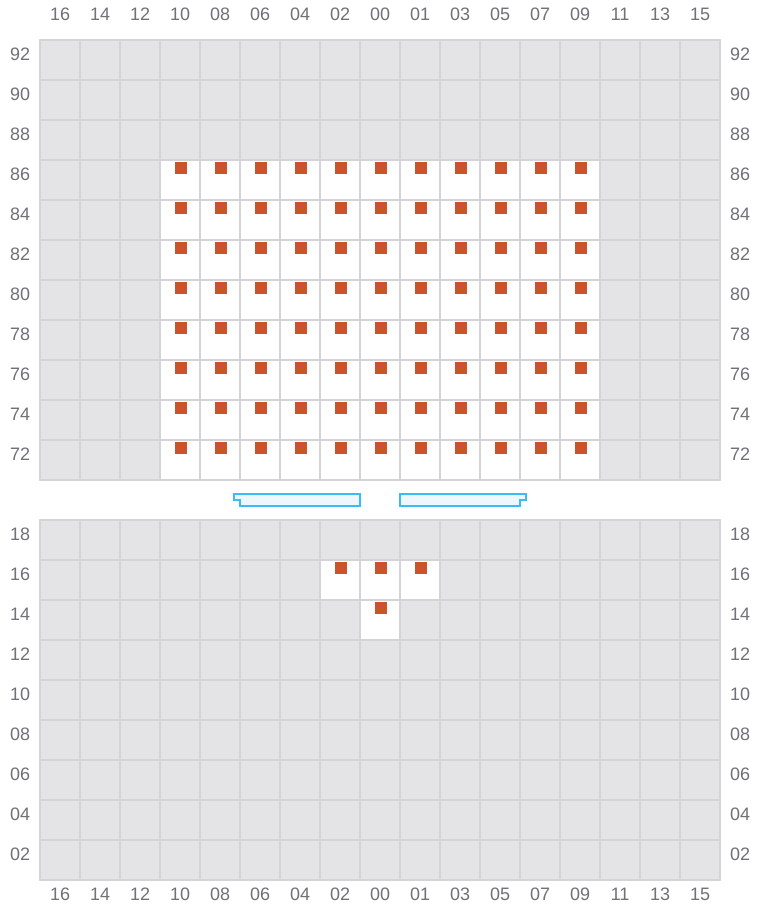

Bay 001 view and slots of GREENVILLE

003 (002)

  • ←
  • ✓

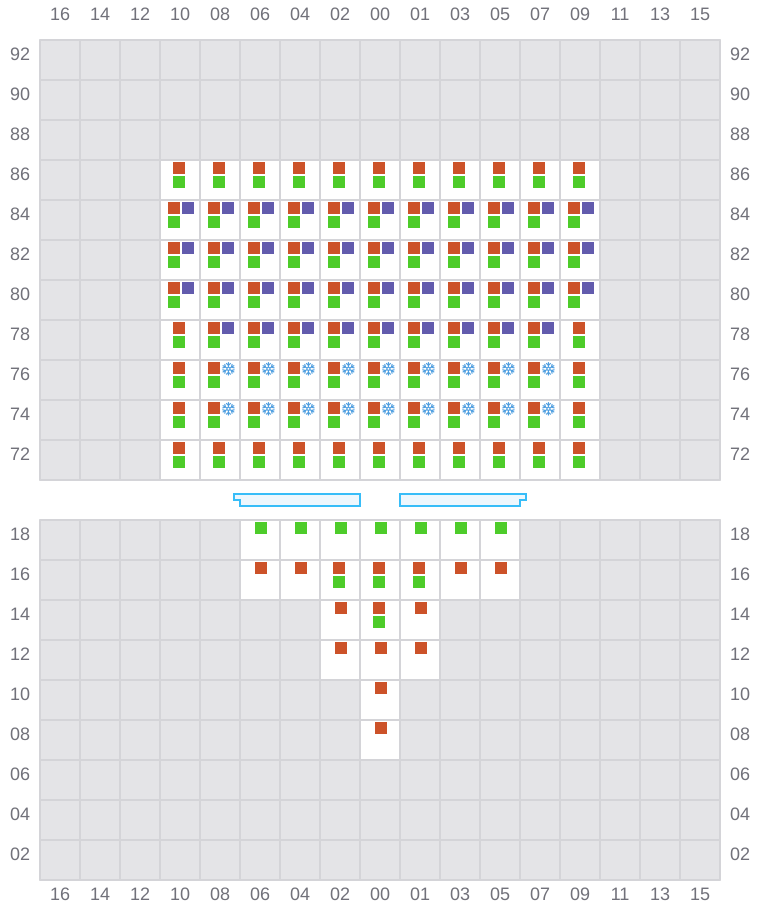

Bay 003 view and slots of GREENVILLE

005

  • →
  • ✓

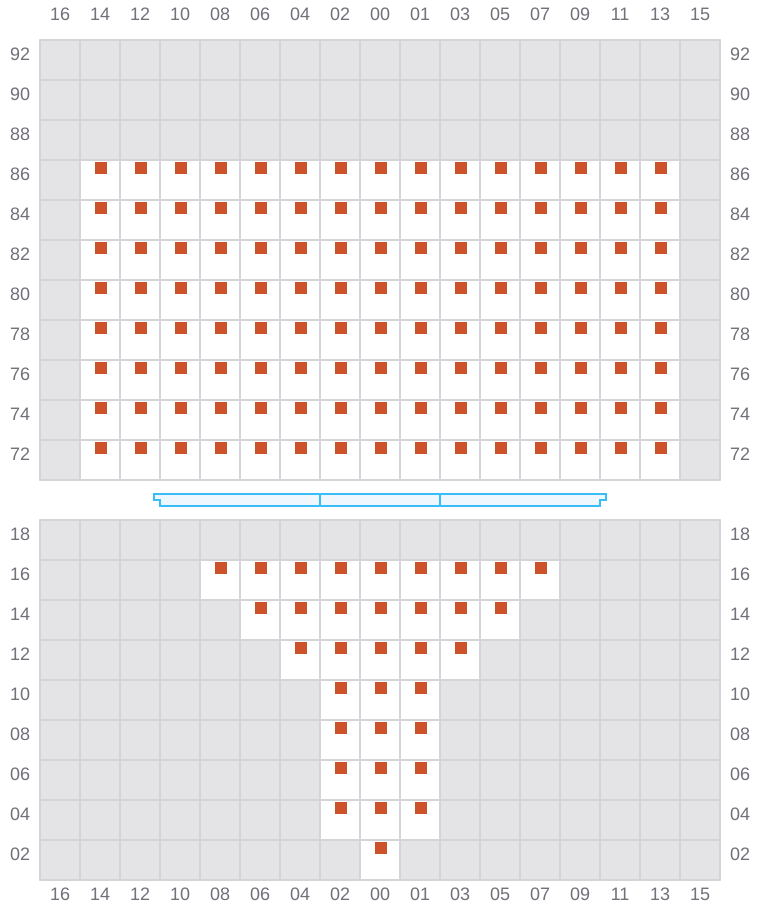

Bay 005 view and slots of GREENVILLE

007 (006)

  • ←
  • ✓

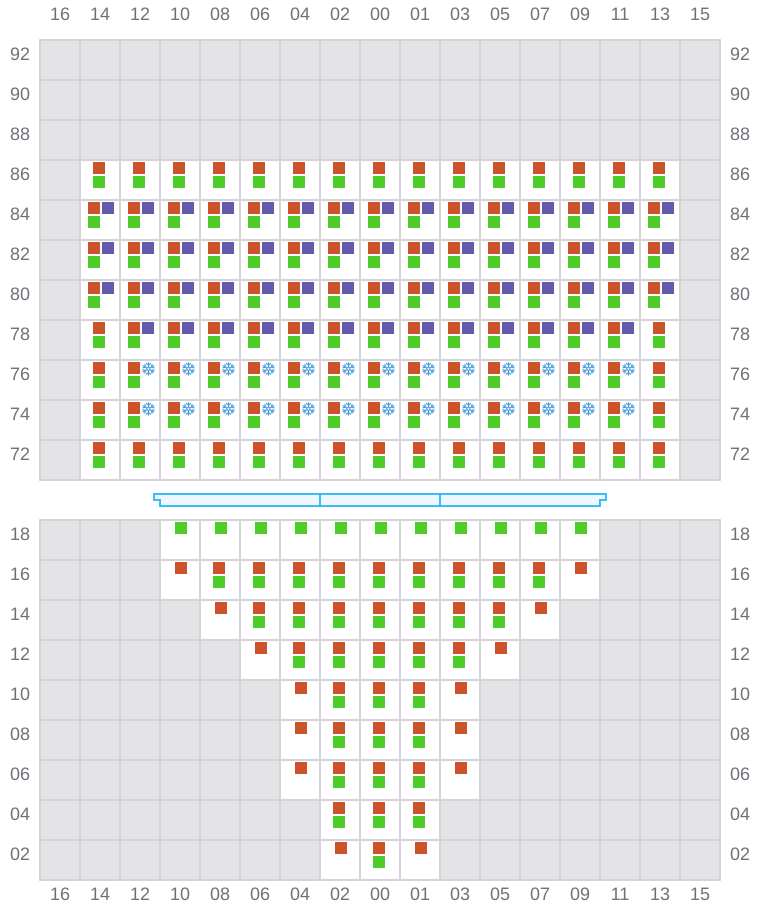

Bay 007 view and slots of GREENVILLE

009

  • →
  • ✓

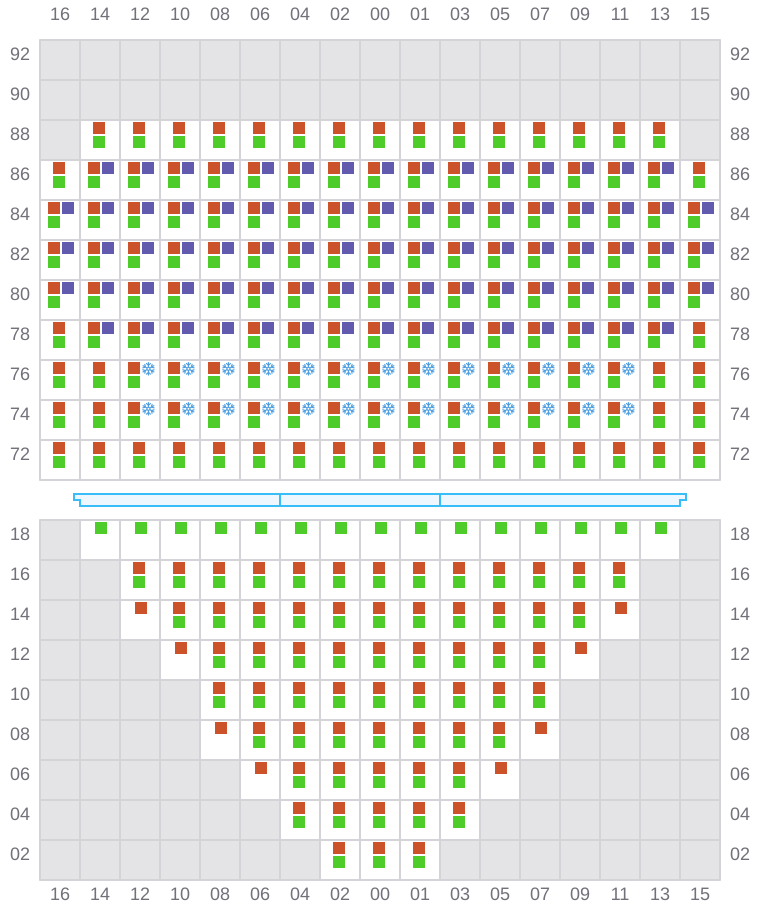

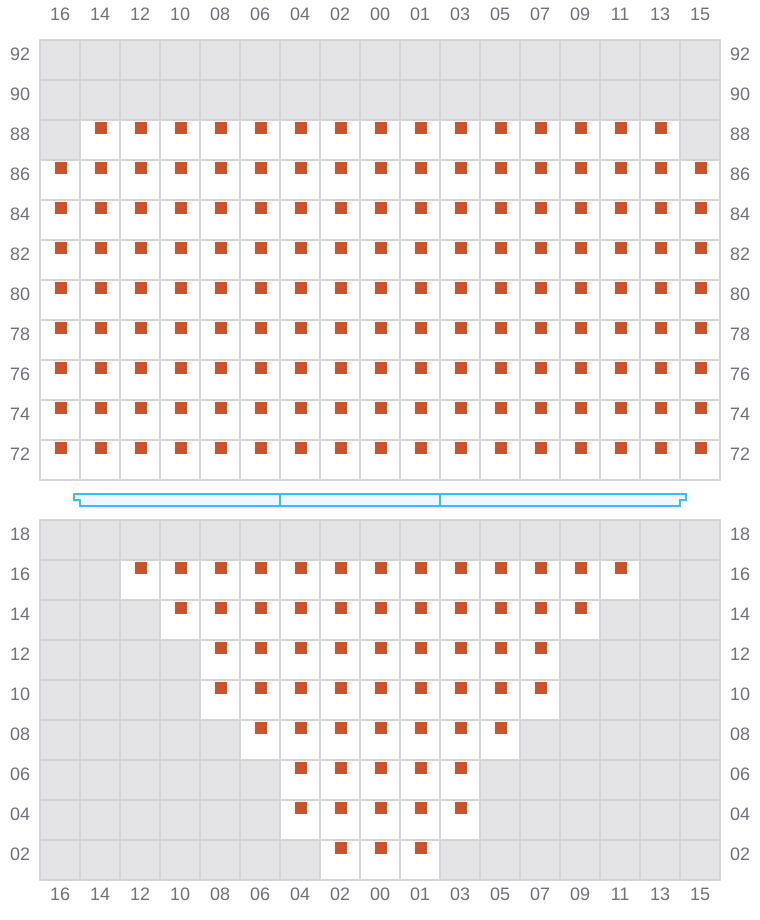

Bay 009 view and slots of GREENVILLE

011 (010)

  • ←
  • ✓
Bay 011 view and slots of GREENVILLE

013

  • →
  • ✓

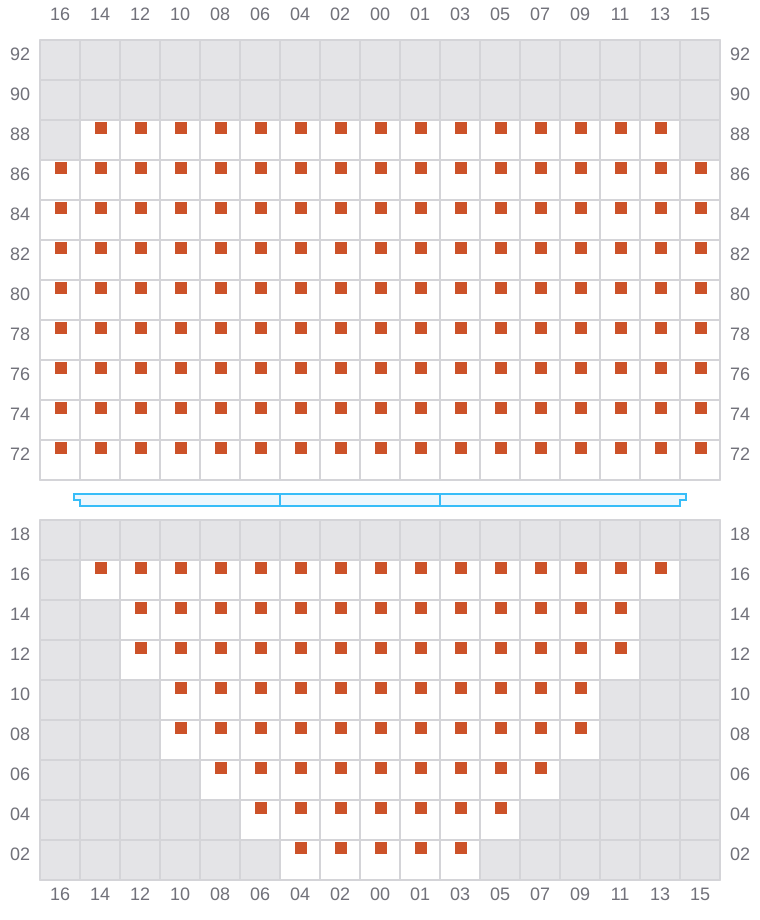

Bay 013 view and slots of GREENVILLE

015 (014)

  • ←
  • ✓

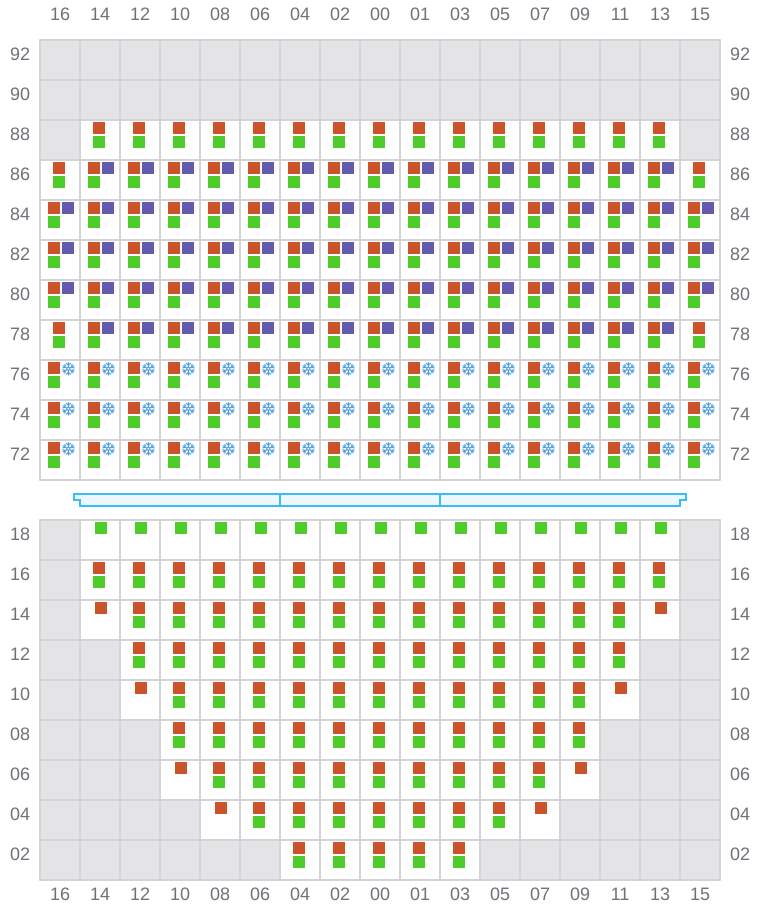

Bay 015 view and slots of GREENVILLE

017

  • →
  • ✓

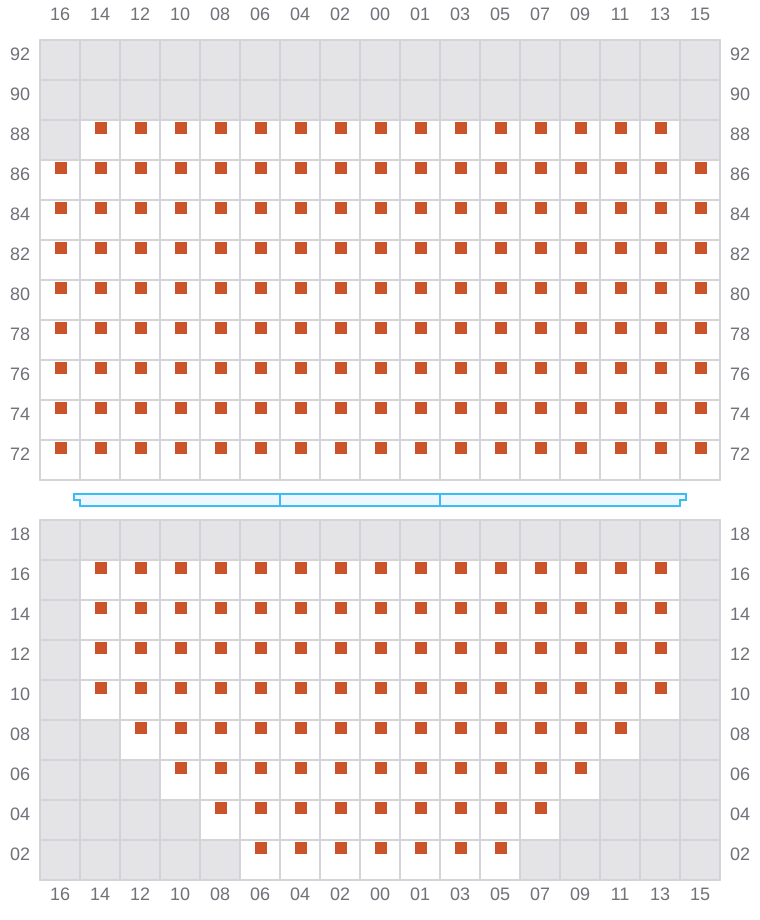

Bay 017 view and slots of GREENVILLE

019 (018)

  • ←
  • ✓

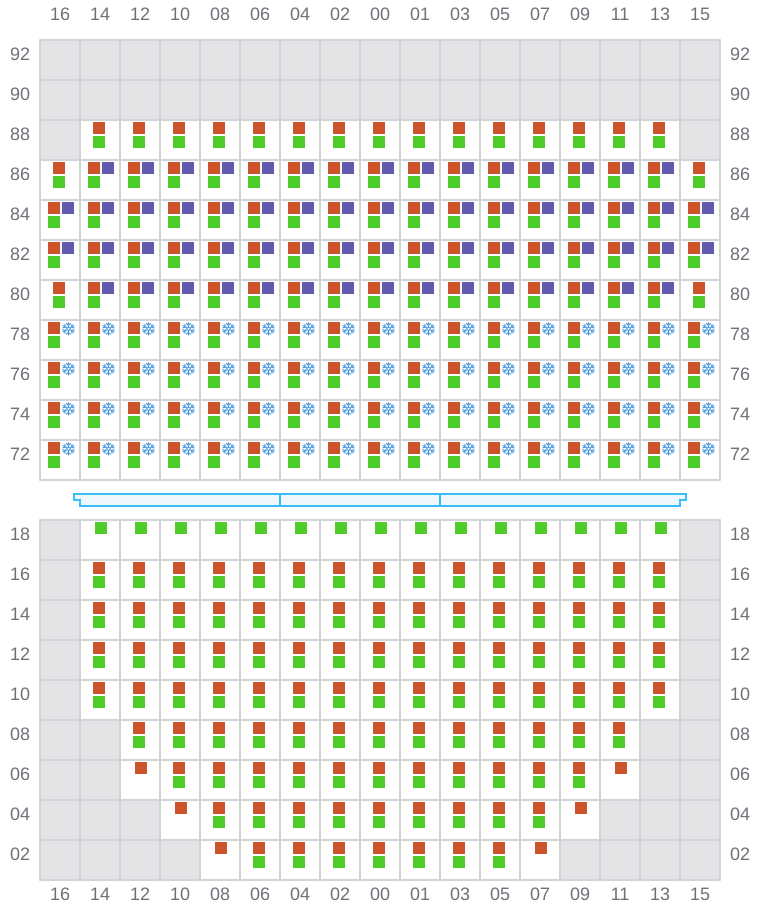

Bay 019 view and slots of GREENVILLE

021

  • →
  • ✓

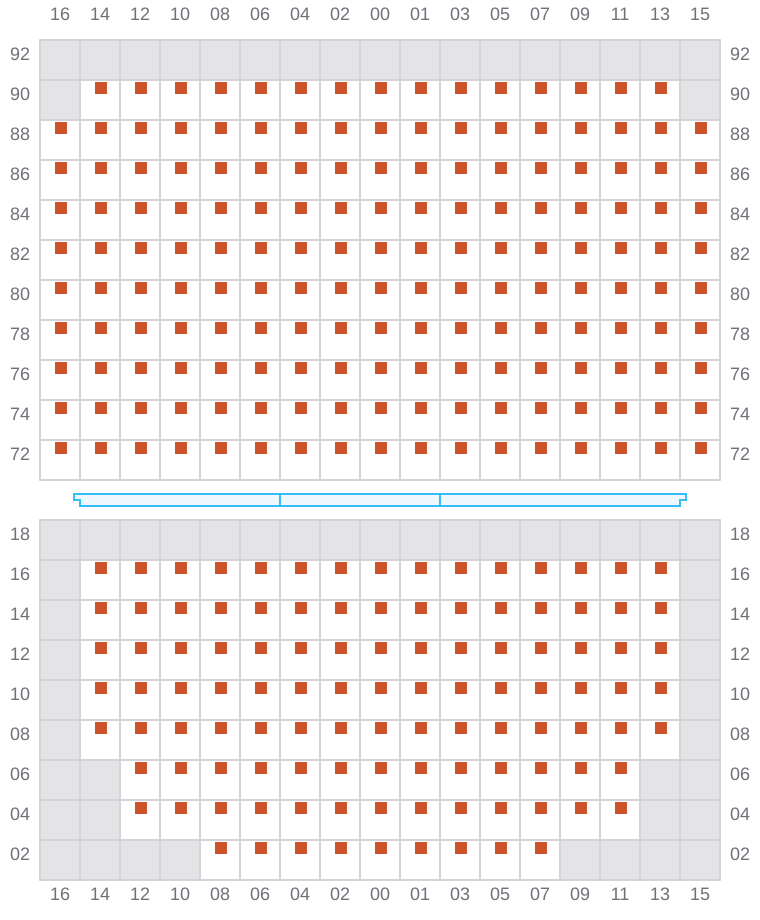

Bay 021 view and slots of GREENVILLE

023 (022)

  • ←
  • ✓

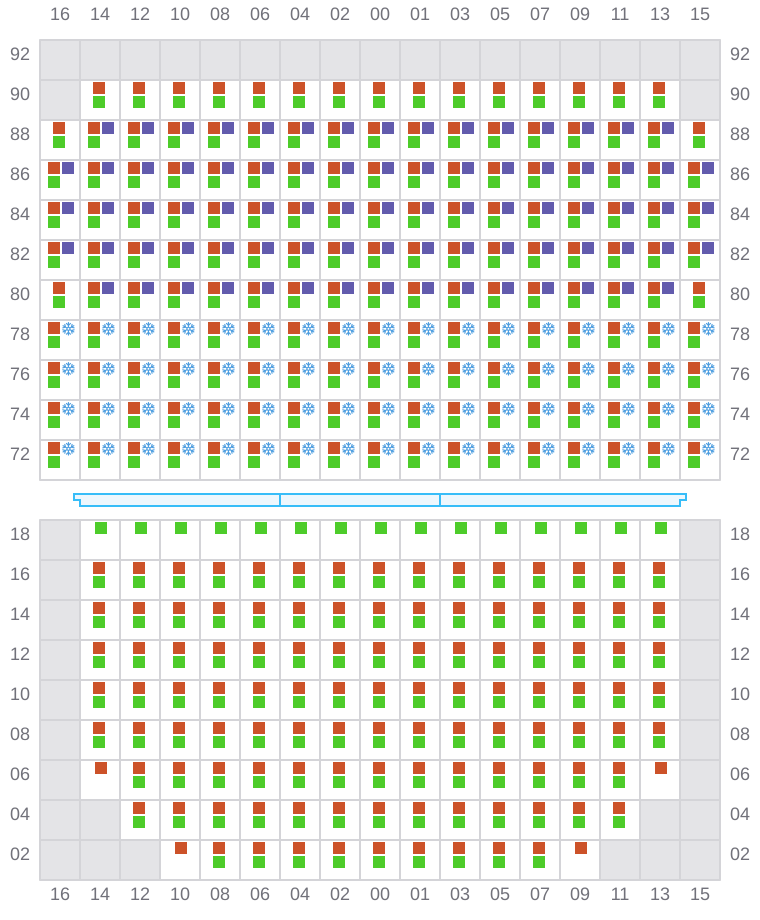

Bay 023 view and slots of GREENVILLE

025

  • →
  • ✓
Bay 025 view and slots of GREENVILLE

027 (026)

  • ←
  • ✓

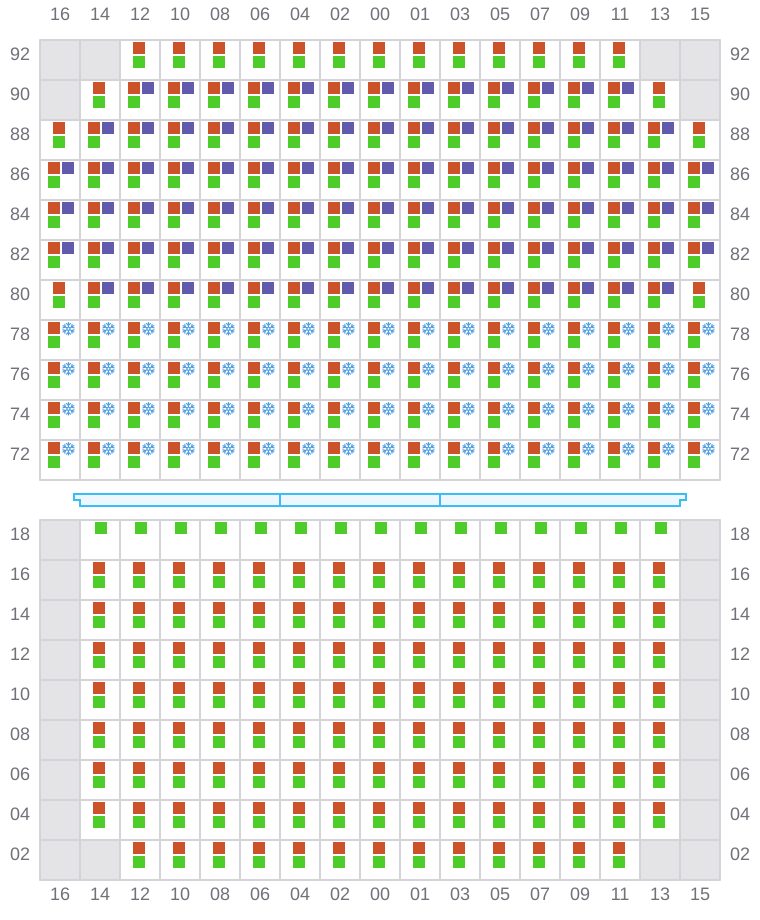

Bay 027 view and slots of GREENVILLE

029

  • →
  • ✓

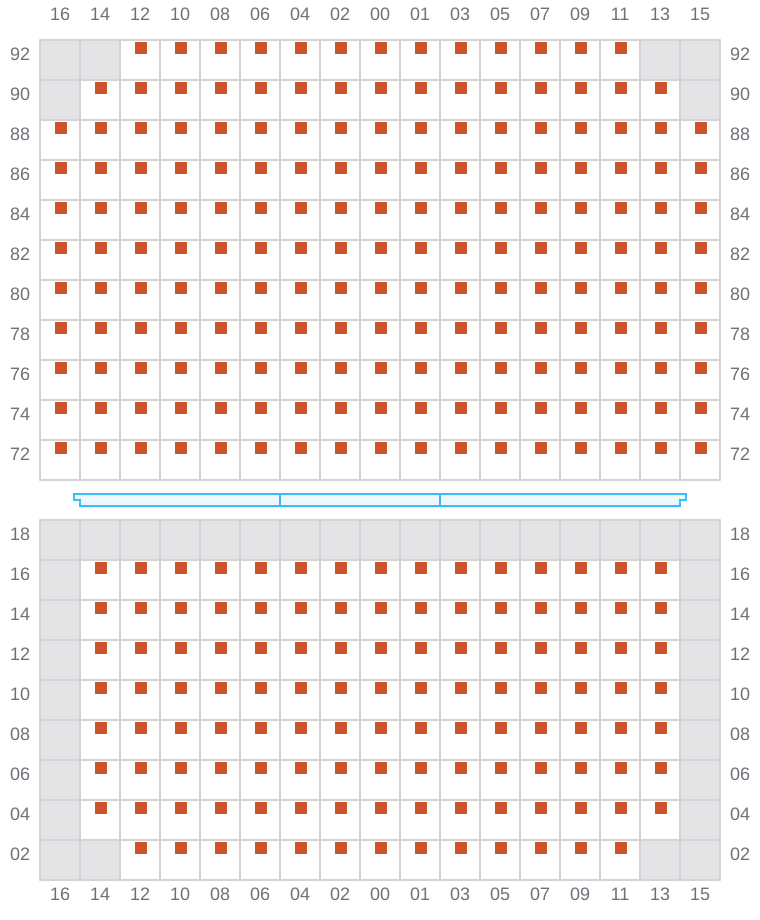

Bay 029 view and slots of GREENVILLE

031 (030)

  • ←
  • ✓
Bay 031 view and slots of GREENVILLE

033

  • →
  • ✓
Bay 033 view and slots of GREENVILLE

035 (034)

  • ←
  • ✓

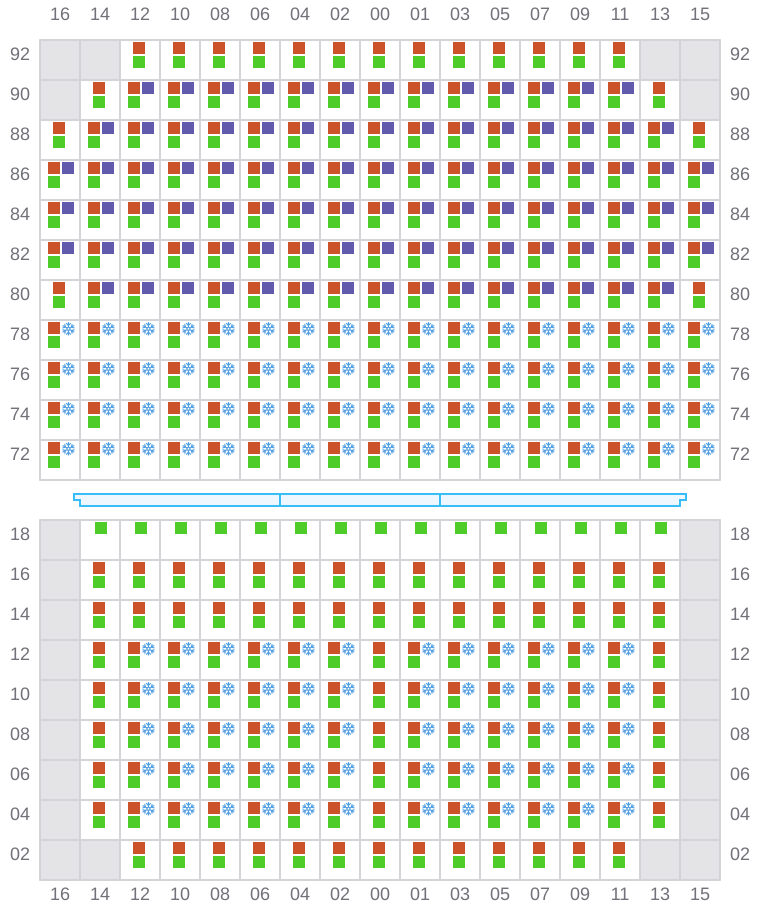

Bay 035 view and slots of GREENVILLE

037

  • →
  • ✓

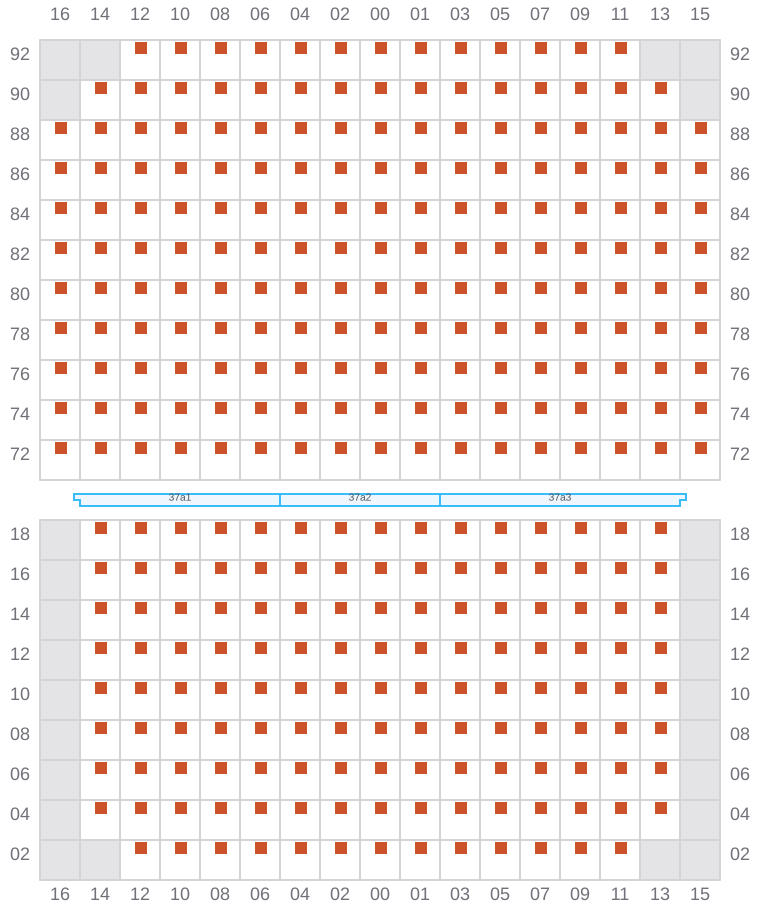

Bay 037 view and slots of GREENVILLE

039 (038)

  • ←
  • ✓

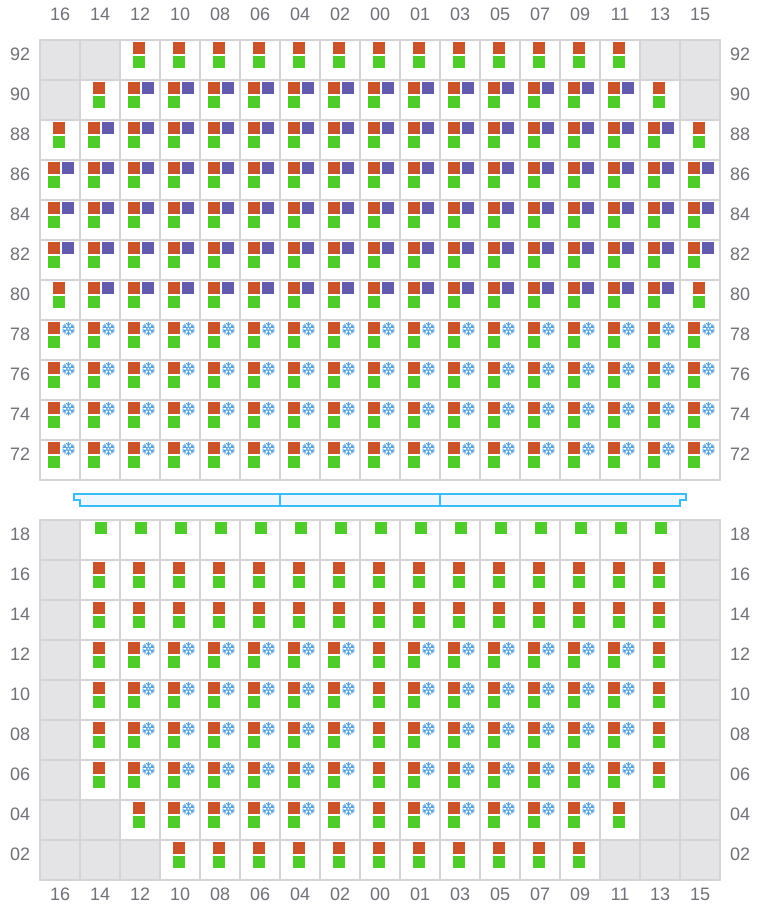

Bay 039 view and slots of GREENVILLE

041

  • →
  • ✓

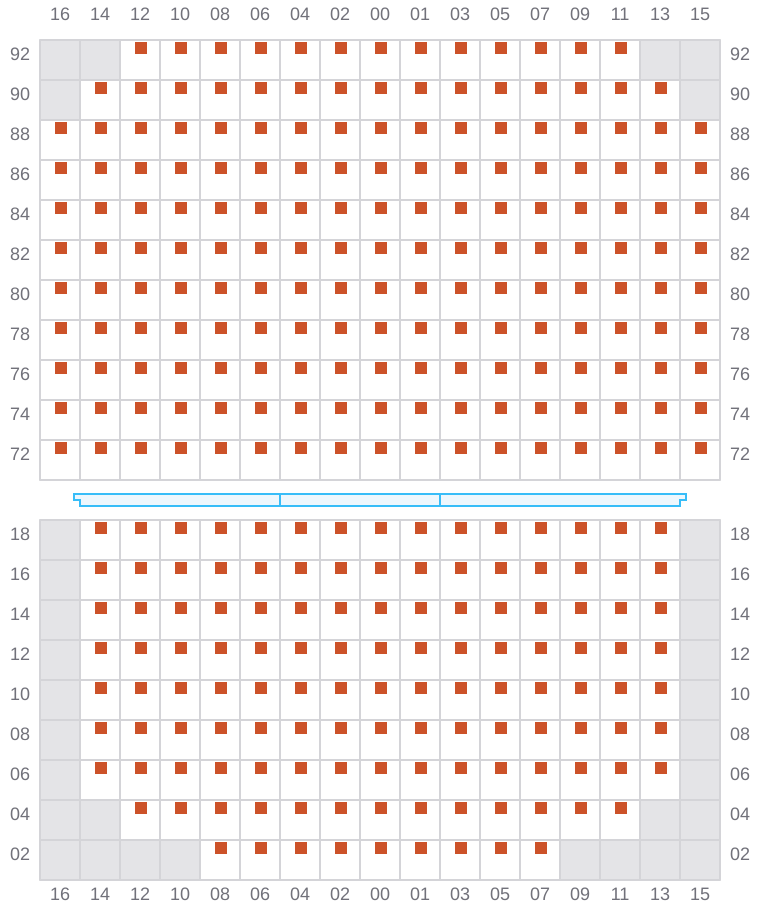

Bay 041 view and slots of GREENVILLE

043 (042)

  • ←
  • ✓

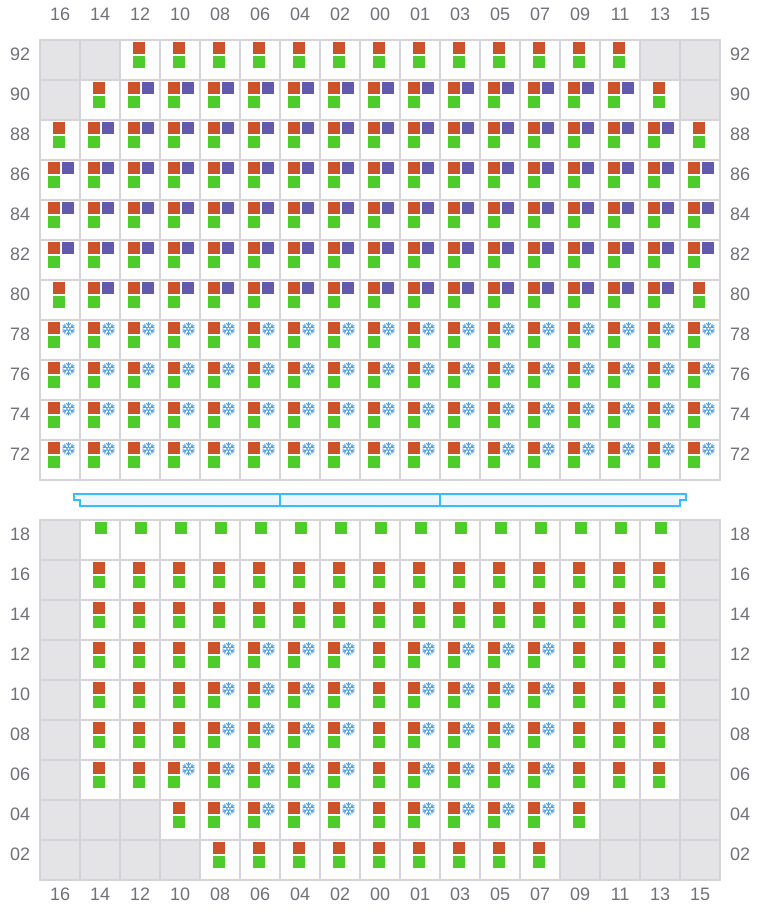

Bay 043 view and slots of GREENVILLE

045

  • →
  • ✓

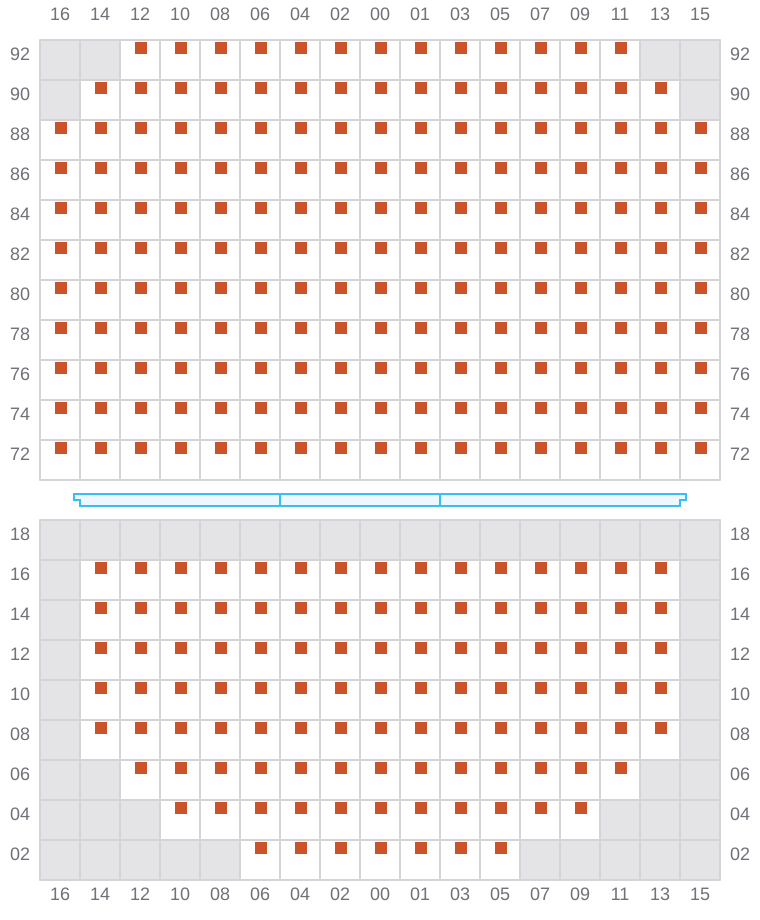

Bay 045 view and slots of GREENVILLE

047 (046)

  • ←
  • ✓

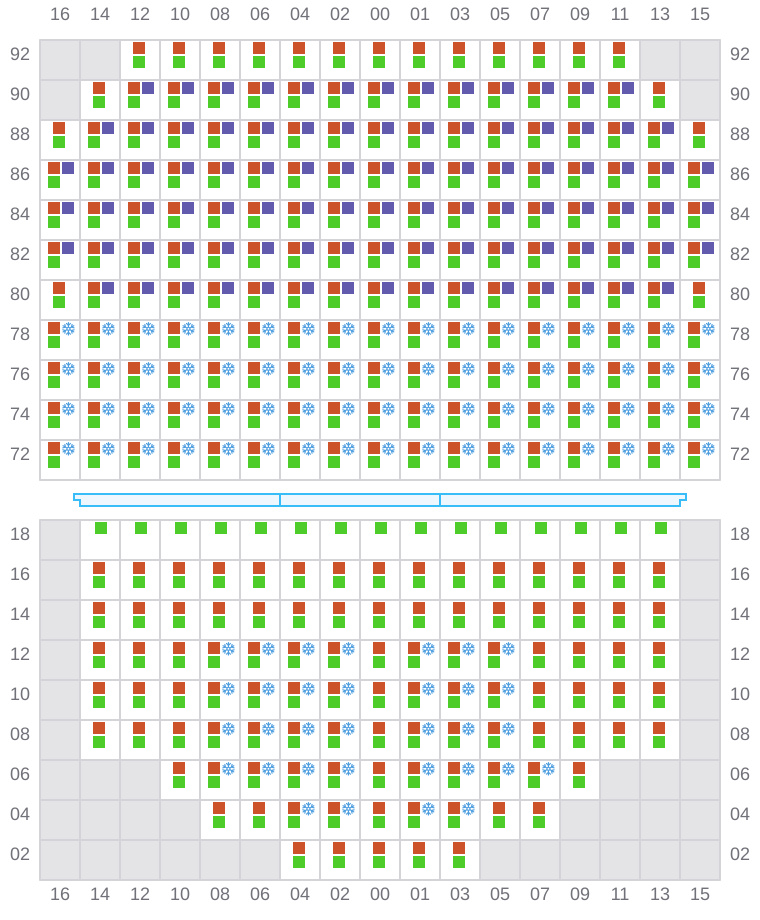

Bay 047 view and slots of GREENVILLE

049

  • →
  • ? / ?
  • ? / ?
  • ✓

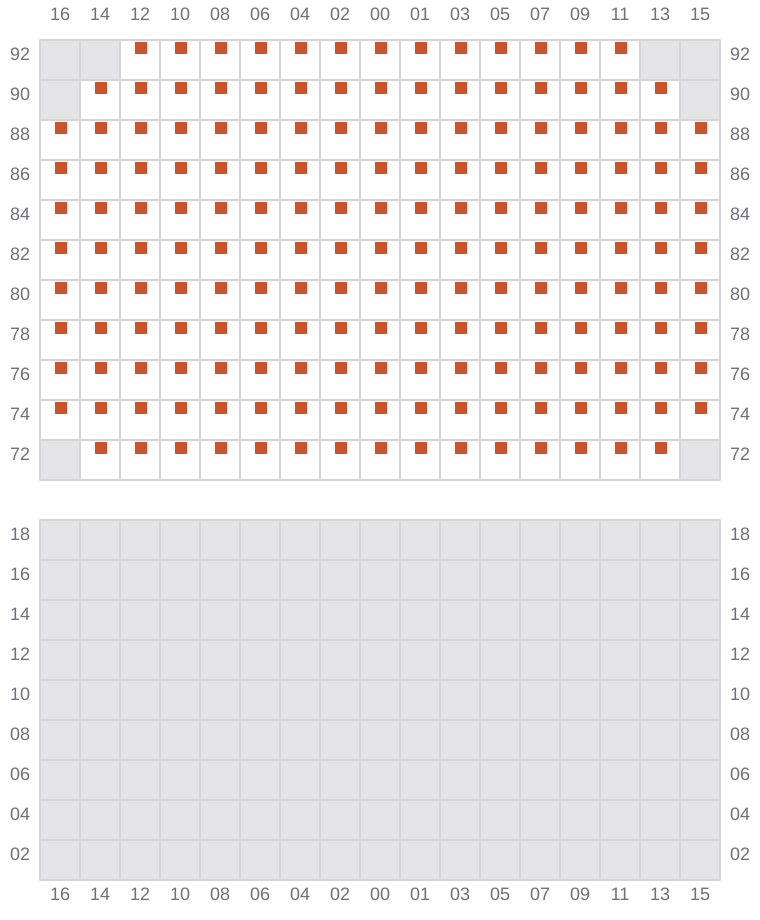

Bay 049 view and slots of GREENVILLE

051 (050)

  • ←
  • ? / ?
  • ? / ?
  • ✓

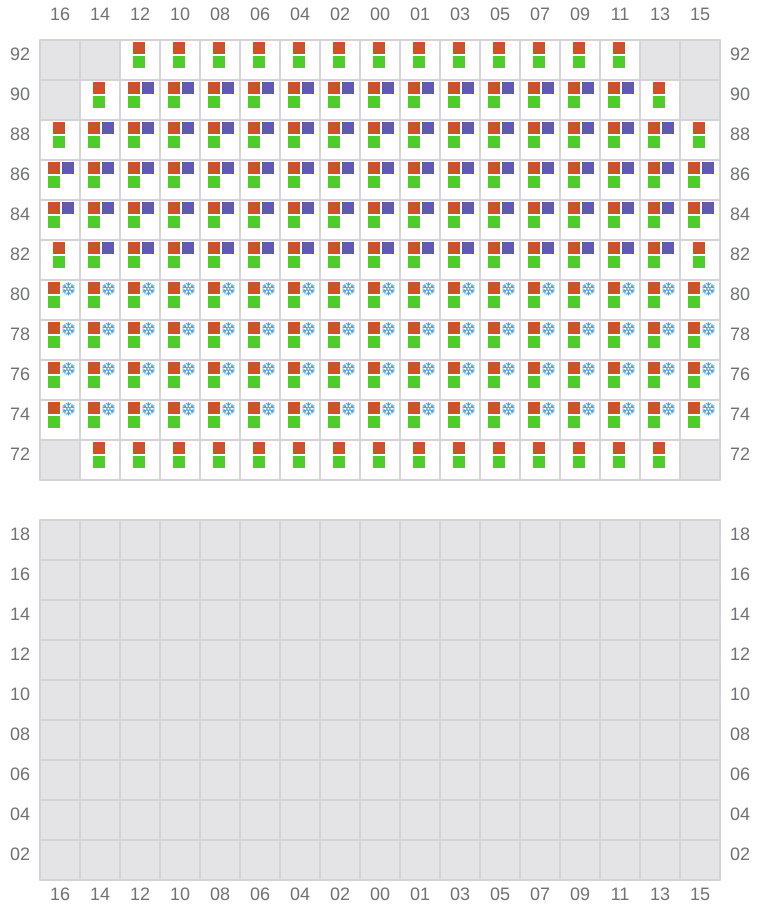

Bay 051 view and slots of GREENVILLE

053

  • →
  • ✓

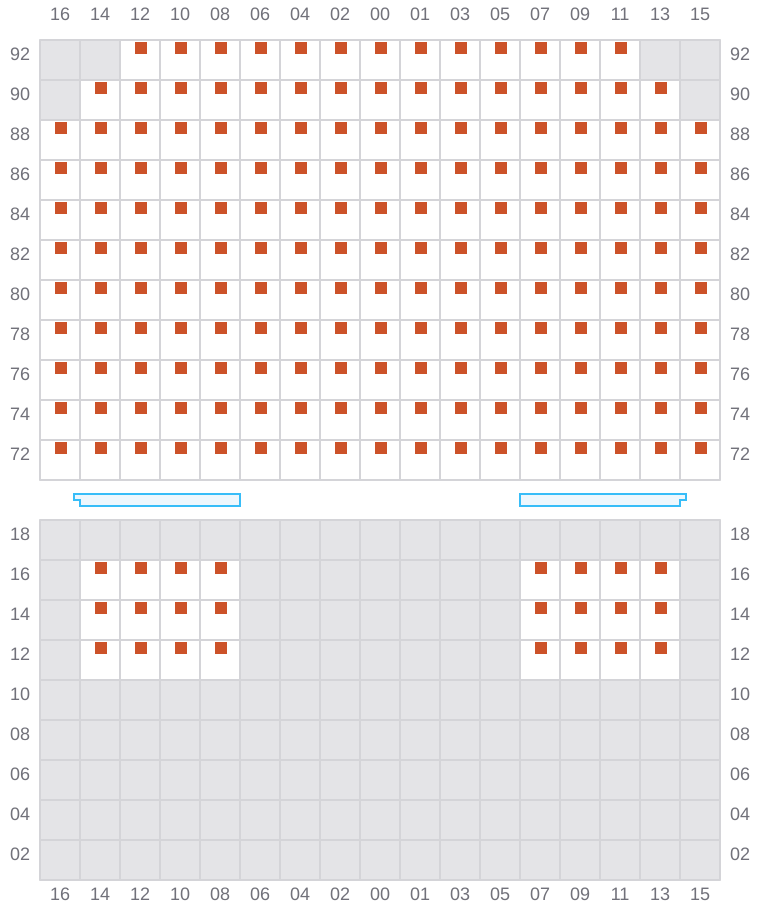

Bay 053 view and slots of GREENVILLE

055 (054)

  • ←
  • ✓

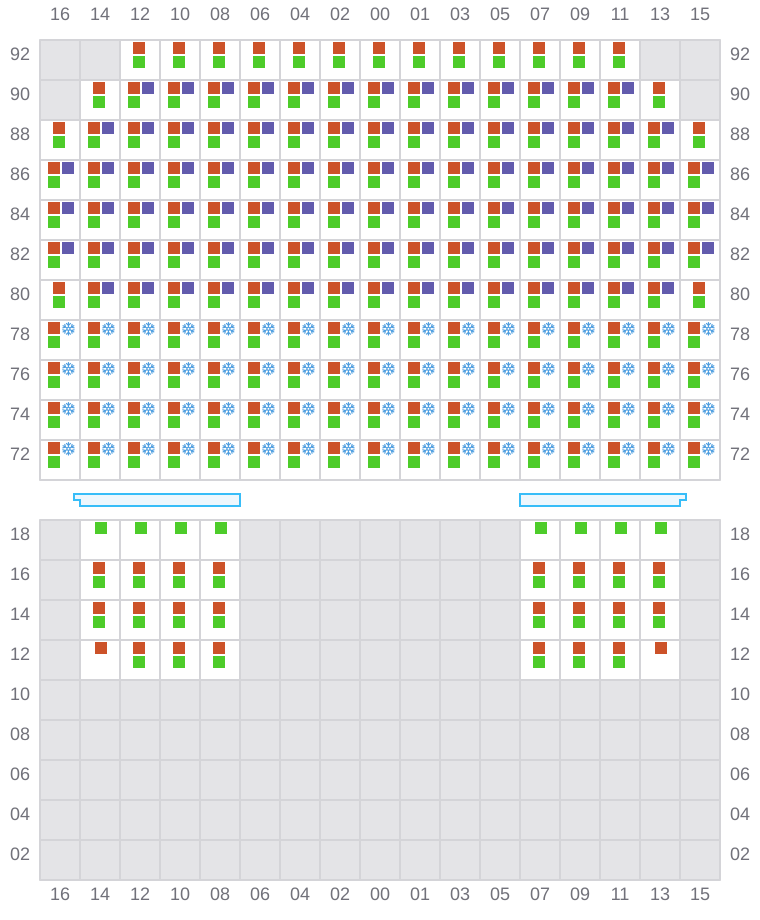

Bay 055 view and slots of GREENVILLE

057

  • →
  • ✓

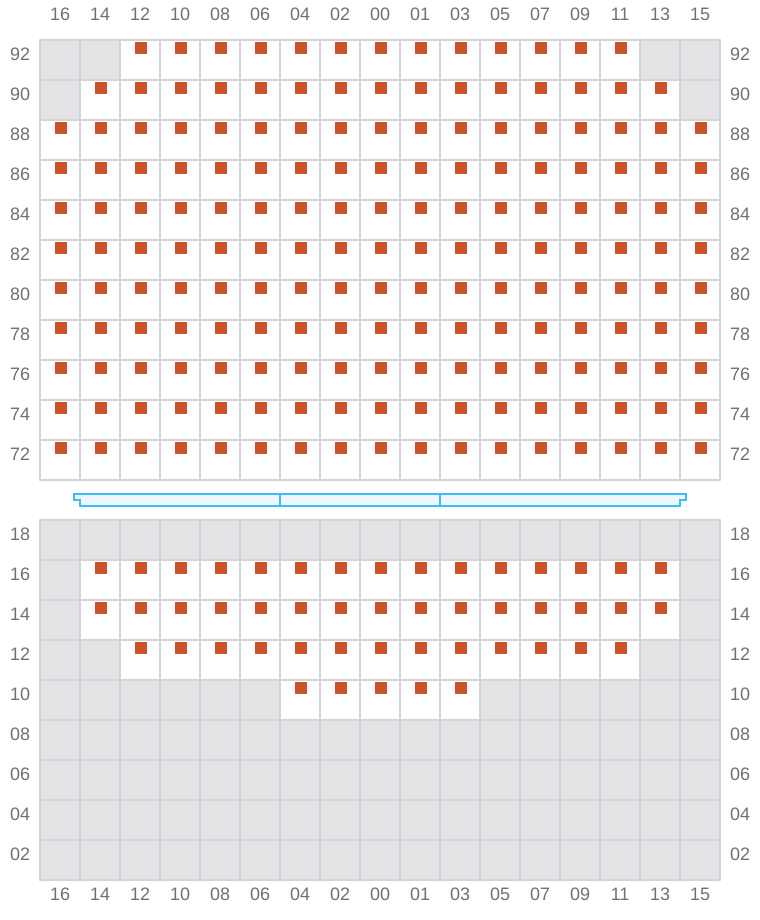

Bay 057 view and slots of GREENVILLE

059 (058)

  • ←
  • ✓

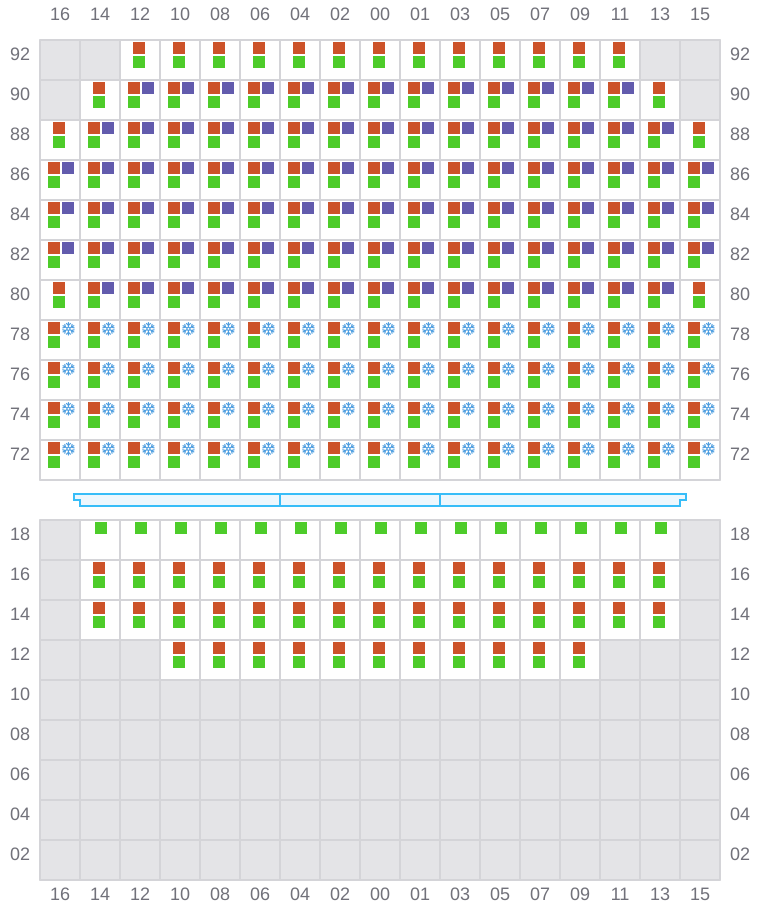

Bay 059 view and slots of GREENVILLE

061

  • →
  • ✓

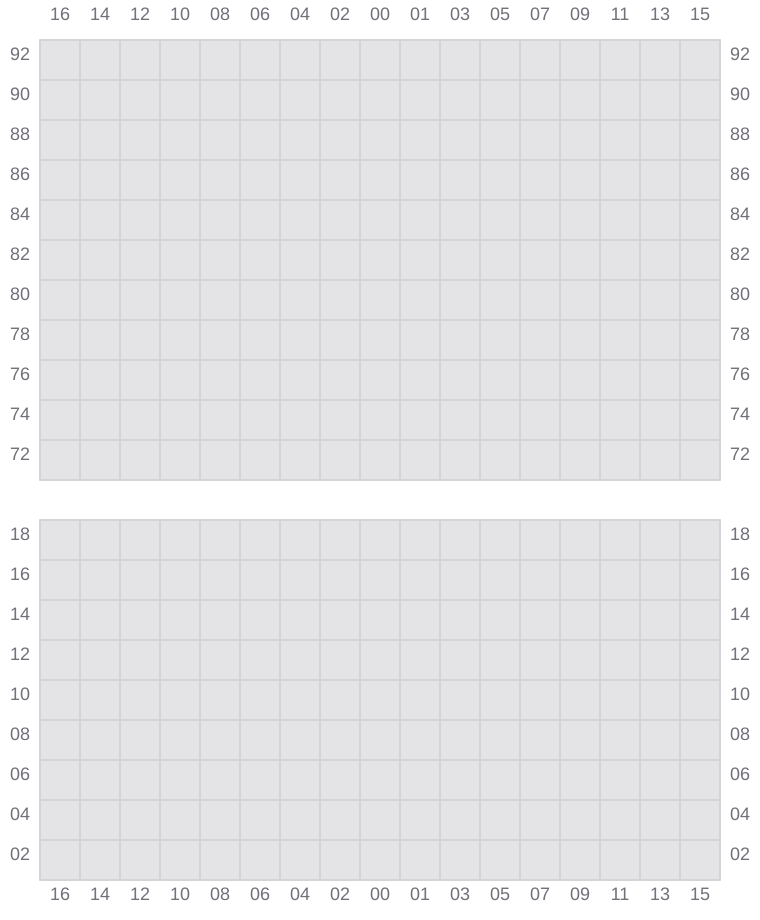

Bay 061 view and slots of GREENVILLE

063 (062)

  • ←
  • ? / ?
  • ? / ?
  • ✓

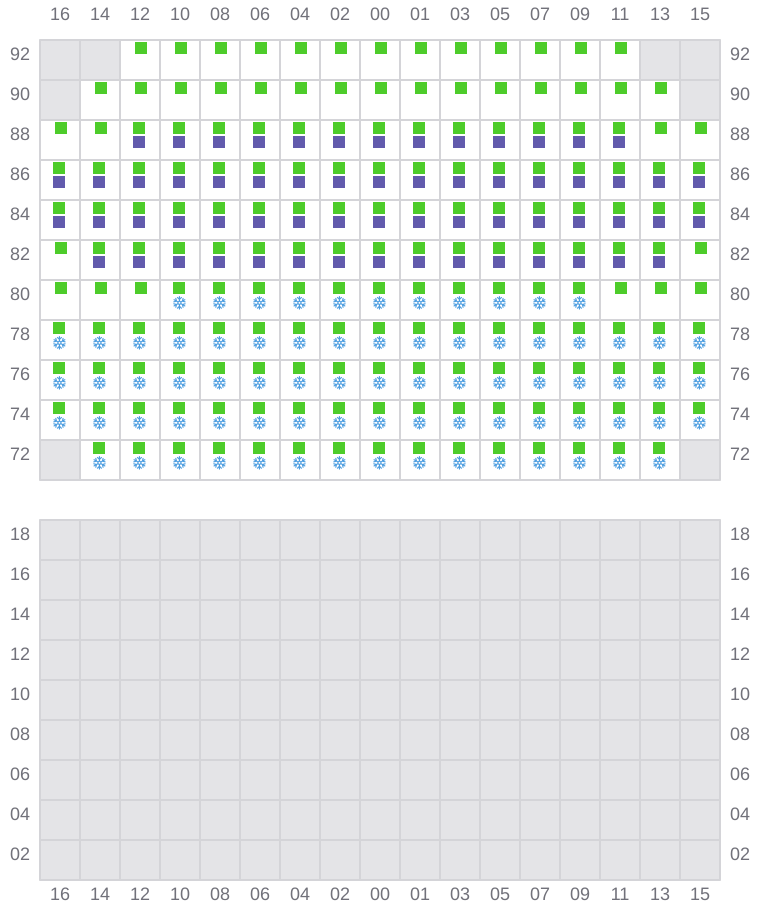

Bay 063 view and slots of GREENVILLE
