GRIFTBOR
9116008 | V2QP9 | CMA by *********************** Last update: Fri Nov 08 2024
General Info
Ship Name:GRIFTBOR
IMO Code:9116008
Call Sign:V2QP9
Line Operator:CMA
Class Name for Sister Ships:CMA
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:029
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:818
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

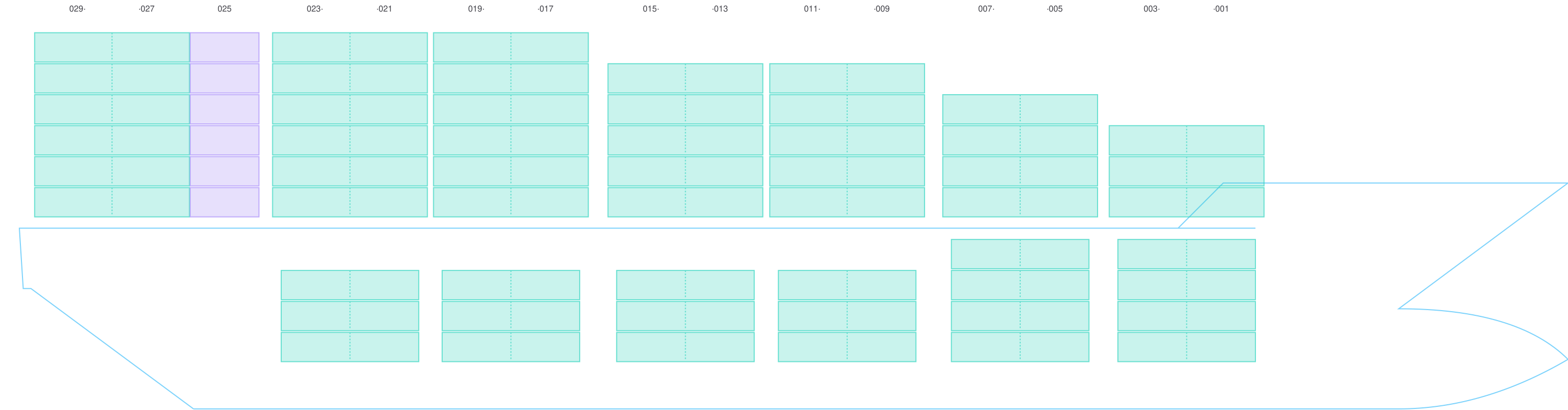

Side View

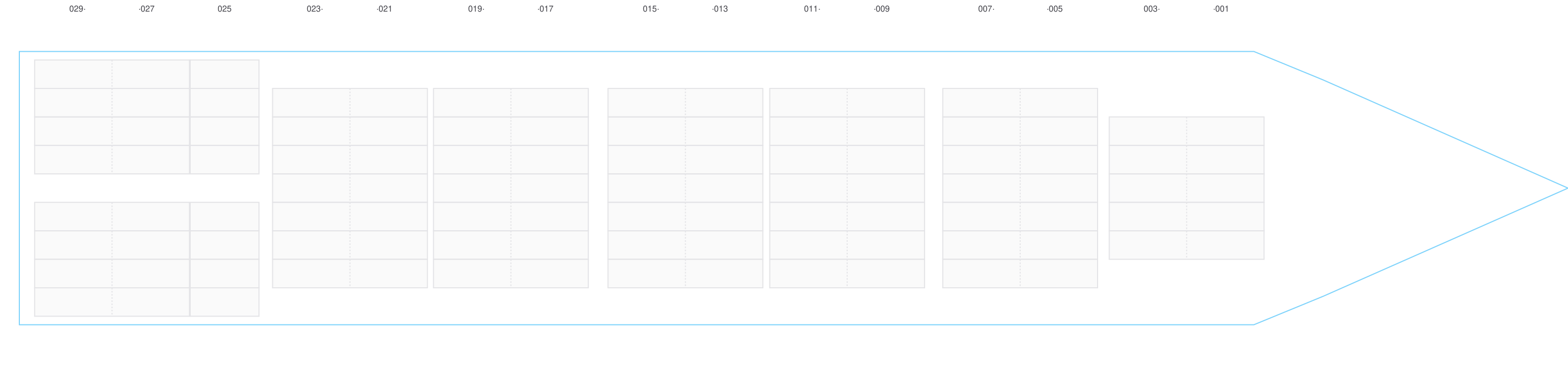

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

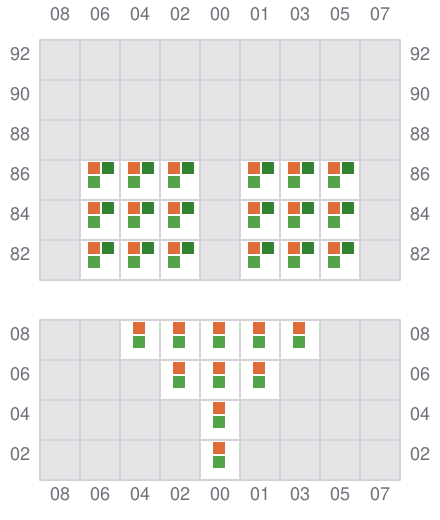

001 (002)
- →
- →

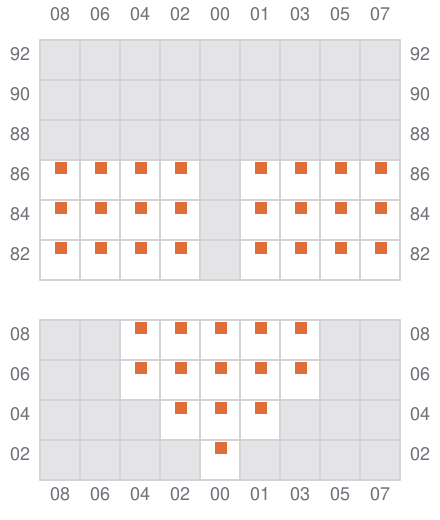

003
- ←
- →

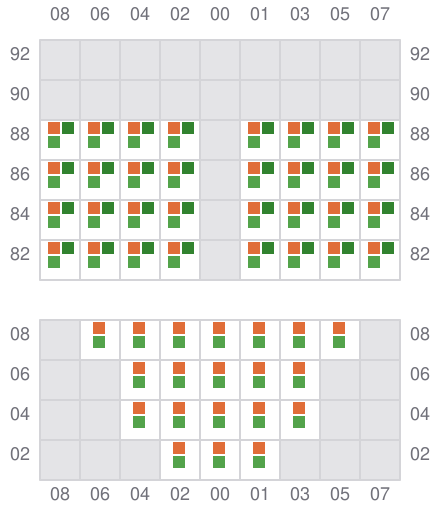

005 (006)
- →
- →
- →

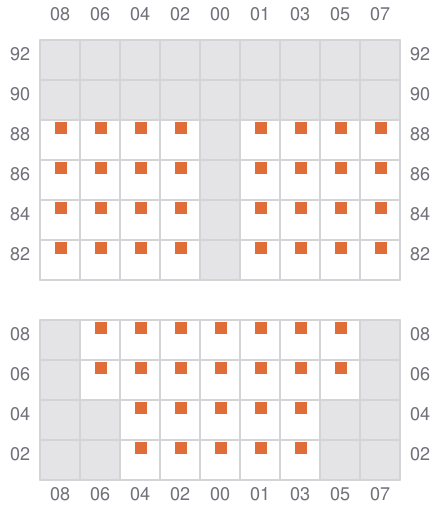

007
- ←
- →
- →

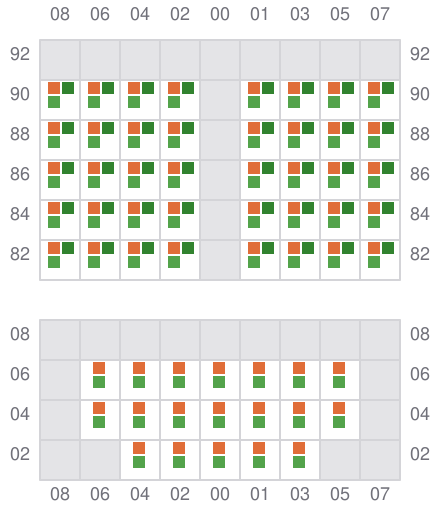

009 (010)
- →
- → / ←
- →

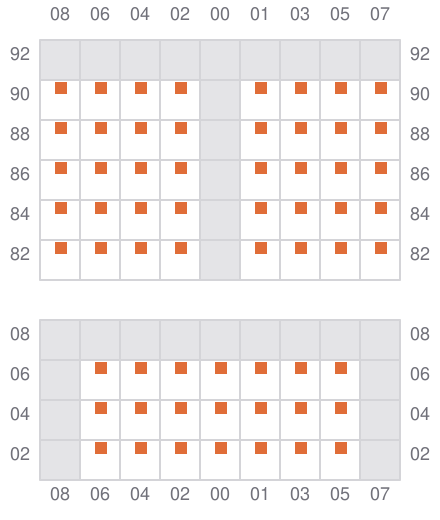

011
- ←
- →
- →

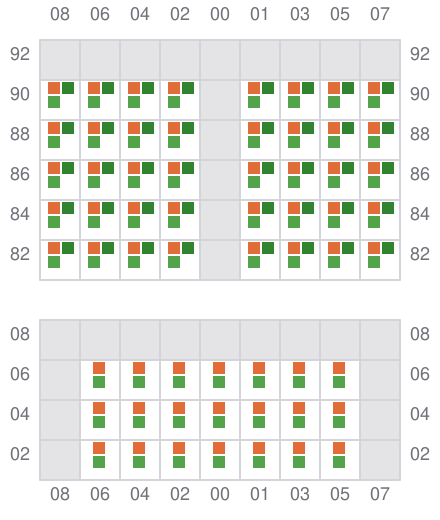

013 (014)
- →
- →
- →
015
- ←
- →
- →

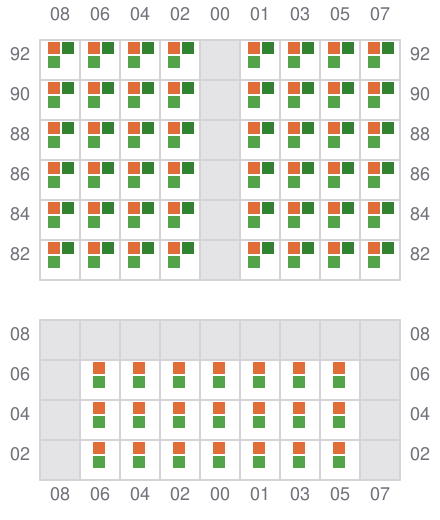

017 (018)
- →
- ← / →
- →

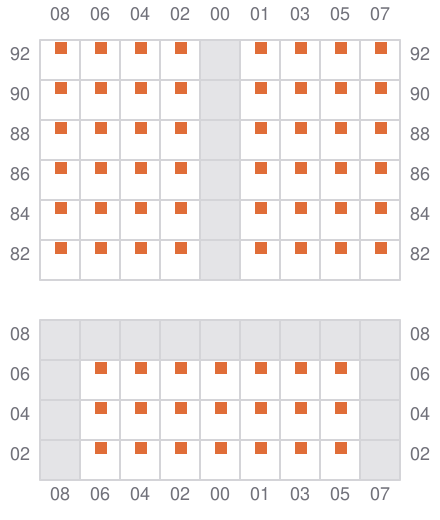

019
- ←
- →
- →

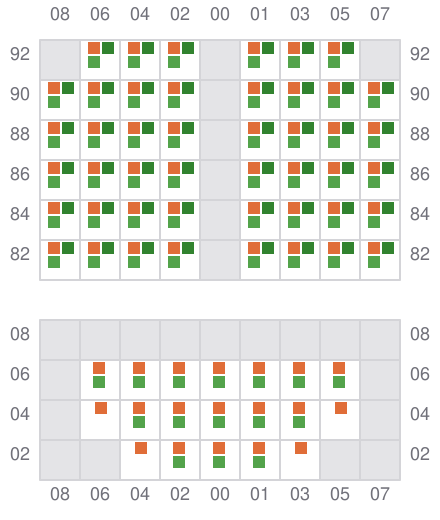

021 (022)
- →
- →
- →

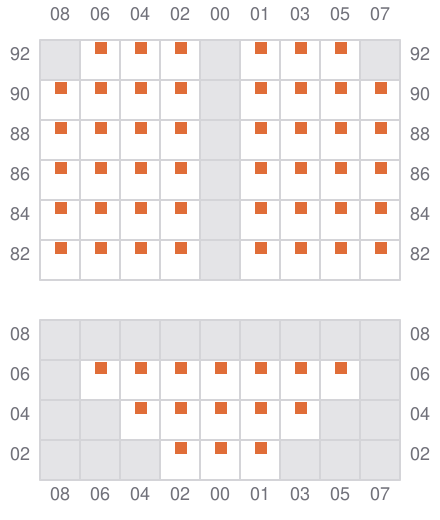

023
- ←
- →
- →
025
- → / ?
- → / ?
027 (028)
- → / ?
- → / ?
- → / ?

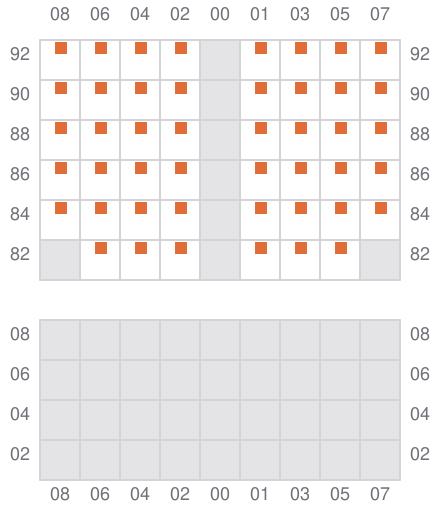

029
- ← / ?
- → / ?
