GROTON
9246310 | ELZY3 | 9246310 by ********* Last update: Sat Mar 16 2024
General Info
Ship Name:GROTON
IMO Code:9246310
Call Sign:ELZY3
Line Operator:9246310
Class Name for Sister Ships:58Q
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,648
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

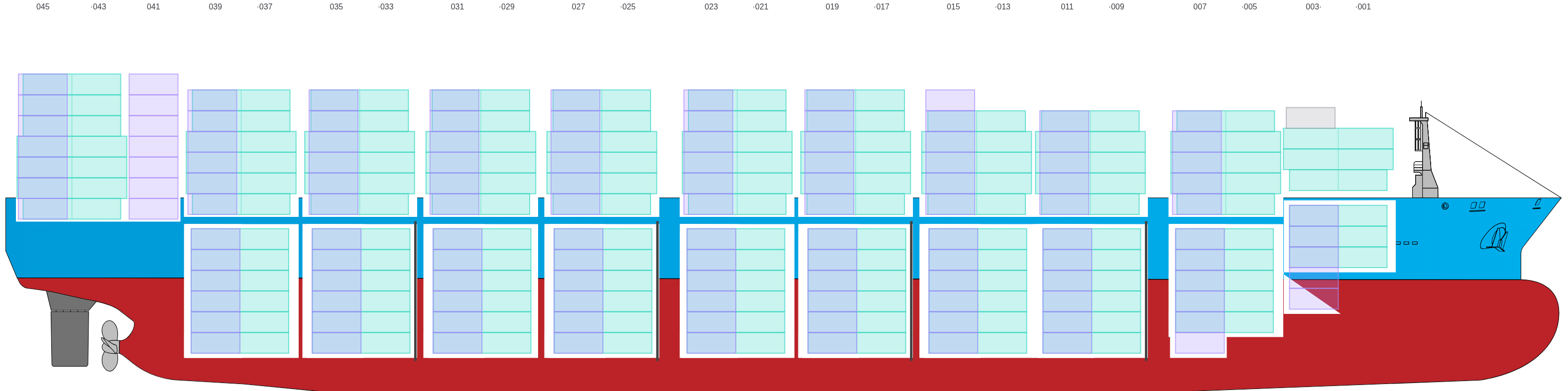

Side View
![Side view of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-sideView.png?v=1710615299768)

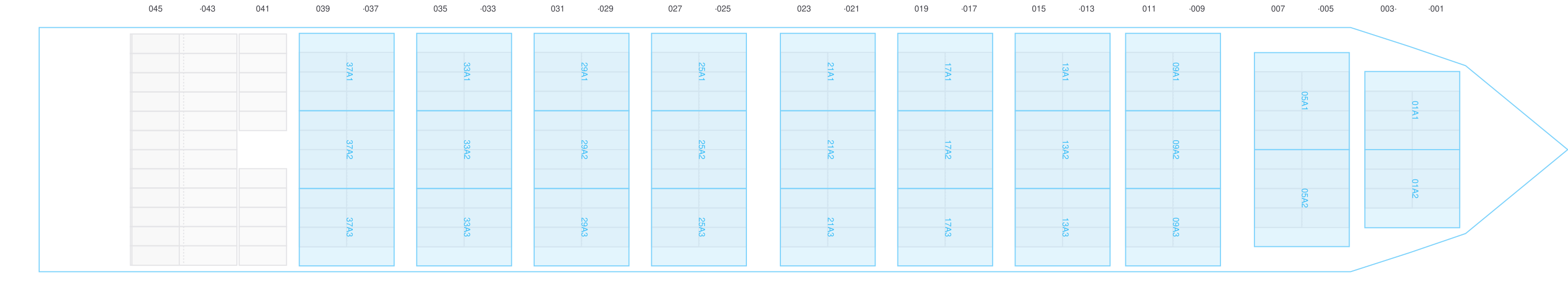

Hatch-Covers View
![Deck view of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-deckView.png?v=1710615299768)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

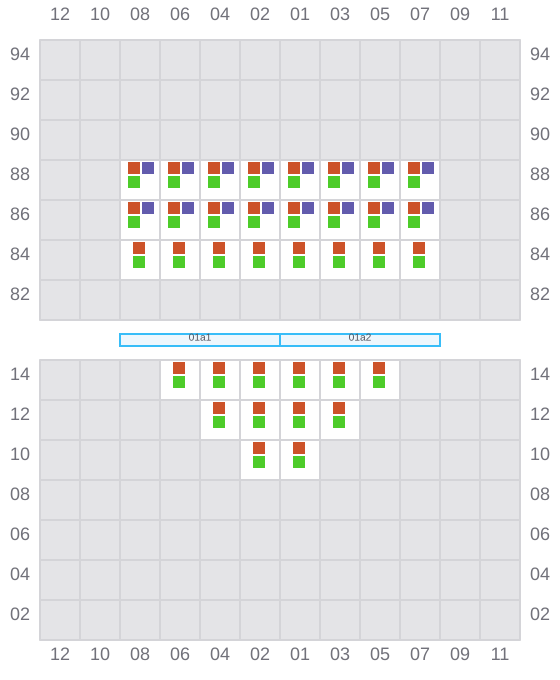

001 (002)
- →
![Bay 001 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b001.png?v=1710615299768)

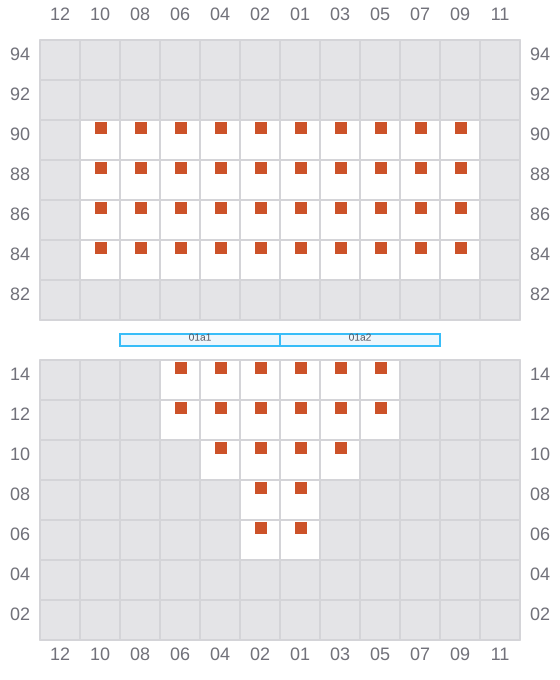

003
- ← / ?
![Bay 003 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b003.png?v=1710615299768)

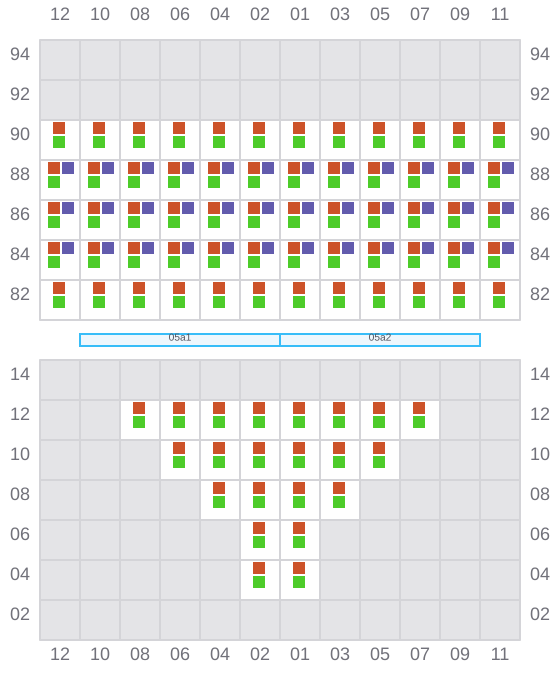

005 (006)
- →
![Bay 005 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b005.png?v=1710615299768)

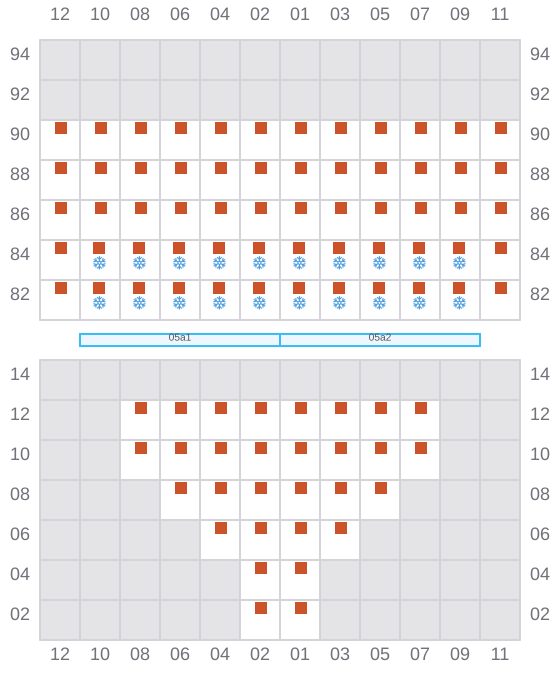

007
- → / ?
![Bay 007 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b007.png?v=1710615299768)

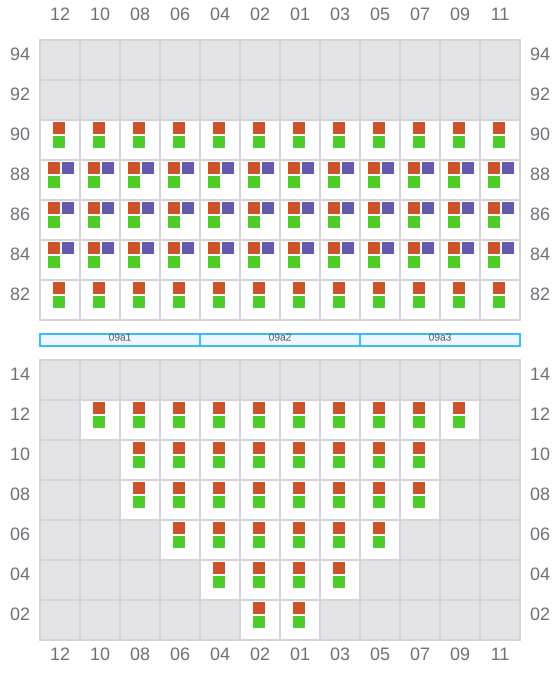

009 (010)
- →
![Bay 009 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b009.png?v=1710615299768)
011
- → / ?
![Bay 011 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b011.png?v=1710615299768)

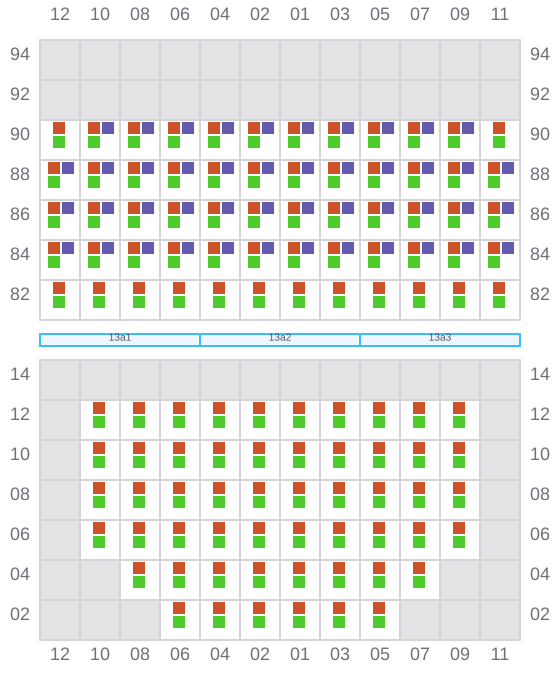

013 (014)
- →
![Bay 013 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b013.png?v=1710615299768)

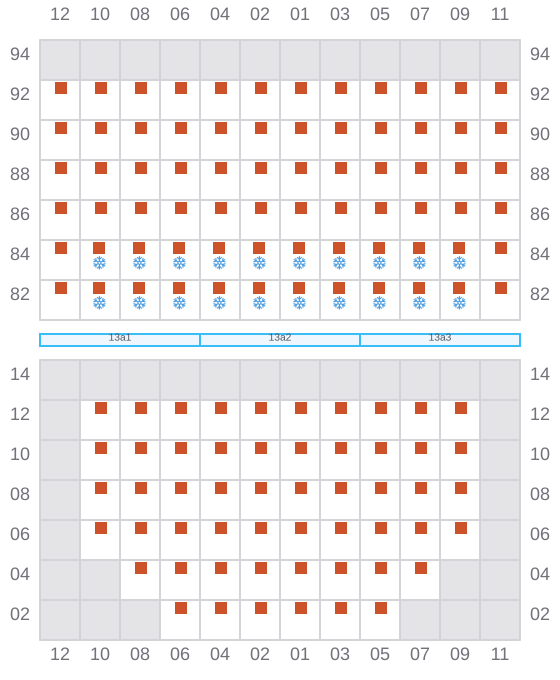

015
- → / ?
![Bay 015 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b015.png?v=1710615299768)
017 (018)
- →
![Bay 017 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b017.png?v=1710615299768)

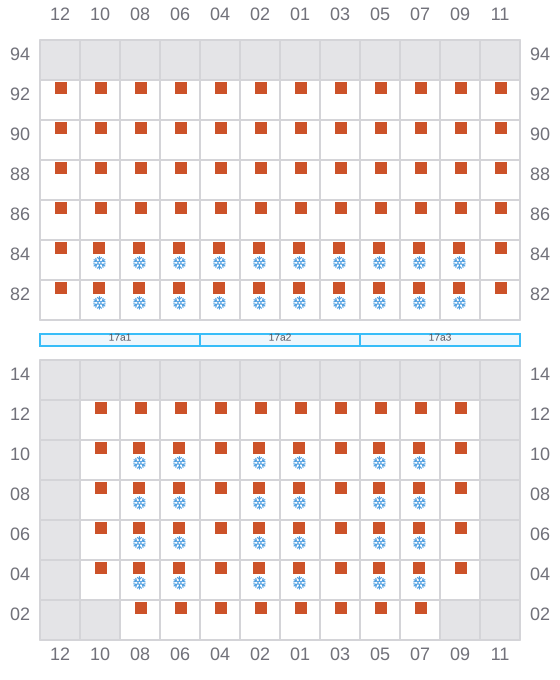

019
- →
![Bay 019 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b019.png?v=1710615299768)

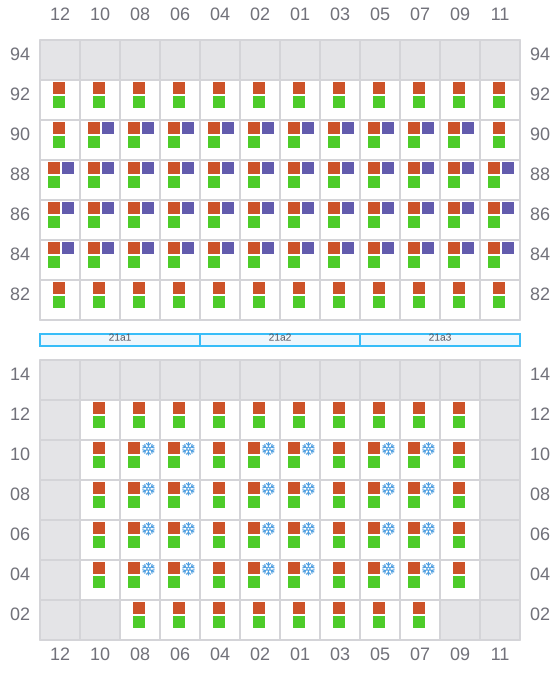

021 (022)
- →
- ? / ←
![Bay 021 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b021.png?v=1710615299768)

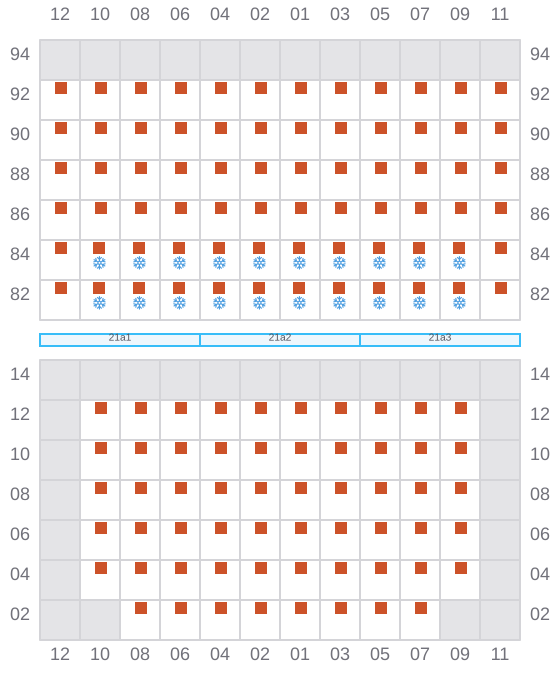

023
- → / ?
![Bay 023 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b023.png?v=1710615299768)
025 (026)
- →
![Bay 025 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b025.png?v=1710615299768)
027
- →
![Bay 027 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b027.png?v=1710615299768)
029 (030)
- →
- ? / ←
![Bay 029 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b029.png?v=1710615299768)
031
- → / ?
![Bay 031 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b031.png?v=1710615299768)

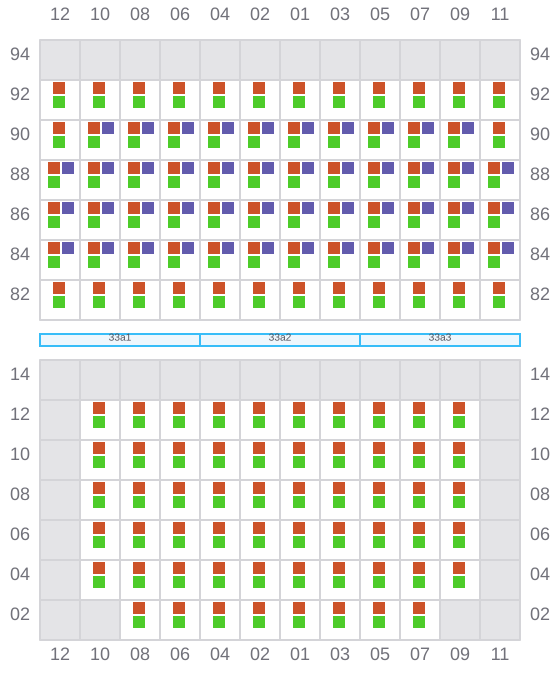

033 (034)
- →
![Bay 033 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b033.png?v=1710615299768)
035
- →
![Bay 035 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b035.png?v=1710615299768)

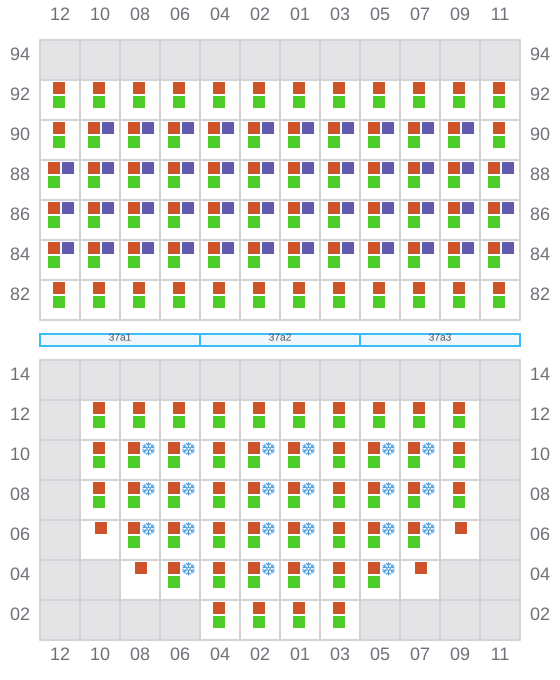

037 (038)
- →
- ? / ←
![Bay 037 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b037.png?v=1710615299768)
039
- → / ?
![Bay 039 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b039.png?v=1710615299768)
041
![Bay 041 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b041.png?v=1710615299768)

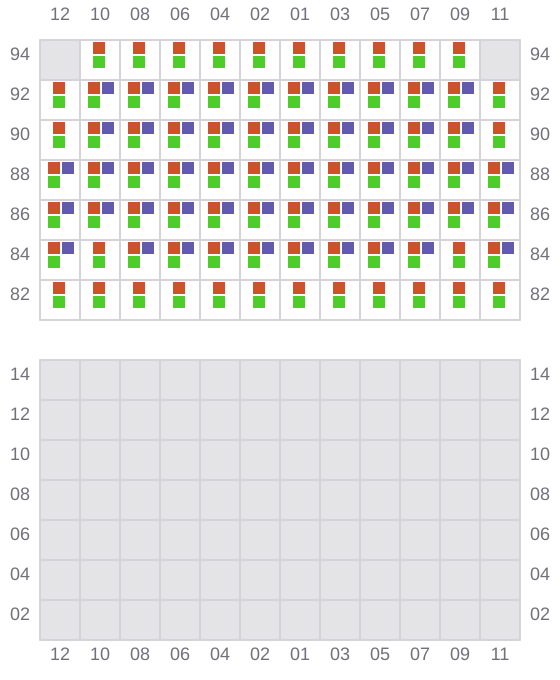

043 (044)
- → / ?
![Bay 043 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b043.png?v=1710615299768)

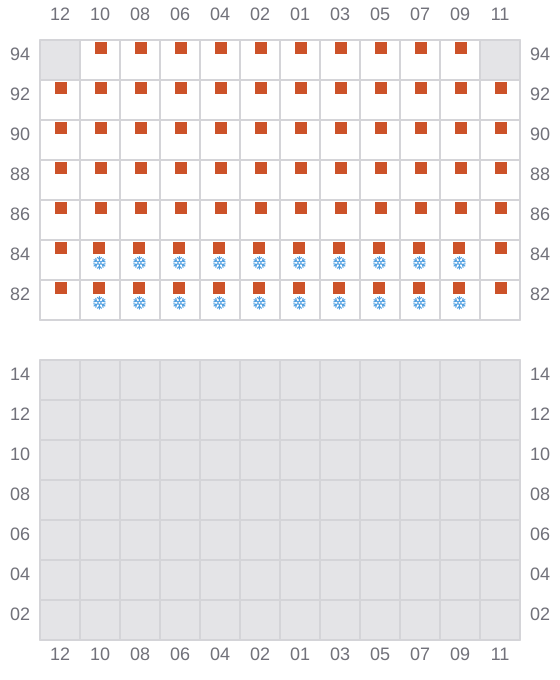

045
- → / ?
![Bay 045 view and slots of GROTON](/vessel-images/4a55f87f-ce78-4af6-af90-2d730f960c98-b045.png?v=1710615299768)
