GSL ALICE
9509164 | D5FN2 | MSK by ************************** Last update: Sat Jun 24 2023
General Info
Ship Name:GSL ALICE
IMO Code:9509164
Call Sign:D5FN2
Line Operator:MSK
Class Name for Sister Ships:NMC
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,404
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

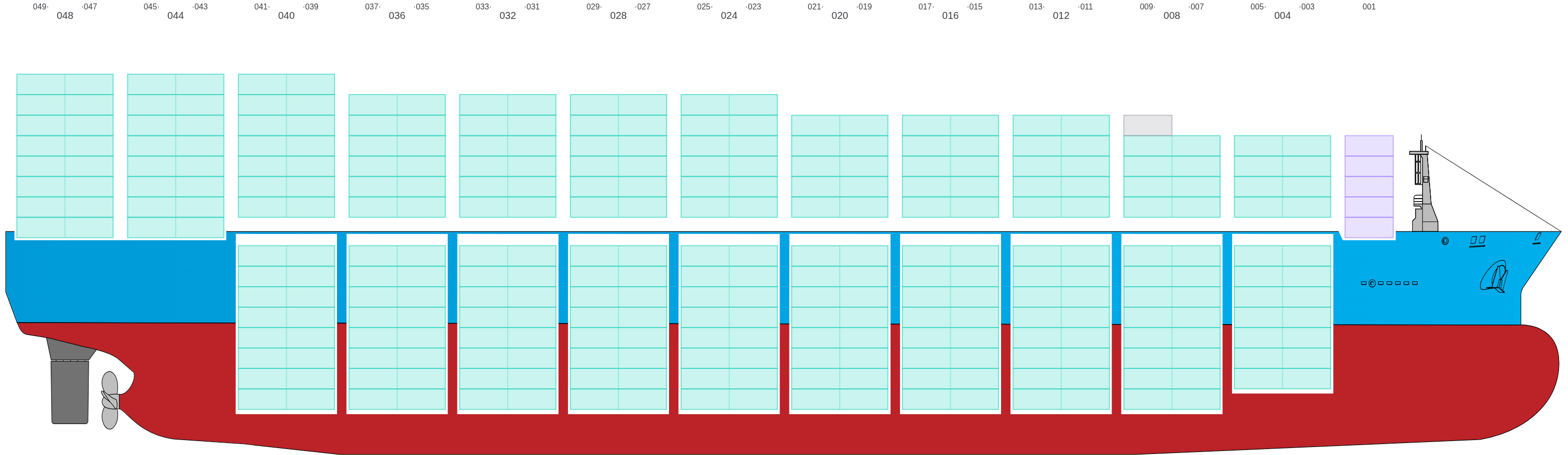

Side View
![Side view of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-sideView.png?v=1687628551980)

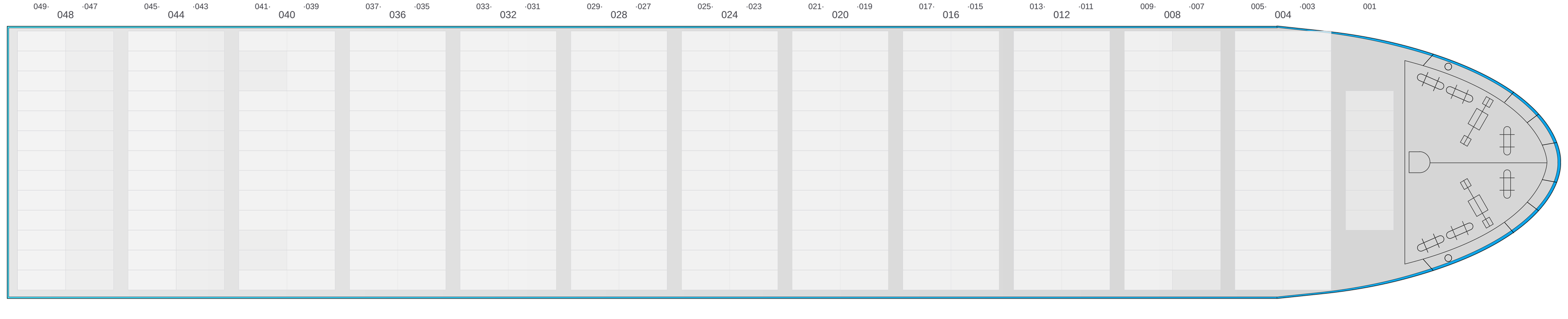

Hatch-Covers View
![Deck view of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-deckView.png?v=1687628551980)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

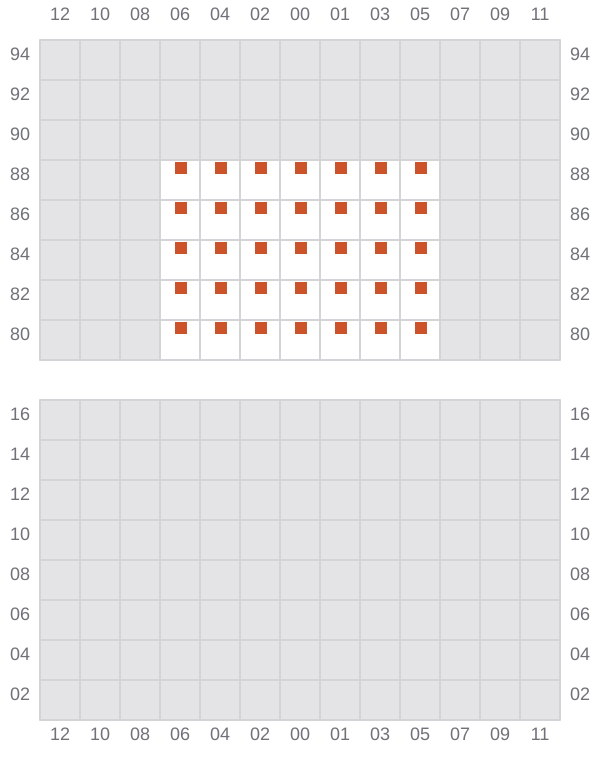

001
![Bay 001 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b001.png?v=1687628551980)

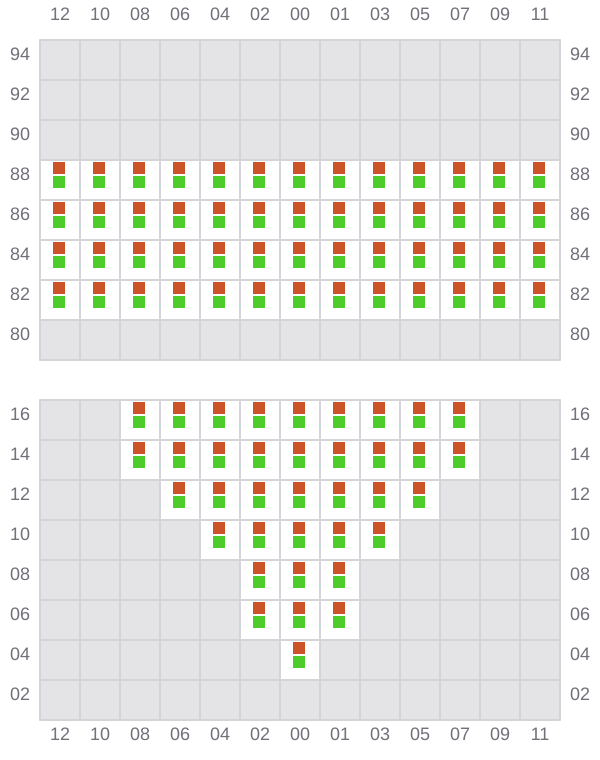

003 (004)
- →
![Bay 003 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b003.png?v=1687628551980)

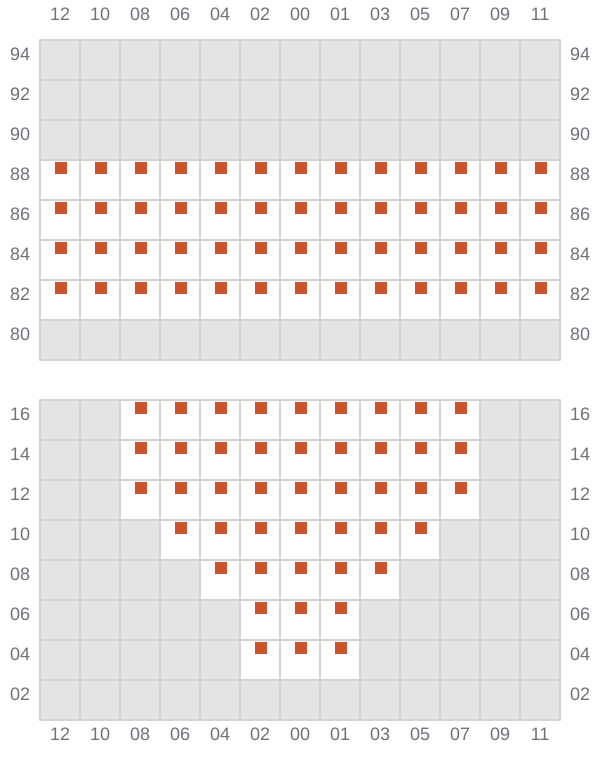

005
- ←
![Bay 005 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b005.png?v=1687628551980)

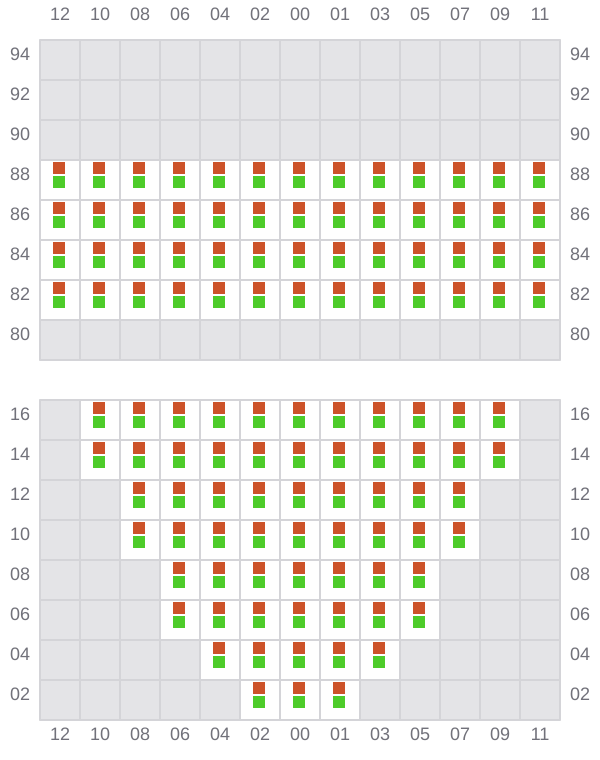

007 (008)
- →
![Bay 007 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b007.png?v=1687628551980)

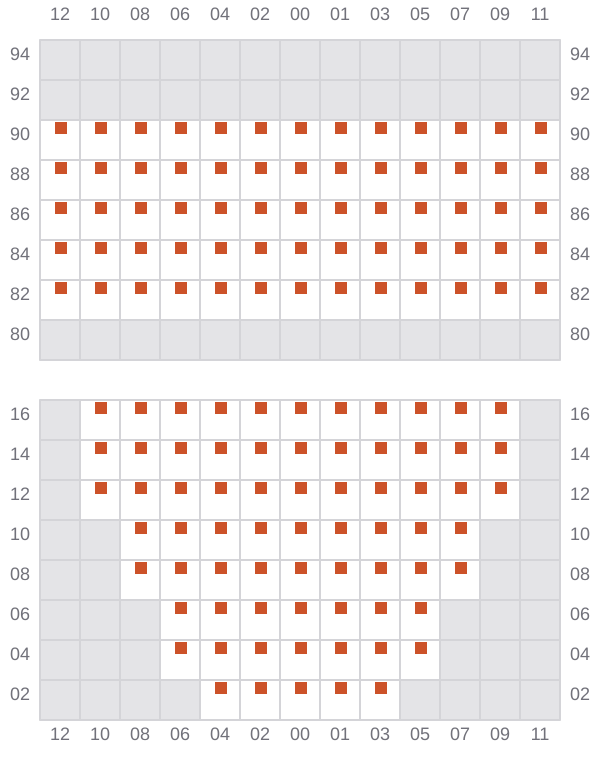

009
- ←
![Bay 009 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b009.png?v=1687628551980)

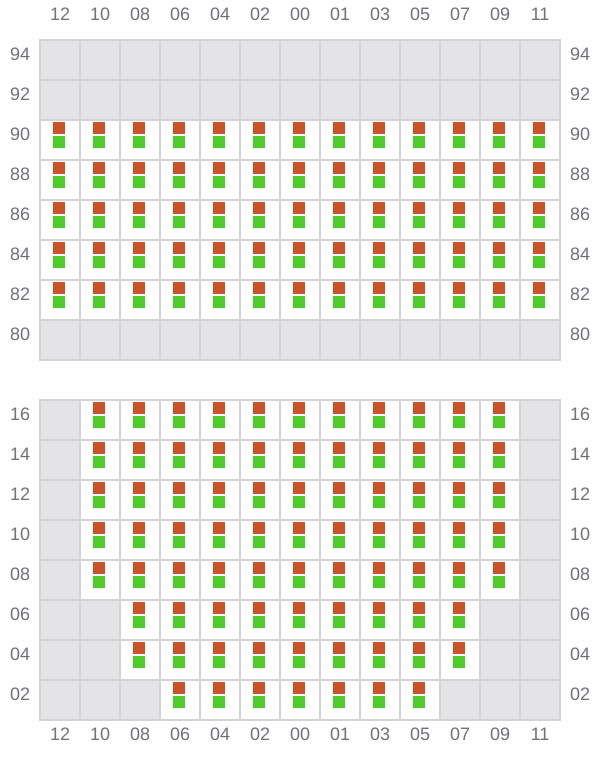

011 (012)
- →
![Bay 011 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b011.png?v=1687628551980)

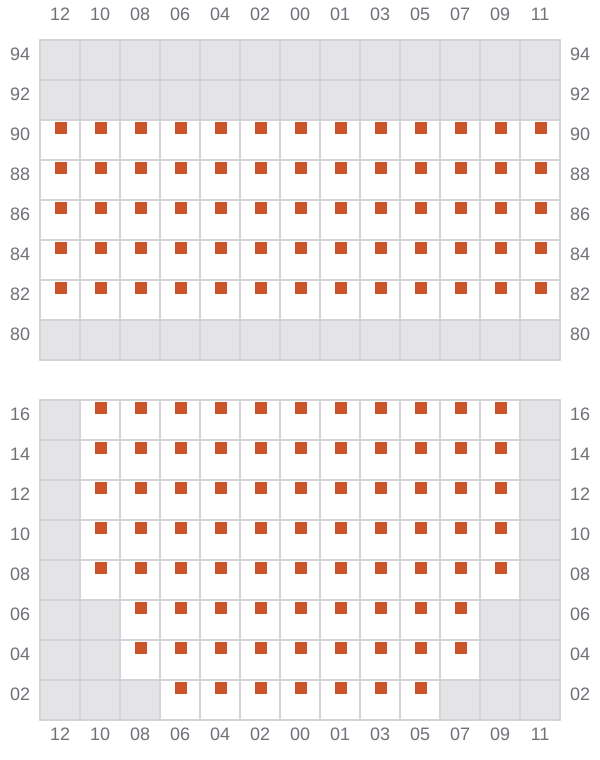

013
- ←
![Bay 013 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b013.png?v=1687628551980)

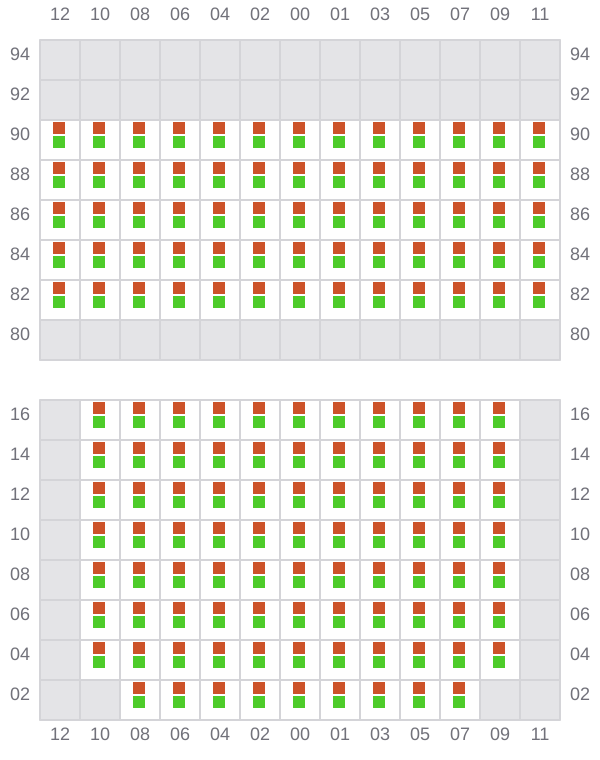

015 (016)
- →
![Bay 015 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b015.png?v=1687628551980)
017
- ←
![Bay 017 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b017.png?v=1687628551980)
019 (020)
- →
![Bay 019 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b019.png?v=1687628551980)

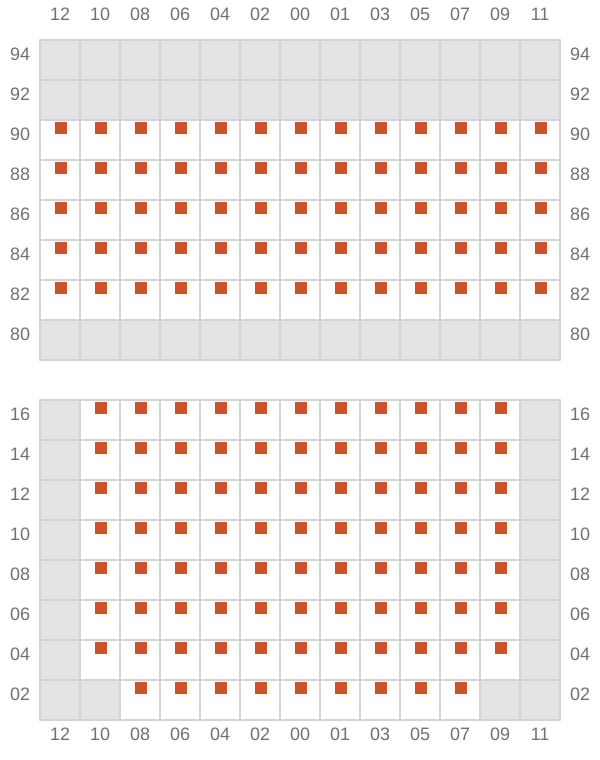

021
- ←
![Bay 021 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b021.png?v=1687628551980)

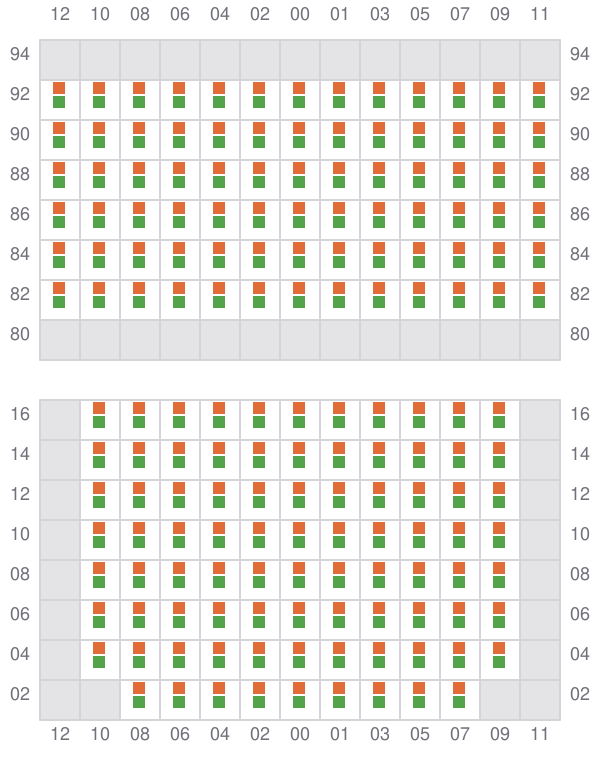

023 (024)
- →
![Bay 023 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b023.png?v=1687628551980)
025
- ←
![Bay 025 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b025.png?v=1687628551980)

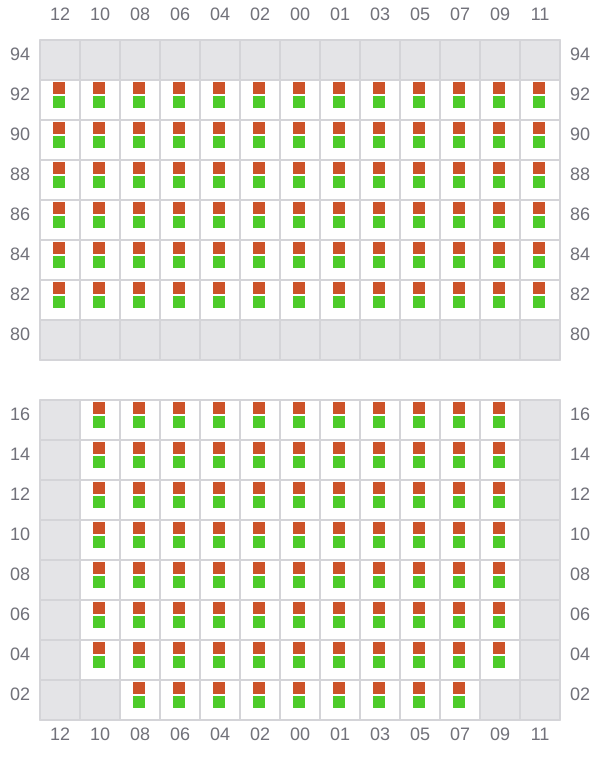

027 (028)
- →
![Bay 027 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b027.png?v=1687628551980)

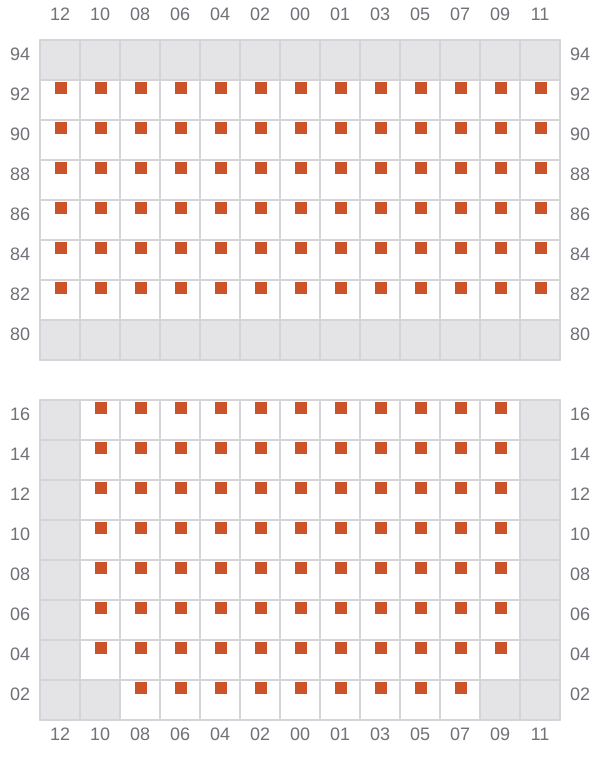

029
- ←
![Bay 029 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b029.png?v=1687628551980)
031 (032)
- →
![Bay 031 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b031.png?v=1687628551980)
033
- ←
![Bay 033 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b033.png?v=1687628551980)
035 (036)
- →
![Bay 035 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b035.png?v=1687628551980)
037
- ←
![Bay 037 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b037.png?v=1687628551980)

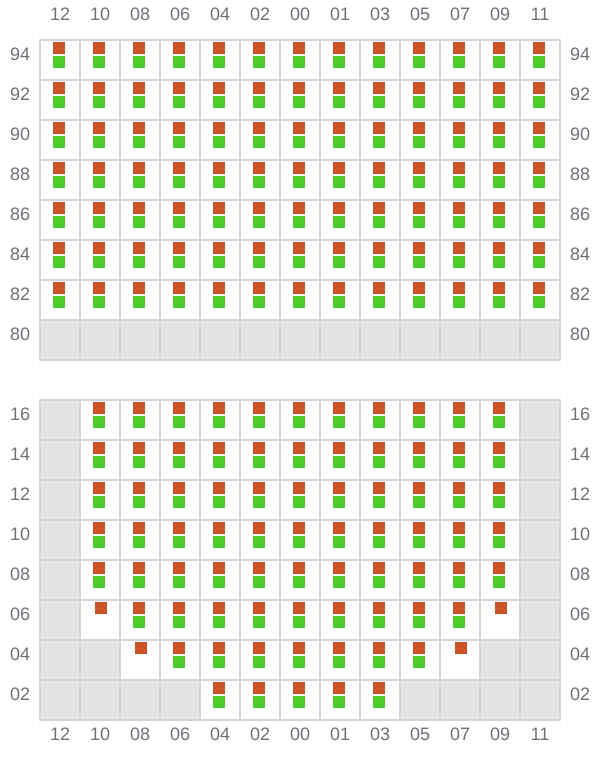

039 (040)
- →
![Bay 039 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b039.png?v=1687628551980)
041
- ←
![Bay 041 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b041.png?v=1687628551980)

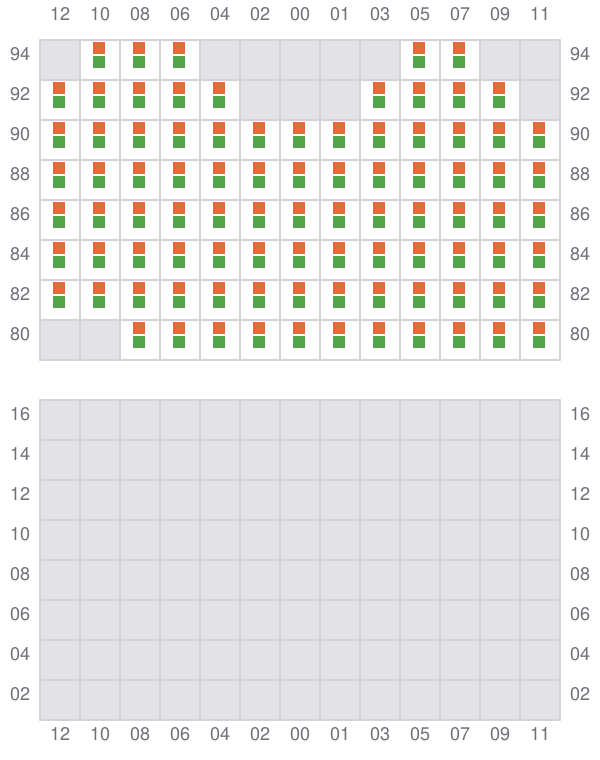

043 (044)
- → / ?
![Bay 043 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b043.png?v=1687628551980)

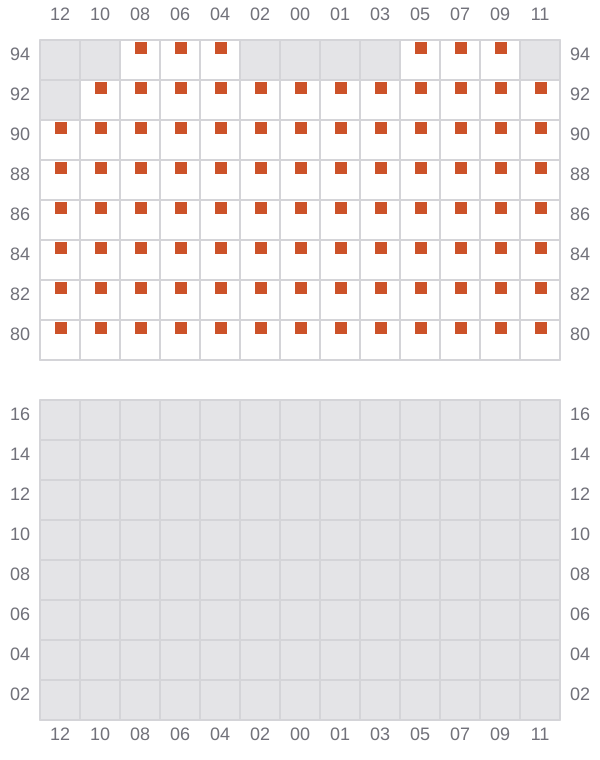

045
- ← / ?
![Bay 045 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b045.png?v=1687628551980)

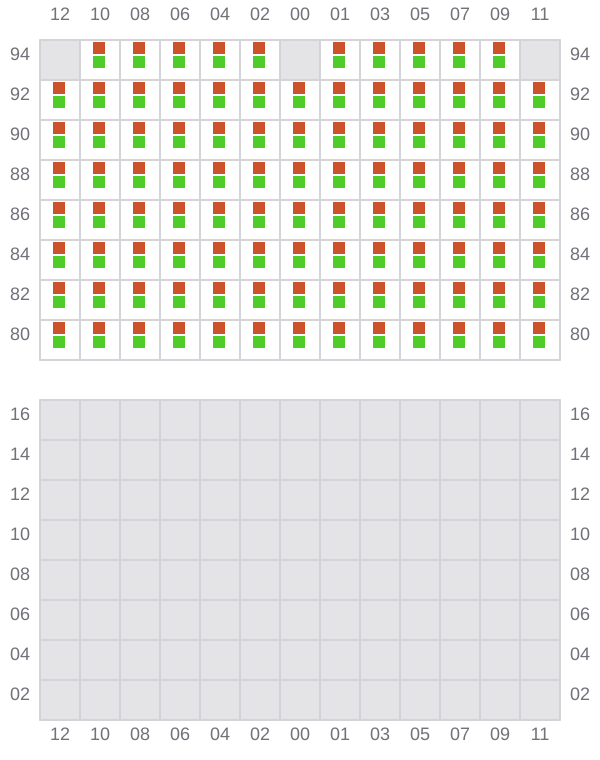

047 (048)
- → / ?
![Bay 047 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b047.png?v=1687628551980)

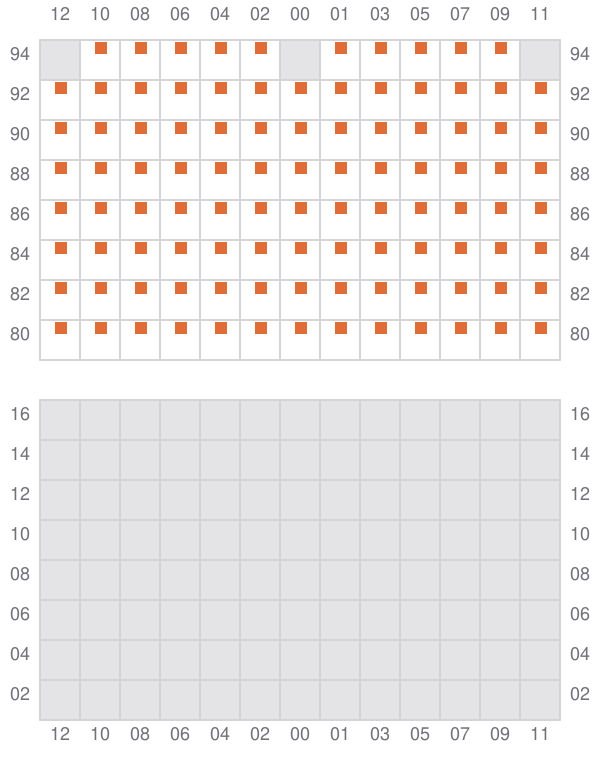

049
- ← / ?
![Bay 049 view and slots of GSL ALICE](/vessel-images/0f8b416b-59c3-4c8b-8bc8-353c138890c3-b049.png?v=1687628551980)
