GSL CHATEAU DIF
9335202 | 9HA5221 | COS by ************************** Last update: Sat Jul 01 2023
General Info
Ship Name:GSL CHATEAU DIF
IMO Code:9335202
Call Sign:9HA5221
Line Operator:COS
Class Name for Sister Ships:CNK
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:055
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,243
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

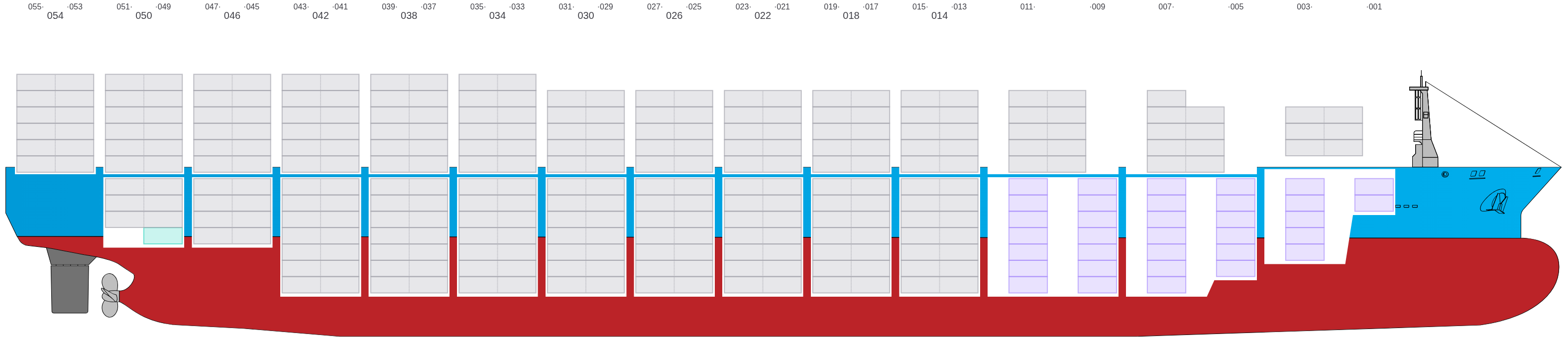

Side View
![Side view of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-sideView.png?v=1688233726820)

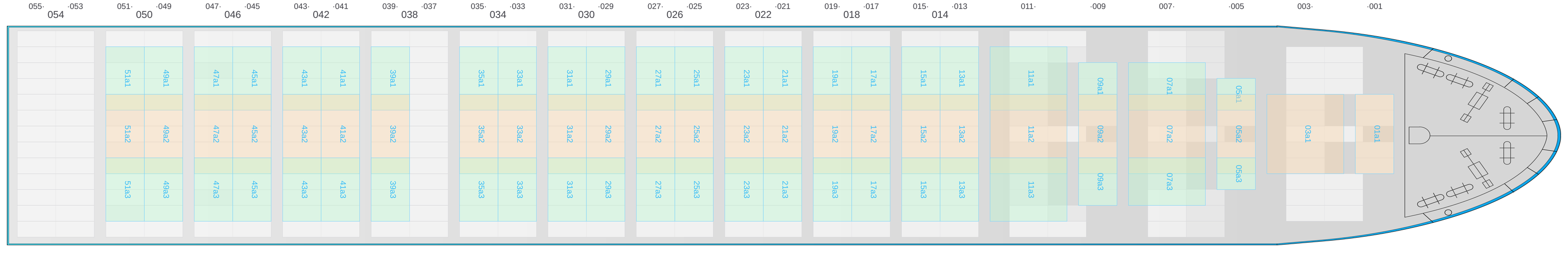

Hatch-Covers View
![Deck view of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-deckView.png?v=1688233726820)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

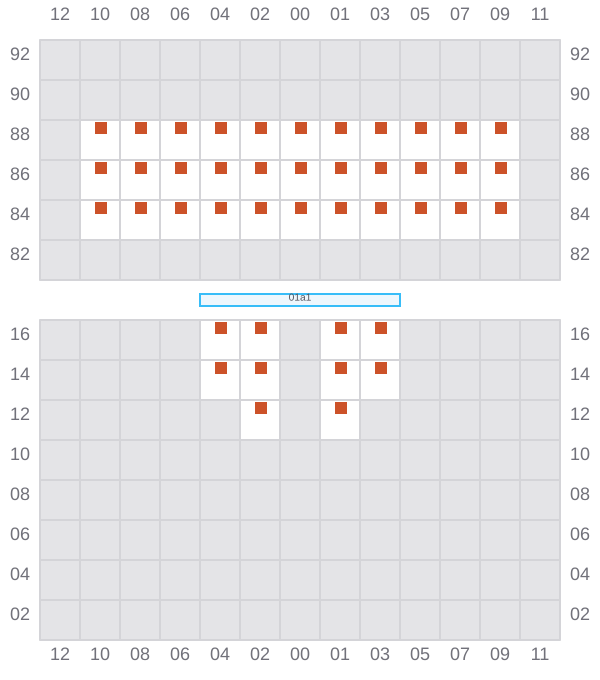

001
- → / ?
![Bay 001 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b001.png?v=1688233726820)

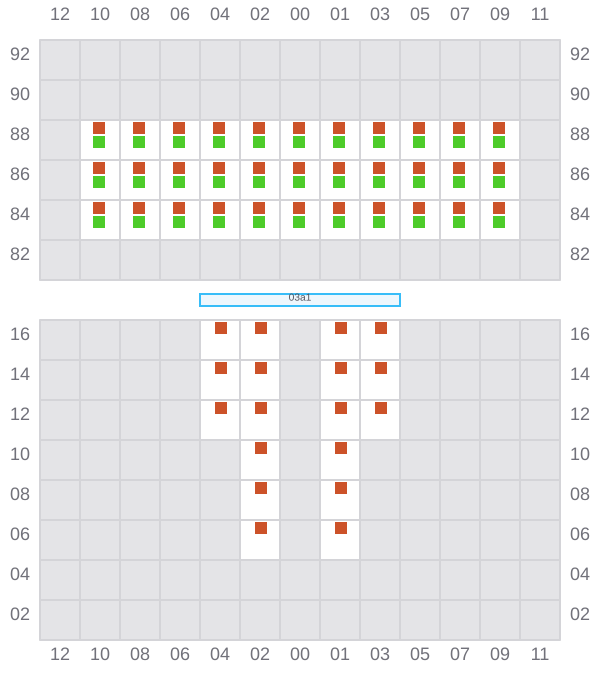

003 (002)
- ← / ?
![Bay 003 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b003.png?v=1688233726820)
005
- → / ?
![Bay 005 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b005.png?v=1688233726820)

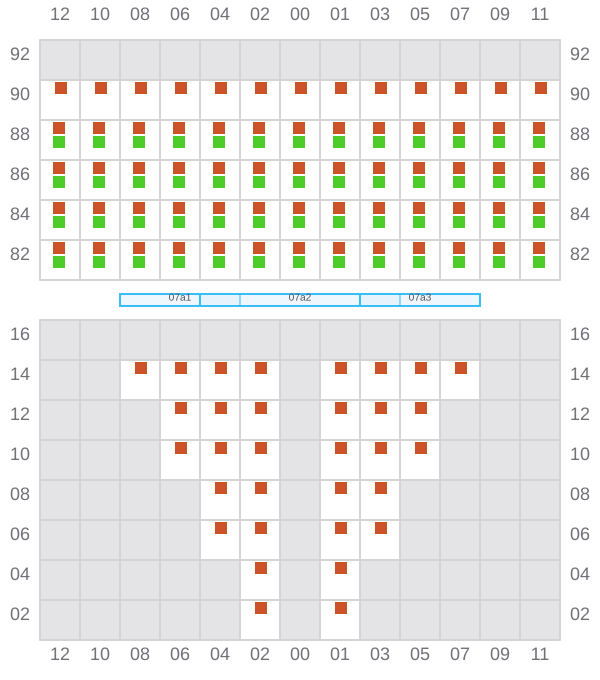

007 (006)
- ← / ?
![Bay 007 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b007.png?v=1688233726820)

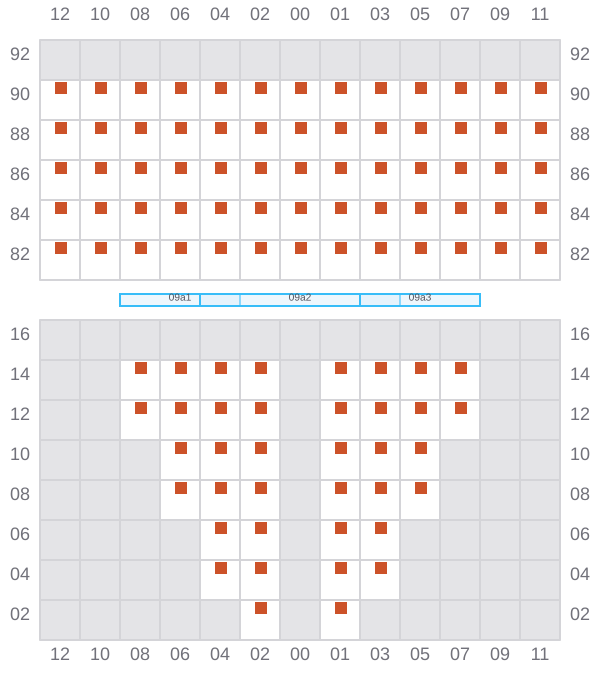

009
- → / ?
![Bay 009 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b009.png?v=1688233726820)

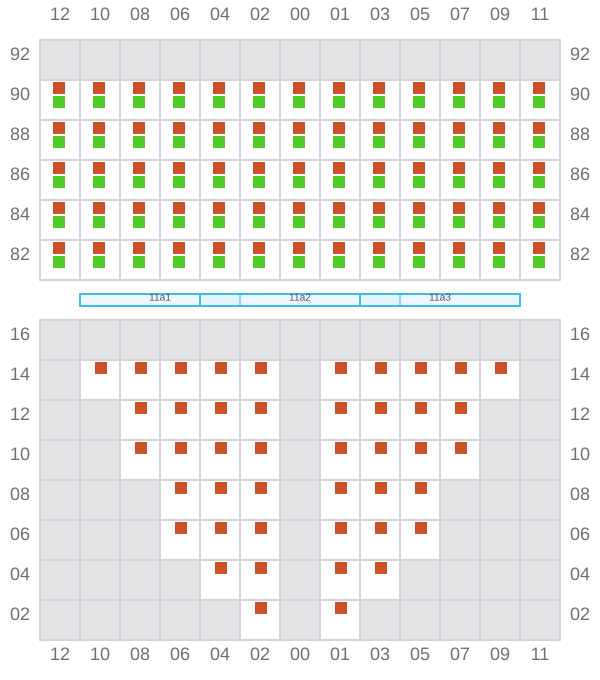

011 (010)
- ← / ?
![Bay 011 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b011.png?v=1688233726820)
013
- →
![Bay 013 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b013.png?v=1688233726820)

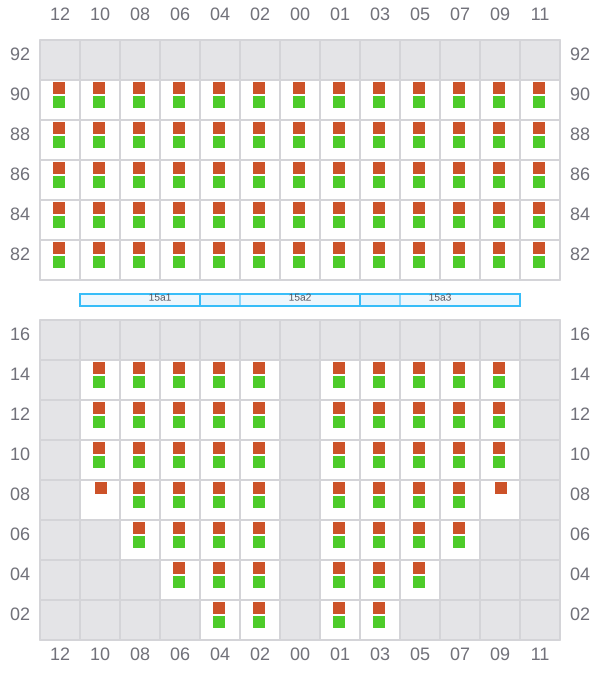

015 (014)
- ←
![Bay 015 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b015.png?v=1688233726820)

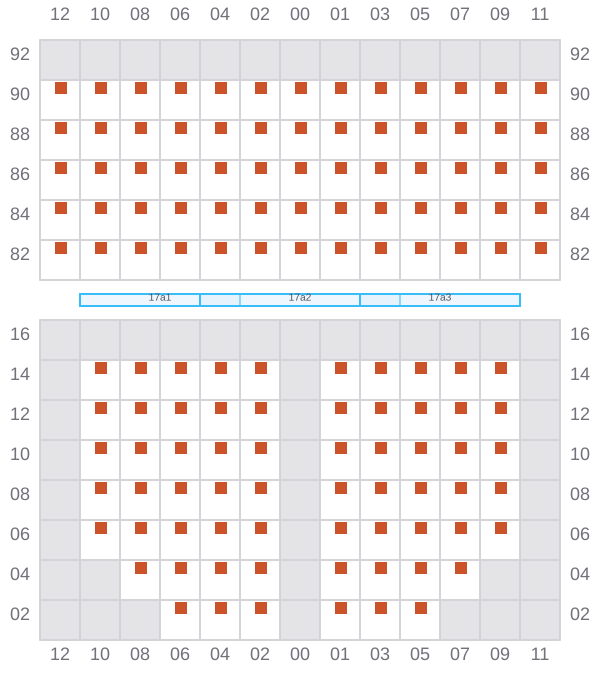

017
- →
![Bay 017 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b017.png?v=1688233726820)

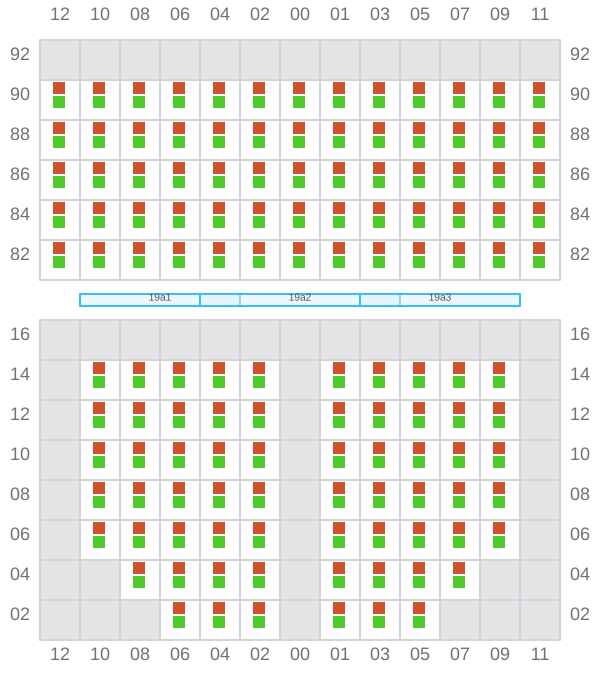

019 (018)
- ←
![Bay 019 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b019.png?v=1688233726820)

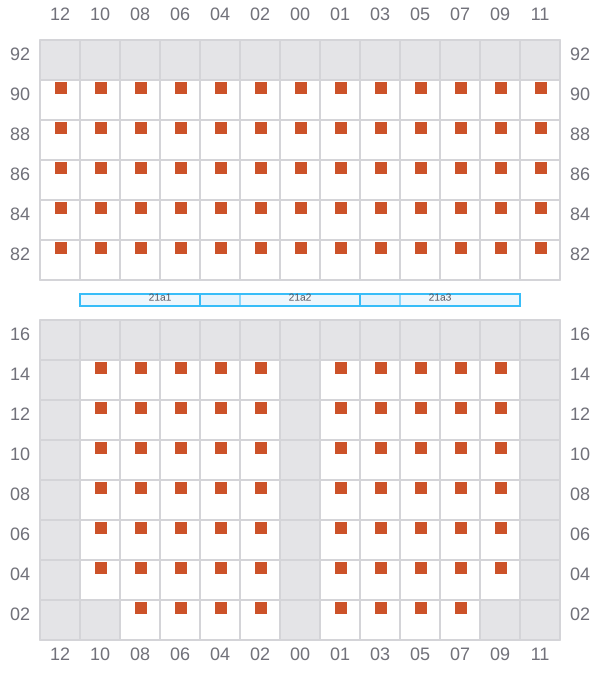

021
- →
![Bay 021 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b021.png?v=1688233726820)
023 (022)
- ←
![Bay 023 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b023.png?v=1688233726820)

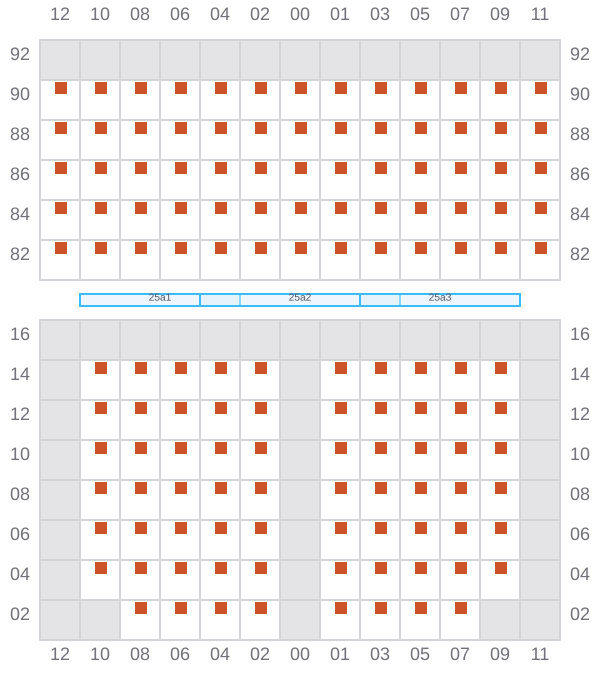

025
- →
![Bay 025 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b025.png?v=1688233726820)

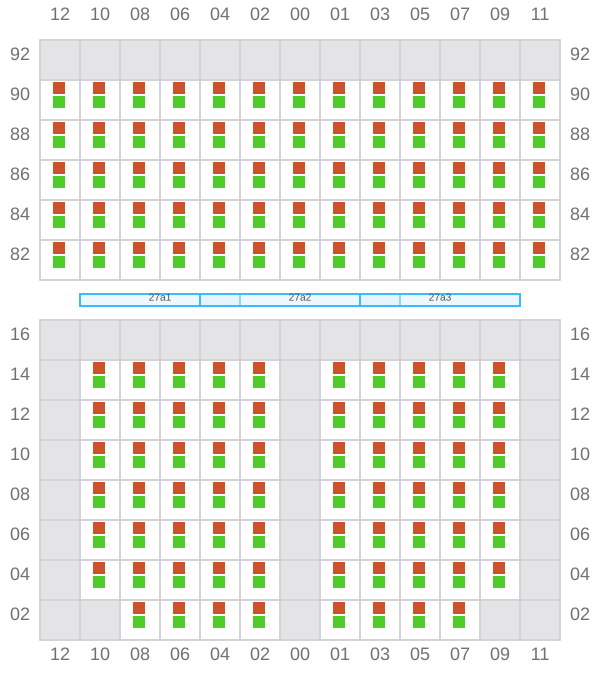

027 (026)
- ←
![Bay 027 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b027.png?v=1688233726820)
029
- →
![Bay 029 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b029.png?v=1688233726820)

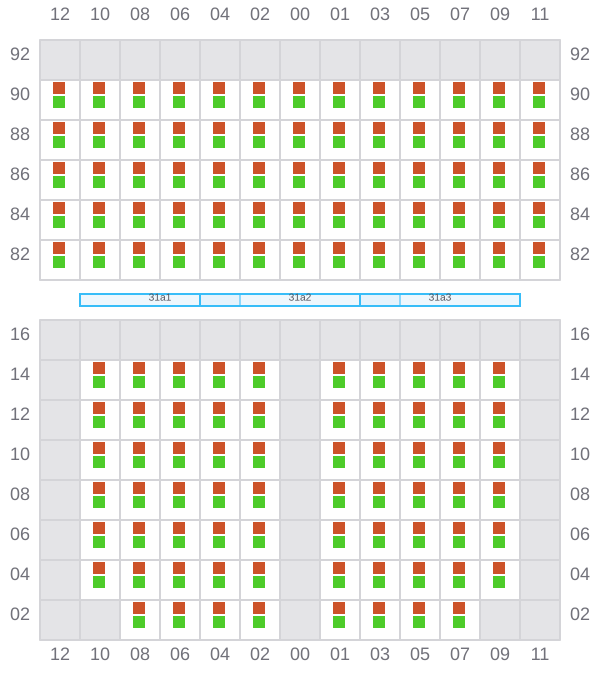

031 (030)
- ←
![Bay 031 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b031.png?v=1688233726820)

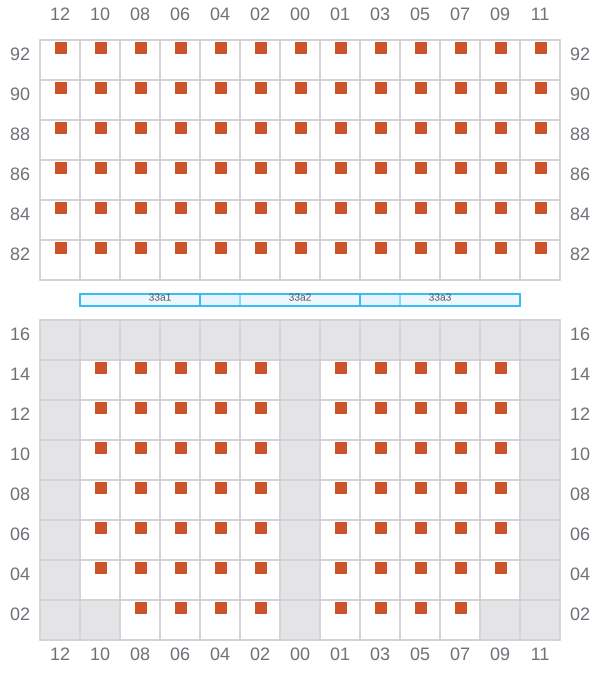

033
- →
![Bay 033 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b033.png?v=1688233726820)
035 (034)
- ←
![Bay 035 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b035.png?v=1688233726820)
037
- →
![Bay 037 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b037.png?v=1688233726820)
039 (038)
- ←
![Bay 039 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b039.png?v=1688233726820)

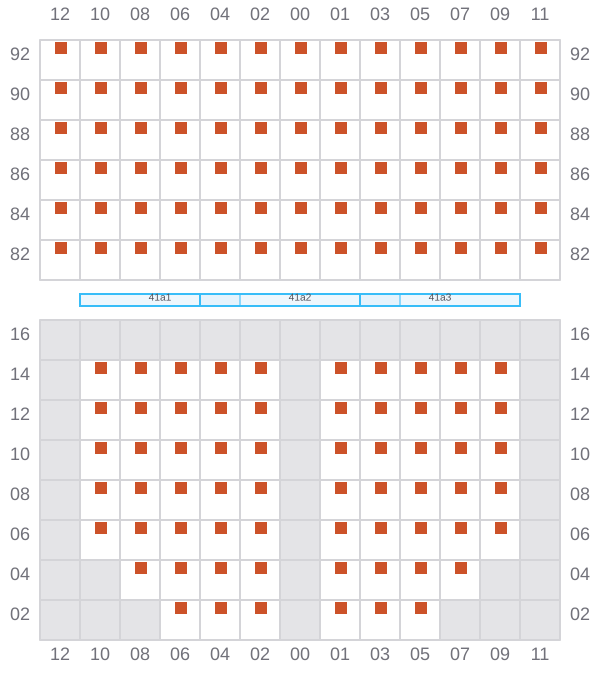

041
- →
![Bay 041 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b041.png?v=1688233726820)

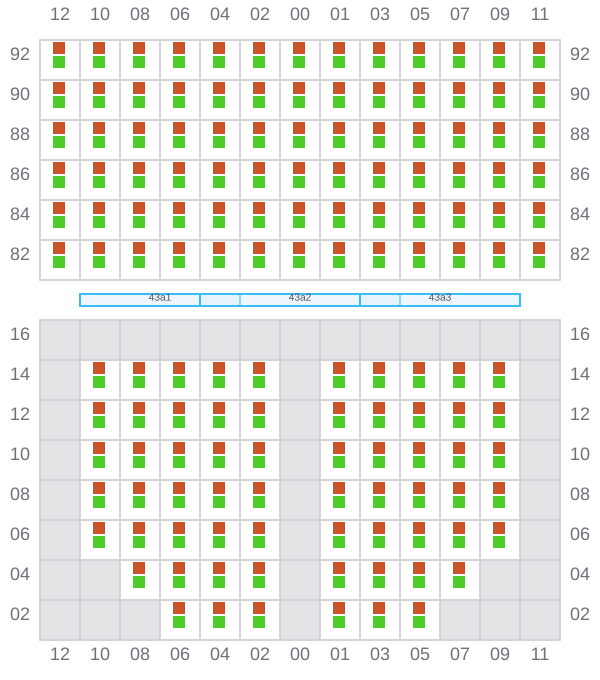

043 (042)
- ←
![Bay 043 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b043.png?v=1688233726820)

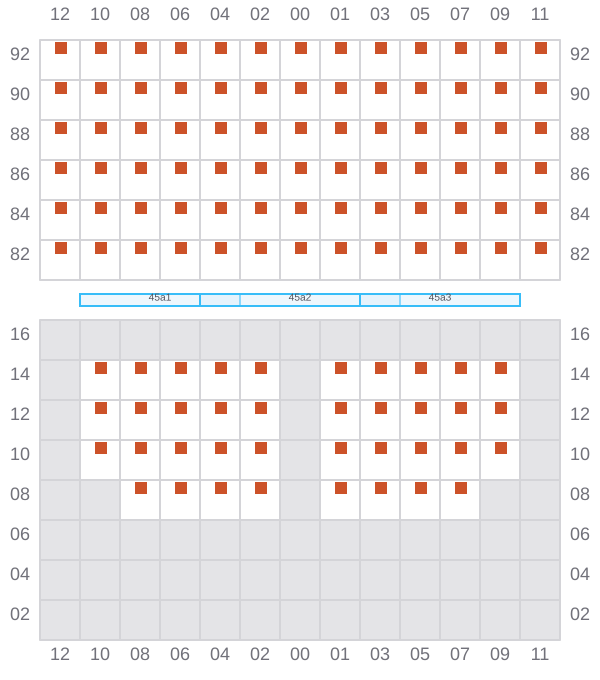

045
- →
![Bay 045 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b045.png?v=1688233726820)

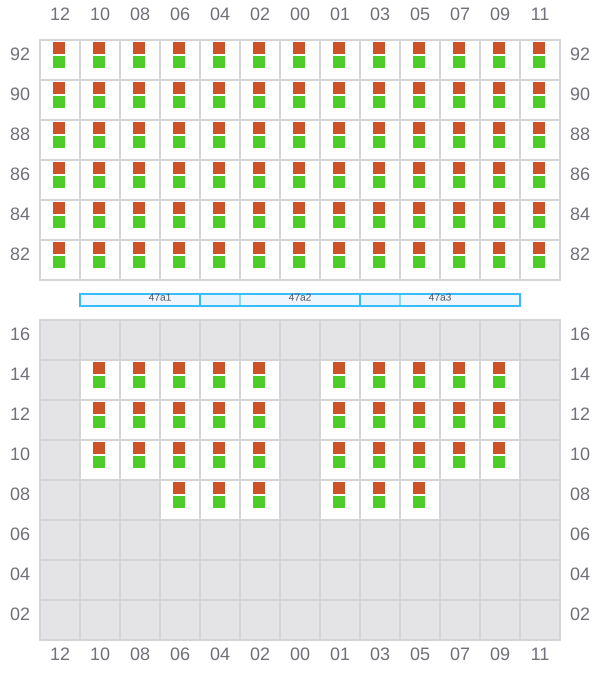

047 (046)
- ←
![Bay 047 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b047.png?v=1688233726820)

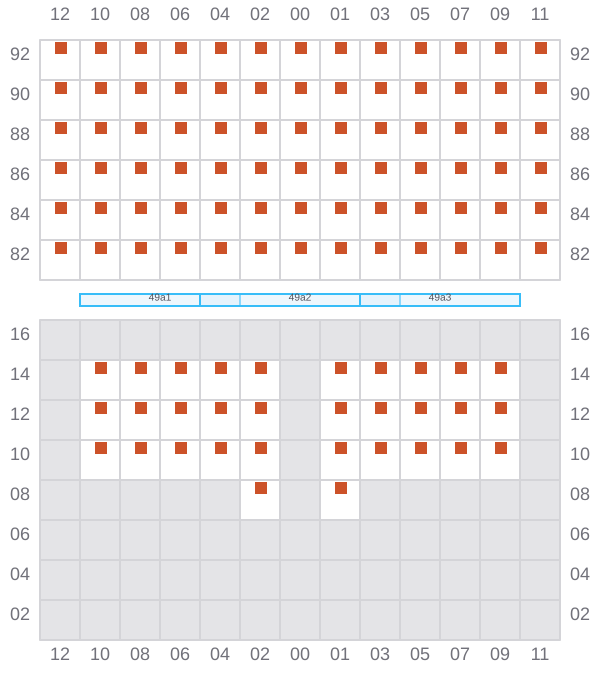

049
- →
![Bay 049 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b049.png?v=1688233726820)

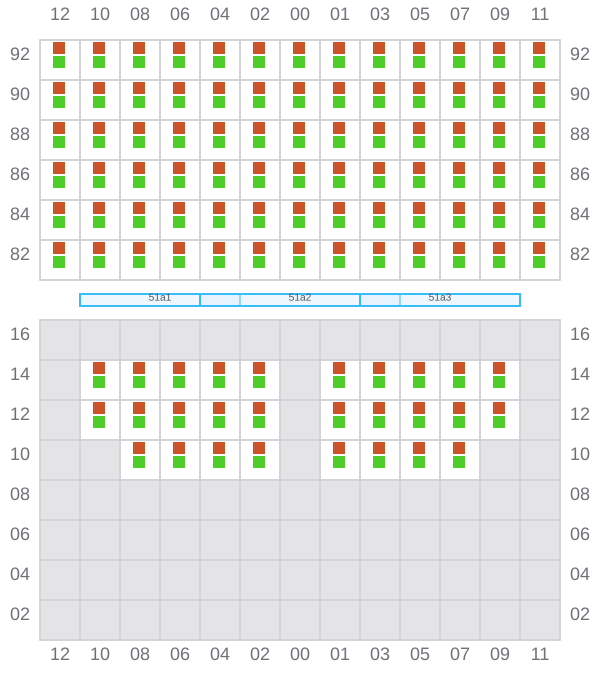

051 (050)
- ←
![Bay 051 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b051.png?v=1688233726820)

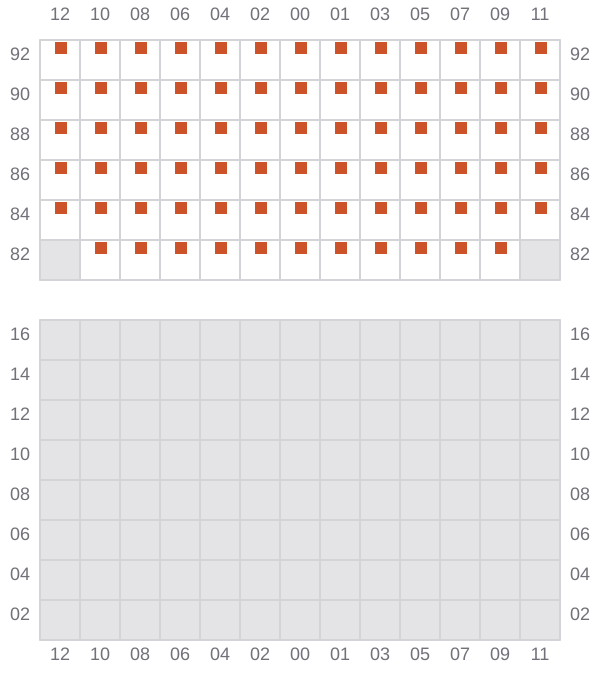

053
- → / ?
![Bay 053 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b053.png?v=1688233726820)

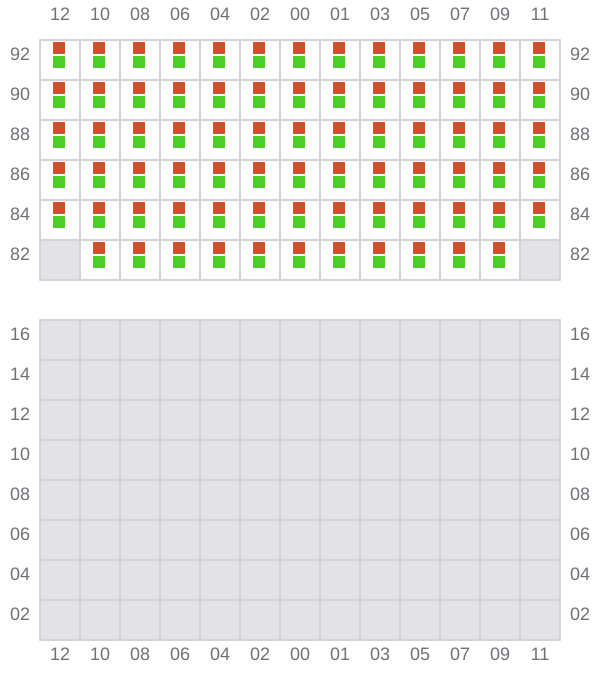

055 (054)
- ← / ?
![Bay 055 view and slots of GSL CHATEAU DIF](/vessel-images/c95826d3-6352-4c26-b352-a93fc892f8e1-b055.png?v=1688233726820)
