GSL CHRISTEN
9229324 | D5WA5 | MSK by ************************** Last update: Tue Jun 23 2026
General Info
Ship Name:GSL CHRISTEN
IMO Code:9229324
Call Sign:D5WA5
Line Operator:MSK
Class Name for Sister Ships:GCH
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,949
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

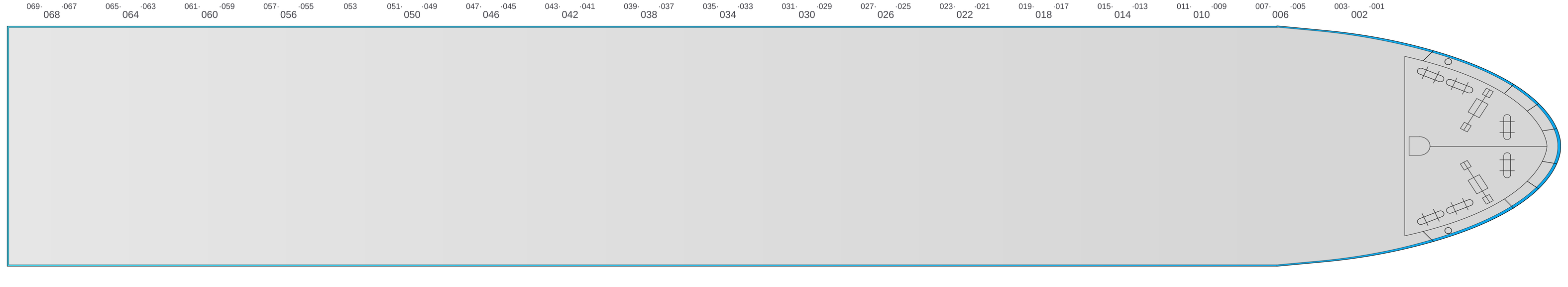

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

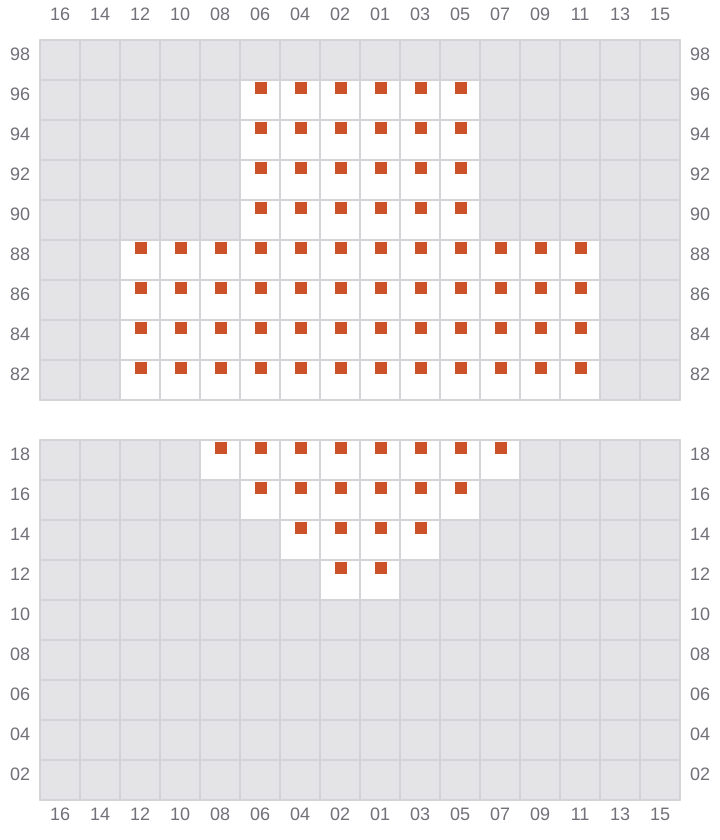

001
- →

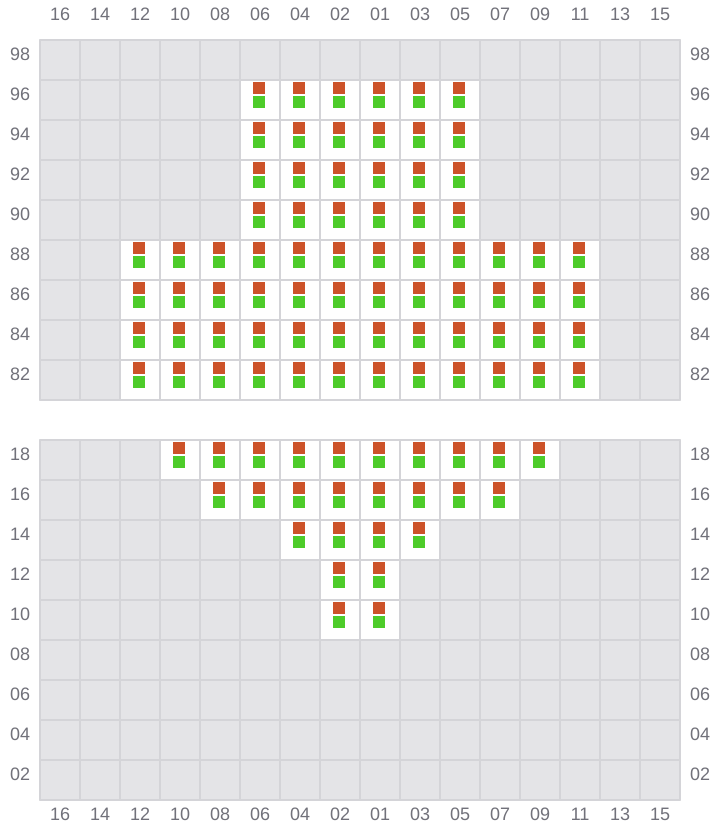

003 (002)
- ←

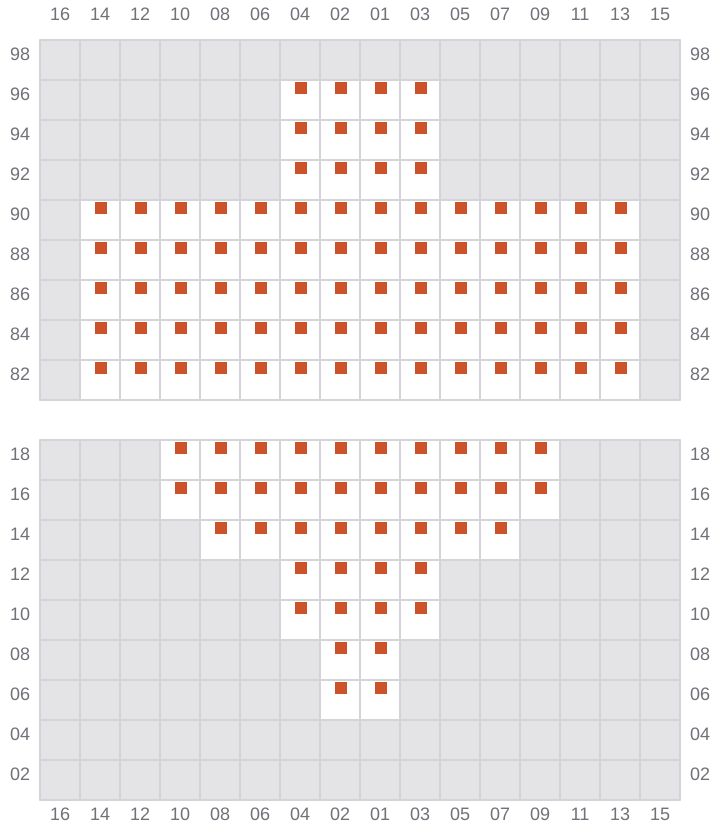

005
- →

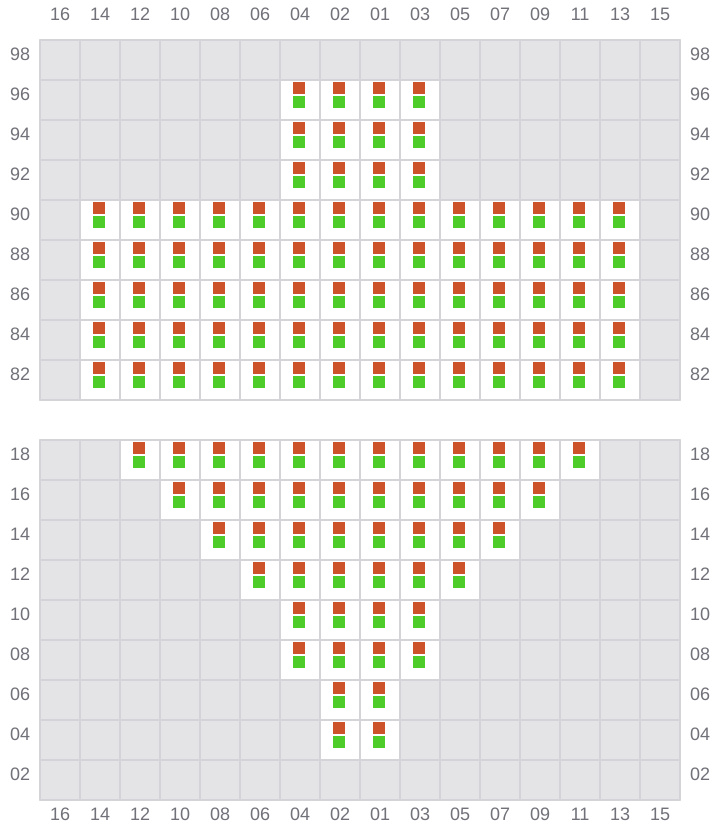

007 (006)
- ←

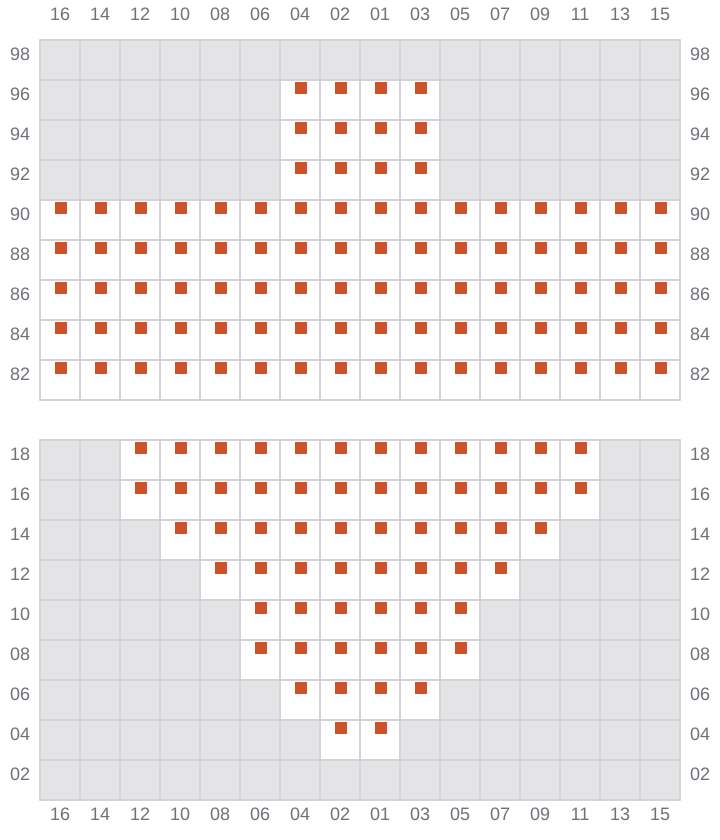

009
- →

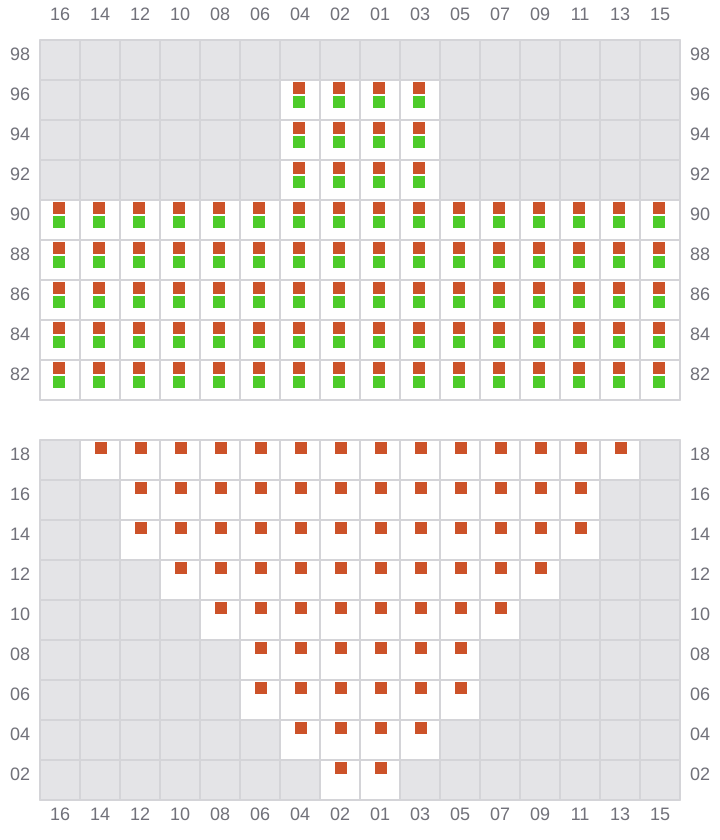

011 (010)
- ←

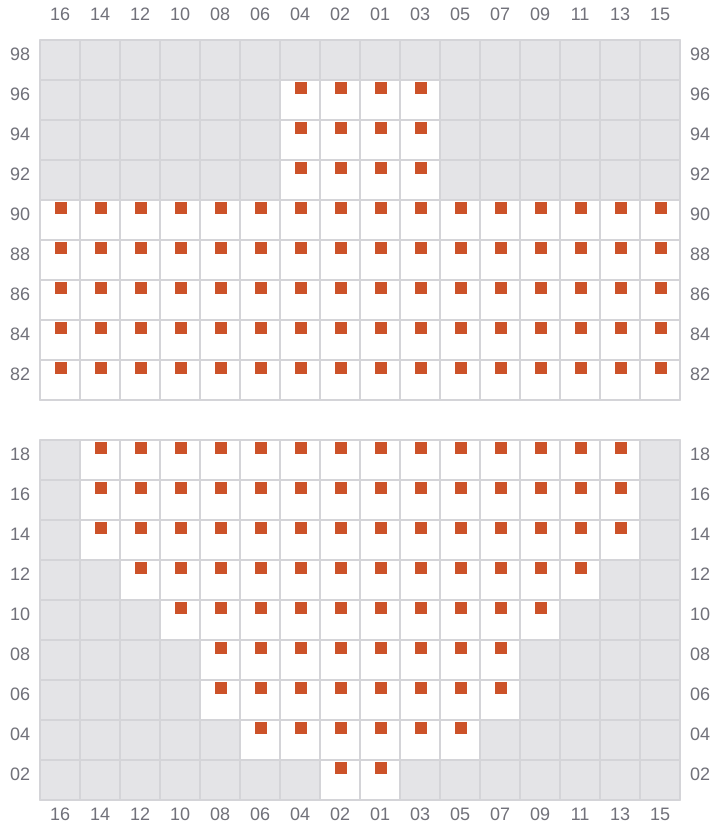

013
- →

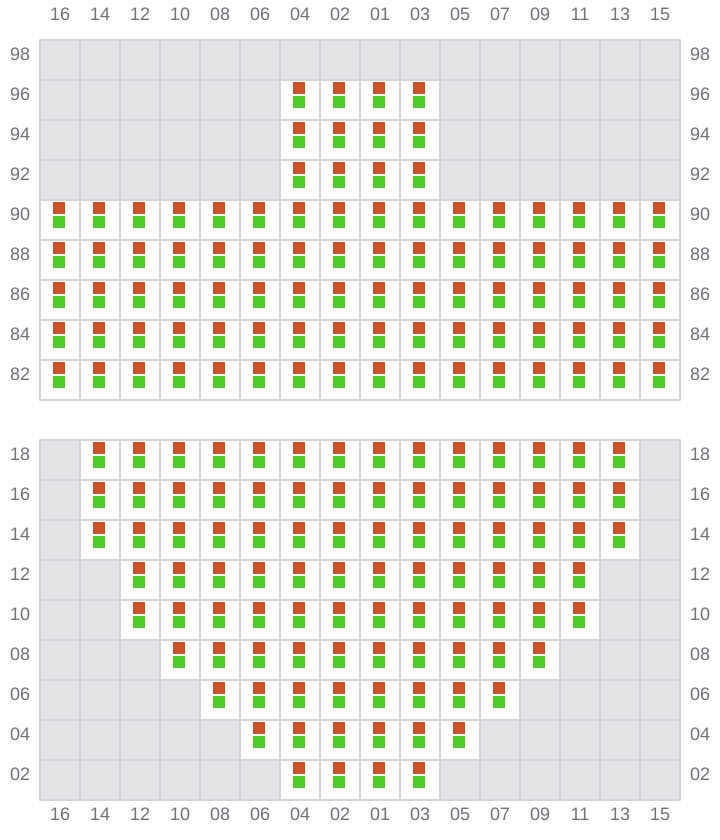

015 (014)
- ←

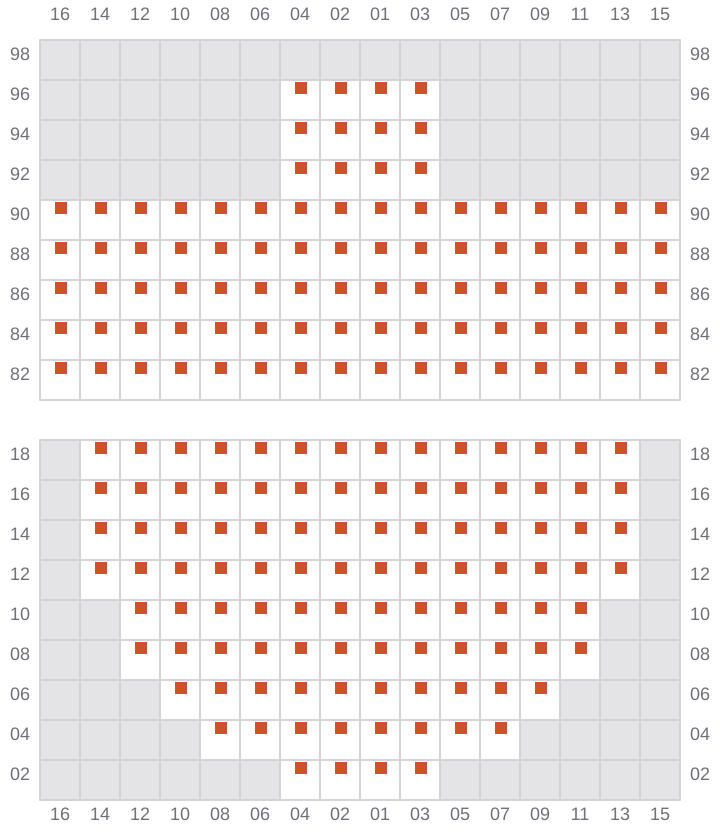

017
- →

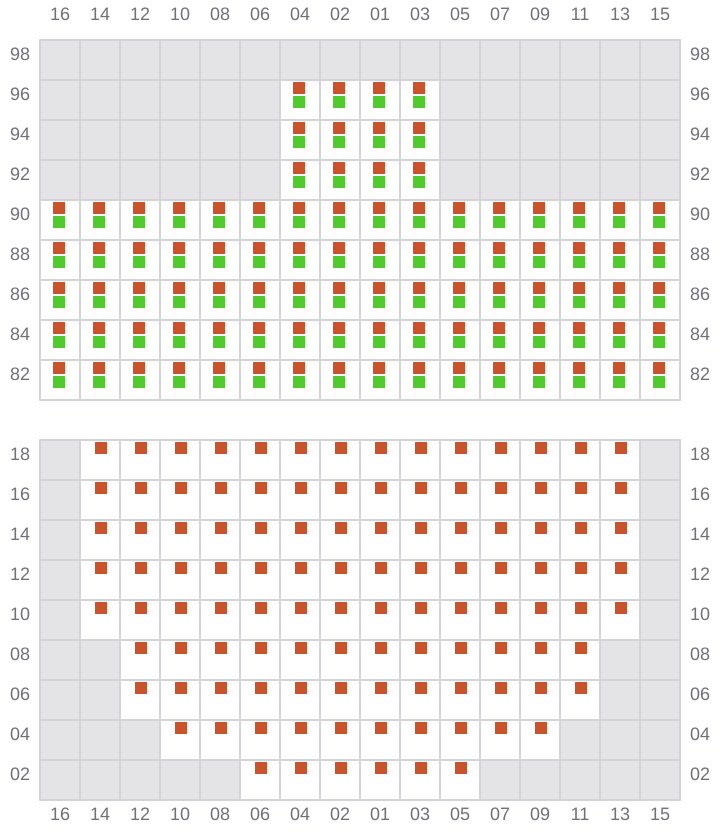

019 (018)
- ←

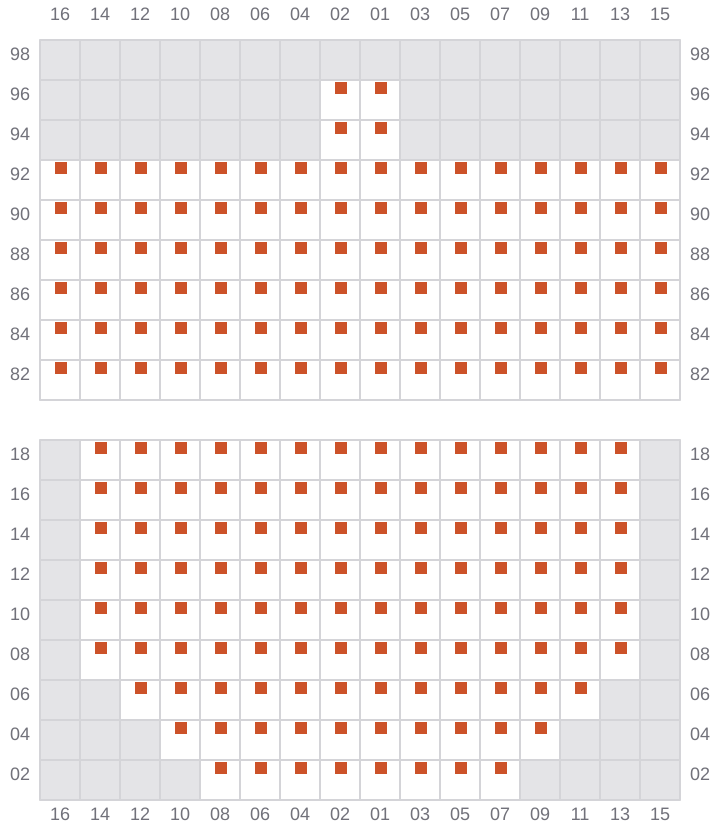

021
- →

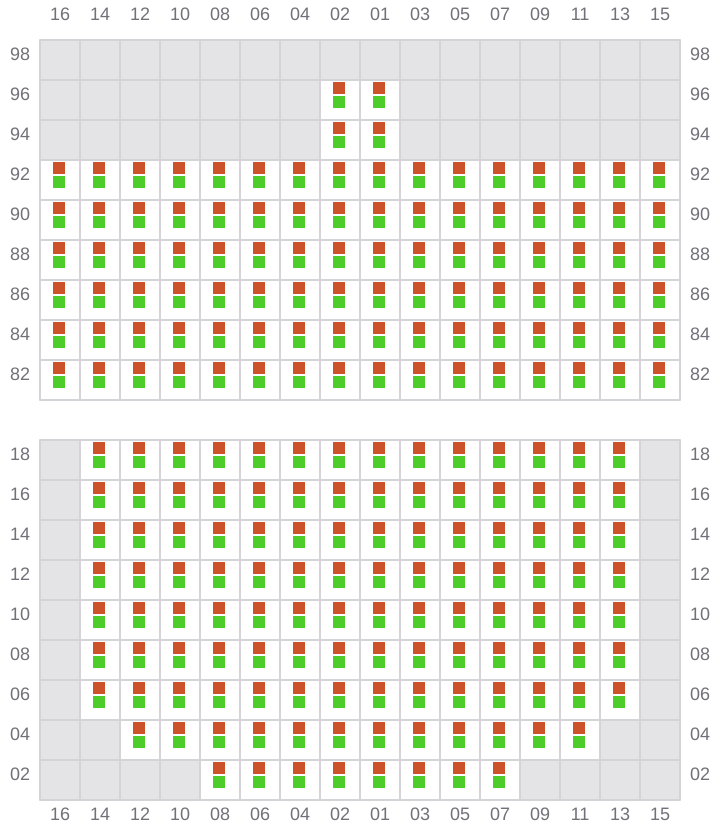

023 (022)
- ←

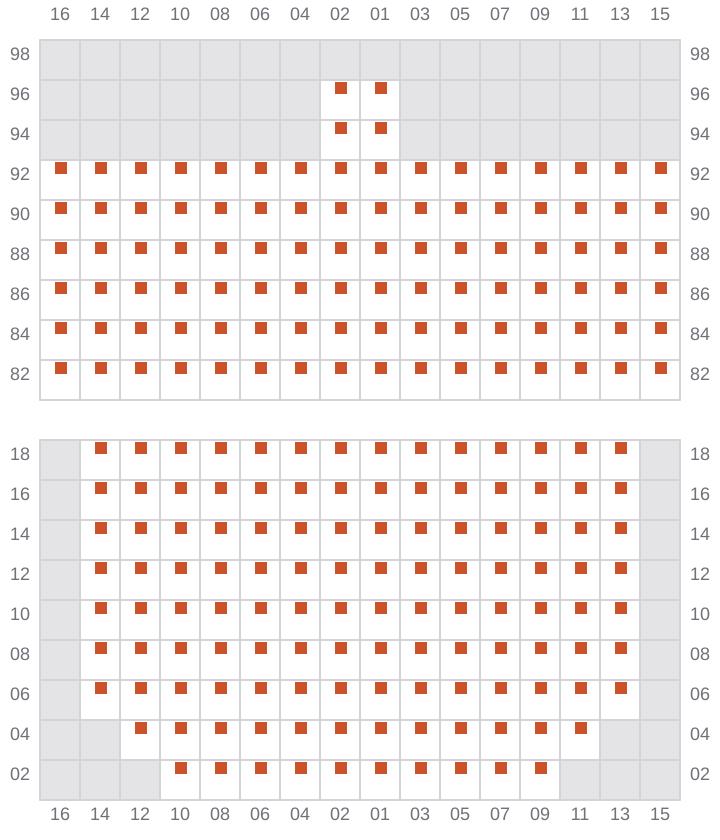

025
- →
027 (026)
- ←

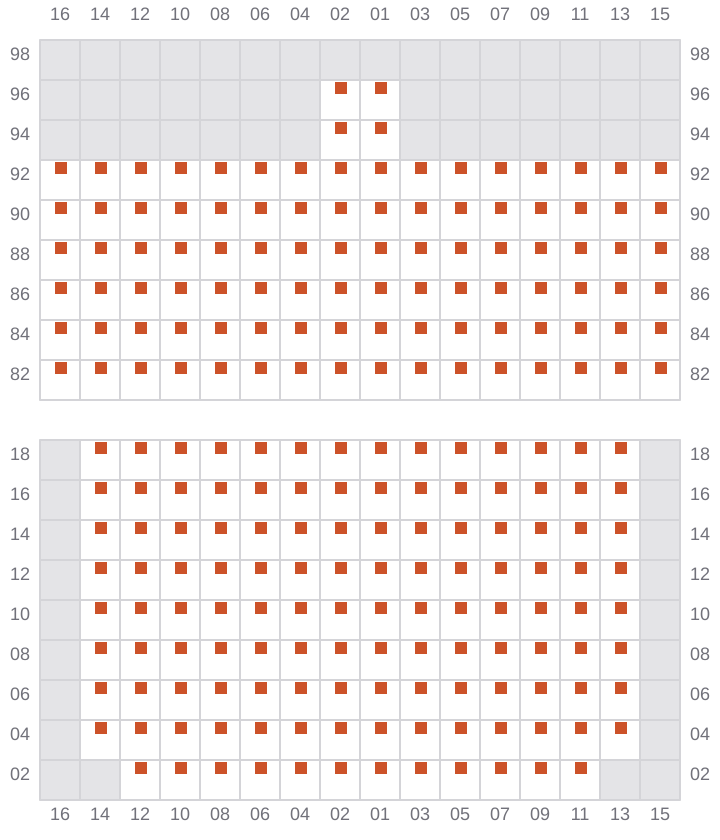

029
- →
031 (030)
- ←
033
- →

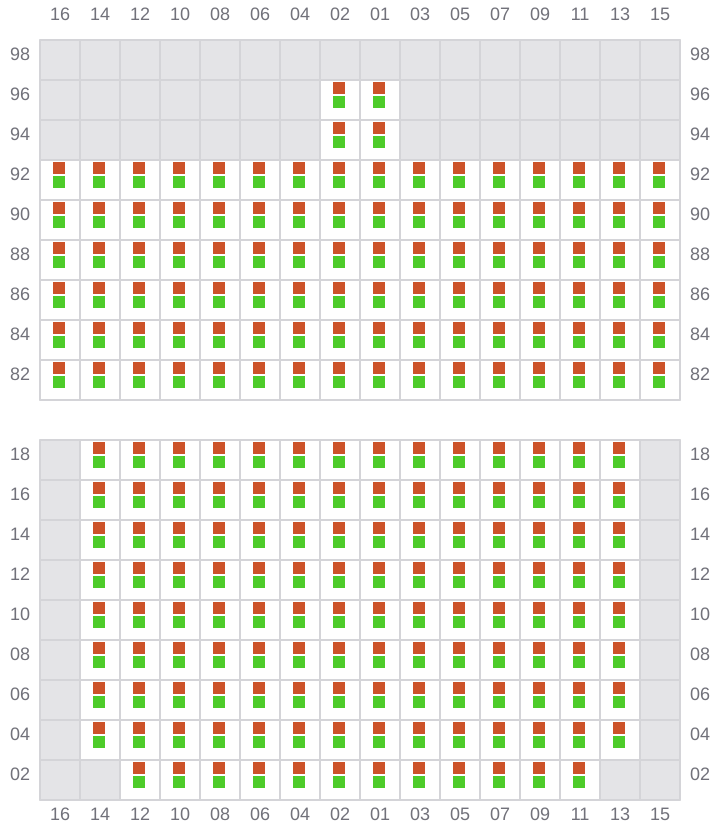

035 (034)
- ←

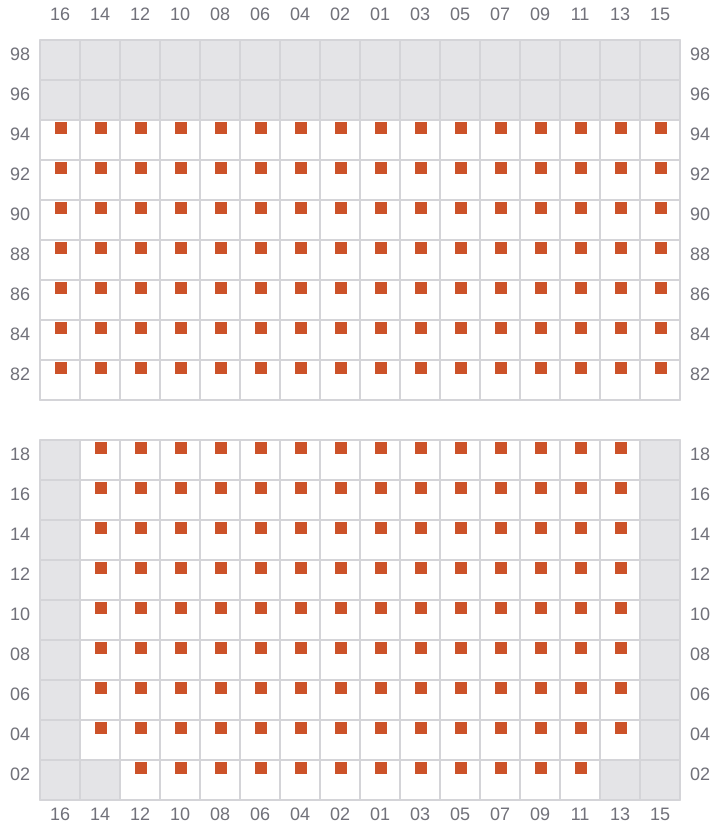

037
- →
039 (038)
- ←
041
- →

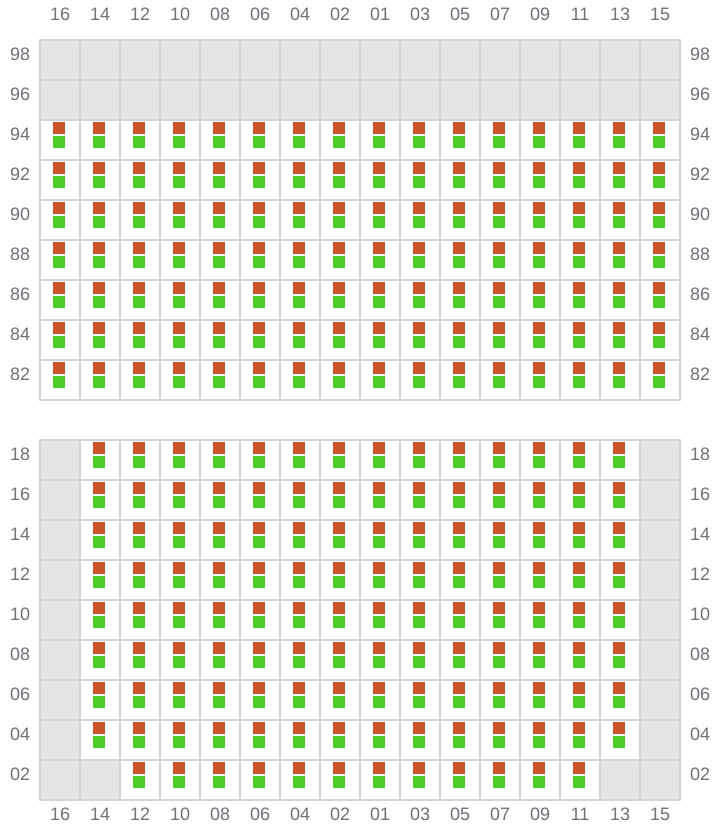

043 (042)
- ←
045
- →

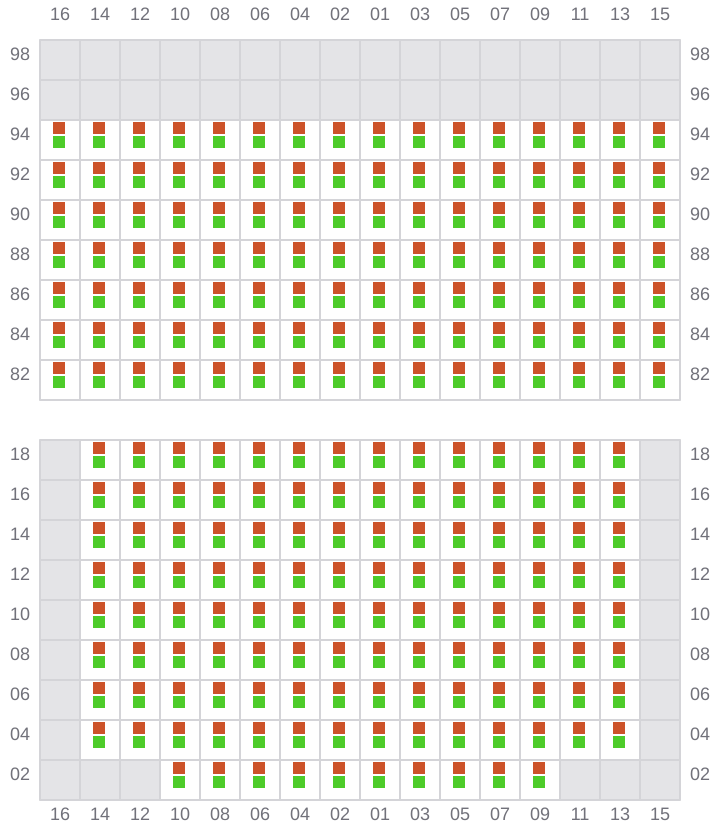

047 (046)
- ←

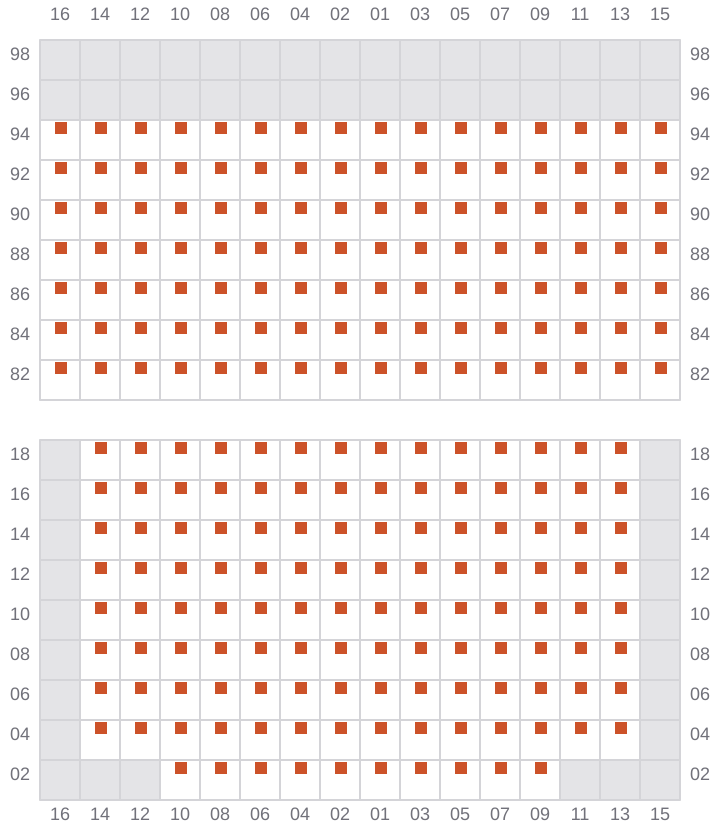

049
- →

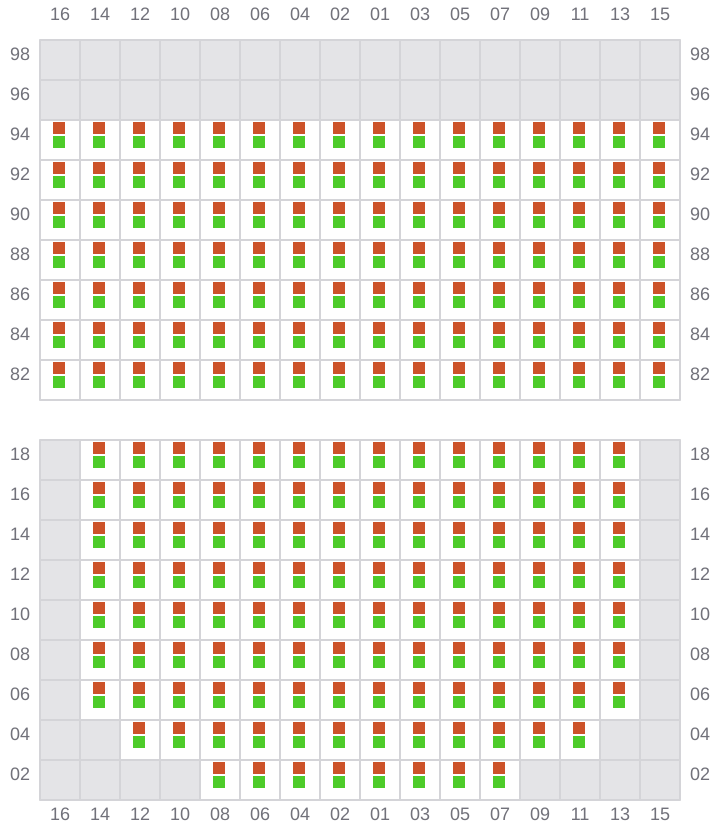

051 (050)
- ←

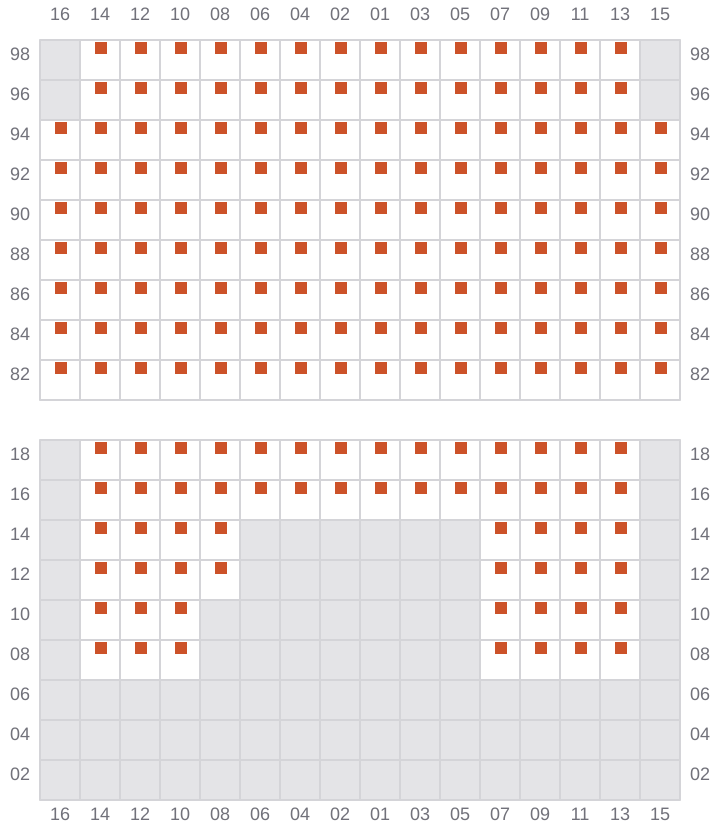

053

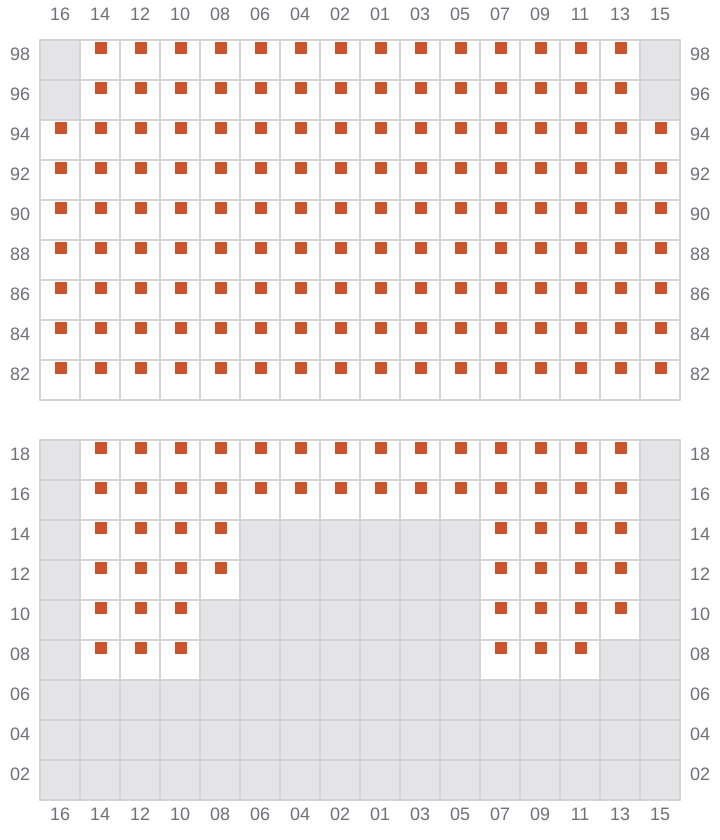

055
- →
057 (056)
- ←

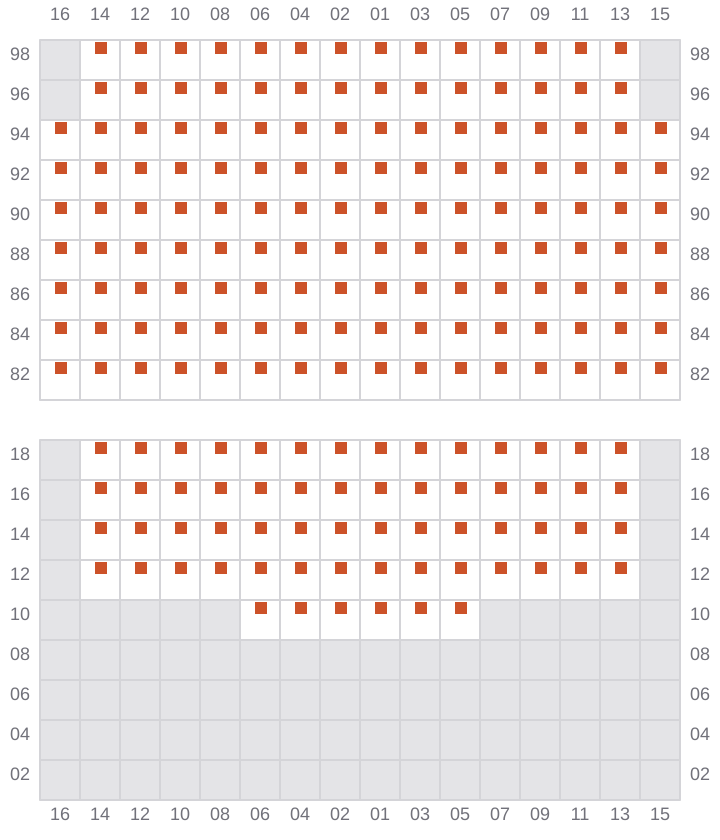

059
- →

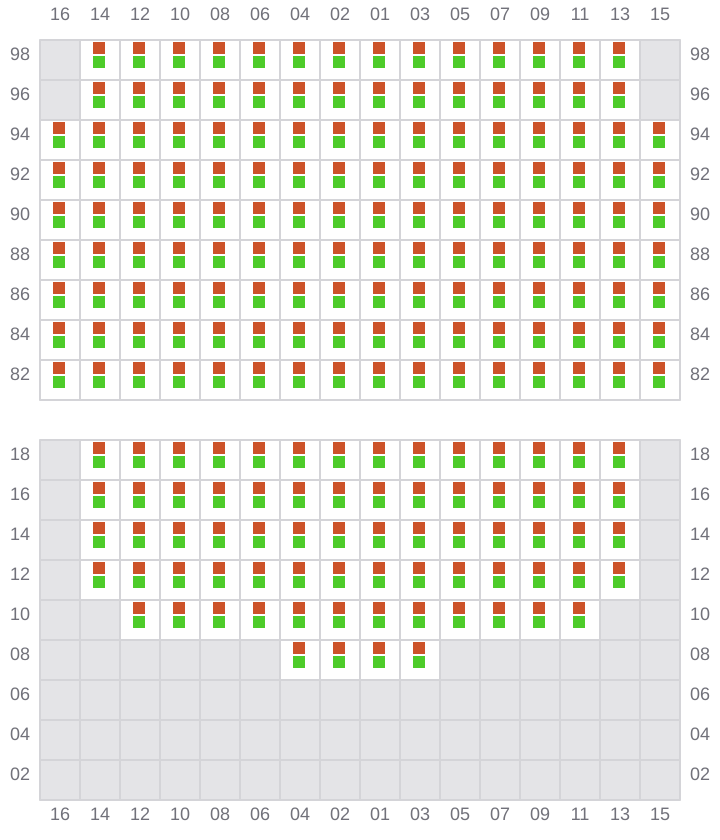

061 (060)
- ←

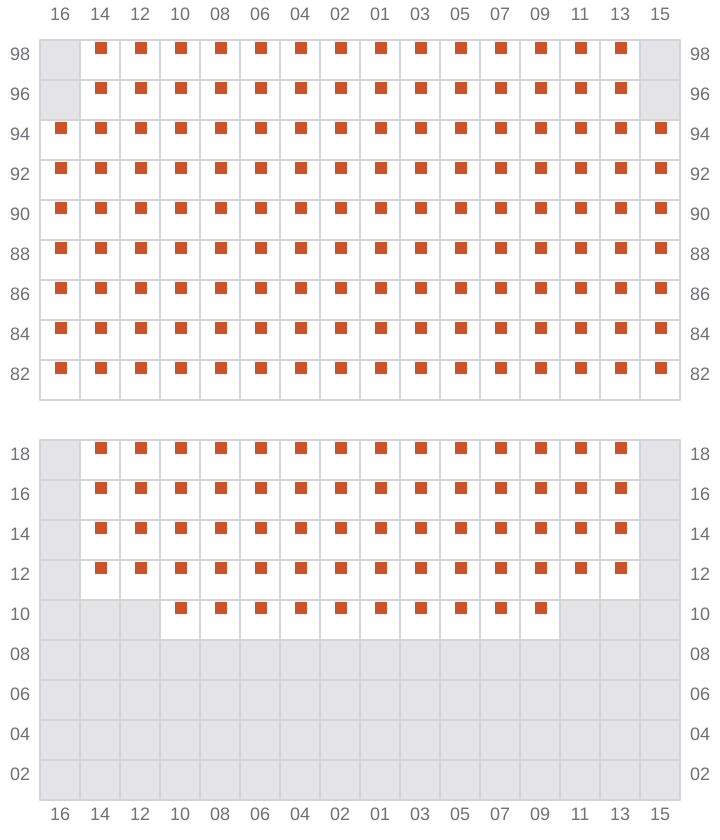

063
- →

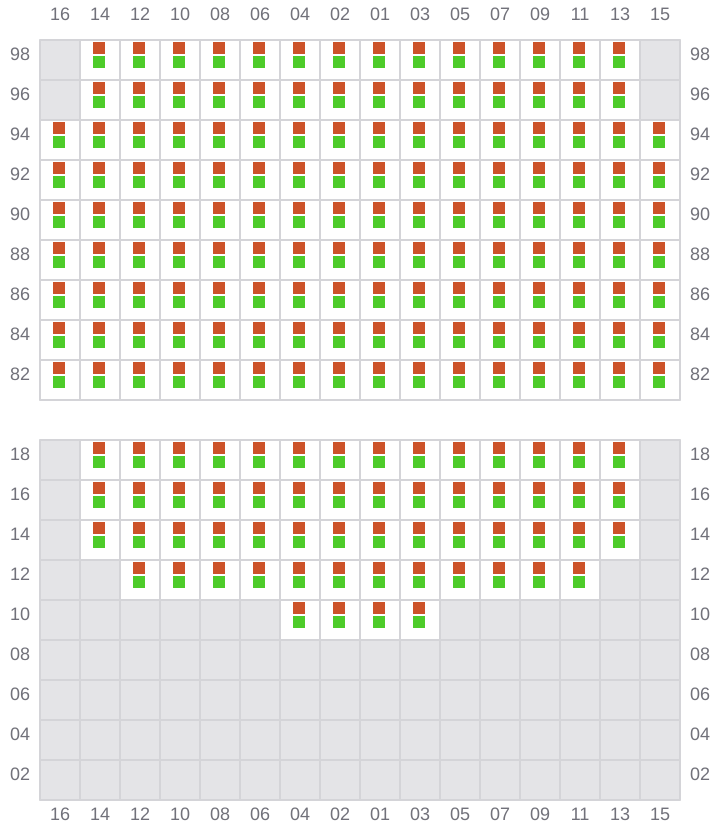

065 (064)
- ←

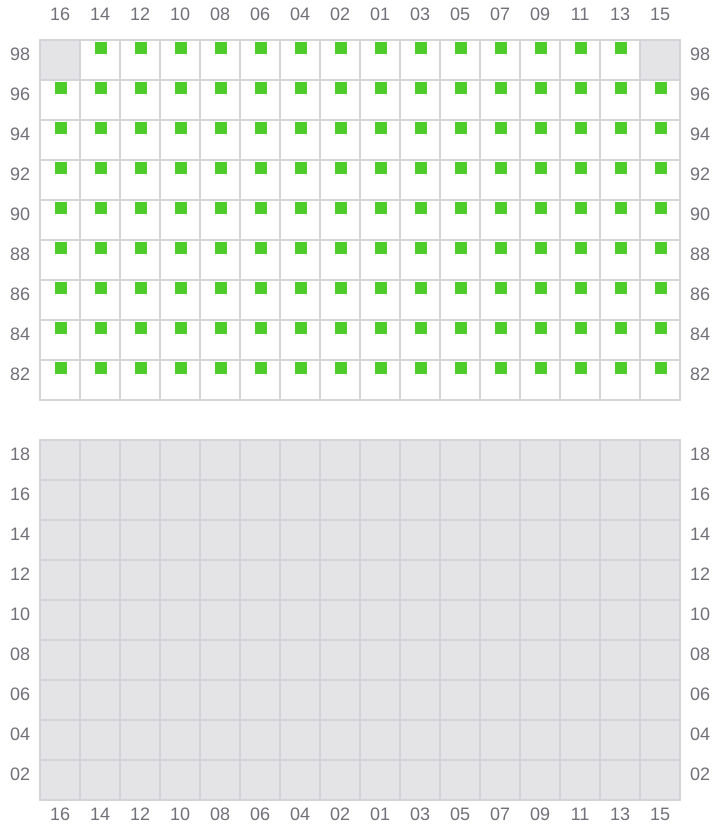

067 (068)
- →

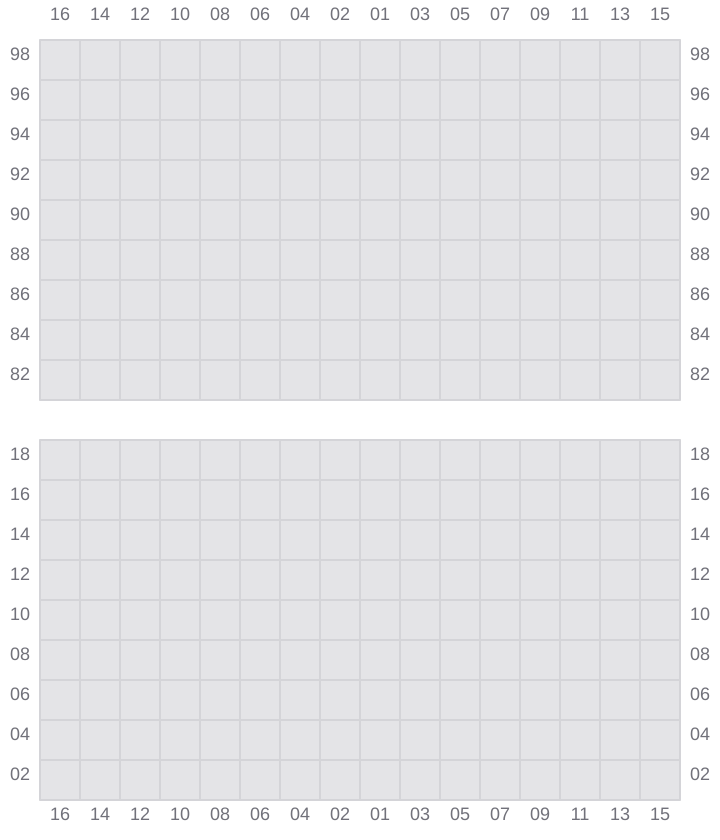

069
- ←
