GSL ELEFTHERIA
9509140 | D5DW8 | MAERSK by ********************* Last update: Thu Oct 24 2024

General Info

Ship Name:GSL ELEFTHERIA
IMO Code:9509140
Call Sign:D5DW8
Line Operator:MAERSK
Class Name for Sister Ships:GSL ELEFTHERIA
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):32.20
LOA (Length Overall):228.80
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:049
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,419

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

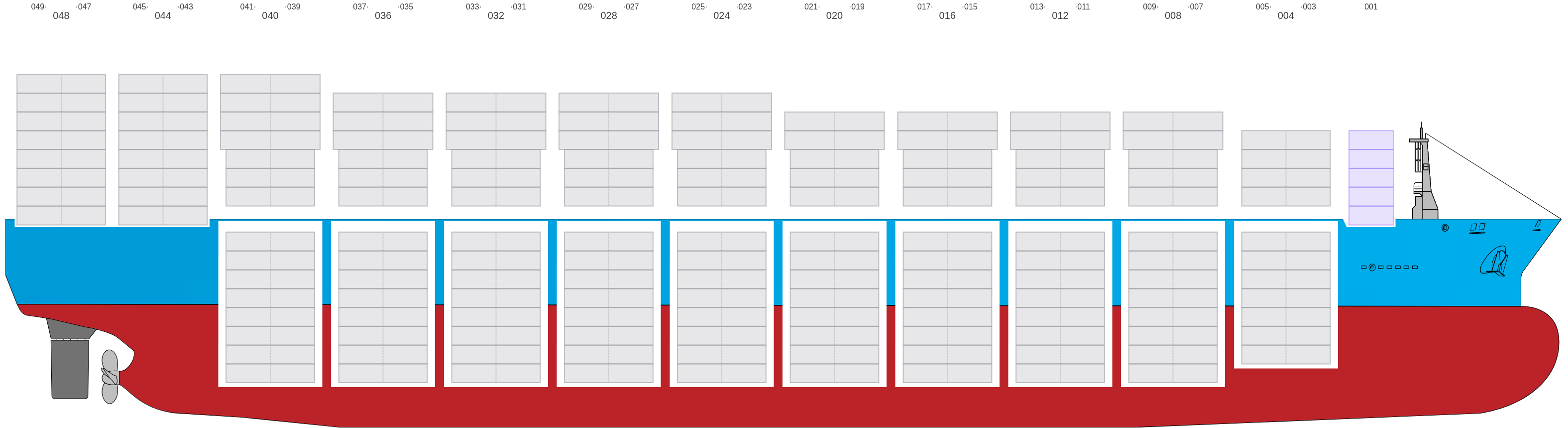

Side view of GSL ELEFTHERIA

Hatch-Covers View

Deck view of GSL ELEFTHERIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

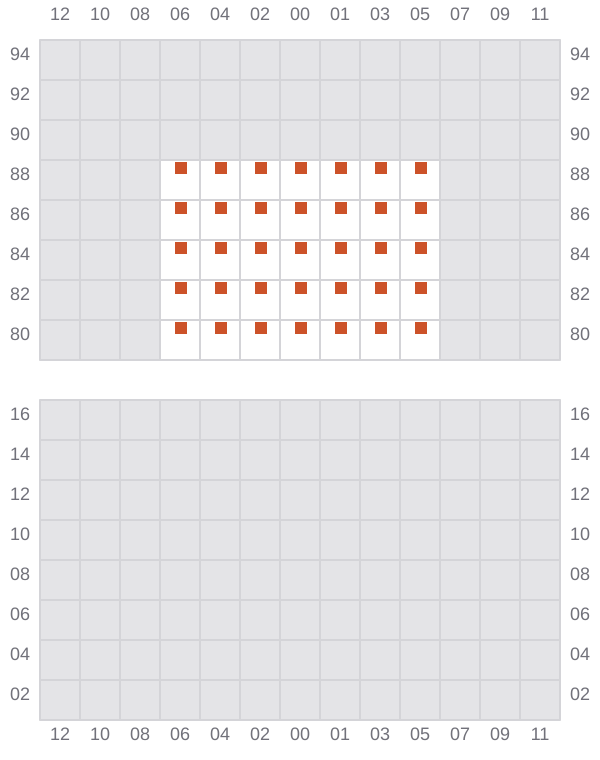

Bay 001 view and slots of GSL ELEFTHERIA

003

  • →
  • → / ?

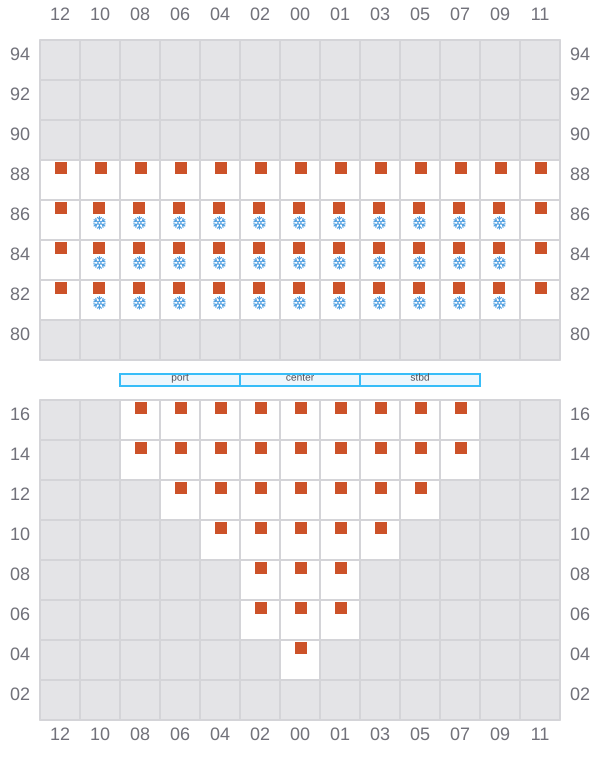

Bay 003 view and slots of GSL ELEFTHERIA

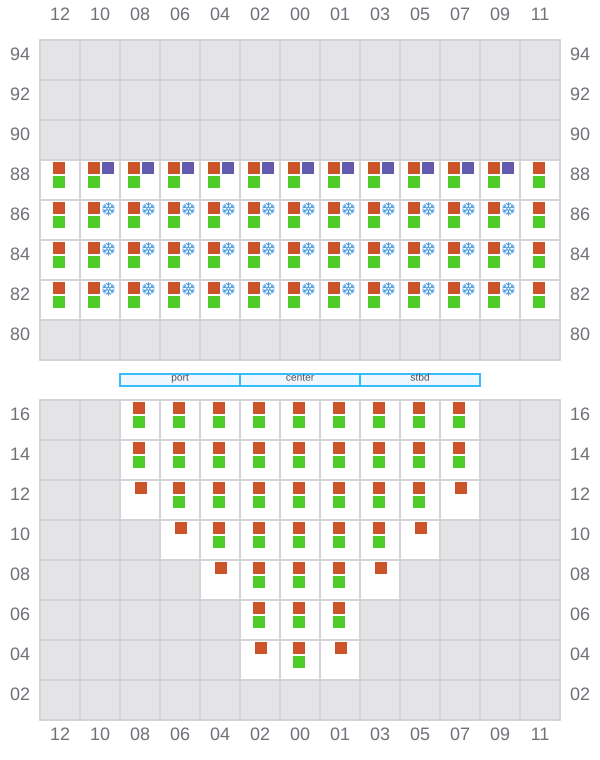

005 (004)

  • ←
  • → / ?
Bay 005 view and slots of GSL ELEFTHERIA

007

  • →
  • ← / →

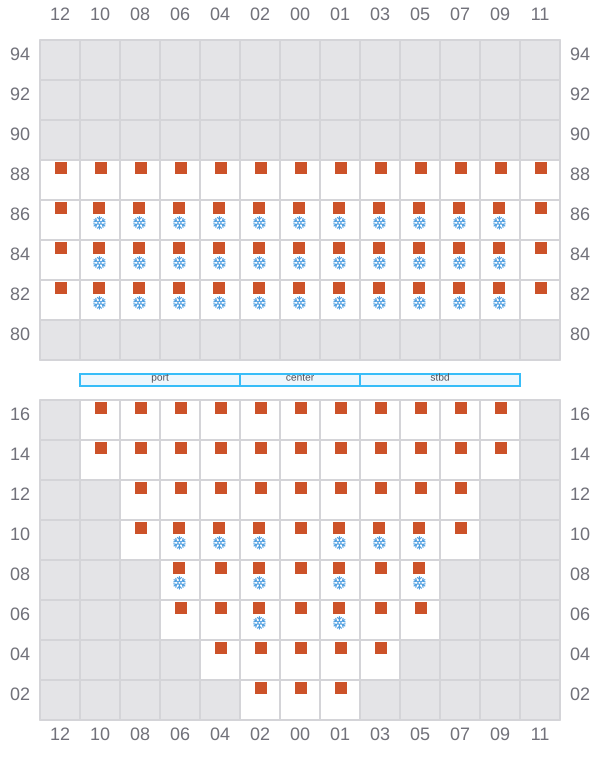

Bay 007 view and slots of GSL ELEFTHERIA

009 (008)

  • ←
  • ← / →

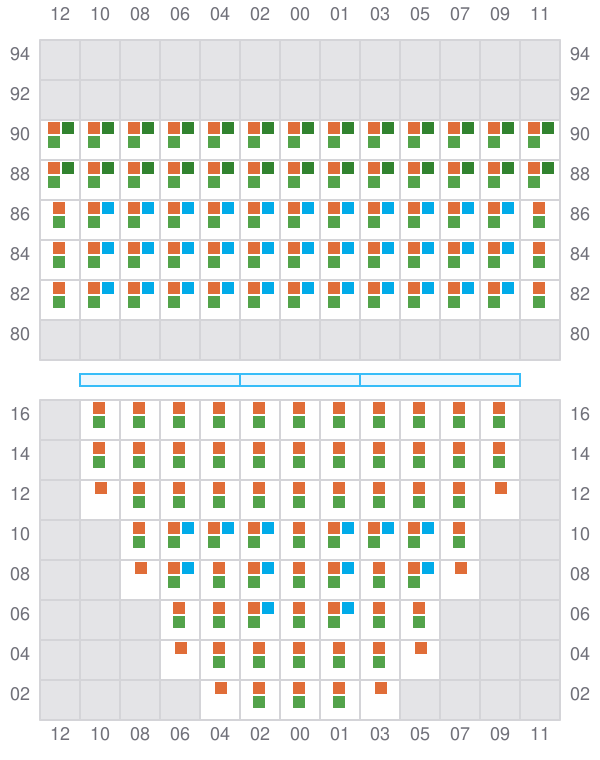

Bay 009 view and slots of GSL ELEFTHERIA

011

  • →
  • → / ←

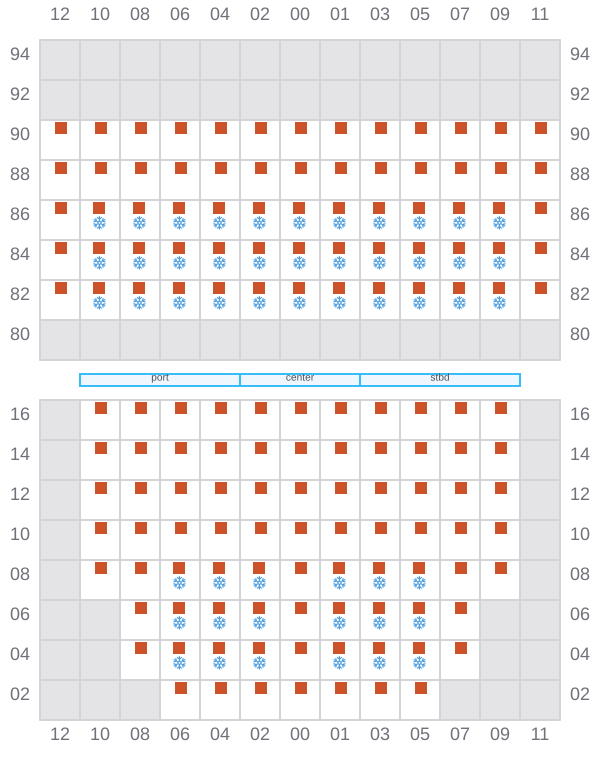

Bay 011 view and slots of GSL ELEFTHERIA

013 (012)

  • ←
  • → / ←

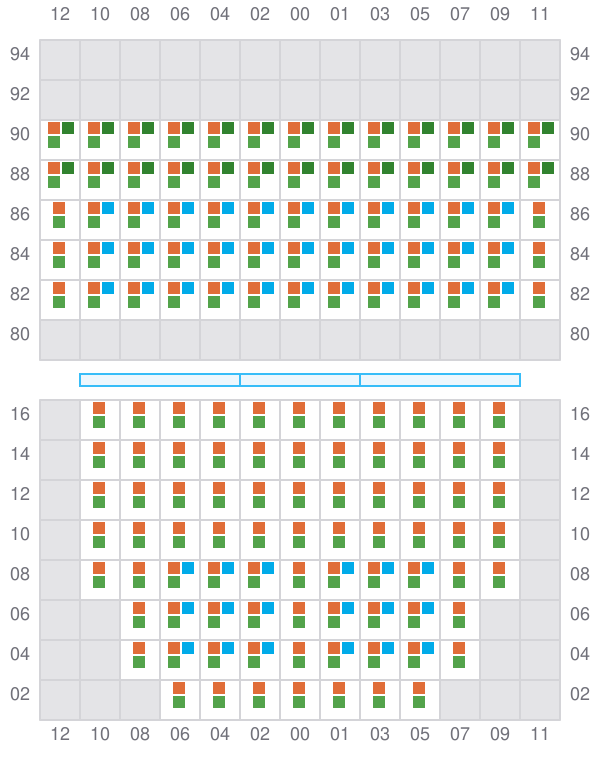

Bay 013 view and slots of GSL ELEFTHERIA

015

  • →
  • ← / →

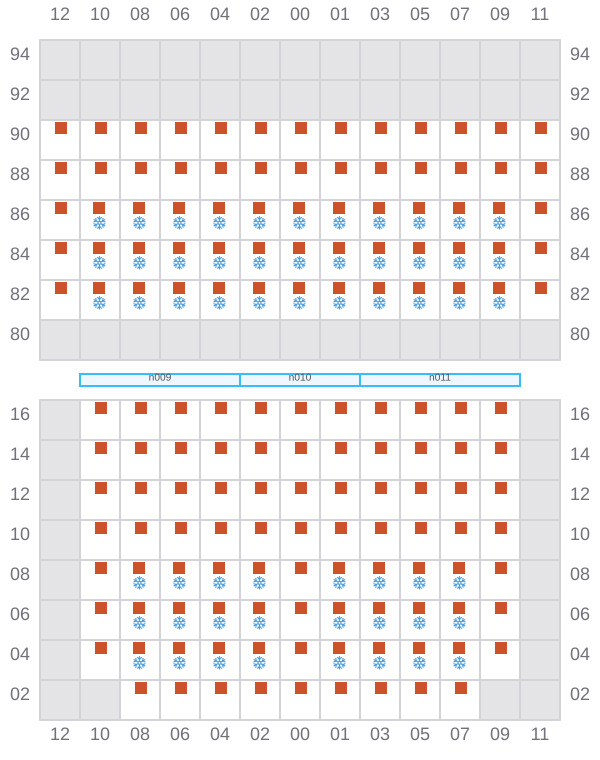

Bay 015 view and slots of GSL ELEFTHERIA

017 (016)

  • ←
  • ← / →
Bay 017 view and slots of GSL ELEFTHERIA

019

  • →
  • → / ←

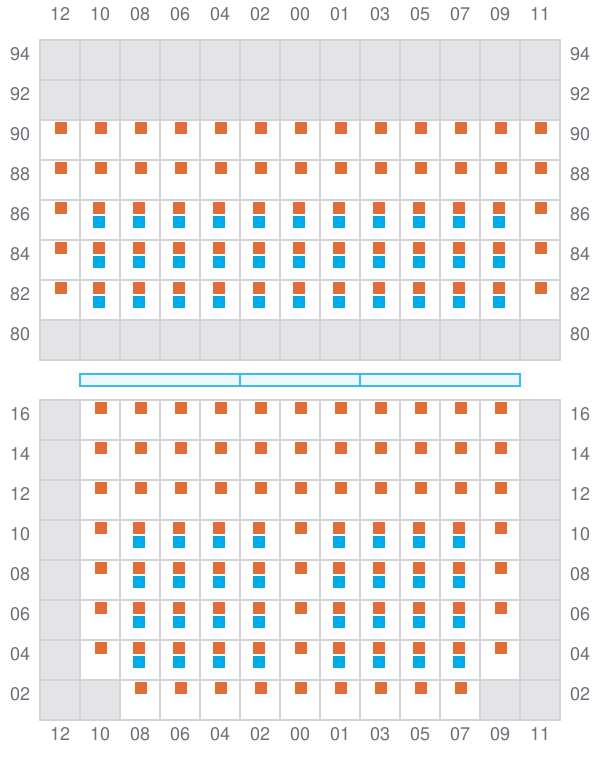

Bay 019 view and slots of GSL ELEFTHERIA

021 (020)

  • ←
  • → / ←

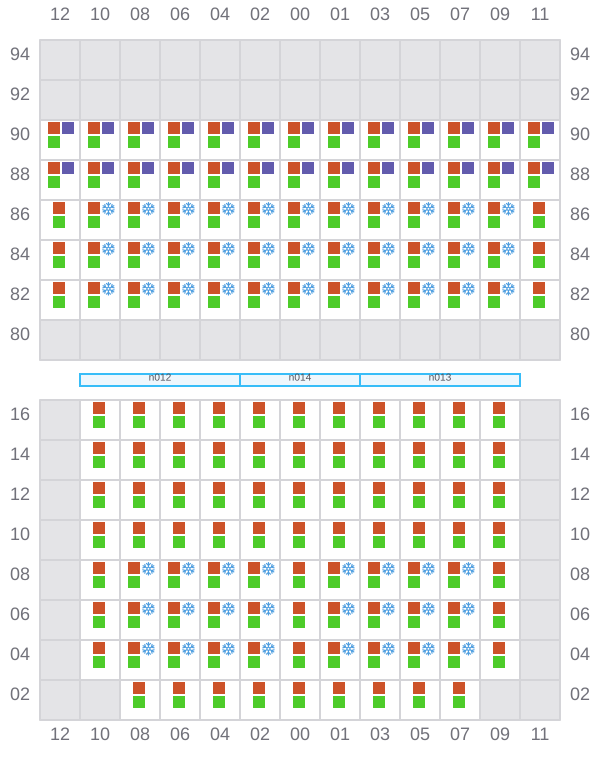

Bay 021 view and slots of GSL ELEFTHERIA

023

  • →

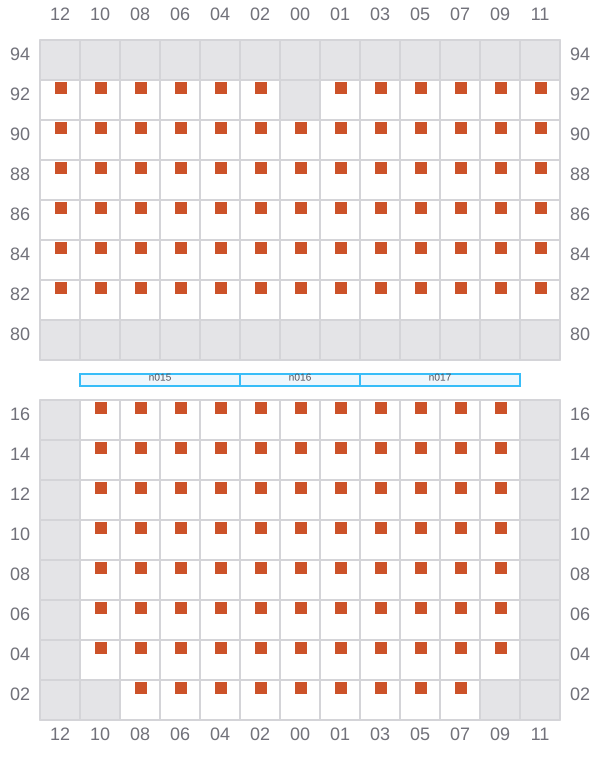

Bay 023 view and slots of GSL ELEFTHERIA

025 (024)

  • ←
  • → / ?

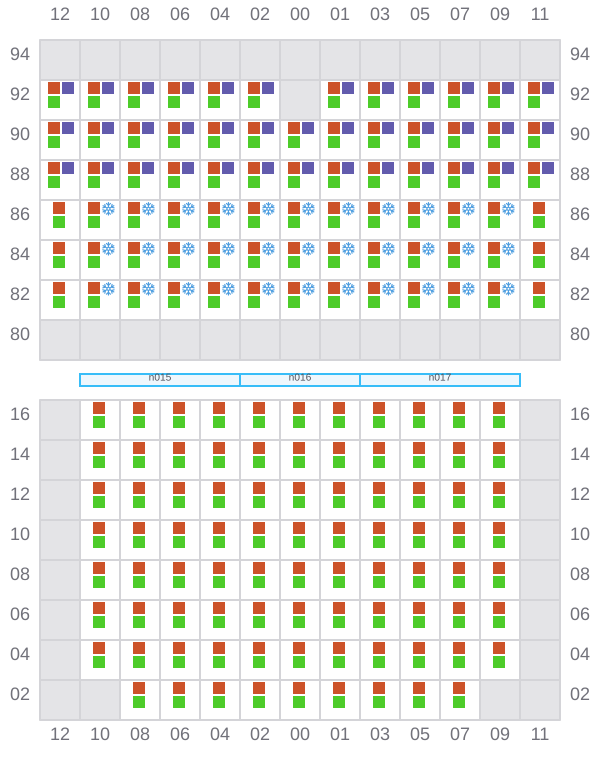

Bay 025 view and slots of GSL ELEFTHERIA

027

  • →
  • ← / →

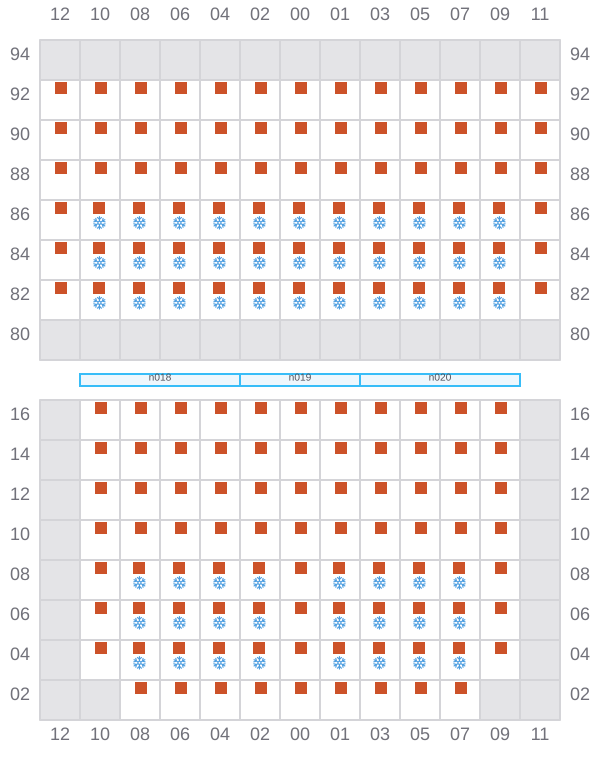

Bay 027 view and slots of GSL ELEFTHERIA

029 (028)

  • ←
  • ← / →

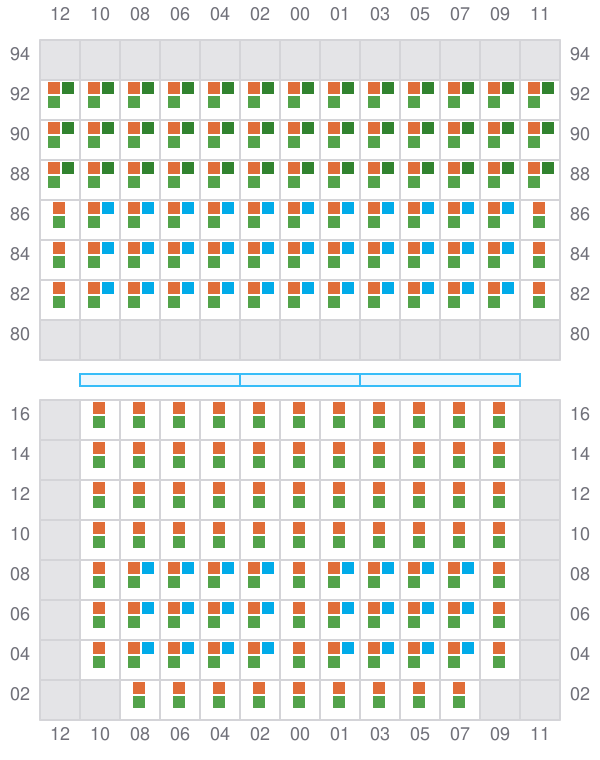

Bay 029 view and slots of GSL ELEFTHERIA

031

  • →
  • ? / ←

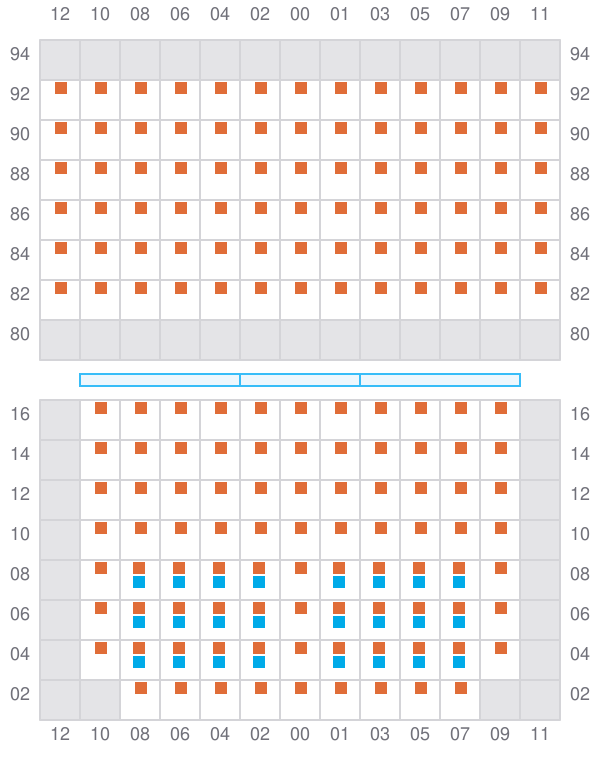

Bay 031 view and slots of GSL ELEFTHERIA

033 (032)

  • ←
  • → / ←

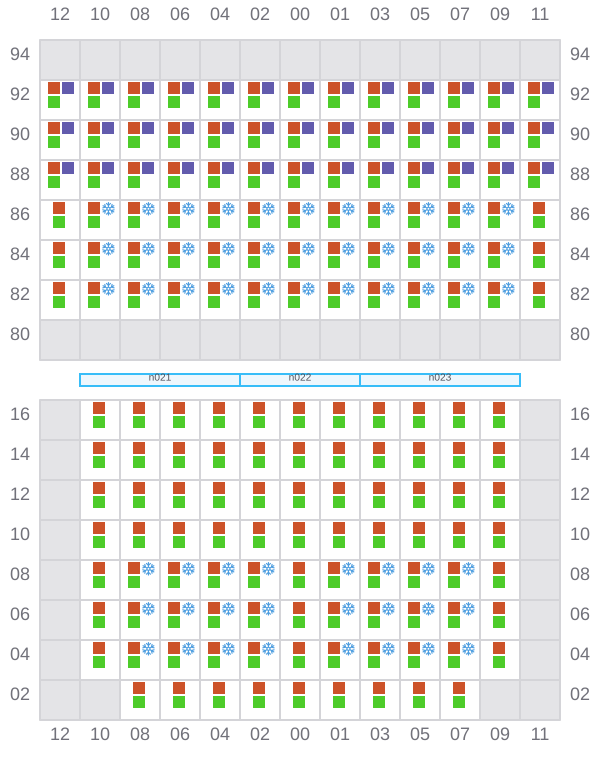

Bay 033 view and slots of GSL ELEFTHERIA

035

  • →
  • ← / ?

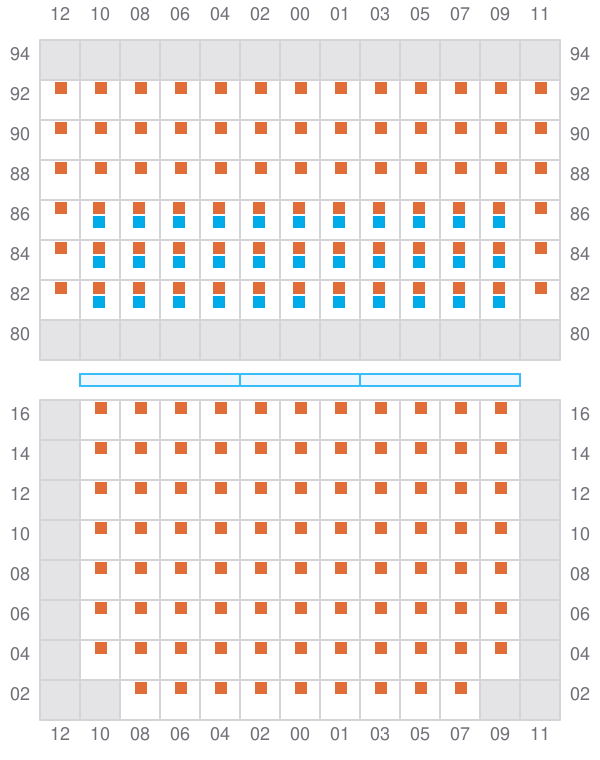

Bay 035 view and slots of GSL ELEFTHERIA

037 (036)

  • ←
  • ← / →

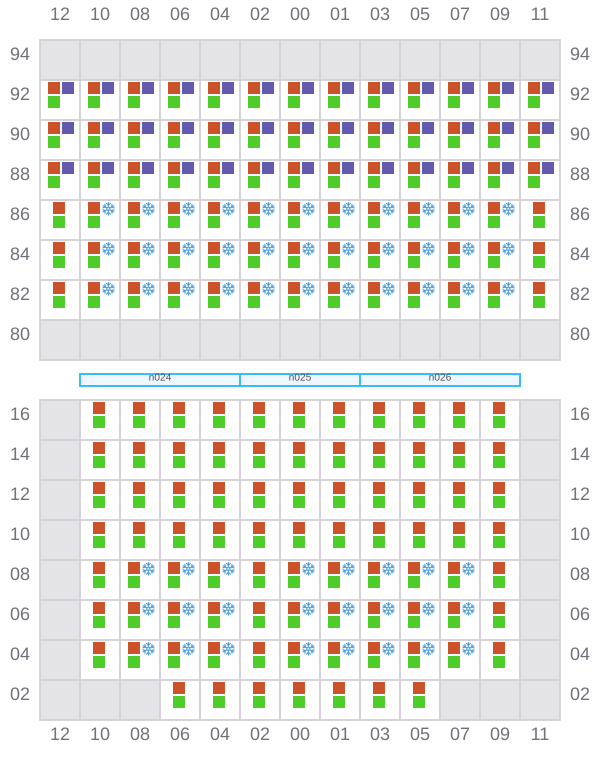

Bay 037 view and slots of GSL ELEFTHERIA

039

  • →
  • ? / ←

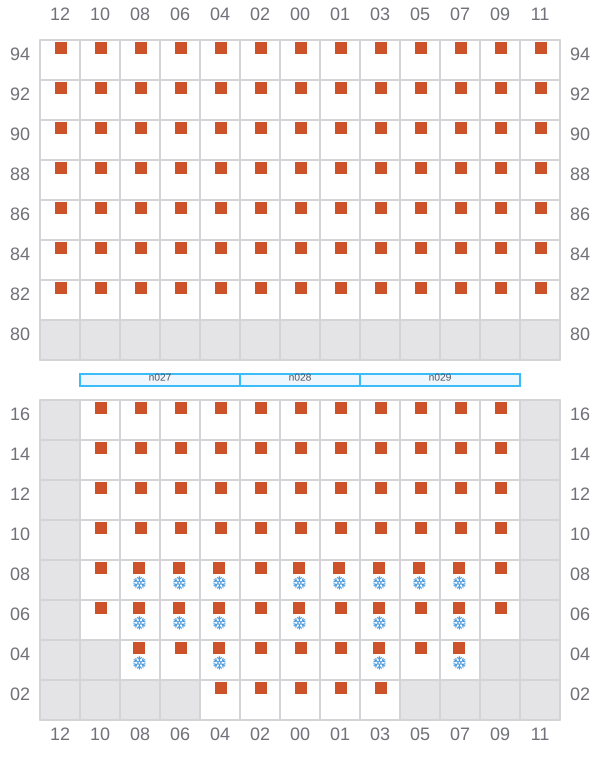

Bay 039 view and slots of GSL ELEFTHERIA

041 (040)

  • ←
  • → / ←

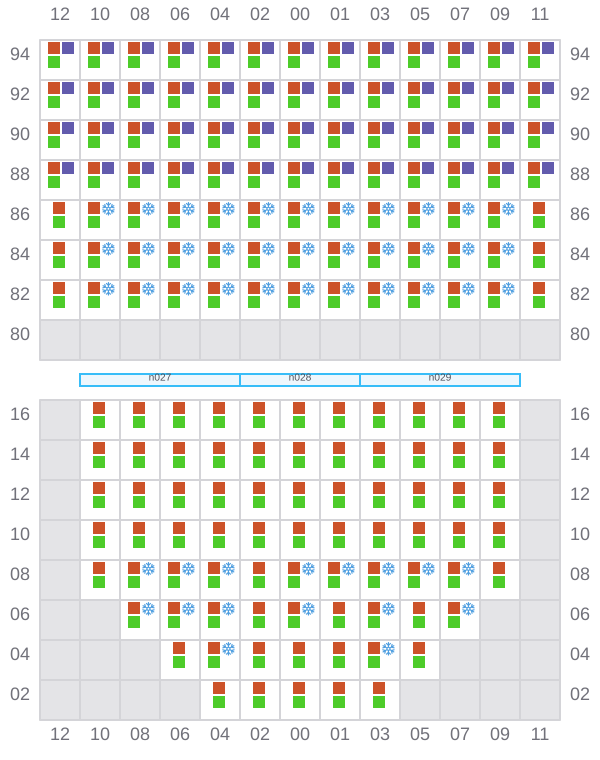

Bay 041 view and slots of GSL ELEFTHERIA

043

  • → / ?

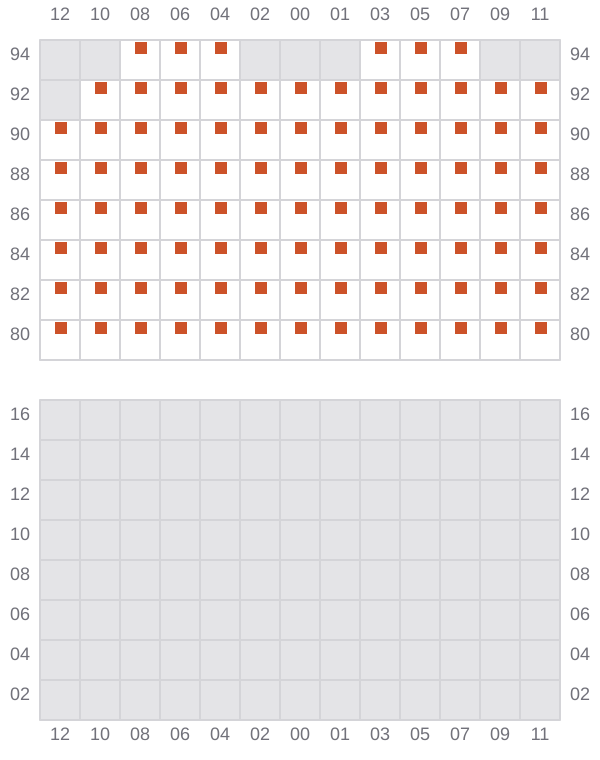

Bay 043 view and slots of GSL ELEFTHERIA

045 (044)

  • ← / ?
  • ← / ?

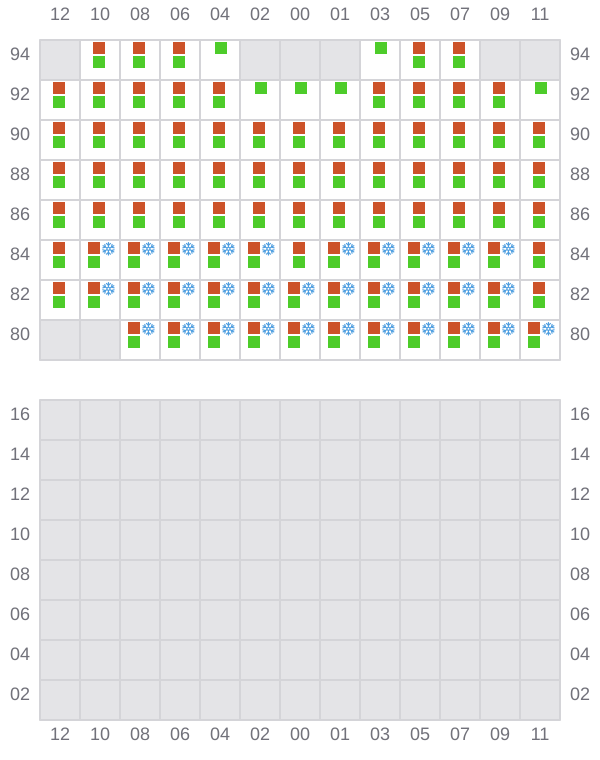

Bay 045 view and slots of GSL ELEFTHERIA

047

  • → / ?
  • → / ?

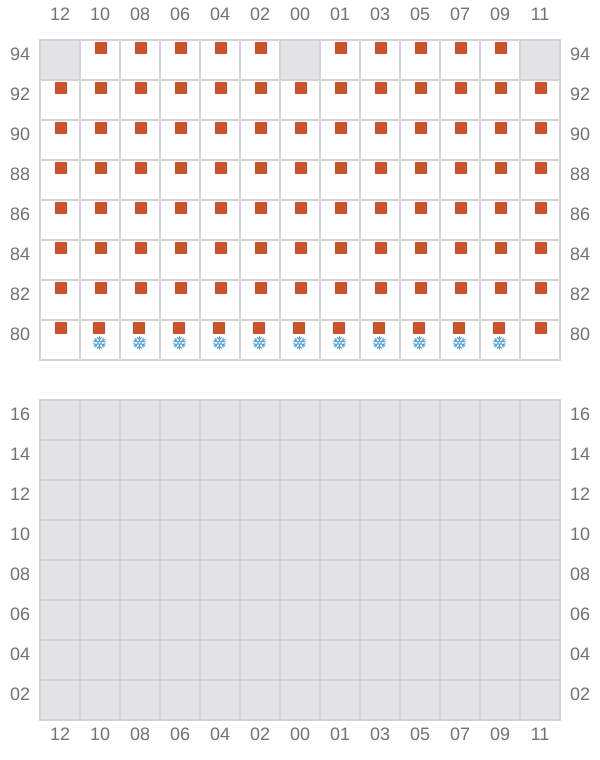

Bay 047 view and slots of GSL ELEFTHERIA

049 (048)

  • ← / ?
  • → / ?

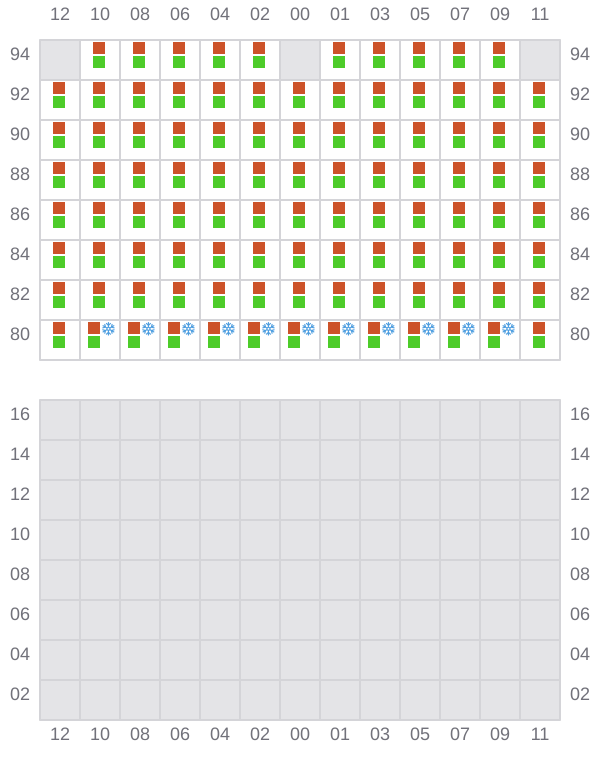

Bay 049 view and slots of GSL ELEFTHERIA
