GSL MYNY
9213583 | 5LAQ6 | 9213583 by ********* Last update: Thu Mar 14 2024

General Info

Ship Name:GSL MYNY

IMO Code:9213583

Call Sign:5LAQ6

Line Operator:9213583

Class Name for Sister Ships:25I

Year Built:2000

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:061

Max ISO Row:16

Center Line Row:No

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:18

Min Below ISO Tier:02

Total TEU:5,638

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

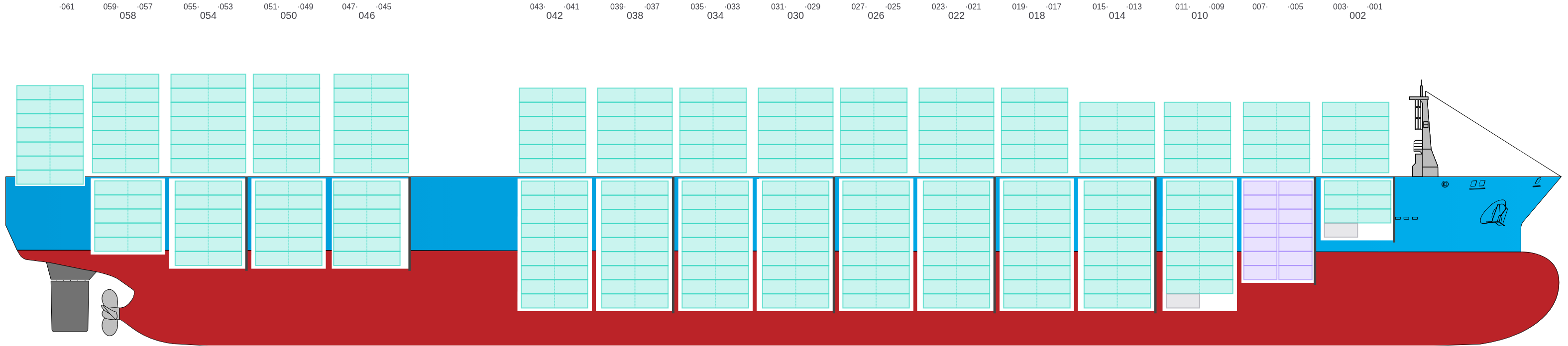

Side View

Side view of GSL MYNY

Hatch-Covers View

Deck view of GSL MYNY

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

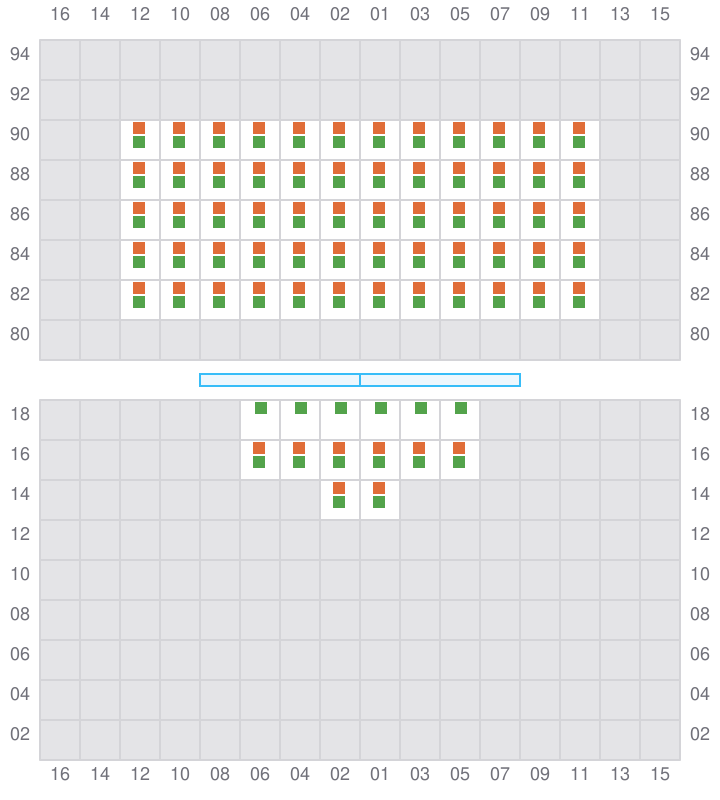

Bay 001 view and slots of GSL MYNY

003

←
→

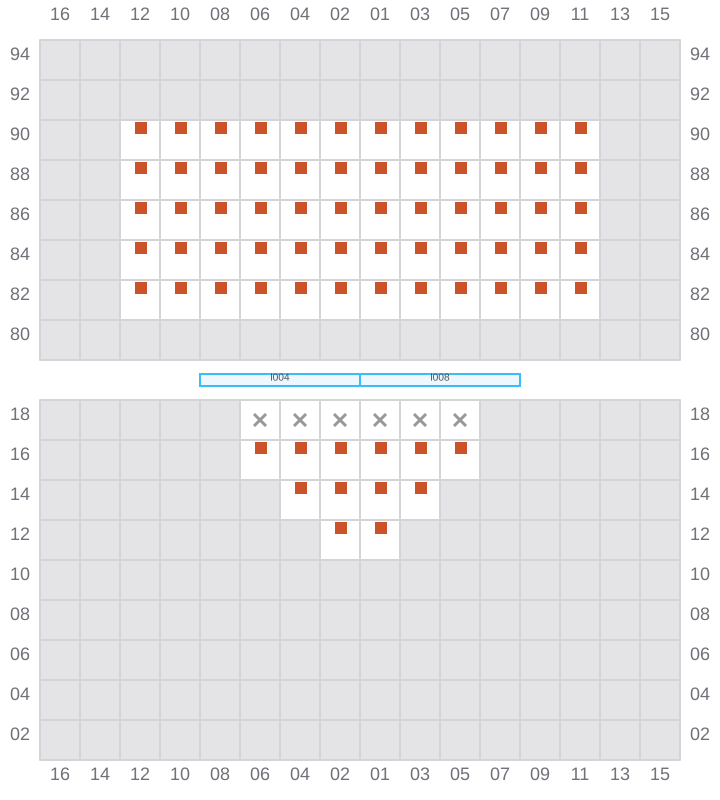

Bay 003 view and slots of GSL MYNY

005 (006)

^→ / _?
^? / _→

Bay 005 view and slots of GSL MYNY

007

^← / _?
→

Bay 007 view and slots of GSL MYNY

009 (010)

→

Bay 009 view and slots of GSL MYNY

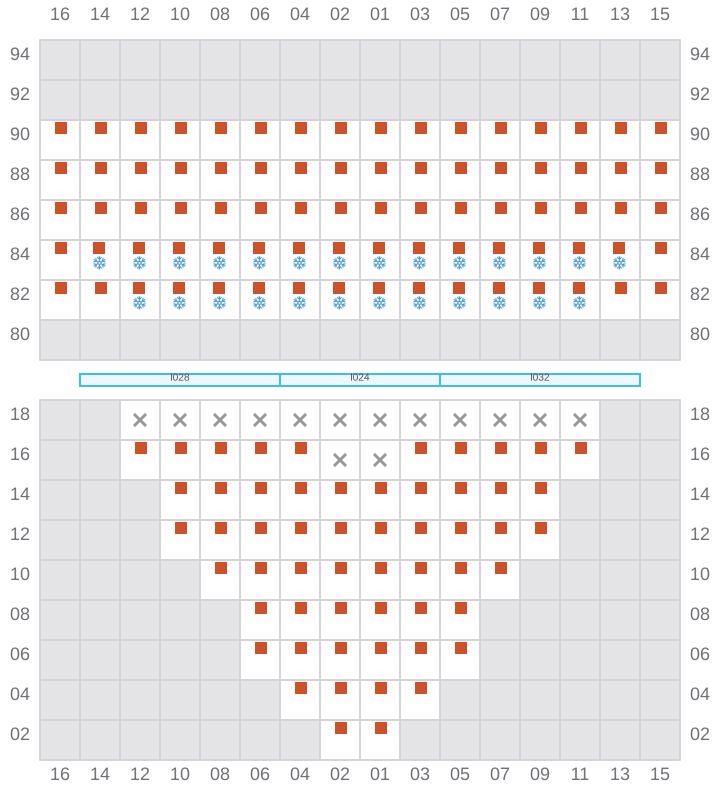

011

←
^→ / _?
^← / _→

Bay 011 view and slots of GSL MYNY

013 (014)

→

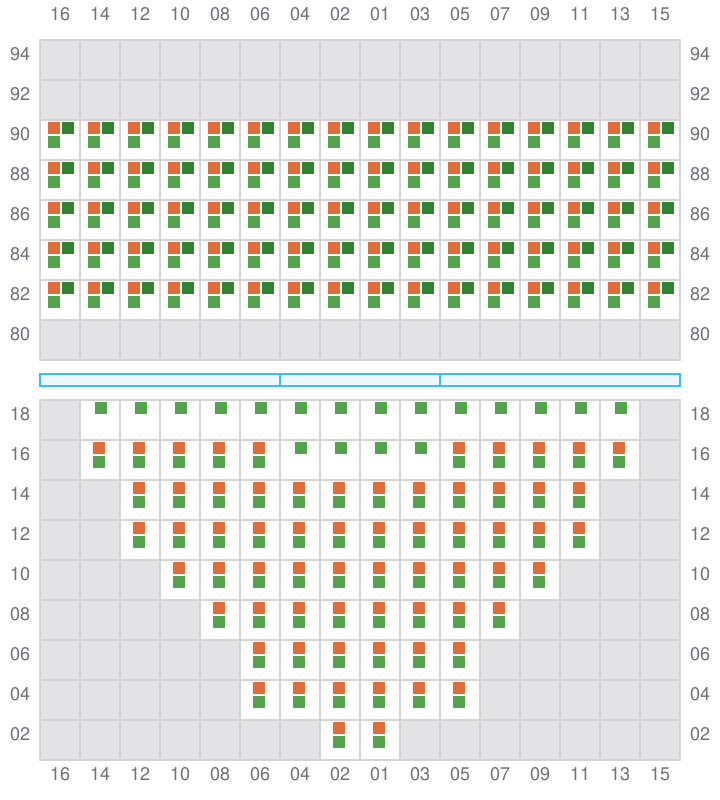

Bay 013 view and slots of GSL MYNY

015

←
^→ / _?
^← / _→

Bay 015 view and slots of GSL MYNY

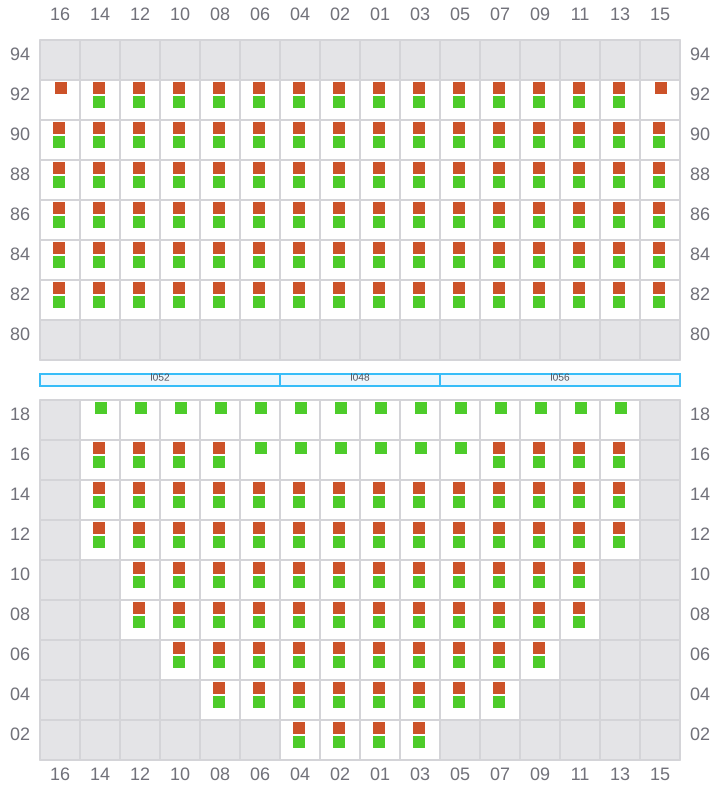

017 (018)

→
→

Bay 017 view and slots of GSL MYNY

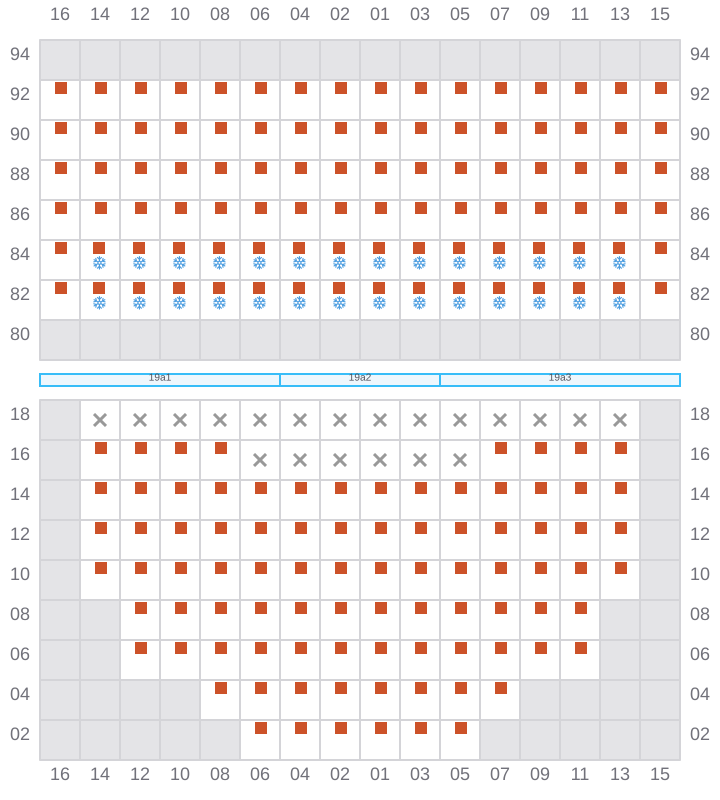

019

←
^→ / _?
^← / _→

Bay 019 view and slots of GSL MYNY

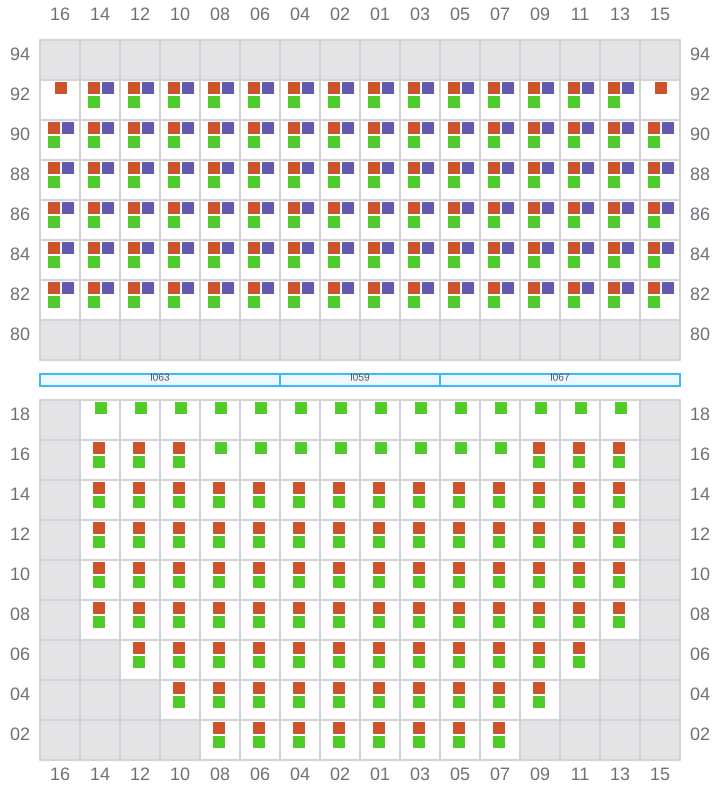

021 (022)

→
^? / _→
^? / _→

Bay 021 view and slots of GSL MYNY

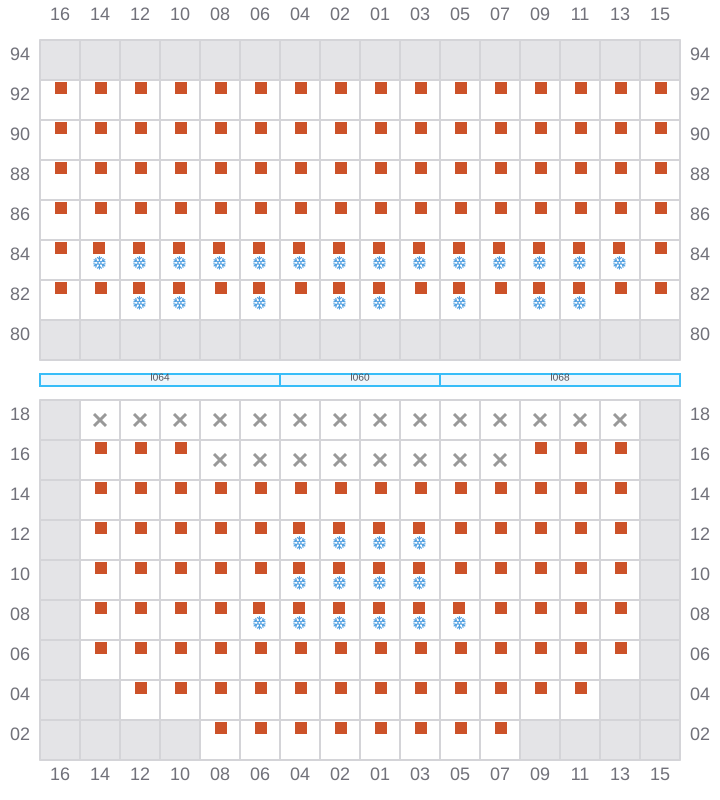

023

←
→
^← / _→

Bay 023 view and slots of GSL MYNY

025 (026)

→
→

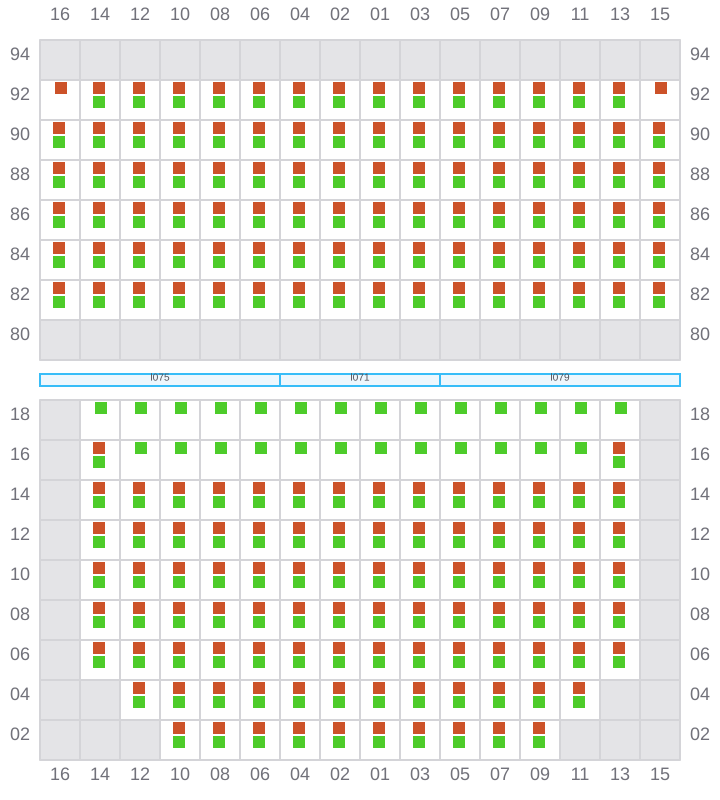

Bay 025 view and slots of GSL MYNY

027

←
→
←

Bay 027 view and slots of GSL MYNY

029 (030)

→
^? / _→
→

Bay 029 view and slots of GSL MYNY

031

←
→
←

Bay 031 view and slots of GSL MYNY

033 (034)

→

Bay 033 view and slots of GSL MYNY

035

←
→
←

Bay 035 view and slots of GSL MYNY

037 (038)

→
^← / _?
^→ / _?

Bay 037 view and slots of GSL MYNY

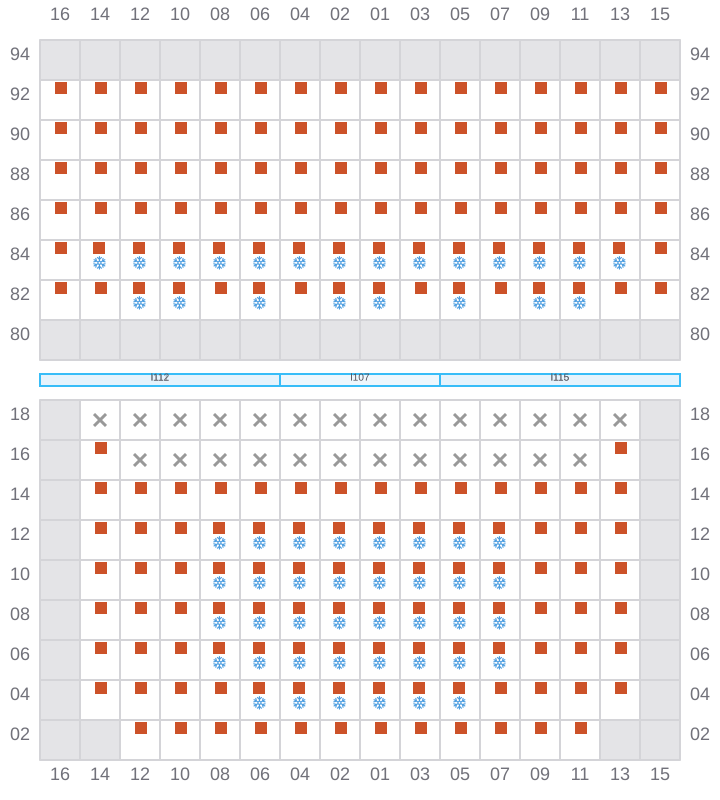

039

←
→
←

Bay 039 view and slots of GSL MYNY

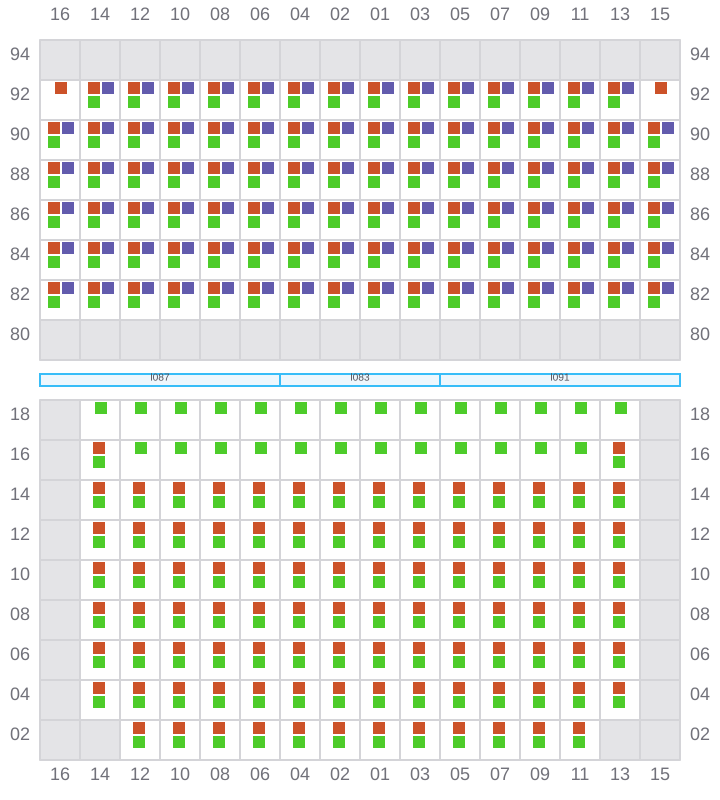

041 (042)

→
^← / _?
^→ / _?

Bay 041 view and slots of GSL MYNY

043

←
→
←

Bay 043 view and slots of GSL MYNY

045 (046)

→

Bay 045 view and slots of GSL MYNY

047

←
^? / _→

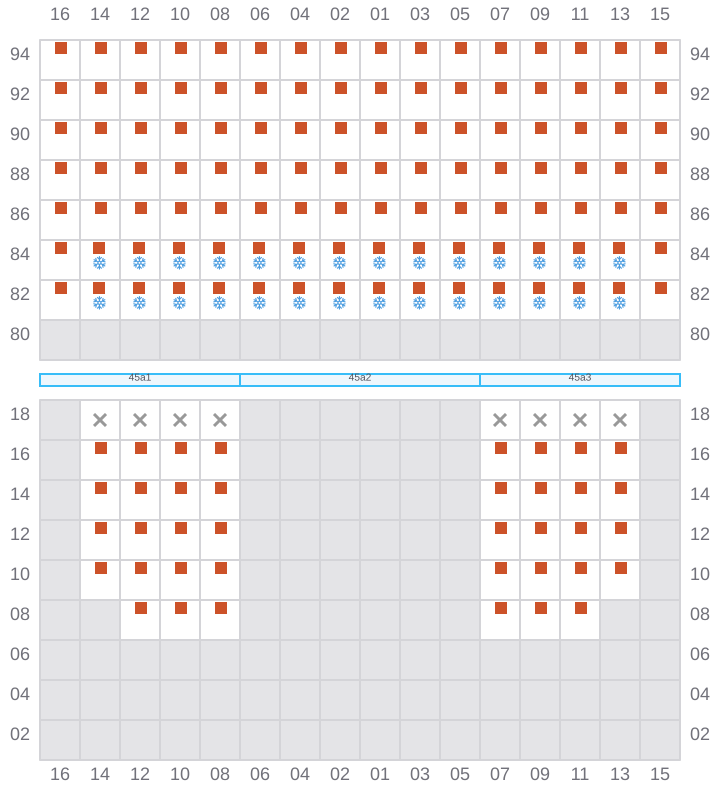

Bay 047 view and slots of GSL MYNY

049 (050)

→

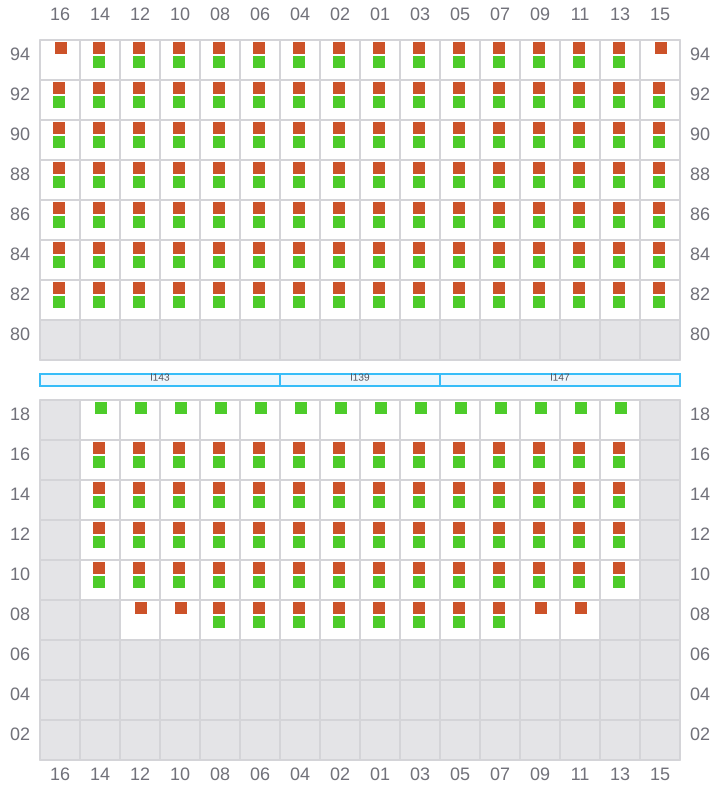

Bay 049 view and slots of GSL MYNY

051

←
^→ / _?

Bay 051 view and slots of GSL MYNY

053 (054)

→

Bay 053 view and slots of GSL MYNY

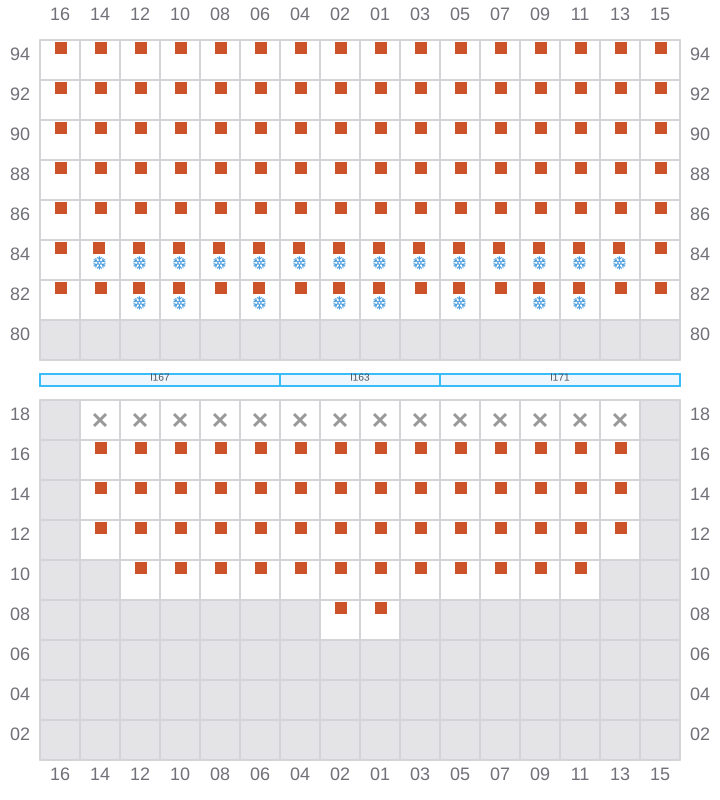

055

←

Bay 055 view and slots of GSL MYNY

057 (058)

→

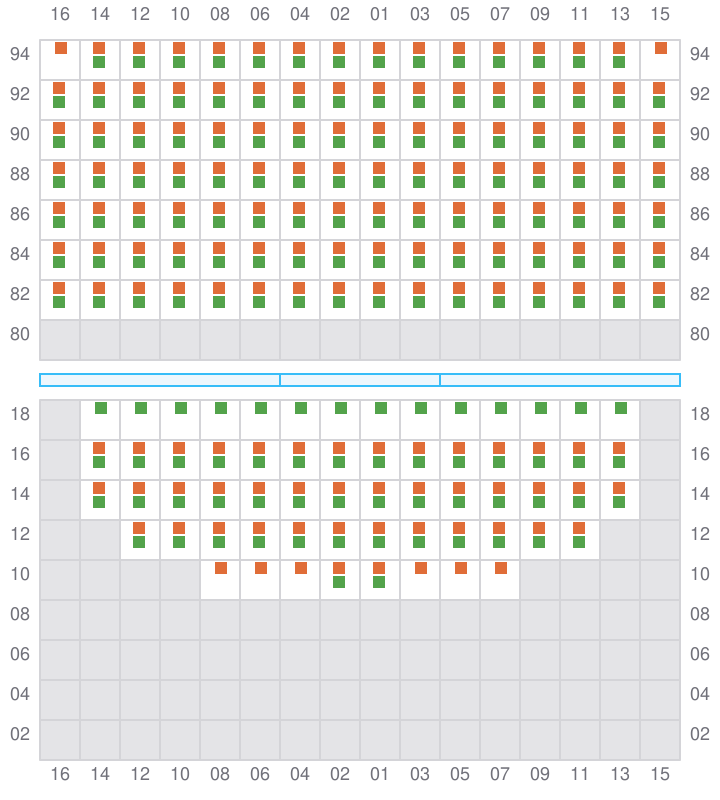

Bay 057 view and slots of GSL MYNY

059

←

Bay 059 view and slots of GSL MYNY

061 (062)

^→ / _?
^← / _?
^→ / _?

Bay 061 view and slots of GSL MYNY
