GSL SUSAN
9349617 | D5UD9 | CMA by *********************** Last update: Mon Jan 27 2025

General Info

Ship Name:GSL SUSAN

IMO Code:9349617

Call Sign:D5UD9

Line Operator:CMA

Class Name for Sister Ships:CGBM

Year Built:2008

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:063

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:80

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:4,345

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

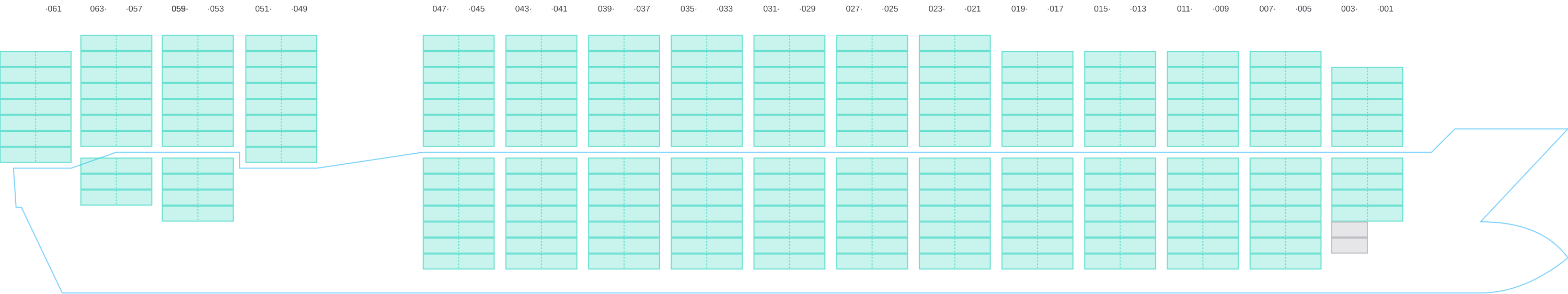

Side view of GSL SUSAN

Hatch-Covers View

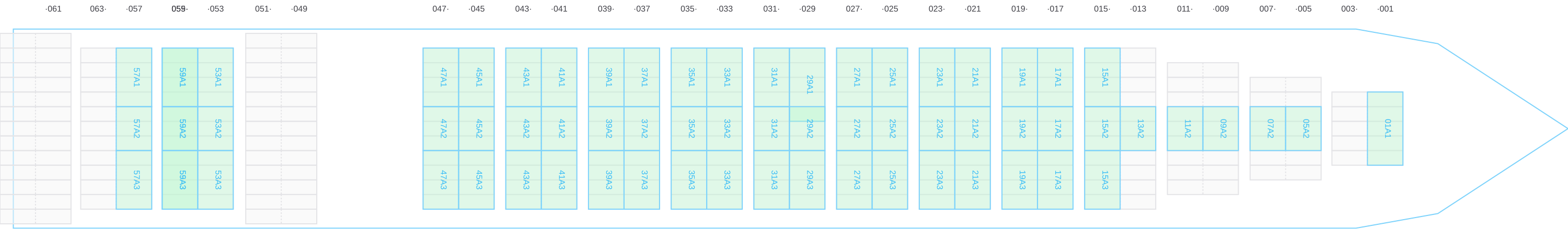

Deck view of GSL SUSAN

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→
^→ / _?
→

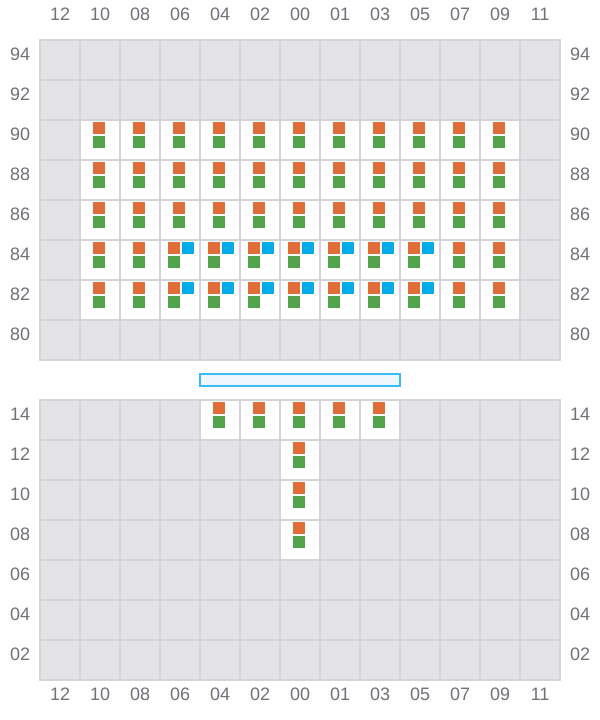

Bay 001 view and slots of GSL SUSAN

003

←
^→ / _?
→

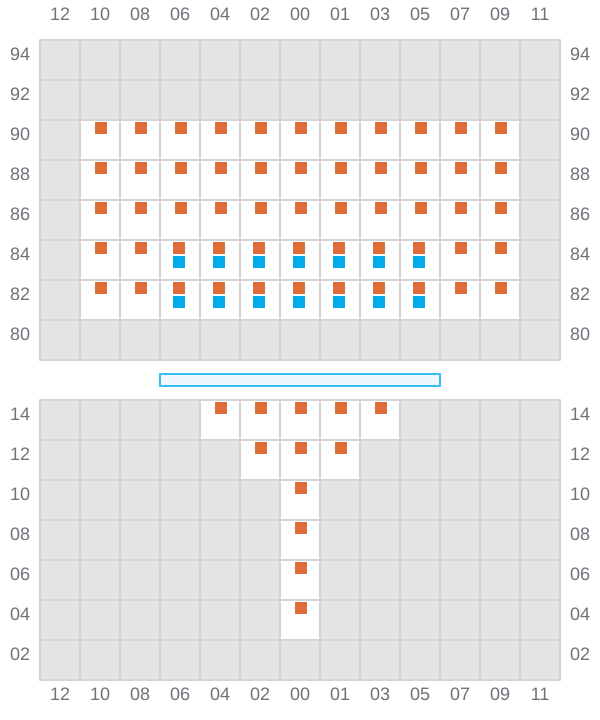

Bay 003 view and slots of GSL SUSAN

005 (006)

→
^→ / _?
→

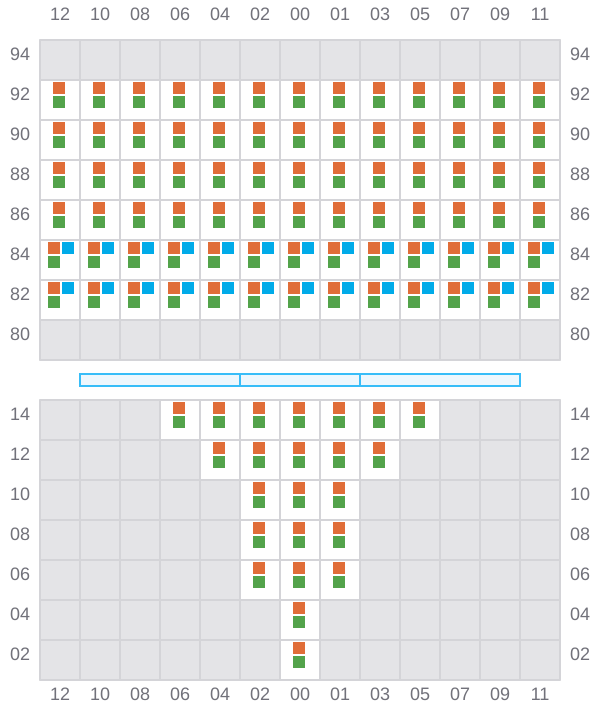

Bay 005 view and slots of GSL SUSAN

007

←
^→ / _?
→

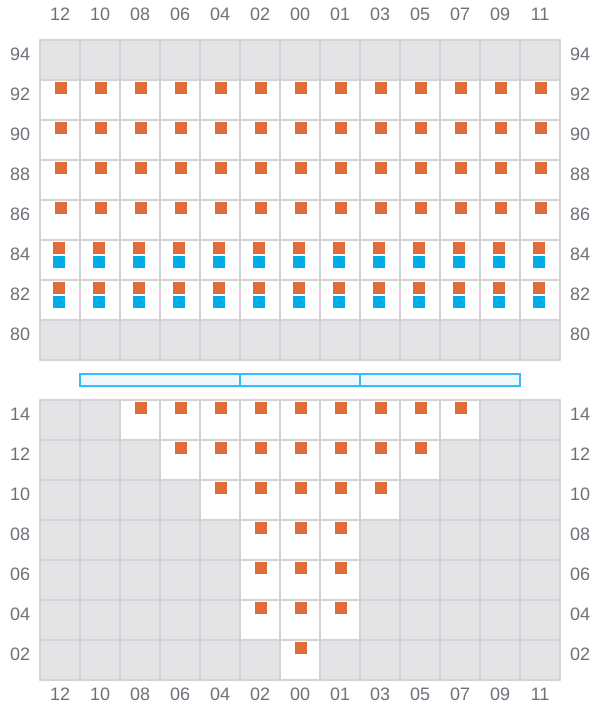

Bay 007 view and slots of GSL SUSAN

009 (010)

→
^→ / _?
→

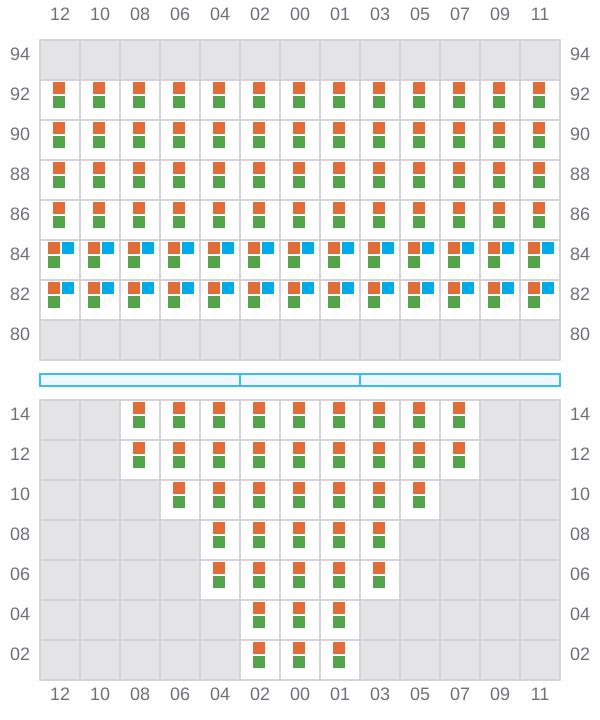

Bay 009 view and slots of GSL SUSAN

011

←
^→ / _?
→

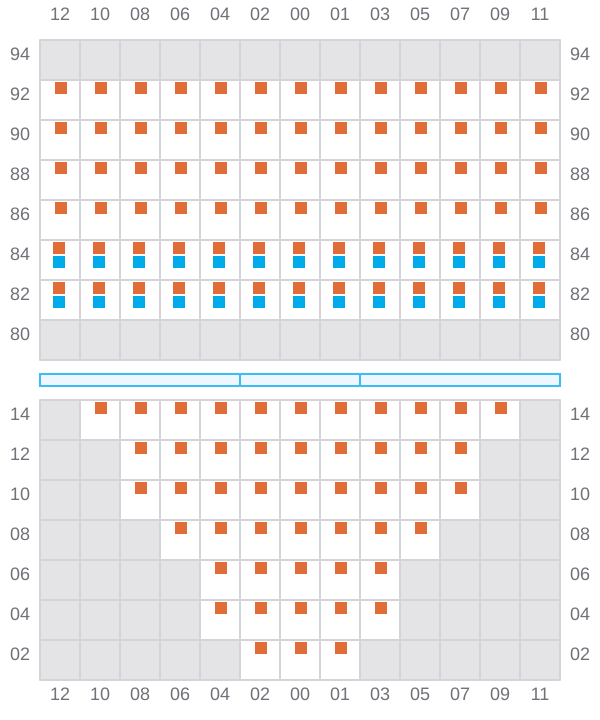

Bay 011 view and slots of GSL SUSAN

013 (014)

→
^→ / _?
→

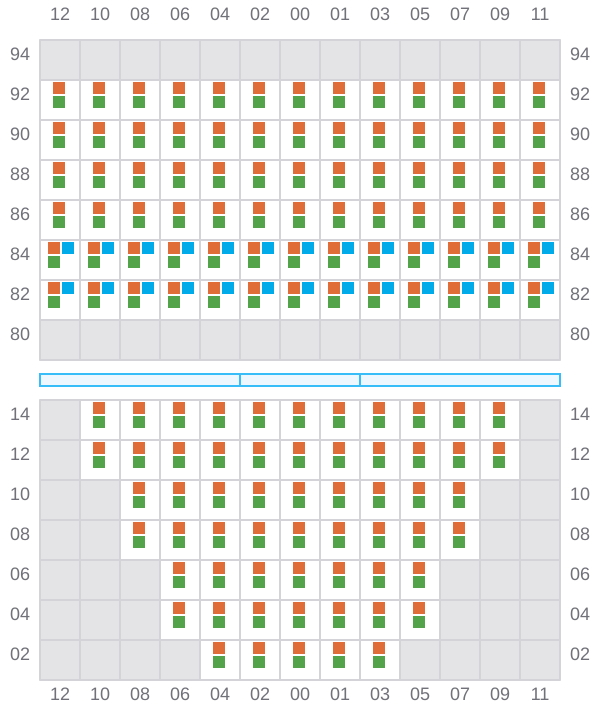

Bay 013 view and slots of GSL SUSAN

015

←
^→ / _?
→

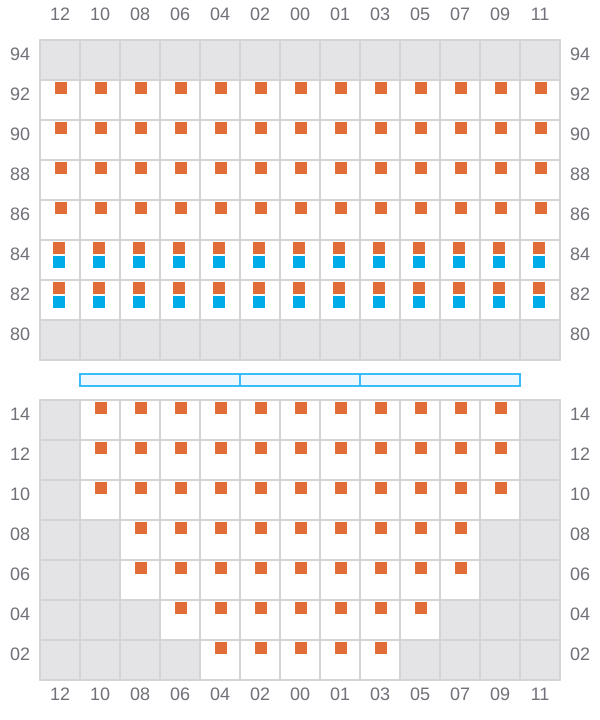

Bay 015 view and slots of GSL SUSAN

017 (018)

→
→
→

Bay 017 view and slots of GSL SUSAN

019

←
→
→

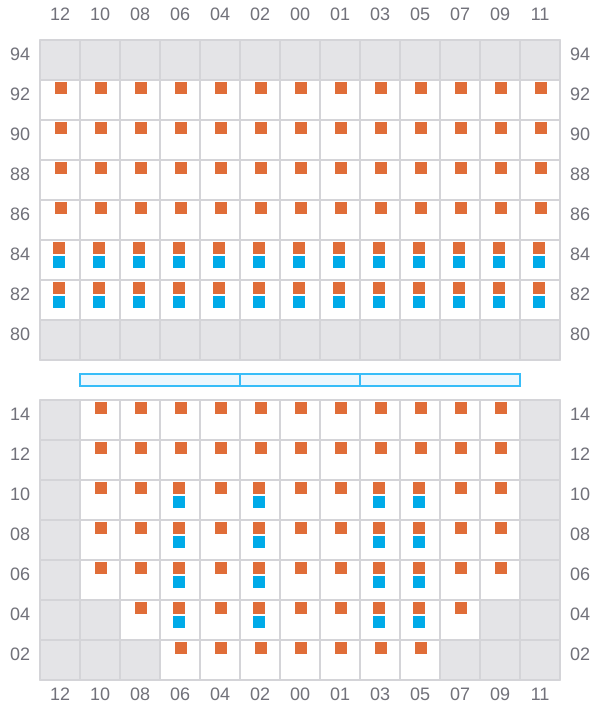

Bay 019 view and slots of GSL SUSAN

021 (022)

→
→
→

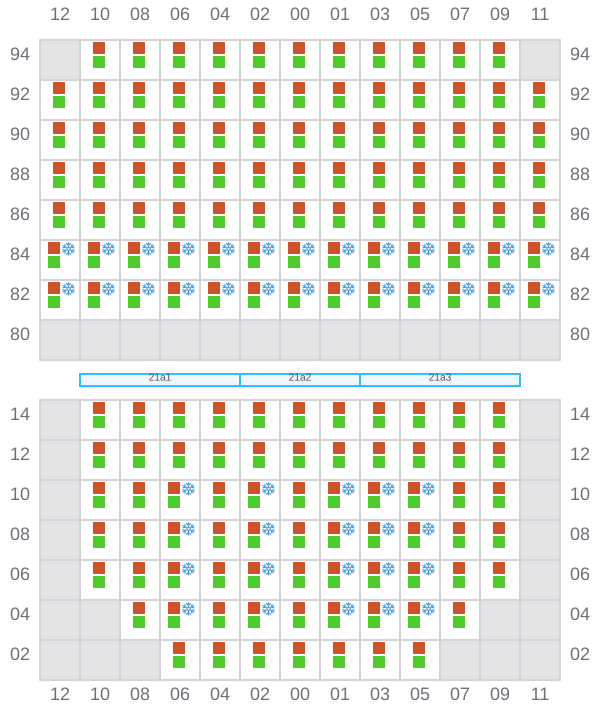

Bay 021 view and slots of GSL SUSAN

023

←
→
→

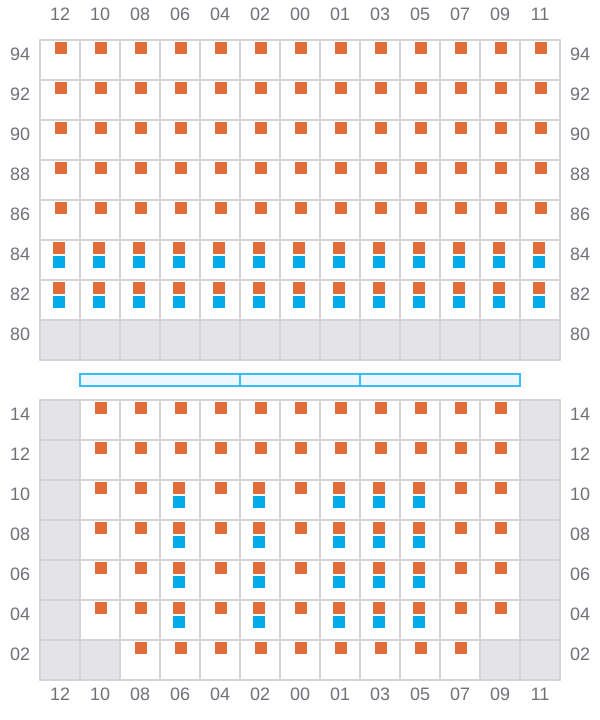

Bay 023 view and slots of GSL SUSAN

025 (026)

→
→
→

Bay 025 view and slots of GSL SUSAN

027

←
→
→

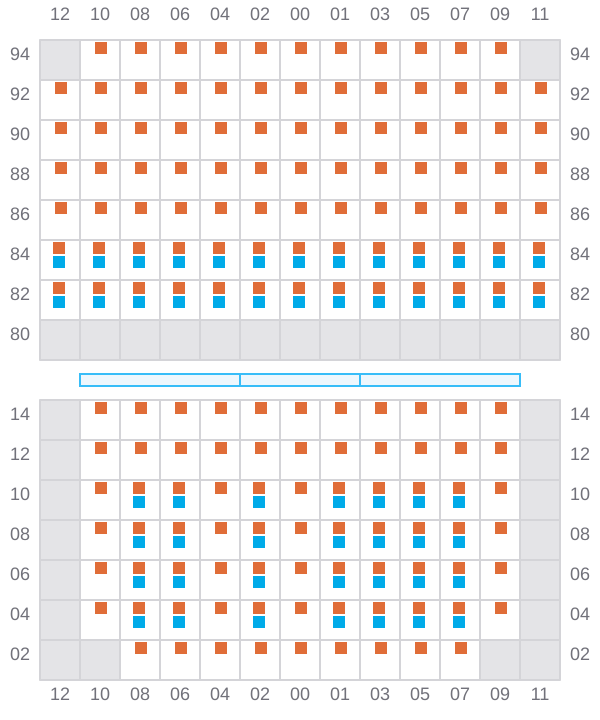

Bay 027 view and slots of GSL SUSAN

029 (030)

→
→
→

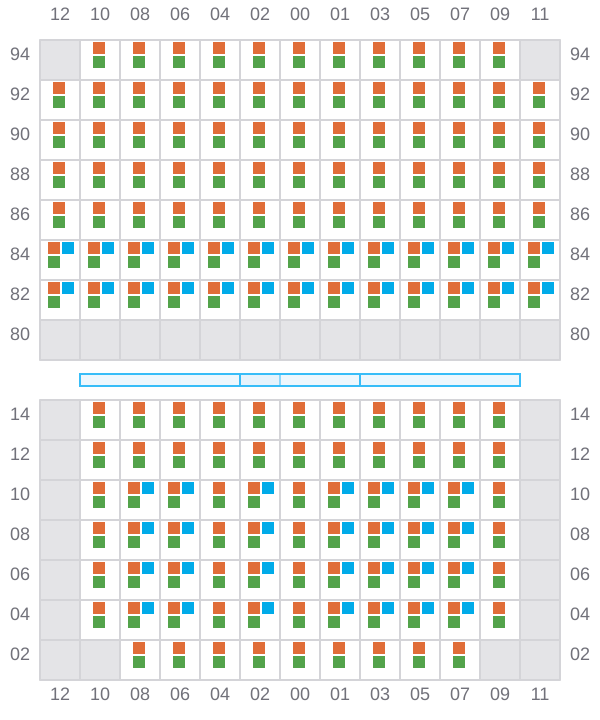

Bay 029 view and slots of GSL SUSAN

031

←
→
→

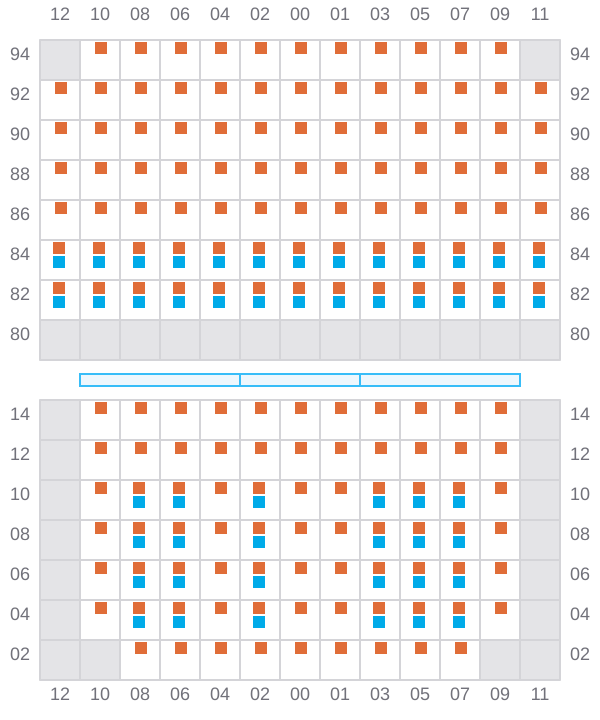

Bay 031 view and slots of GSL SUSAN

033 (034)

→
→
→

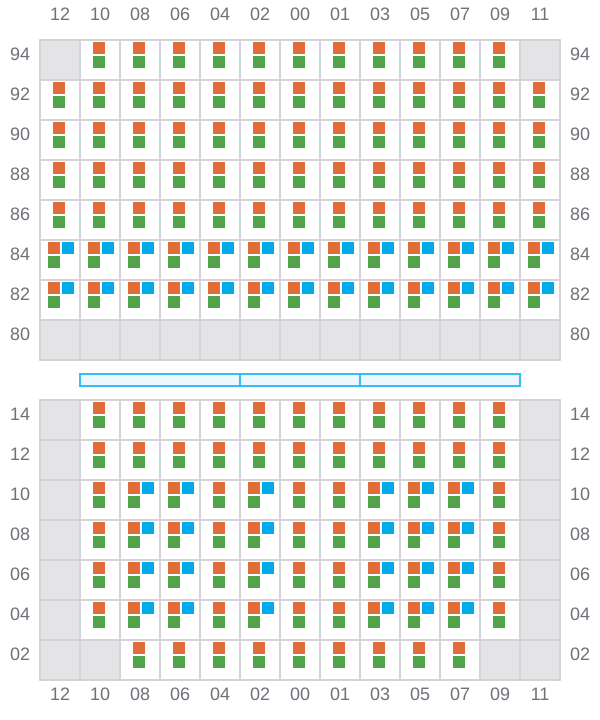

Bay 033 view and slots of GSL SUSAN

035

←
→
→

Bay 035 view and slots of GSL SUSAN

037 (038)

→
→
→

Bay 037 view and slots of GSL SUSAN

039

←
→
→

Bay 039 view and slots of GSL SUSAN

041 (042)

→
→
→

Bay 041 view and slots of GSL SUSAN

043

←
→
→

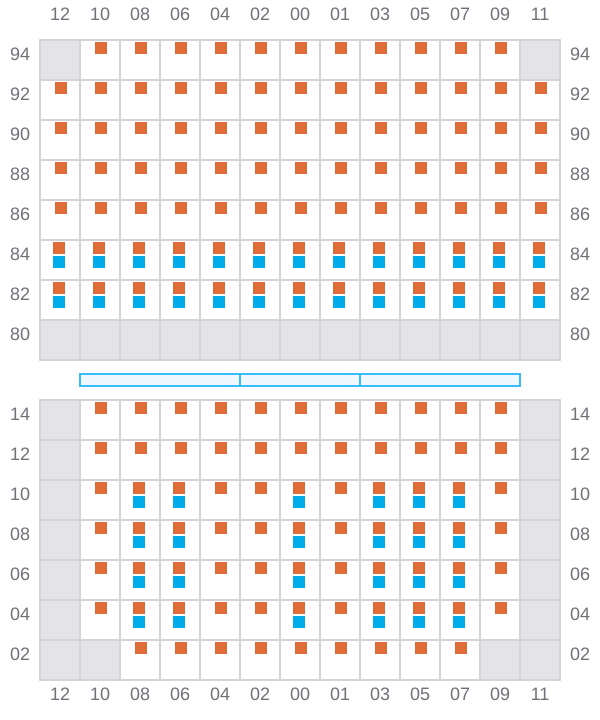

Bay 043 view and slots of GSL SUSAN

045 (046)

→
→
→

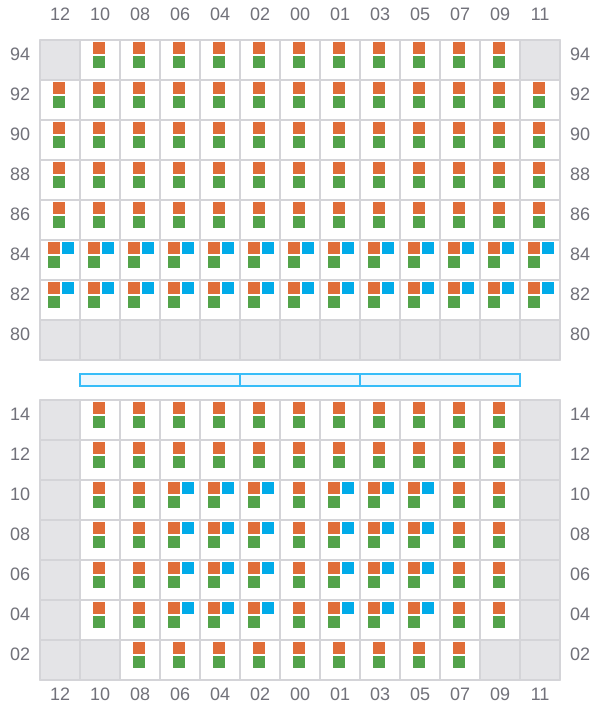

Bay 045 view and slots of GSL SUSAN

047

←
→
→

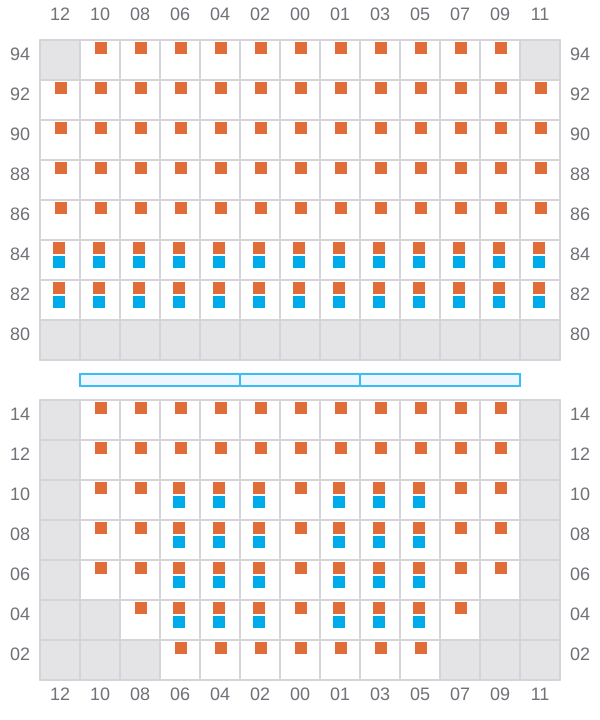

Bay 047 view and slots of GSL SUSAN

049 (050)

^→ / _?
^← / _?
^→ / _?

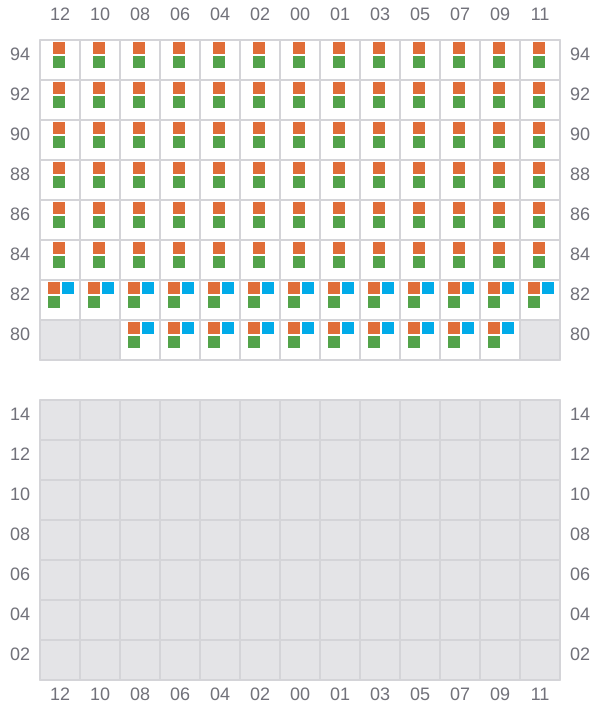

Bay 049 view and slots of GSL SUSAN

051

^← / _?
^→ / _?

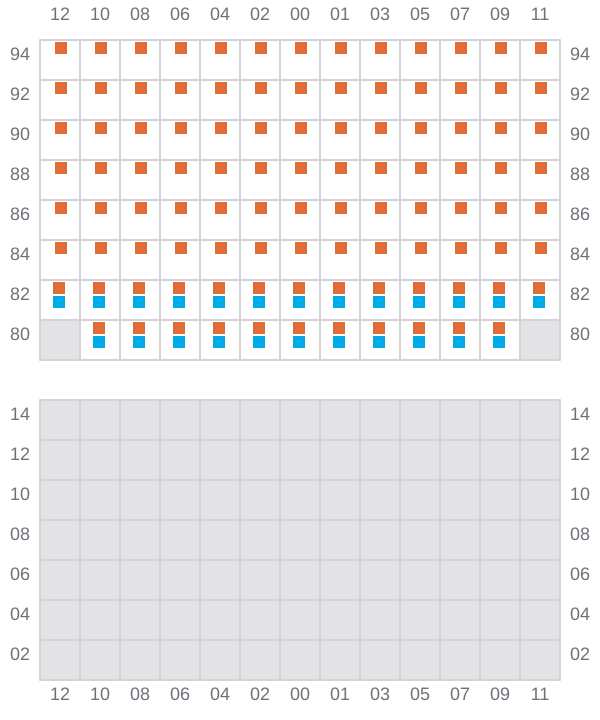

Bay 051 view and slots of GSL SUSAN

053 (054)

→
^← / _?
→

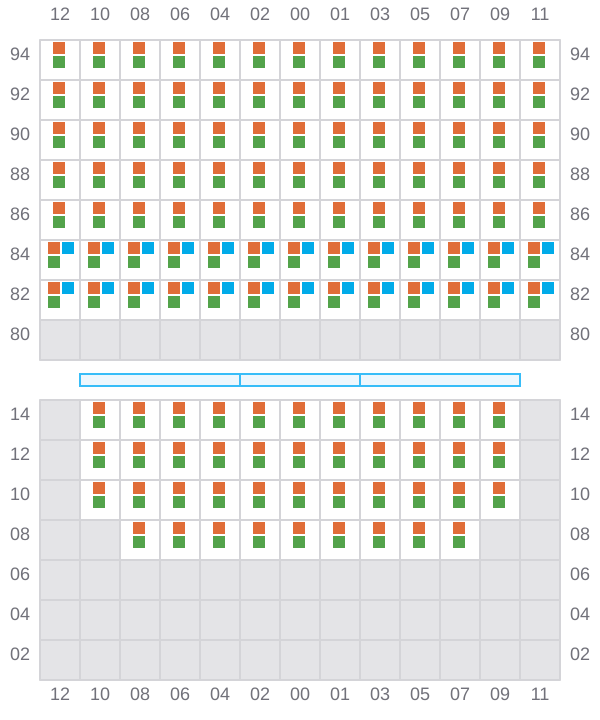

Bay 053 view and slots of GSL SUSAN

055

←
→

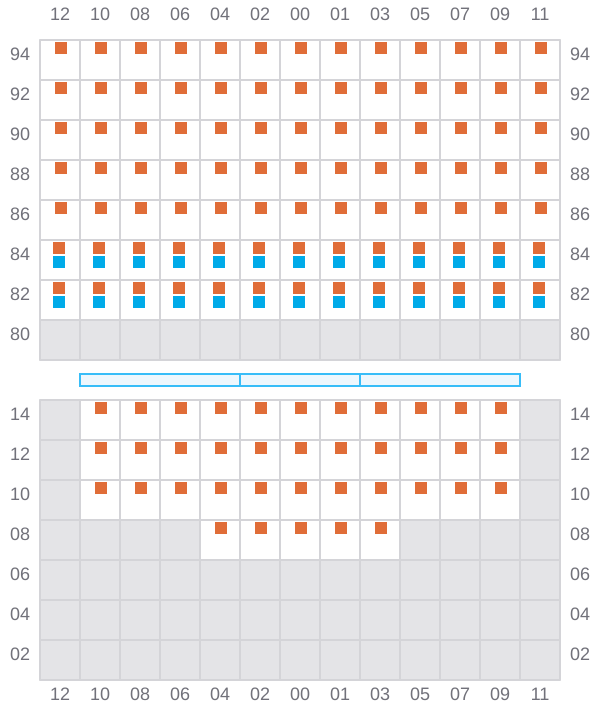

Bay 055 view and slots of GSL SUSAN

057 (058)

→
^← / _?
→

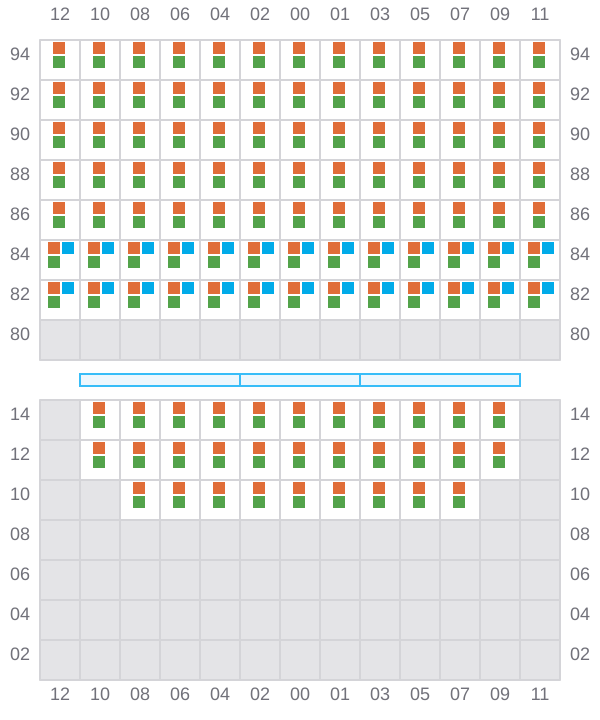

Bay 057 view and slots of GSL SUSAN

059

←
→

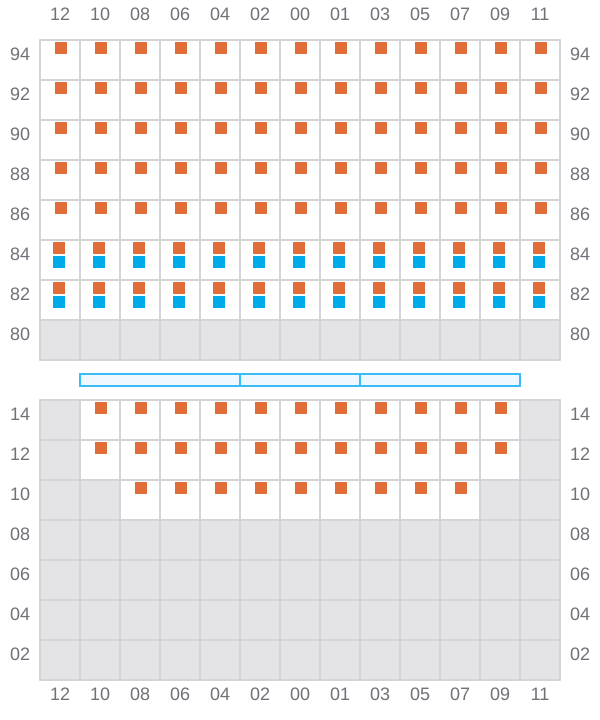

Bay 059 view and slots of GSL SUSAN

061 (062)

^→ / _?
^→ / _?

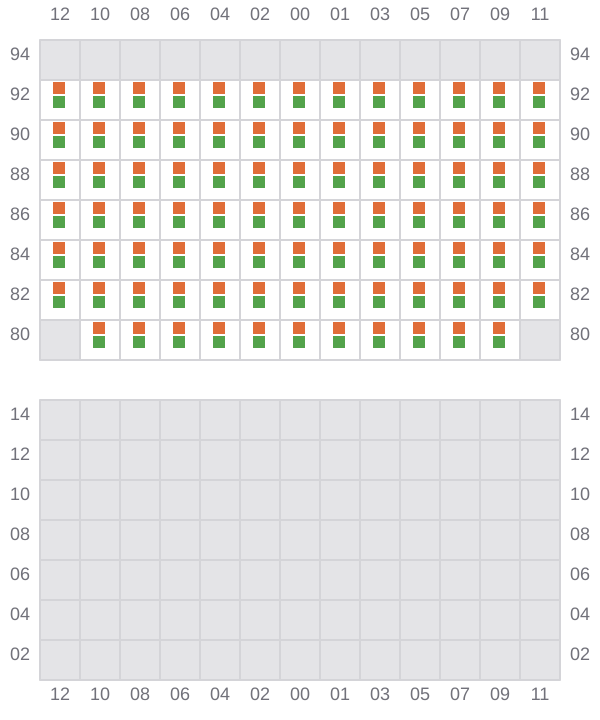

Bay 061 view and slots of GSL SUSAN

063

^← / _?
^→ / _?

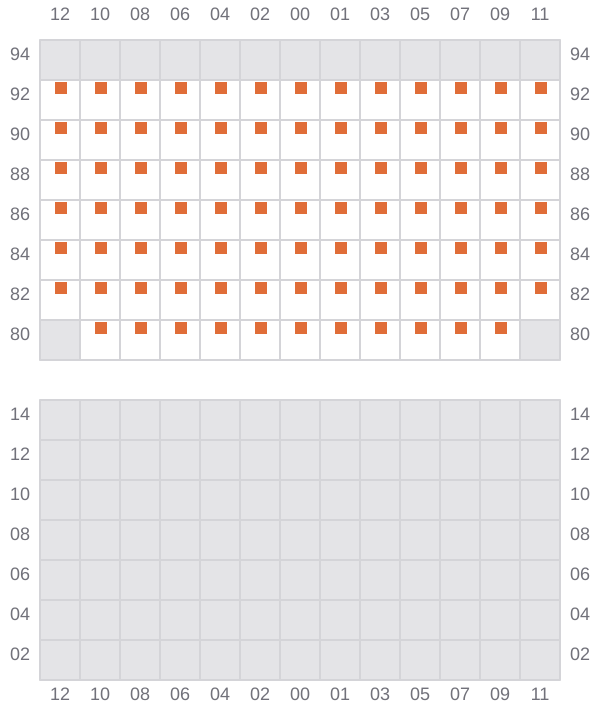

Bay 063 view and slots of GSL SUSAN
