GSL TINOS
9437050 | 5LBR6 | MSK by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:GSL TINOS
IMO Code:9437050
Call Sign:5LBR6
Line Operator:MSK
Class Name for Sister Ships:GST
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):282.53
LOA (Length Overall):294.05
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,470
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

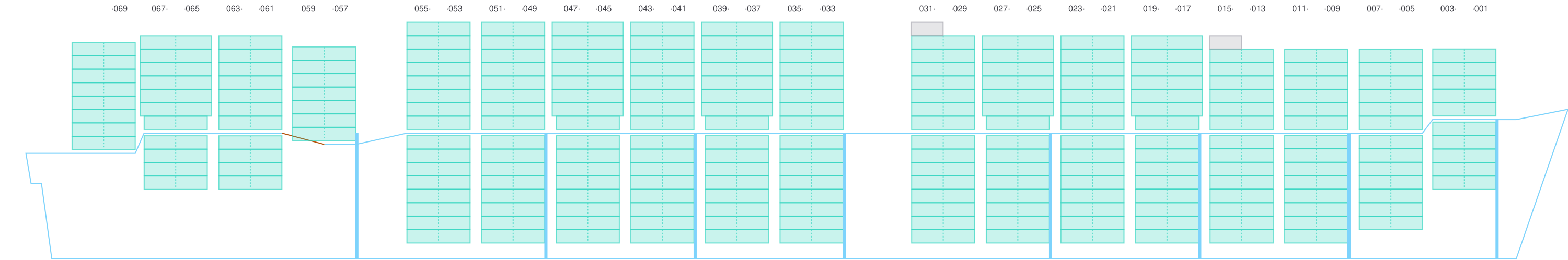

Side View
![Side view of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-sideView.png?v=1687540442449)

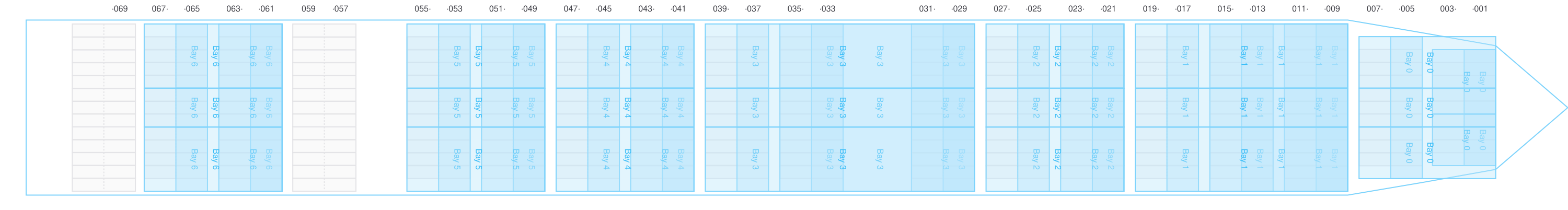

Hatch-Covers View
![Deck view of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-deckView.png?v=1687540442449)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

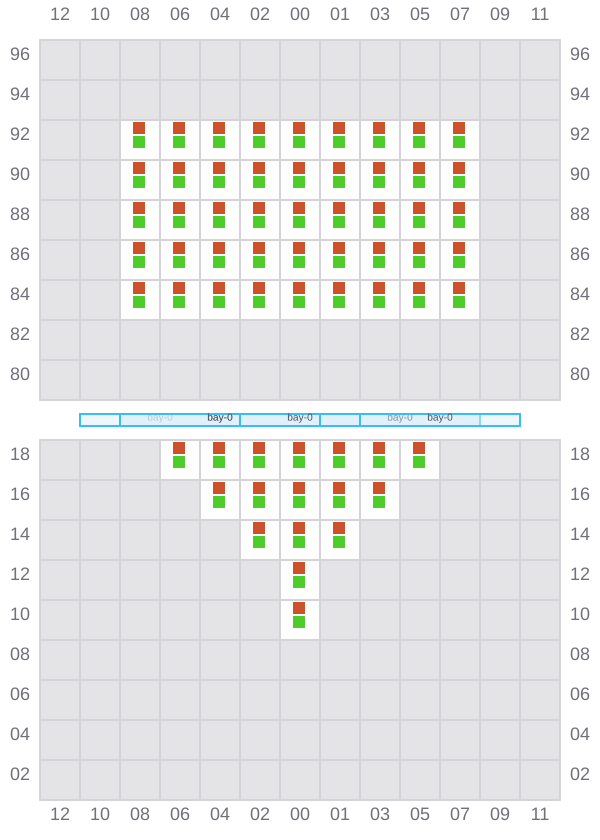

001 (002)
- →
![Bay 001 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b001.png?v=1687540442449)

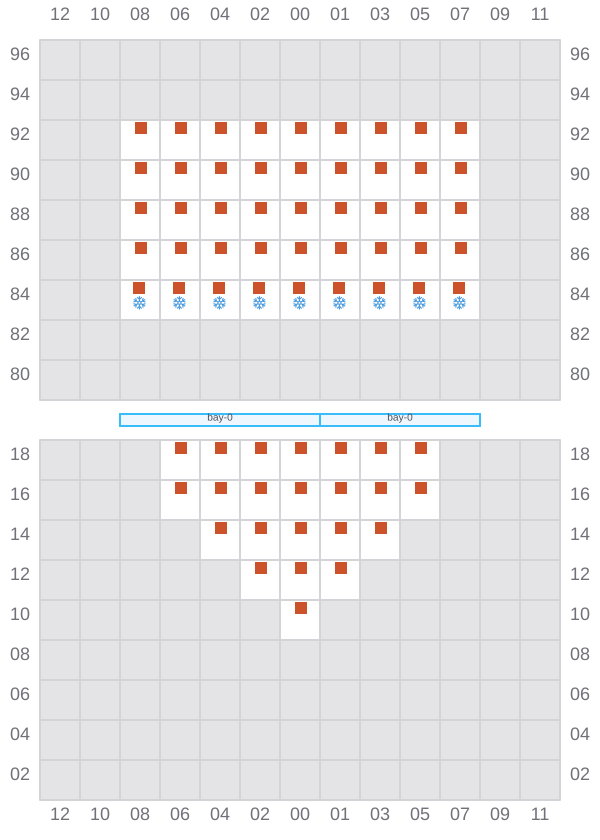

003
- ←
- → / ?
![Bay 003 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b003.png?v=1687540442449)

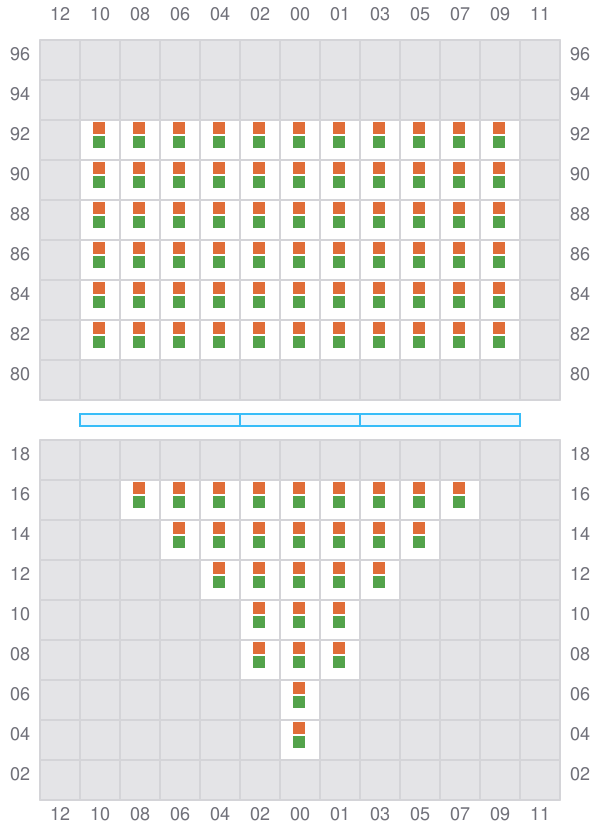

005 (006)
- →
![Bay 005 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b005.png?v=1687540442449)

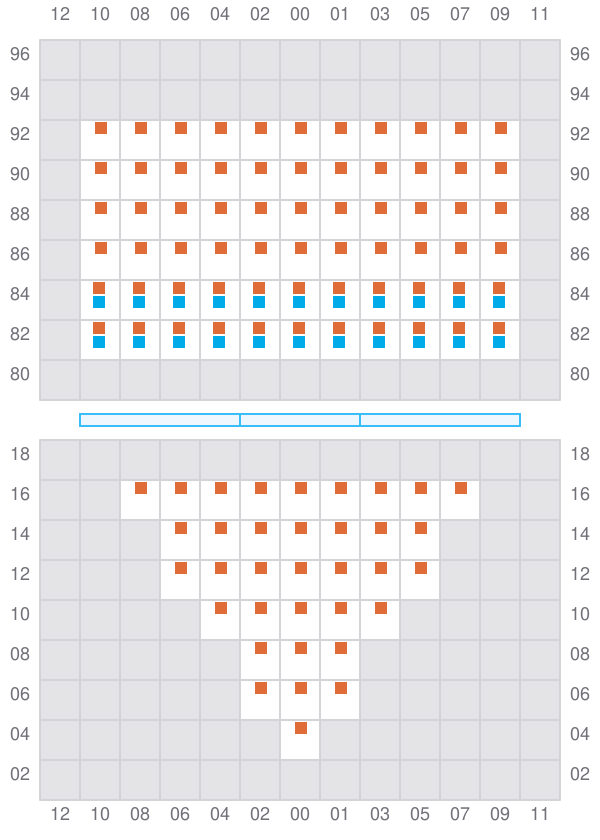

007
- ←
- → / ?
![Bay 007 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b007.png?v=1687540442449)

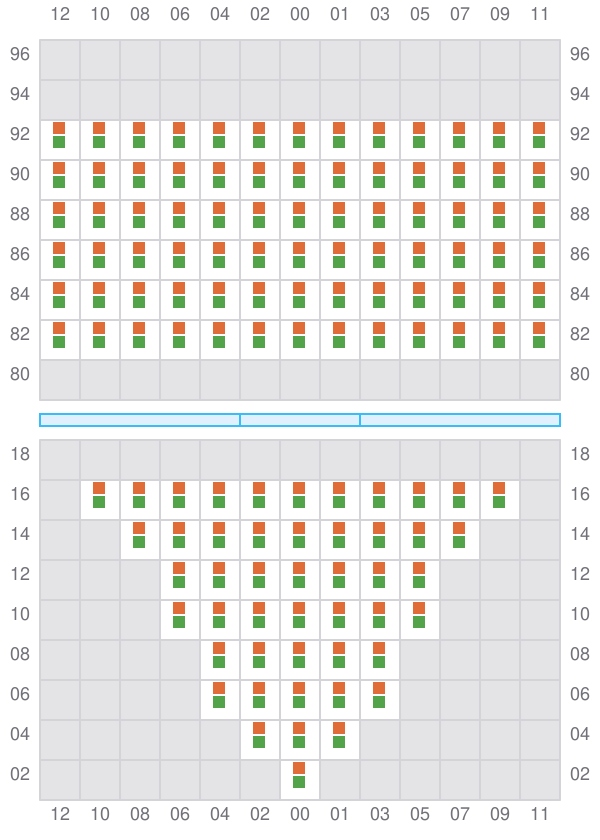

009 (010)
- →
![Bay 009 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b009.png?v=1687540442449)

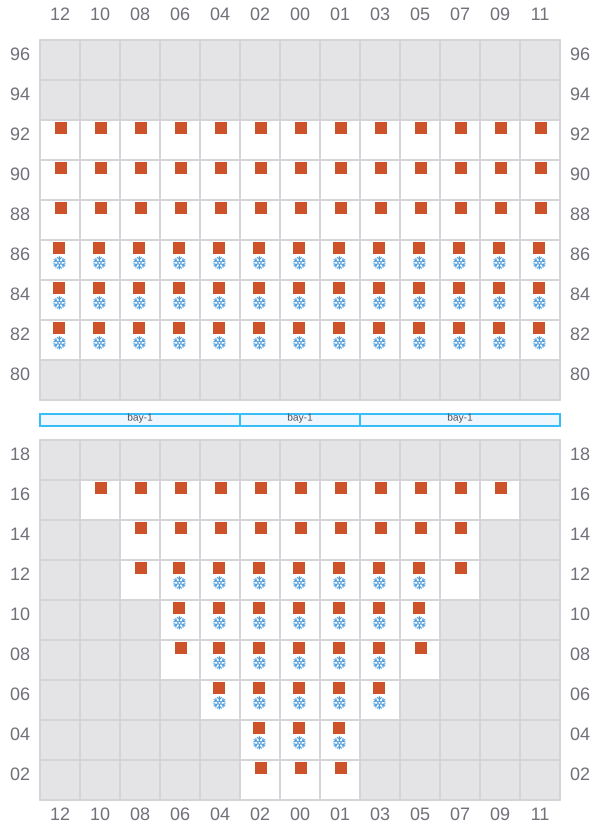

011
- ←
- →
![Bay 011 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b011.png?v=1687540442449)

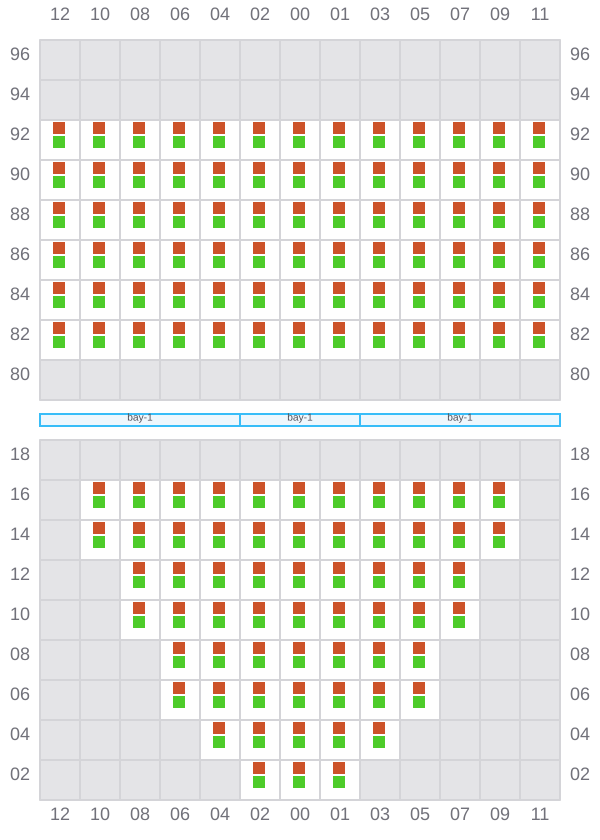

013 (014)
- →
![Bay 013 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b013.png?v=1687540442449)

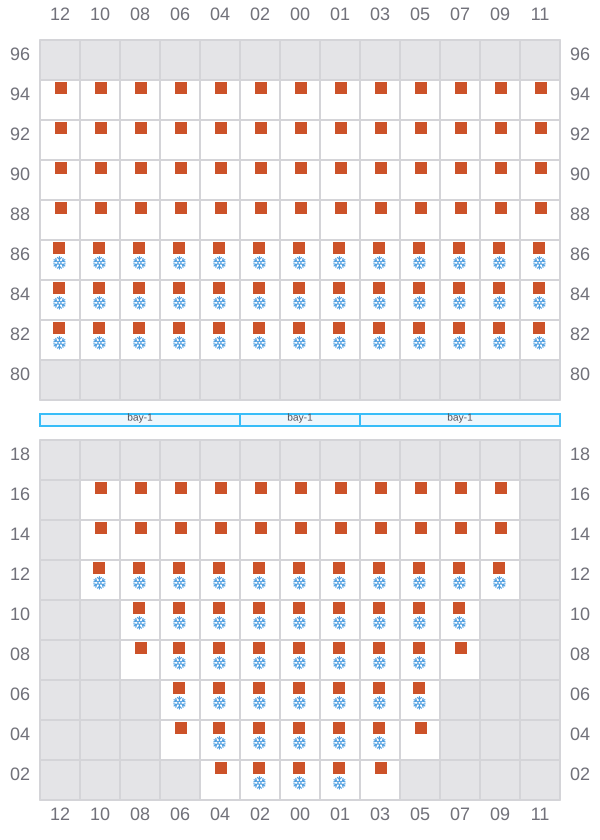

015
- ←
- →
![Bay 015 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b015.png?v=1687540442449)

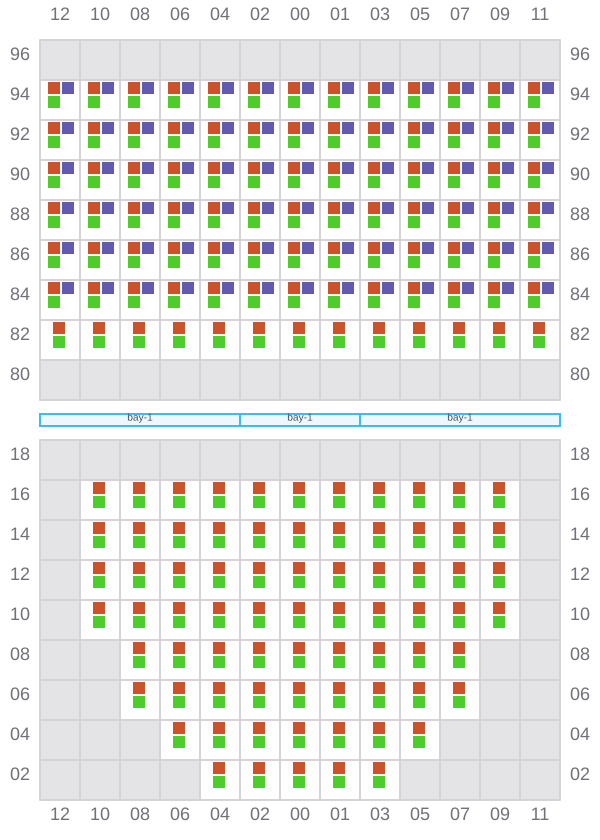

017 (018)
- →
![Bay 017 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b017.png?v=1687540442449)

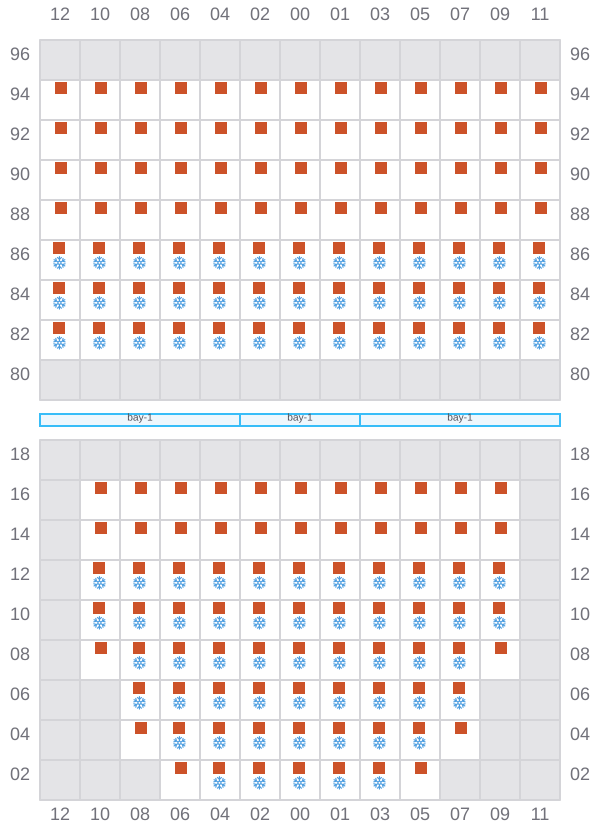

019
- ←
- →
![Bay 019 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b019.png?v=1687540442449)

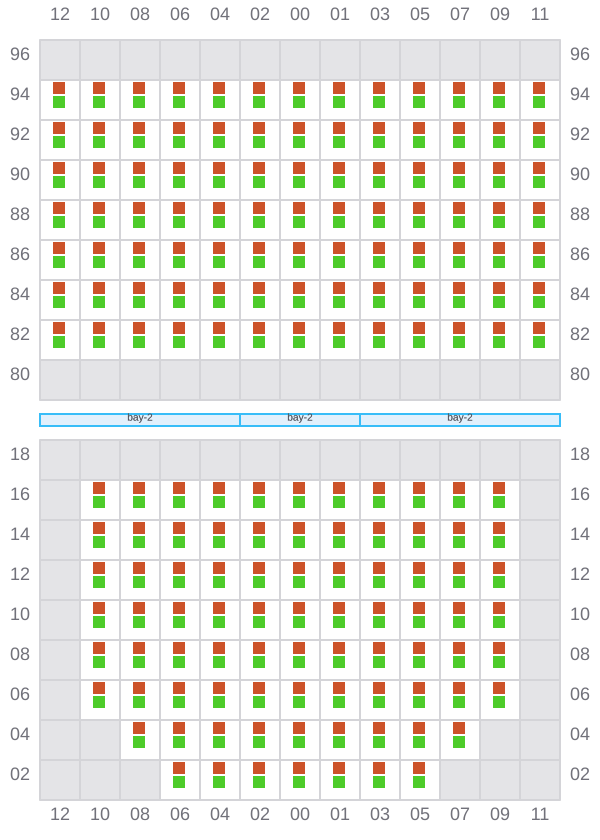

021 (022)
- →
![Bay 021 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b021.png?v=1687540442449)

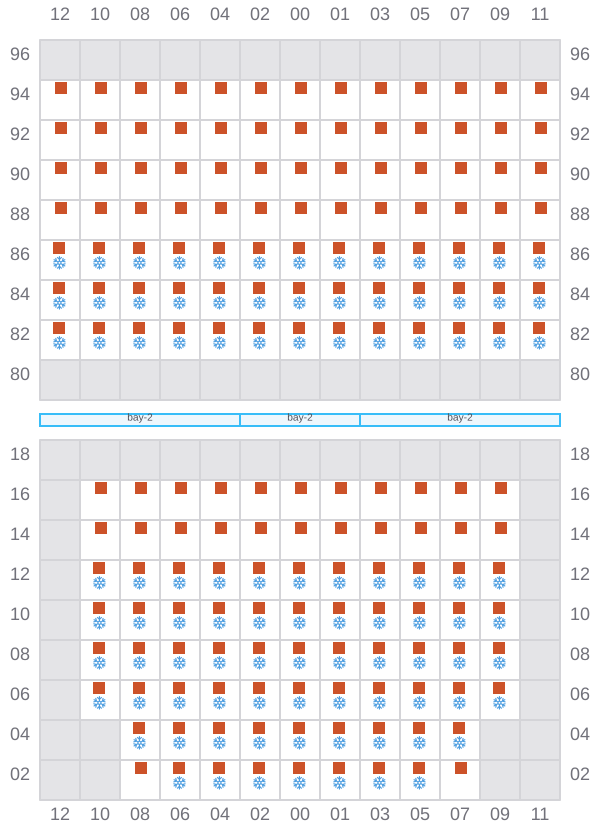

023
- ←
- →
![Bay 023 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b023.png?v=1687540442449)

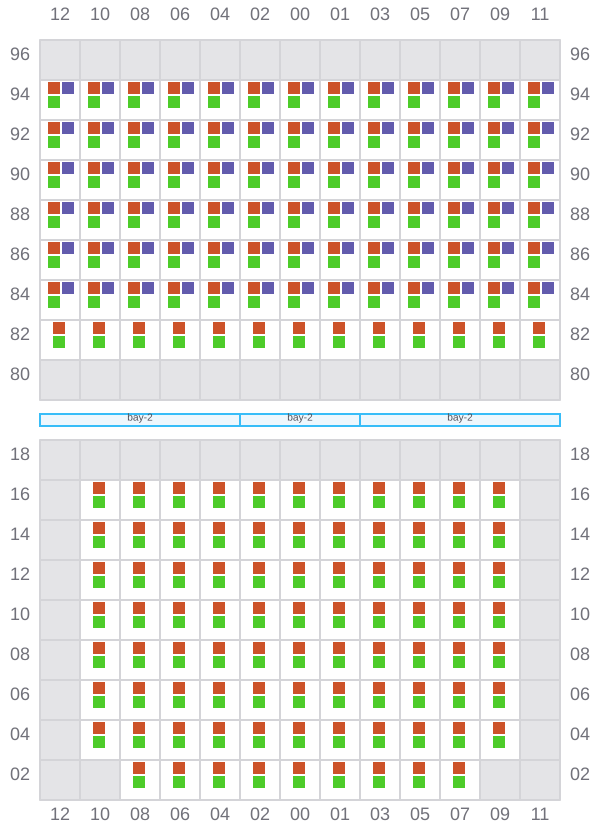

025 (026)
- →
![Bay 025 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b025.png?v=1687540442449)

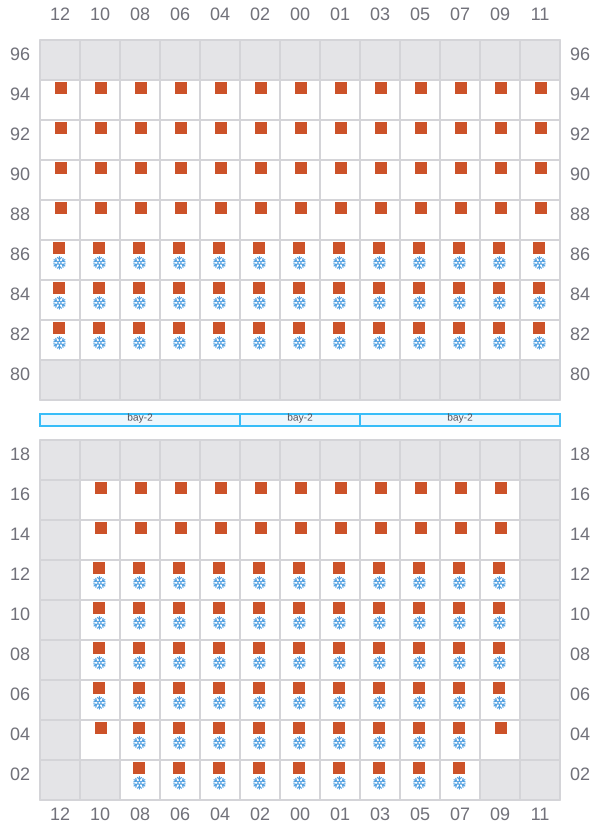

027
- ←
- →
![Bay 027 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b027.png?v=1687540442449)

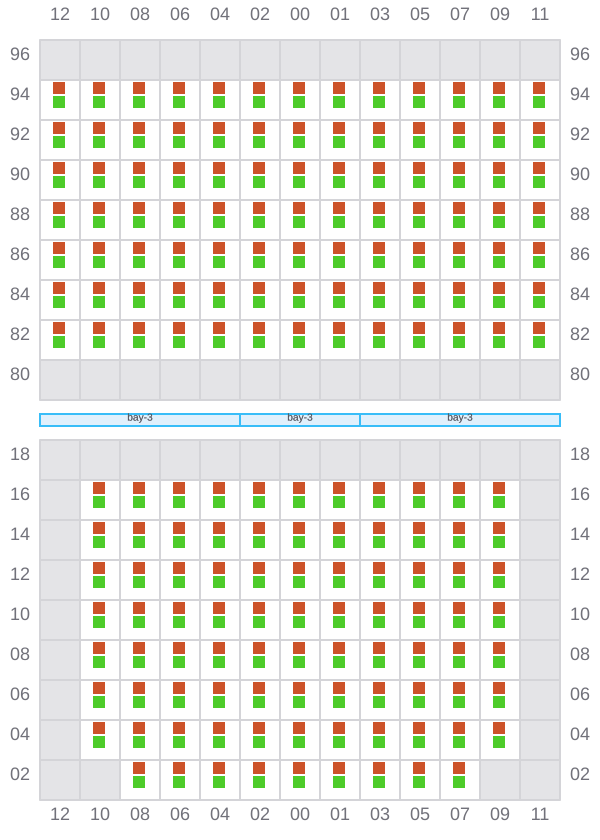

029 (030)
- →
![Bay 029 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b029.png?v=1687540442449)

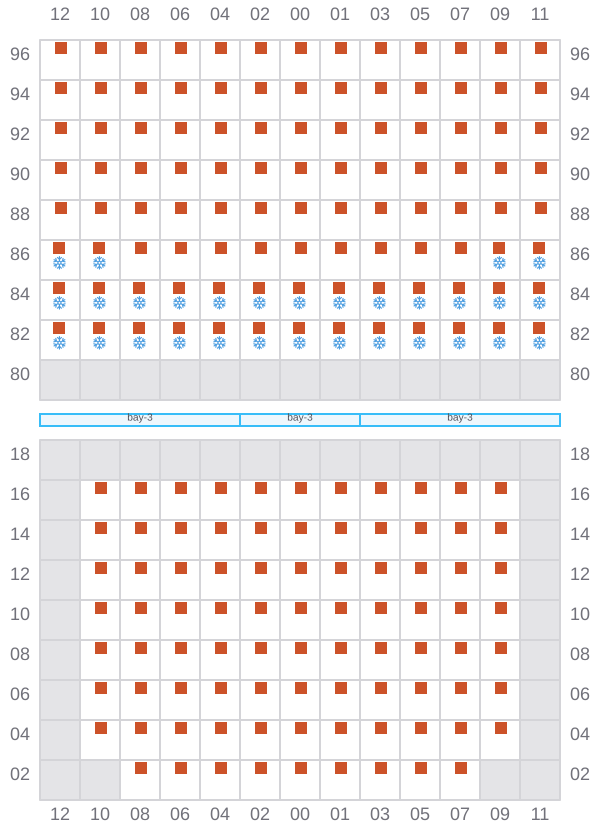

031
- ←
- → / ?
![Bay 031 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b031.png?v=1687540442449)

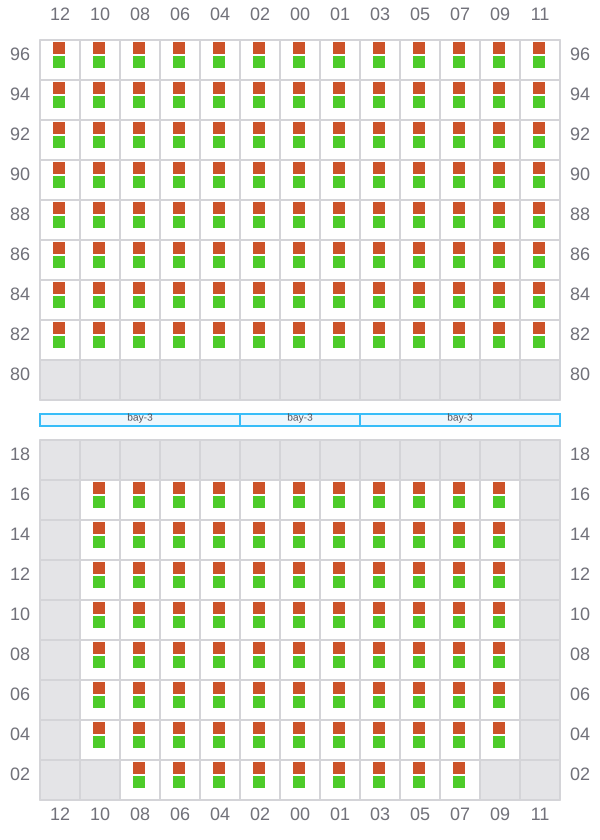

033 (034)
- →
![Bay 033 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b033.png?v=1687540442449)
035
- ←
- →
![Bay 035 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b035.png?v=1687540442449)
037 (038)
- →
![Bay 037 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b037.png?v=1687540442449)
039
- ←
- →
![Bay 039 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b039.png?v=1687540442449)

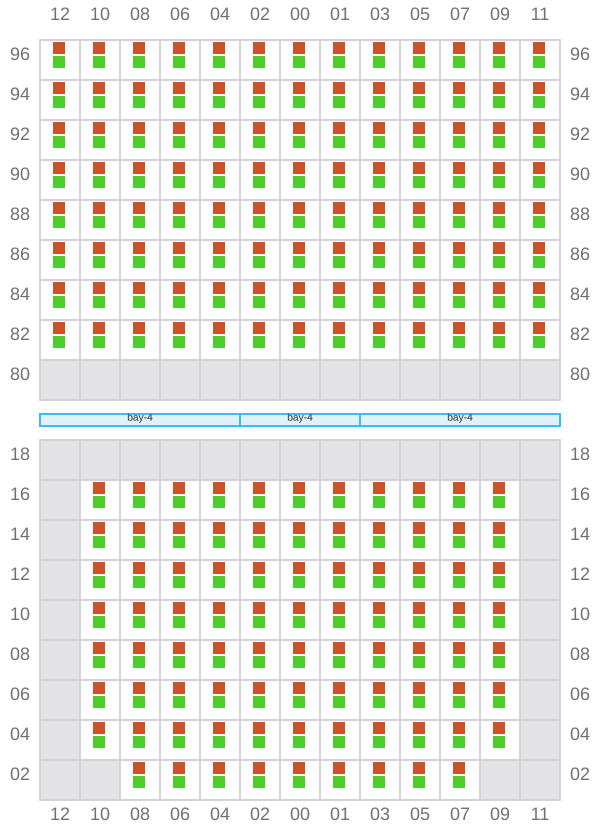

041 (042)
- →
![Bay 041 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b041.png?v=1687540442449)
043
- ←
- →
![Bay 043 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b043.png?v=1687540442449)
045 (046)
- →
![Bay 045 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b045.png?v=1687540442449)

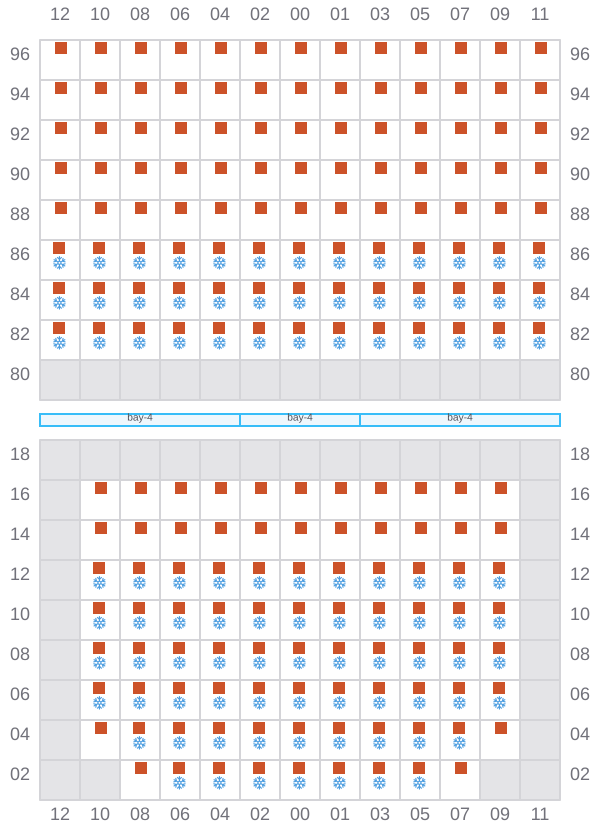

047
- ←
- →
![Bay 047 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b047.png?v=1687540442449)

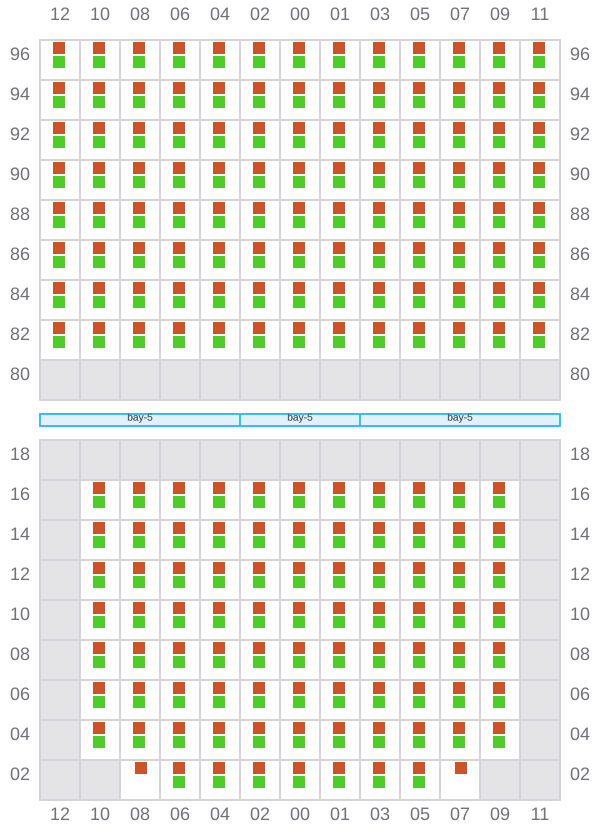

049 (050)
- →
![Bay 049 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b049.png?v=1687540442449)

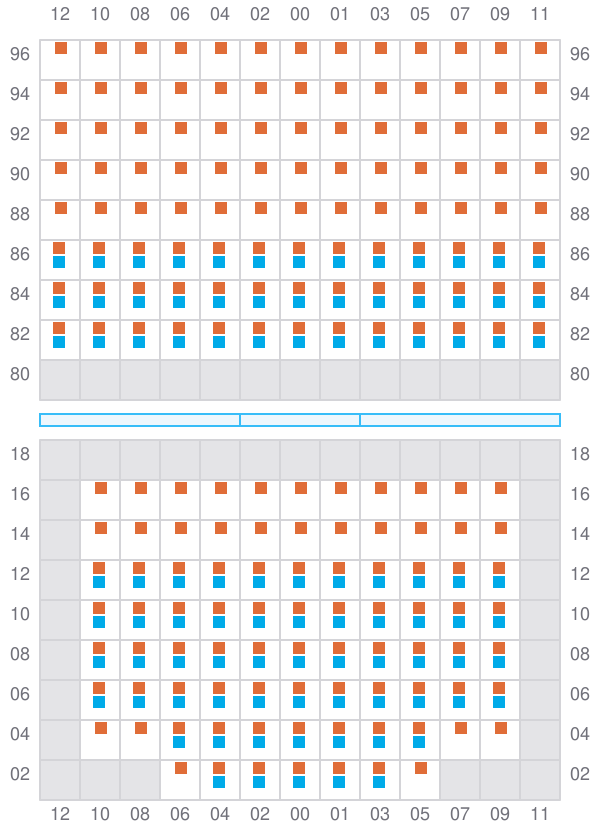

051
- ←
- →
![Bay 051 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b051.png?v=1687540442449)

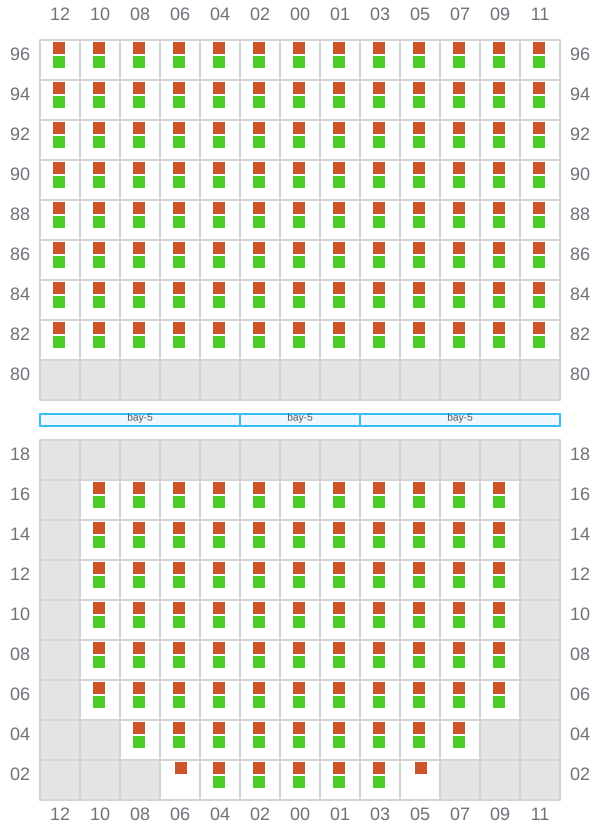

053 (054)
- →
![Bay 053 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b053.png?v=1687540442449)

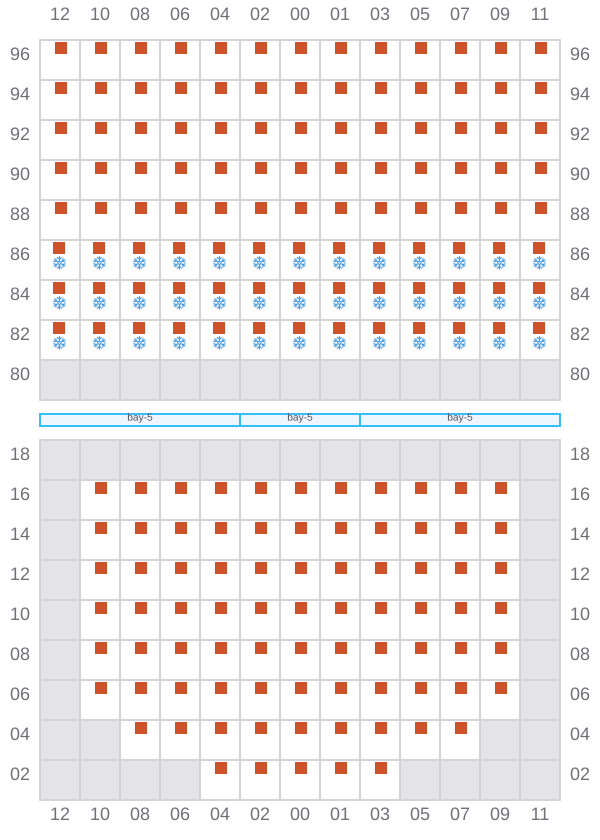

055
- ←
- → / ?
![Bay 055 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b055.png?v=1687540442449)

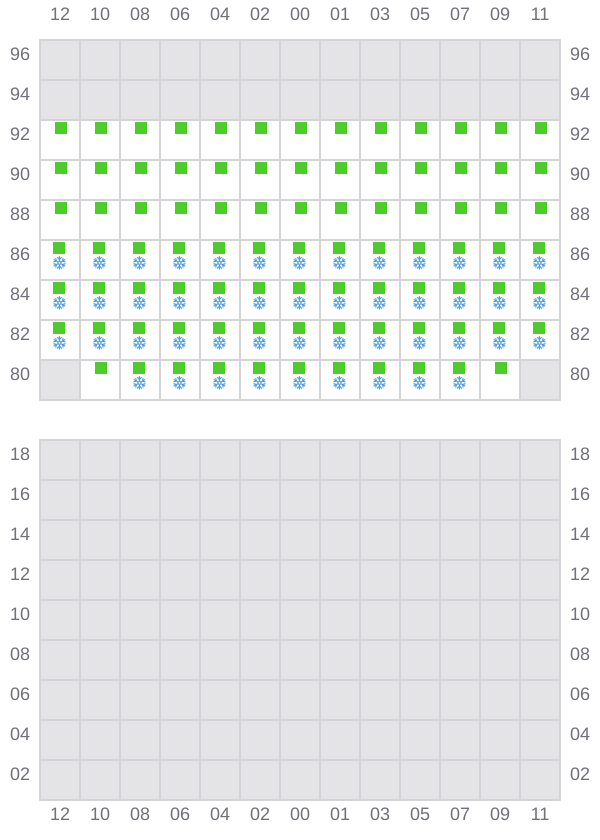

057 (058)
- → / ?
- → / ?
![Bay 057 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b057.png?v=1687540442449)

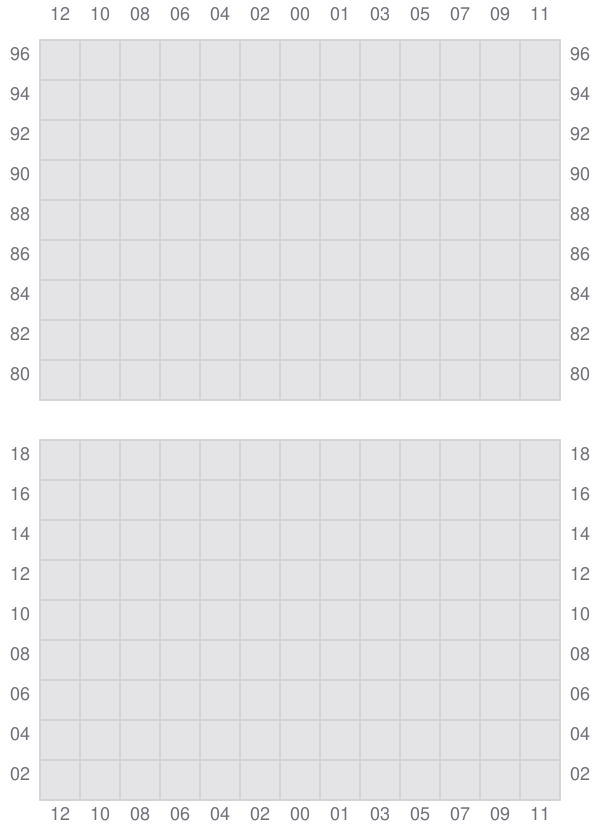

059
![Bay 059 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b059.png?v=1687540442449)

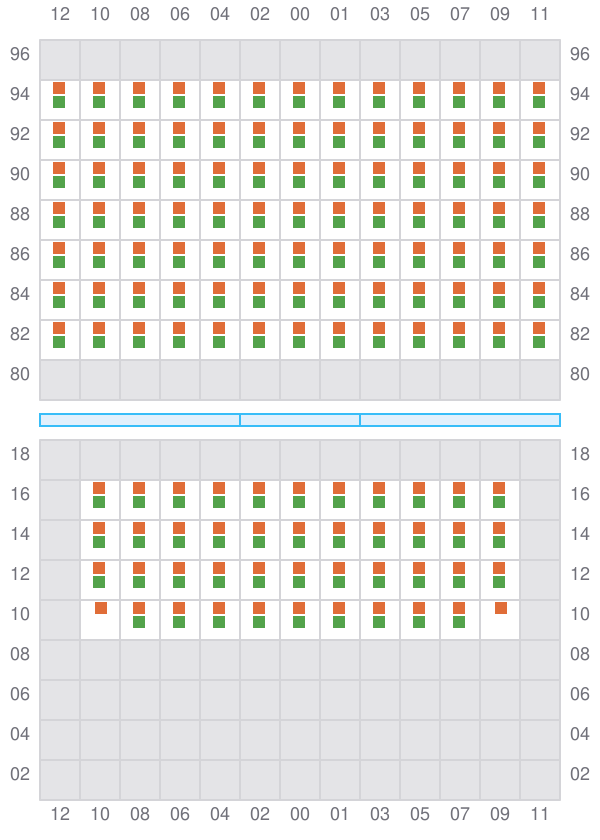

061 (062)
- →
![Bay 061 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b061.png?v=1687540442449)

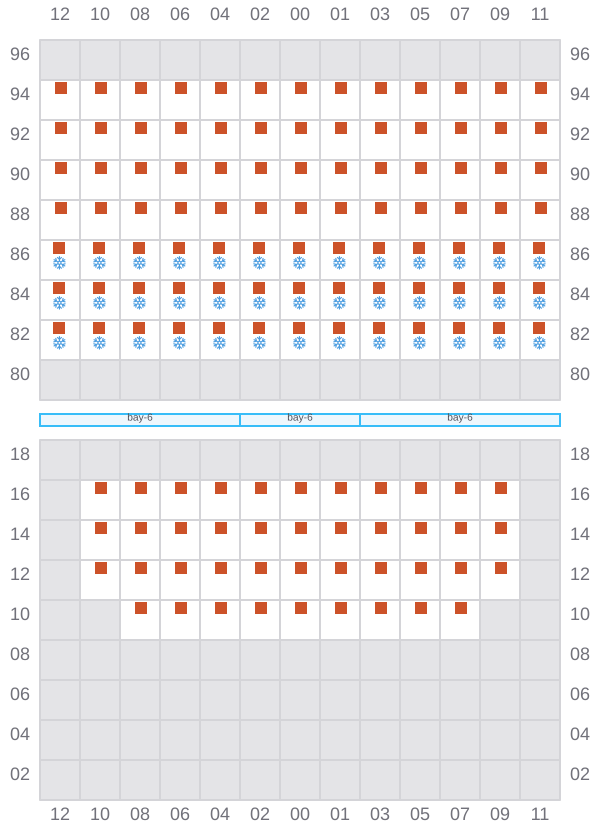

063
- ←
- → / ?
![Bay 063 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b063.png?v=1687540442449)

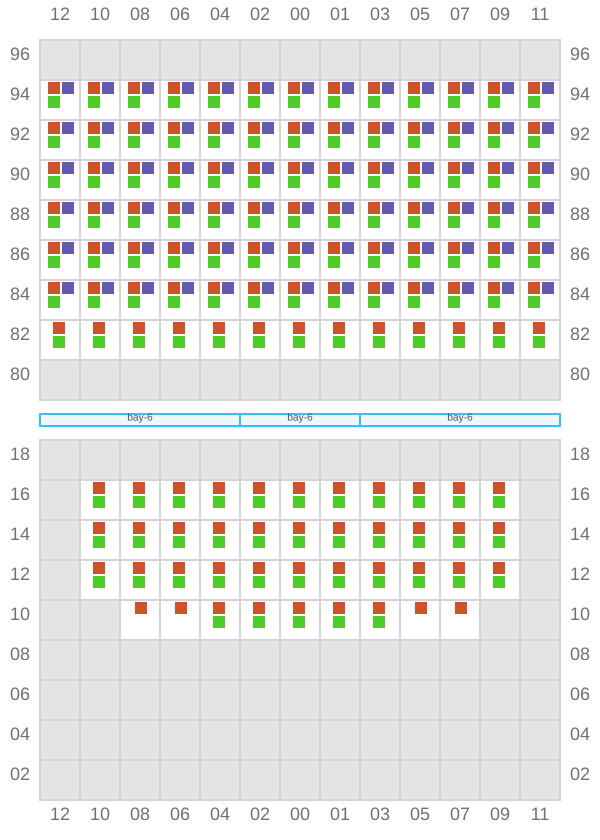

065 (066)
- →
![Bay 065 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b065.png?v=1687540442449)

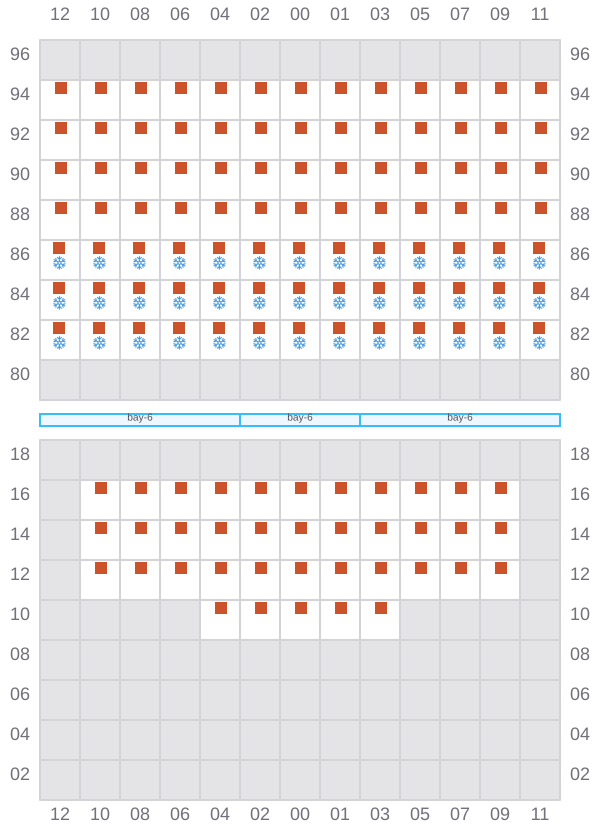

067
- ←
- → / ?
![Bay 067 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b067.png?v=1687540442449)

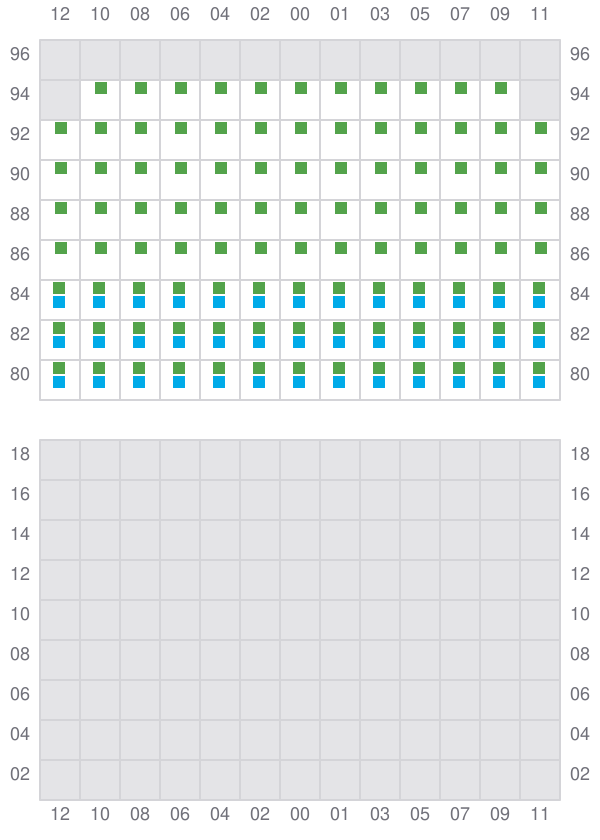

069 (070)
- → / ?
- → / ?
![Bay 069 view and slots of GSL TINOS](/vessel-images/ea6c1bc8-05c4-4583-a742-0941aff6d894-b069.png?v=1687540442449)
