GSL VALERIE
9315874 | A8JM3 | MSC by ************************** Last update: Mon Jun 12 2023
General Info
Ship Name:GSL VALERIE
IMO Code:9315874
Call Sign:A8JM3
Line Operator:MSC
Class Name for Sister Ships:SCH
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:051
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,898
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

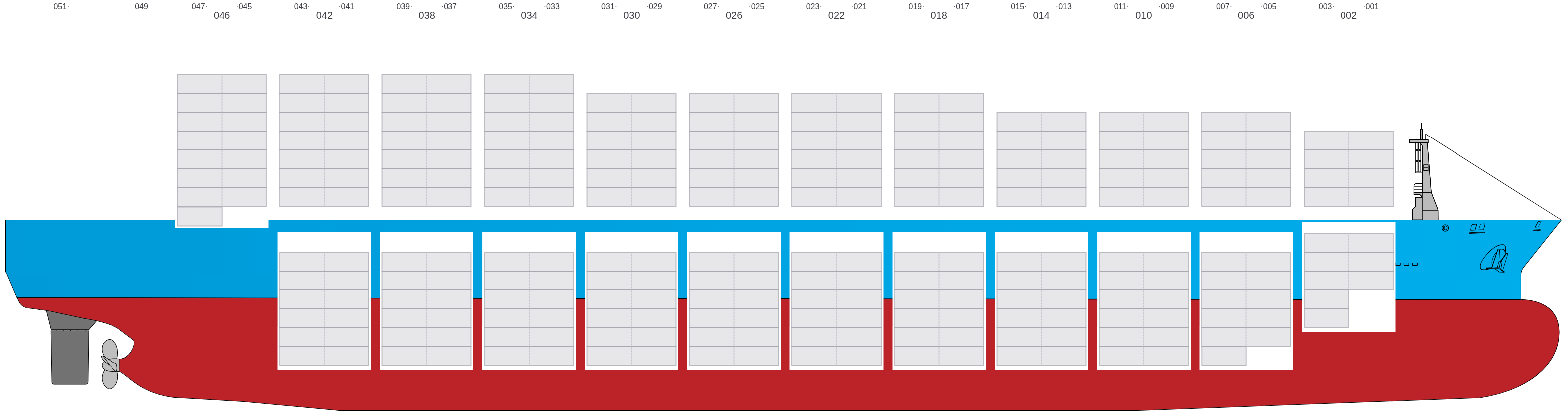

Side View
![Side view of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-sideView.png?v=1686593408709)

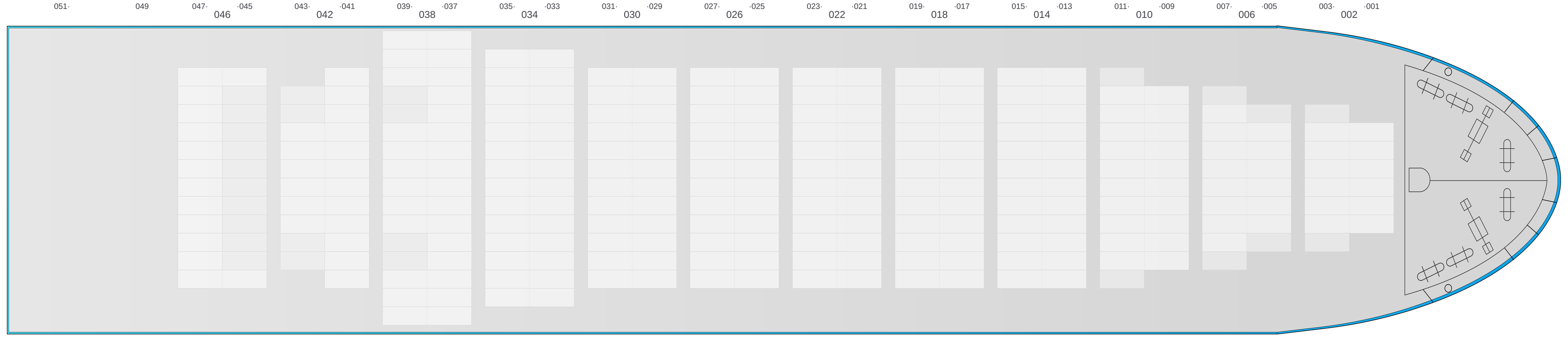

Hatch-Covers View
![Deck view of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-deckView.png?v=1686593408709)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

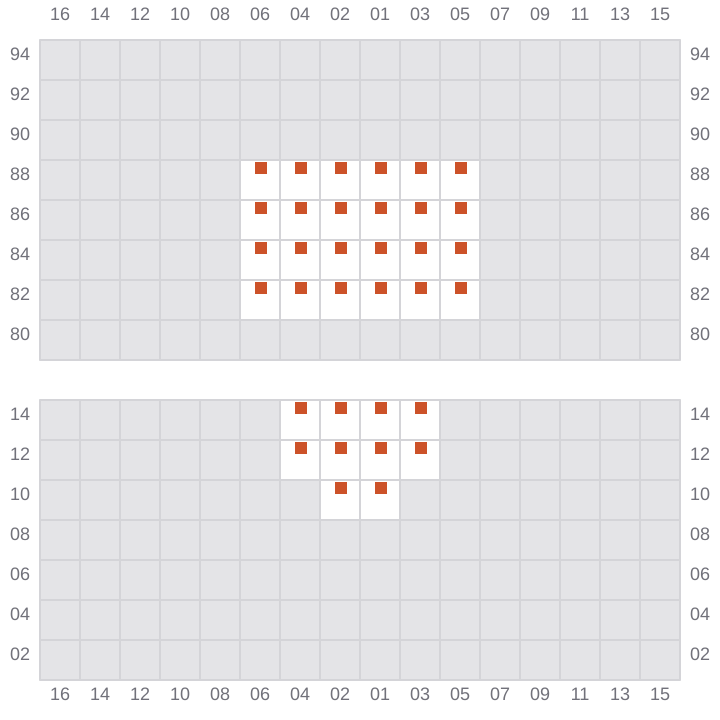

001
- →
![Bay 001 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b001.png?v=1686593408709)

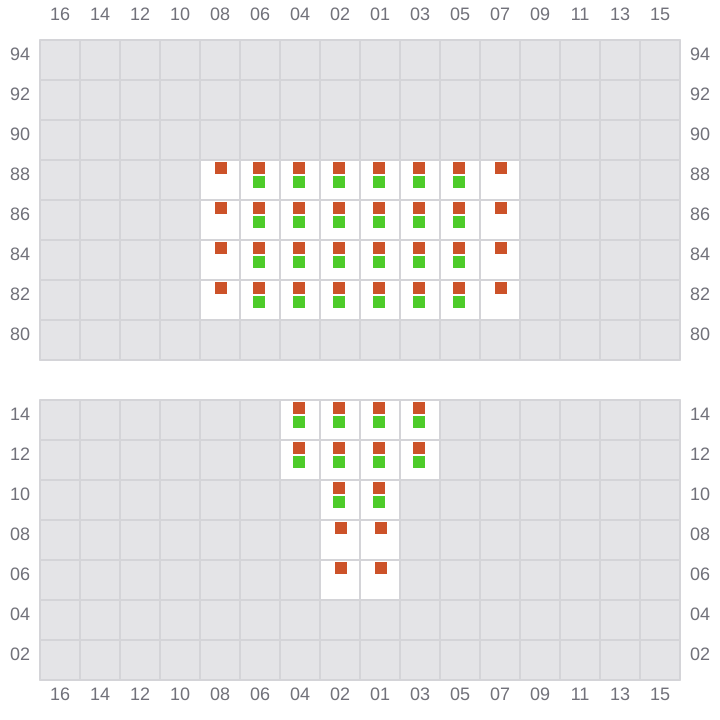

003 (002)
- ←
![Bay 003 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b003.png?v=1686593408709)

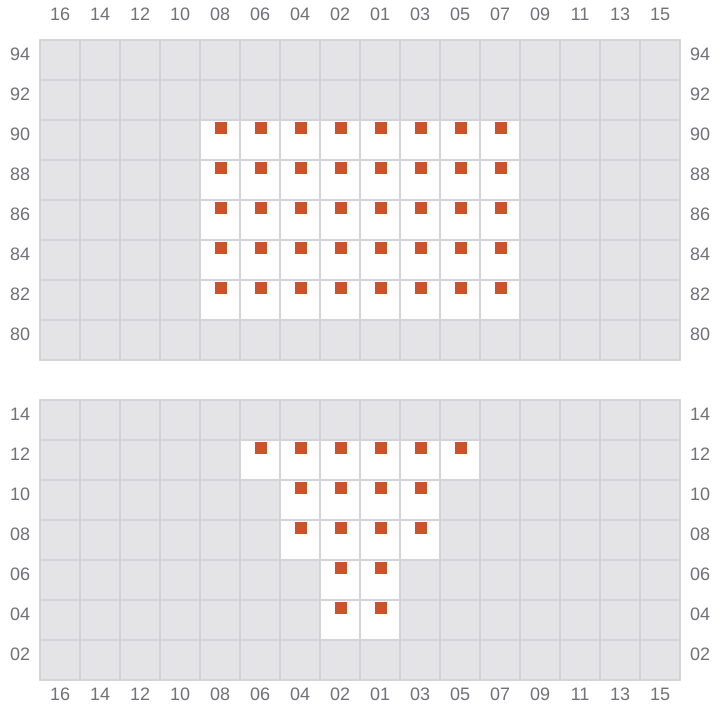

005
- →
![Bay 005 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b005.png?v=1686593408709)

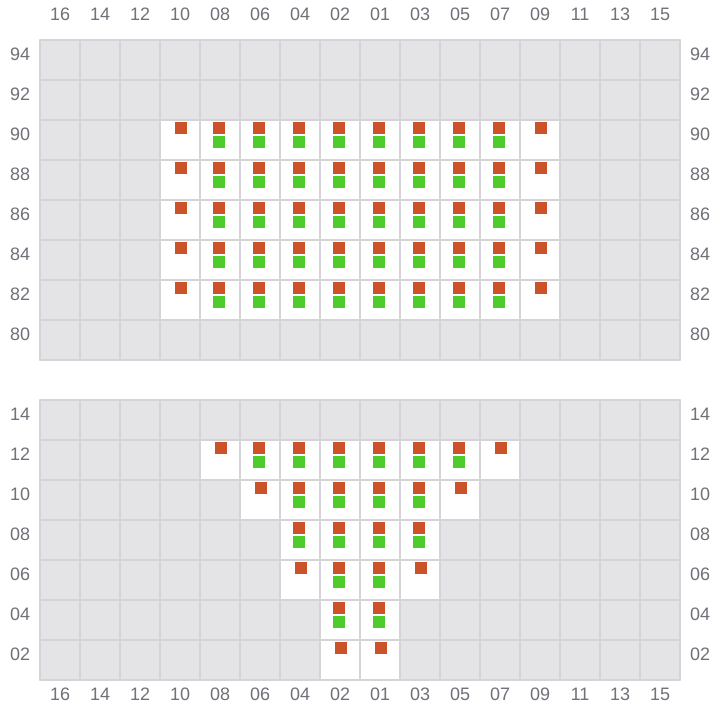

007 (006)
- ←
![Bay 007 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b007.png?v=1686593408709)

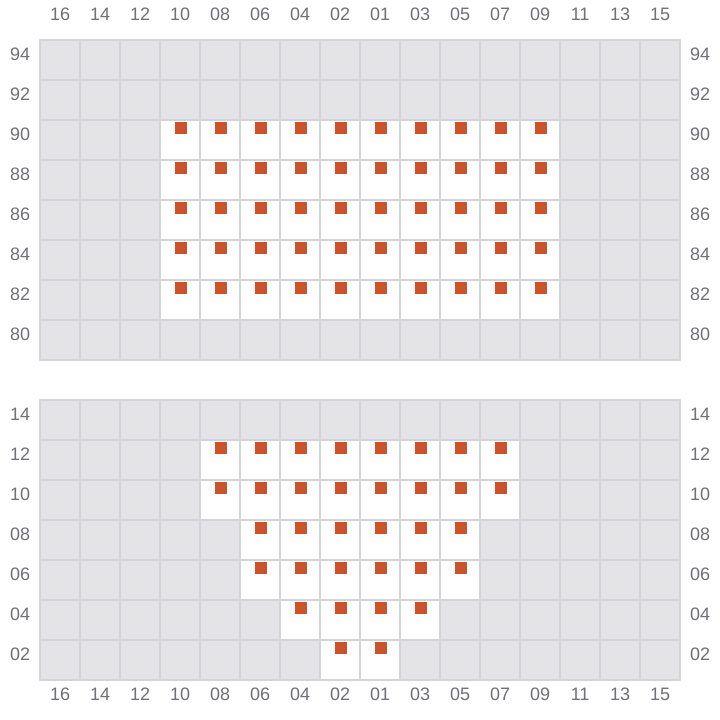

009
- →
![Bay 009 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b009.png?v=1686593408709)

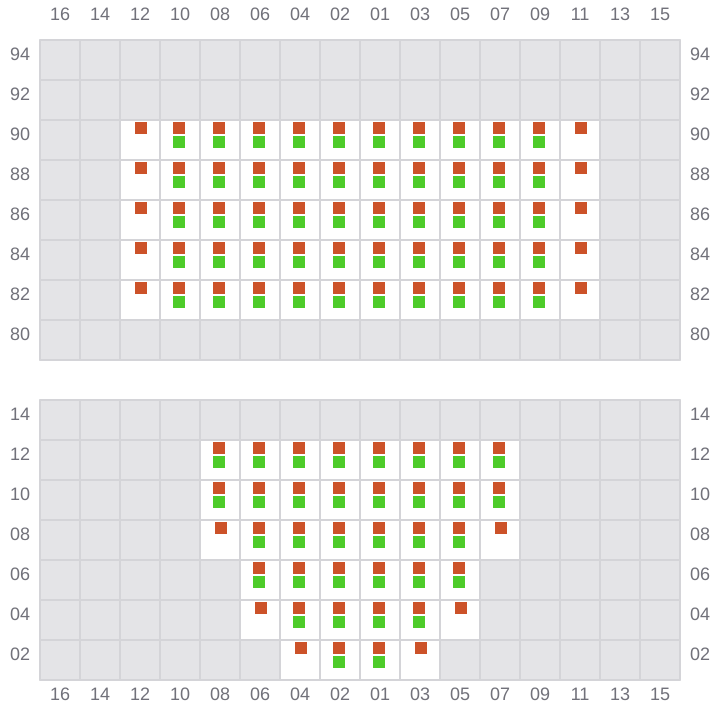

011 (010)
- ←
![Bay 011 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b011.png?v=1686593408709)

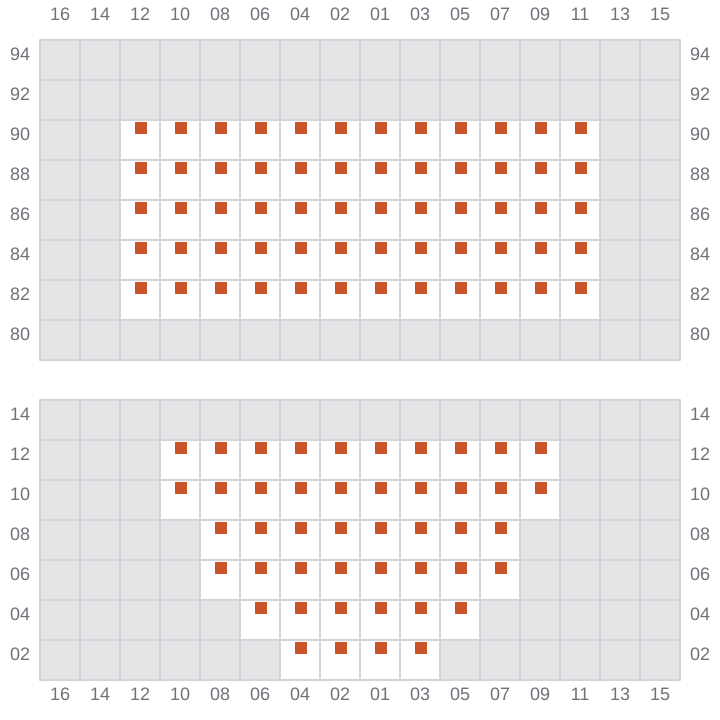

013
- →
![Bay 013 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b013.png?v=1686593408709)

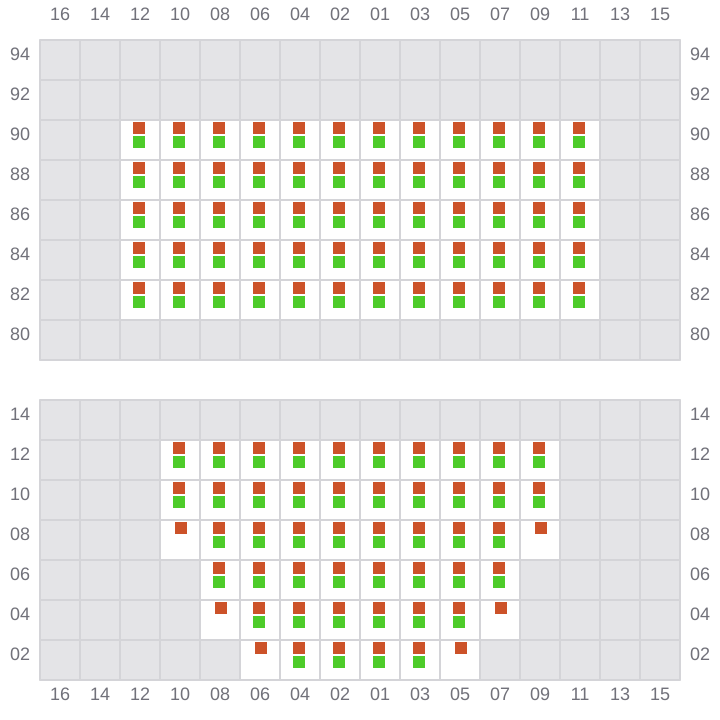

015 (014)
- ←
![Bay 015 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b015.png?v=1686593408709)
017
- →
![Bay 017 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b017.png?v=1686593408709)

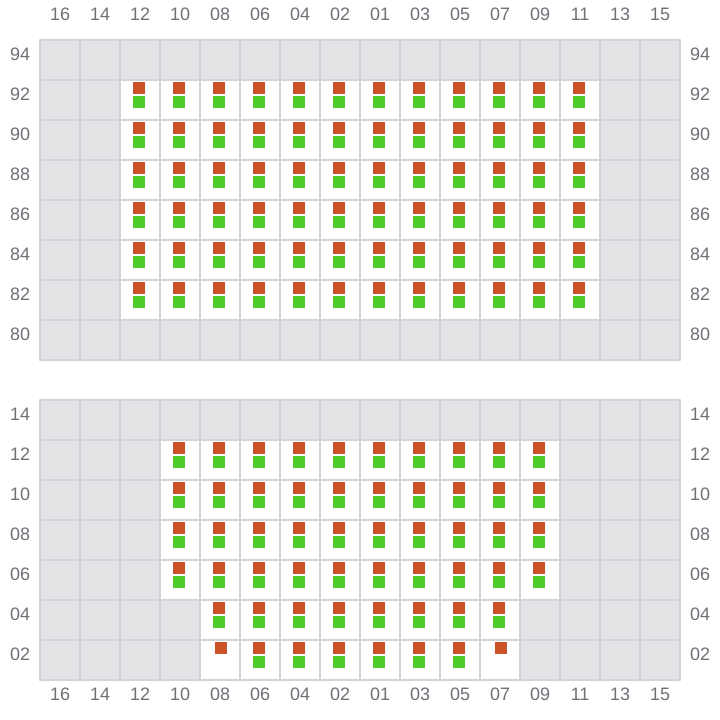

019 (018)
- ←
![Bay 019 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b019.png?v=1686593408709)

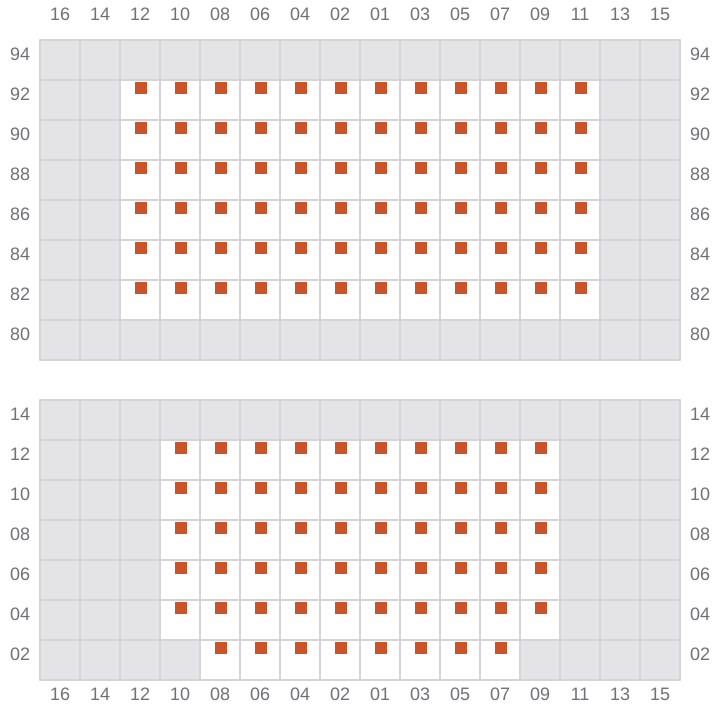

021
- →
![Bay 021 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b021.png?v=1686593408709)

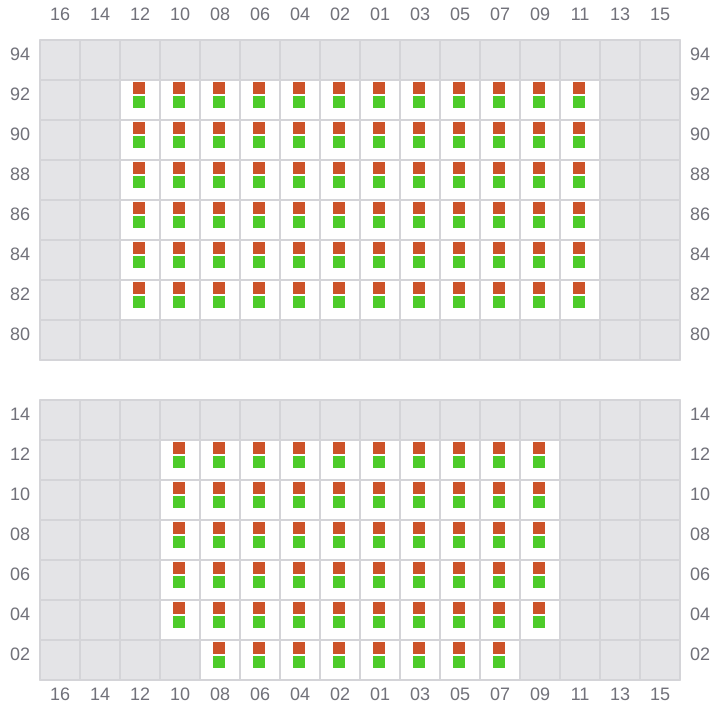

023 (022)
- ←
![Bay 023 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b023.png?v=1686593408709)
025
- →
![Bay 025 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b025.png?v=1686593408709)
027 (026)
- ←
![Bay 027 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b027.png?v=1686593408709)
029
- →
![Bay 029 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b029.png?v=1686593408709)
031 (030)
- ←
![Bay 031 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b031.png?v=1686593408709)

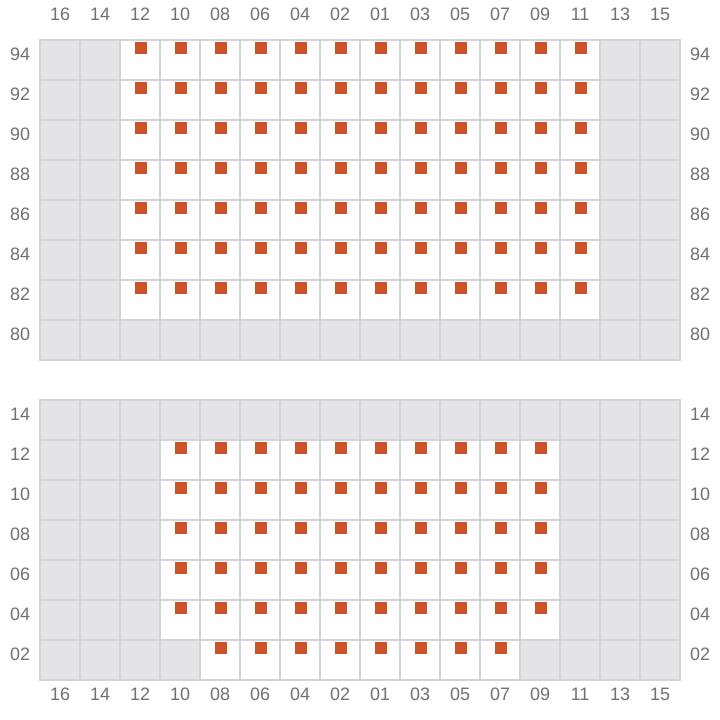

033
- →
![Bay 033 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b033.png?v=1686593408709)

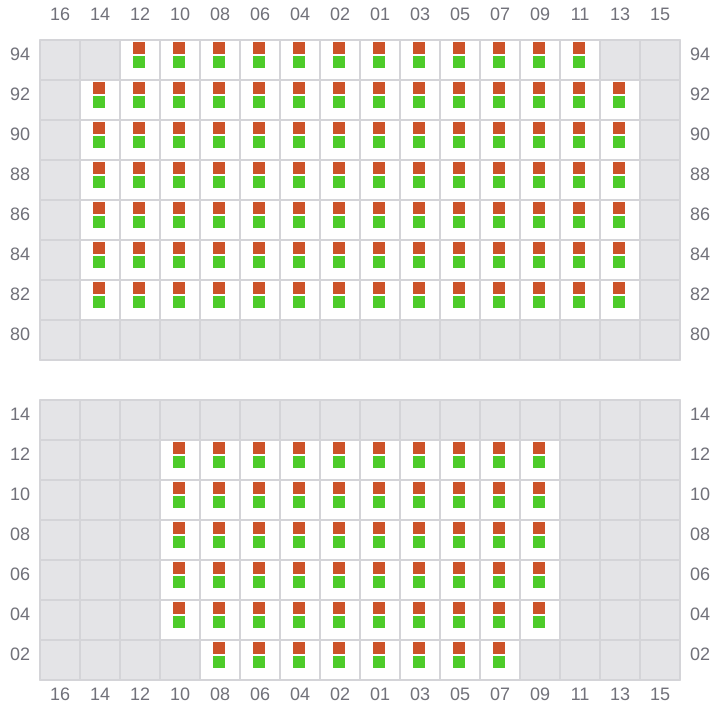

035 (034)
- ←
![Bay 035 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b035.png?v=1686593408709)
037
- →
![Bay 037 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b037.png?v=1686593408709)

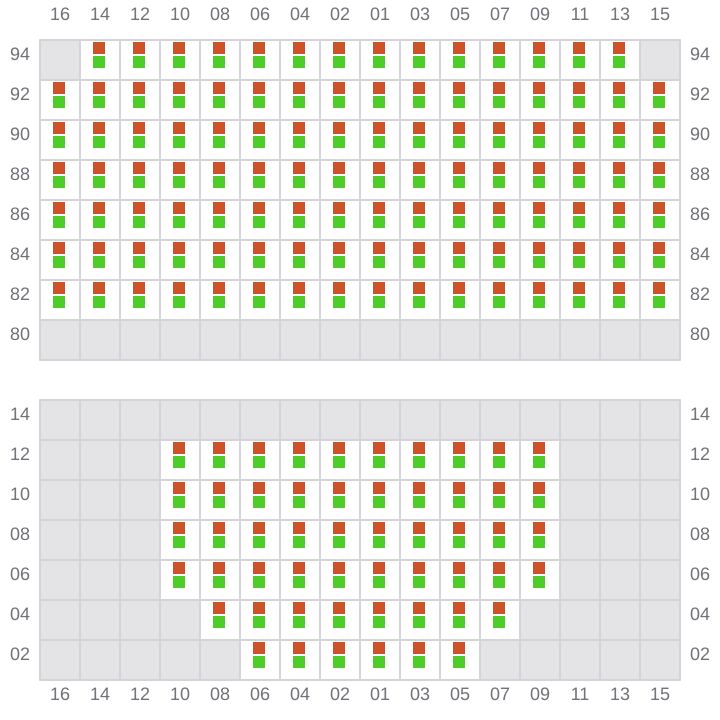

039 (038)
- ←
![Bay 039 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b039.png?v=1686593408709)

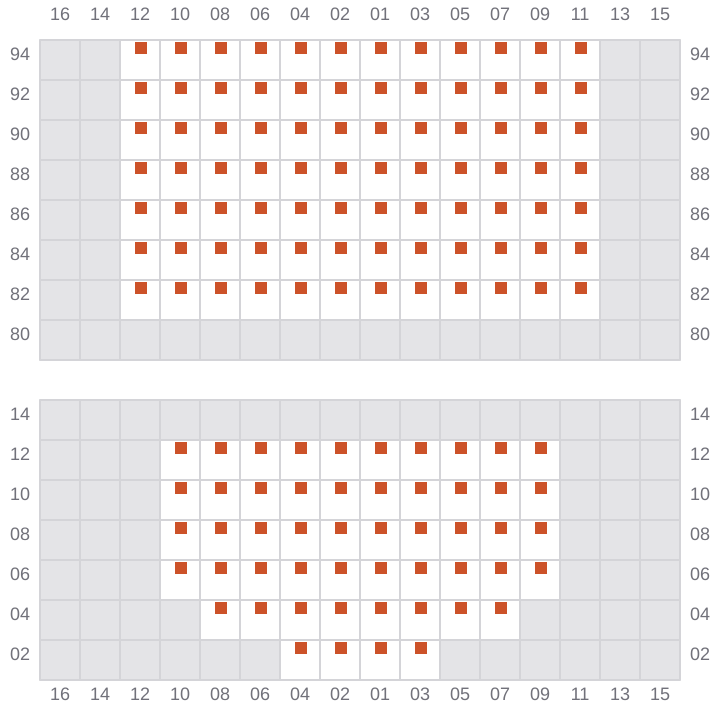

041
- →
![Bay 041 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b041.png?v=1686593408709)

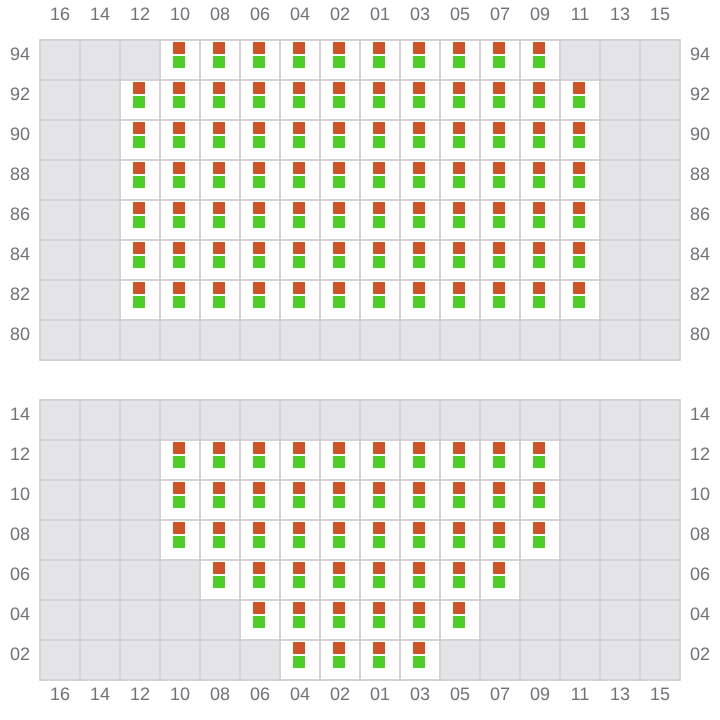

043 (042)
- ←
![Bay 043 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b043.png?v=1686593408709)

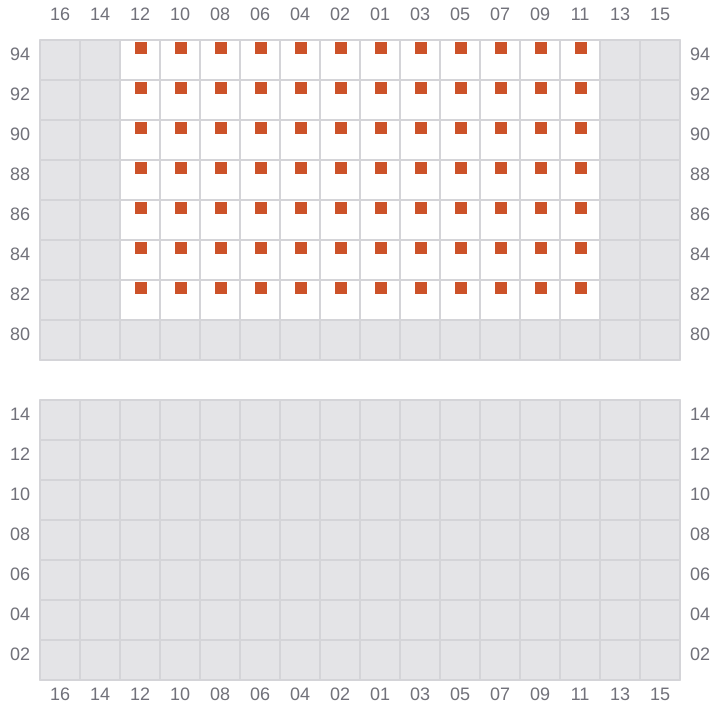

045
- → / ?
![Bay 045 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b045.png?v=1686593408709)

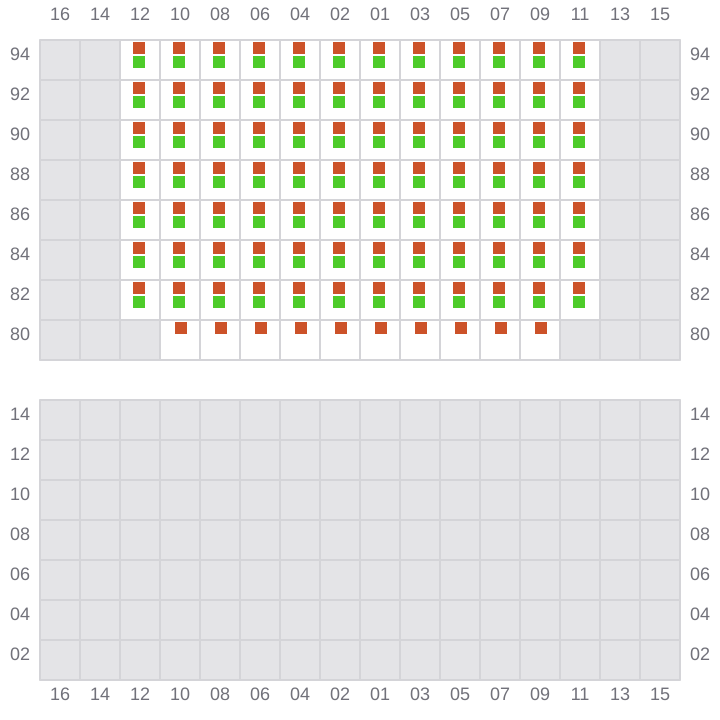

047 (046)
- ← / ?
![Bay 047 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b047.png?v=1686593408709)

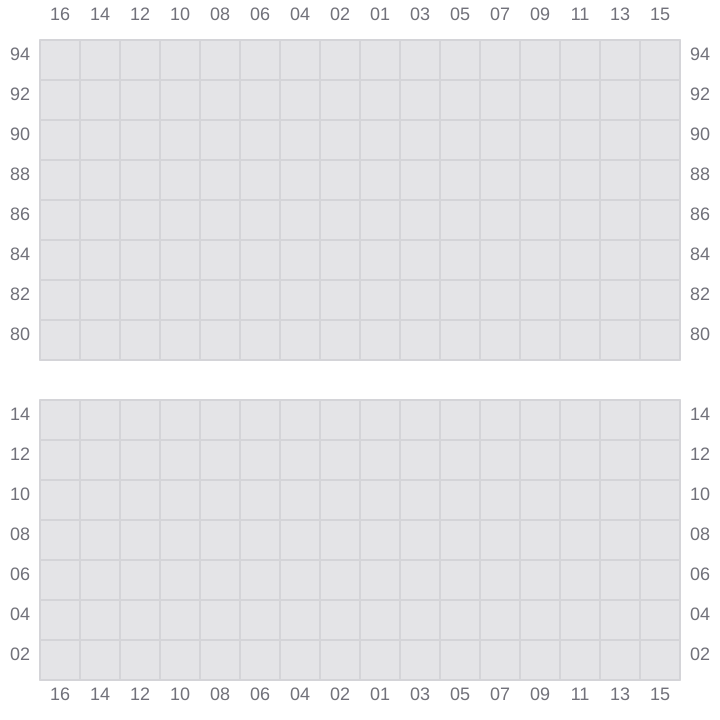

049
![Bay 049 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b049.png?v=1686593408709)

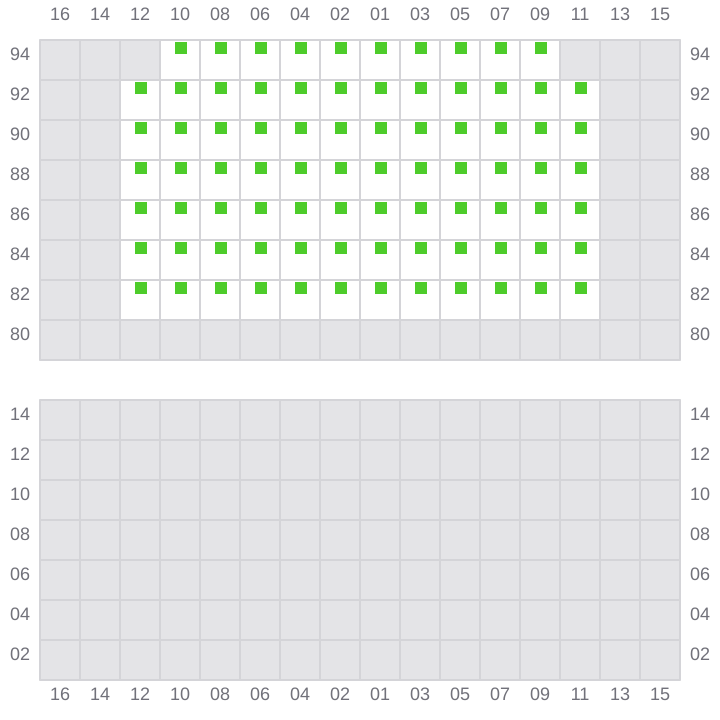

051 (050)
- ← / ?
![Bay 051 view and slots of GSL VALERIE](/vessel-images/040b79d3-364c-481c-993b-b52ba40cdfd3-b051.png?v=1686593408709)
