GSL VIOLETTA
9214202 | 5LAQ9 | 9214202 by ********* Last update: Thu Mar 14 2024
General Info
Ship Name:GSL VIOLETTA
IMO Code:9214202
Call Sign:5LAQ9
Line Operator:9214202
Class Name for Sister Ships:24I
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,638
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

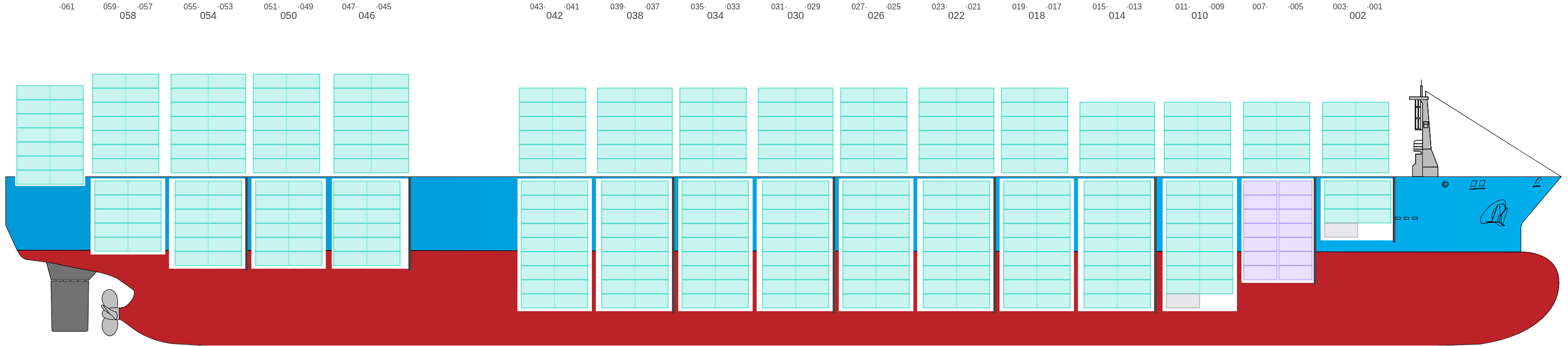

Side View
![Side view of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-sideView.png?v=1710440926341)
Hatch-Covers View
![Deck view of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-deckView.png?v=1710440926341)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

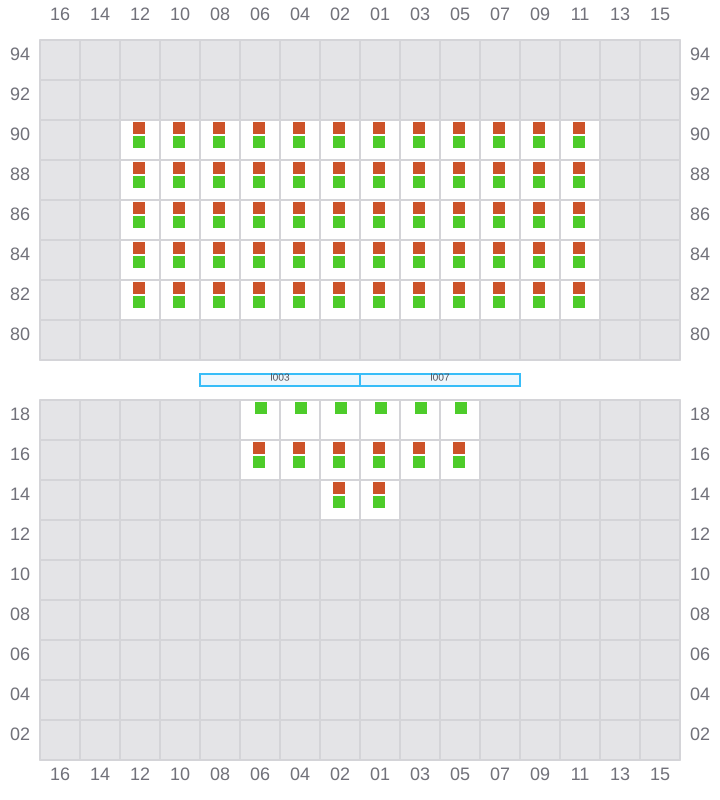

001 (002)
- →
![Bay 001 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b001.png?v=1710440926341)

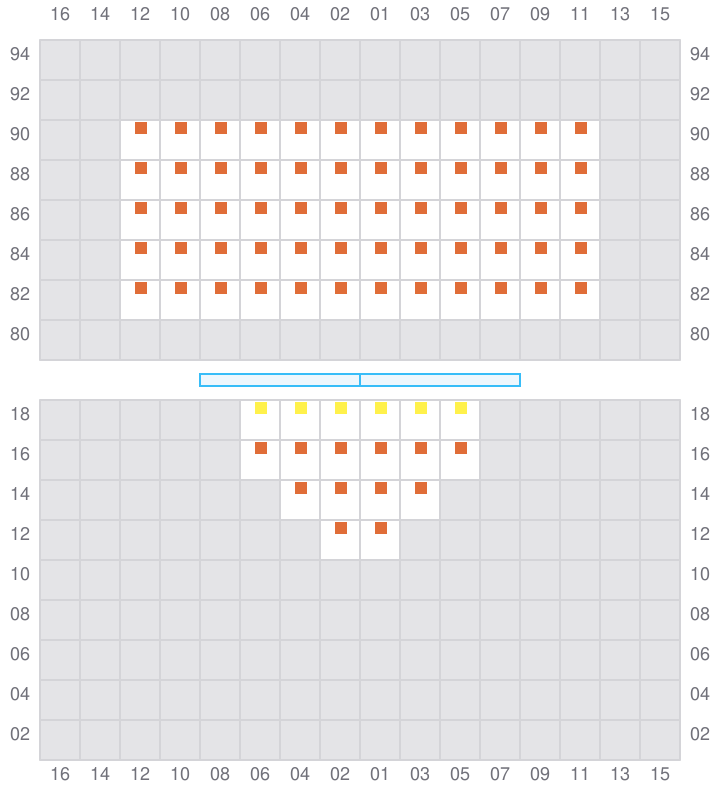

003
- ←
- →
![Bay 003 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b003.png?v=1710440926341)

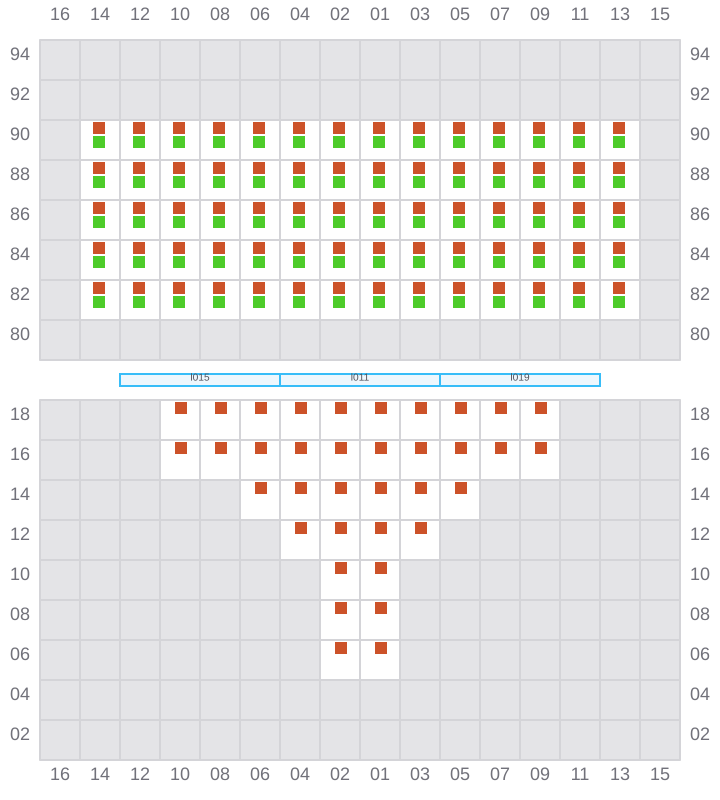

005 (006)
- → / ?
- ? / →
![Bay 005 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b005.png?v=1710440926341)

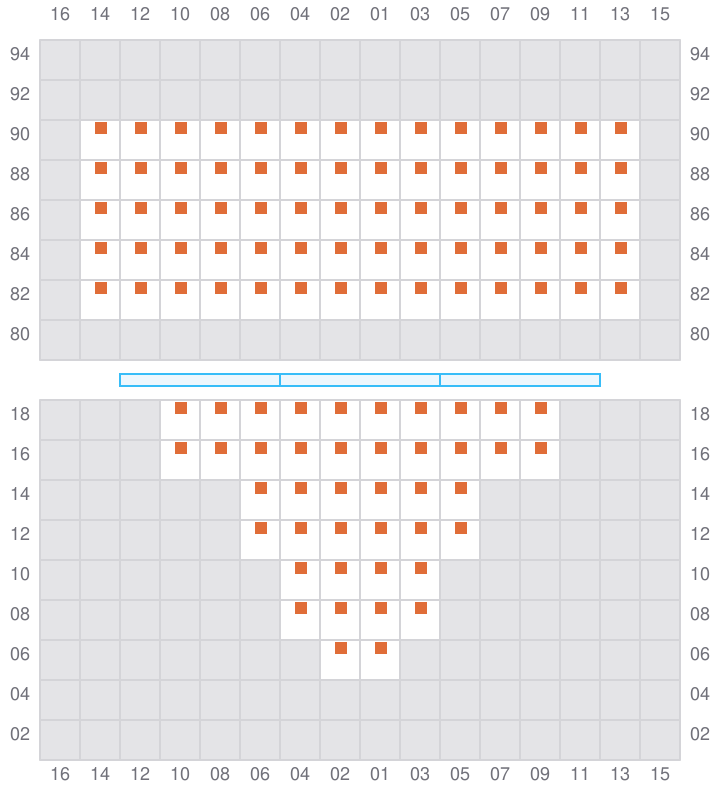

007
- ← / ?
- →
![Bay 007 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b007.png?v=1710440926341)

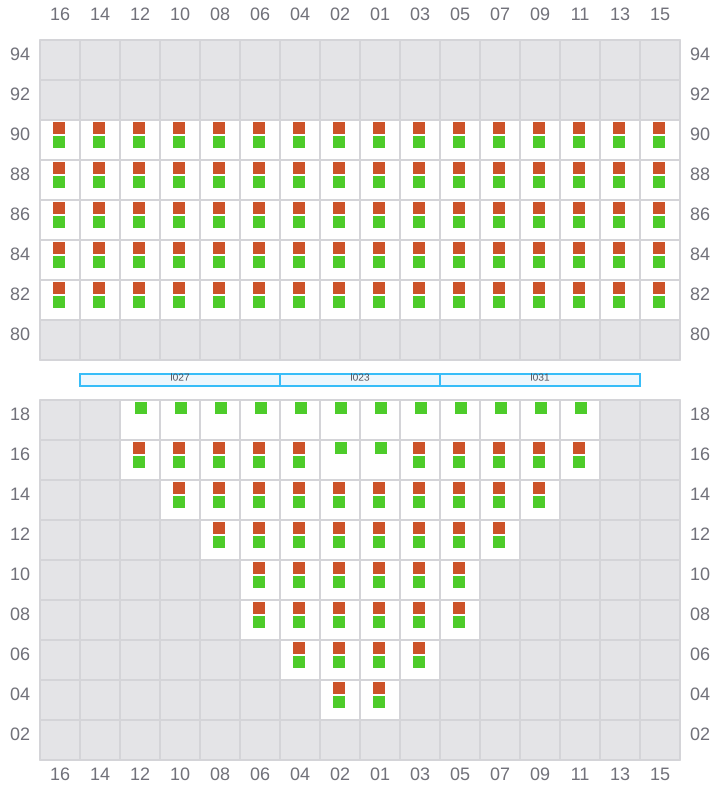

009 (010)
- →
![Bay 009 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b009.png?v=1710440926341)

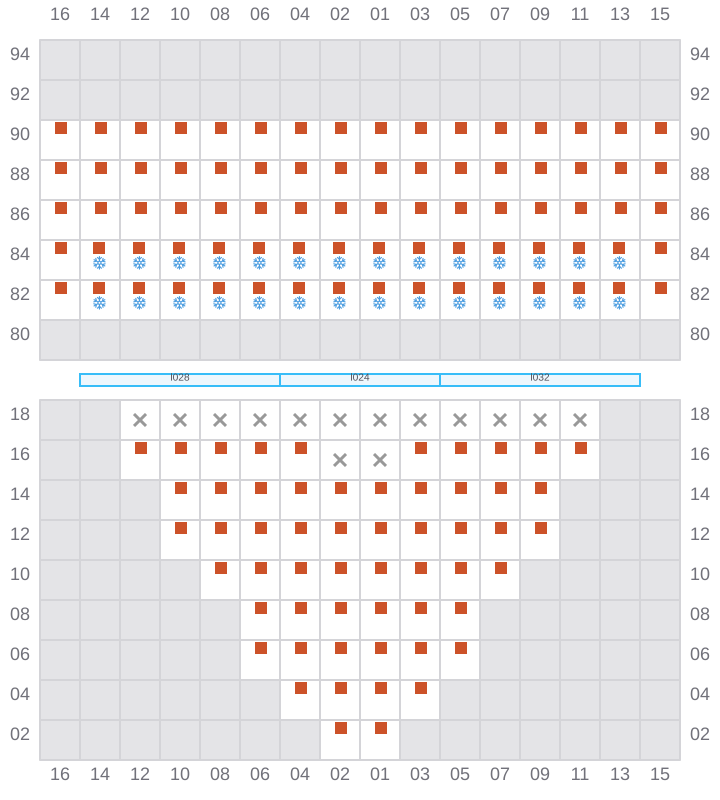

011
- ←
- → / ?
- ← / →
![Bay 011 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b011.png?v=1710440926341)

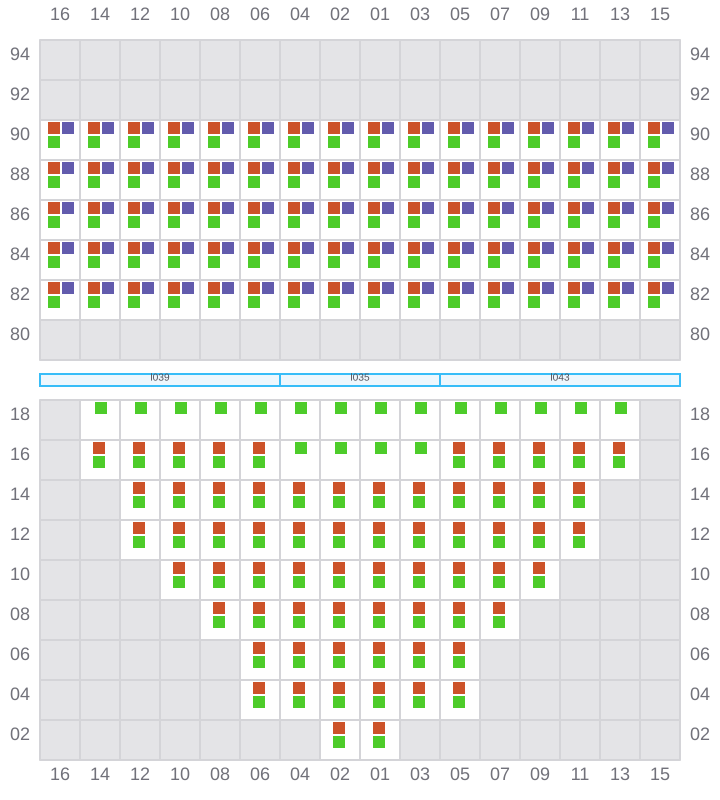

013 (014)
- →
![Bay 013 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b013.png?v=1710440926341)

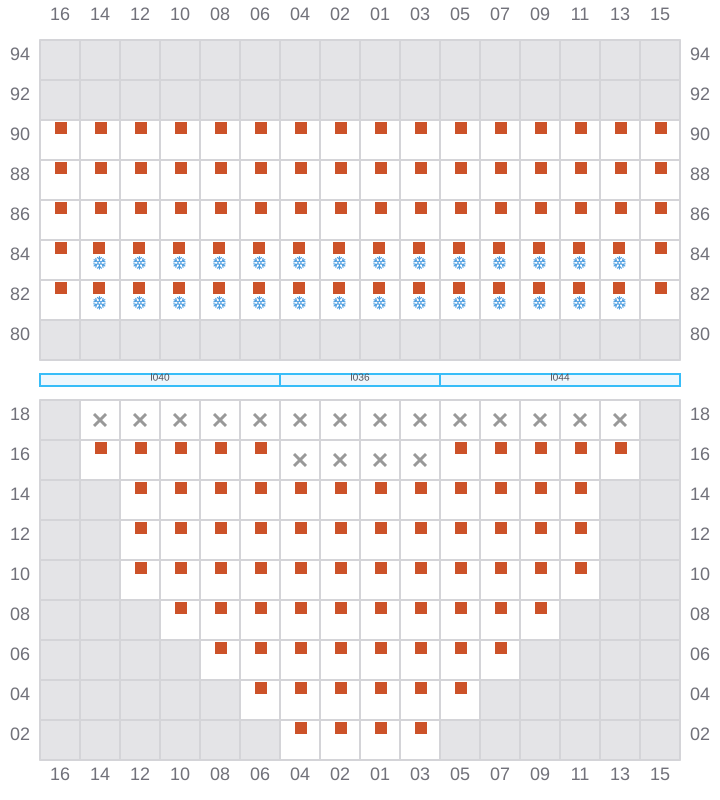

015
- ←
- → / ?
- ← / →
![Bay 015 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b015.png?v=1710440926341)

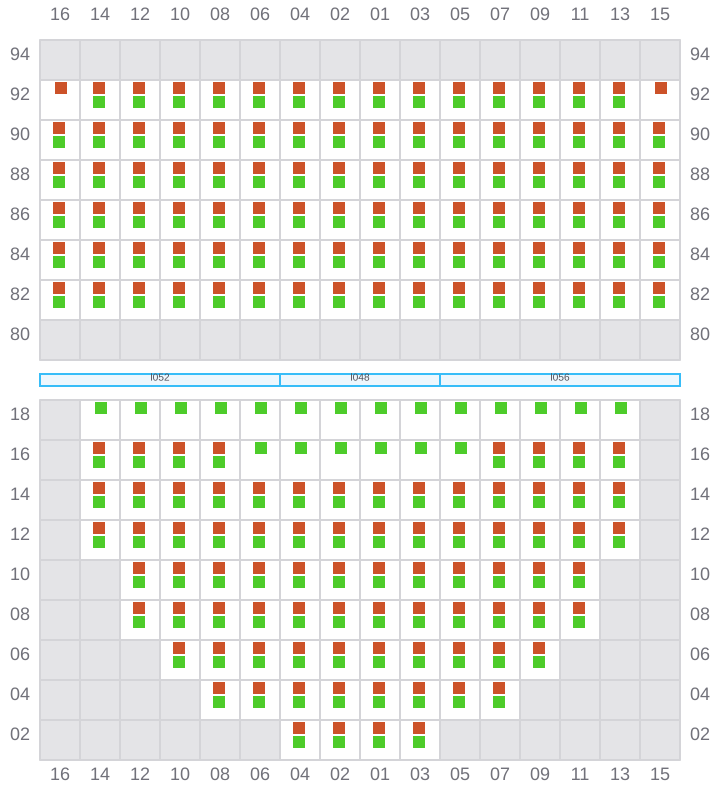

017 (018)
- →
- →
![Bay 017 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b017.png?v=1710440926341)

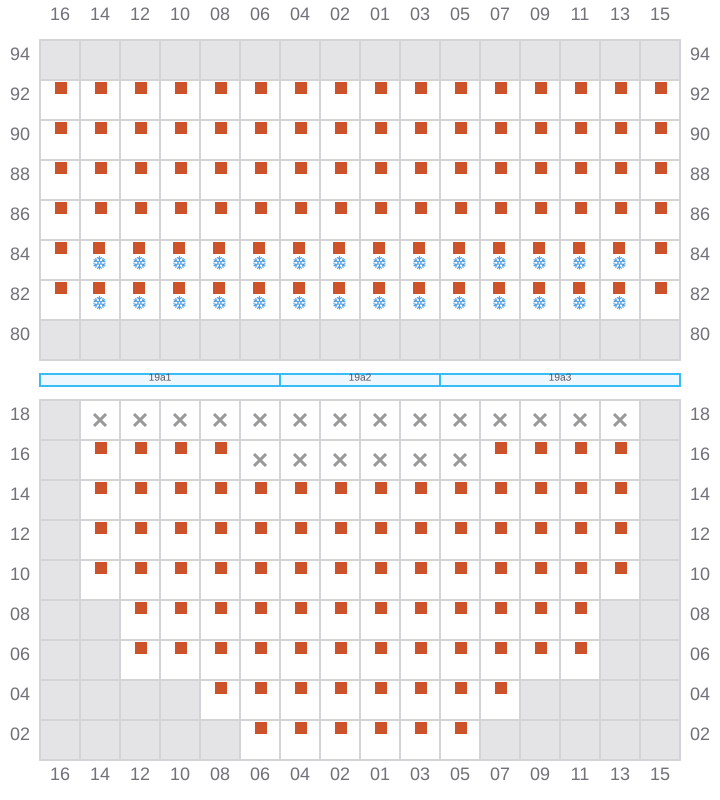

019
- ←
- → / ?
- ← / →
![Bay 019 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b019.png?v=1710440926341)

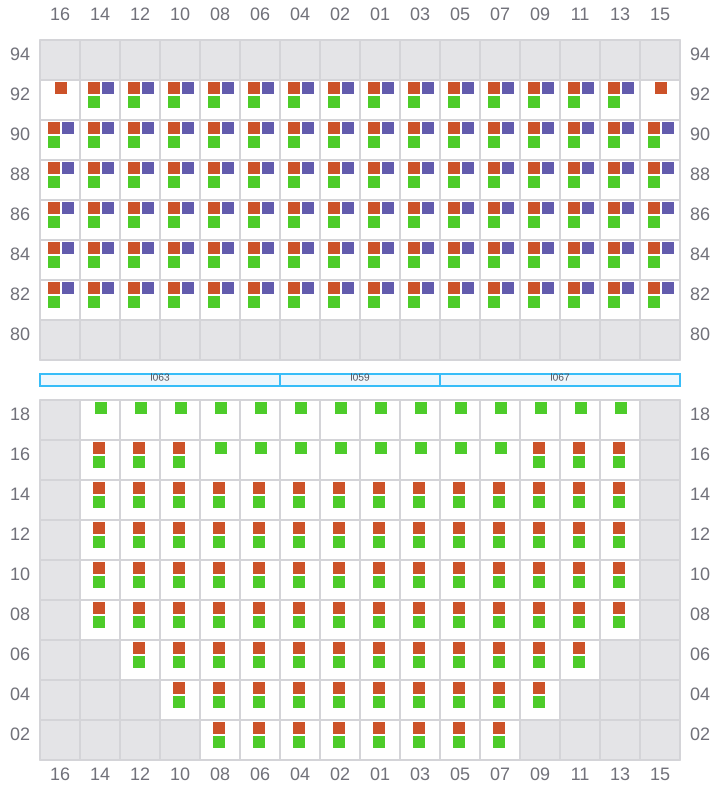

021 (022)
- →
- ? / →
- ? / →
![Bay 021 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b021.png?v=1710440926341)

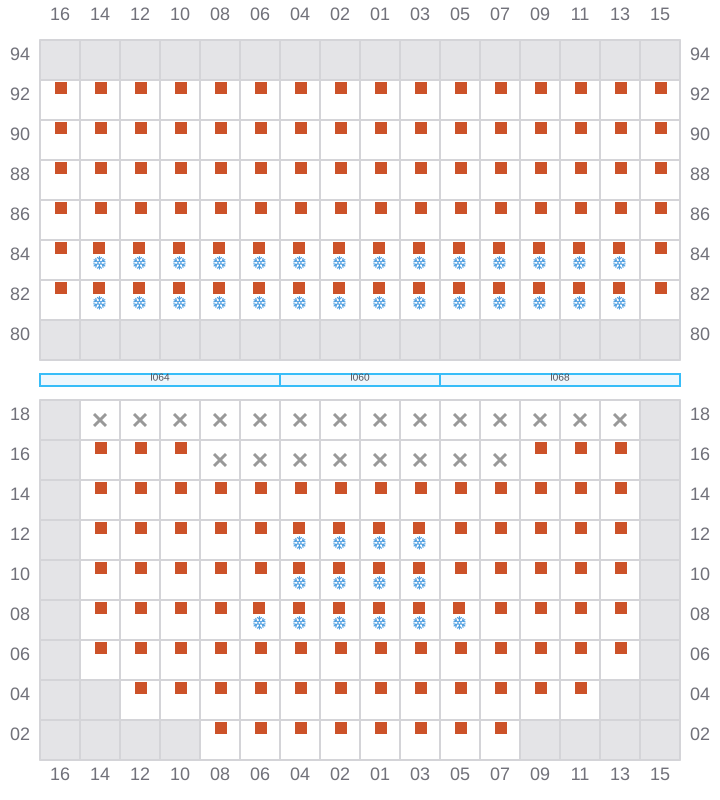

023
- ←
- →
- ← / →
![Bay 023 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b023.png?v=1710440926341)

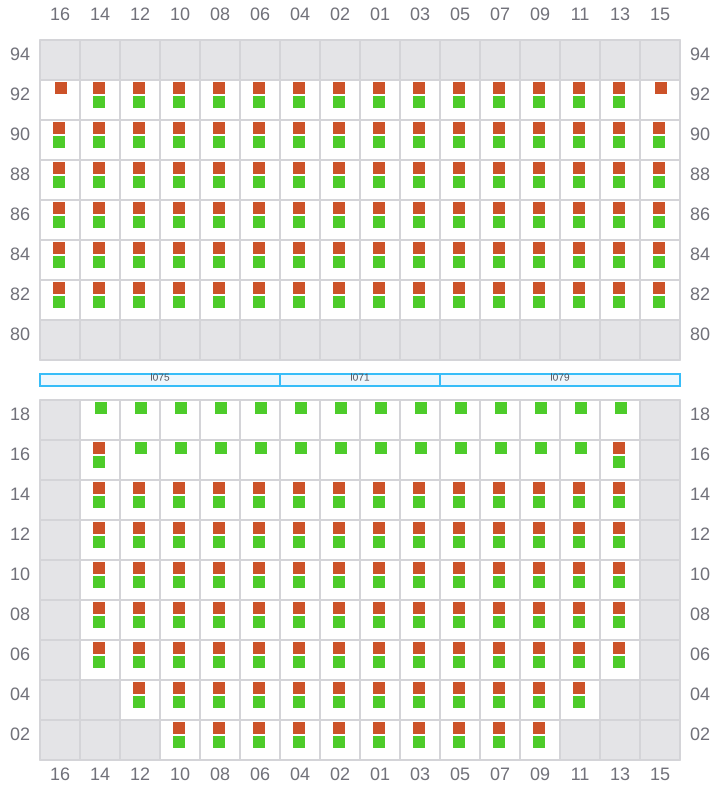

025 (026)
- →
- →
![Bay 025 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b025.png?v=1710440926341)

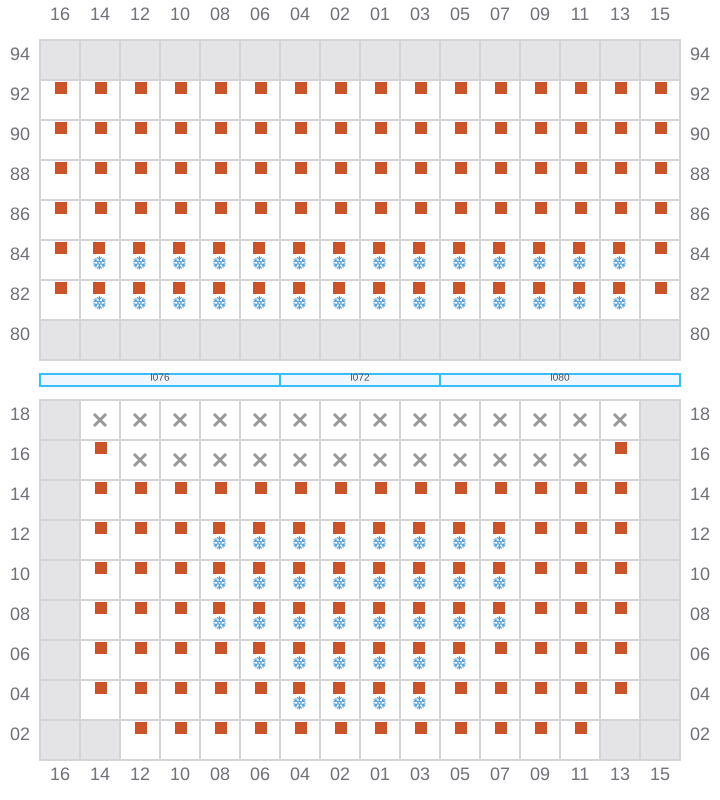

027
- ←
- →
- ←
![Bay 027 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b027.png?v=1710440926341)

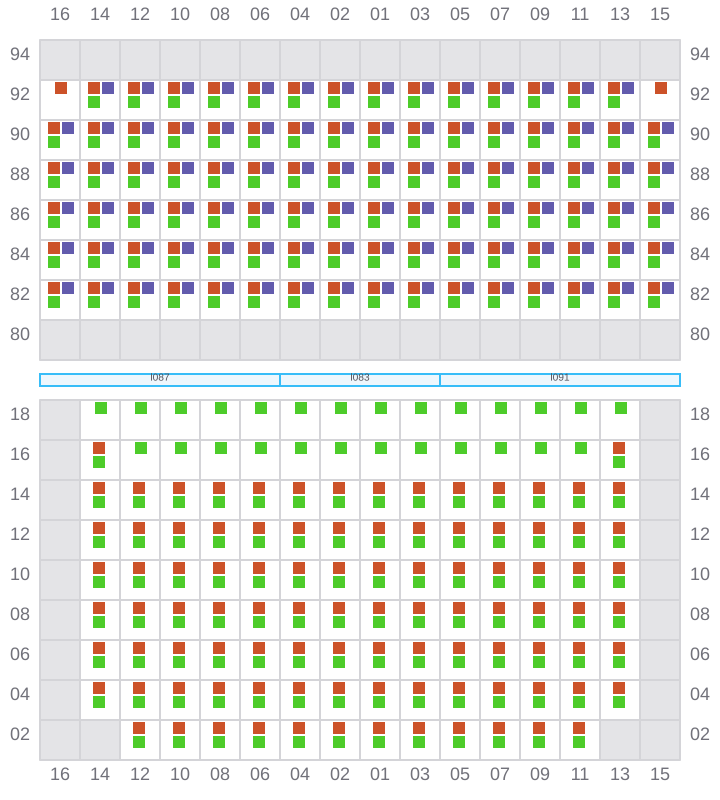

029 (030)
- →
- ? / →
- →
![Bay 029 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b029.png?v=1710440926341)
031
- ←
- →
- ←
![Bay 031 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b031.png?v=1710440926341)
033 (034)
- →
![Bay 033 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b033.png?v=1710440926341)
035
- ←
- →
- ←
![Bay 035 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b035.png?v=1710440926341)

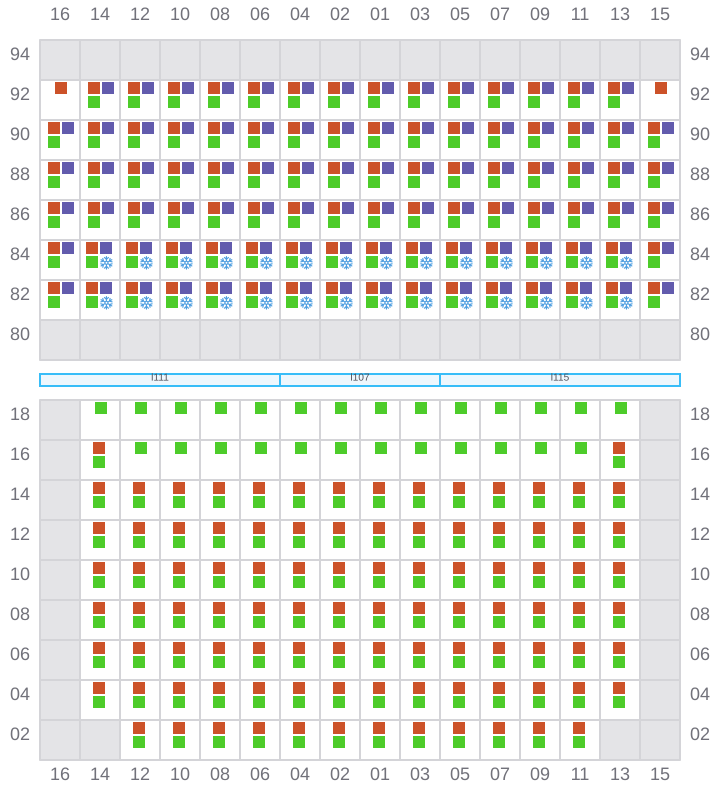

037 (038)
- →
- ← / ?
- → / ?
![Bay 037 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b037.png?v=1710440926341)
039
- ←
- →
- ←
![Bay 039 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b039.png?v=1710440926341)
041 (042)
- →
- ← / ?
- → / ?
![Bay 041 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b041.png?v=1710440926341)

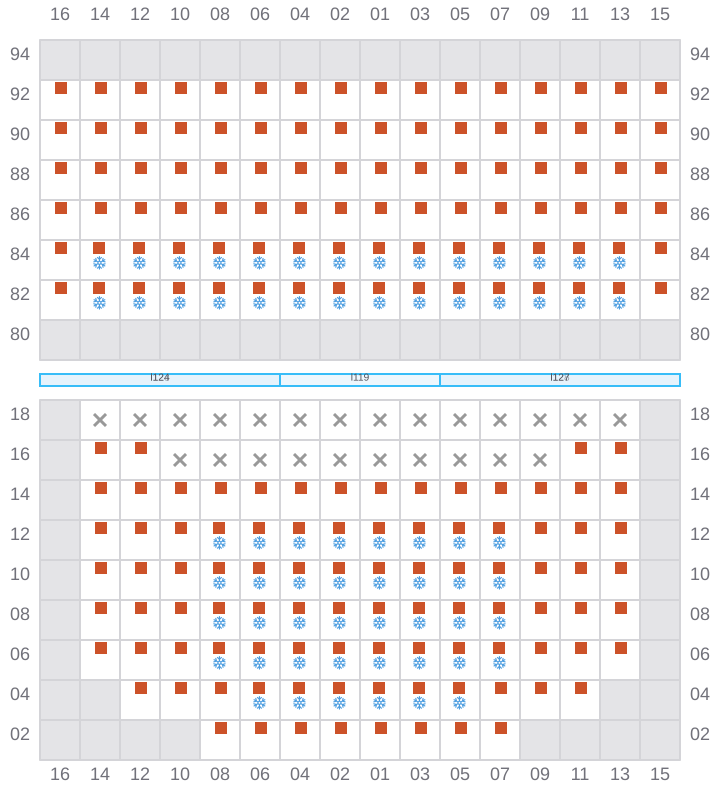

043
- ←
- →
- ←
![Bay 043 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b043.png?v=1710440926341)

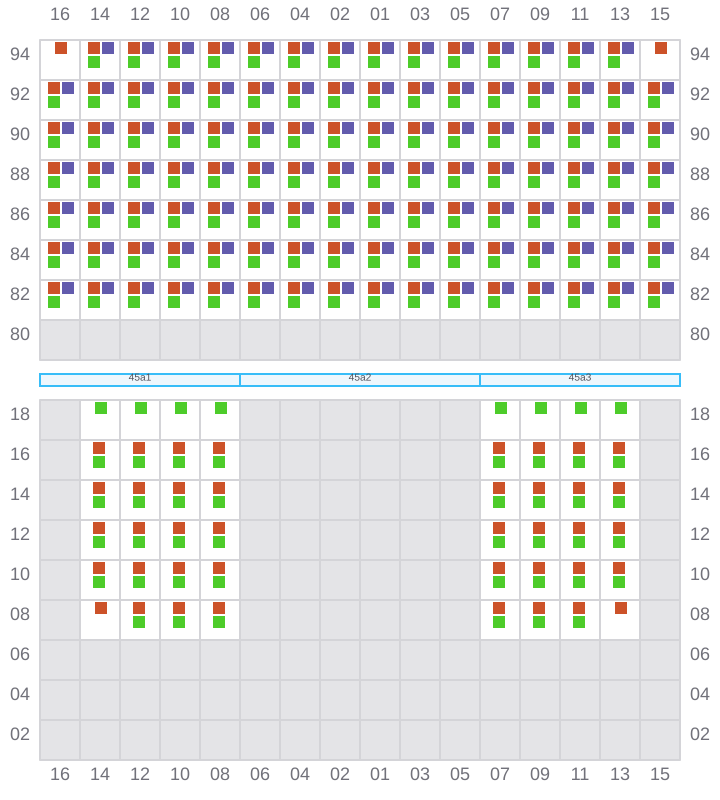

045 (046)
- →
![Bay 045 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b045.png?v=1710440926341)

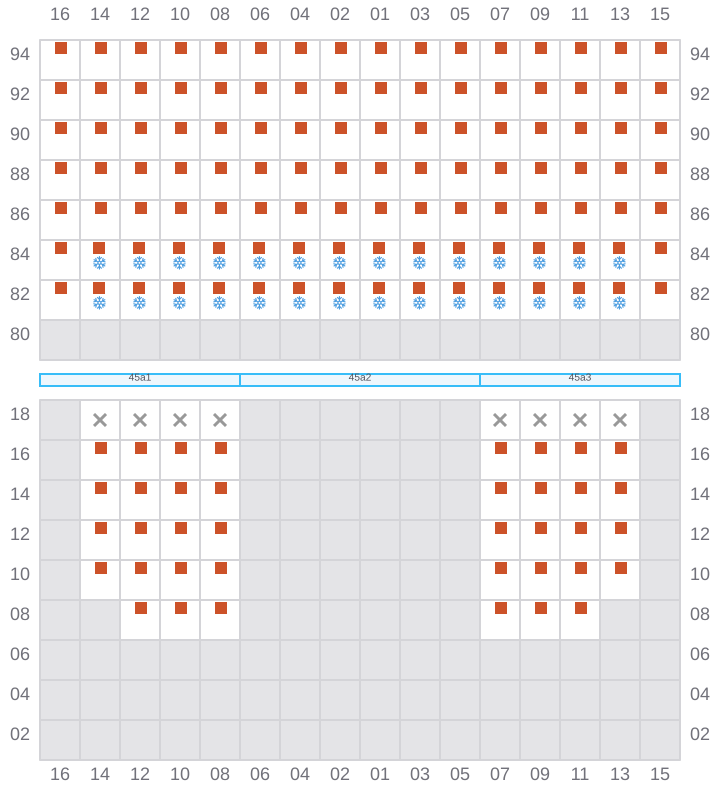

047
- ←
- ? / →
![Bay 047 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b047.png?v=1710440926341)

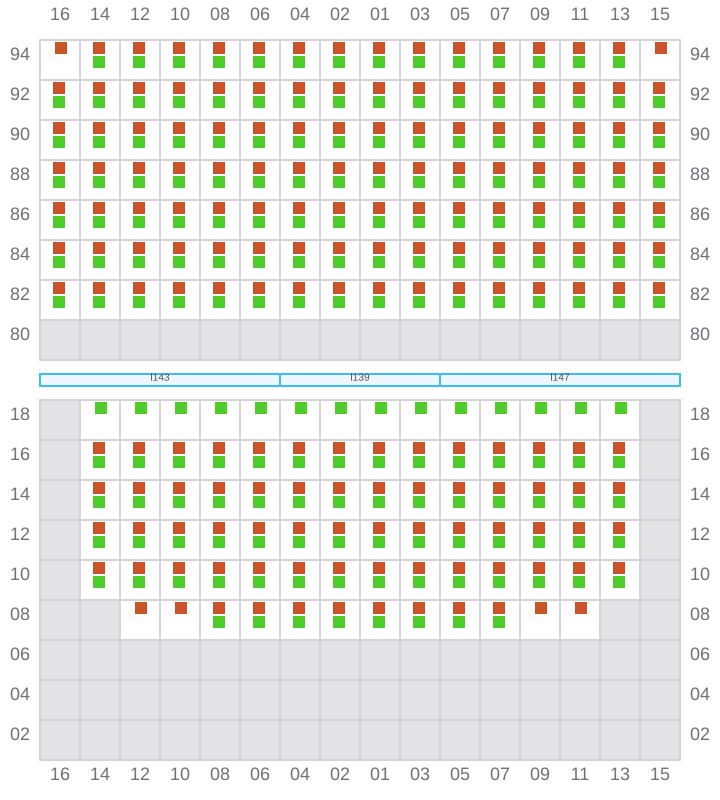

049 (050)
- →
![Bay 049 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b049.png?v=1710440926341)

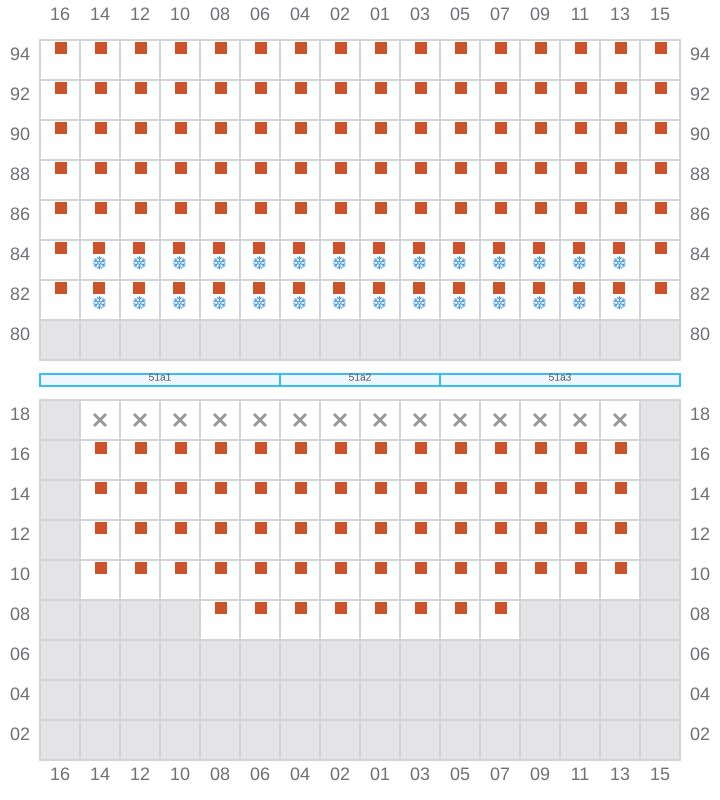

051
- ←
- → / ?
![Bay 051 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b051.png?v=1710440926341)

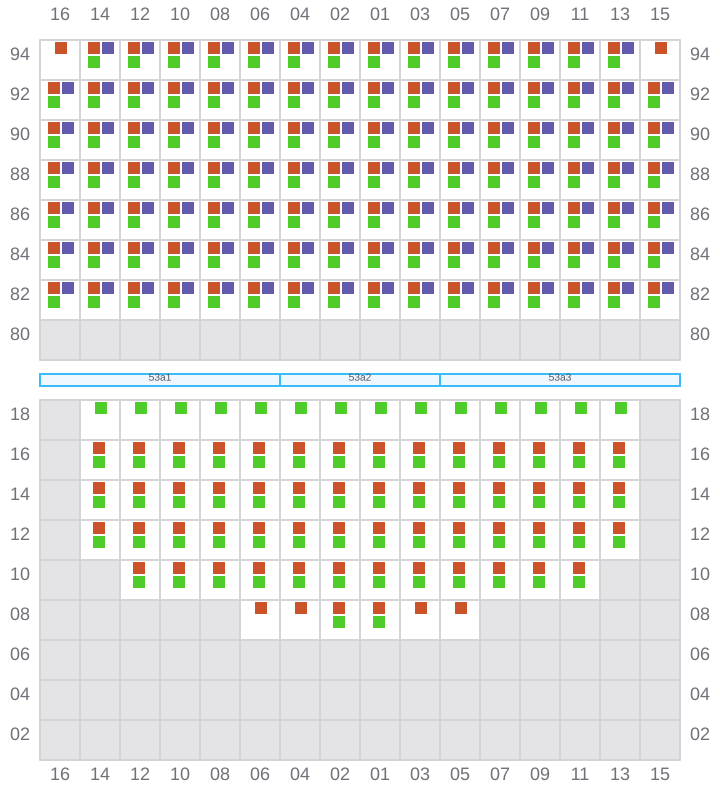

053 (054)
- →
![Bay 053 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b053.png?v=1710440926341)

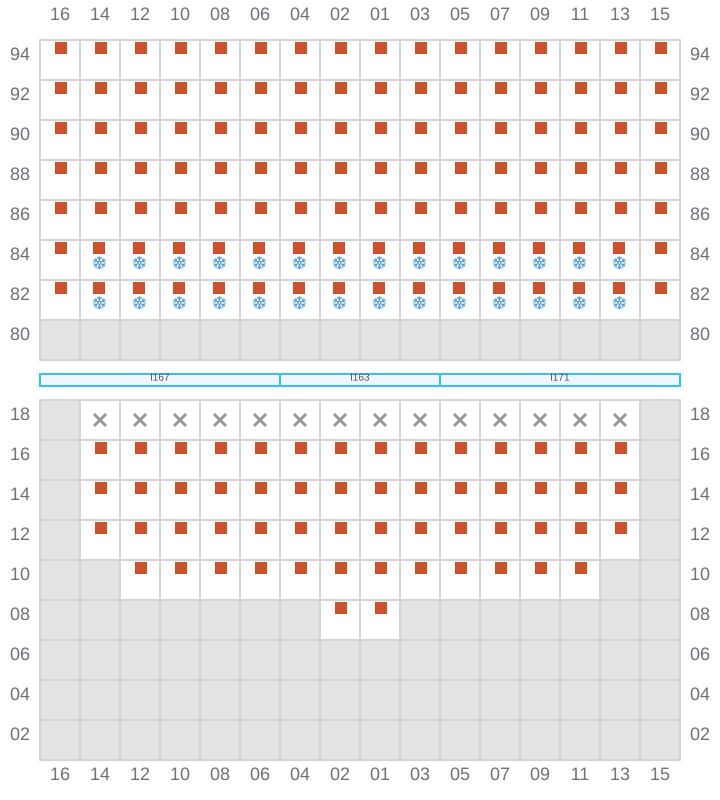

055
- ←
![Bay 055 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b055.png?v=1710440926341)
057 (058)
- →
![Bay 057 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b057.png?v=1710440926341)

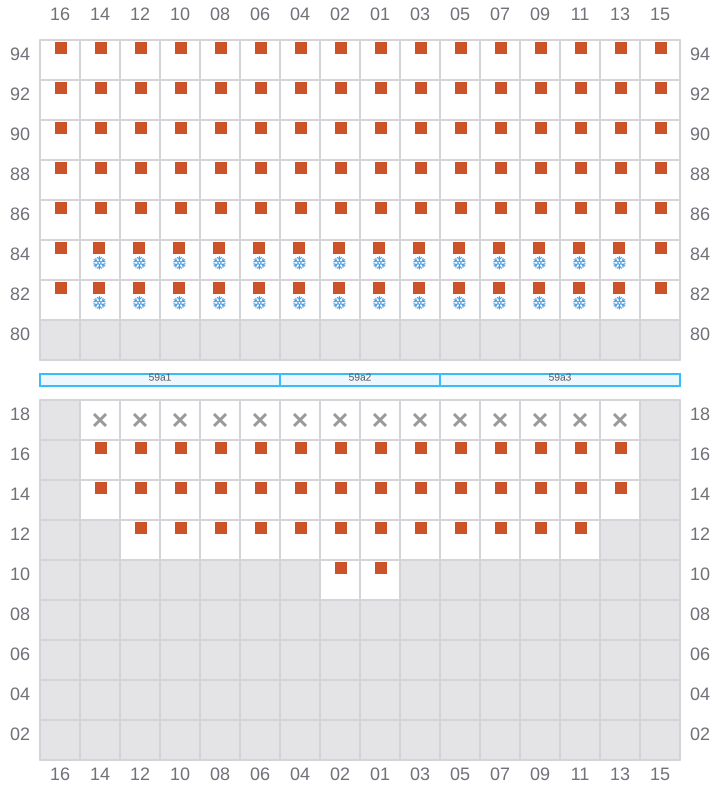

059
- ←
![Bay 059 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b059.png?v=1710440926341)
061 (062)
- → / ?
- ← / ?
- → / ?
![Bay 061 view and slots of GSL VIOLETTA](/vessel-images/259a061b-3a0a-4ac0-832b-f0dd88ace729-b061.png?v=1710440926341)
