GUNHILDE MAERSK
9359026 | OUJI2 | MSK by ************************** Last update: Sat Jun 24 2023
General Info
Ship Name:GUNHILDE MAERSK
IMO Code:9359026
Call Sign:OUJI2
Line Operator:MSK
Class Name for Sister Ships:GNH
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:085
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:10,808
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

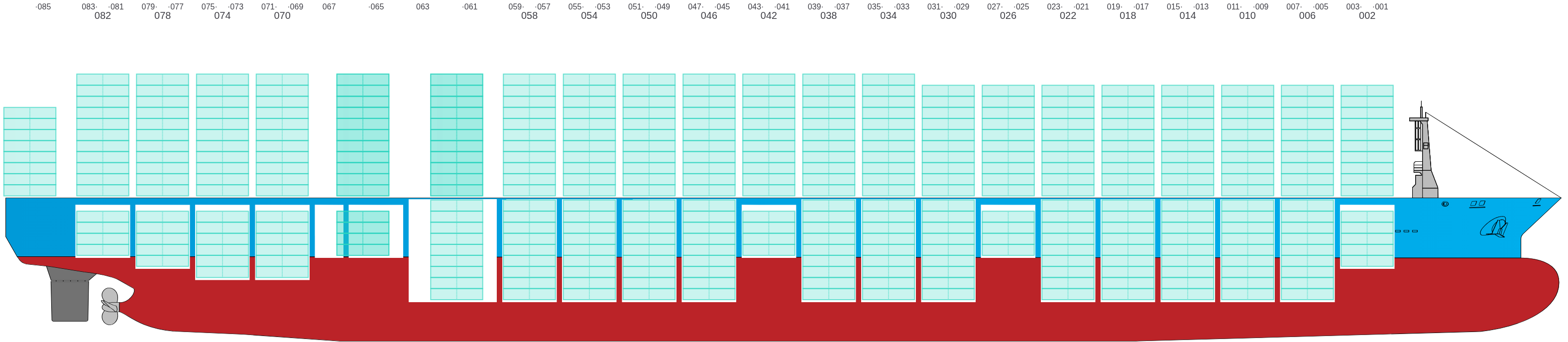

Side View
![Side view of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-sideView.png?v=1687626718607)

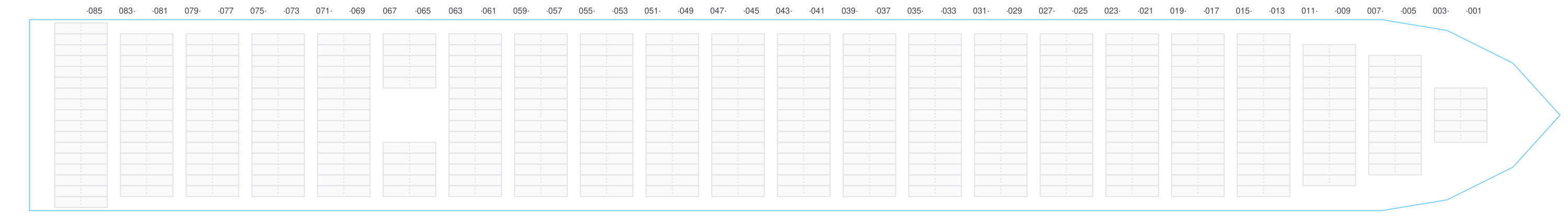

Hatch-Covers View
![Deck view of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-deckView.png?v=1687626718607)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

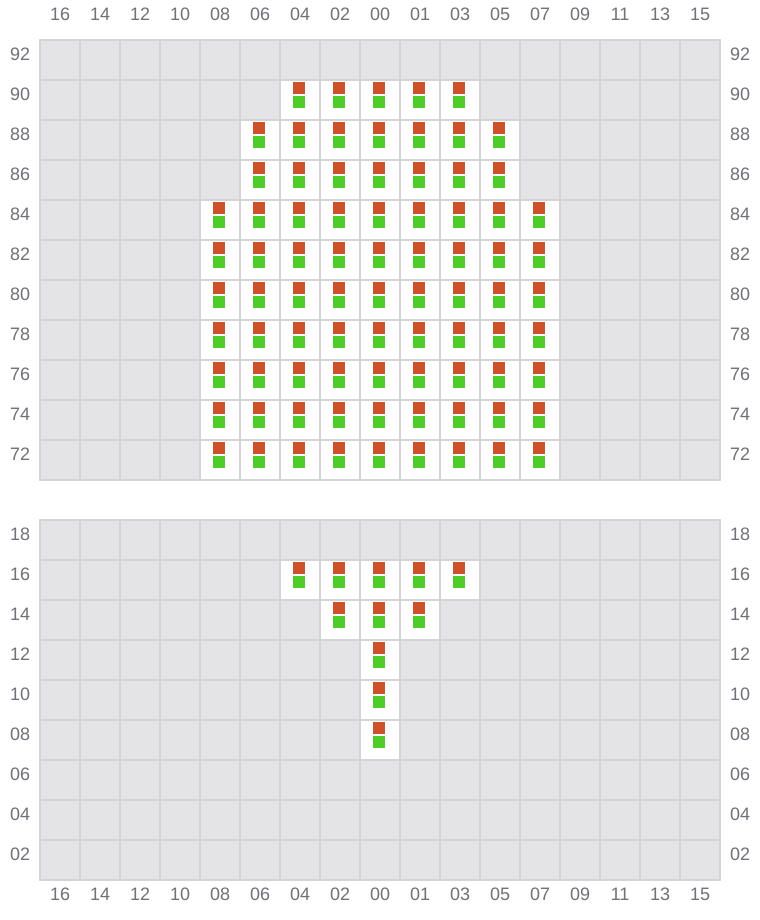

001 (002)
- →
![Bay 001 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b001.png?v=1687626718607)

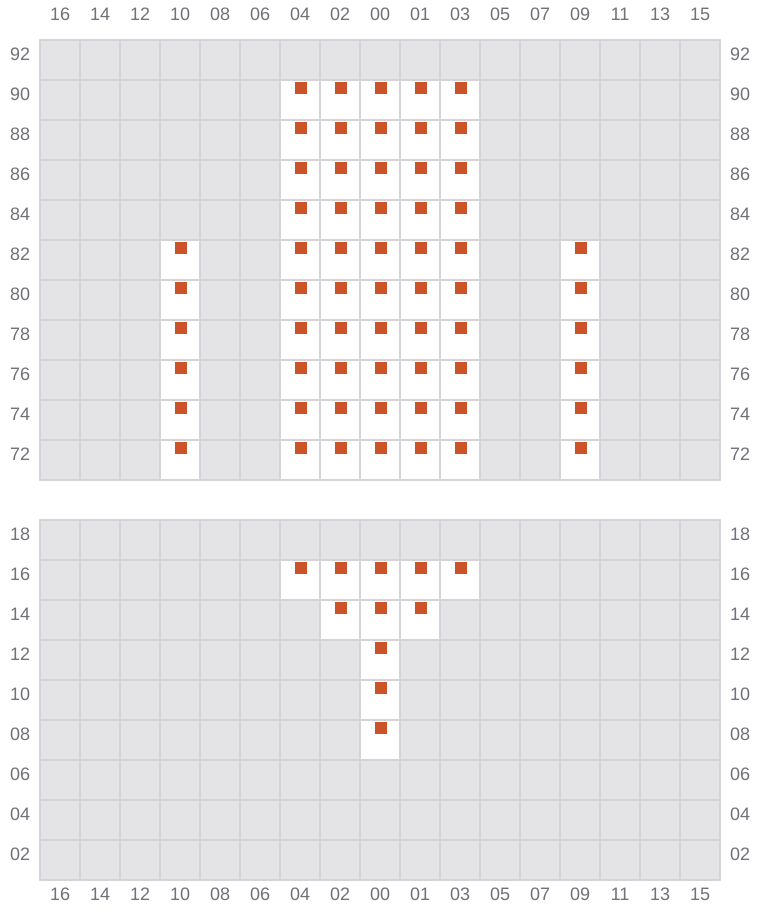

003
- ←
![Bay 003 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b003.png?v=1687626718607)

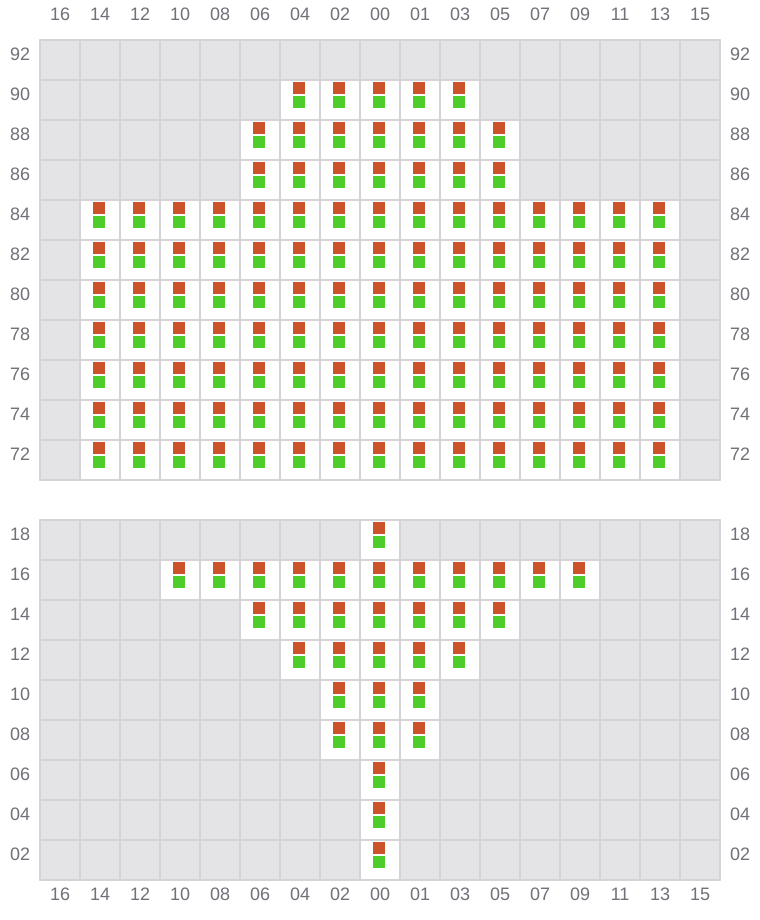

005 (006)
- →
![Bay 005 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b005.png?v=1687626718607)

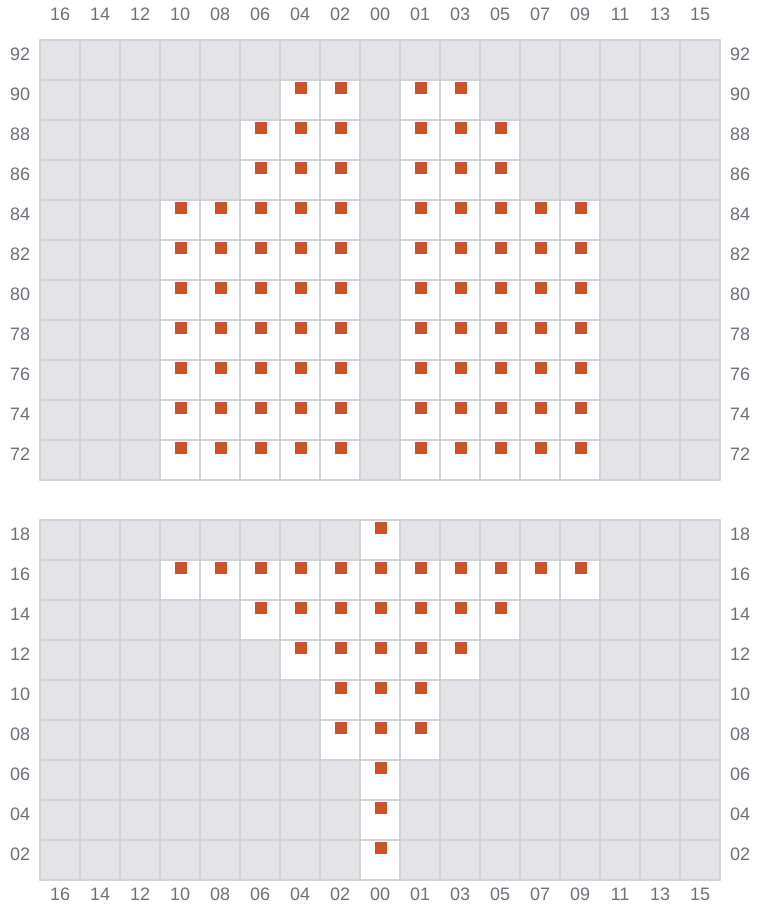

007
- ←
![Bay 007 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b007.png?v=1687626718607)

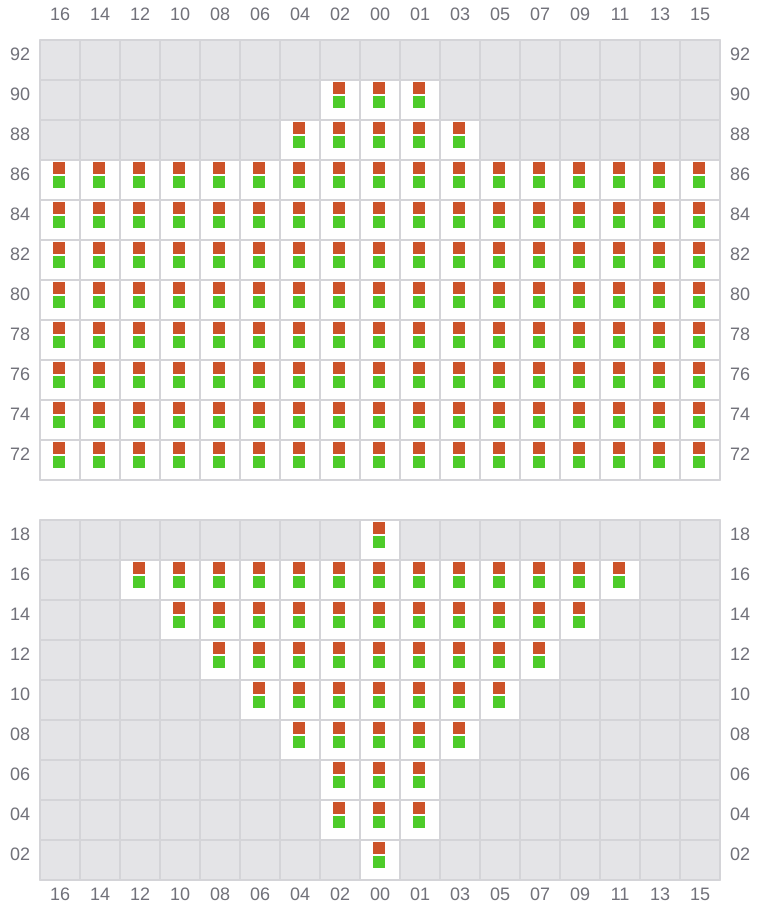

009 (010)
- →
![Bay 009 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b009.png?v=1687626718607)

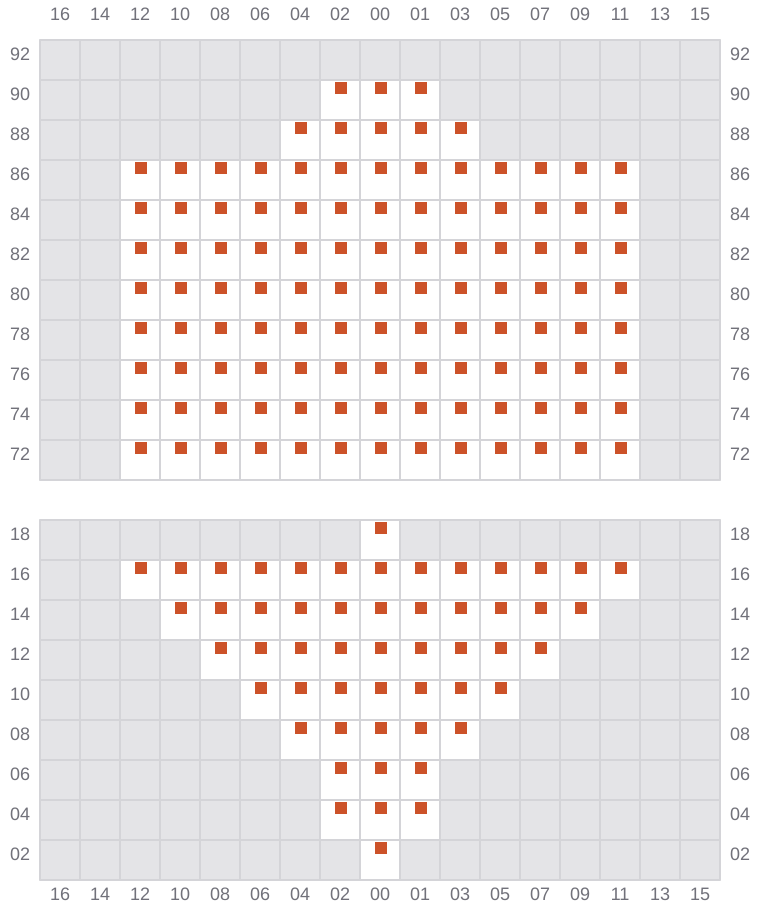

011
- ←
![Bay 011 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b011.png?v=1687626718607)

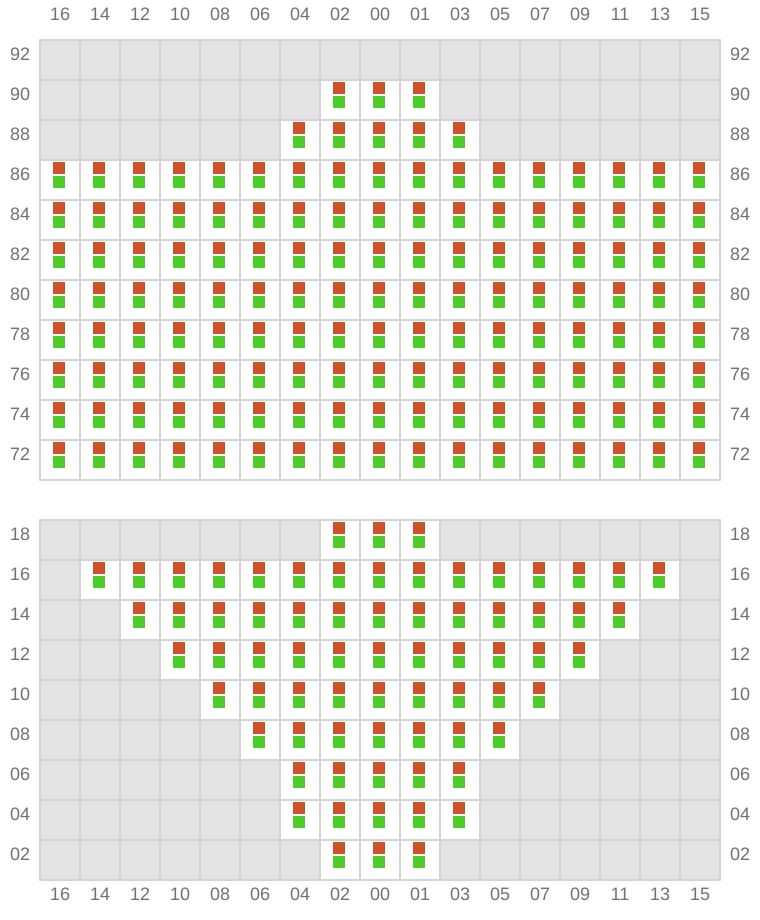

013 (014)
- →
![Bay 013 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b013.png?v=1687626718607)

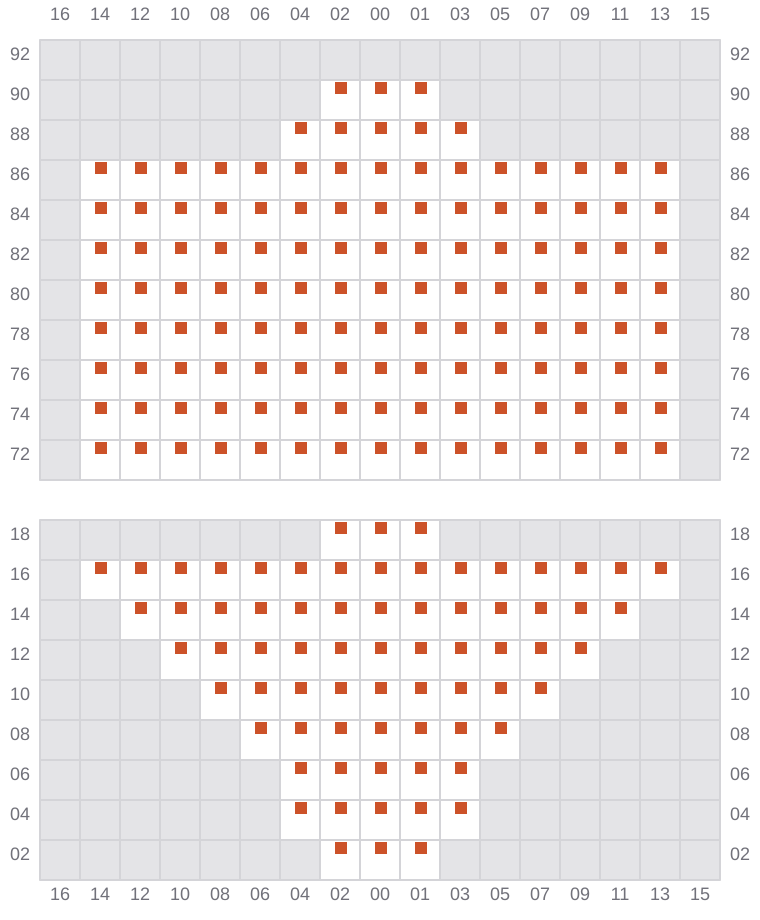

015
- ←
![Bay 015 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b015.png?v=1687626718607)

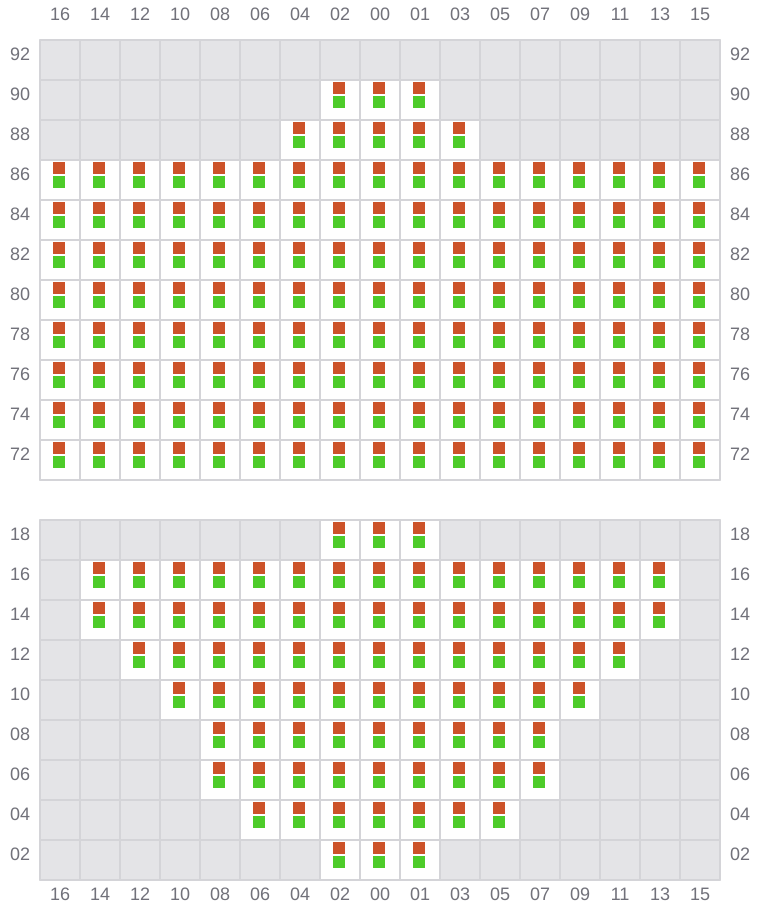

017 (018)
- →
![Bay 017 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b017.png?v=1687626718607)

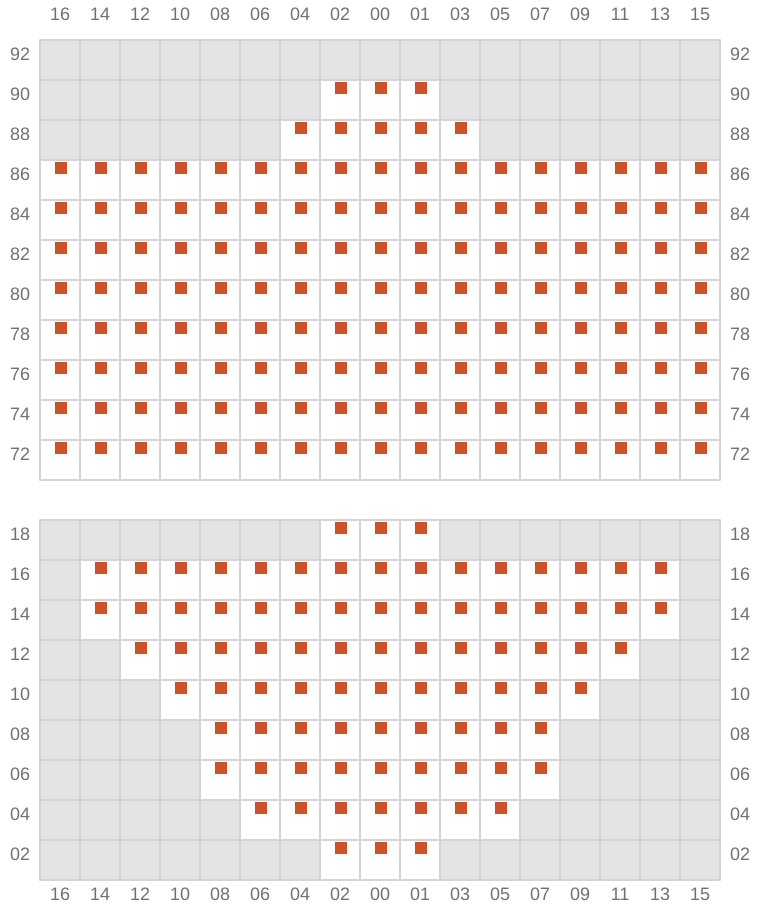

019
- ←
![Bay 019 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b019.png?v=1687626718607)

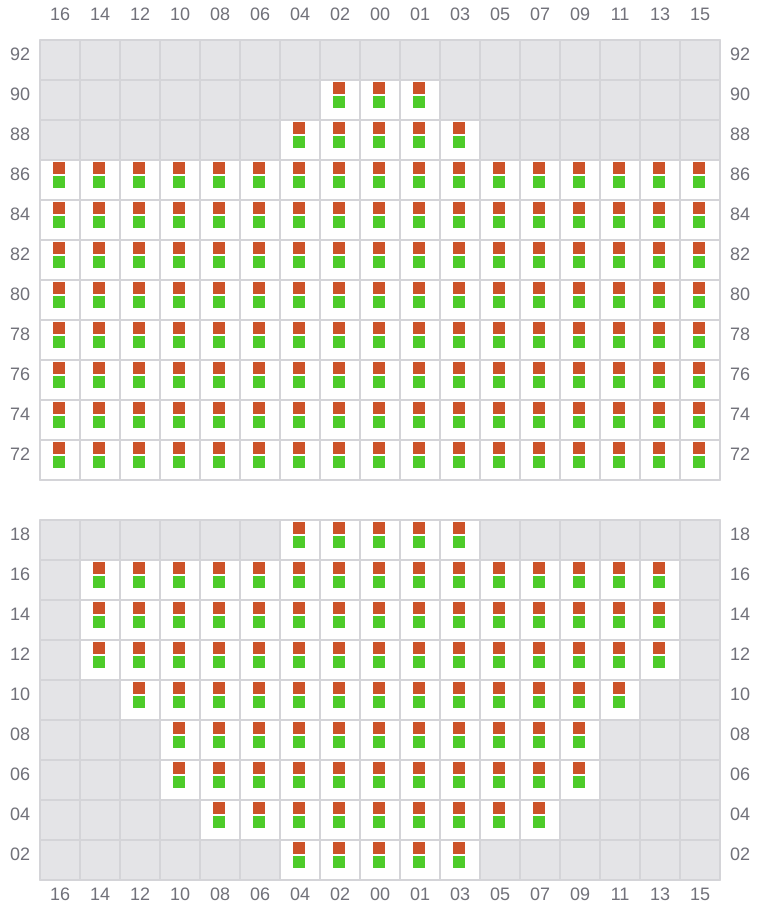

021 (022)
- →
![Bay 021 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b021.png?v=1687626718607)
023
- ←
![Bay 023 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b023.png?v=1687626718607)

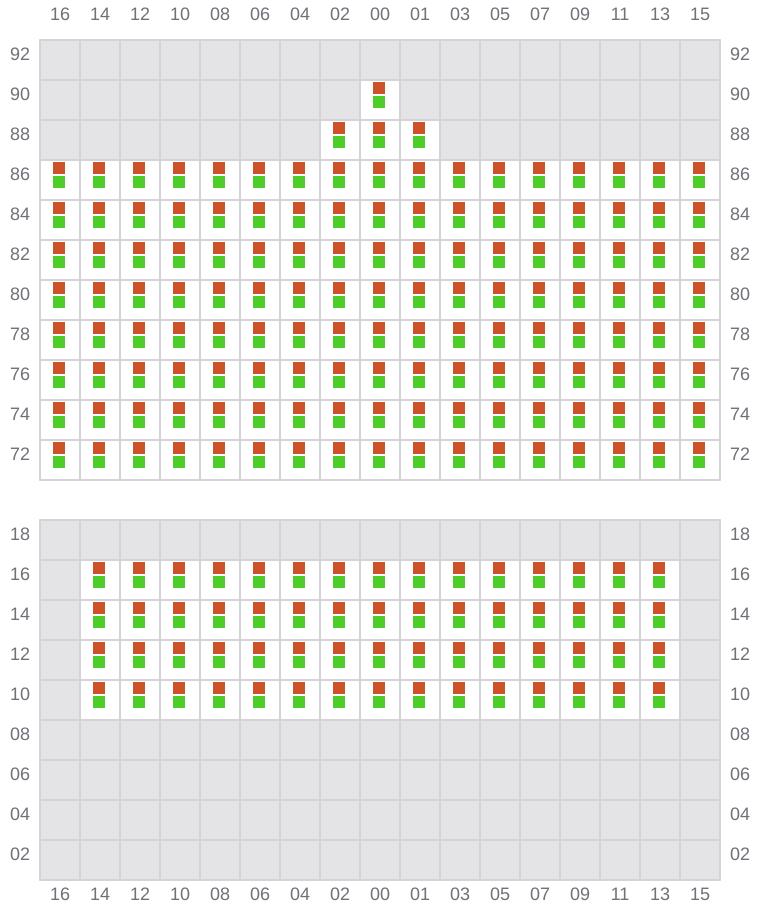

025 (026)
- →
![Bay 025 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b025.png?v=1687626718607)
027
- ←
![Bay 027 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b027.png?v=1687626718607)

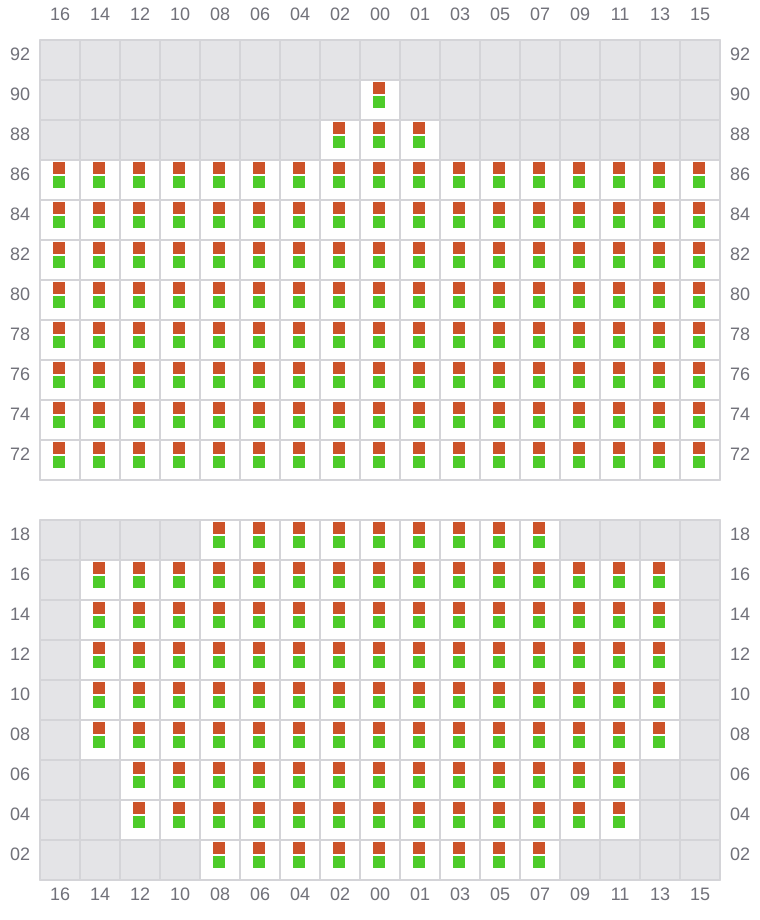

029 (030)
- →
![Bay 029 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b029.png?v=1687626718607)

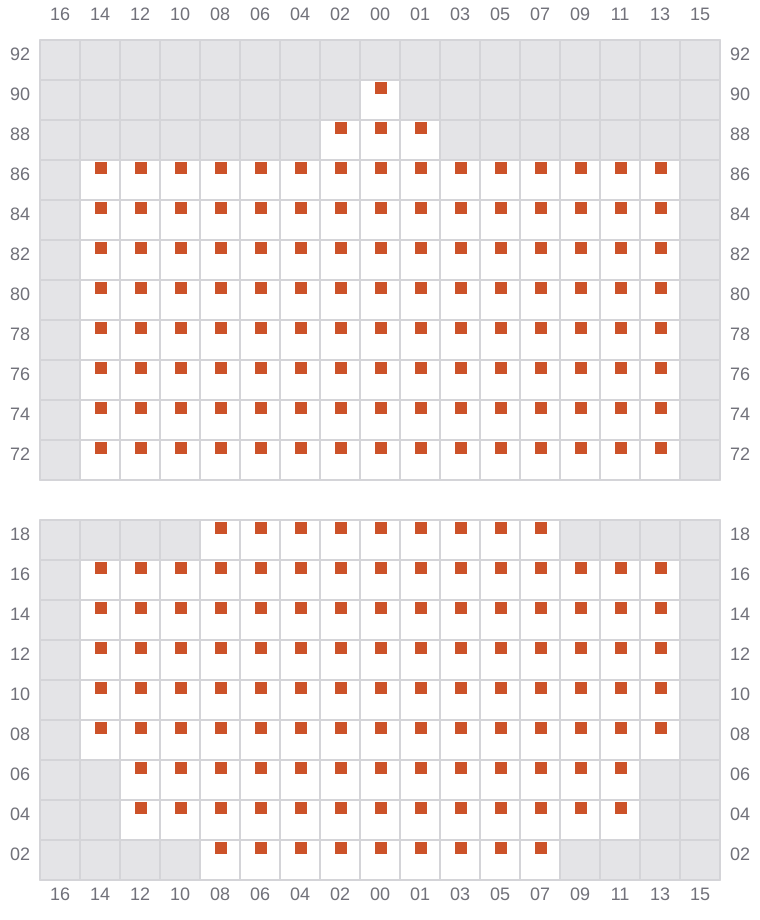

031
- ←
![Bay 031 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b031.png?v=1687626718607)

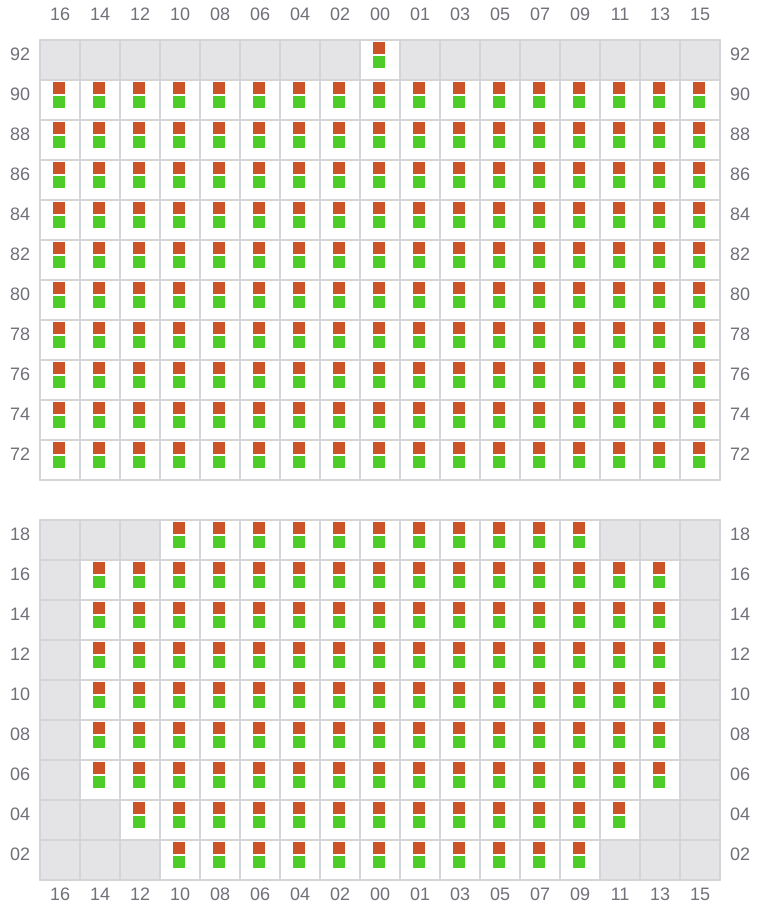

033 (034)
- →
![Bay 033 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b033.png?v=1687626718607)

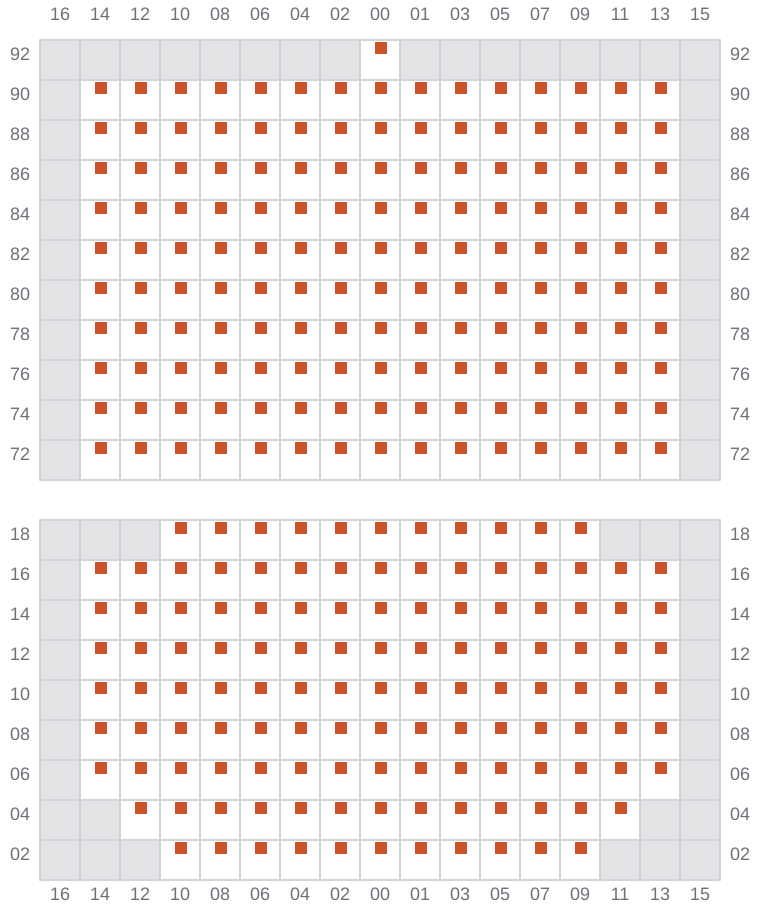

035
- ←
![Bay 035 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b035.png?v=1687626718607)

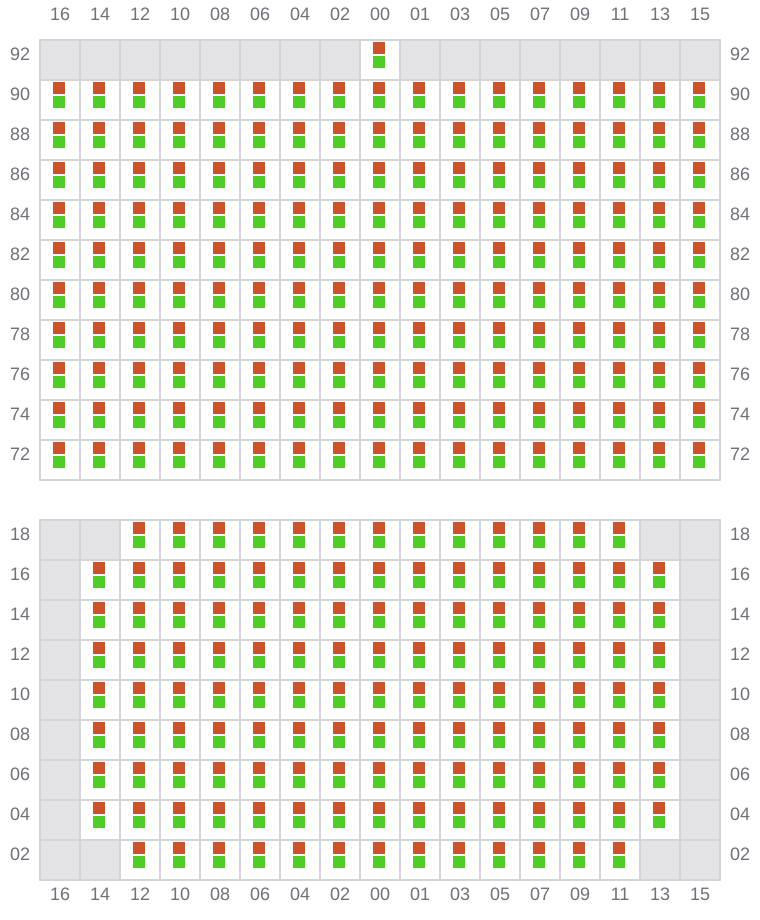

037 (038)
- →
![Bay 037 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b037.png?v=1687626718607)

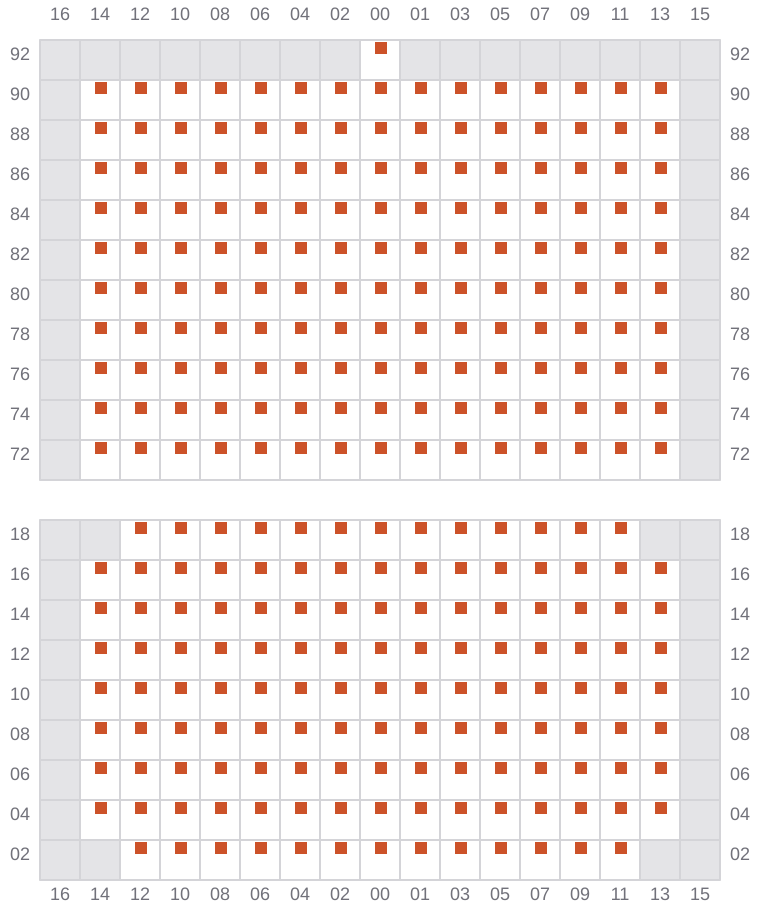

039
- ←
![Bay 039 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b039.png?v=1687626718607)

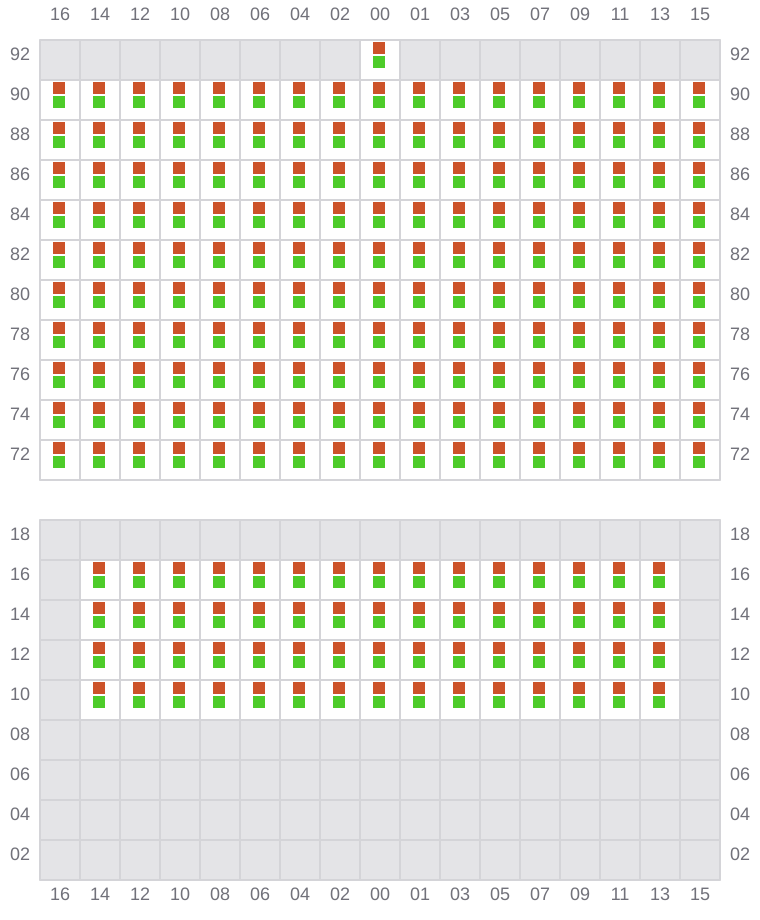

041 (042)
- →
![Bay 041 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b041.png?v=1687626718607)

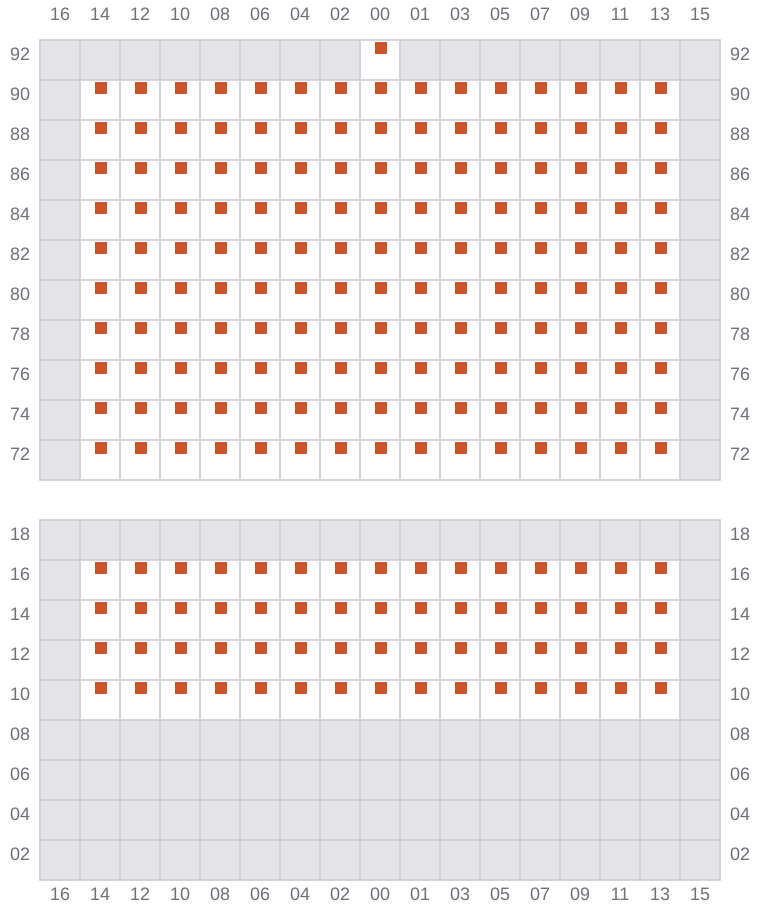

043
- ←
![Bay 043 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b043.png?v=1687626718607)
045 (046)
- →
![Bay 045 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b045.png?v=1687626718607)
047
- ←
![Bay 047 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b047.png?v=1687626718607)

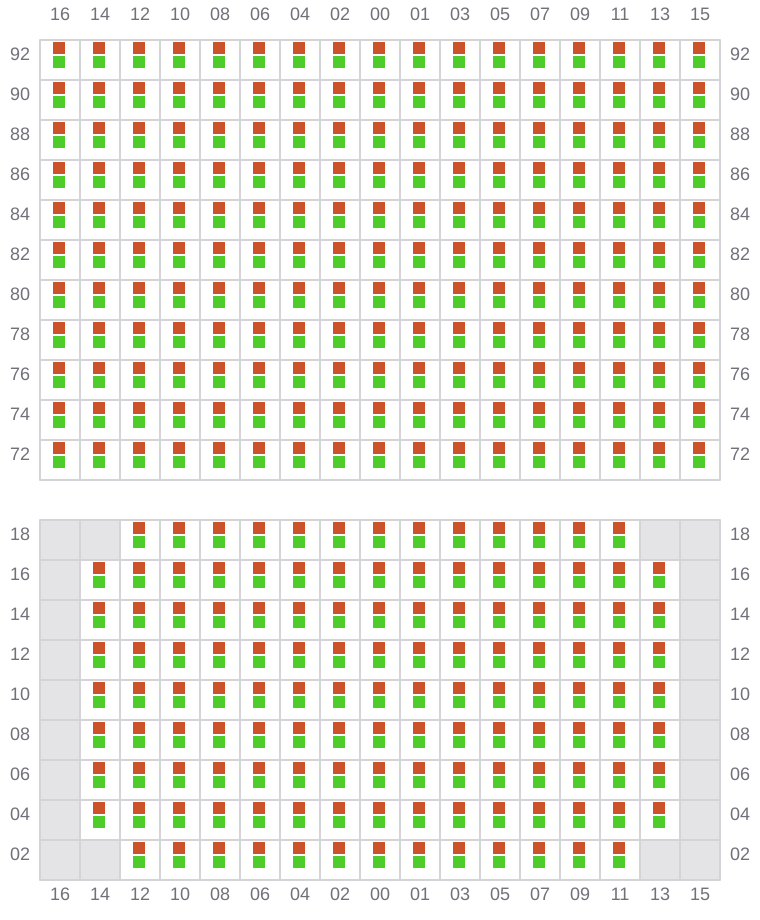

049 (050)
- →
![Bay 049 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b049.png?v=1687626718607)
051
- ←
![Bay 051 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b051.png?v=1687626718607)
053 (054)
- →
![Bay 053 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b053.png?v=1687626718607)
055
- ←
![Bay 055 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b055.png?v=1687626718607)
057 (058)
- →
![Bay 057 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b057.png?v=1687626718607)

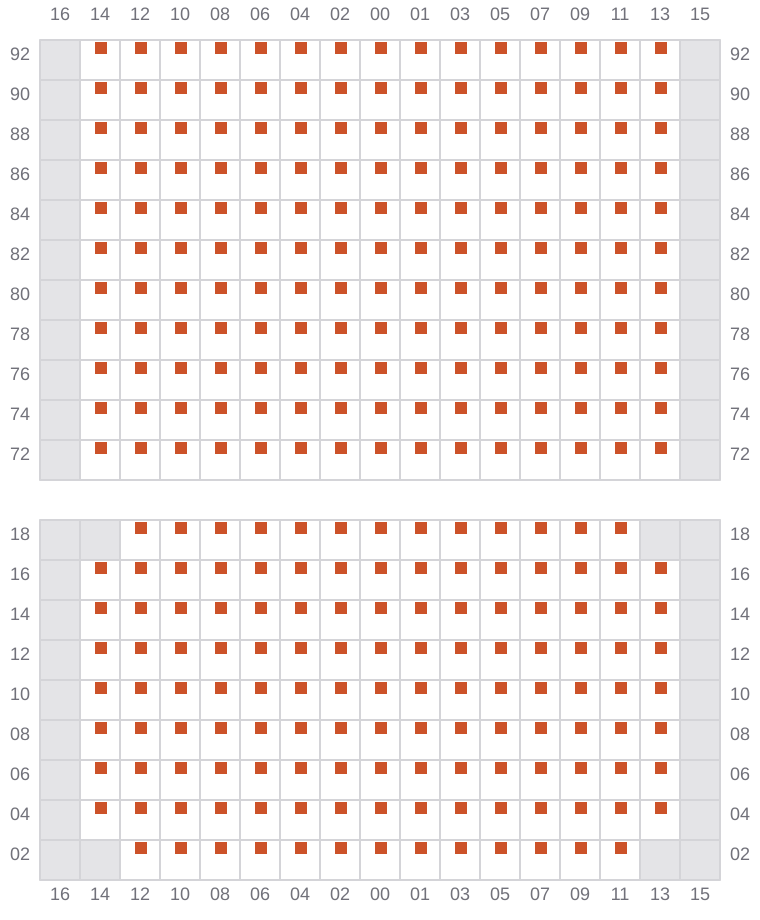

059
- ←
![Bay 059 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b059.png?v=1687626718607)

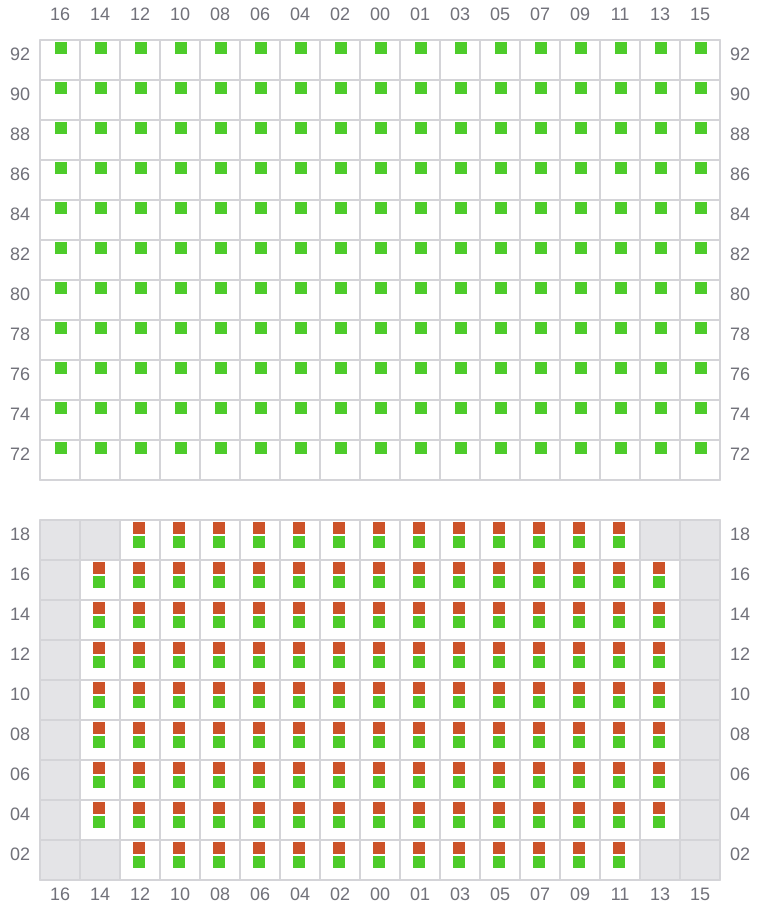

061 (062)
- →
![Bay 061 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b061.png?v=1687626718607)

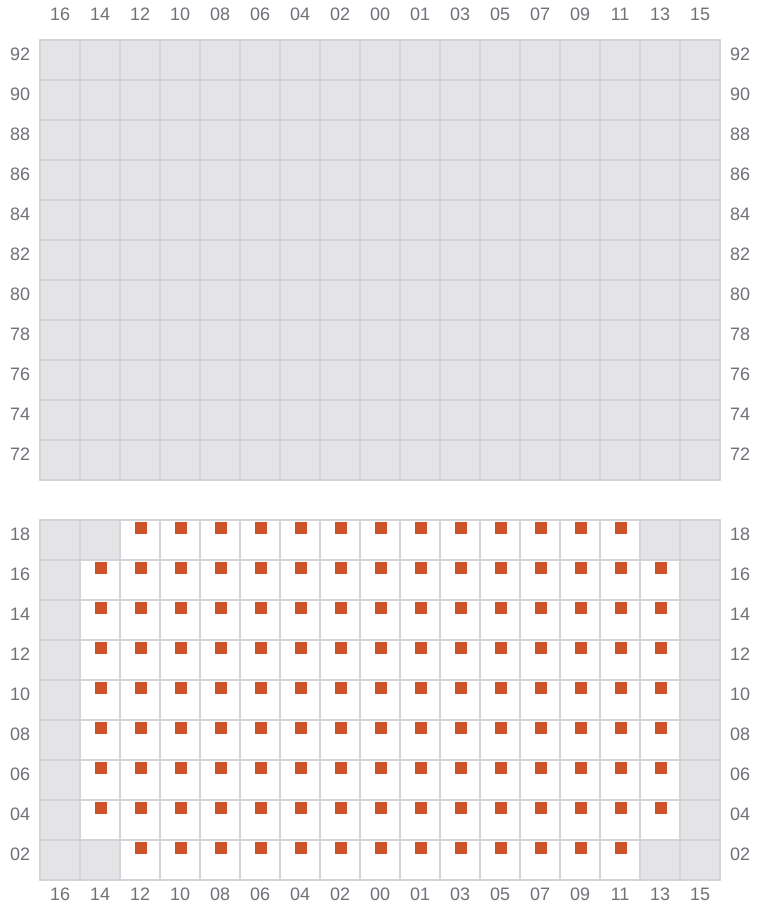

063
- ? / ←
![Bay 063 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b063.png?v=1687626718607)

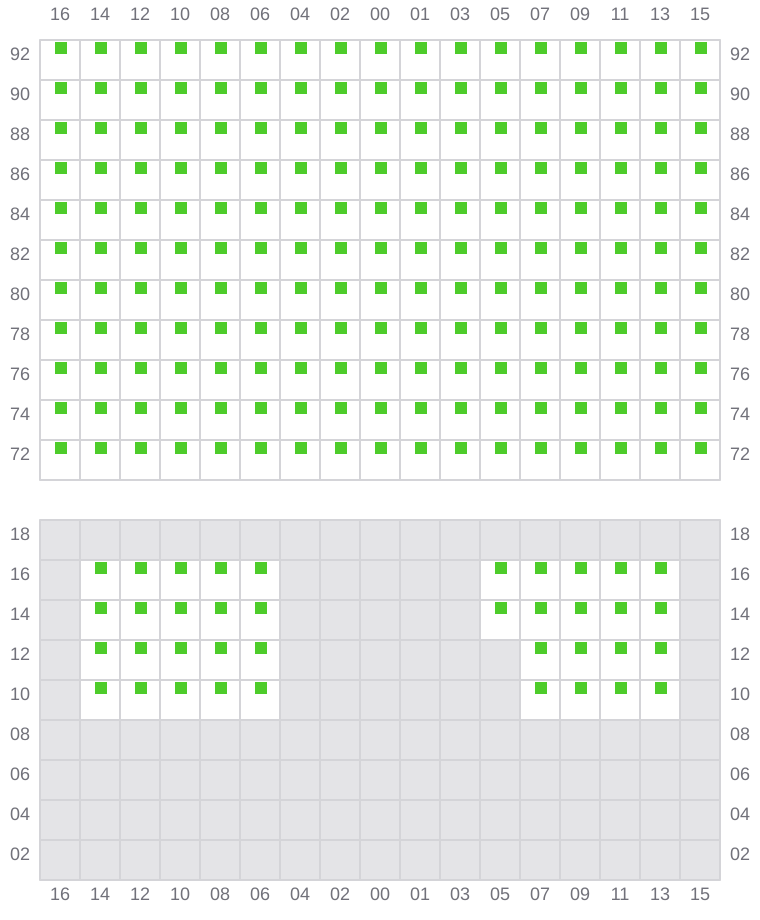

065 (066)
- →
![Bay 065 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b065.png?v=1687626718607)

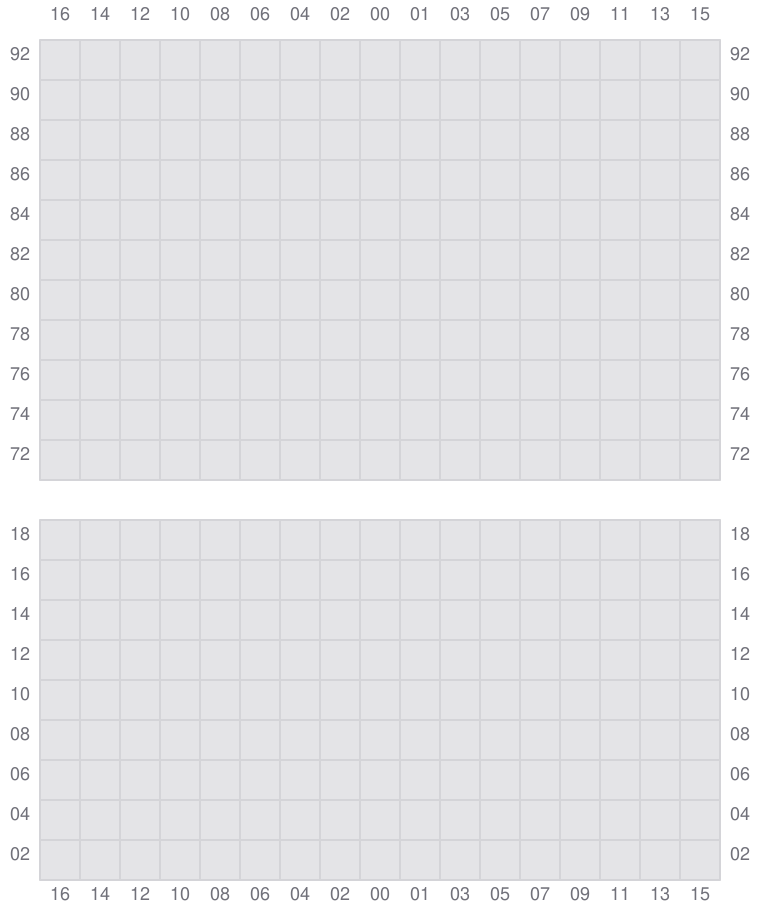

067
![Bay 067 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b067.png?v=1687626718607)

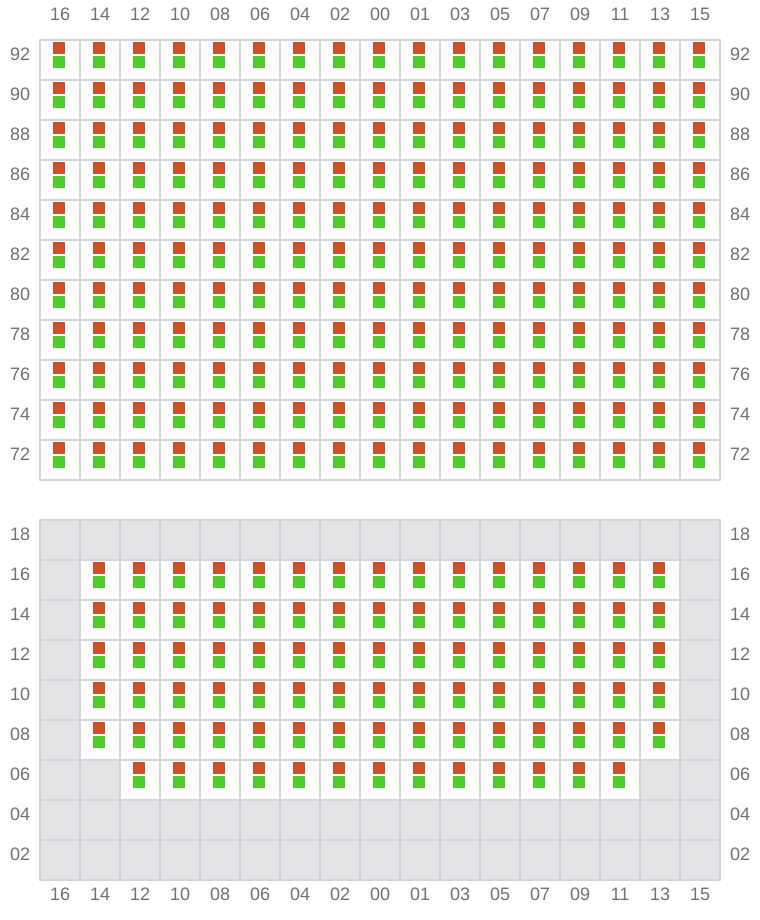

069 (070)
- →
![Bay 069 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b069.png?v=1687626718607)

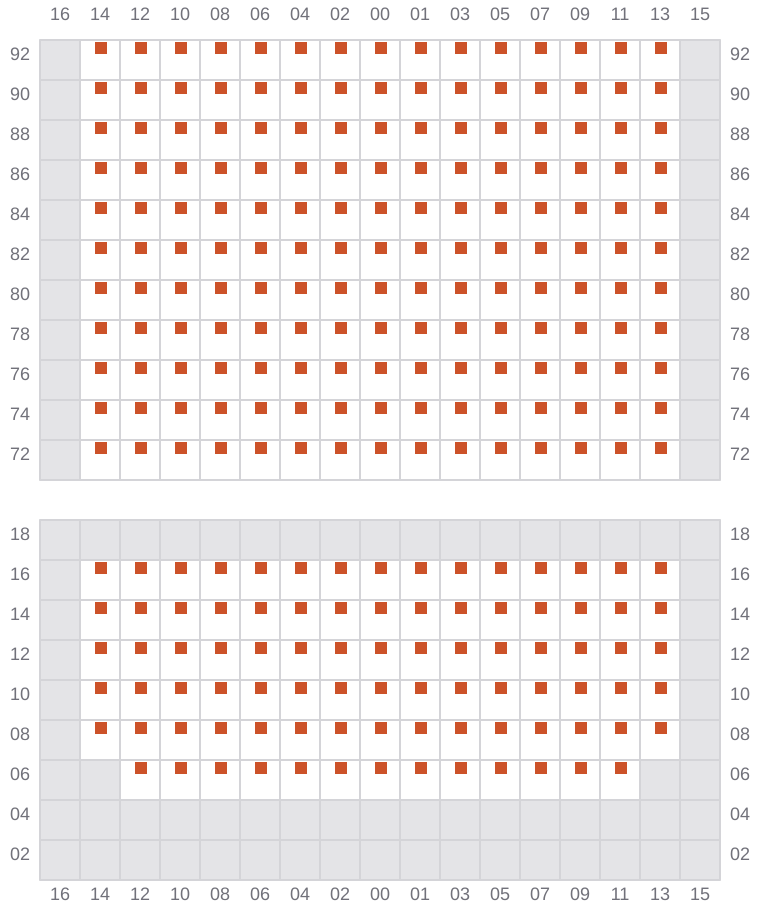

071
- ←
![Bay 071 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b071.png?v=1687626718607)

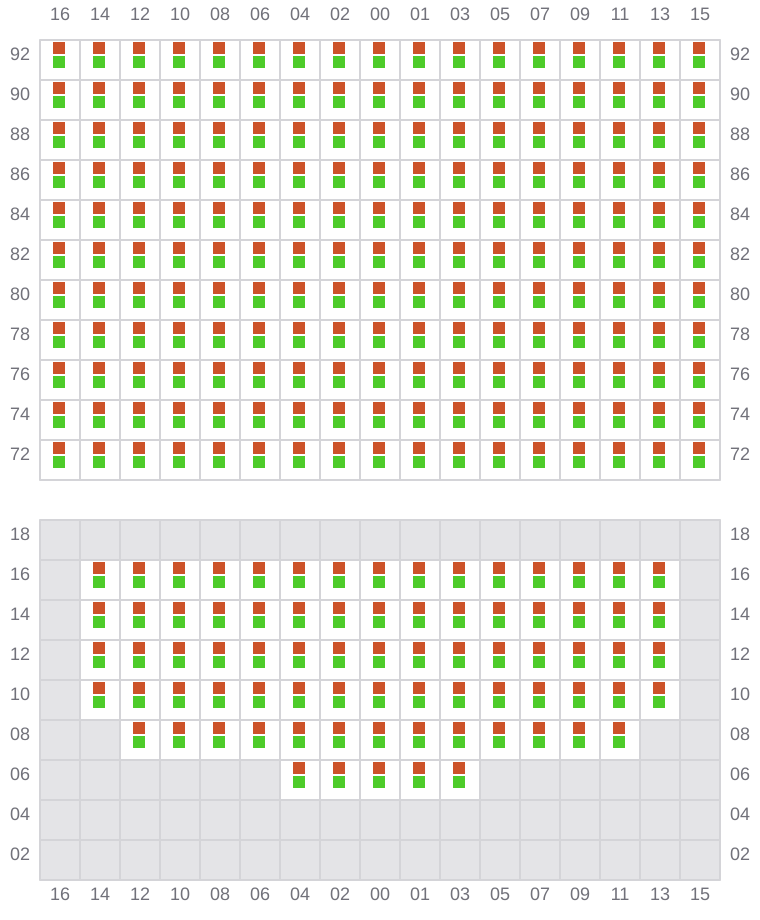

073 (074)
- →
![Bay 073 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b073.png?v=1687626718607)

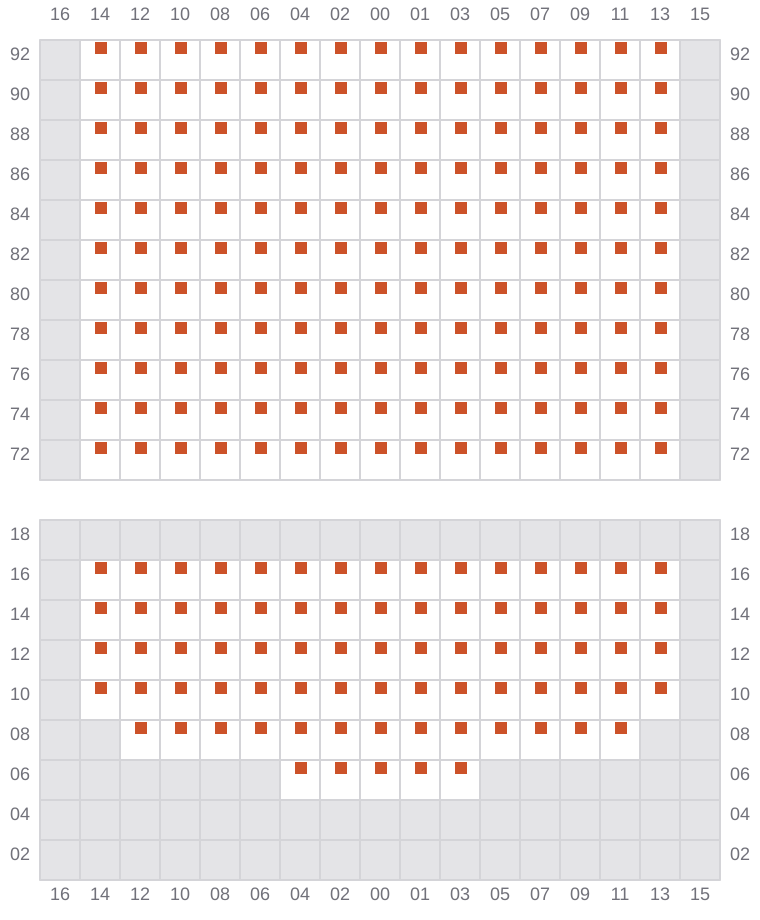

075
- ←
![Bay 075 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b075.png?v=1687626718607)

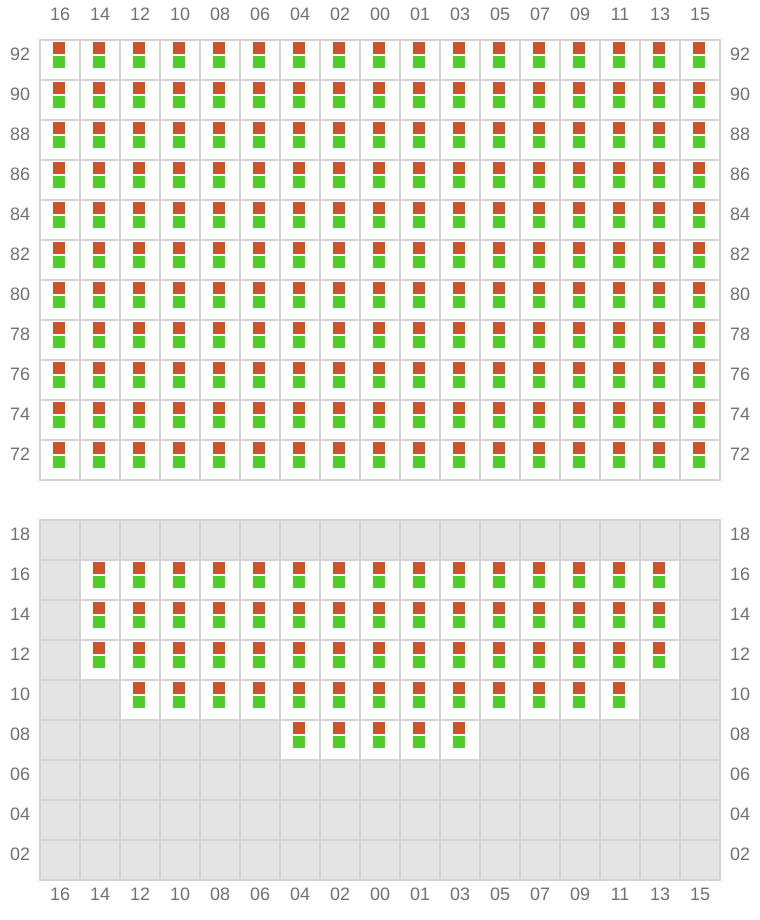

077 (078)
- →
![Bay 077 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b077.png?v=1687626718607)

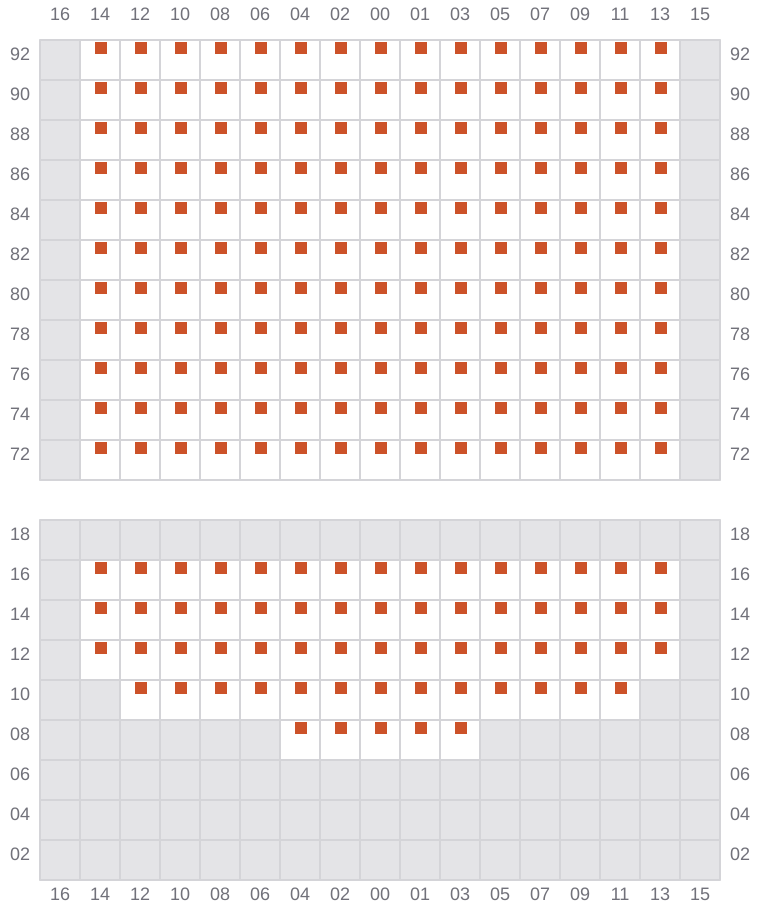

079
- ←
![Bay 079 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b079.png?v=1687626718607)

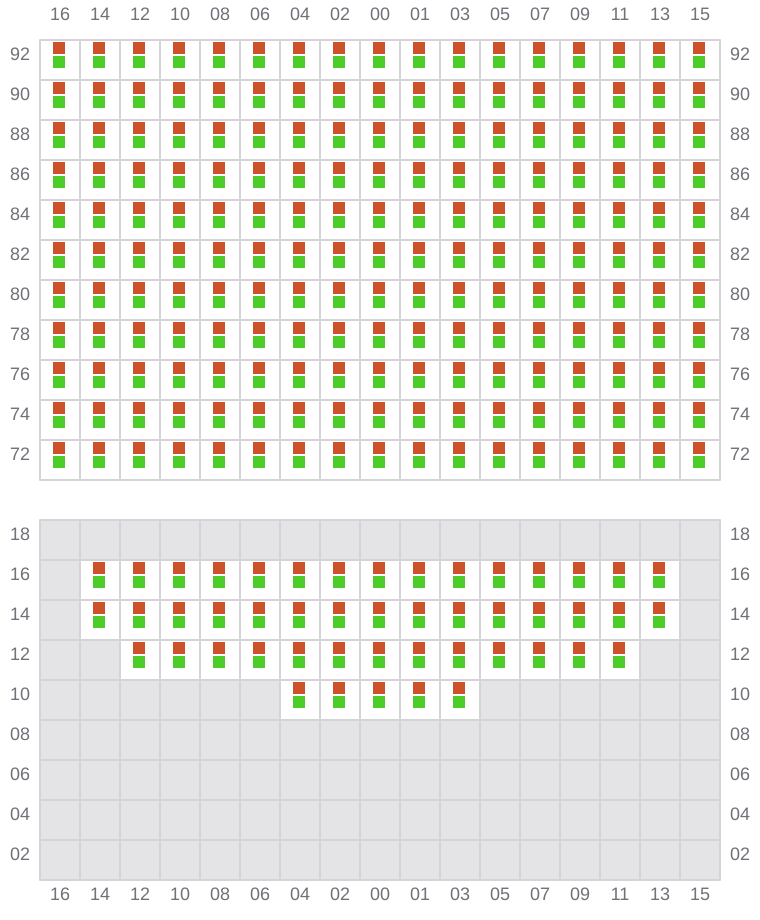

081 (082)
- →
![Bay 081 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b081.png?v=1687626718607)

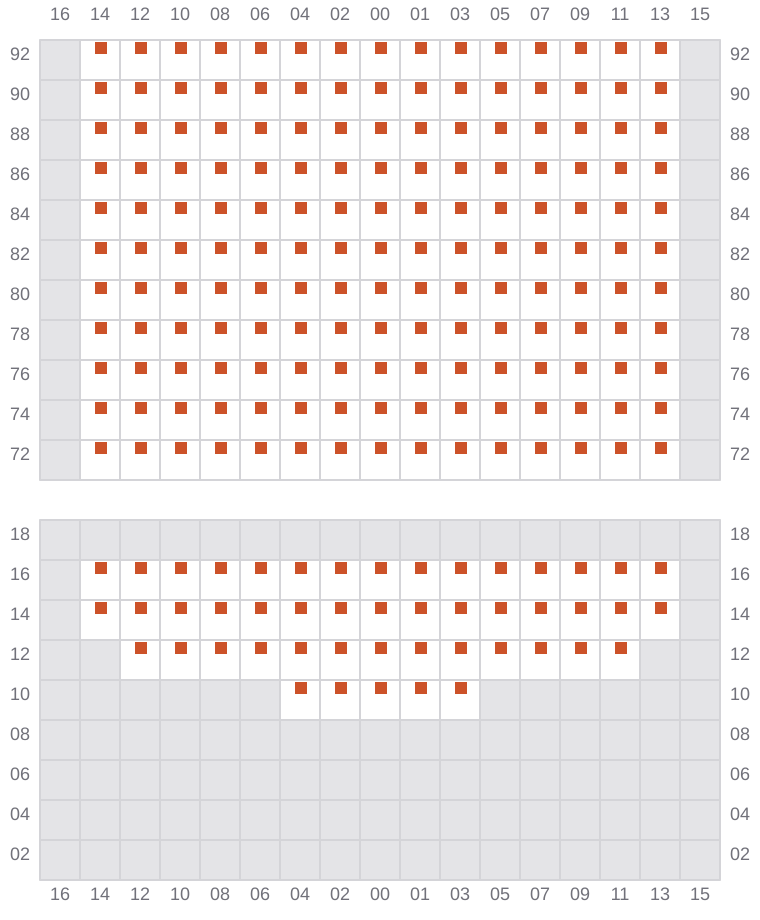

083
- ←
![Bay 083 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b083.png?v=1687626718607)

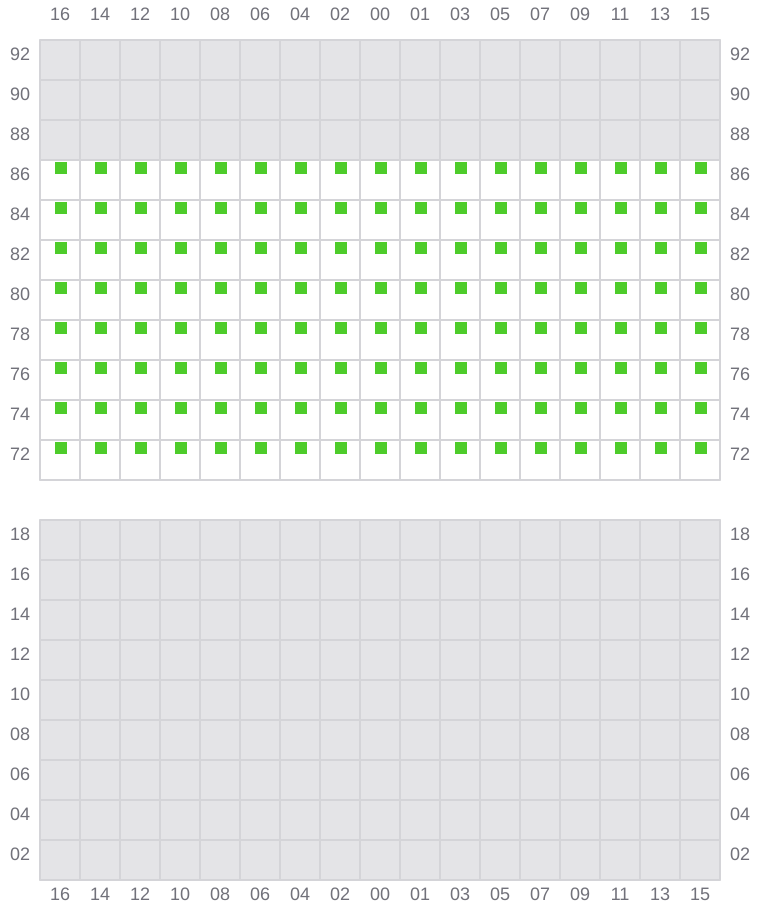

085 (086)
- → / ?
![Bay 085 view and slots of GUNHILDE MAERSK](/vessel-images/2a5a3e81-086d-4351-a9fb-4afb293c354e-b085.png?v=1687626718607)
