GUNVOR MAERSK
9302891 | OYGC2 | MSK by ************************** Last update: Sat Jun 24 2023

General Info

Ship Name:GUNVOR MAERSK
IMO Code:9302891
Call Sign:OYGC2
Line Operator:MSK
Class Name for Sister Ships:GVR
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:40, 45, 20
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:085
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:10,836

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

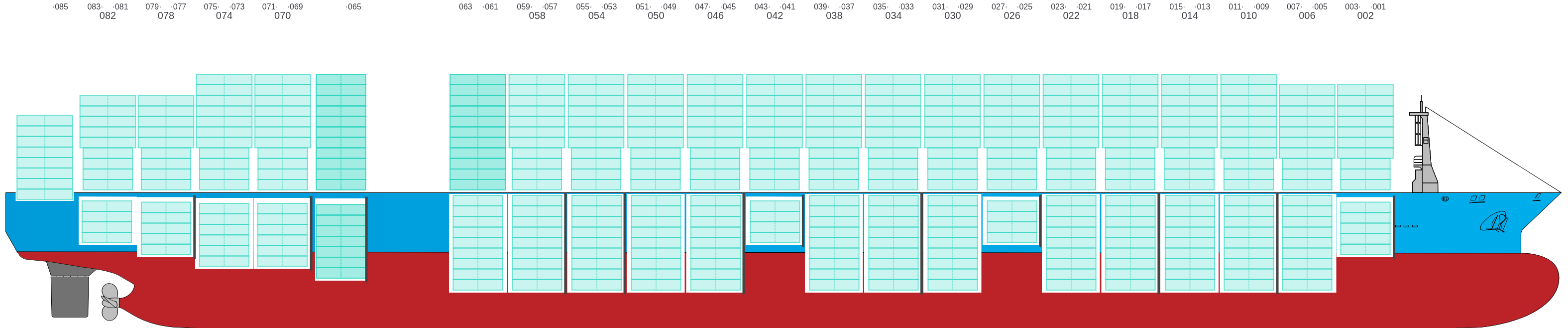

Side View

Side view of GUNVOR MAERSK

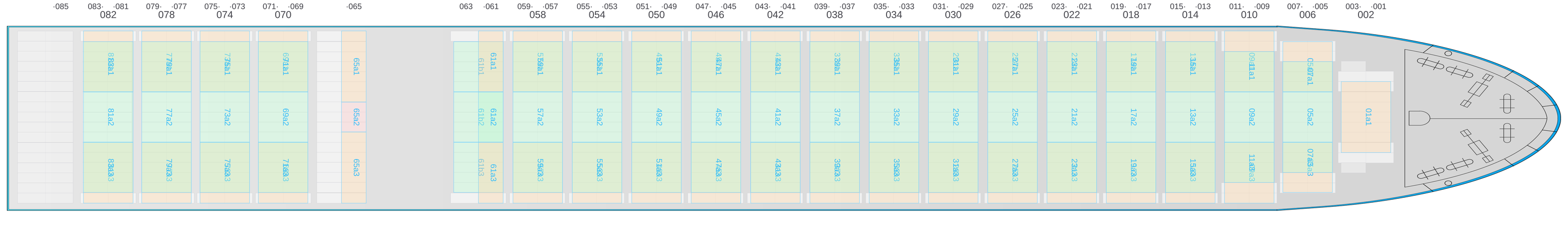

Hatch-Covers View

Deck view of GUNVOR MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

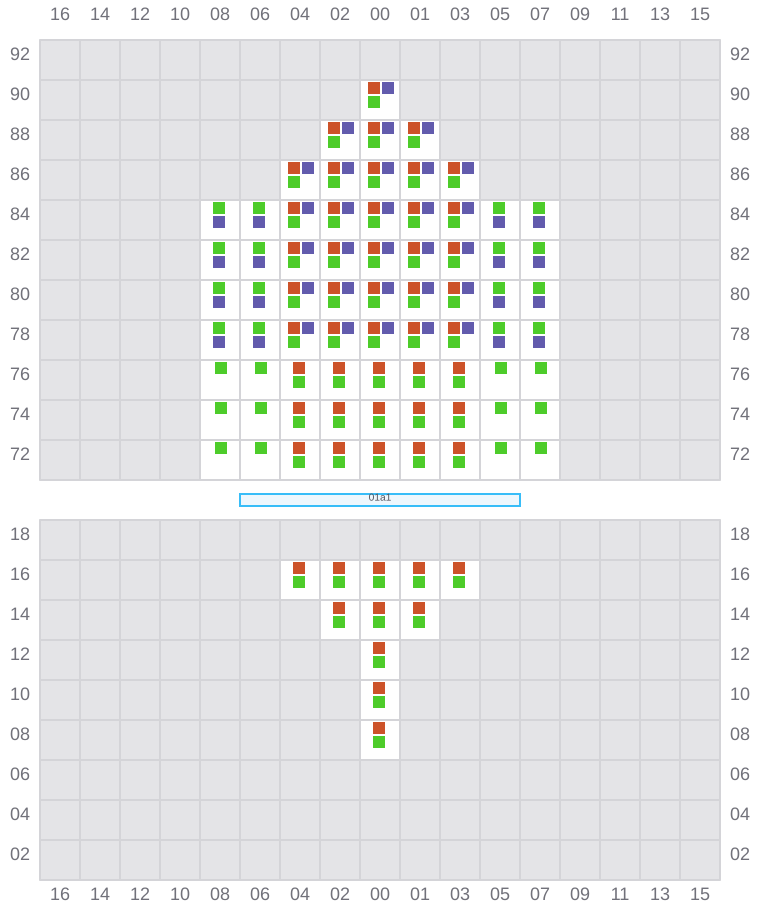

Bay 001 view and slots of GUNVOR MAERSK

003

  • ←

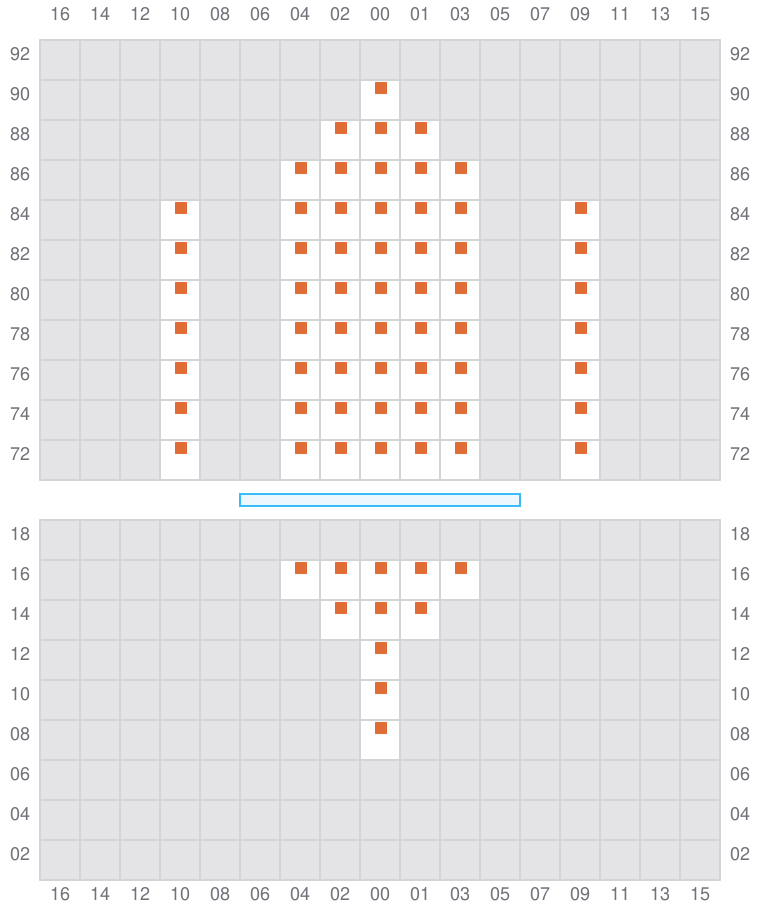

Bay 003 view and slots of GUNVOR MAERSK

005 (006)

  • →

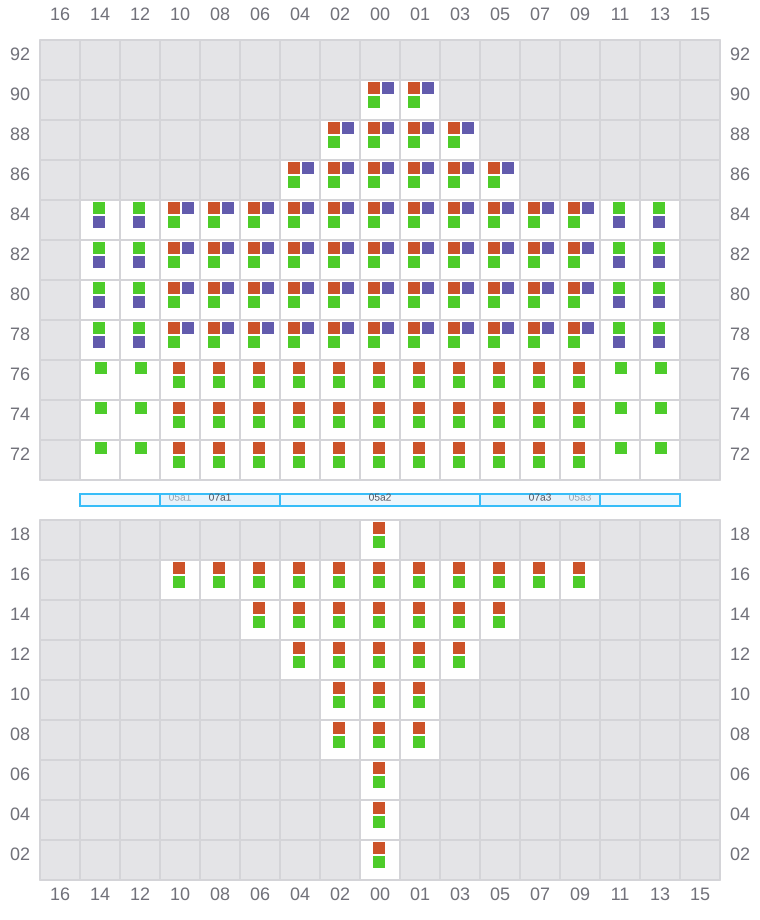

Bay 005 view and slots of GUNVOR MAERSK

007

  • ←

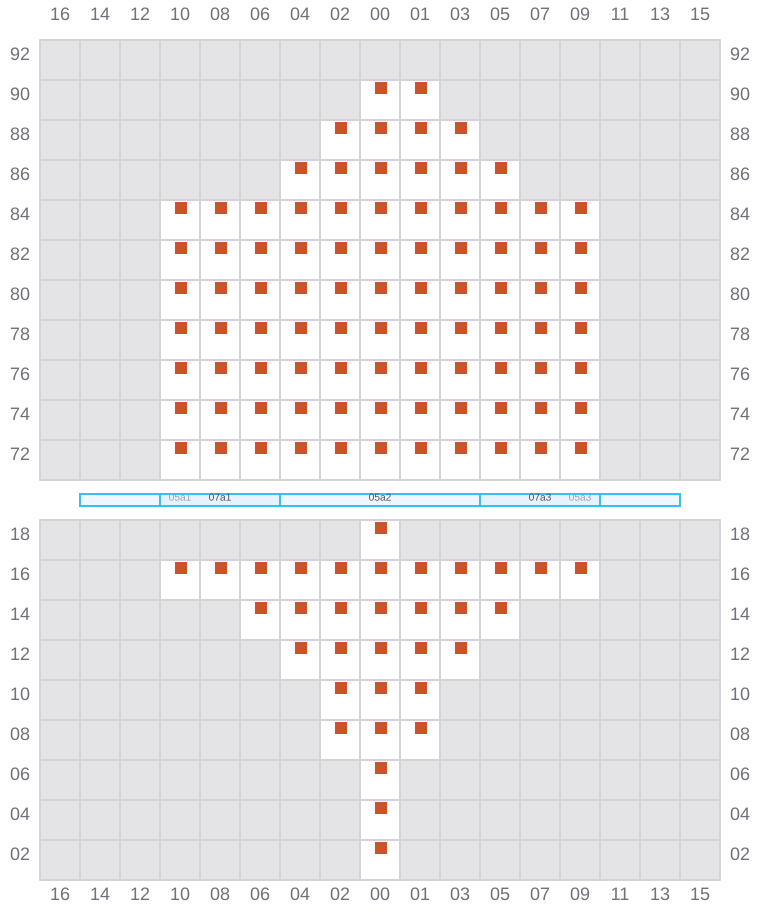

Bay 007 view and slots of GUNVOR MAERSK

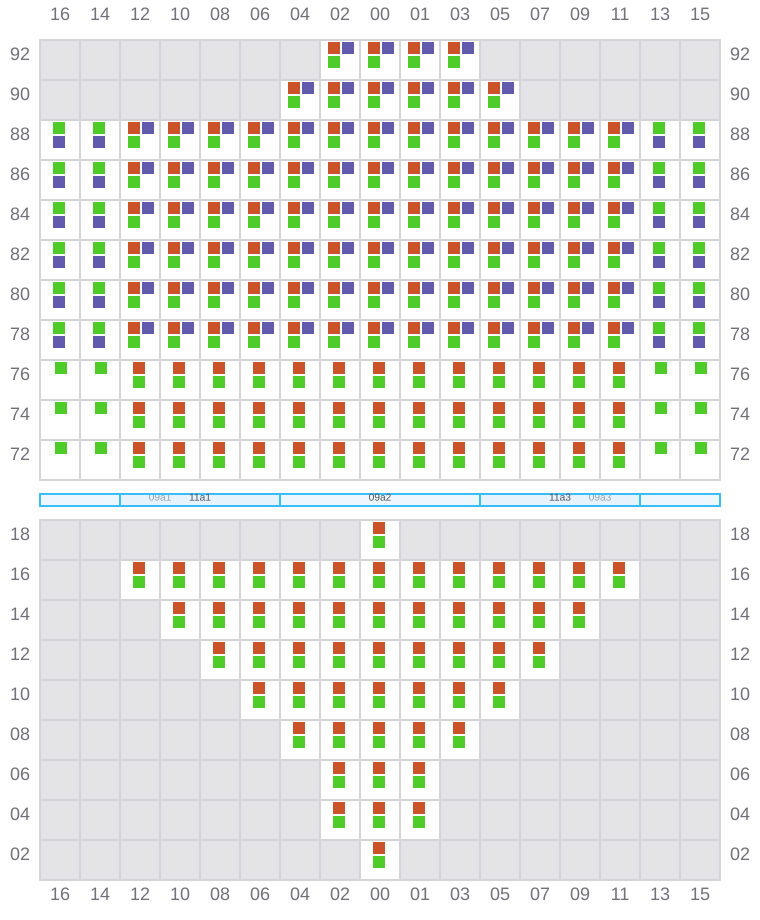

009 (010)

  • →
Bay 009 view and slots of GUNVOR MAERSK

011

  • ←

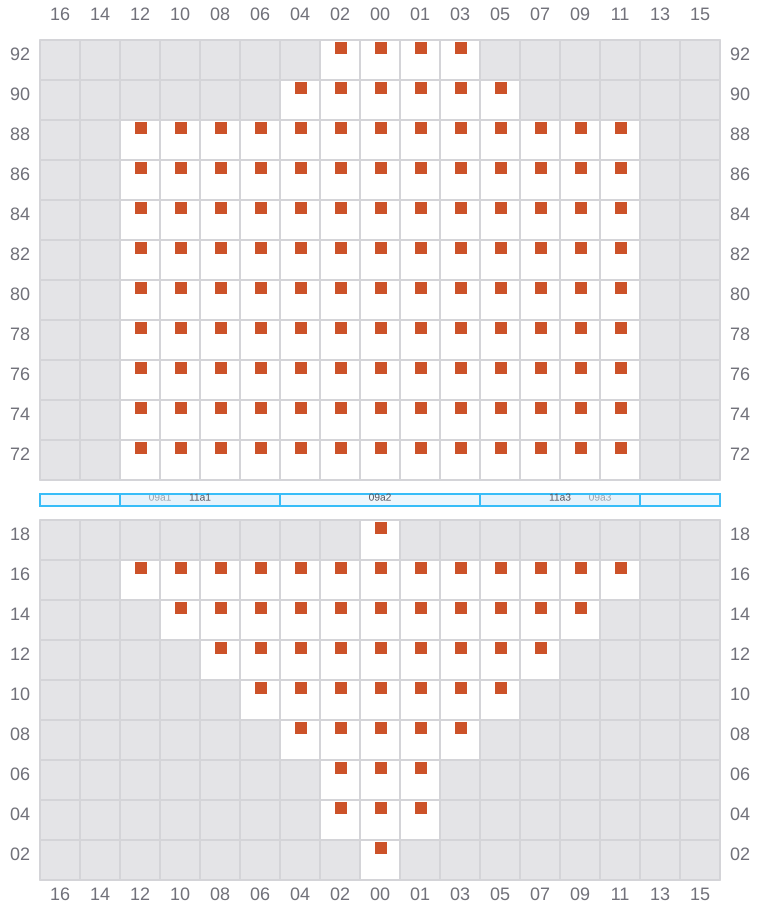

Bay 011 view and slots of GUNVOR MAERSK

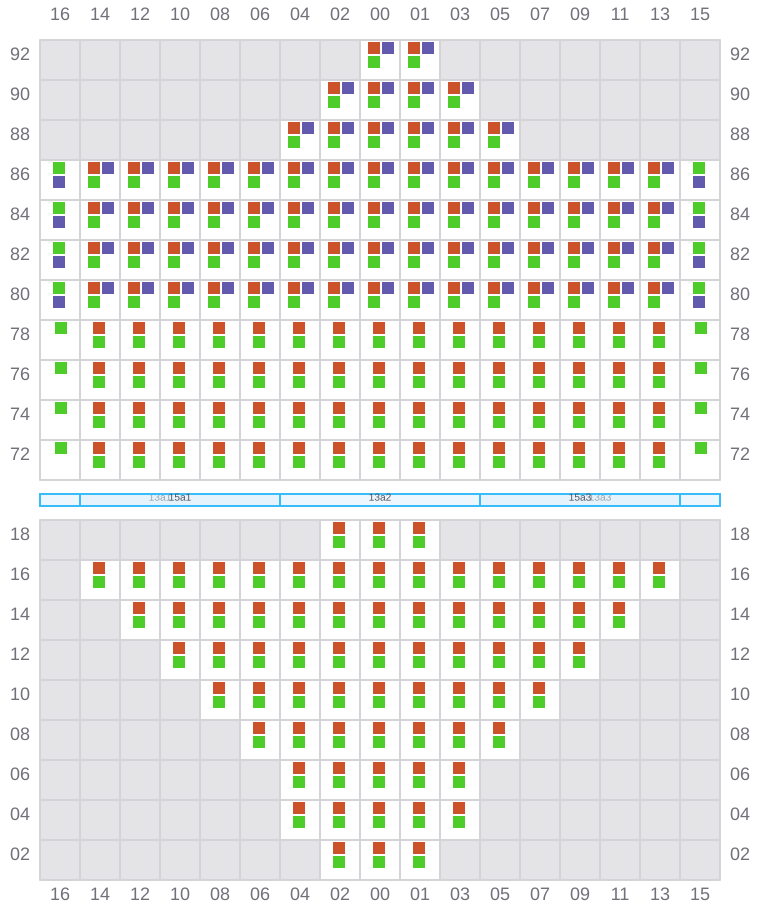

013 (014)

  • →
Bay 013 view and slots of GUNVOR MAERSK

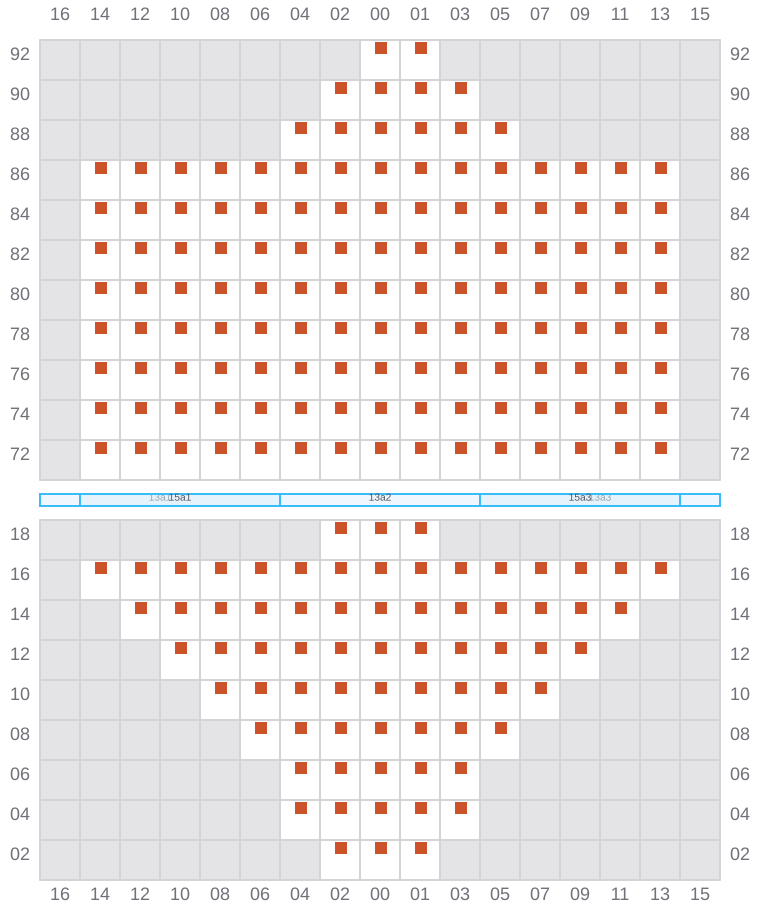

015

  • ←
Bay 015 view and slots of GUNVOR MAERSK

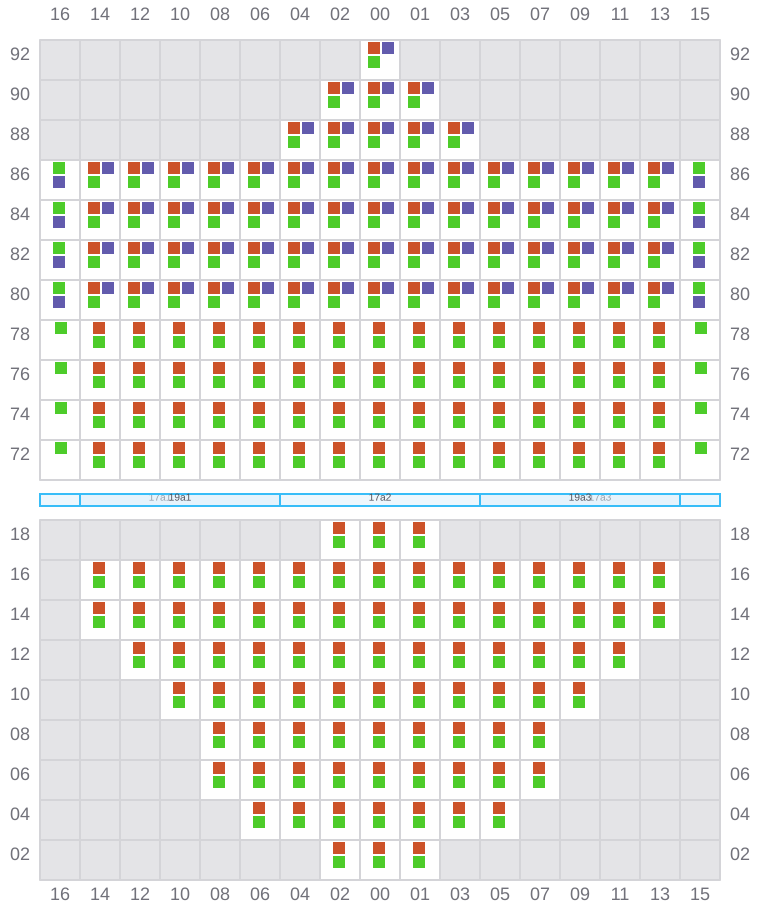

017 (018)

  • →
  • ? / →
Bay 017 view and slots of GUNVOR MAERSK

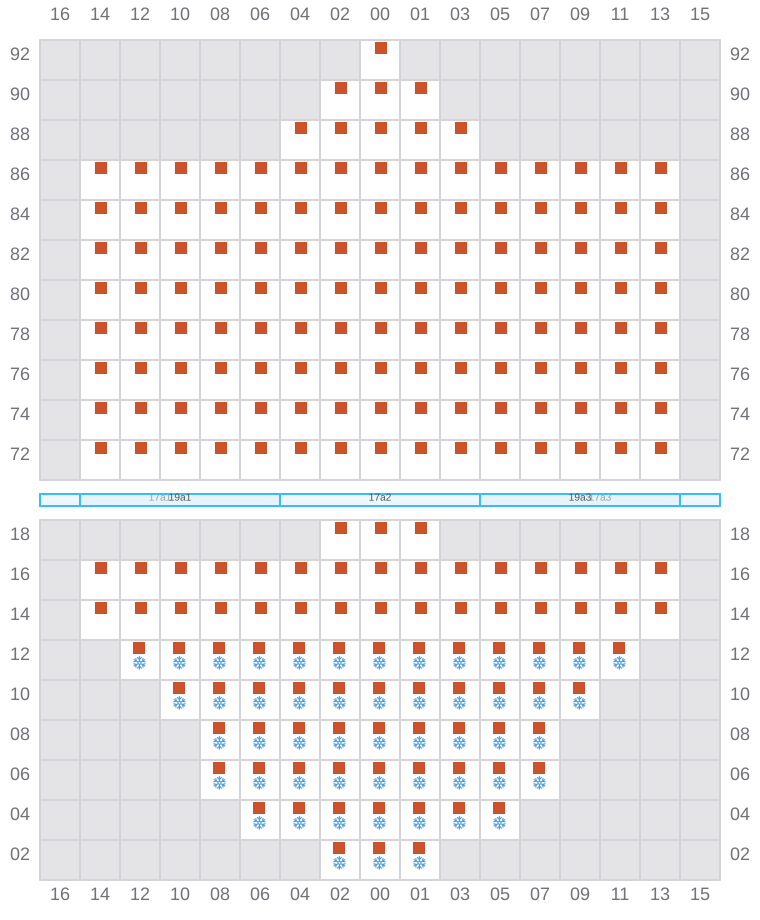

019

  • ←
  • ? / →
Bay 019 view and slots of GUNVOR MAERSK

021 (022)

  • →

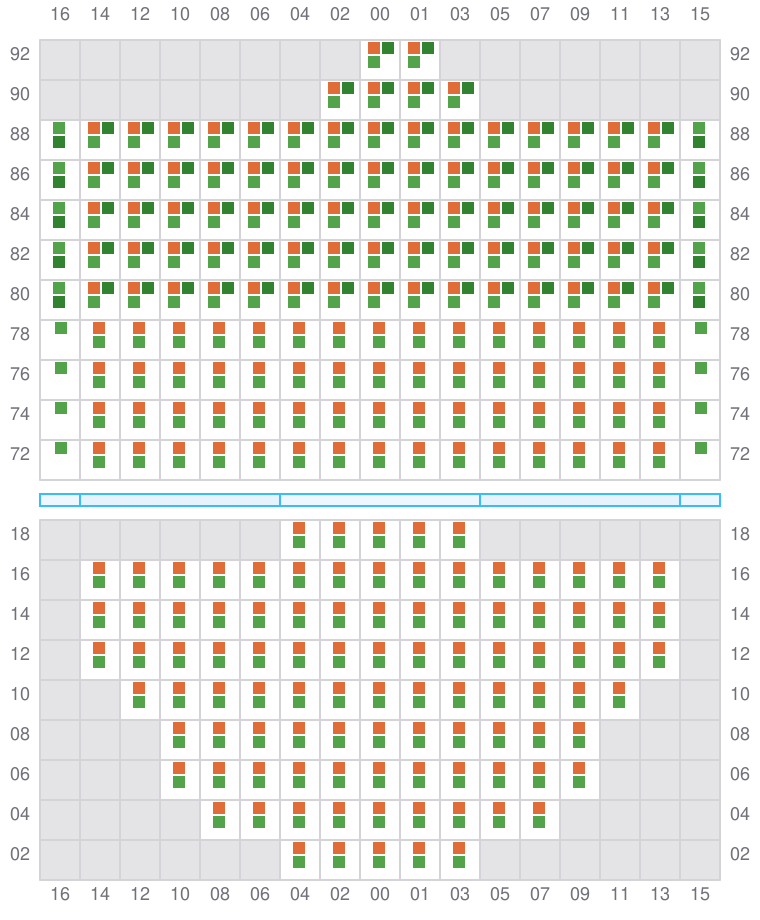

Bay 021 view and slots of GUNVOR MAERSK

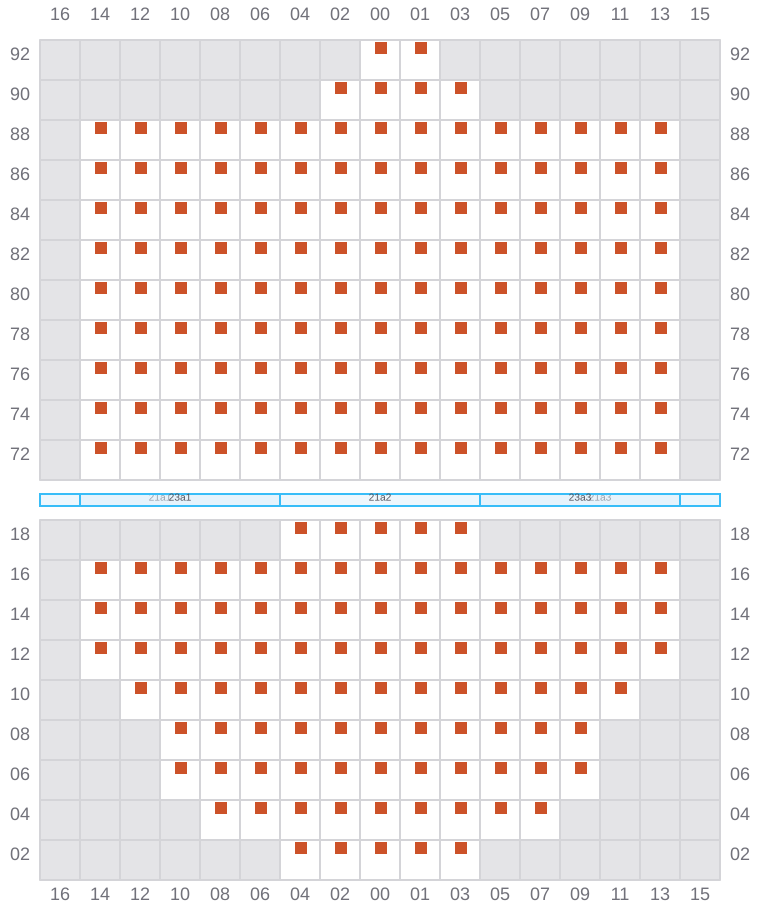

023

  • ←
Bay 023 view and slots of GUNVOR MAERSK

025 (026)

  • →
  • → / ?
Bay 025 view and slots of GUNVOR MAERSK

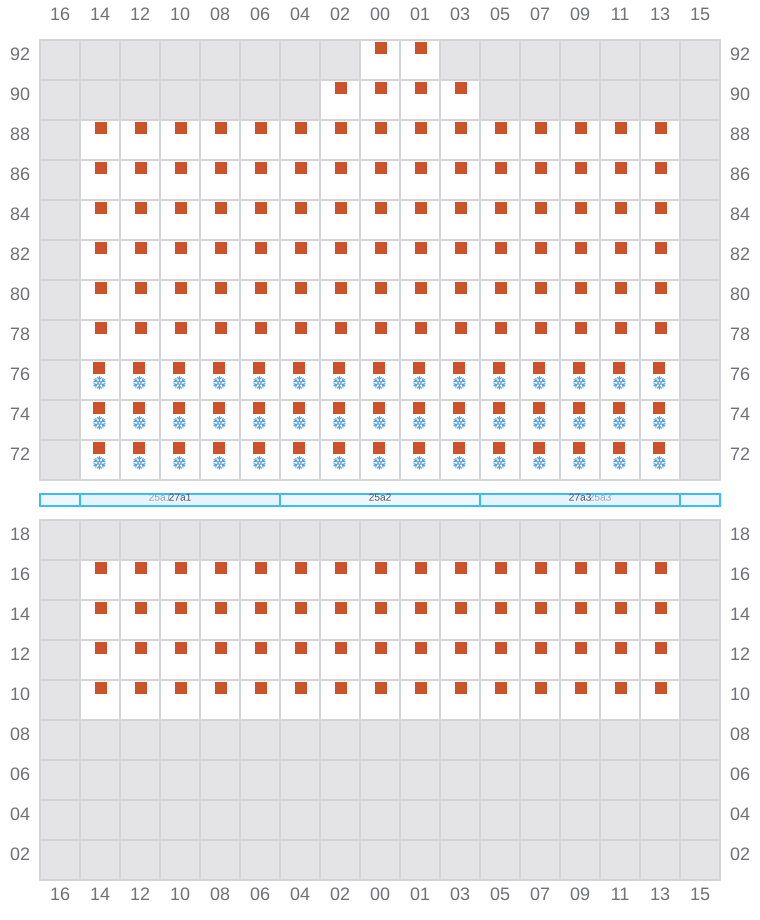

027

  • ←
  • → / ?
Bay 027 view and slots of GUNVOR MAERSK

029 (030)

  • →
  • → / ?

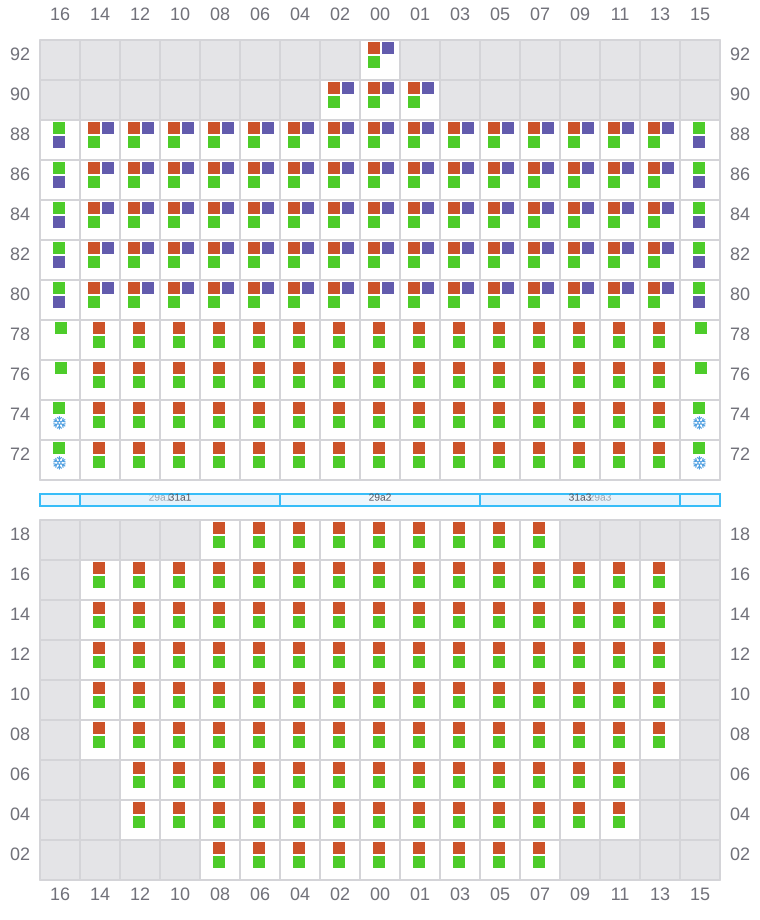

Bay 029 view and slots of GUNVOR MAERSK

031

  • ←
  • → / ?
Bay 031 view and slots of GUNVOR MAERSK

033 (034)

  • →
  • →
Bay 033 view and slots of GUNVOR MAERSK

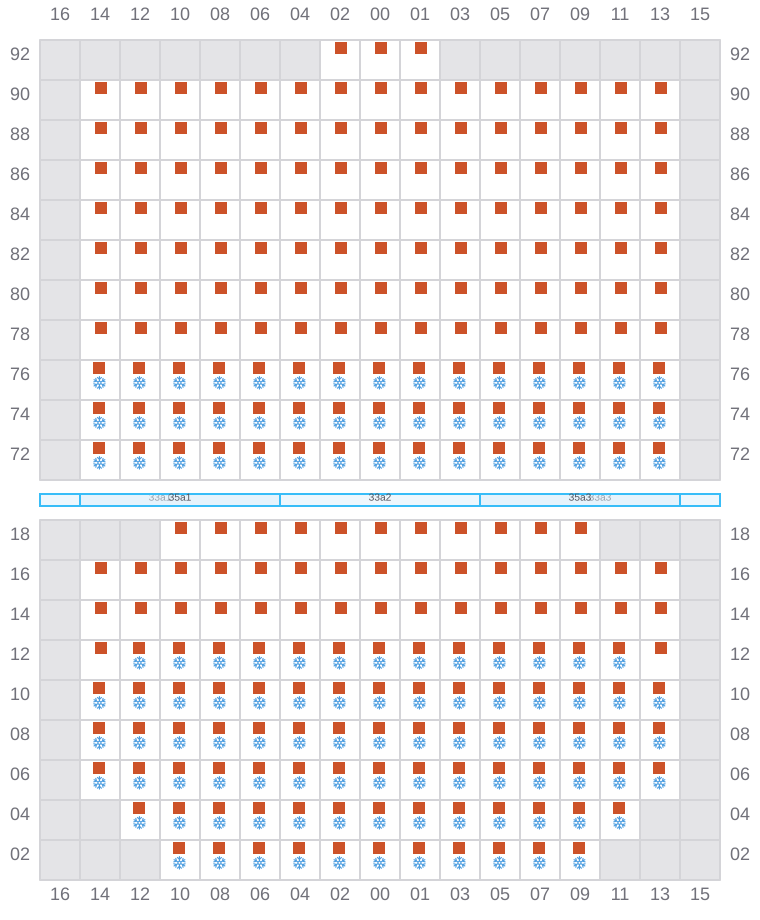

035

  • ←
  • →
Bay 035 view and slots of GUNVOR MAERSK

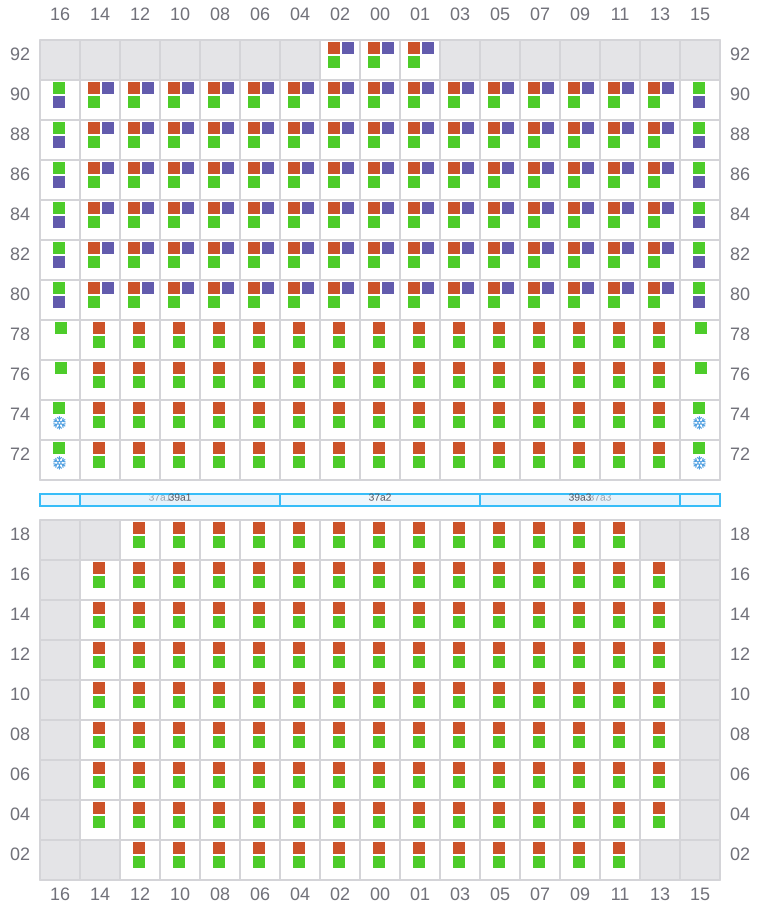

037 (038)

  • →
  • → / ?
Bay 037 view and slots of GUNVOR MAERSK

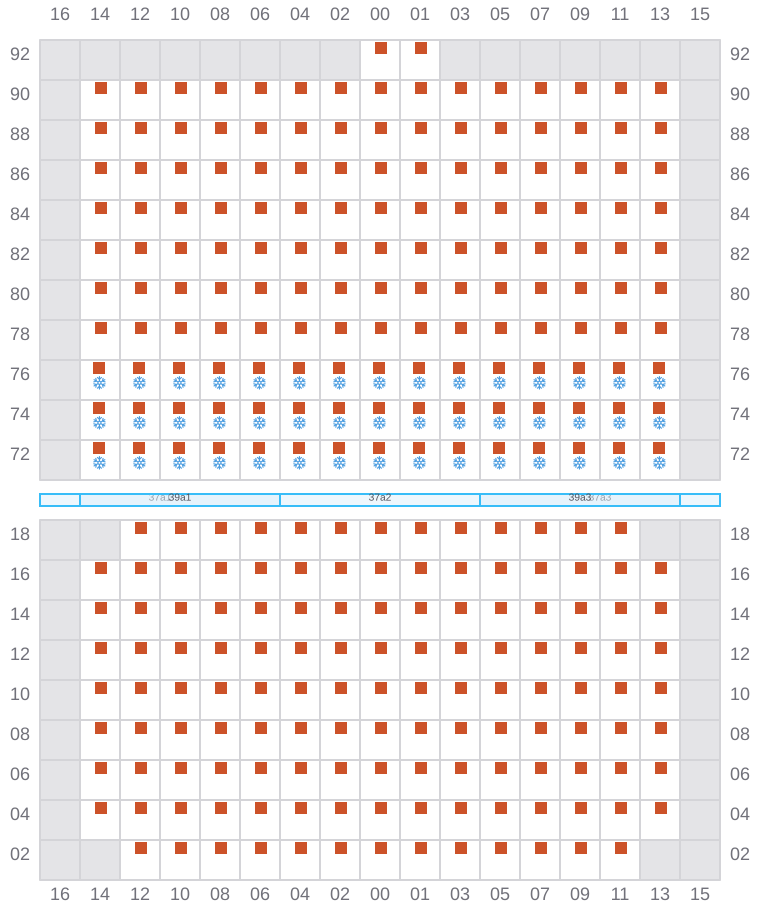

039

  • ←
  • → / ?
Bay 039 view and slots of GUNVOR MAERSK

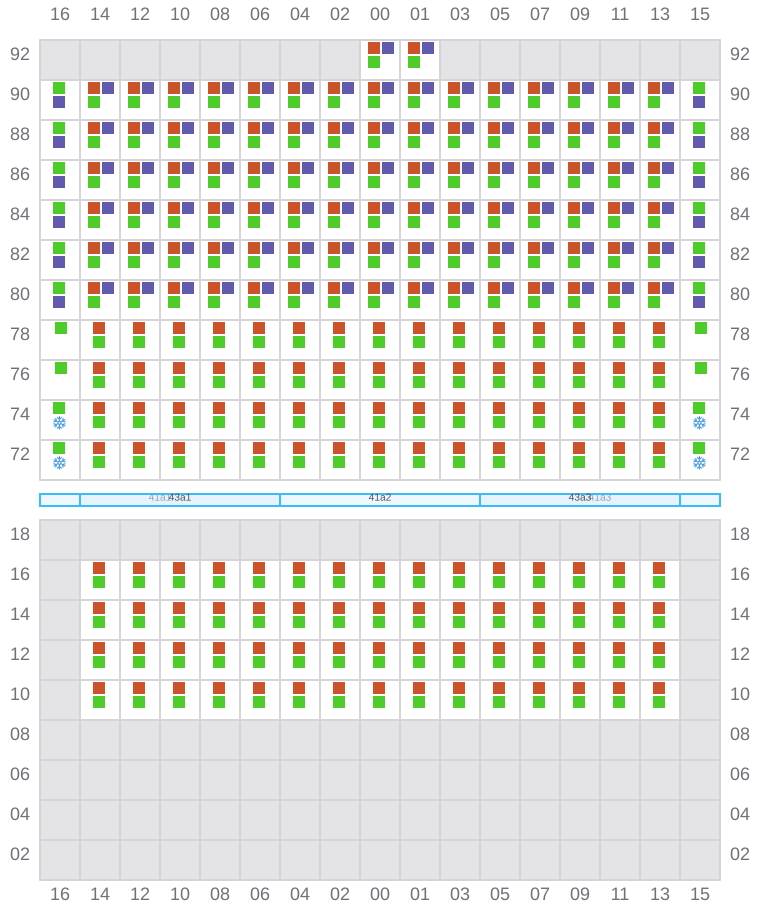

041 (042)

  • →
  • → / ?
Bay 041 view and slots of GUNVOR MAERSK

043

  • ←
  • → / ?

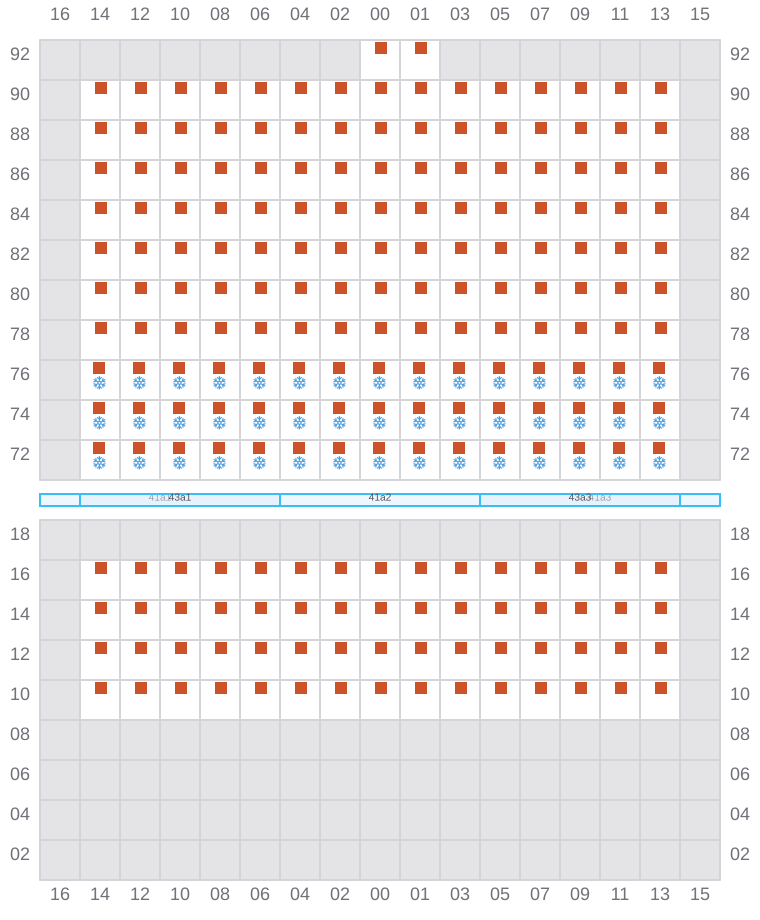

Bay 043 view and slots of GUNVOR MAERSK

045 (046)

  • →
  • → / ?

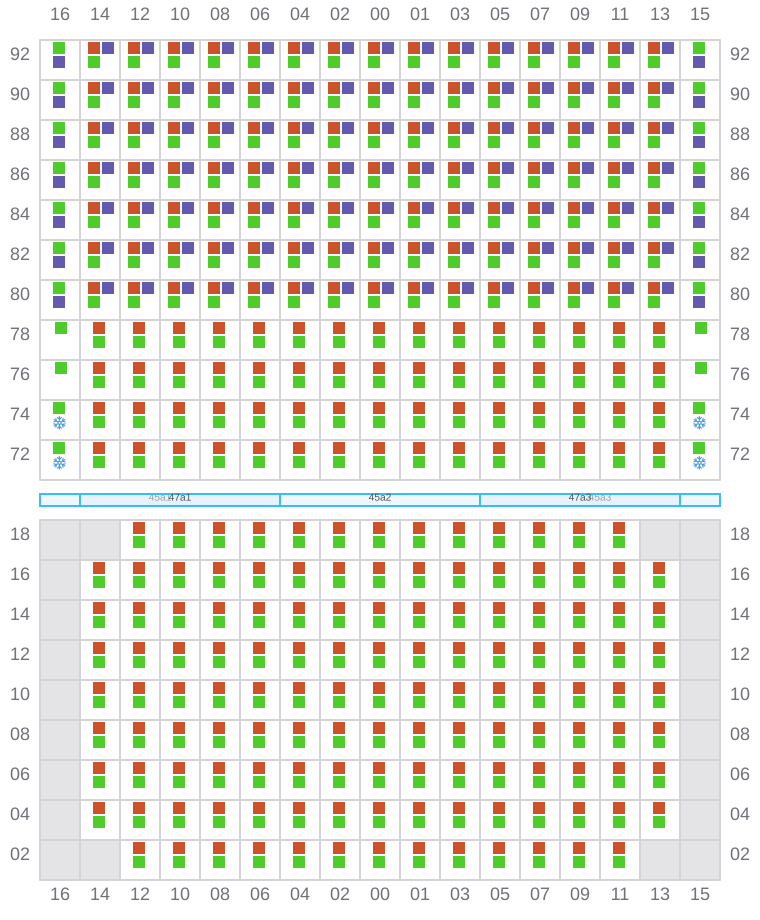

Bay 045 view and slots of GUNVOR MAERSK

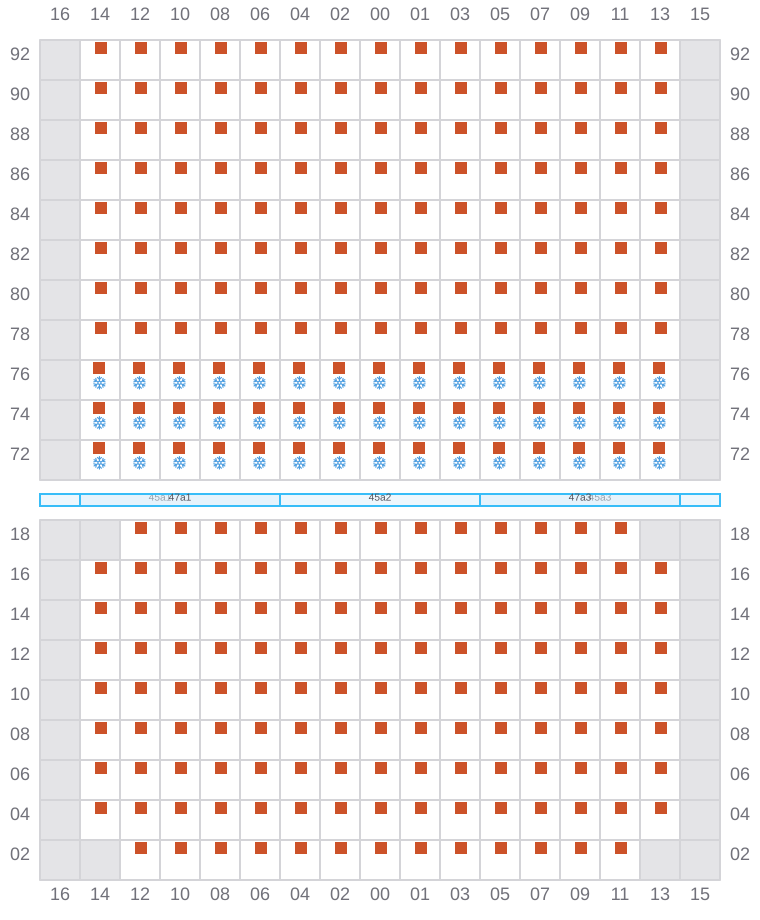

047

  • ←
  • → / ?
Bay 047 view and slots of GUNVOR MAERSK

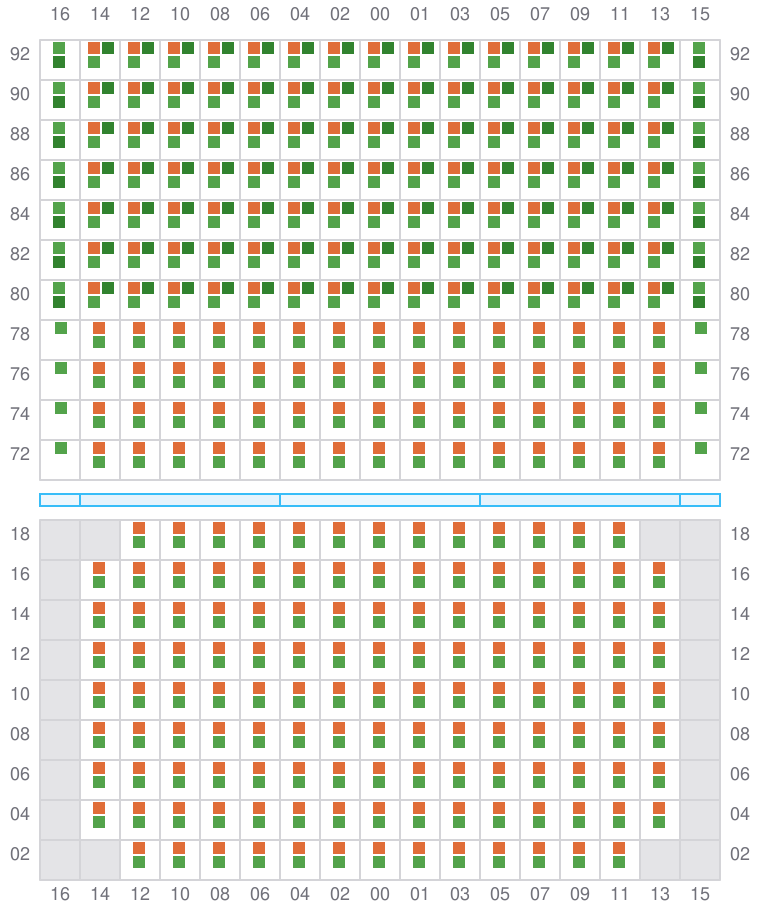

049 (050)

  • →
  • ? / →
Bay 049 view and slots of GUNVOR MAERSK

051

  • ←
  • →

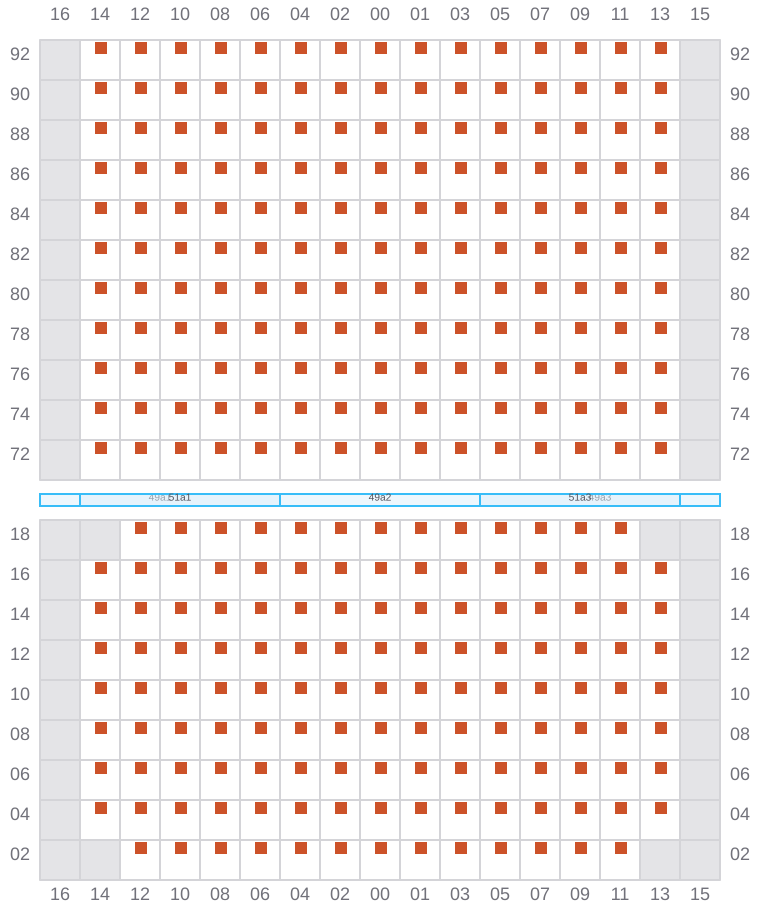

Bay 051 view and slots of GUNVOR MAERSK

053 (054)

  • →
  • →
Bay 053 view and slots of GUNVOR MAERSK

055

  • ←
  • →
Bay 055 view and slots of GUNVOR MAERSK

057 (058)

  • →
  • →

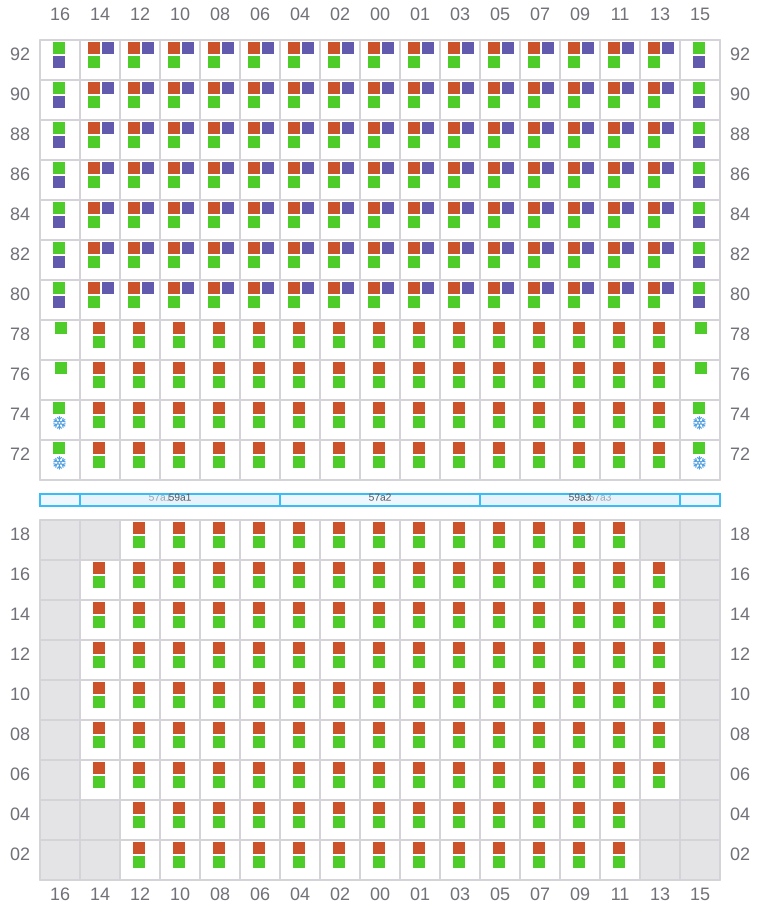

Bay 057 view and slots of GUNVOR MAERSK

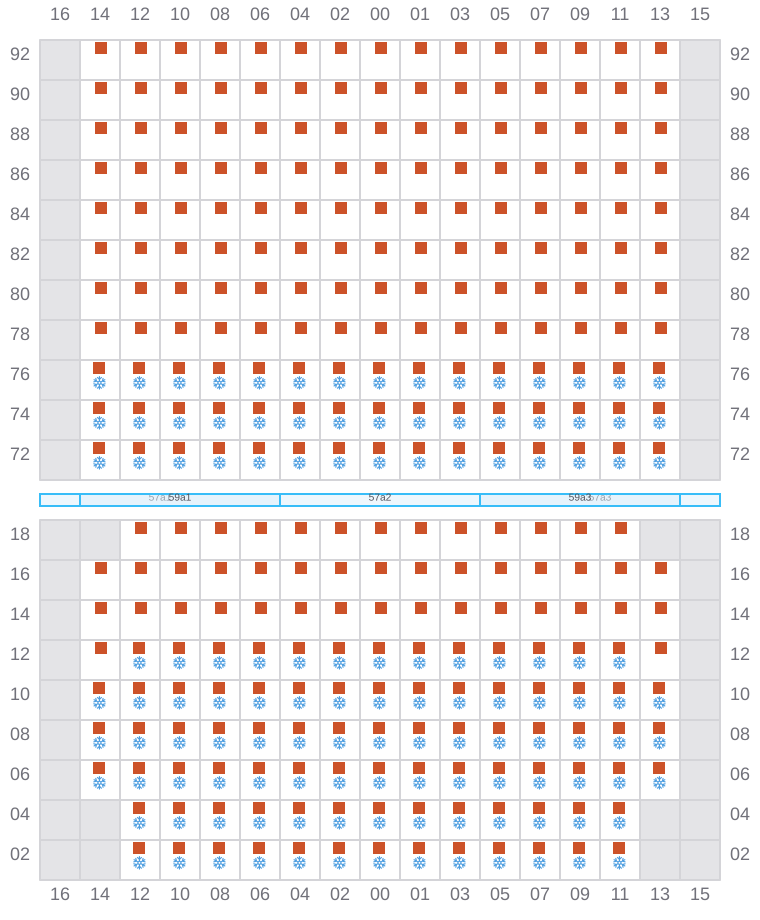

059

  • ←
  • →
Bay 059 view and slots of GUNVOR MAERSK

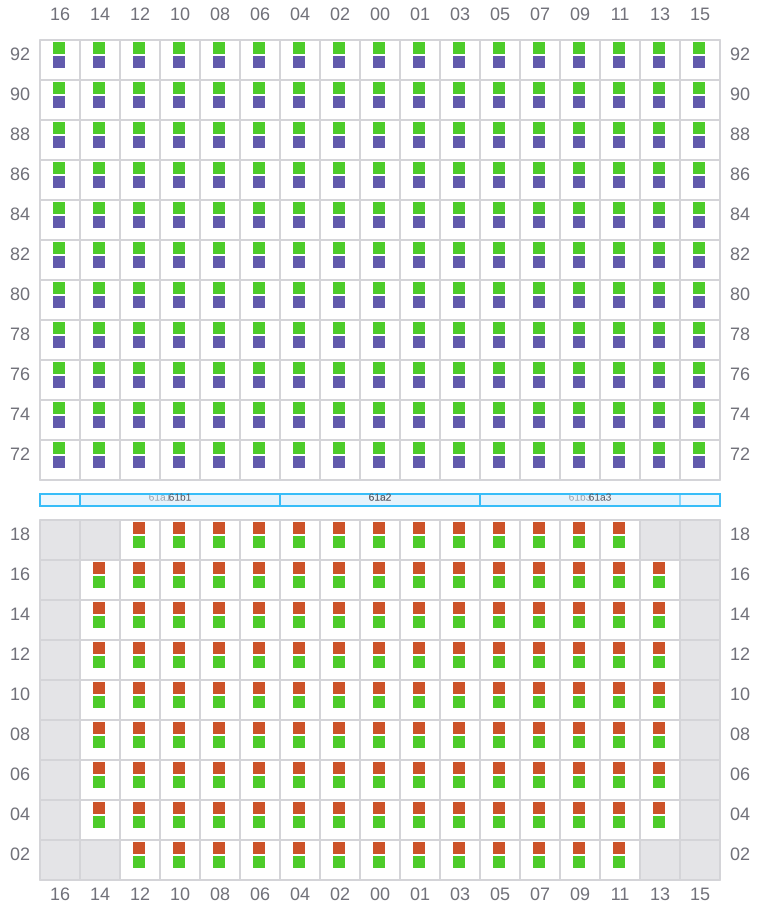

061 (062)

  • →
Bay 061 view and slots of GUNVOR MAERSK

063

  • ? / ←

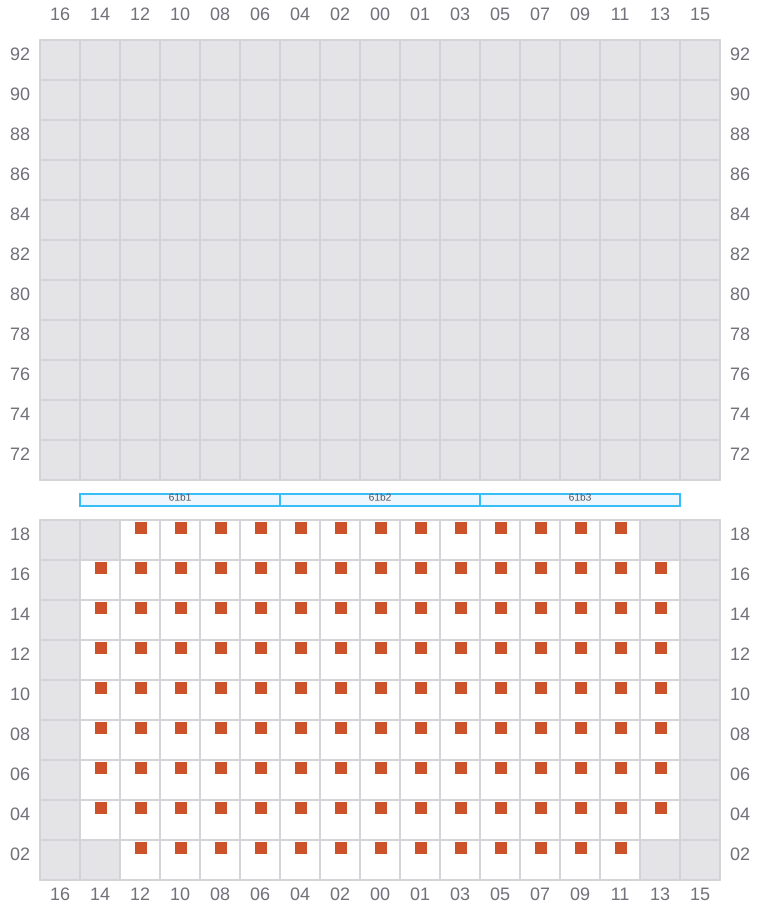

Bay 063 view and slots of GUNVOR MAERSK

065 (066)

  • →

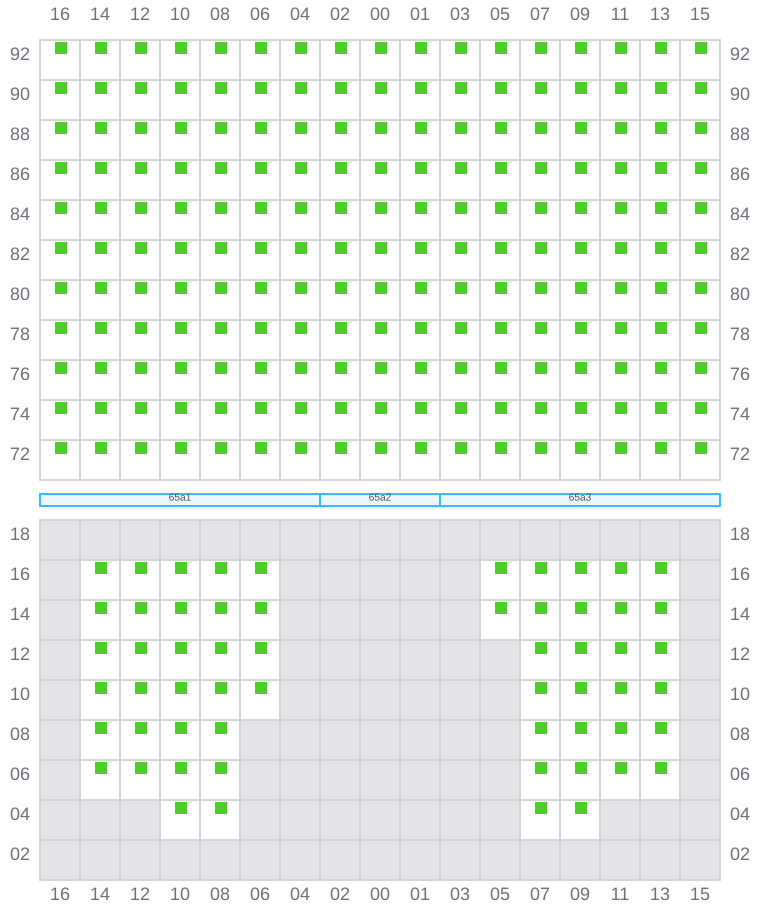

Bay 065 view and slots of GUNVOR MAERSK

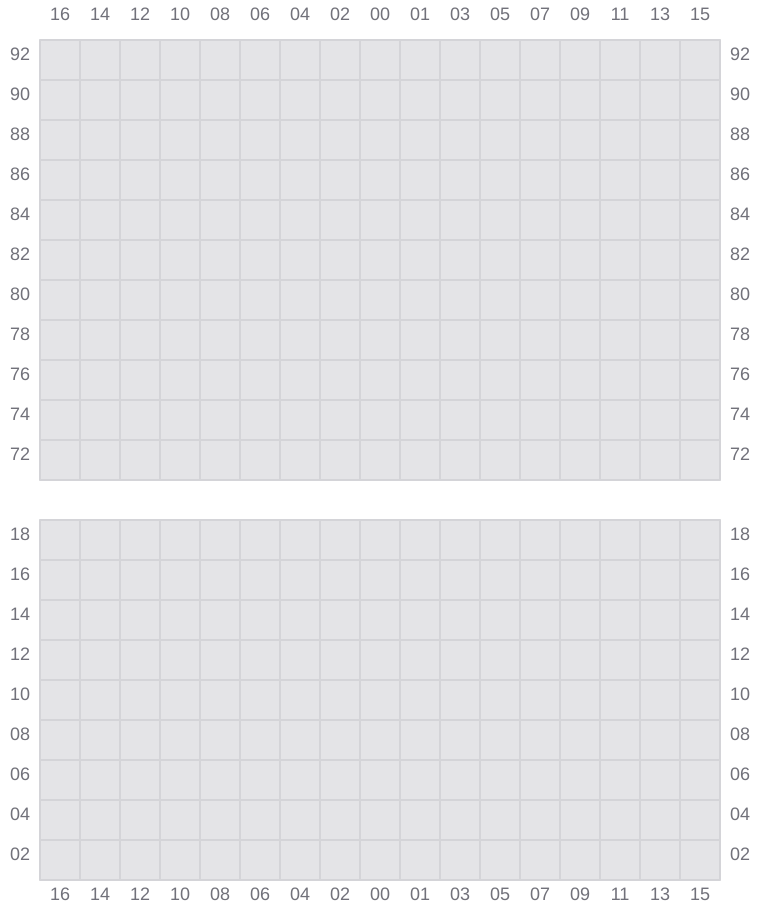

067

Bay 067 view and slots of GUNVOR MAERSK

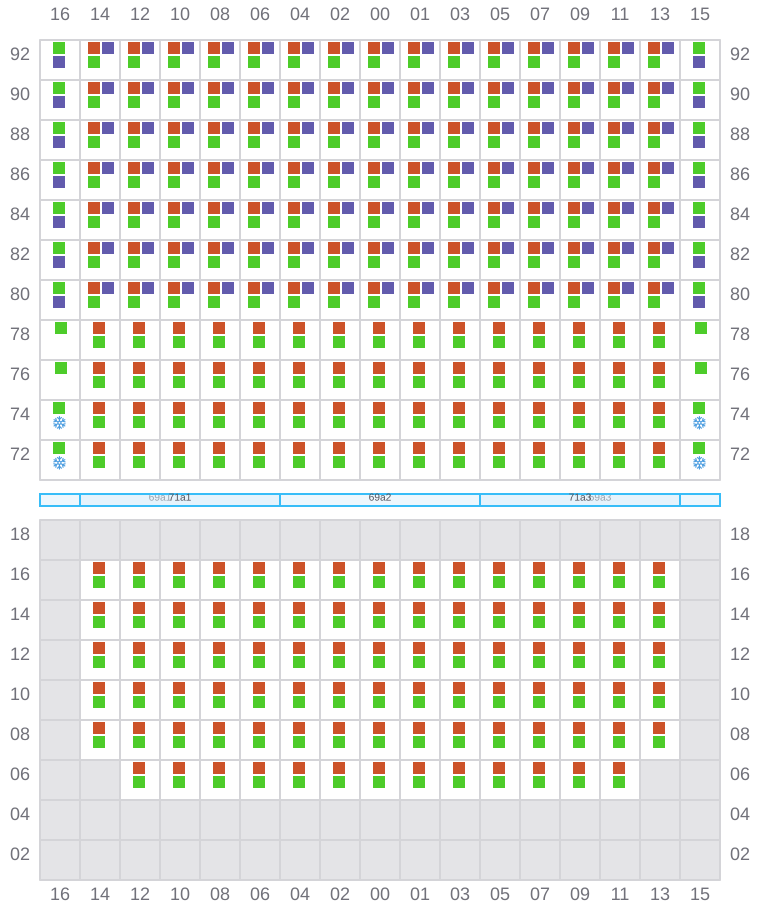

069 (070)

  • →
  • → / ?
Bay 069 view and slots of GUNVOR MAERSK

071

  • ←
  • →

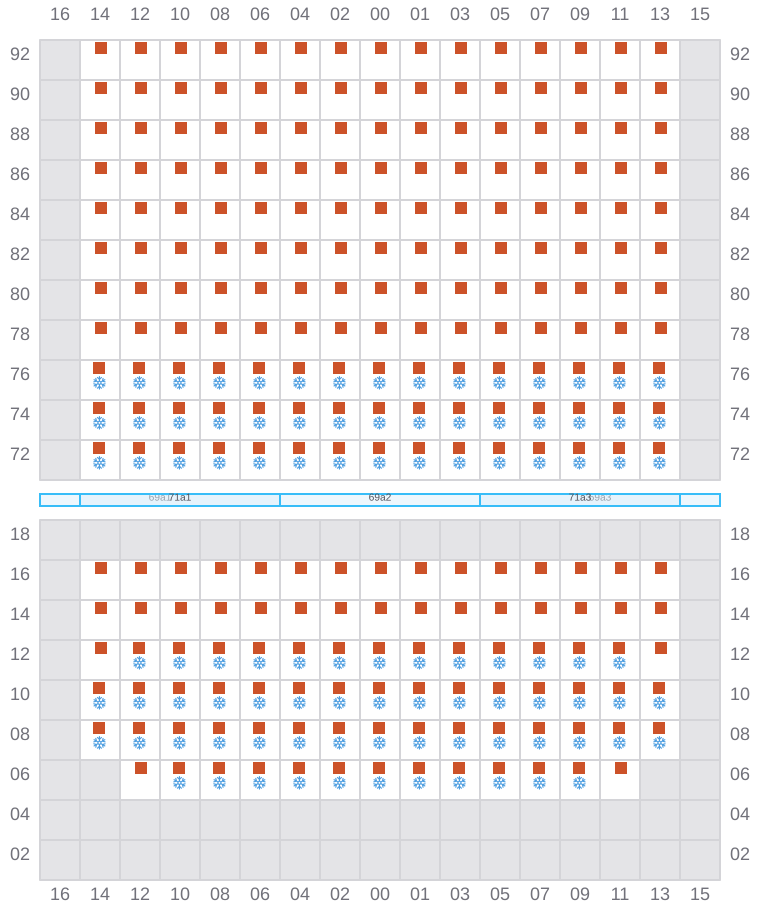

Bay 071 view and slots of GUNVOR MAERSK

073 (074)

  • →
  • → / ?

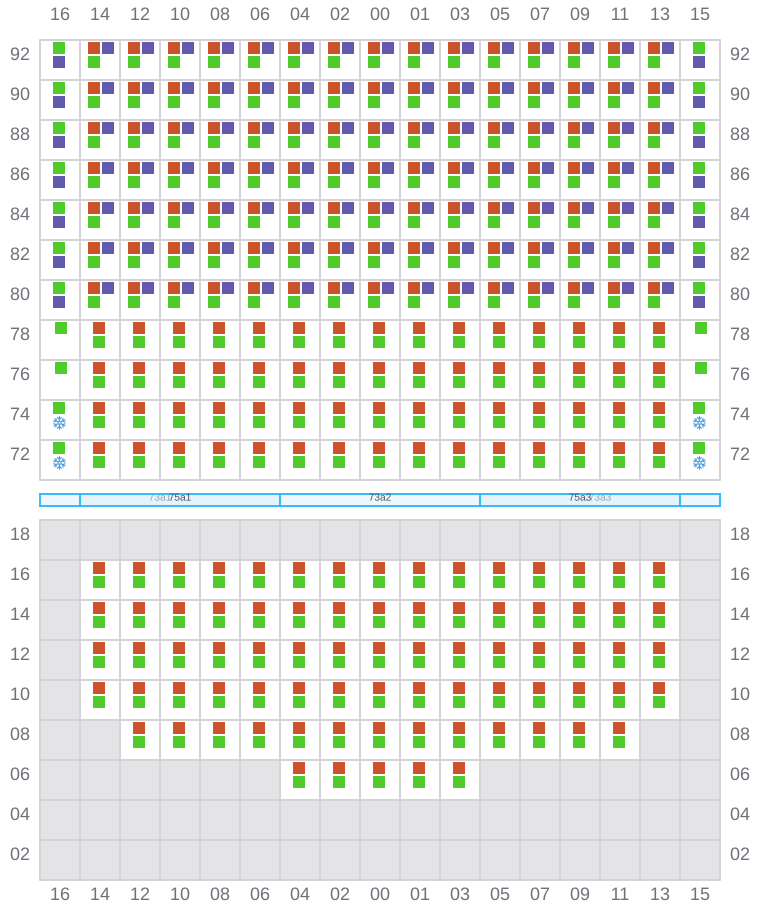

Bay 073 view and slots of GUNVOR MAERSK

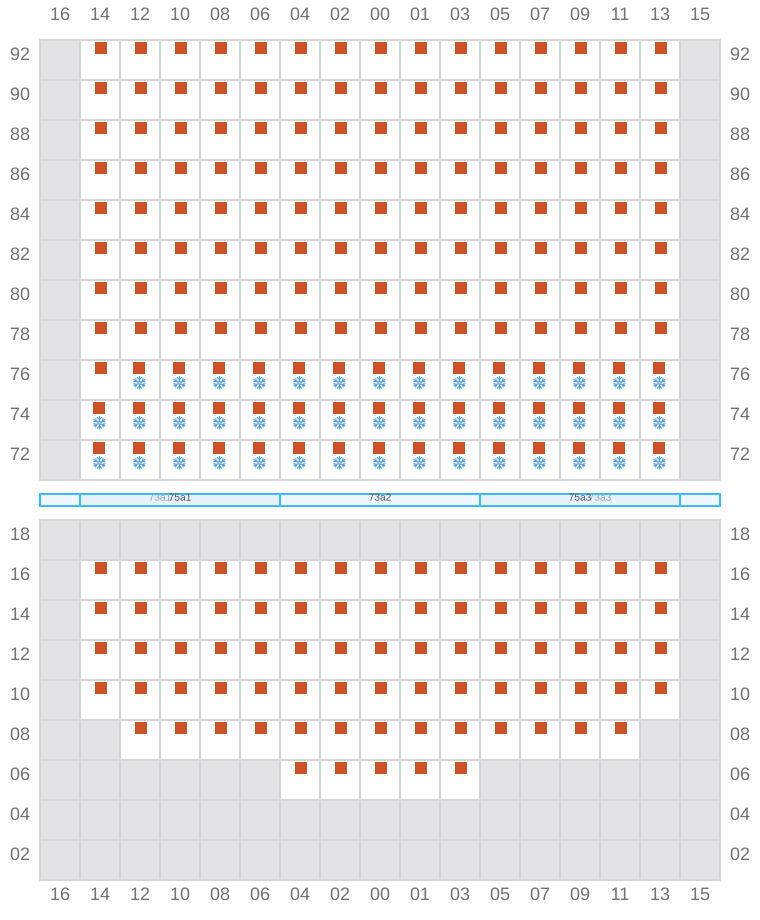

075

  • ←
  • → / ?
Bay 075 view and slots of GUNVOR MAERSK

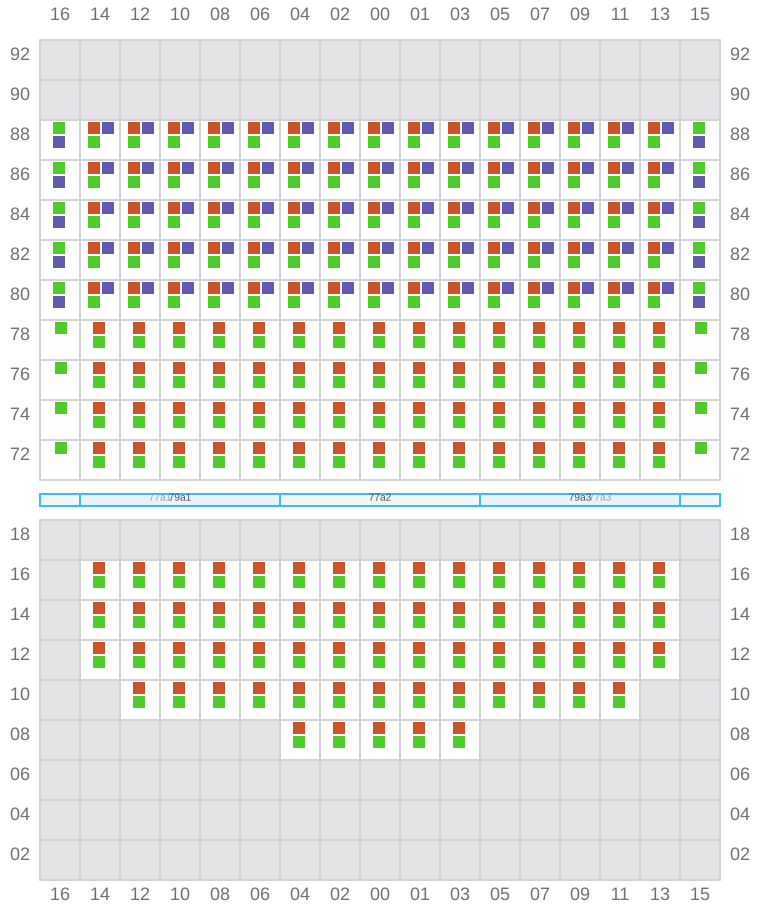

077 (078)

  • →
Bay 077 view and slots of GUNVOR MAERSK

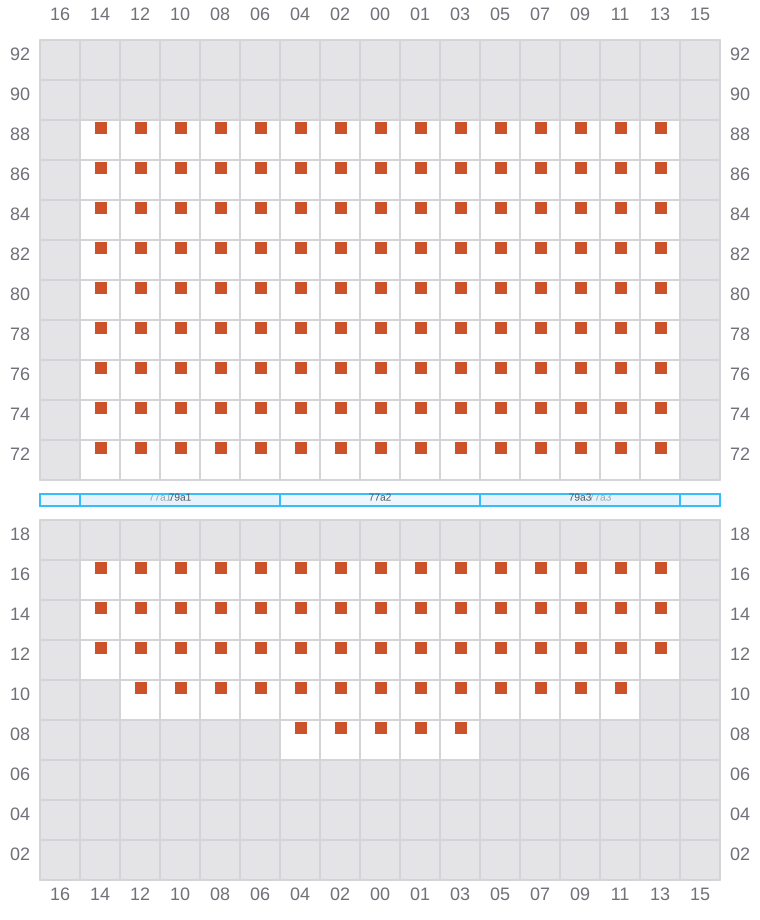

079

  • ←
Bay 079 view and slots of GUNVOR MAERSK

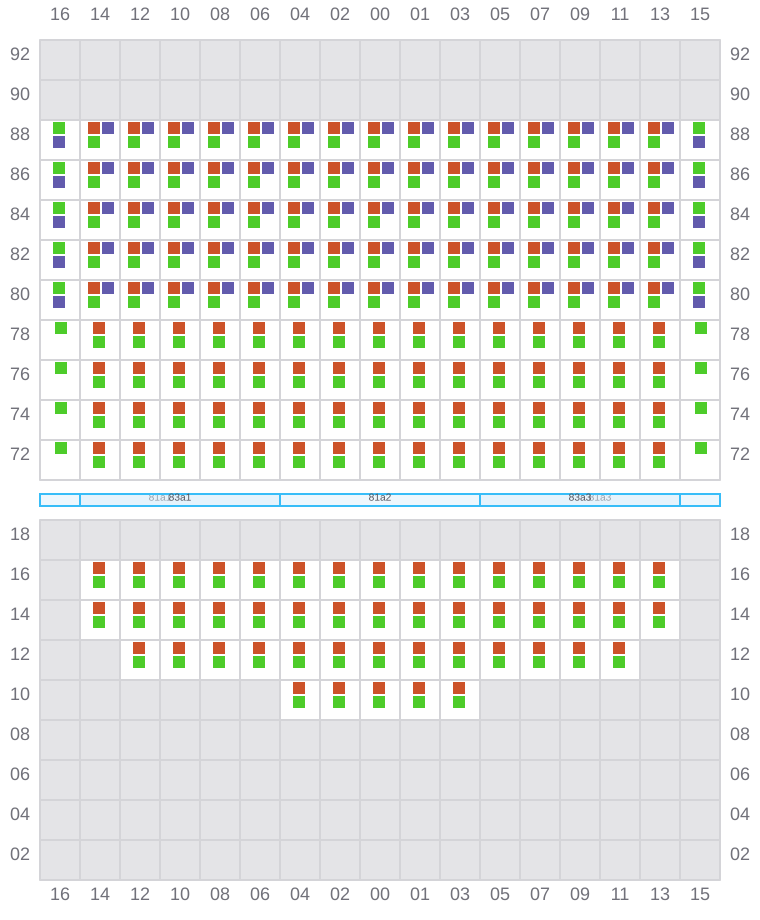

081 (082)

  • →
Bay 081 view and slots of GUNVOR MAERSK

083

  • ←

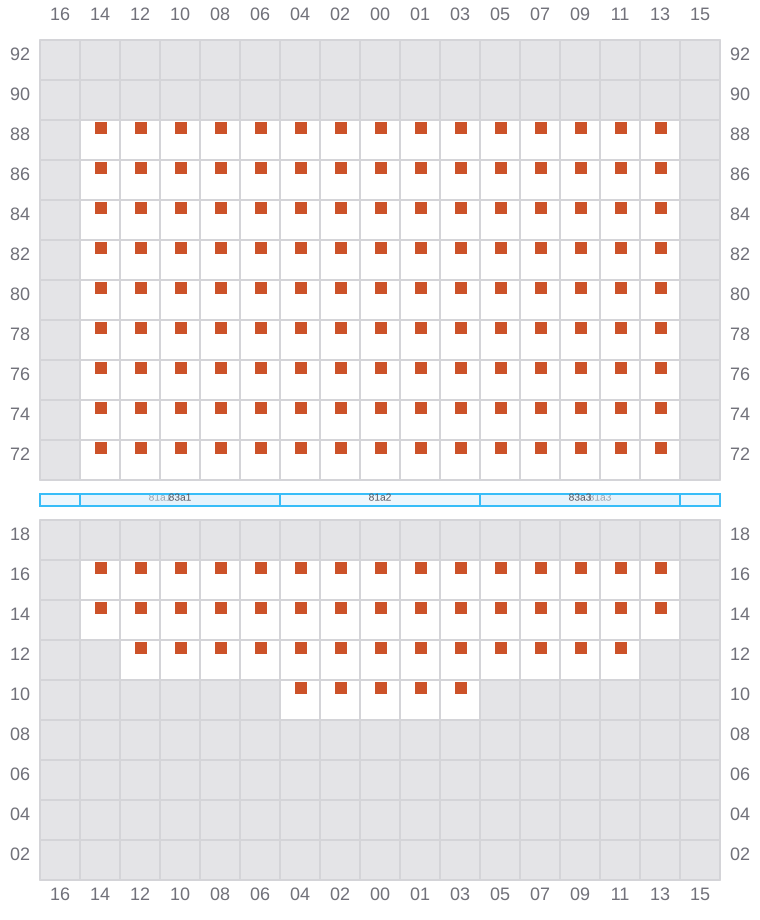

Bay 083 view and slots of GUNVOR MAERSK

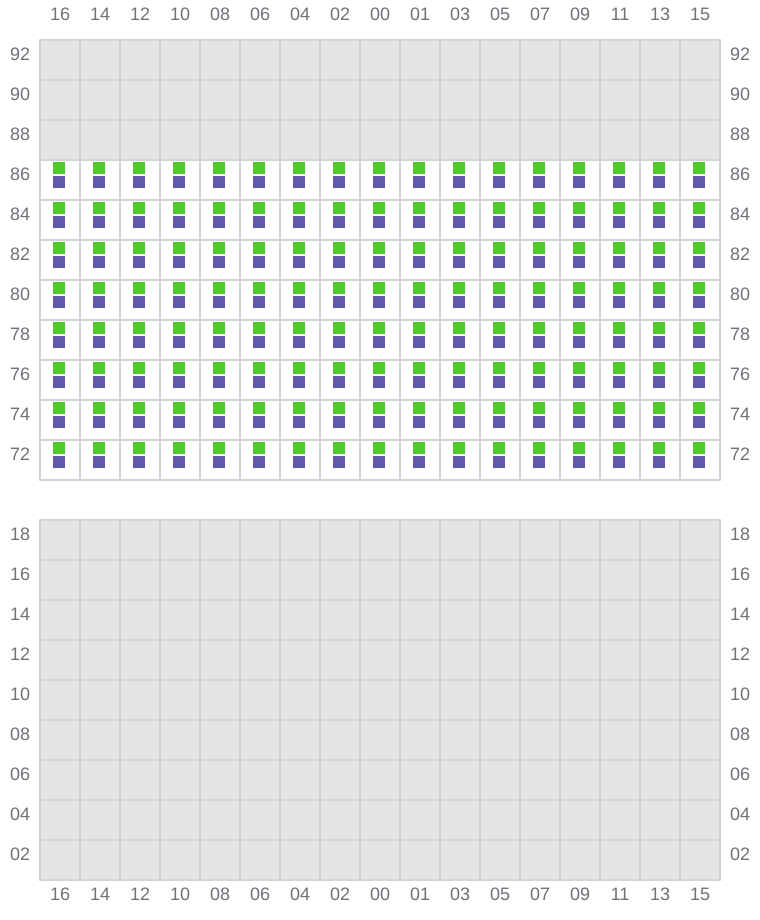

085 (086)

  • → / ?
Bay 085 view and slots of GUNVOR MAERSK
