H ORCA
9164017 | 3FPM5 | 9164017 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:H ORCA
IMO Code:9164017
Call Sign:3FPM5
Line Operator:9164017
Class Name for Sister Ships:31Q
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:033
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:955
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

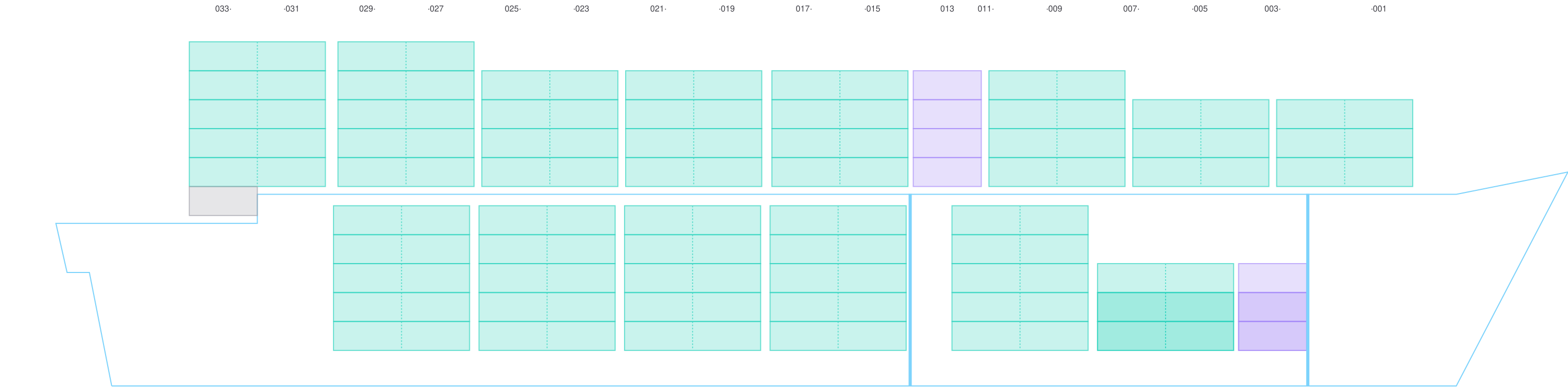

Side View

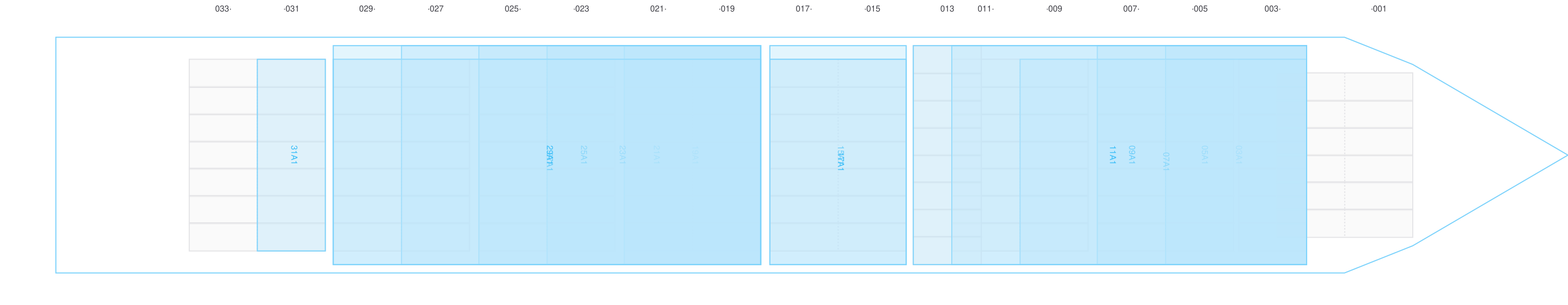

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

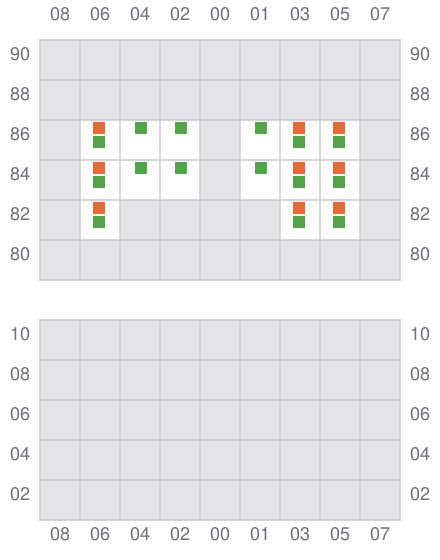

001 (002)
- → / ?

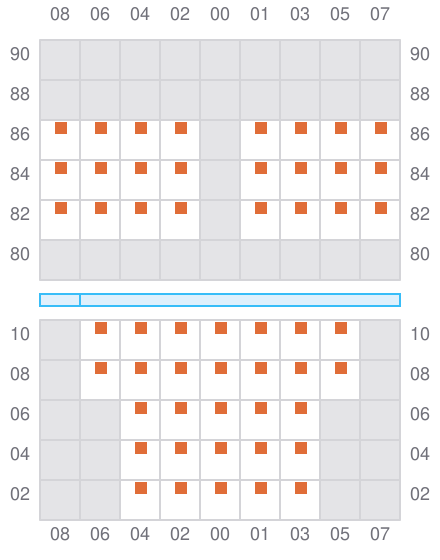

003
- ← / ?

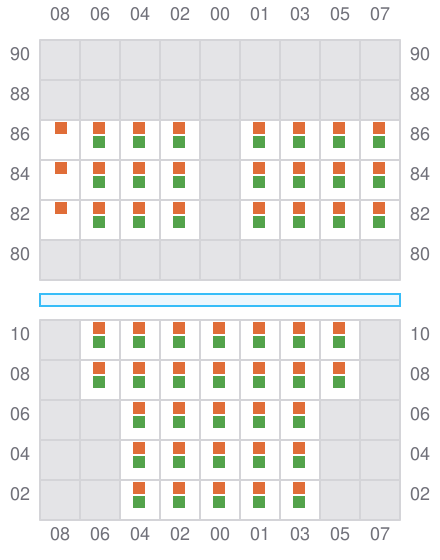

005 (006)
- →
007
- ←

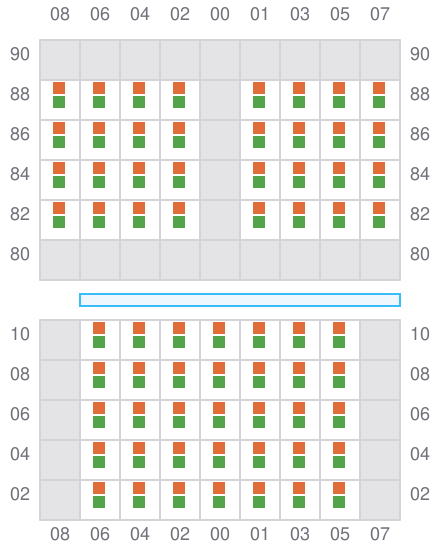

009 (010)
- →

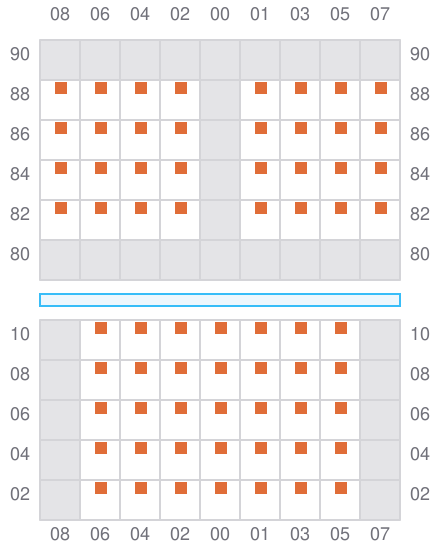

011
- ←

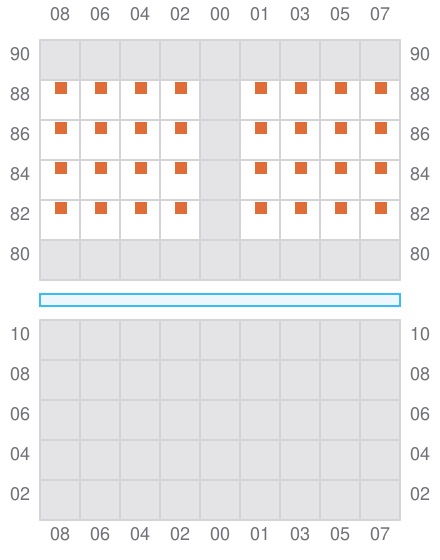

013

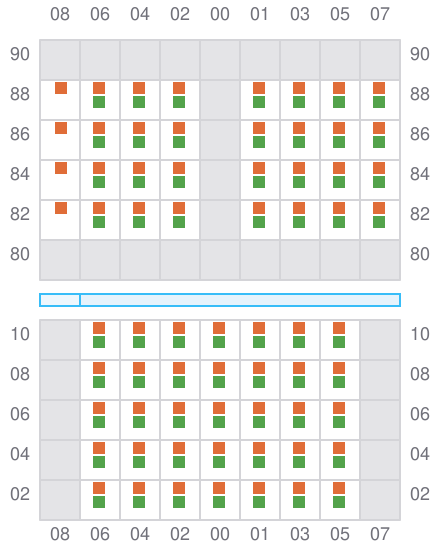

015 (016)
- →

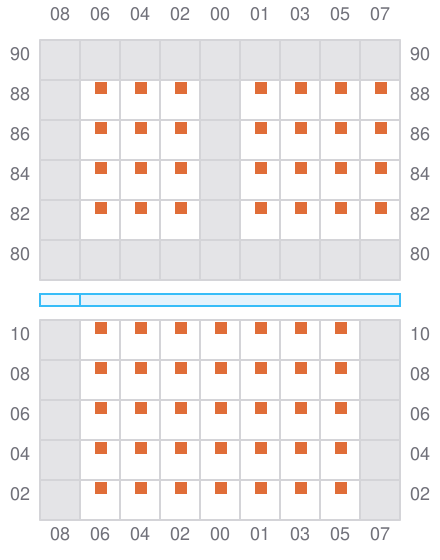

017
- ←
019 (020)
- →
021
- ←

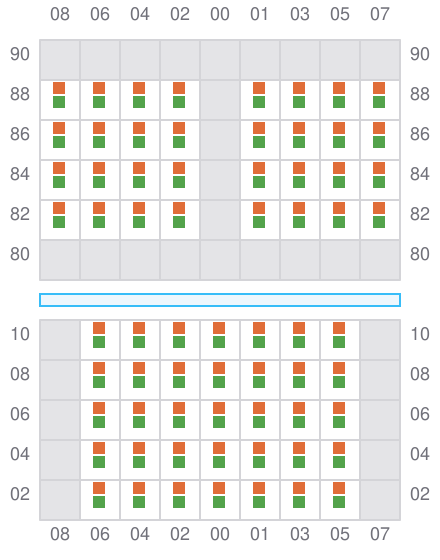

023 (024)
- →
025
- ←

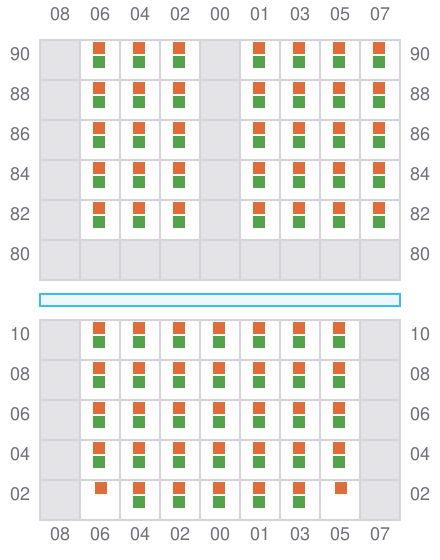

027 (028)
- →

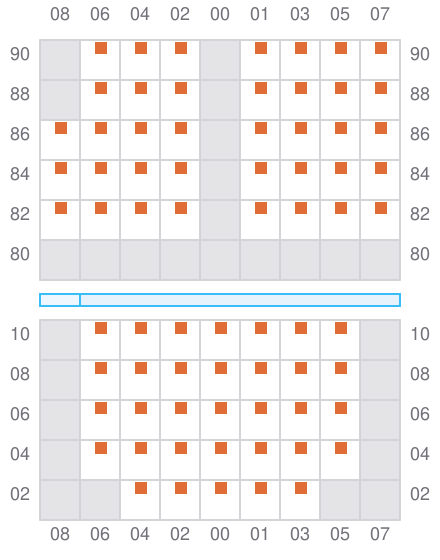

029
- ←

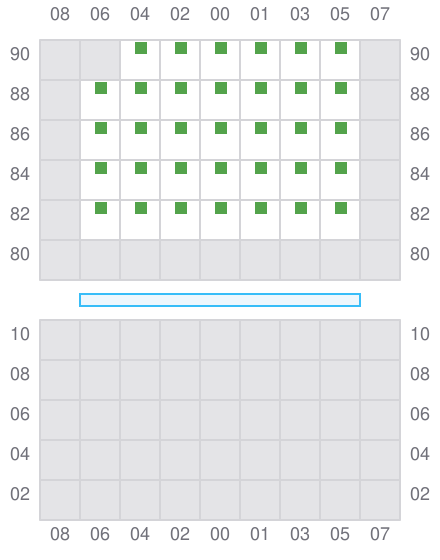

031 (032)
- → / ?
033
- ← / ?
