HAIAN CITY
9445007 | XVKK7 | SAFMARINE by ********* Last update: Wed Mar 27 2024
General Info
Ship Name:HAIAN CITY
IMO Code:9445007
Call Sign:XVKK7
Line Operator:SAFMARINE
Class Name for Sister Ships:IMABARI 1700
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):160.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,577
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

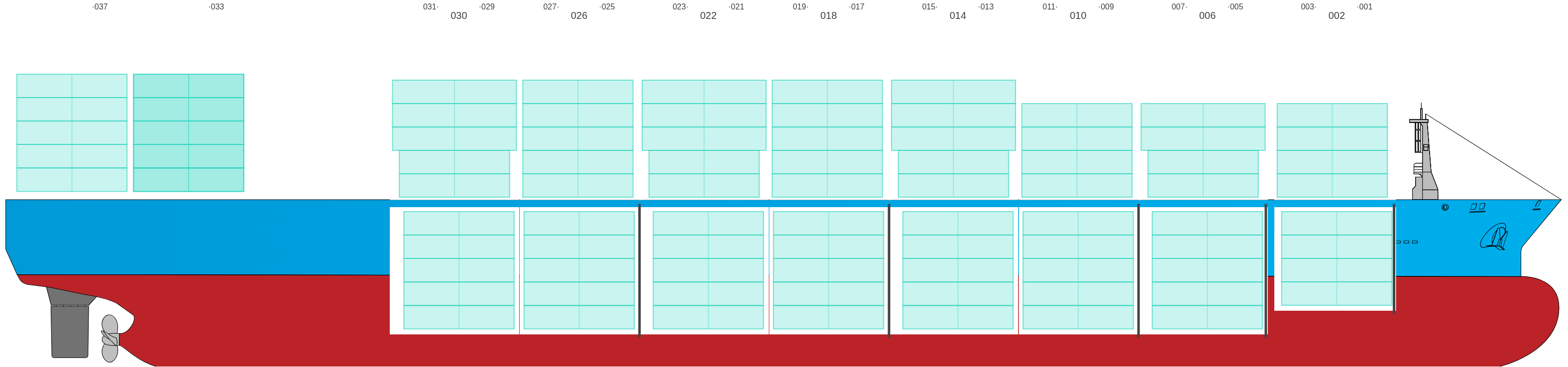

Side View
![Side view of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-sideView.png?v=1711556691204)

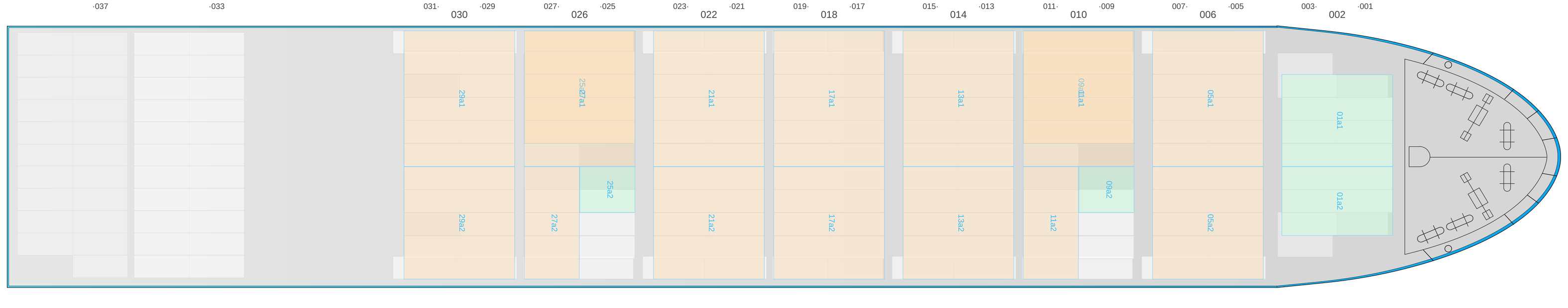

Hatch-Covers View
![Deck view of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-deckView.png?v=1711556691204)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

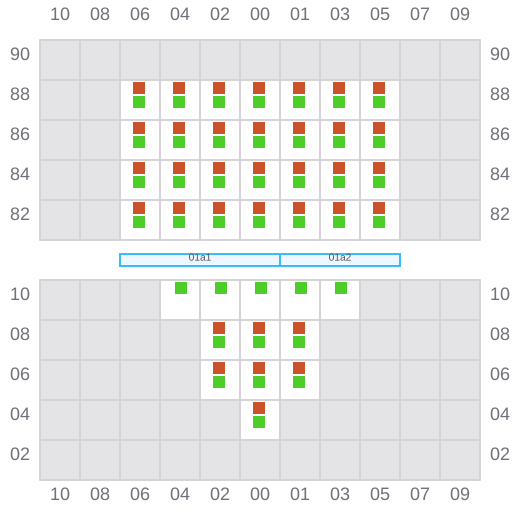

001 (002)
- →
![Bay 001 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b001.png?v=1711556691204)

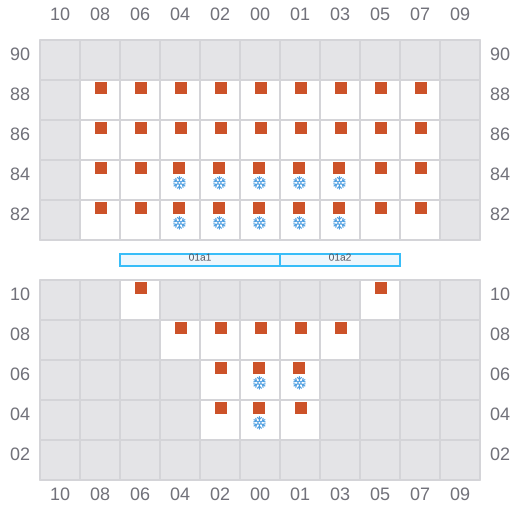

003
- ←
- →
![Bay 003 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b003.png?v=1711556691204)

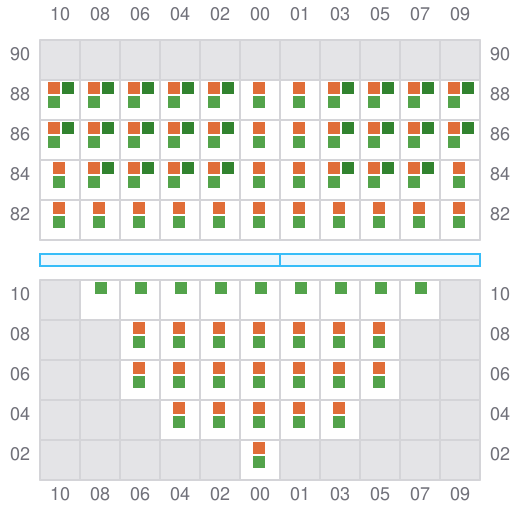

005 (006)
- →
- ← / ?
![Bay 005 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b005.png?v=1711556691204)

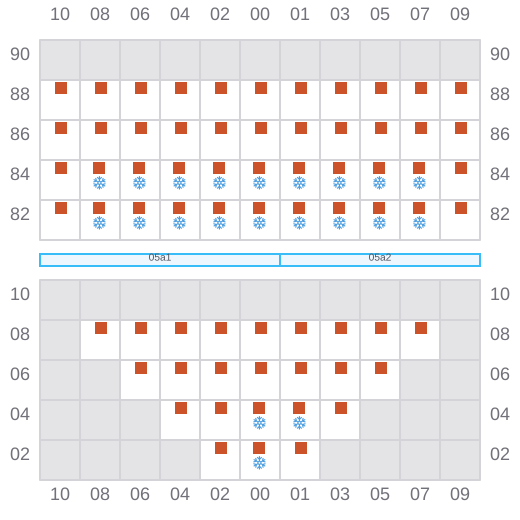

007
- ←
- →
![Bay 007 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b007.png?v=1711556691204)

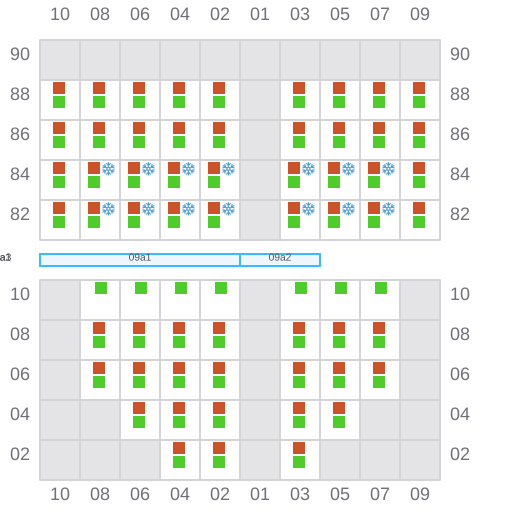

009 (010)
- →
- ← / ?
![Bay 009 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b009.png?v=1711556691204)

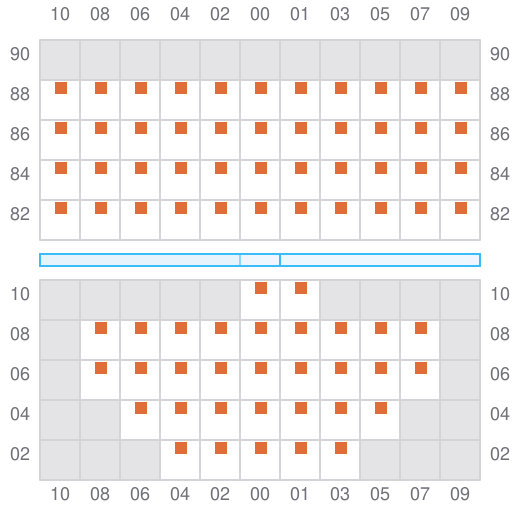

011
- ←
- → / ?
![Bay 011 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b011.png?v=1711556691204)
013 (014)
- →
- ← / ?
![Bay 013 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b013.png?v=1711556691204)

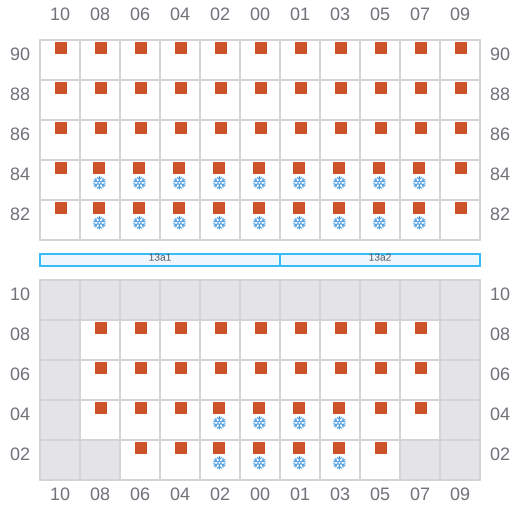

015
- ←
- →
![Bay 015 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b015.png?v=1711556691204)

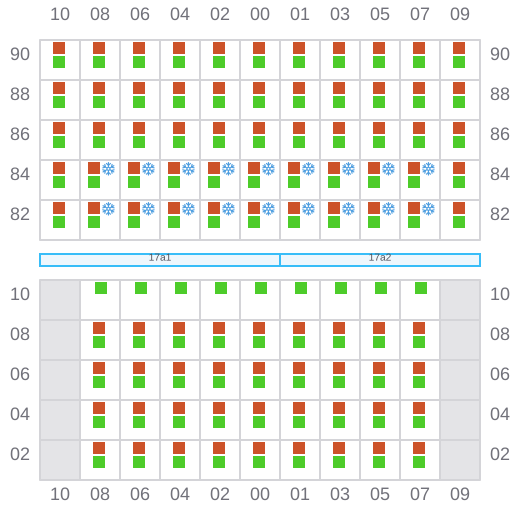

017 (018)
- →
- ← / ?
![Bay 017 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b017.png?v=1711556691204)

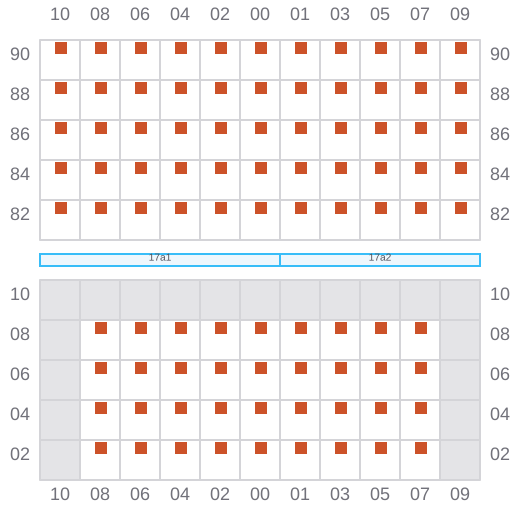

019
- ←
- → / ?
![Bay 019 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b019.png?v=1711556691204)

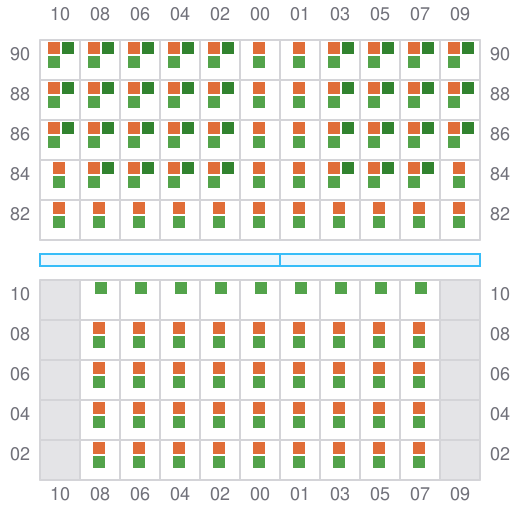

021 (022)
- →
- ← / ?
![Bay 021 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b021.png?v=1711556691204)

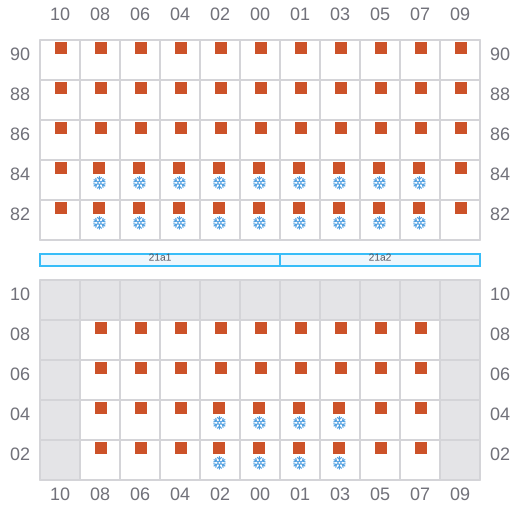

023
- ←
- →
![Bay 023 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b023.png?v=1711556691204)

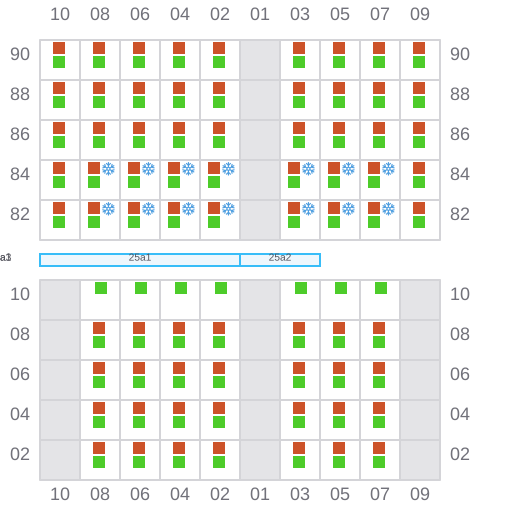

025 (026)
- →
- ← / ?
![Bay 025 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b025.png?v=1711556691204)

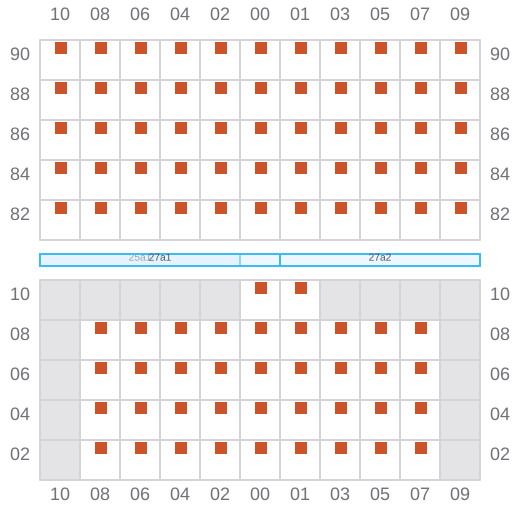

027
- ←
- → / ?
![Bay 027 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b027.png?v=1711556691204)

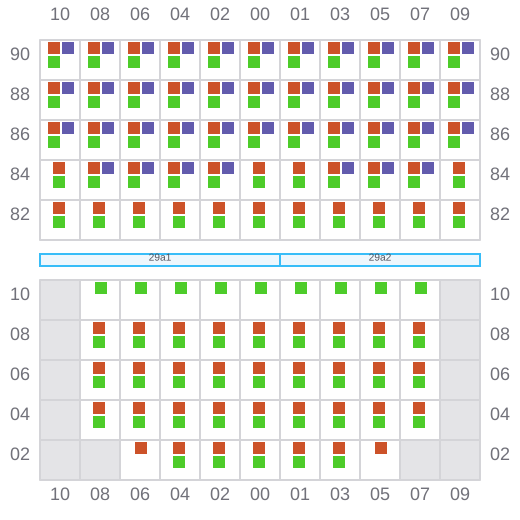

029 (030)
- →
- ← / ?
![Bay 029 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b029.png?v=1711556691204)

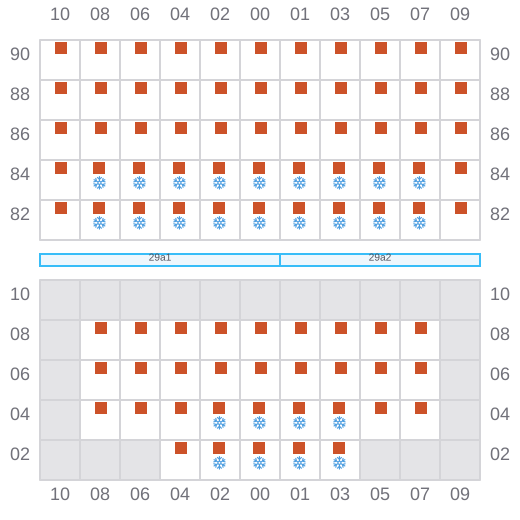

031
- ←
- →
![Bay 031 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b031.png?v=1711556691204)

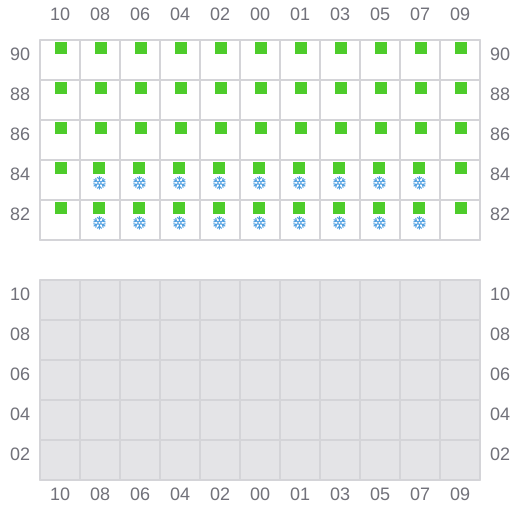

033 (034)
- → / ?
- ← / ?
![Bay 033 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b033.png?v=1711556691204)

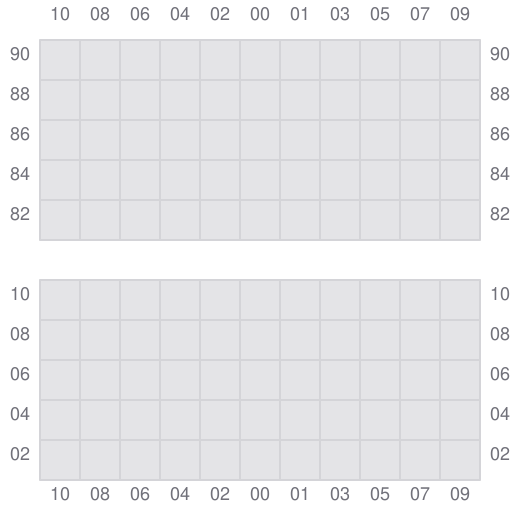

035
![Bay 035 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b035.png?v=1711556691204)

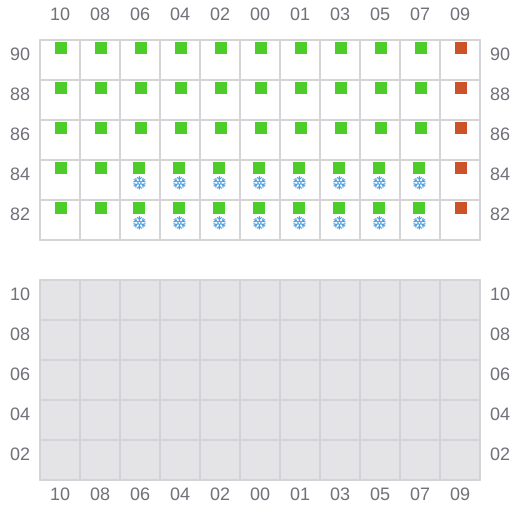

037 (038)
- → / ?
- ← / ?
![Bay 037 view and slots of HAIAN CITY](/vessel-images/c35a8c94-8358-4d29-bb4e-233a6a536cdd-b037.png?v=1711556691204)
