HAIAN TIME
9245158 | XVLV9 | 9245158 by ********* Last update: Wed May 15 2024
General Info
Ship Name:HAIAN TIME
IMO Code:9245158
Call Sign:XVLV9
Line Operator:9245158
Class Name for Sister Ships:ASIAN GYRO
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):150.00
LOA (Length Overall):161.85
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,032
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

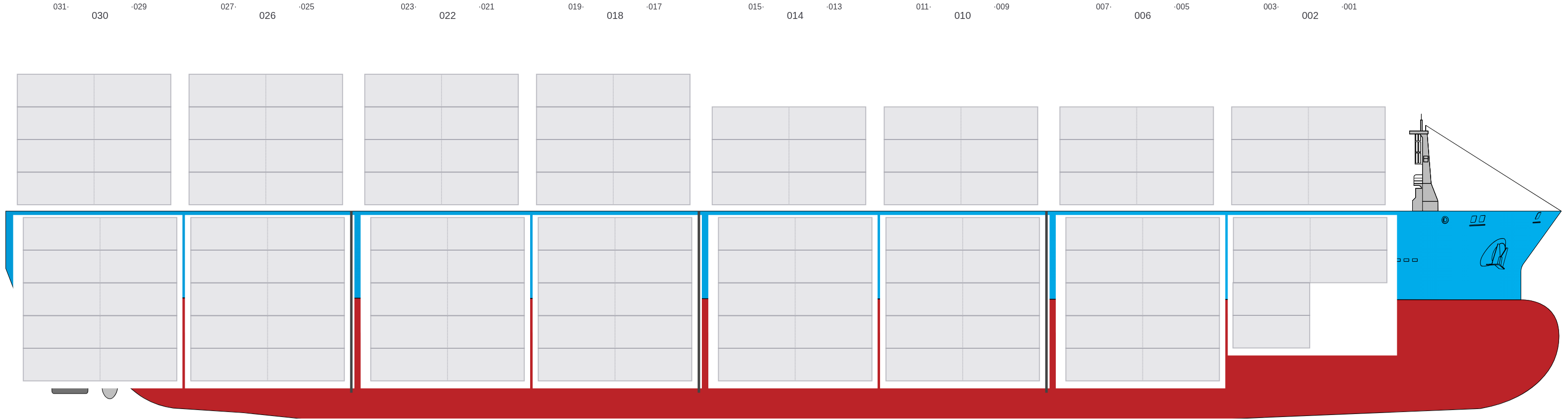

Side View
![Side view of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-sideView.png?v=1715792734394)

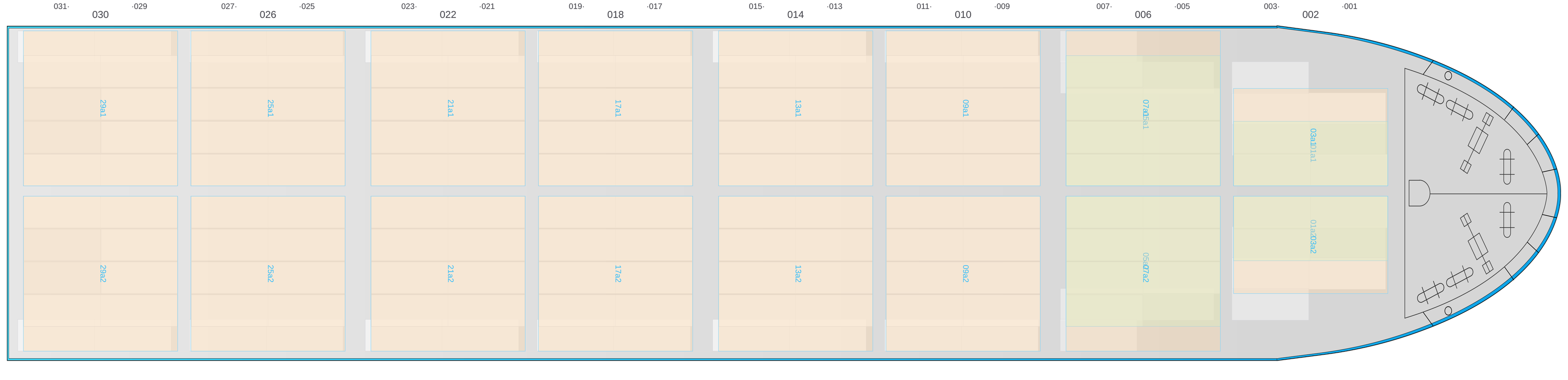

Hatch-Covers View
![Deck view of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-deckView.png?v=1715792734394)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

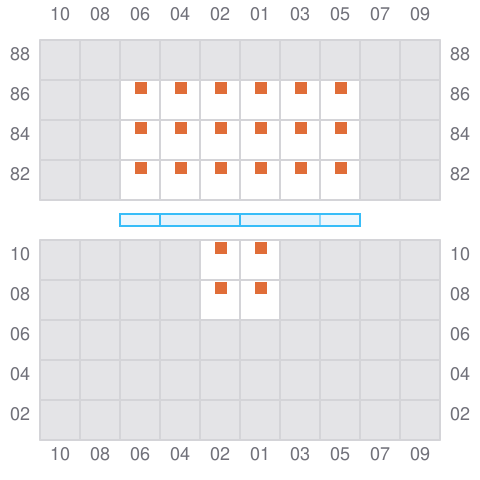

001
- →
- →
![Bay 001 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b001.png?v=1715792734394)
003 (002)
- ←
- ←
![Bay 003 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b003.png?v=1715792734394)

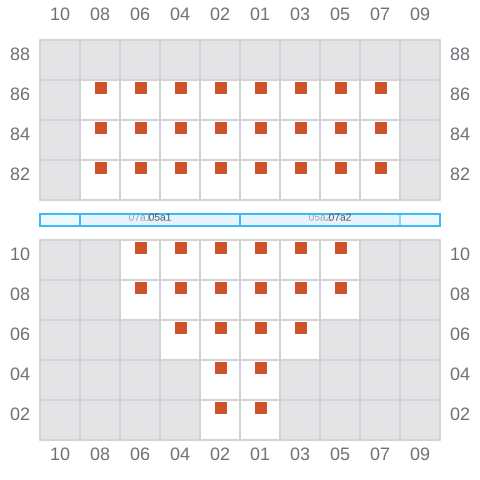

005
- →
- →
![Bay 005 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b005.png?v=1715792734394)

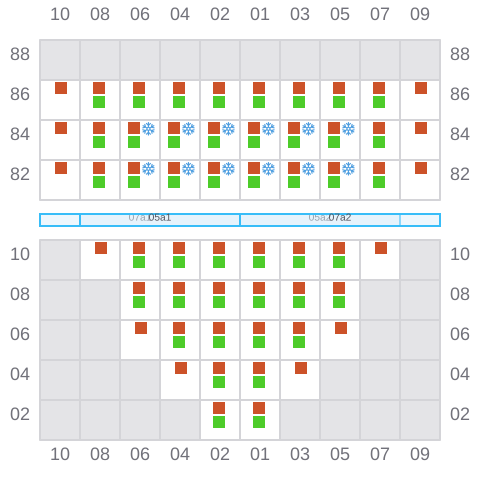

007 (006)
- ←
- ←
![Bay 007 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b007.png?v=1715792734394)

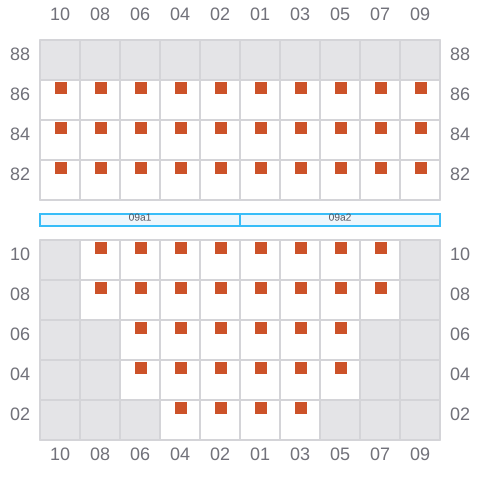

009
- →
- →
![Bay 009 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b009.png?v=1715792734394)

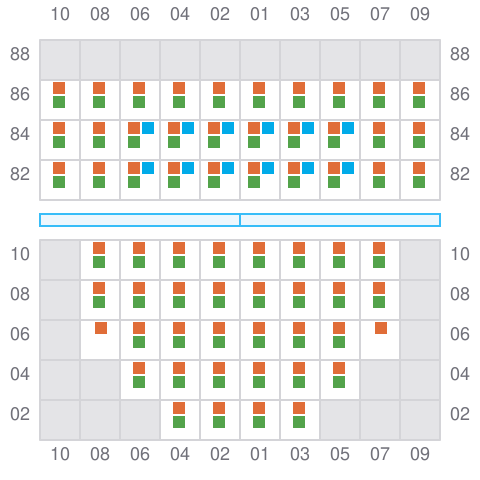

011 (010)
- ←
- ←
![Bay 011 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b011.png?v=1715792734394)

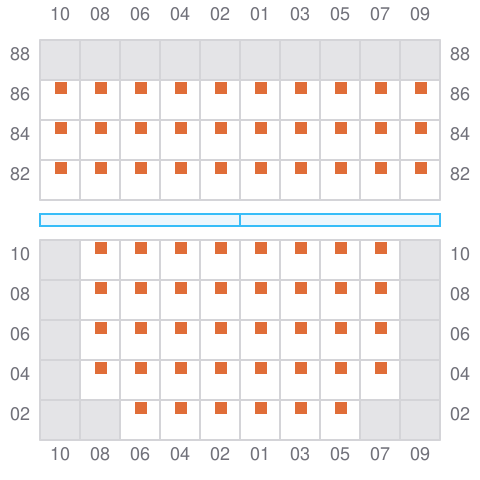

013
- →
- →
![Bay 013 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b013.png?v=1715792734394)

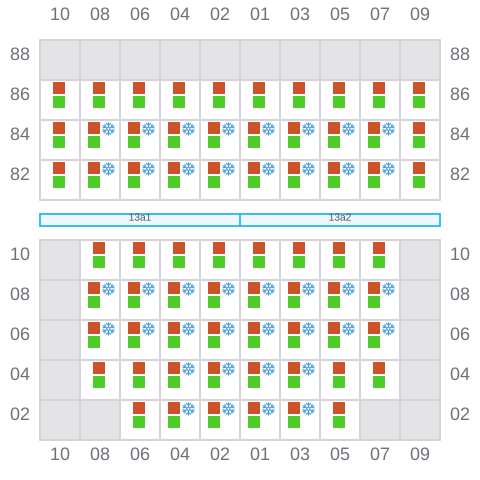

015 (014)
- ←
- ←
![Bay 015 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b015.png?v=1715792734394)

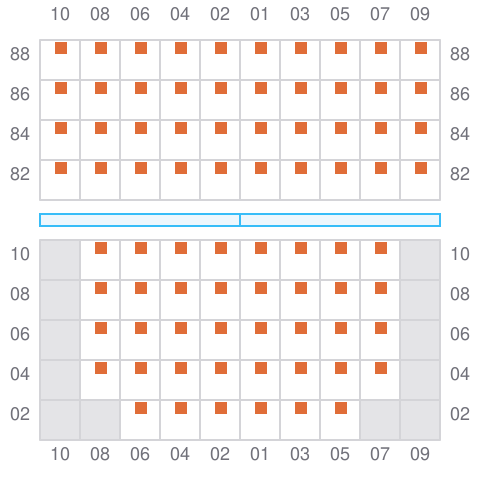

017
- →
- →
![Bay 017 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b017.png?v=1715792734394)

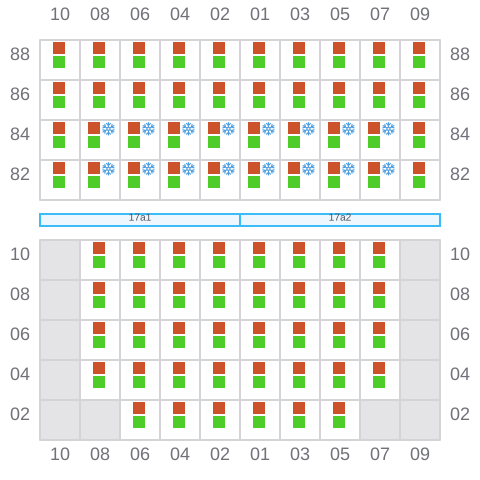

019 (018)
- ←
- ←
![Bay 019 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b019.png?v=1715792734394)

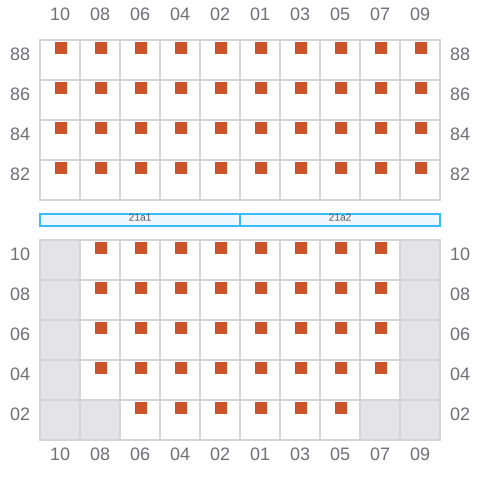

021
- →
- →
![Bay 021 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b021.png?v=1715792734394)

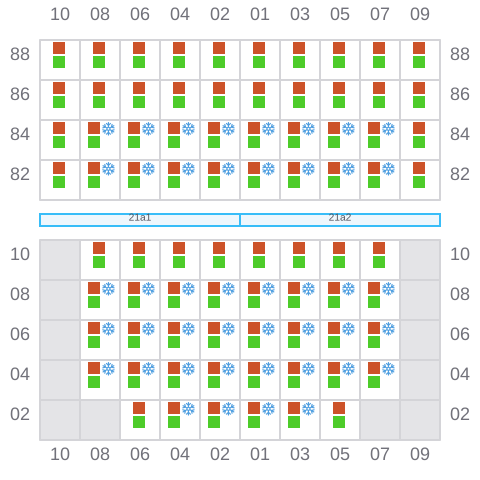

023 (022)
- ←
- ←
![Bay 023 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b023.png?v=1715792734394)
025
- →
- →
![Bay 025 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b025.png?v=1715792734394)

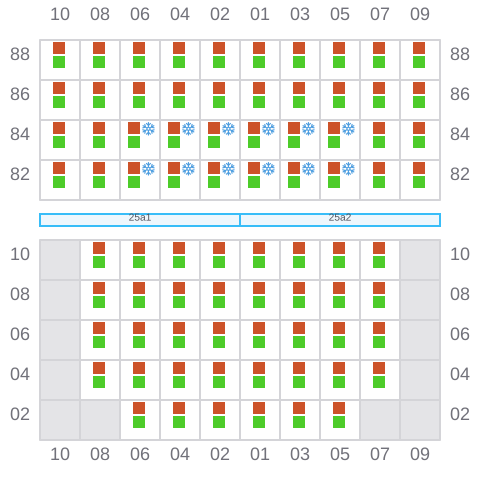

027 (026)
- ←
- ←
![Bay 027 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b027.png?v=1715792734394)

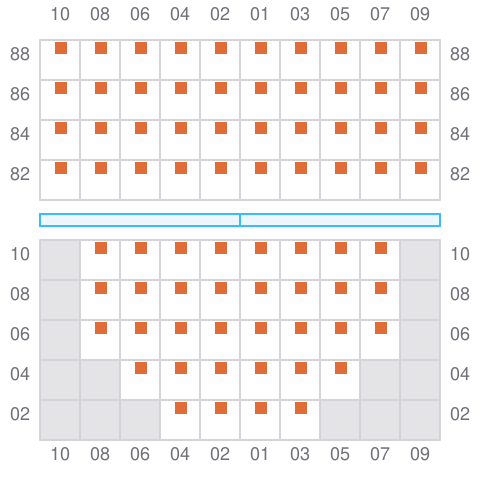

029
- →
- →
![Bay 029 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b029.png?v=1715792734394)

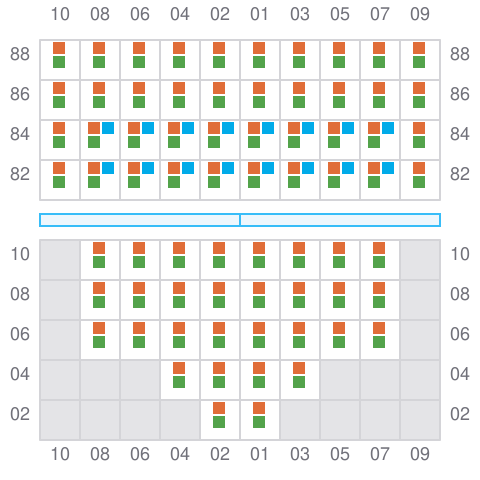

031 (030)
- ←
- ←
![Bay 031 view and slots of HAIAN TIME](/vessel-images/e331a2f1-ca06-45b7-bddd-0b51a6bbcd18-b031.png?v=1715792734394)
