HAIAN VIEW
9470727 | XVGU7 | 94707 by ********* Last update: Wed Mar 27 2024
General Info
Ship Name:HAIAN VIEW
IMO Code:9470727
Call Sign:XVGU7
Line Operator:94707
Class Name for Sister Ships:IMABARI 1700
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):160.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,577
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

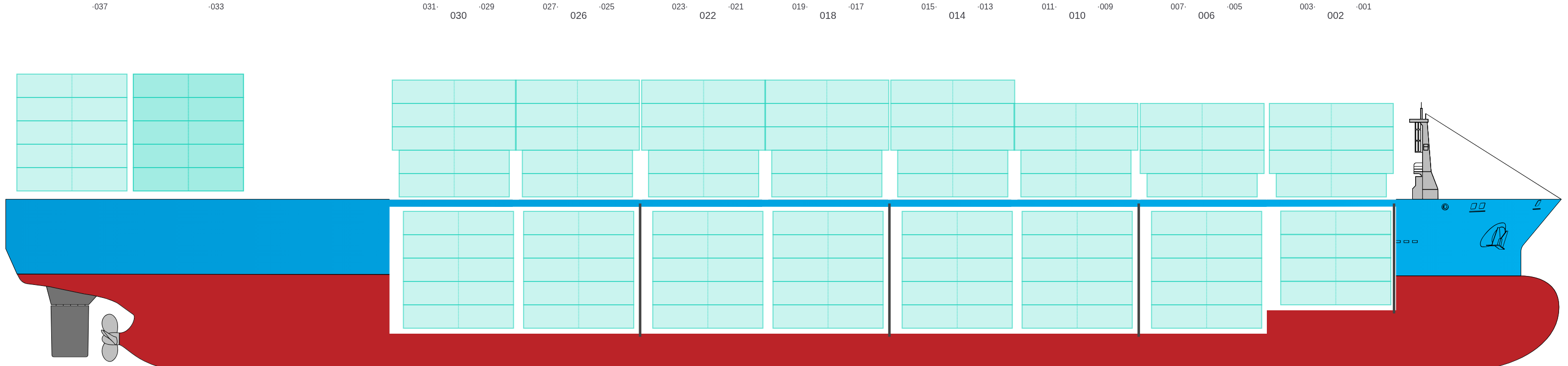

Side View

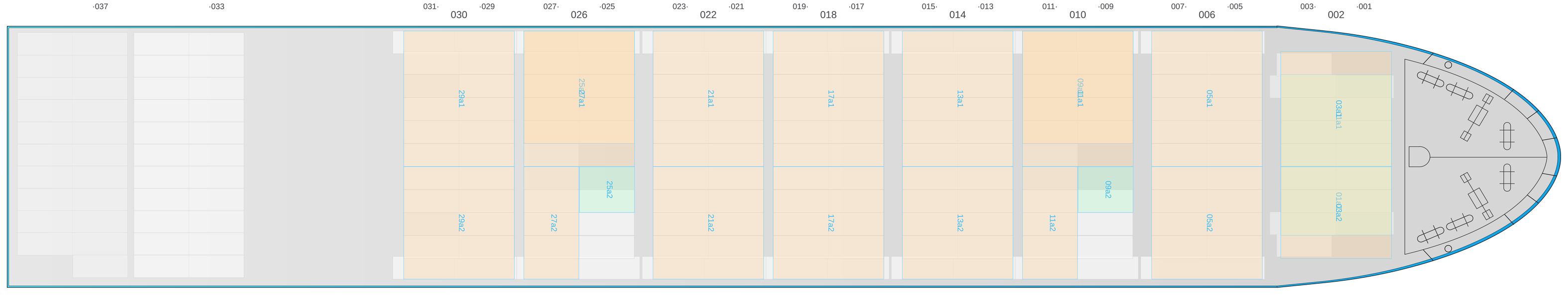

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

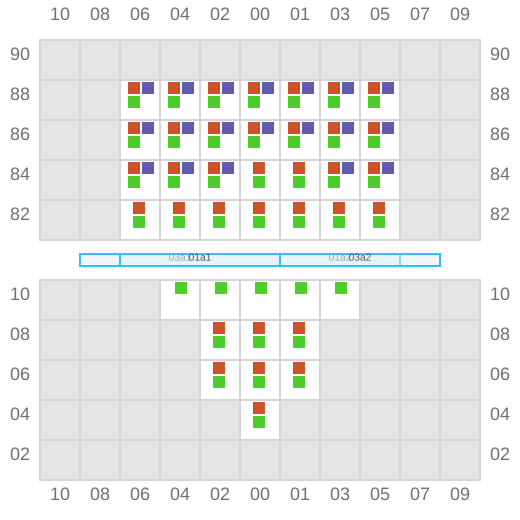

001 (002)
- →

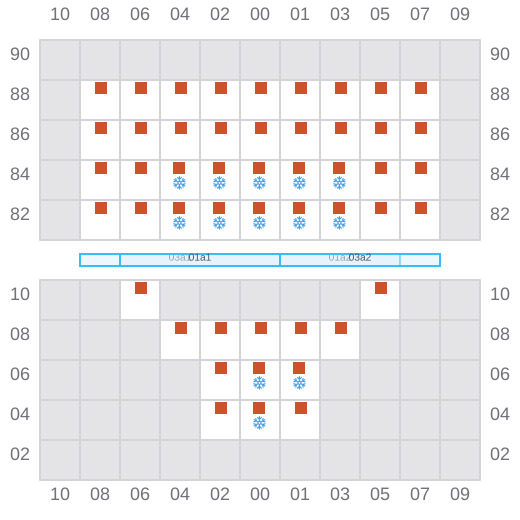

003
- ←
- →

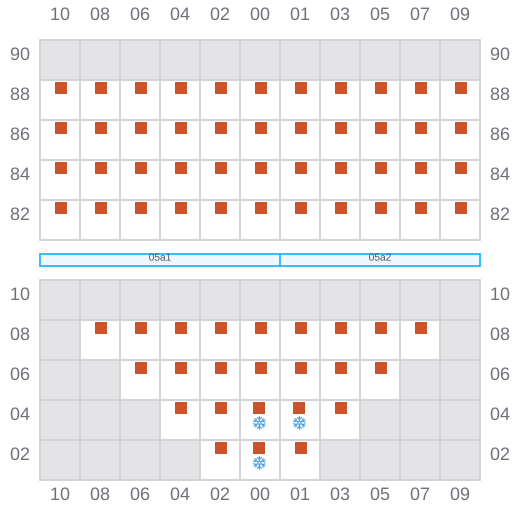

005 (006)
- →
- ← / ?
007
- ←
- ? / →

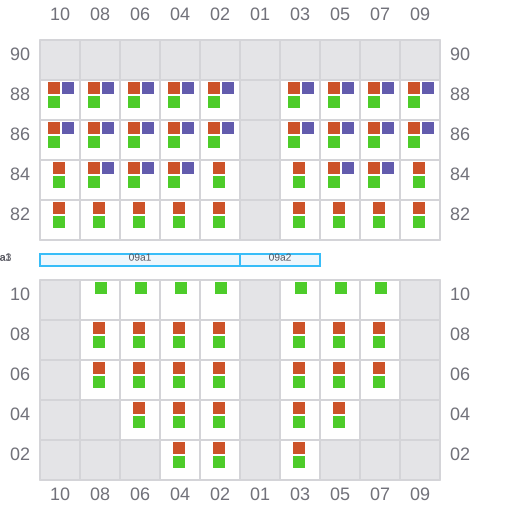

009 (010)
- →

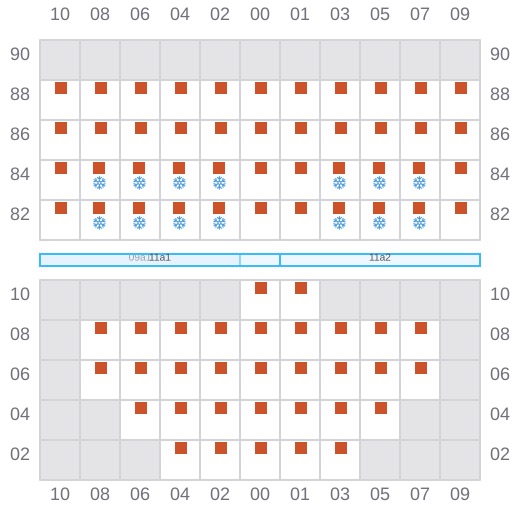

011
- ←
- → / ?

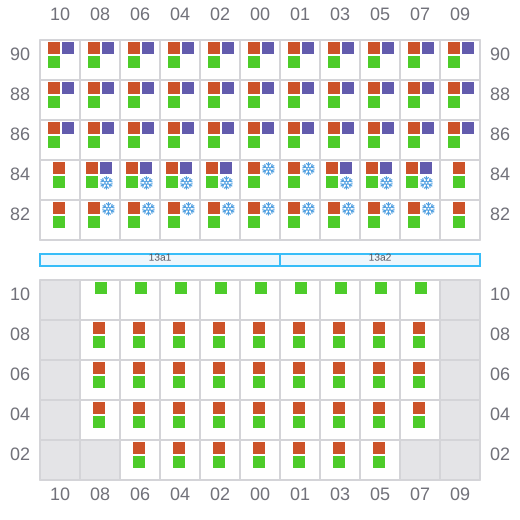

013 (014)
- →
- ← / ?
015
- ←
- ? / →

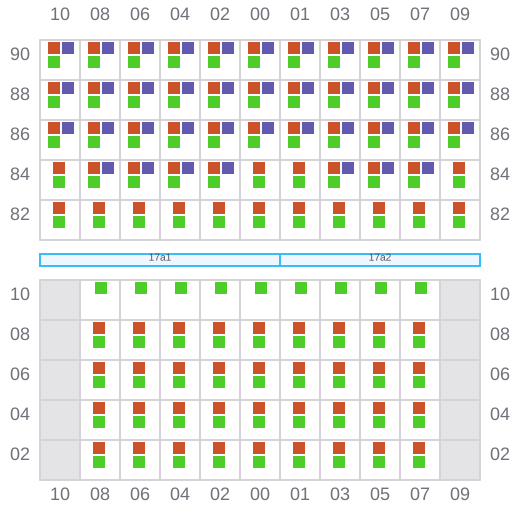

017 (018)
- →
019
- ←
- → / ?

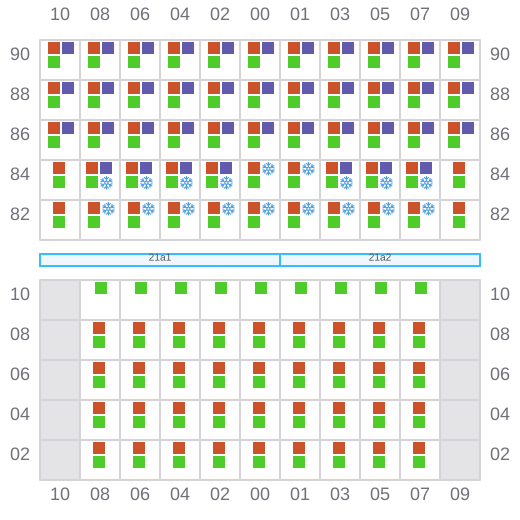

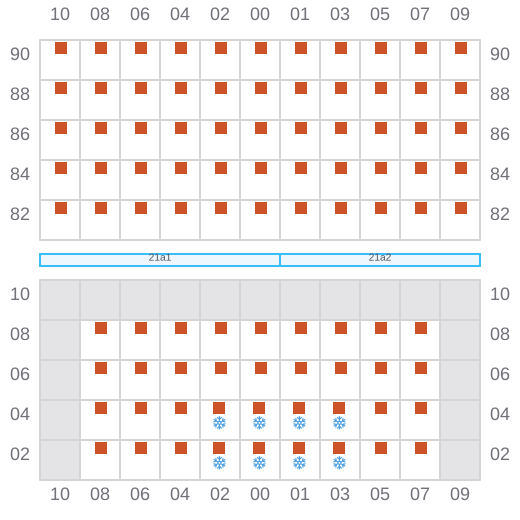

021 (022)
- →
- ← / ?
023
- ←
- ? / →

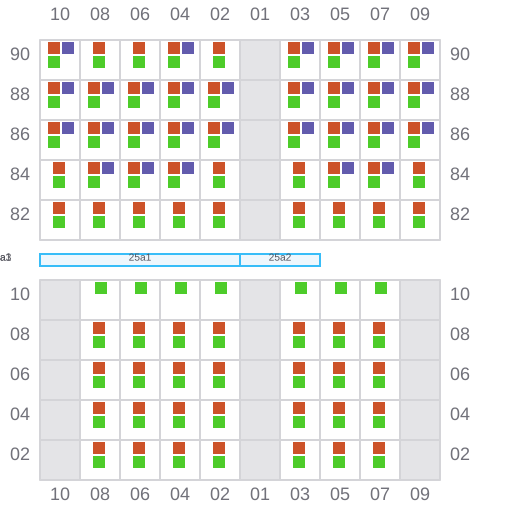

025 (026)
- →

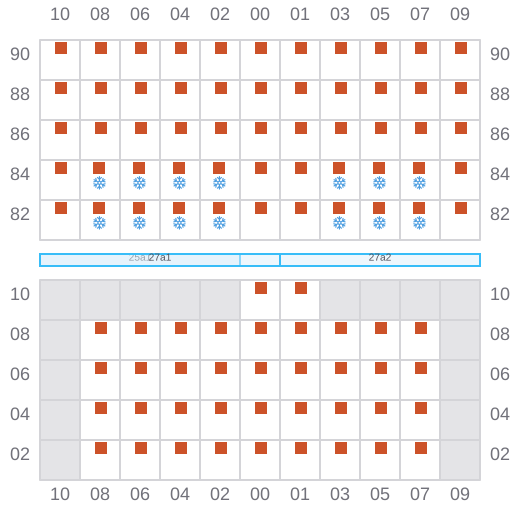

027
- ←
- → / ?

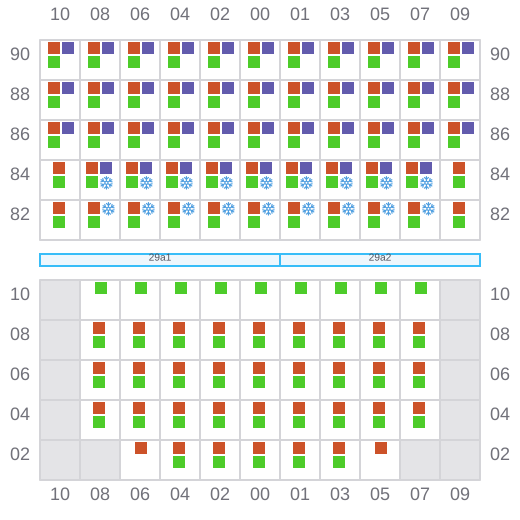

029 (030)
- →
- ← / ?

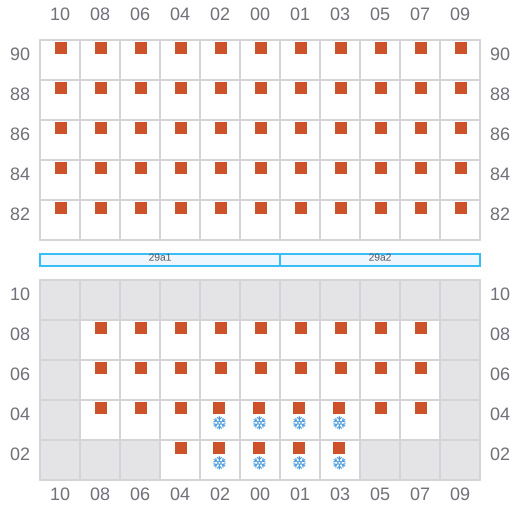

031
- ←
- ? / →
033 (034)
- → / ?
- ← / ?
035

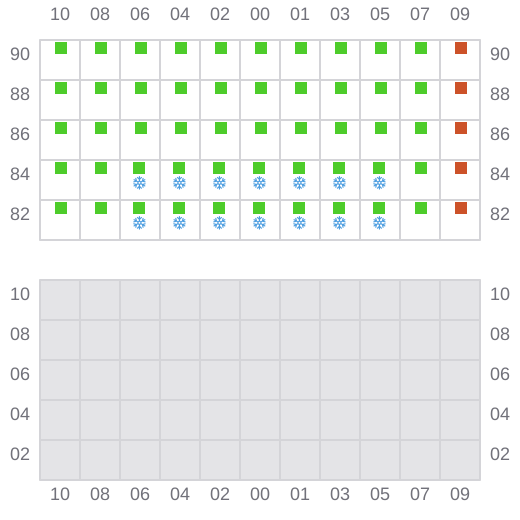

037 (038)
- → / ?
- ← / ?
