HAKUNA MATATA
9354167 | 5LBT7 | SEL by ************************** Last update: Sat May 27 2023
General Info
Ship Name:HAKUNA MATATA
IMO Code:9354167
Call Sign:5LBT7
Line Operator:SEL
Class Name for Sister Ships:HAKU
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,743
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

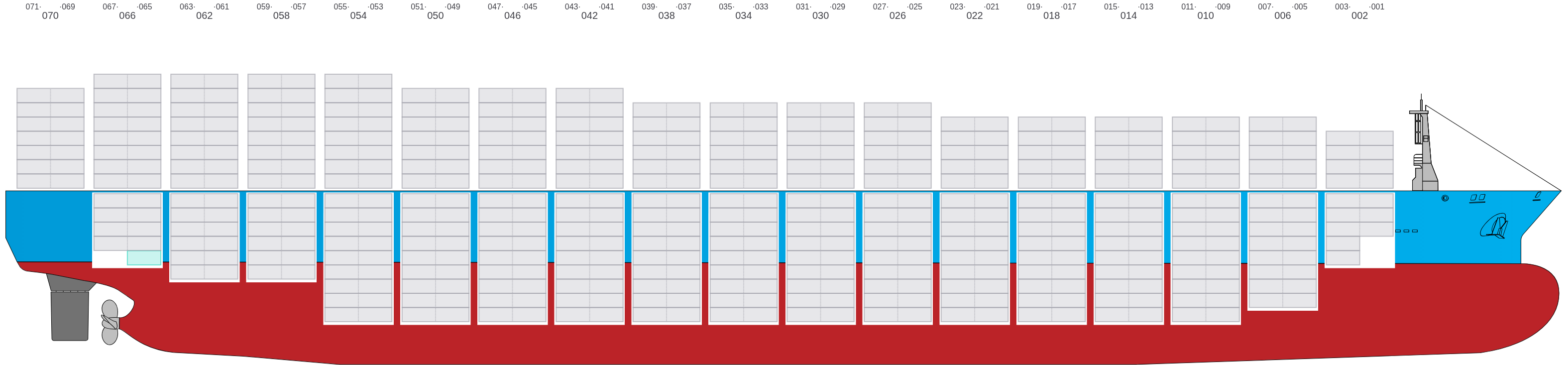

Side View

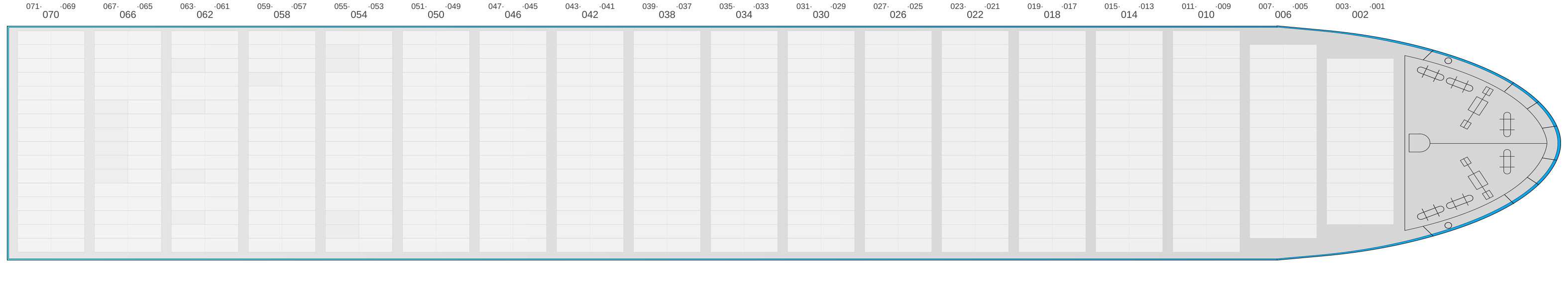

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

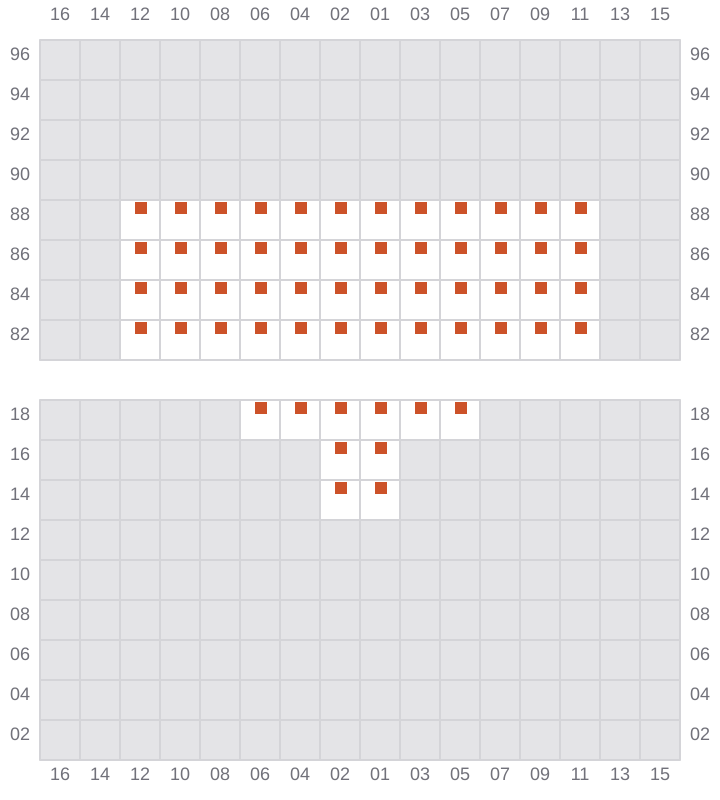

001
- →

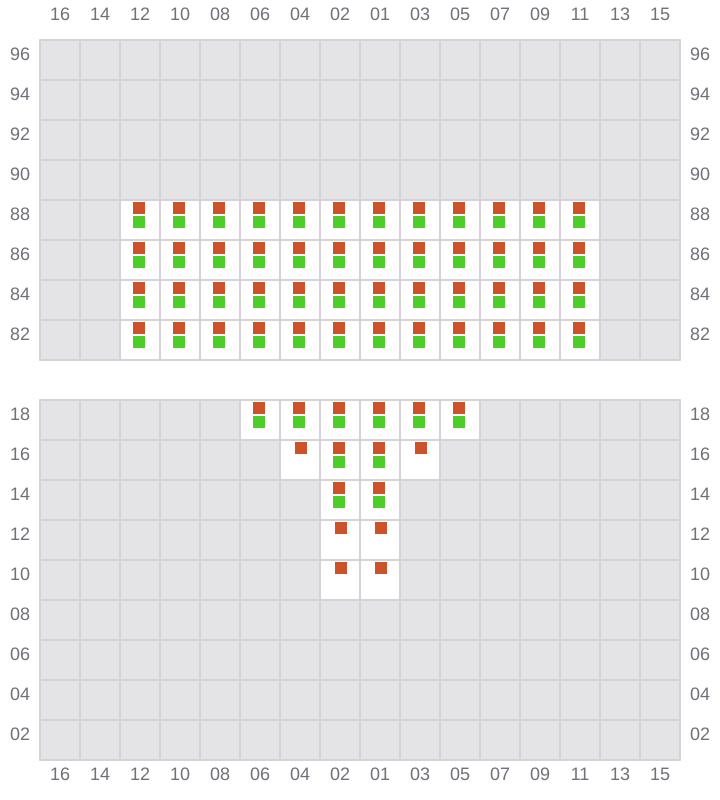

003 (002)
- ←

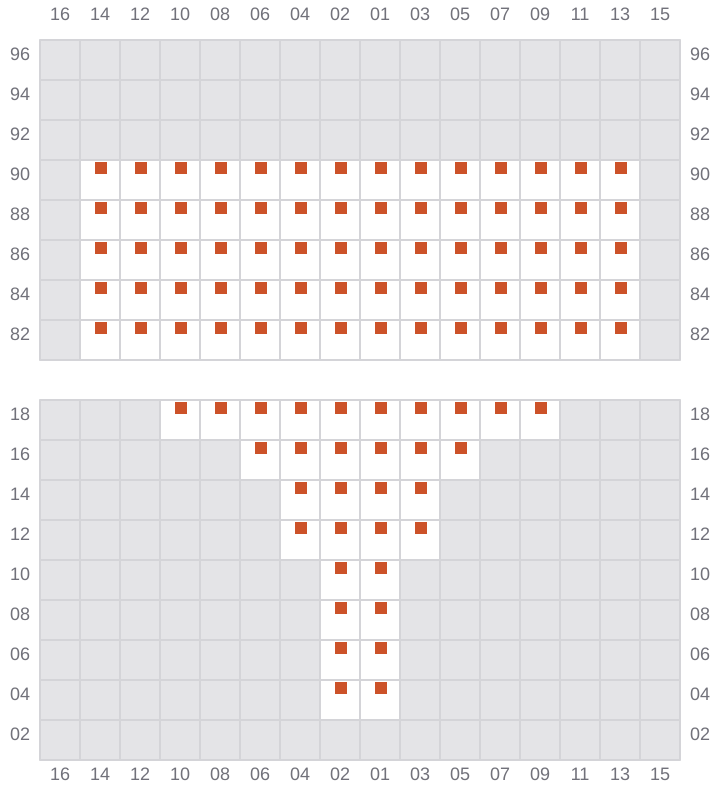

005
- →

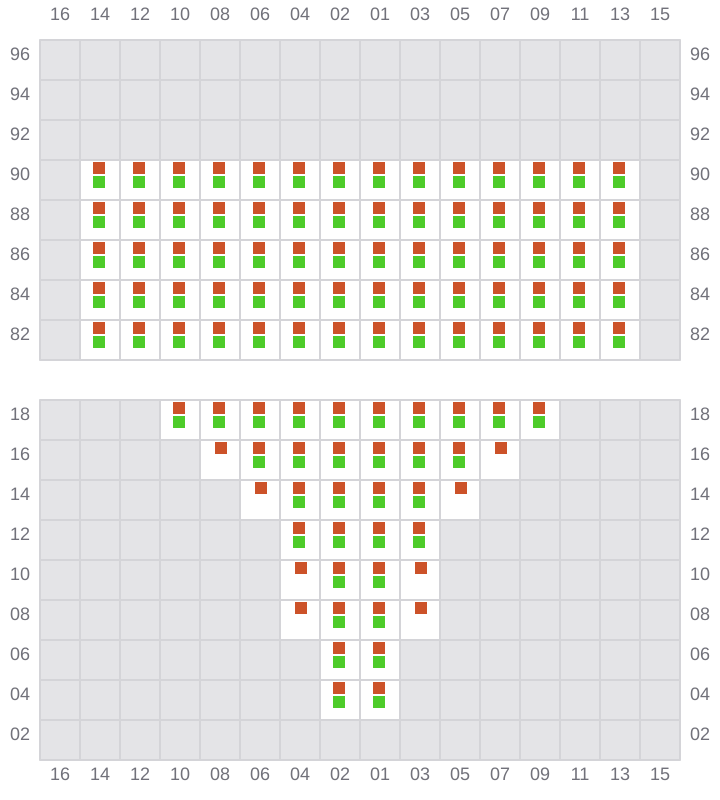

007 (006)
- ←

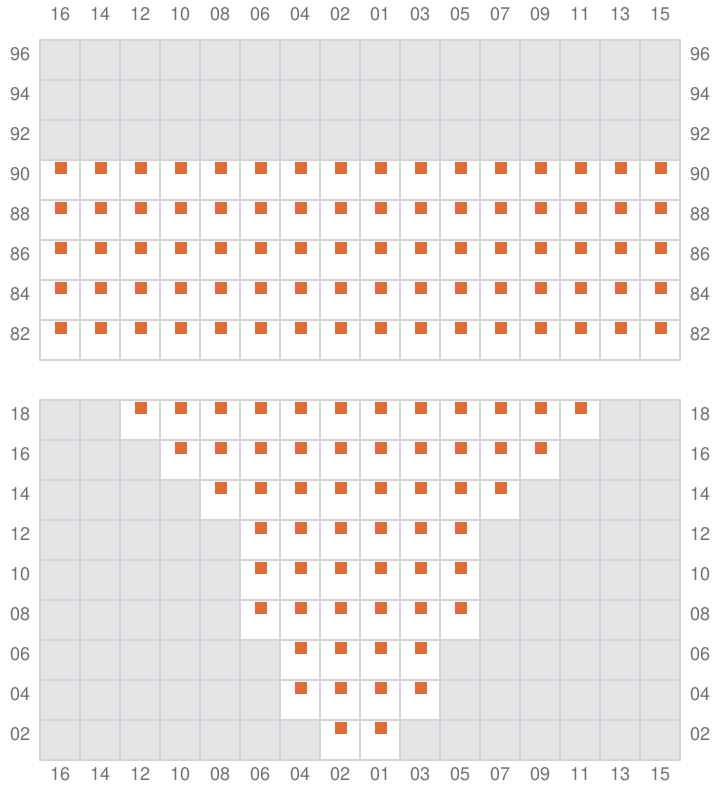

009
- →

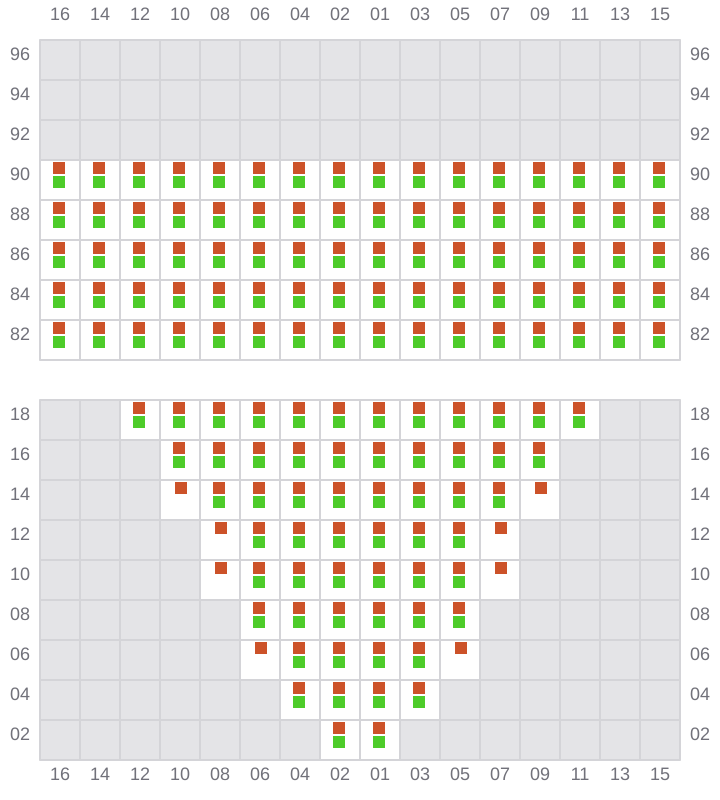

011 (010)
- ←

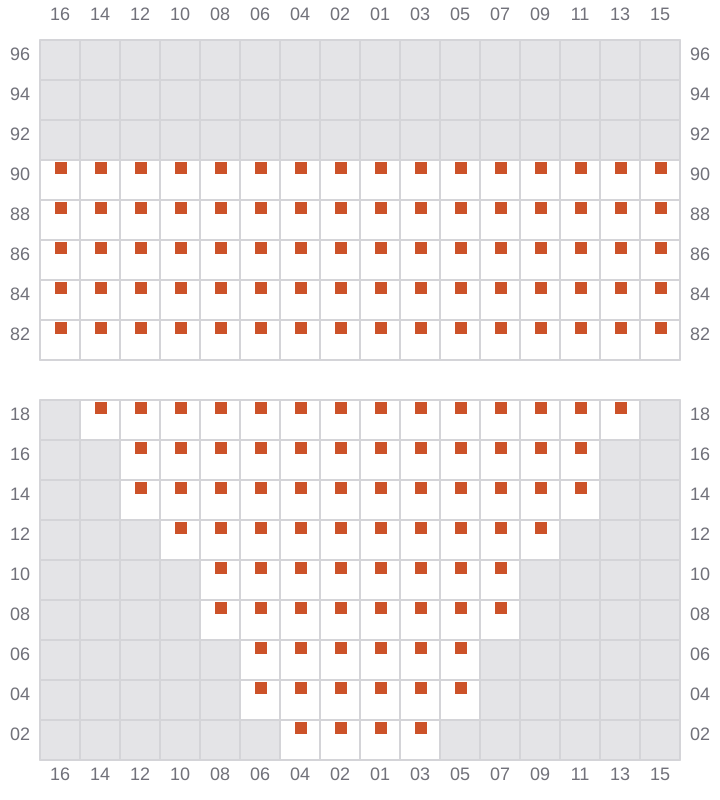

013
- →

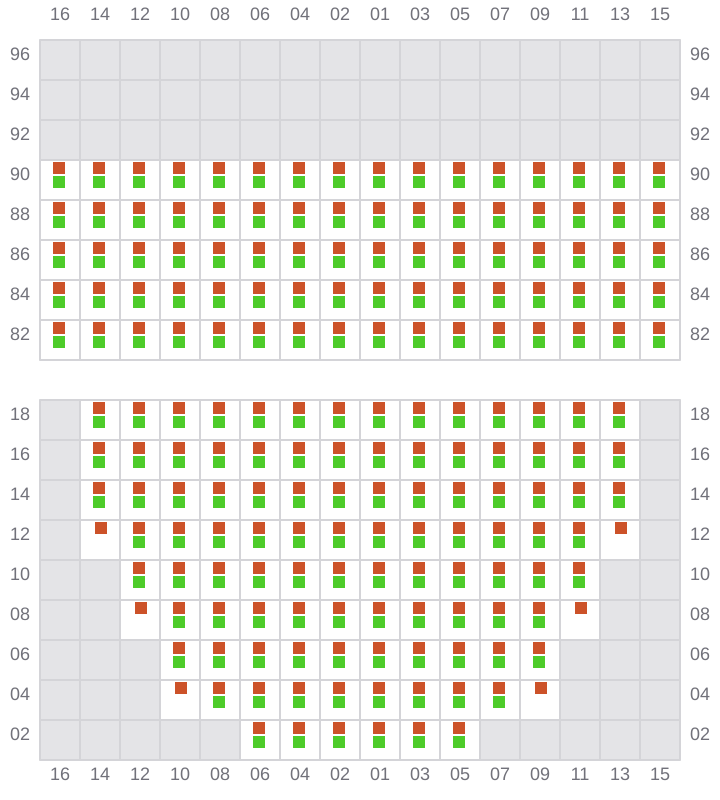

015 (014)
- ←

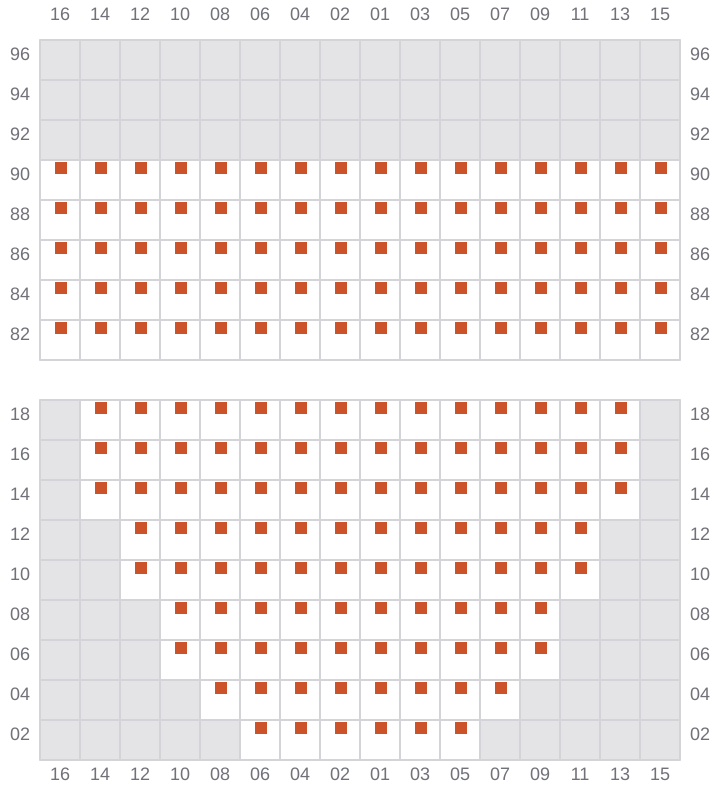

017
- →
019 (018)
- ←
021
- →

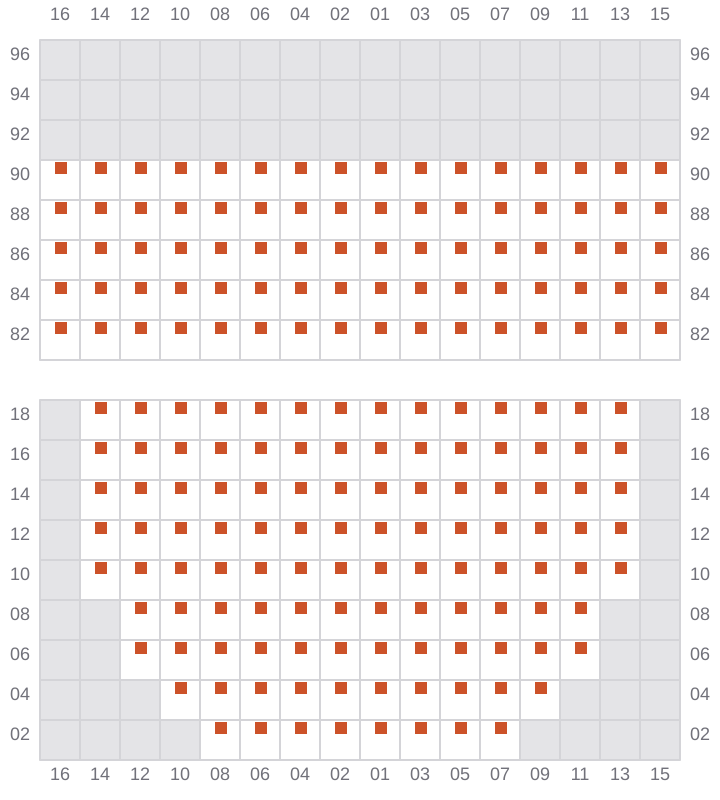

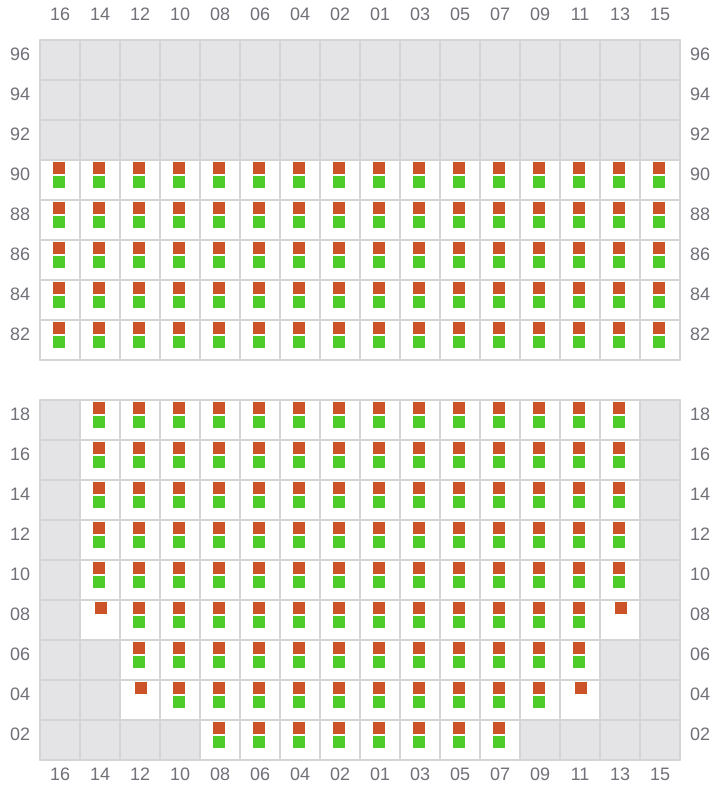

023 (022)
- ←

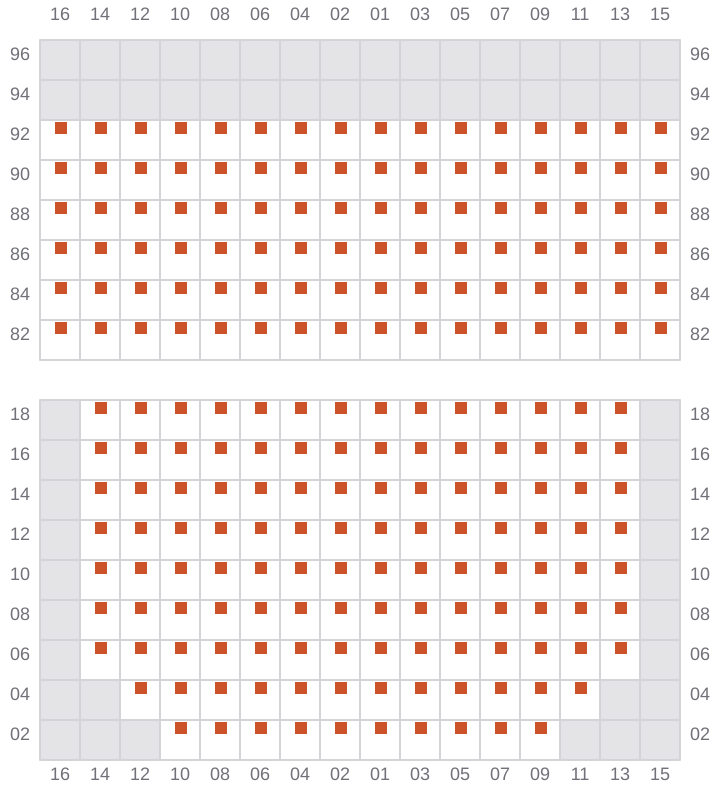

025
- →

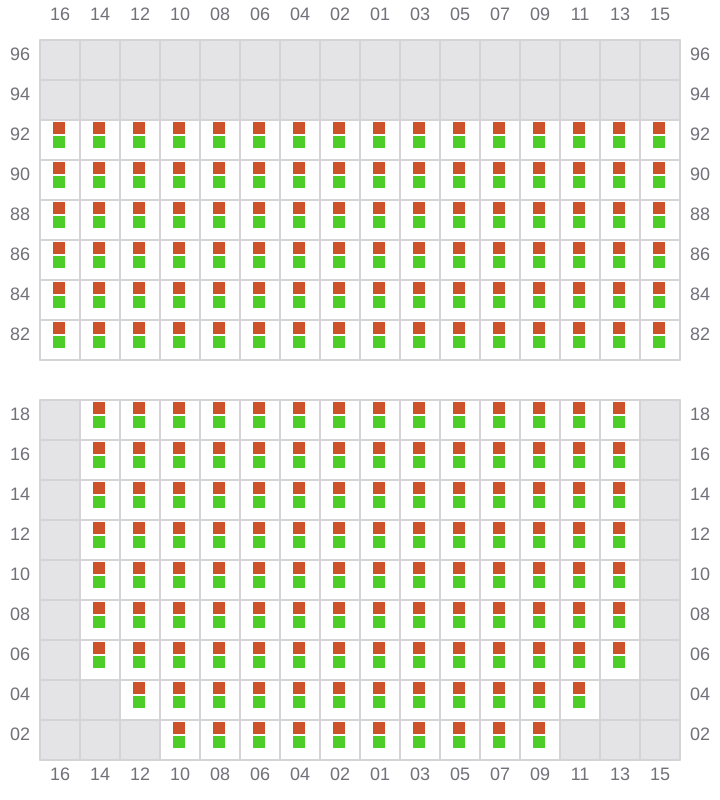

027 (026)
- ←

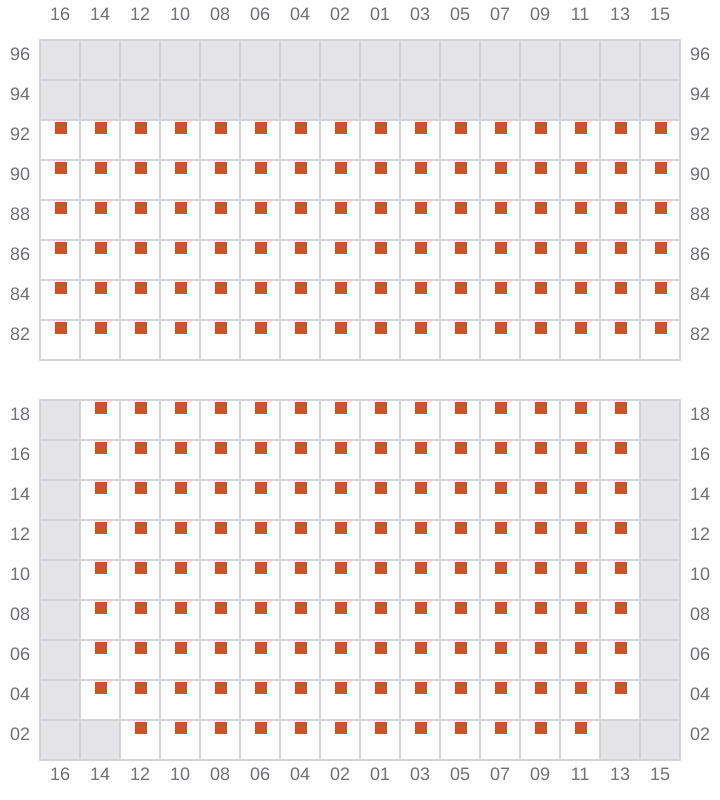

029
- →

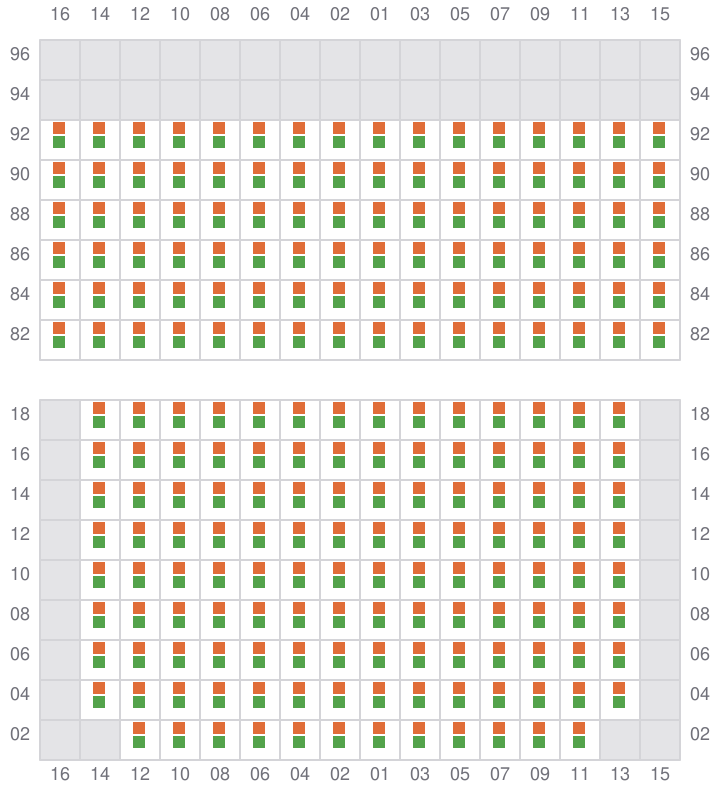

031 (030)
- ←
033
- →
035 (034)
- ←

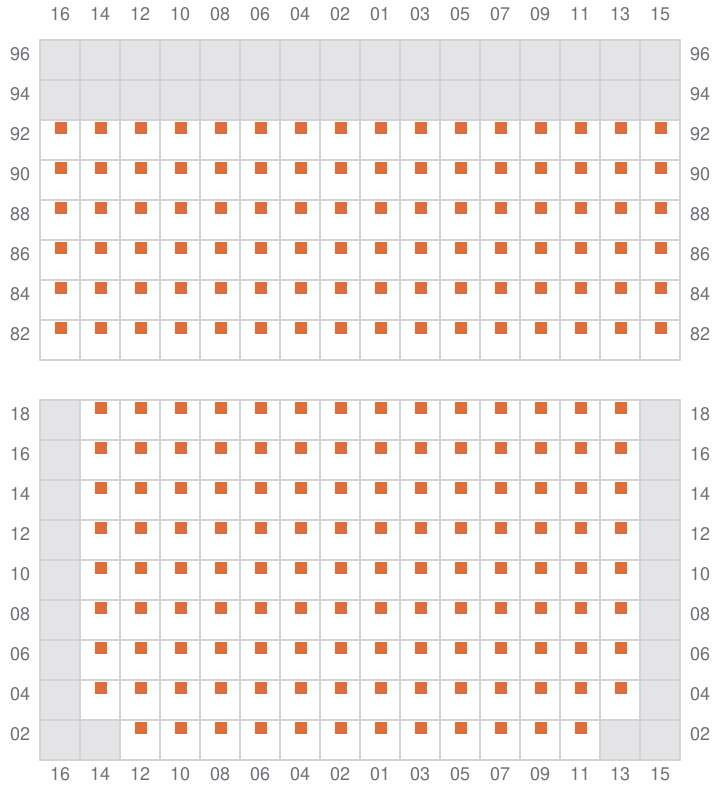

037
- →

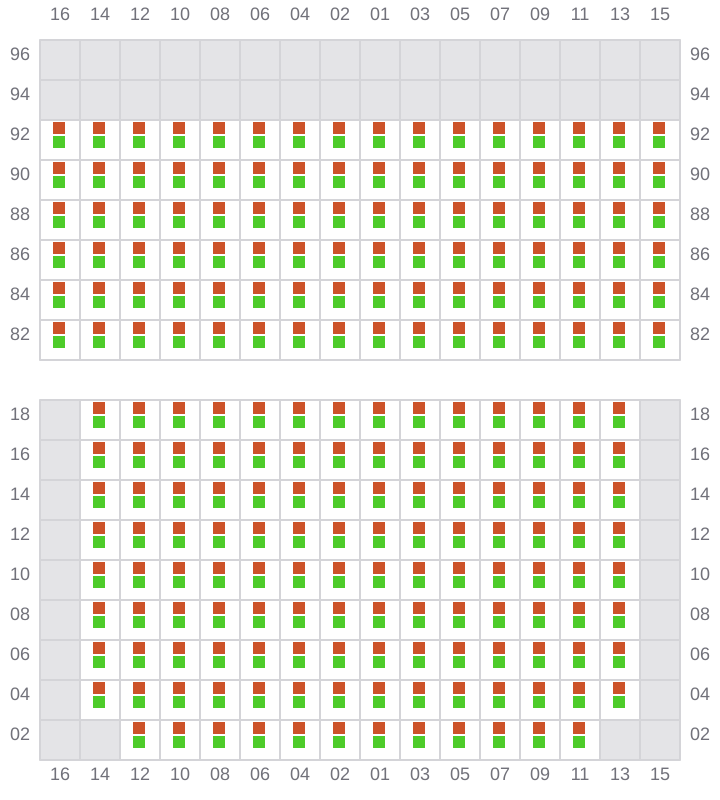

039 (038)
- ←

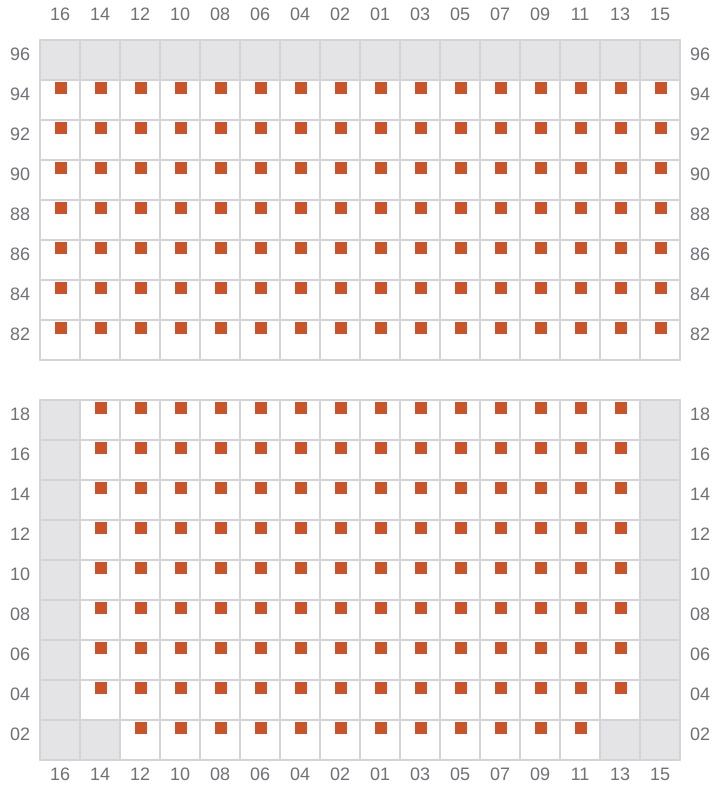

041
- →

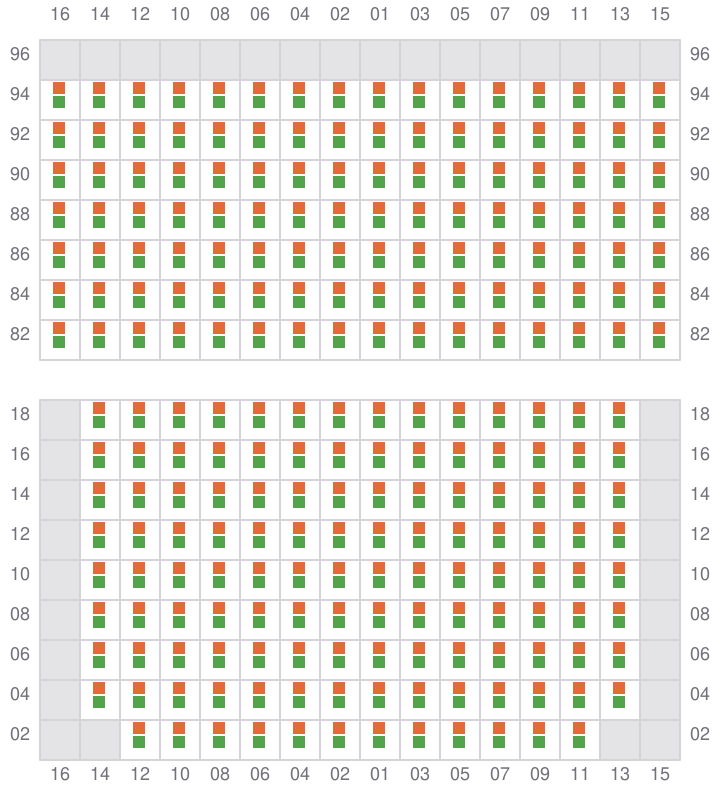

043 (042)
- ←
045
- →
047 (046)
- ←
049
- →

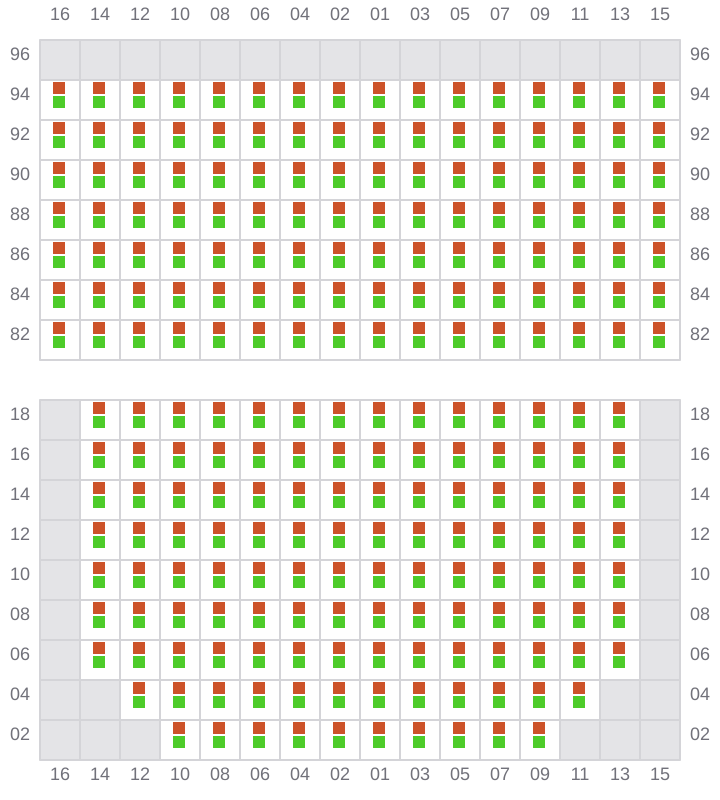

051 (050)
- ←

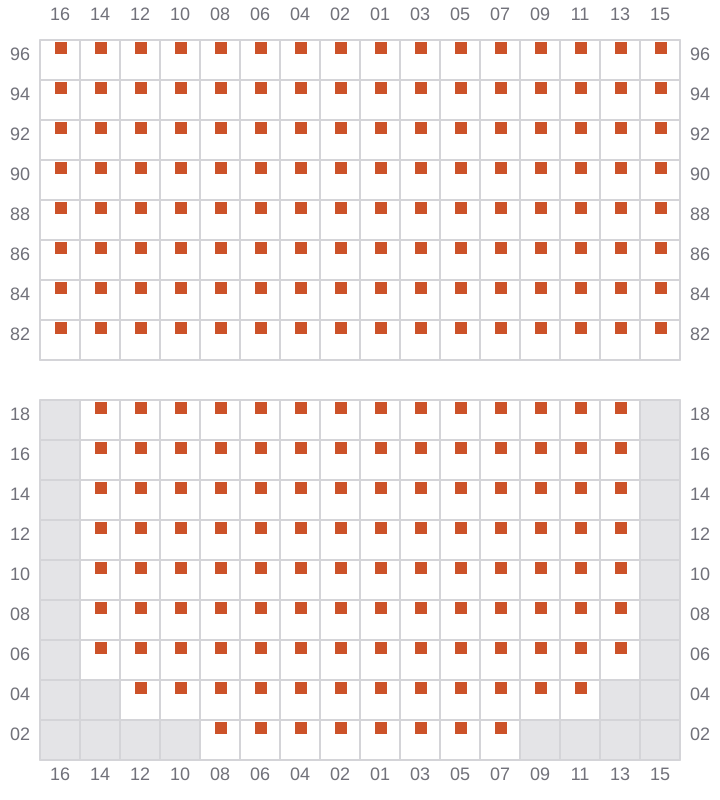

053
- →

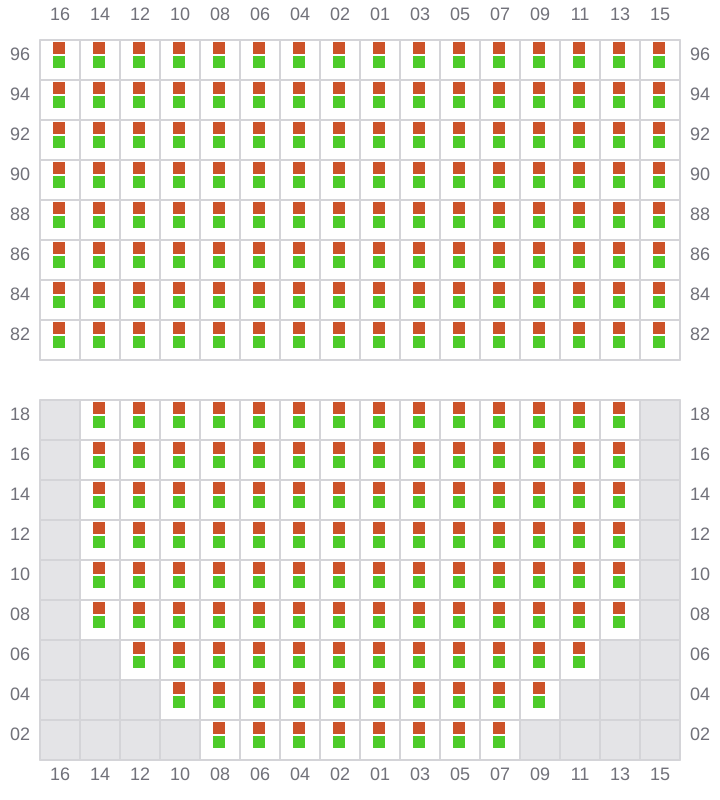

055 (054)
- ←

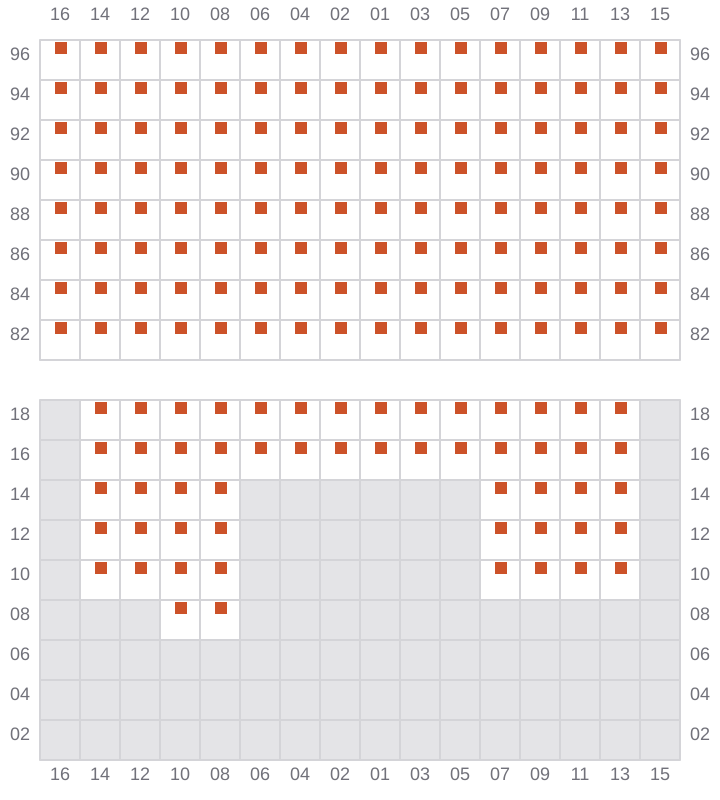

057
- →

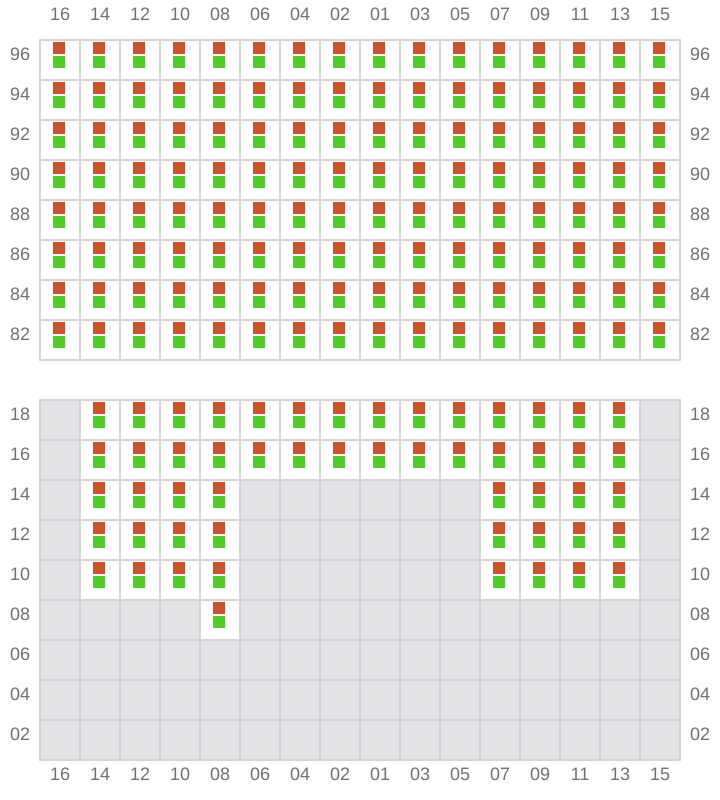

059 (058)
- ←

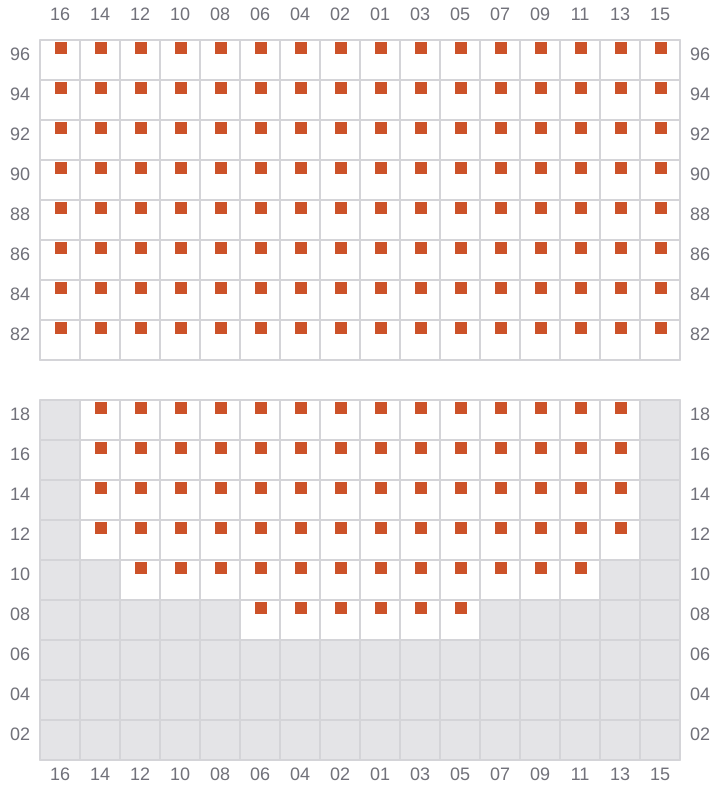

061
- →

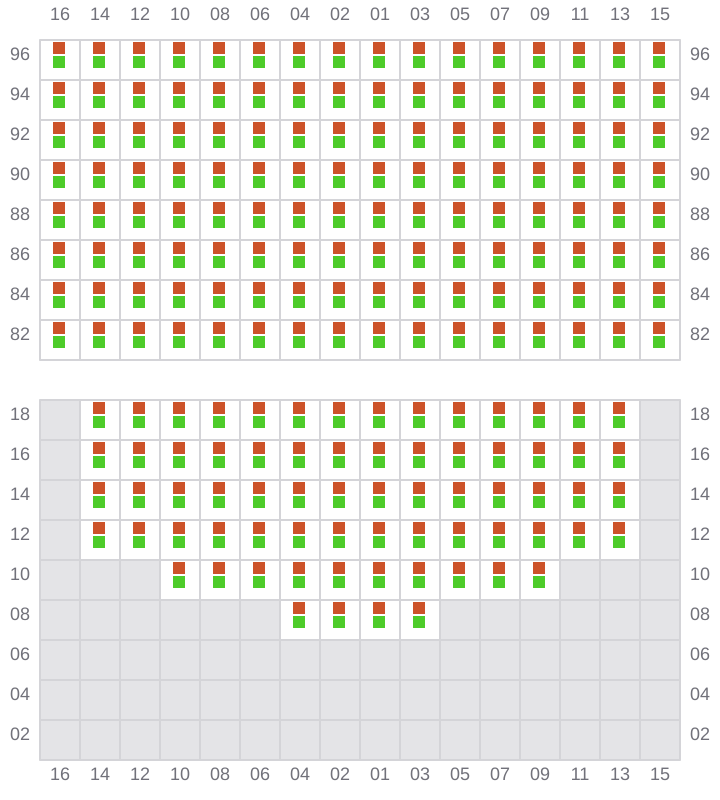

063 (062)
- ←

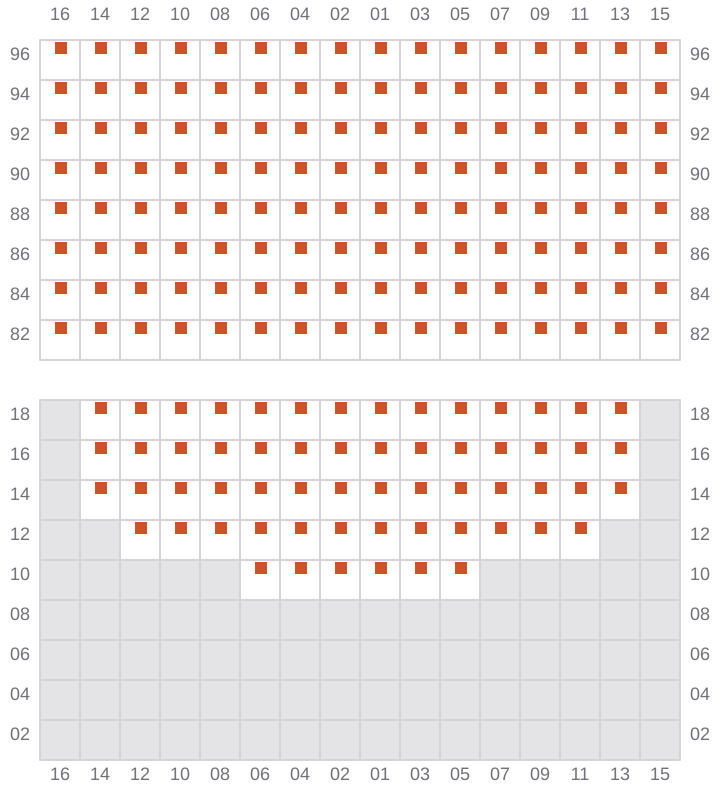

065
- →

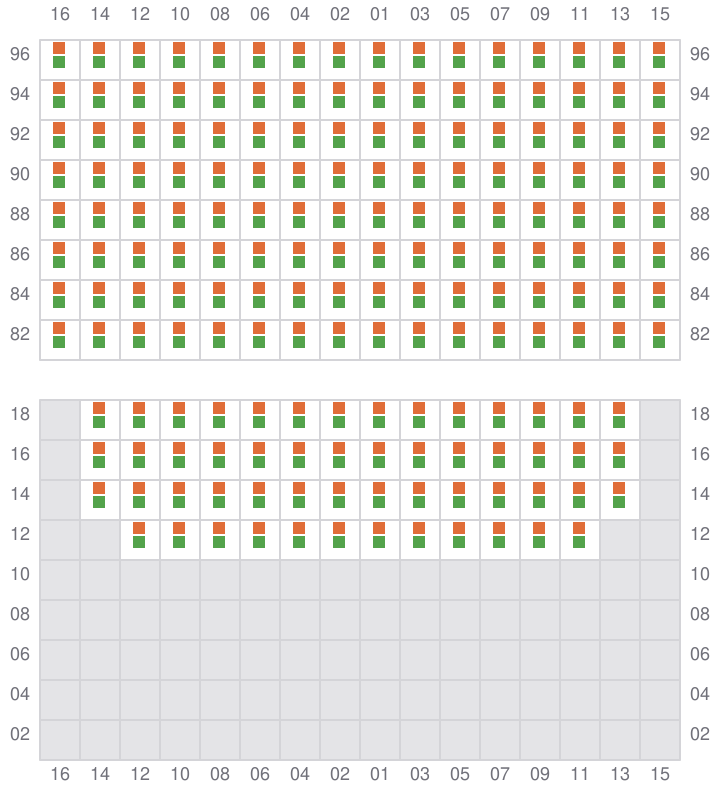

067 (066)
- ←

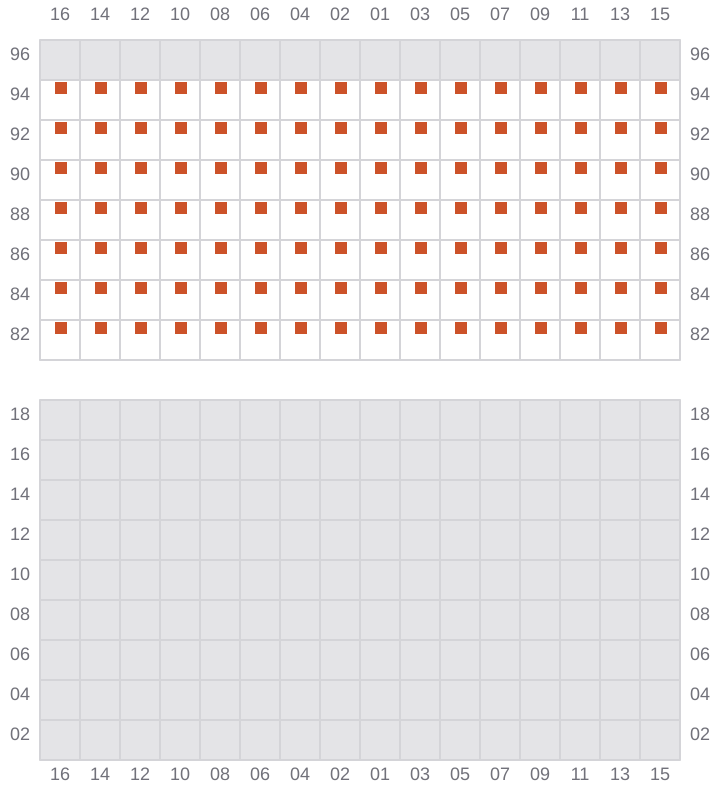

069
- → / ?

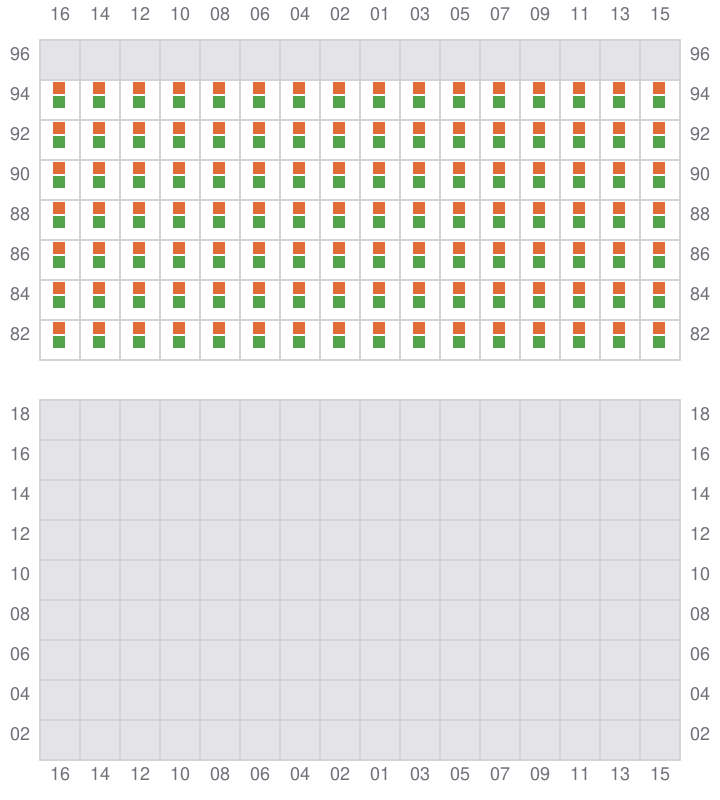

071 (070)
- ← / ?
