HALLEY
9275062 | A8EG9 | 9275062 by ********* Last update: Mon May 20 2024
General Info
Ship Name:HALLEY
IMO Code:9275062
Call Sign:A8EG9
Line Operator:9275062
Class Name for Sister Ships:NEDLLOYD VALENTINA
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):210.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,564
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-sideView.png?v=1716229703863)
Hatch-Covers View
![Deck view of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-deckView.png?v=1716229703863)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b001.png?v=1716229703863)

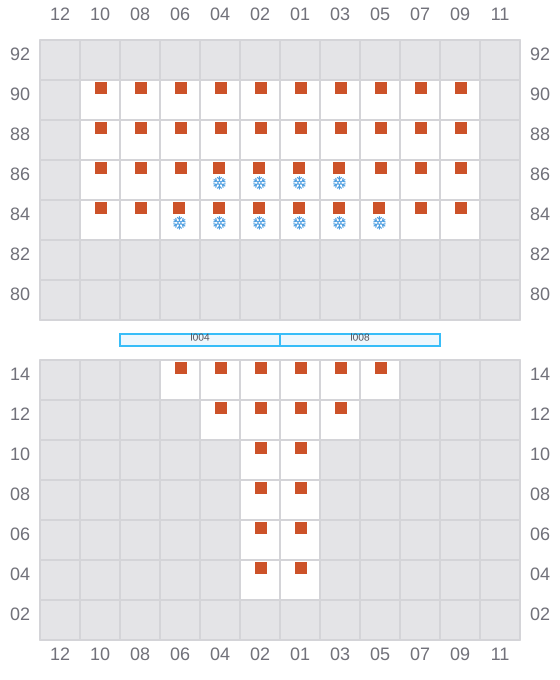

003
- ←
- → / ?
![Bay 003 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b003.png?v=1716229703863)

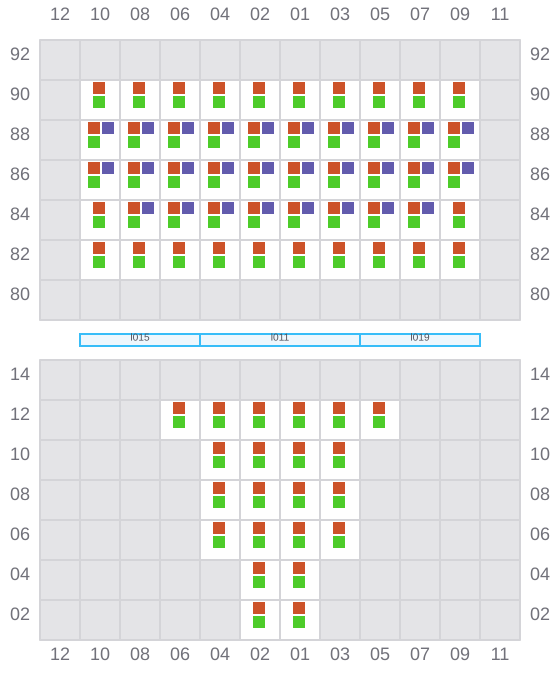

005 (006)
- →
![Bay 005 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b005.png?v=1716229703863)
007
- ←
- →
![Bay 007 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b007.png?v=1716229703863)
009 (010)
- →
![Bay 009 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b009.png?v=1716229703863)

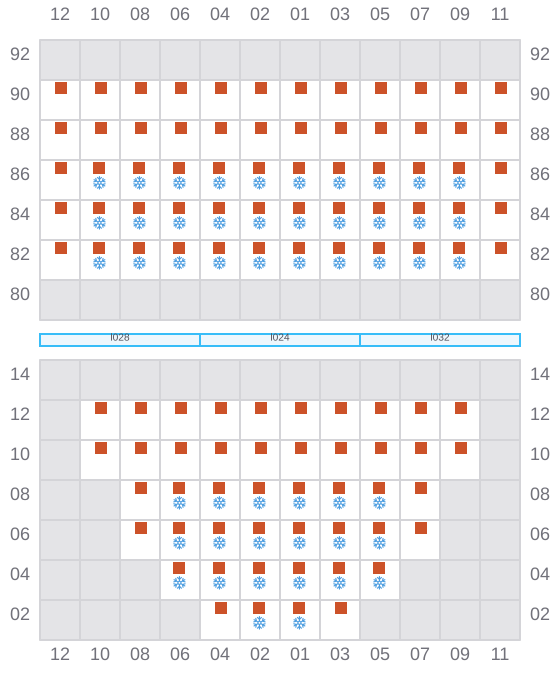

011
- ←
- →
![Bay 011 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b011.png?v=1716229703863)
013 (014)
- →
![Bay 013 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b013.png?v=1716229703863)
015
- ←
- →
![Bay 015 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b015.png?v=1716229703863)

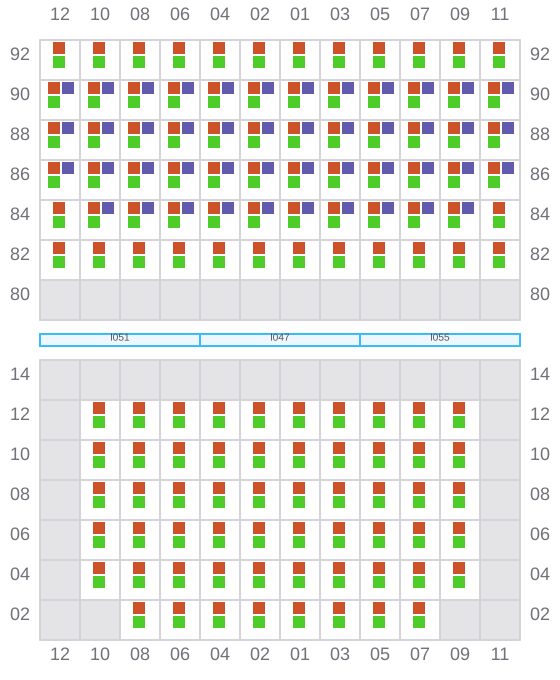

017 (018)
- →
![Bay 017 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b017.png?v=1716229703863)
019
- ←
- →
![Bay 019 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b019.png?v=1716229703863)
021 (022)
- →
- ← / ?
![Bay 021 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b021.png?v=1716229703863)

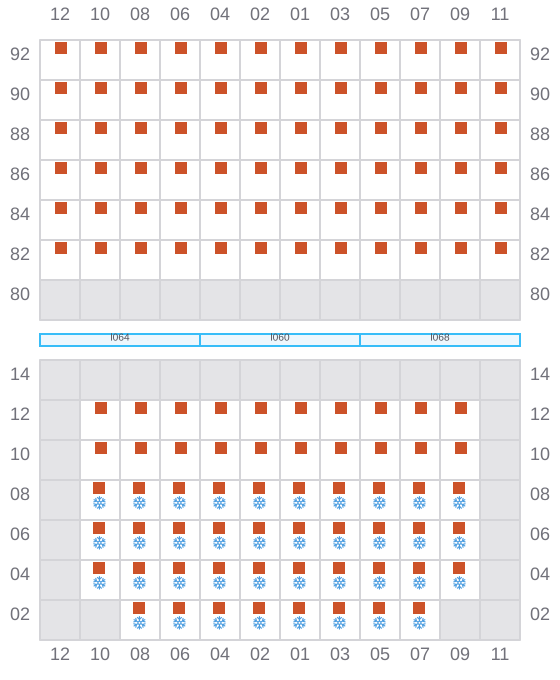

023
- ←
- ? / →
![Bay 023 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b023.png?v=1716229703863)

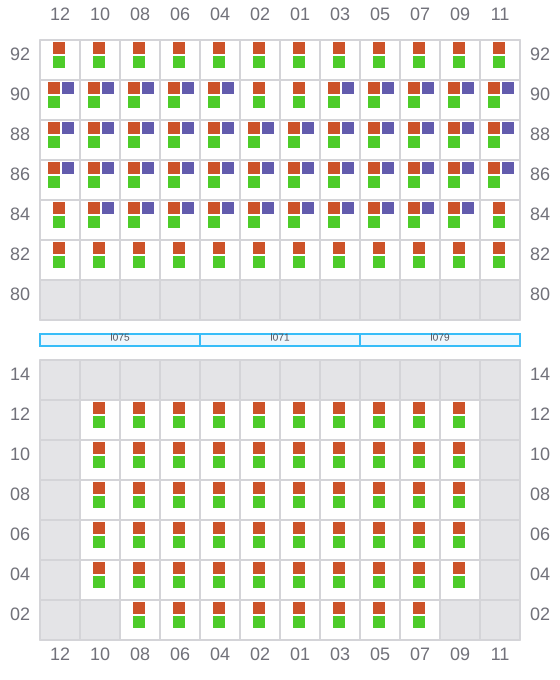

025 (026)
- →
![Bay 025 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b025.png?v=1716229703863)

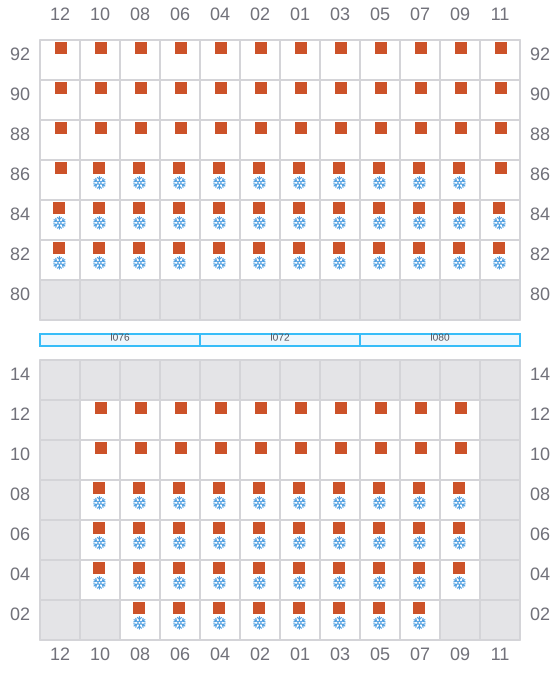

027
- ←
- →
![Bay 027 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b027.png?v=1716229703863)

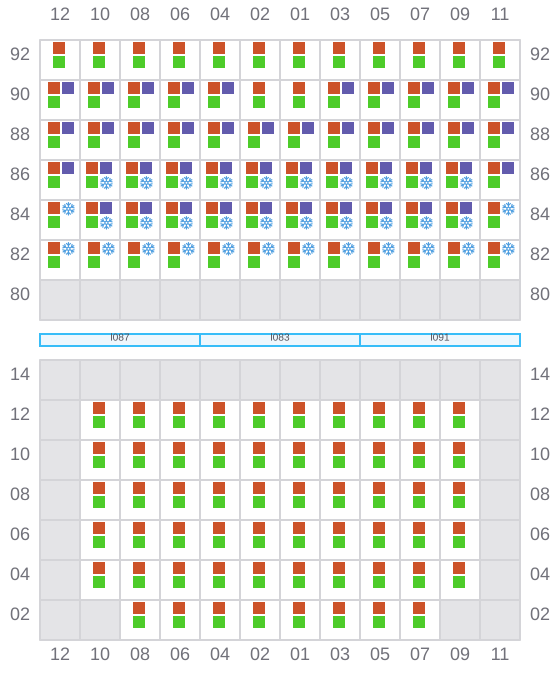

029 (030)
- →
- ← / ?
![Bay 029 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b029.png?v=1716229703863)
031
- ←
- ? / →
![Bay 031 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b031.png?v=1716229703863)

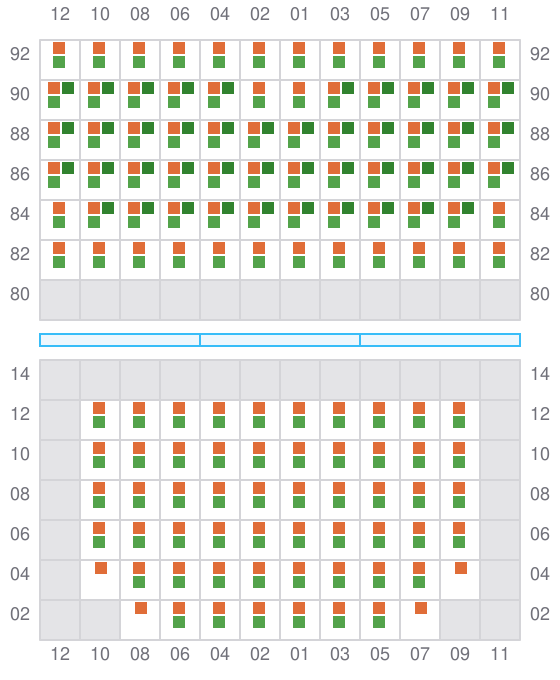

033 (034)
- →
![Bay 033 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b033.png?v=1716229703863)

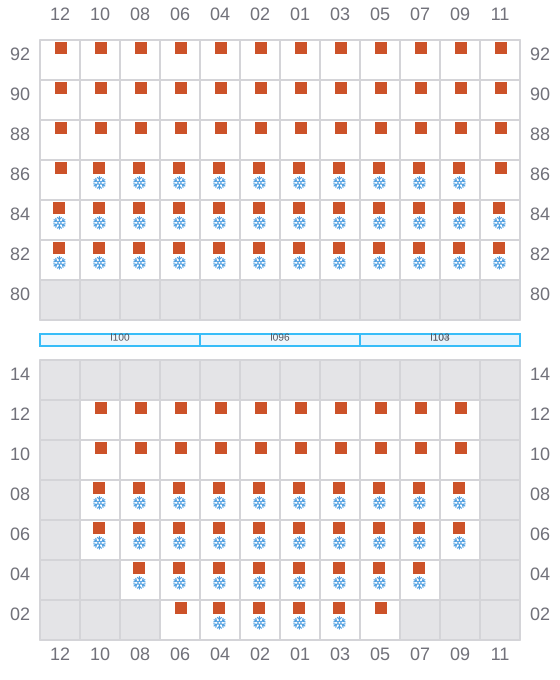

035
- ←
- →
![Bay 035 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b035.png?v=1716229703863)
037 (038)
- →
- ← / ?
![Bay 037 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b037.png?v=1716229703863)
039
- ←
- ? / →
![Bay 039 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b039.png?v=1716229703863)

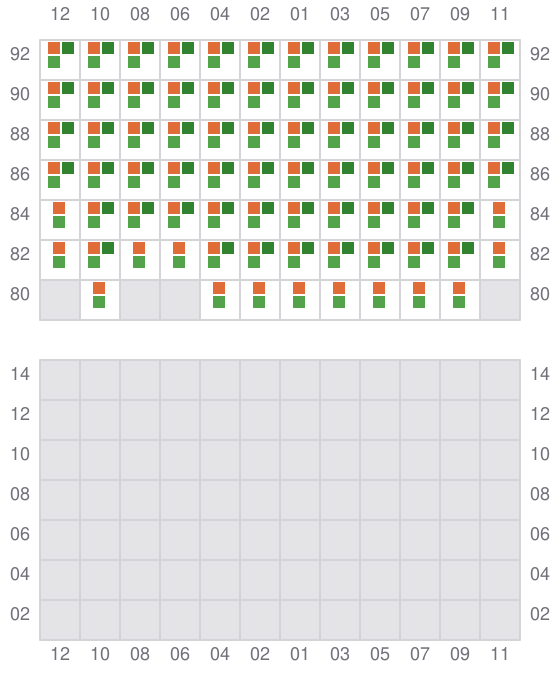

041 (042)
- → / ?
![Bay 041 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b041.png?v=1716229703863)

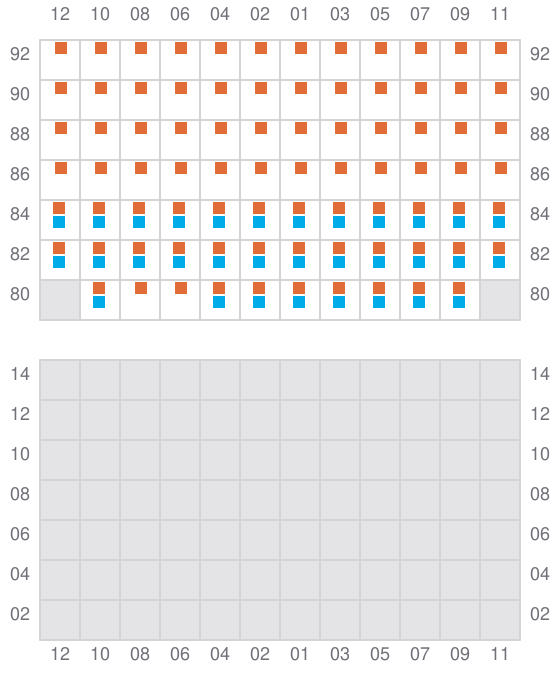

043
- ← / ?
- → / ?
![Bay 043 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b043.png?v=1716229703863)
045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b045.png?v=1716229703863)

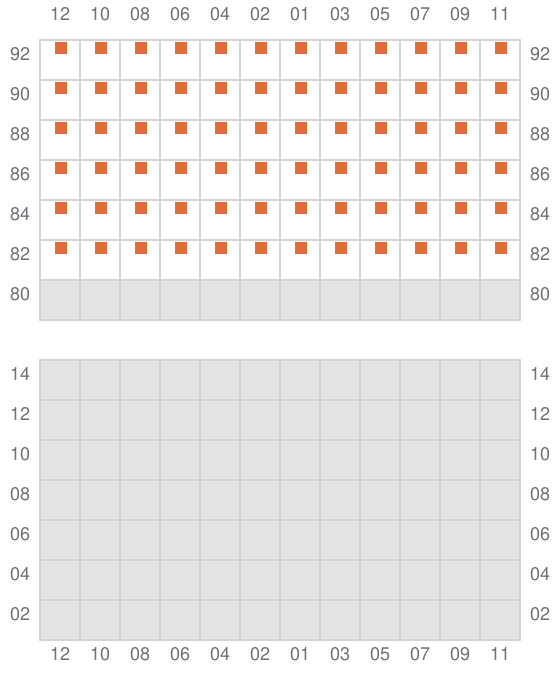

047
- ← / ?
![Bay 047 view and slots of HALLEY](/vessel-images/bfbecddd-0b0c-4fa8-9731-ea505be43e61-b047.png?v=1716229703863)
