HALSTED
9337262 | A8LN3 | 9337262 by ********* Last update: Tue Jun 11 2024
General Info
Ship Name:HALSTED
IMO Code:9337262
Call Sign:A8LN3
Line Operator:9337262
Class Name for Sister Ships:FRISIAAMSTERDAM
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:051
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

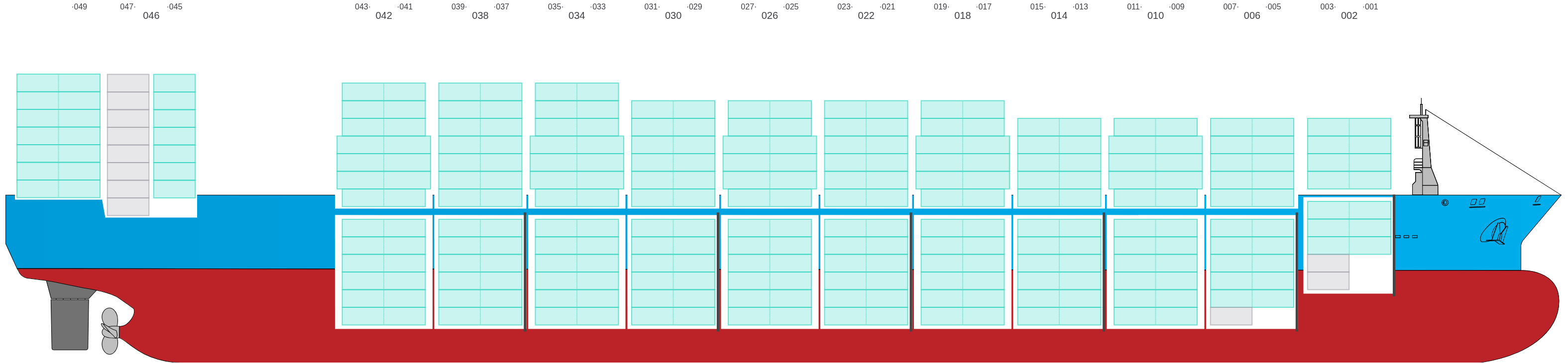

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

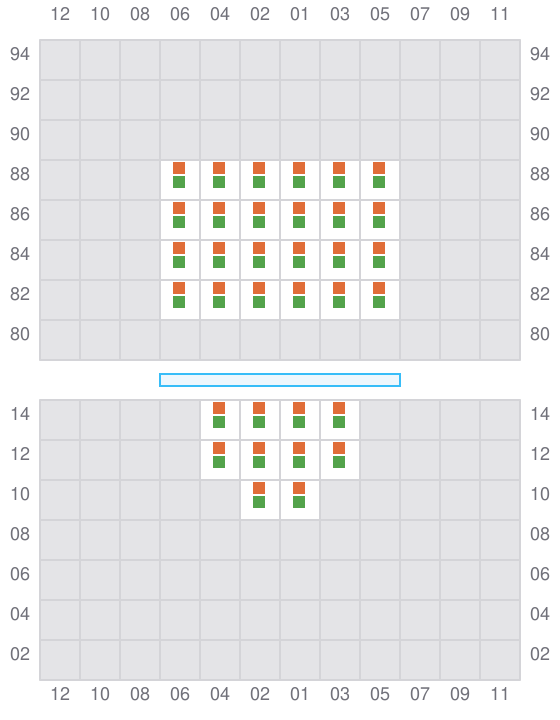

001 (002)
- →

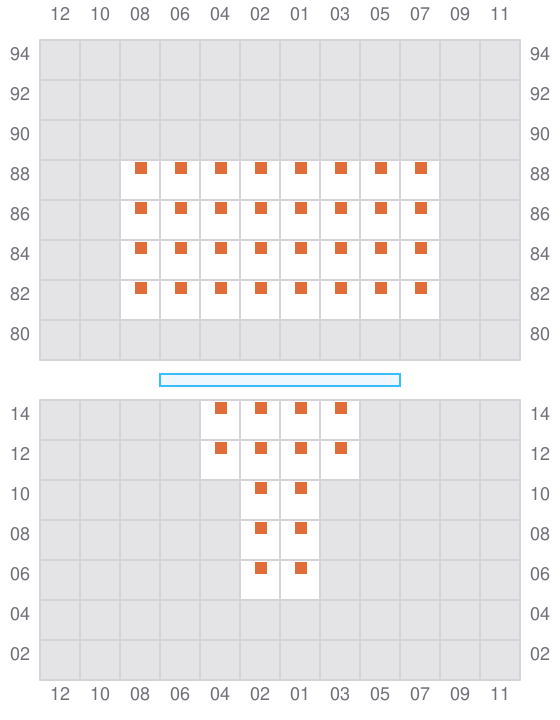

003
- ←

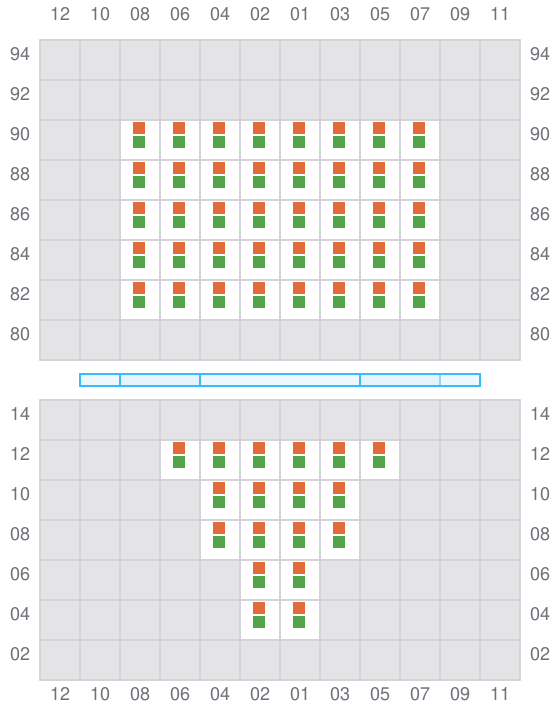

005 (006)
- →

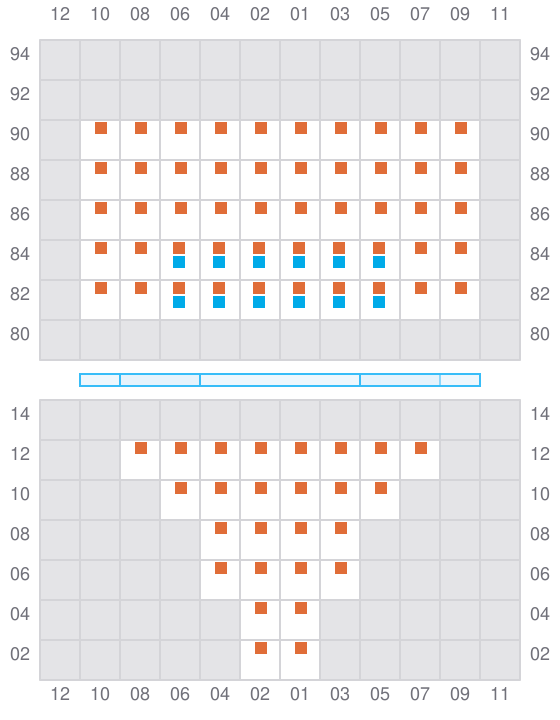

007
- ←
- → / ?

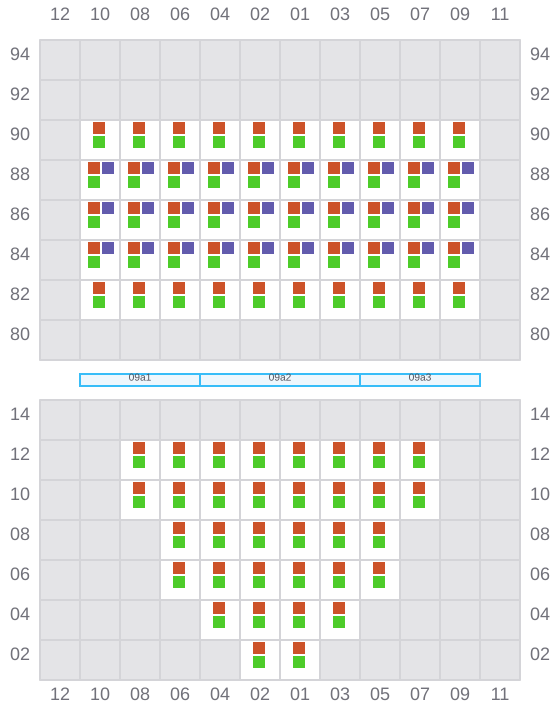

009 (010)
- →
- ← / ?

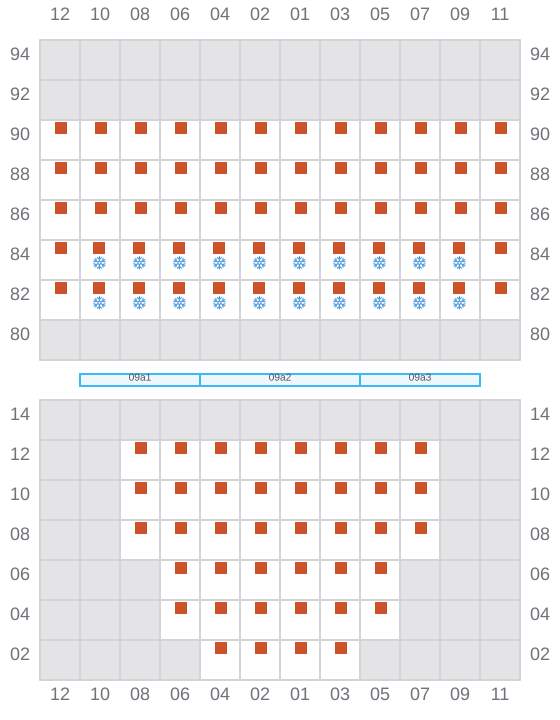

011
- ←
- → / ?

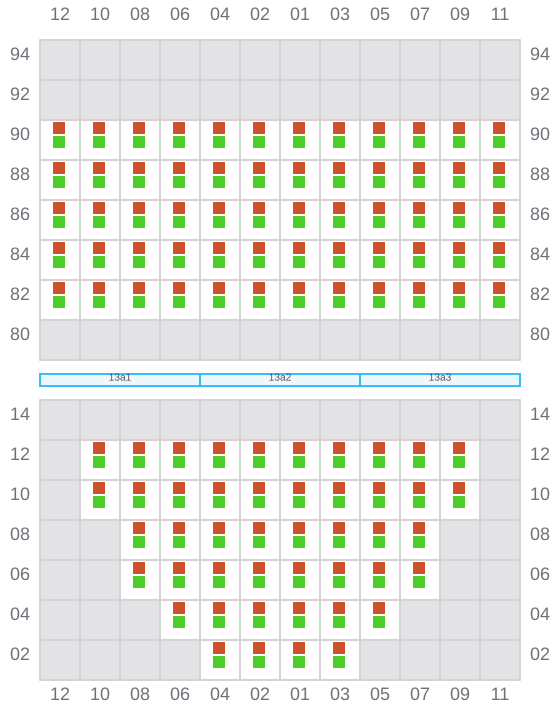

013 (014)
- →
- → / ?
015
- ←
- →

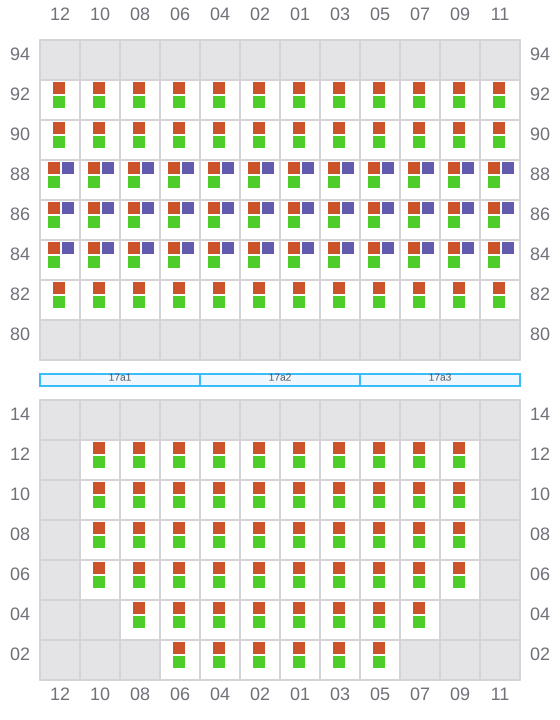

017 (018)
- →

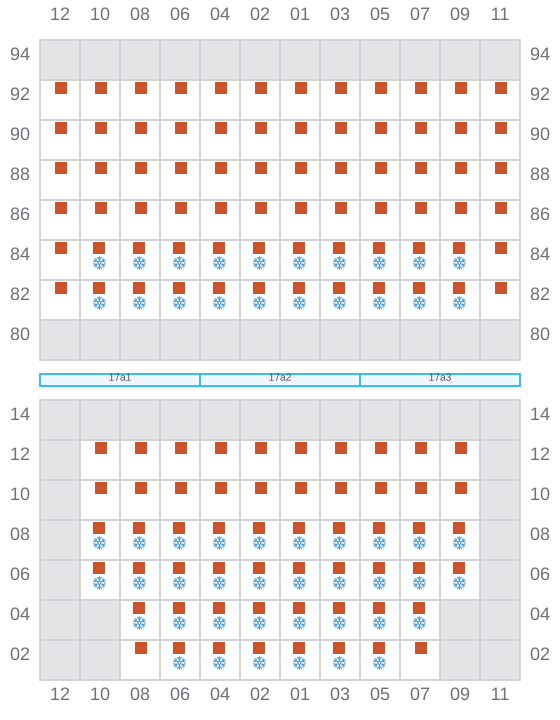

019
- ←
- →

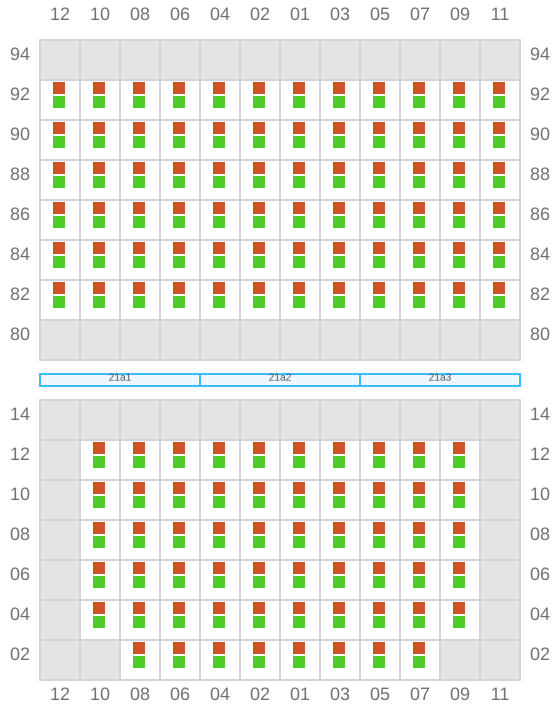

021 (022)
- →

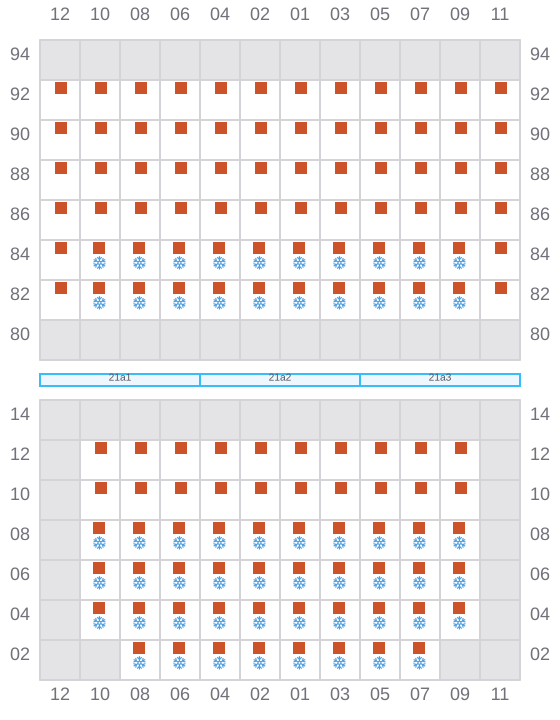

023
- ←
- →

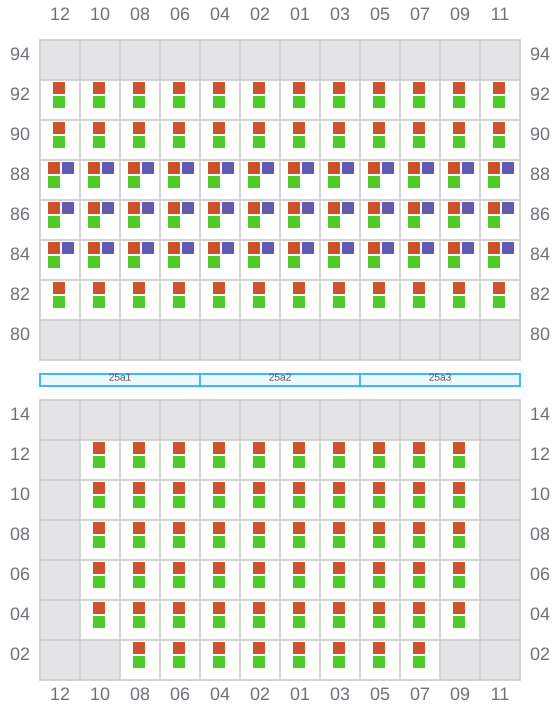

025 (026)
- →
027
- ←
- →
029 (030)
- →
031
- ←
- →
033 (034)
- →
035
- ←
- →
037 (038)
- →

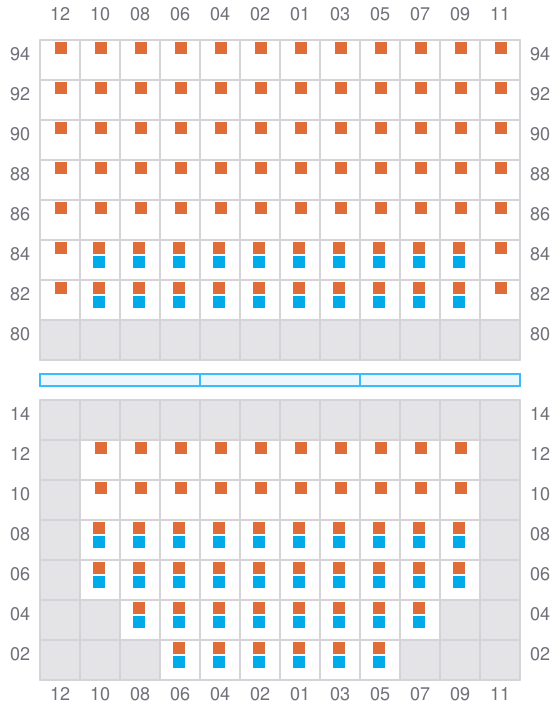

039
- ←
- →

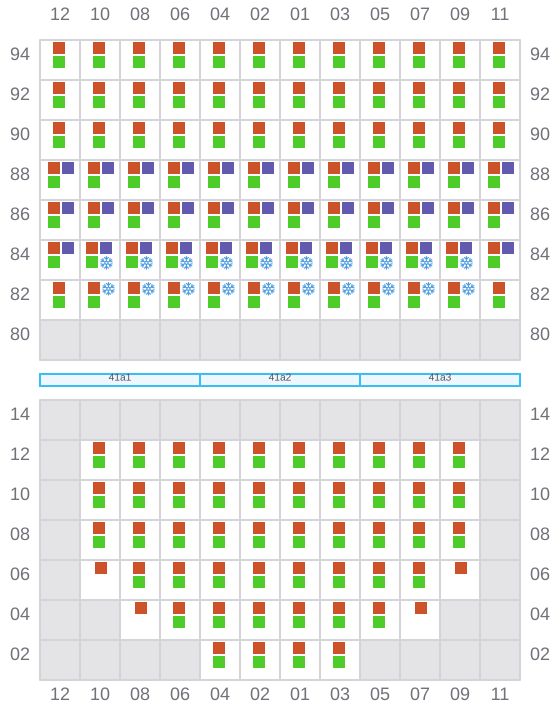

041 (042)
- →
- ← / ?

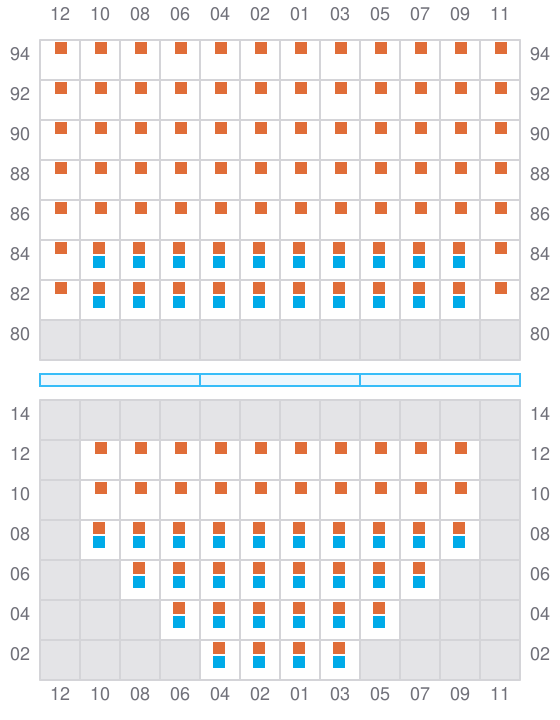

043
- ←
- →

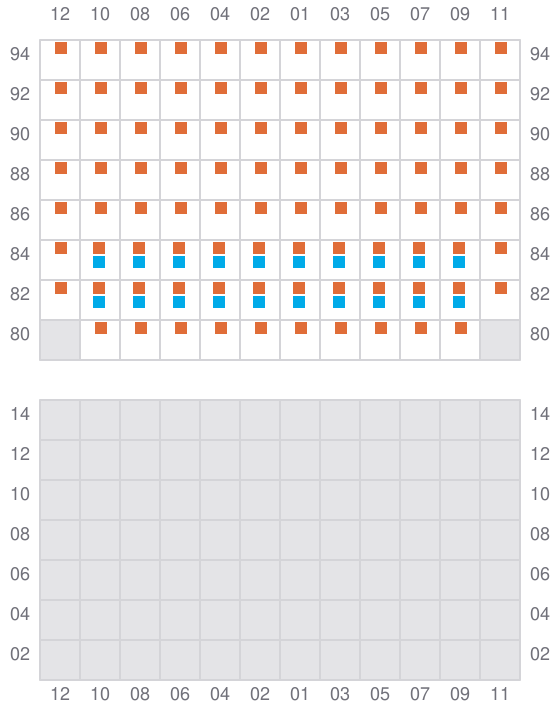

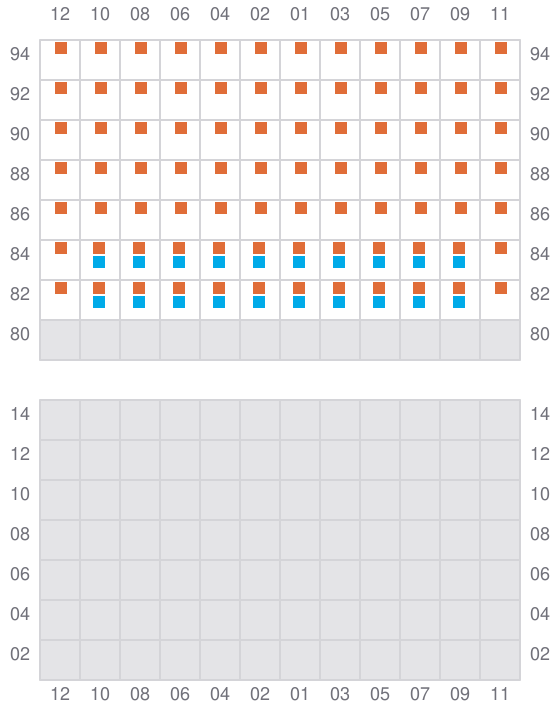

045
- →
- ← / ?
047
- ←
- → / ?

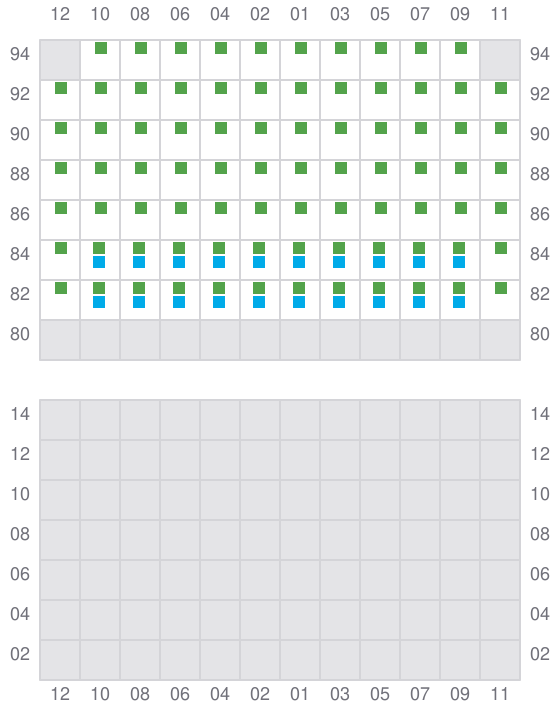

049 (050)
- →
- ← / ?
051
- ←
