HANSA ASIA
9459400 | V7ZY6 | MSC by ************************** Last update: Fri Jun 16 2023
General Info
Ship Name:HANSA ASIA
IMO Code:9459400
Call Sign:V7ZY6
Line Operator:MSC
Class Name for Sister Ships:HAA
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:053
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,611
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

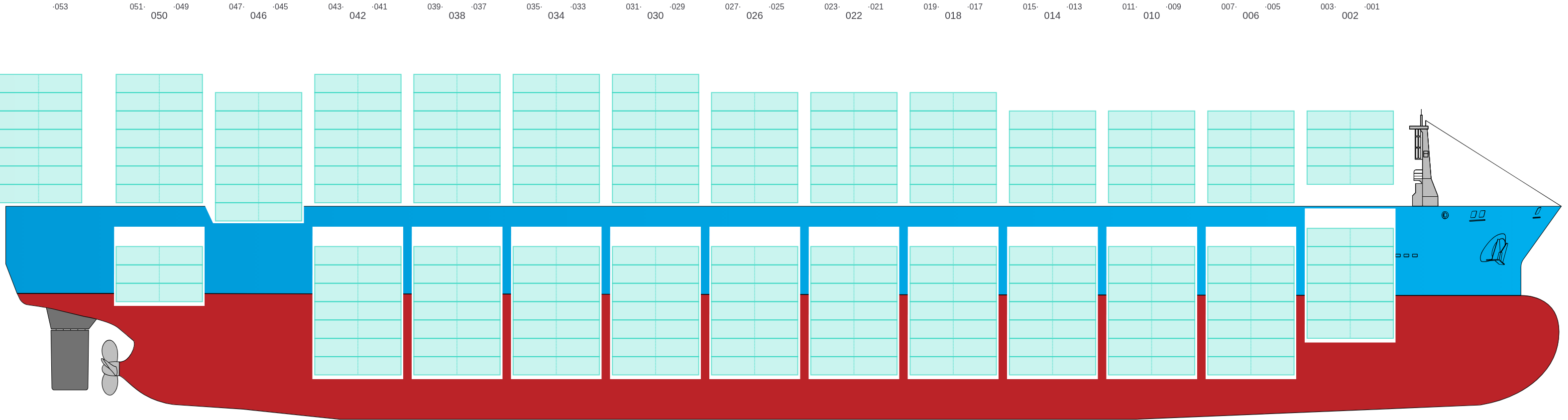

Side View
![Side view of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-sideView.png?v=1686939299467)
Hatch-Covers View
![Deck view of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-deckView.png?v=1686939299467)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

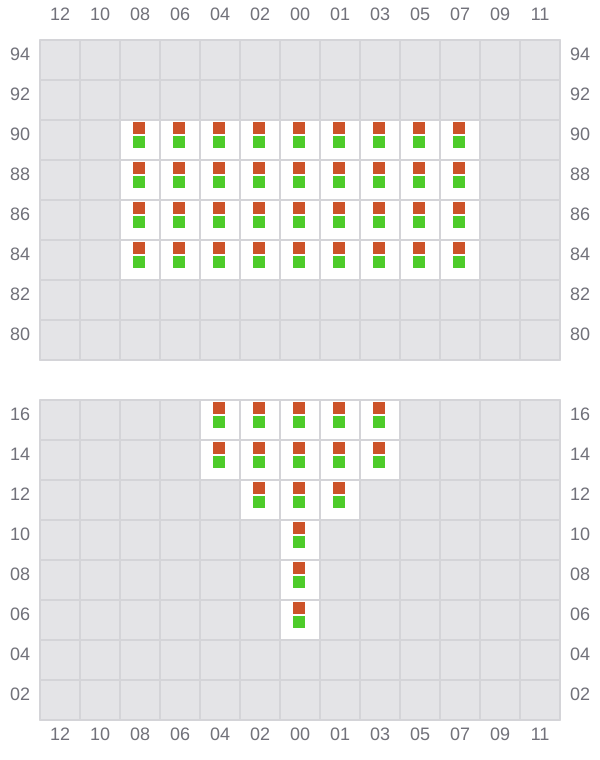

001 (002)
- →
![Bay 001 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b001.png?v=1686939299467)

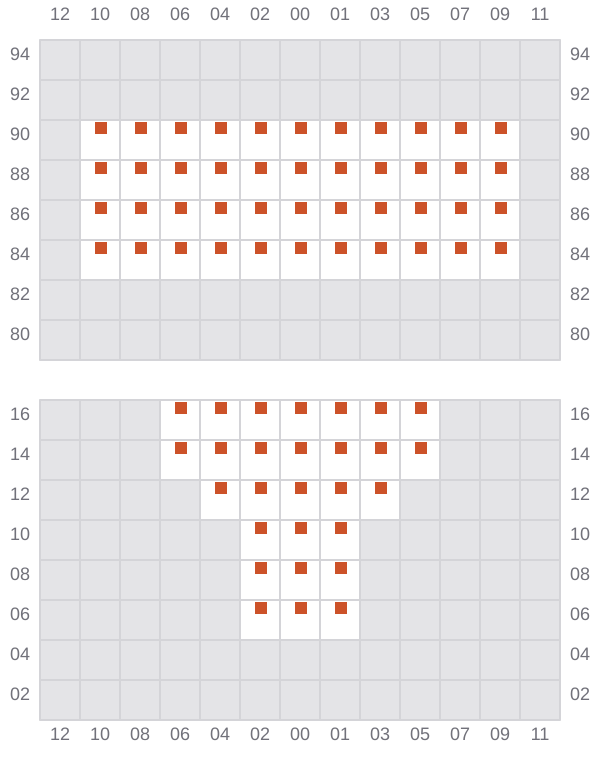

003
- ←
![Bay 003 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b003.png?v=1686939299467)

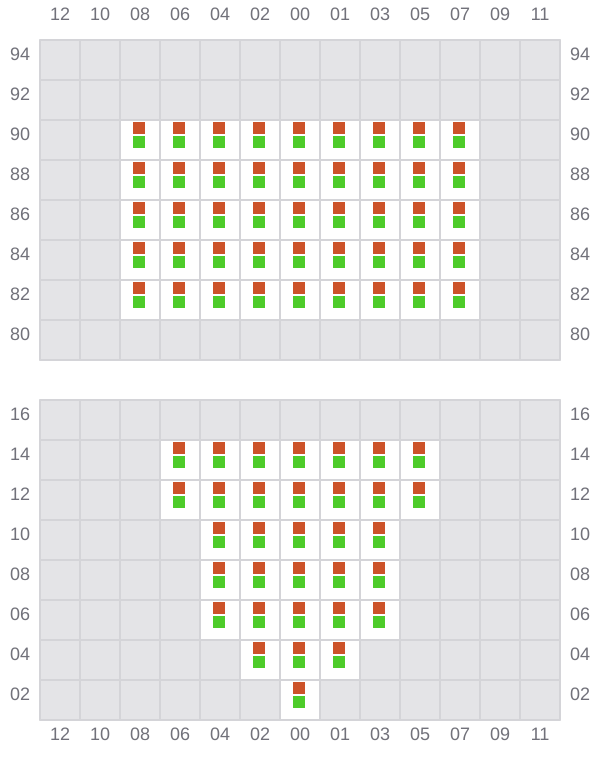

005 (006)
- →
![Bay 005 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b005.png?v=1686939299467)

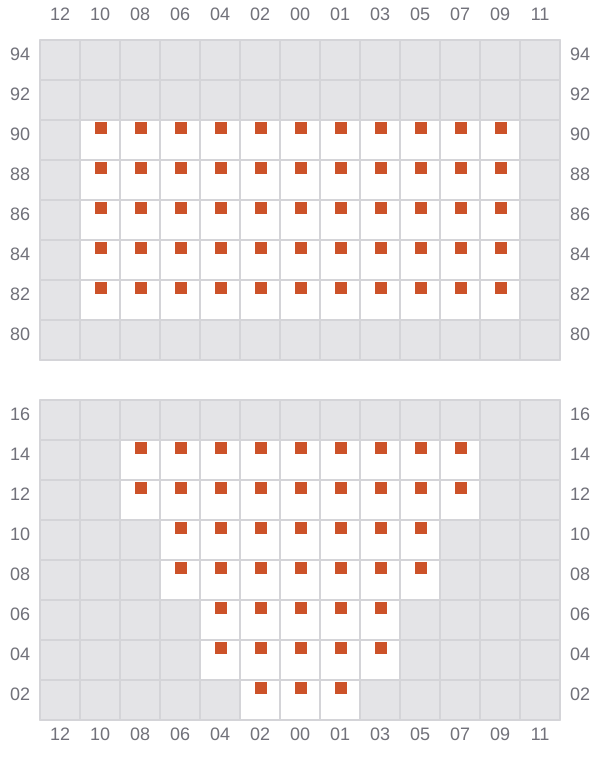

007
- ←
![Bay 007 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b007.png?v=1686939299467)
009 (010)
- →
![Bay 009 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b009.png?v=1686939299467)
011
- ←
![Bay 011 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b011.png?v=1686939299467)

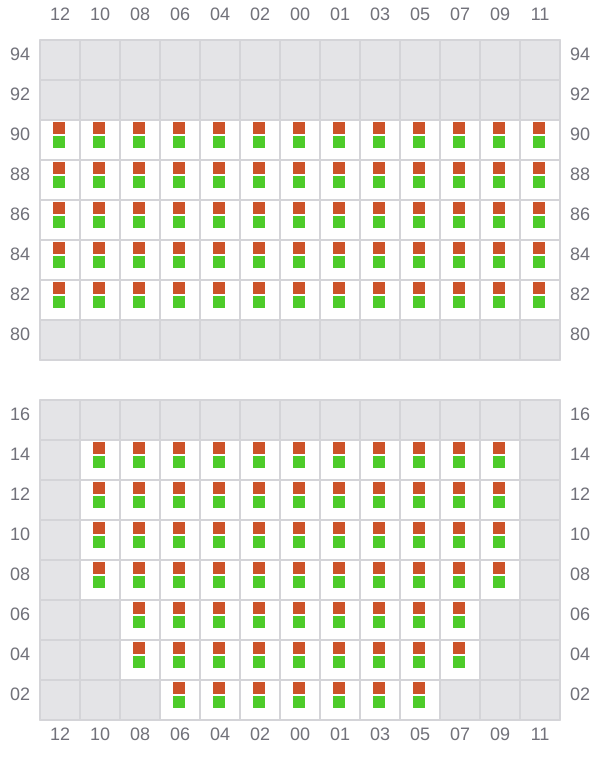

013 (014)
- →
![Bay 013 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b013.png?v=1686939299467)
015
- ←
![Bay 015 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b015.png?v=1686939299467)

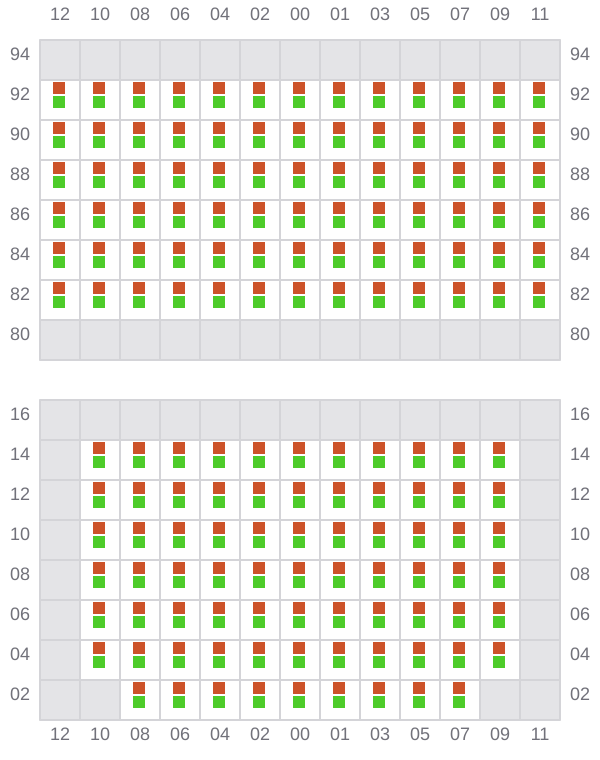

017 (018)
- →
![Bay 017 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b017.png?v=1686939299467)

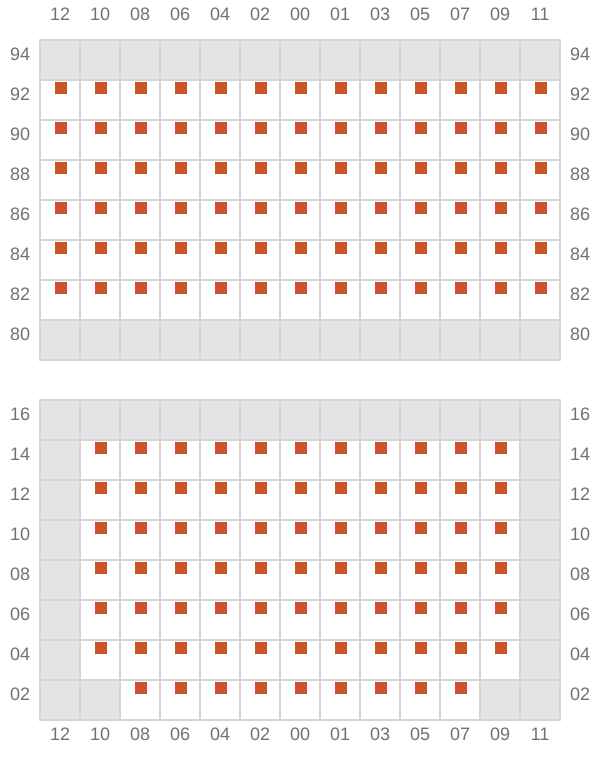

019
- ←
![Bay 019 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b019.png?v=1686939299467)
021 (022)
- →
![Bay 021 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b021.png?v=1686939299467)
023
- ←
![Bay 023 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b023.png?v=1686939299467)
025 (026)
- →
![Bay 025 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b025.png?v=1686939299467)
027
- ←
![Bay 027 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b027.png?v=1686939299467)
029 (030)
- →
![Bay 029 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b029.png?v=1686939299467)

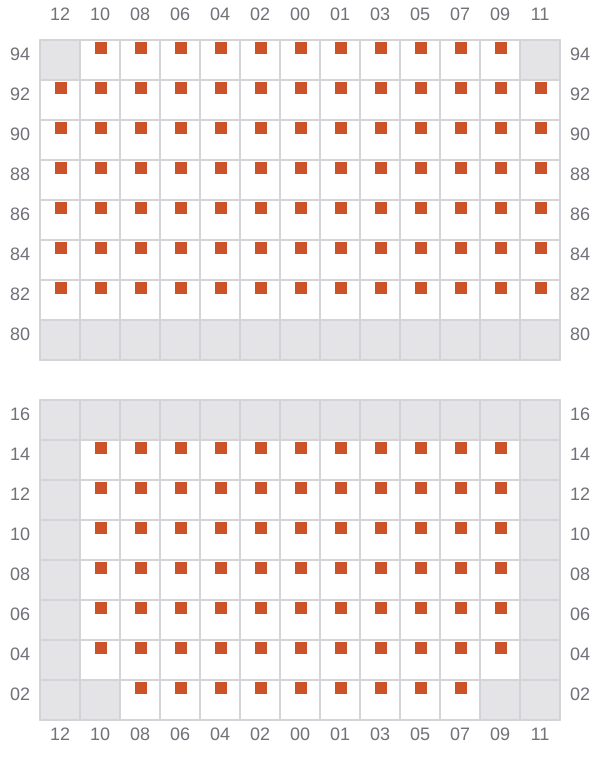

031
- ←
![Bay 031 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b031.png?v=1686939299467)
033 (034)
- →
![Bay 033 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b033.png?v=1686939299467)
035
- ←
![Bay 035 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b035.png?v=1686939299467)

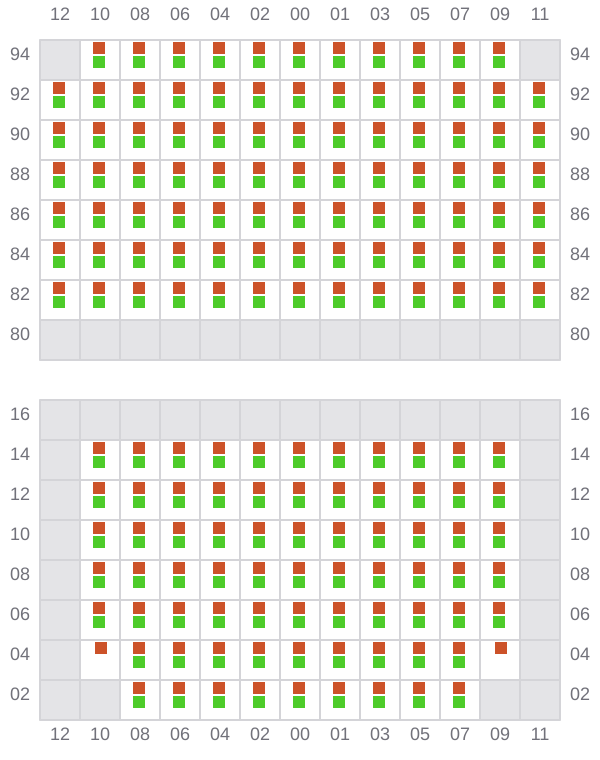

037 (038)
- →
![Bay 037 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b037.png?v=1686939299467)

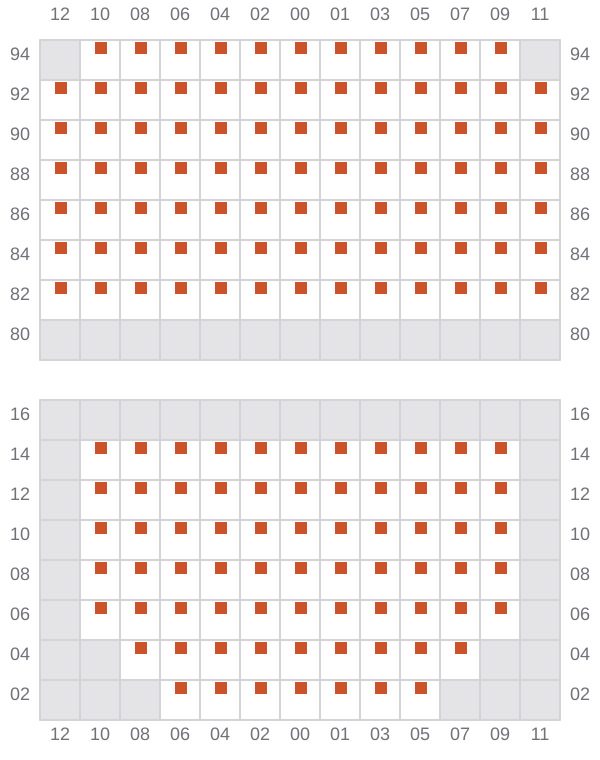

039
- ←
![Bay 039 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b039.png?v=1686939299467)

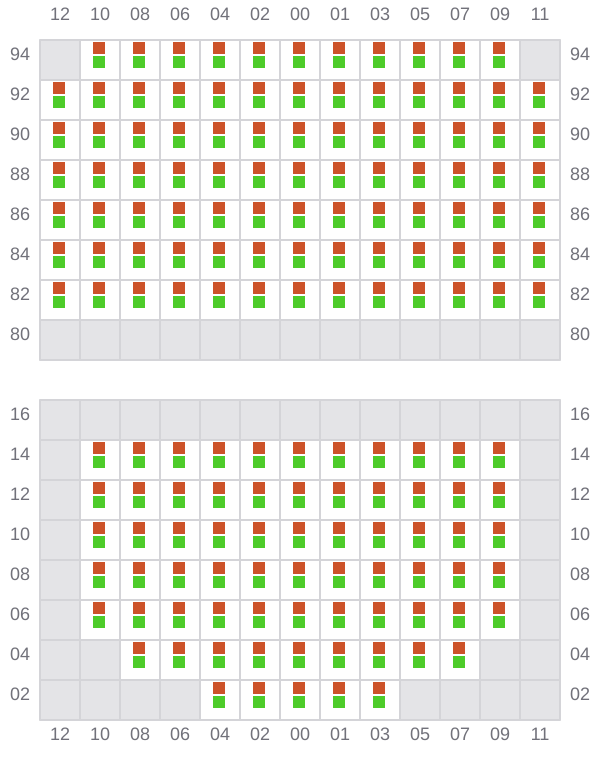

041 (042)
- →
![Bay 041 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b041.png?v=1686939299467)

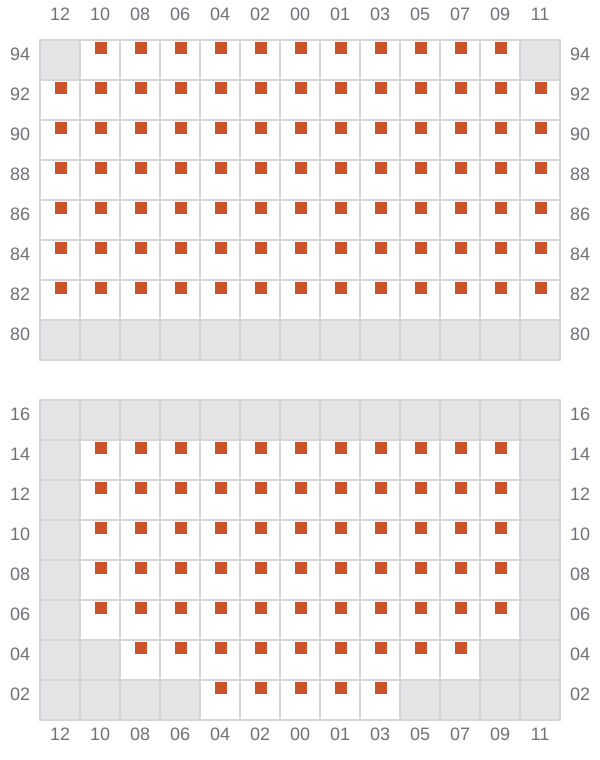

043
- ←
![Bay 043 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b043.png?v=1686939299467)

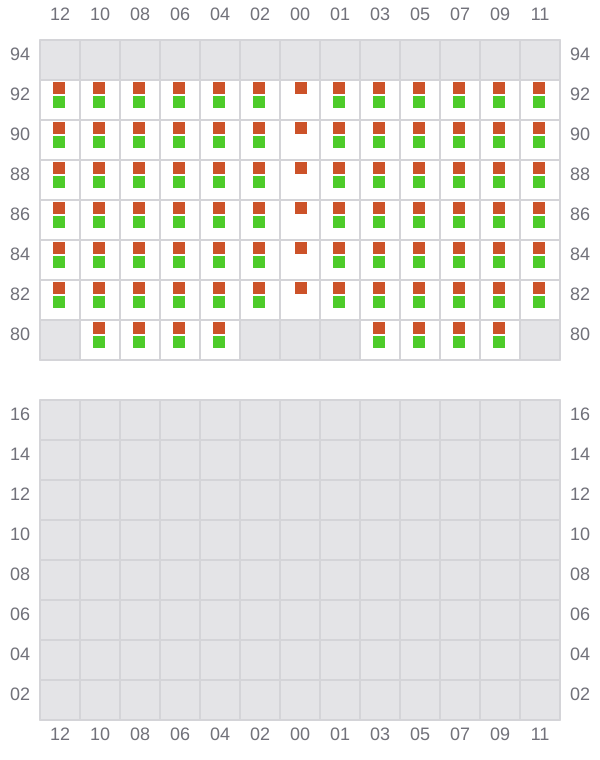

045 (046)
- → / ?
![Bay 045 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b045.png?v=1686939299467)
047
- ← / ?
![Bay 047 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b047.png?v=1686939299467)

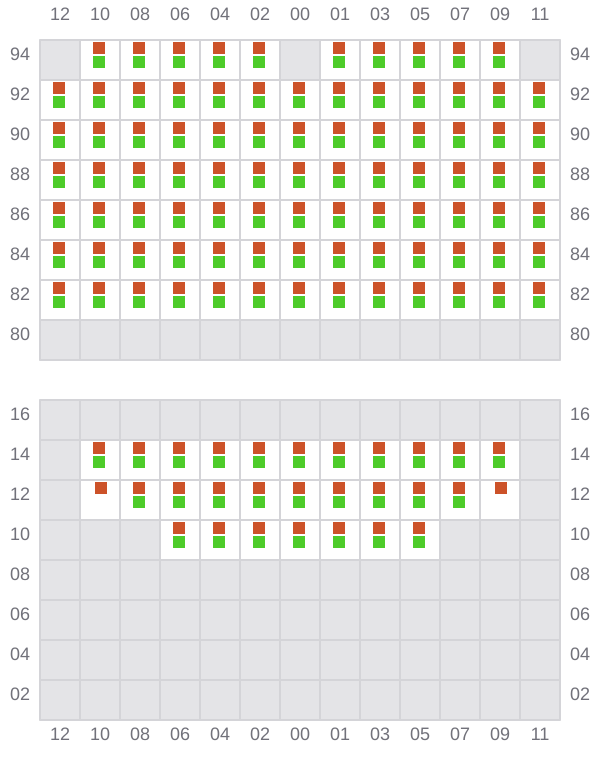

049 (050)
- →
![Bay 049 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b049.png?v=1686939299467)
051
- ←
![Bay 051 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b051.png?v=1686939299467)

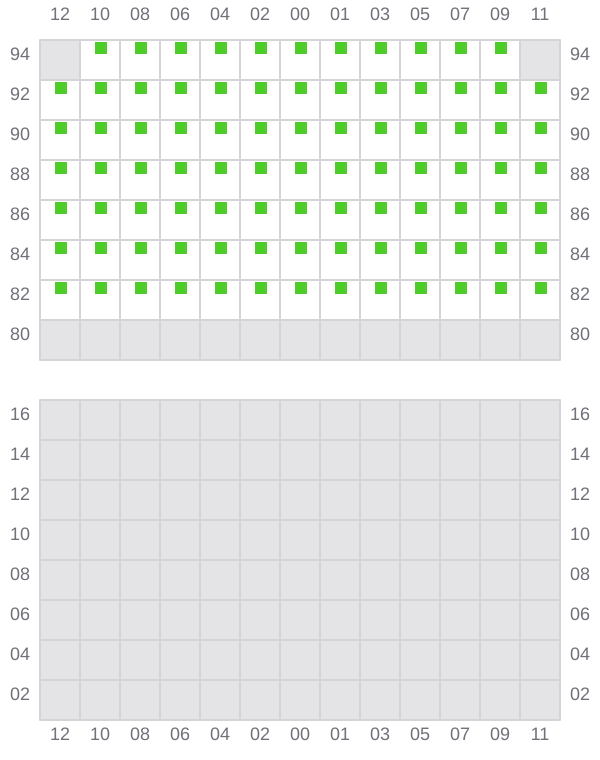

053 (054)
- → / ?
![Bay 053 view and slots of HANSA ASIA](/vessel-images/e2885d56-5505-468a-b359-4998704ca1e1-b053.png?v=1686939299467)
