HANSA SIEGBURG
9401661 | CQ2181 | 9401661 by ********* Last update: Thu Jun 20 2024

General Info

Ship Name:HANSA SIEGBURG

IMO Code:9401661

Call Sign:CQ2181

Line Operator:9401661

Class Name for Sister Ships:MCC

Year Built:2008

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:035

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:1,736

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

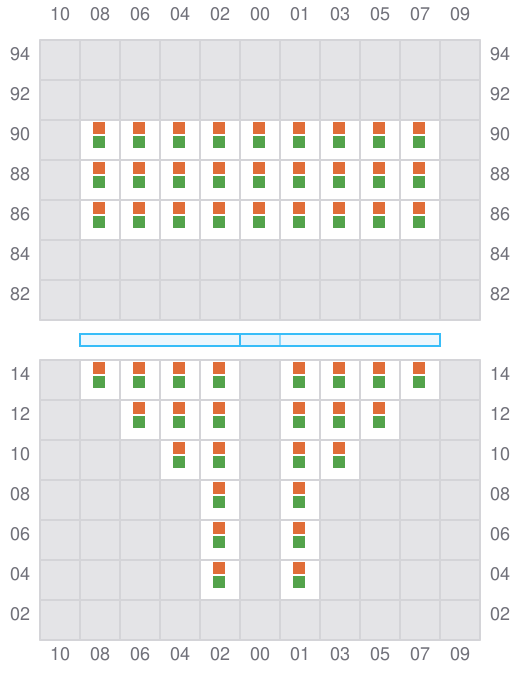

Bay 001 view and slots of HANSA SIEGBURG

003

←
^→ / _?

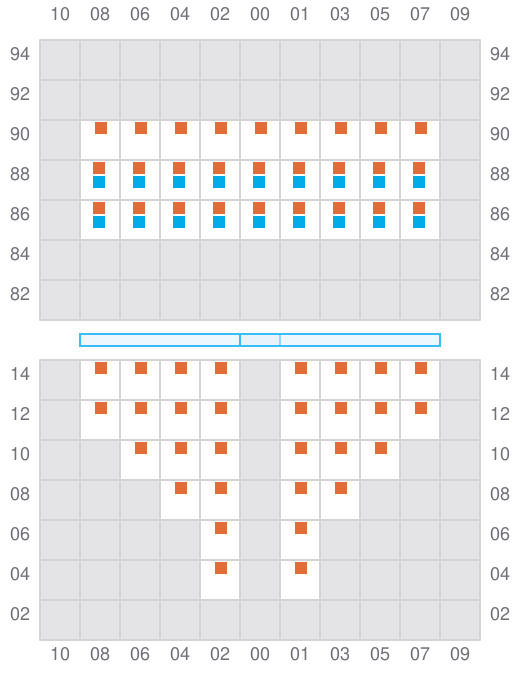

Bay 003 view and slots of HANSA SIEGBURG

005 (006)

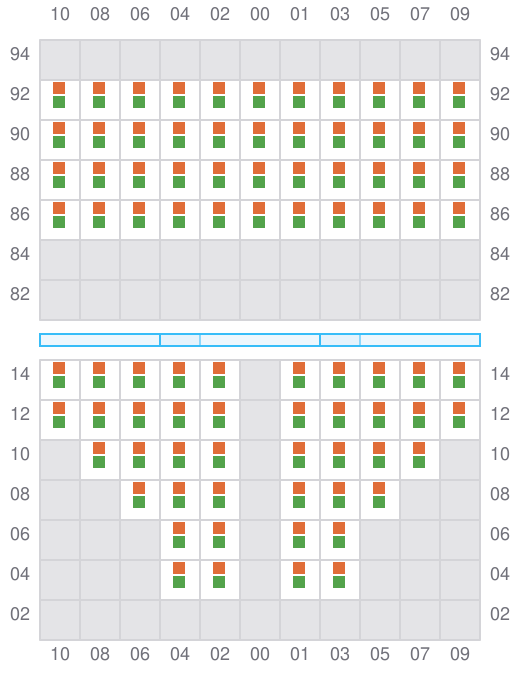

Bay 005 view and slots of HANSA SIEGBURG

007

←
^→ / _?

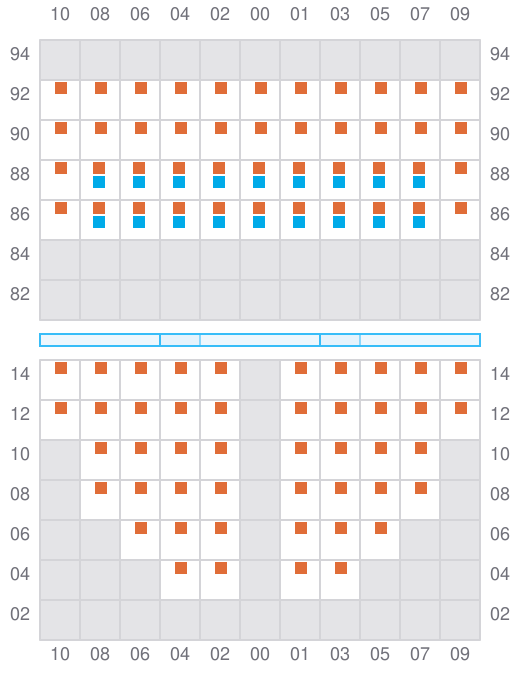

Bay 007 view and slots of HANSA SIEGBURG

009 (010)

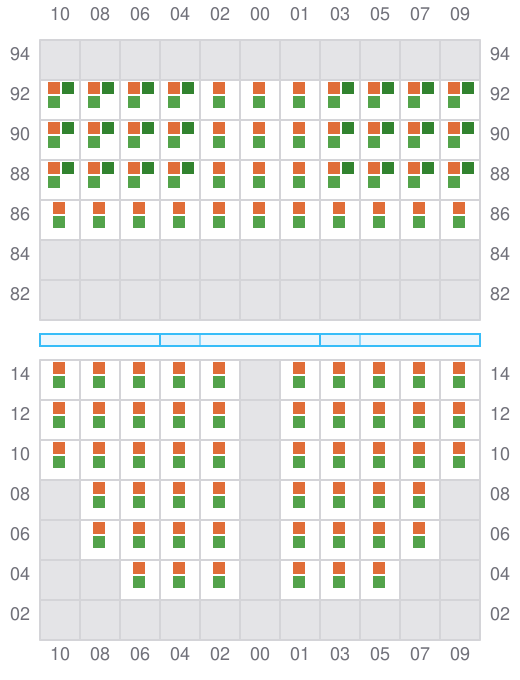

Bay 009 view and slots of HANSA SIEGBURG

011

←
^→ / _?

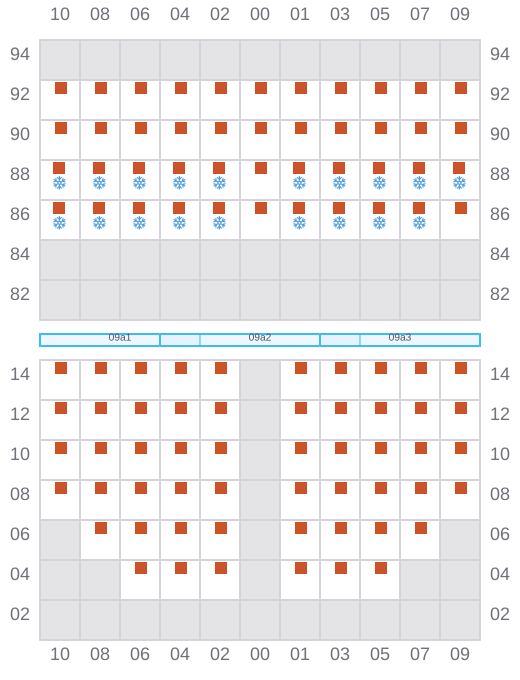

Bay 011 view and slots of HANSA SIEGBURG

013 (014)

Bay 013 view and slots of HANSA SIEGBURG

015

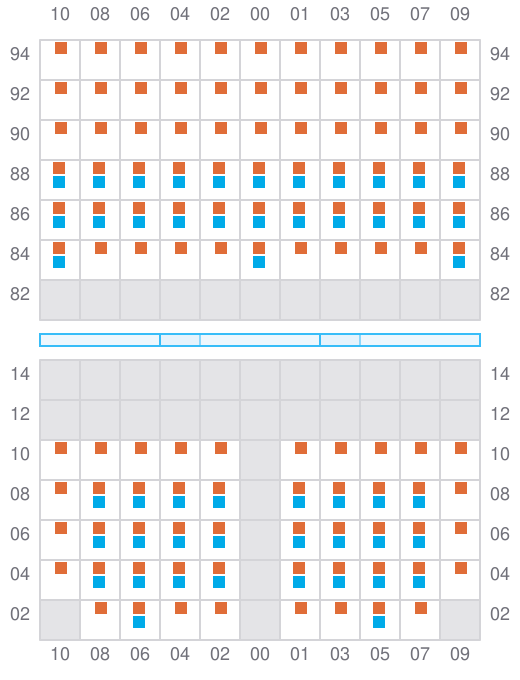

Bay 015 view and slots of HANSA SIEGBURG

017 (018)

→
^? / _←

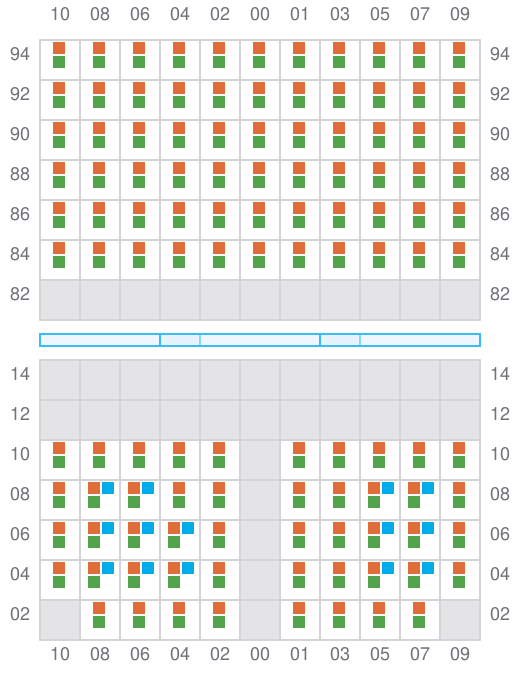

Bay 017 view and slots of HANSA SIEGBURG

019

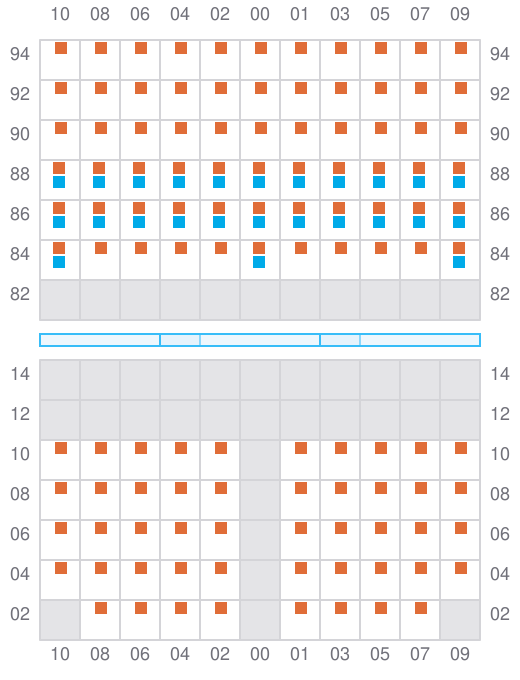

Bay 019 view and slots of HANSA SIEGBURG

021 (022)

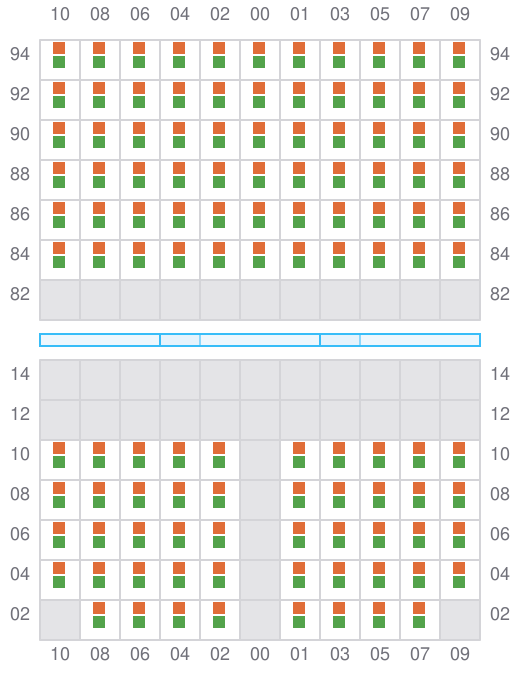

Bay 021 view and slots of HANSA SIEGBURG

023

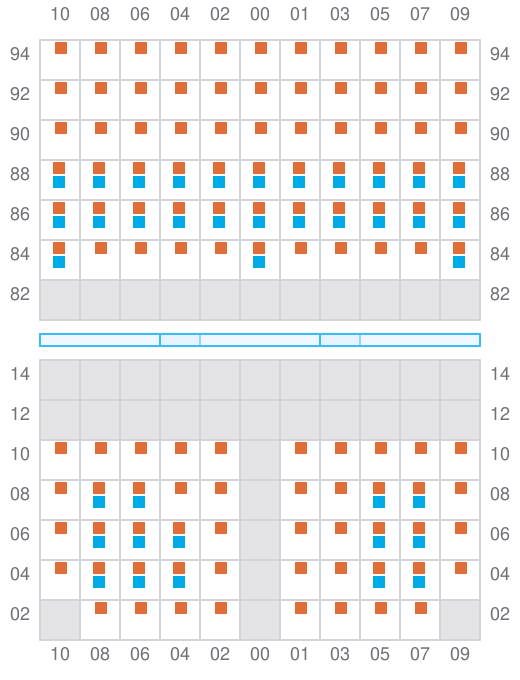

Bay 023 view and slots of HANSA SIEGBURG

025 (026)

→
^? / _←

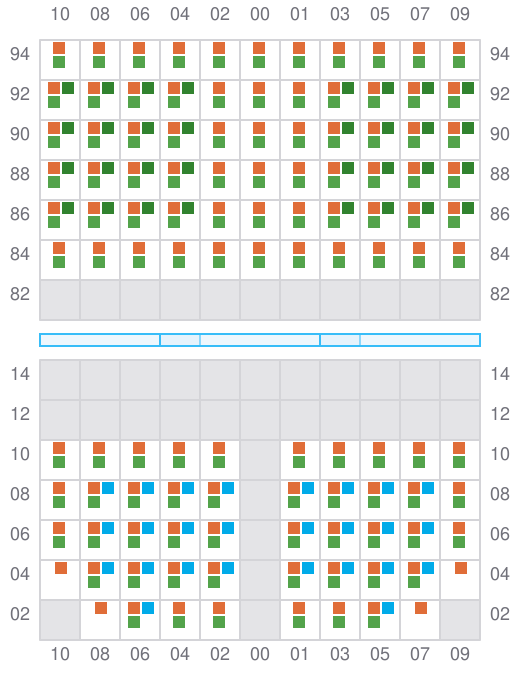

Bay 025 view and slots of HANSA SIEGBURG

027

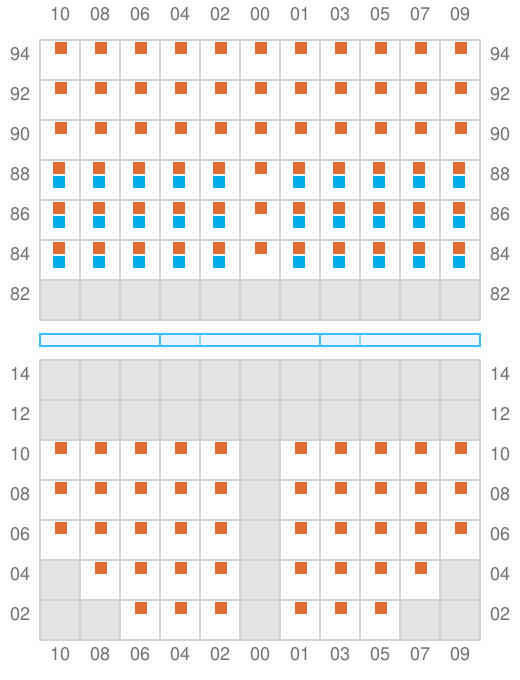

Bay 027 view and slots of HANSA SIEGBURG

029 (030)

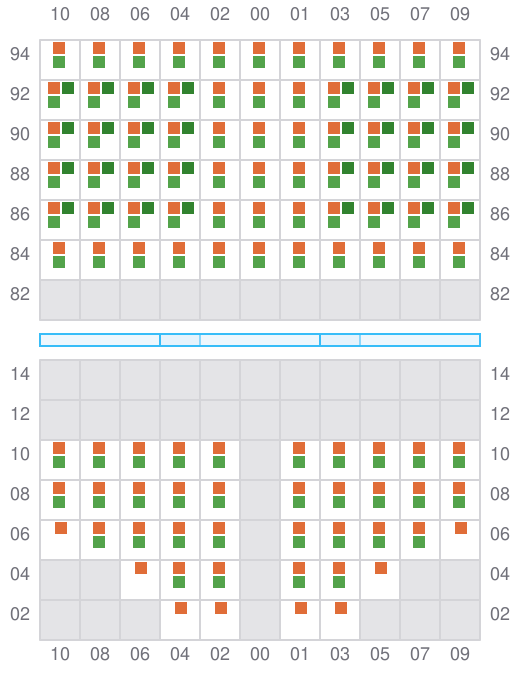

Bay 029 view and slots of HANSA SIEGBURG

031

←
^→ / _?

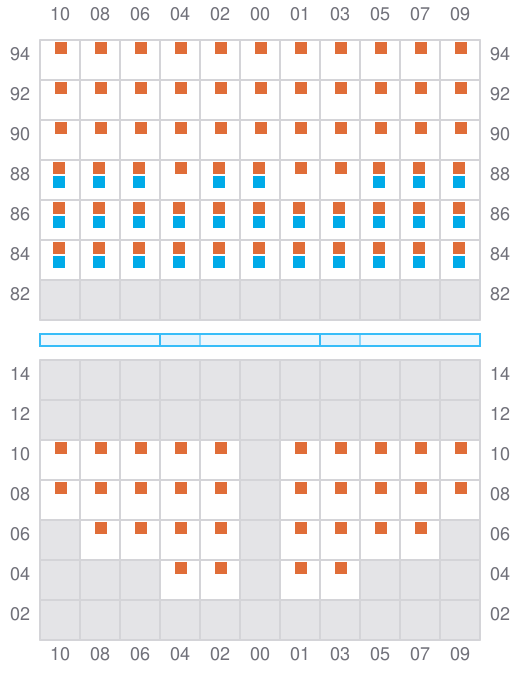

Bay 031 view and slots of HANSA SIEGBURG

033 (034)

^→ / _?

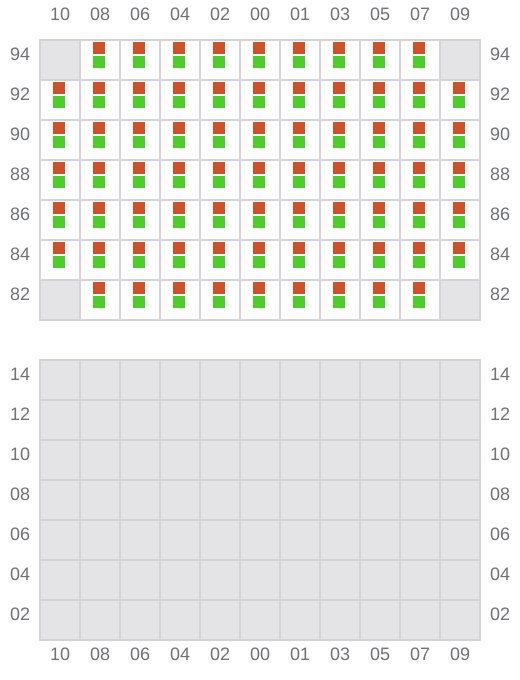

Bay 033 view and slots of HANSA SIEGBURG

035

^← / _?
^→ / _?

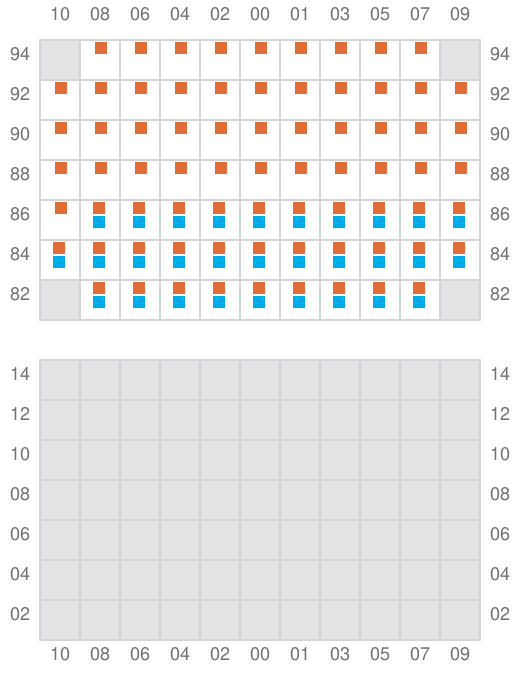

Bay 035 view and slots of HANSA SIEGBURG
