HAWK I
9960564 | 5LPV7 | NAVIOS CONTAINERS MANAGEMENT by ********** Last update: Wed Mar 25 2026
General Info
Ship Name:HAWK I
IMO Code:9960564
Call Sign:5LPV7
Line Operator:NAVIOS CONTAINERS MANAGEMENT
Class Name for Sister Ships:
Year Built:2024
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):233.00
LOA (Length Overall):238.00
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:055
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:4,415
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

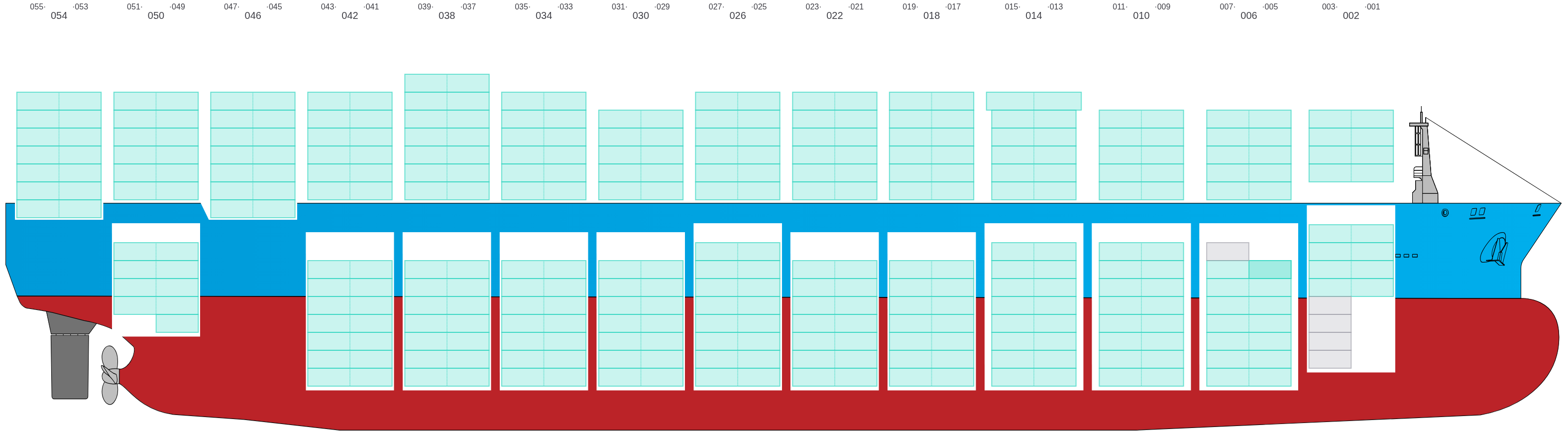

Side View

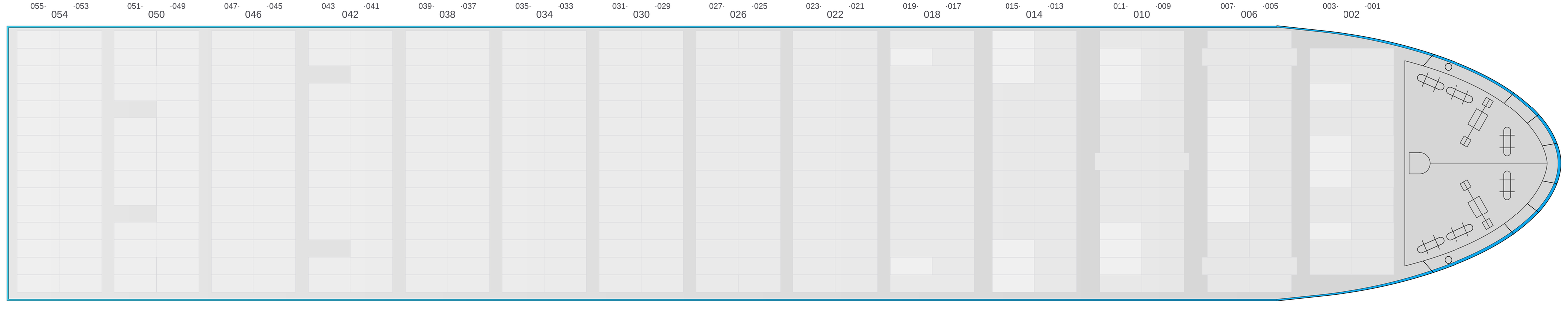

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

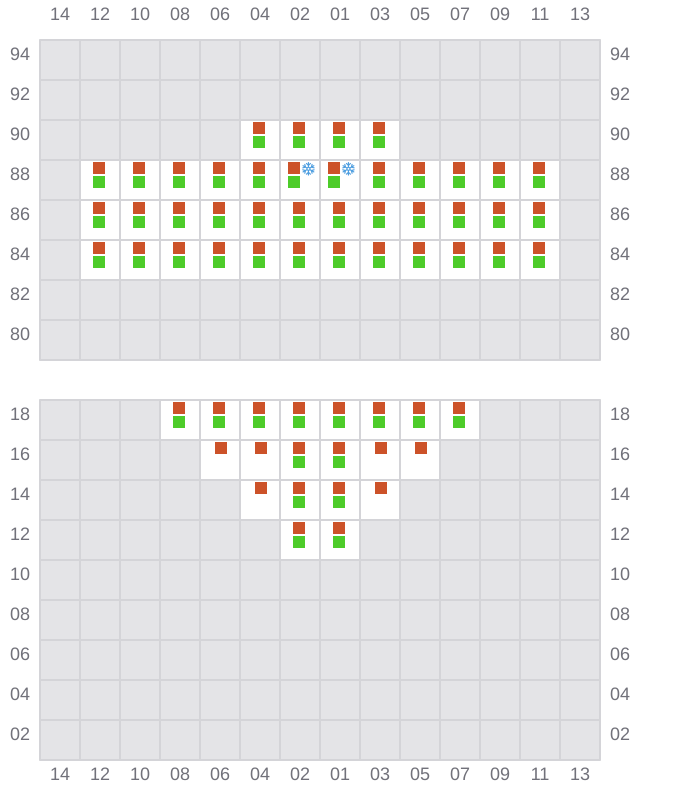

001 (002)
- →
003
- ←

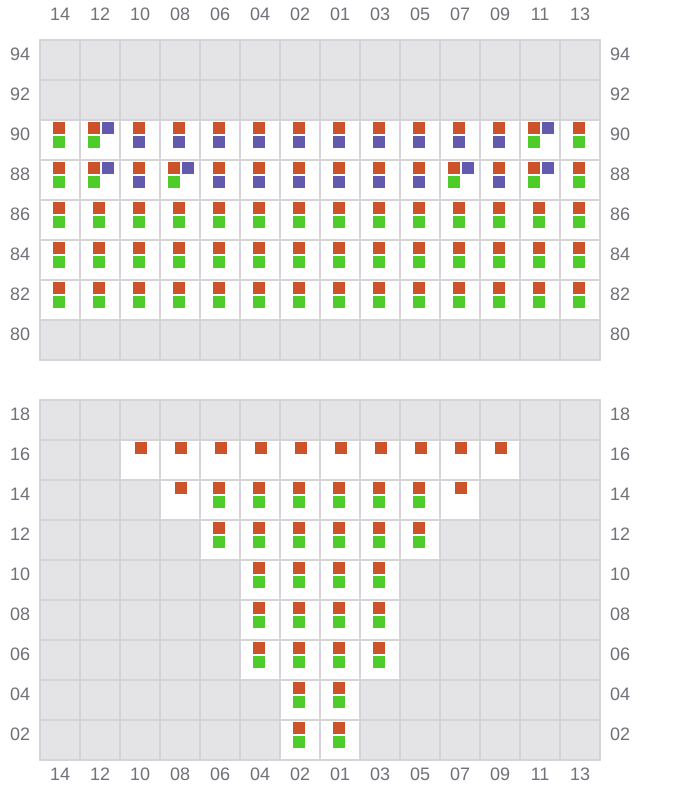

005 (006)
- →

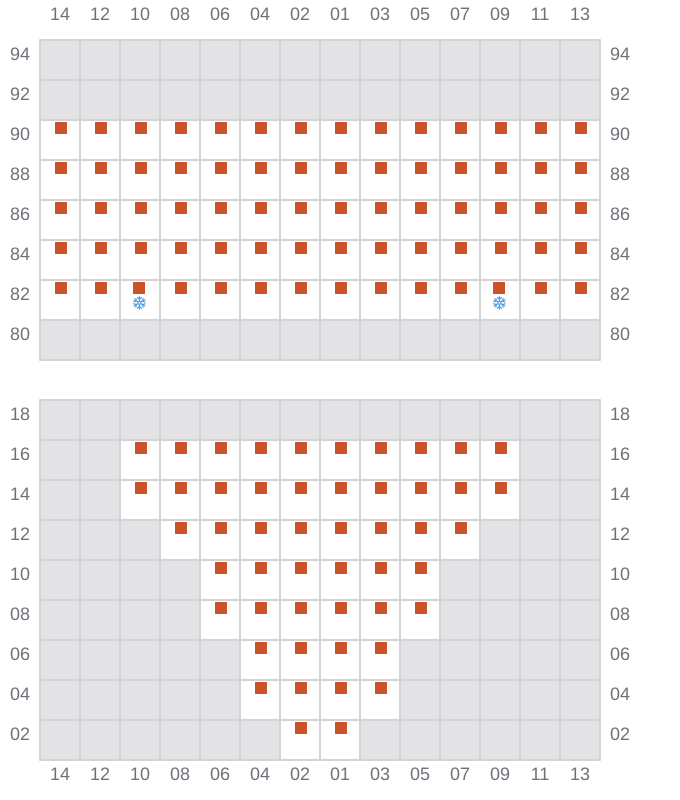

007
- ←
009 (010)
- →
- ? / →

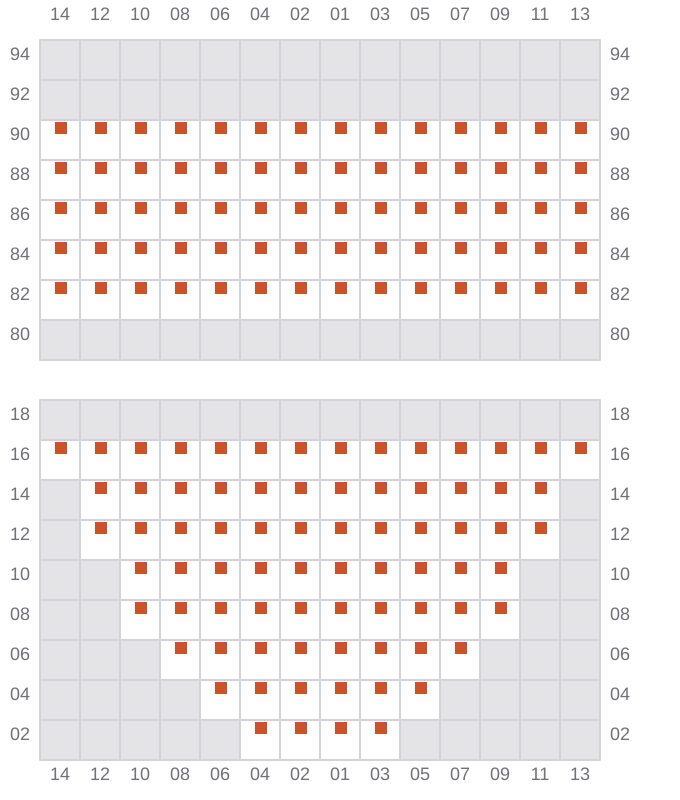

011
- ←
- ? / →

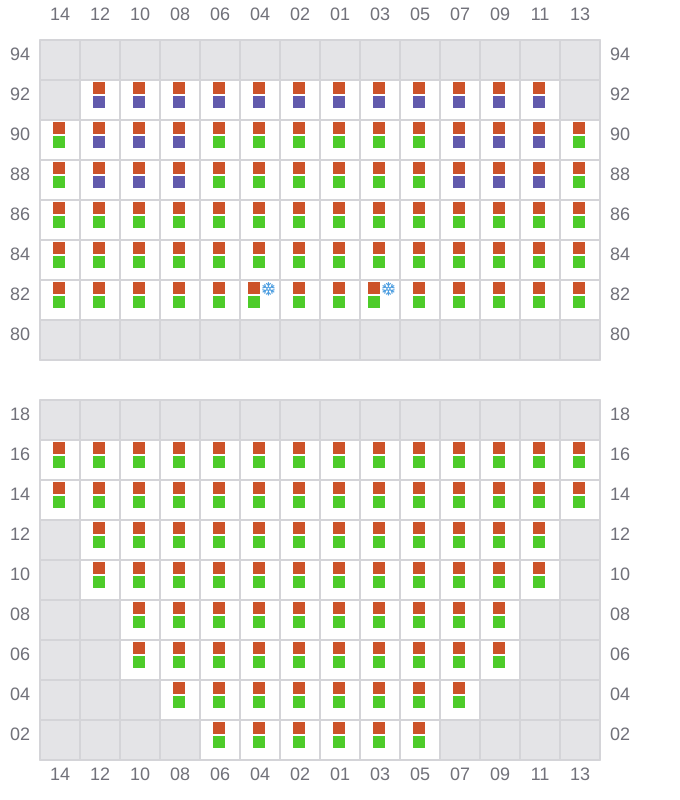

013 (014)
- →

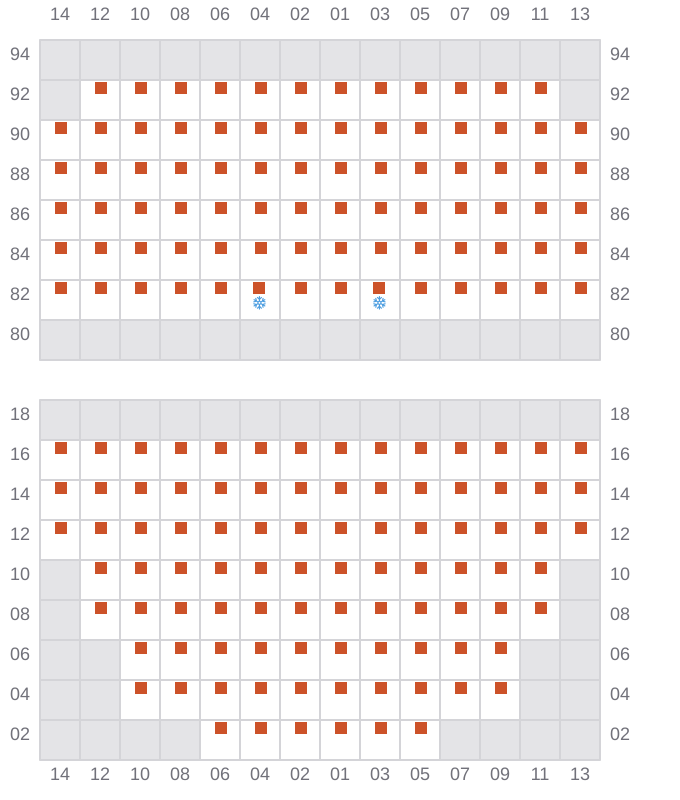

015
- ←
017 (018)
- →

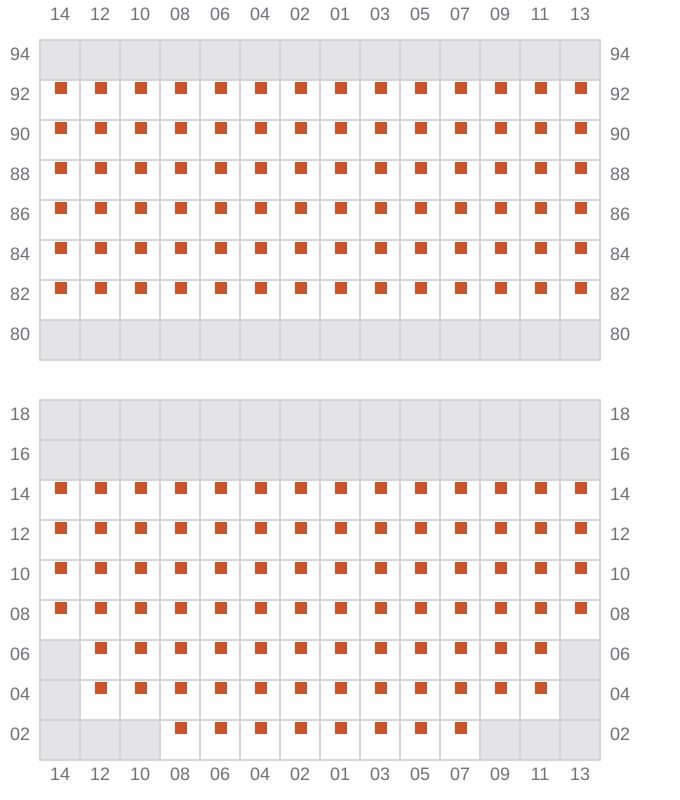

019
- ←
021 (022)
- →
023
- ←

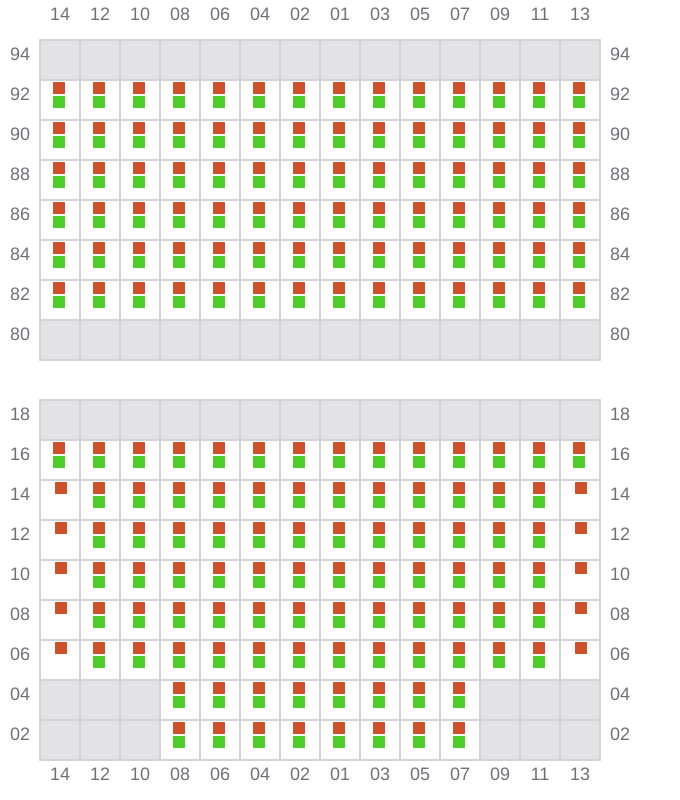

025 (026)
- →
027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →

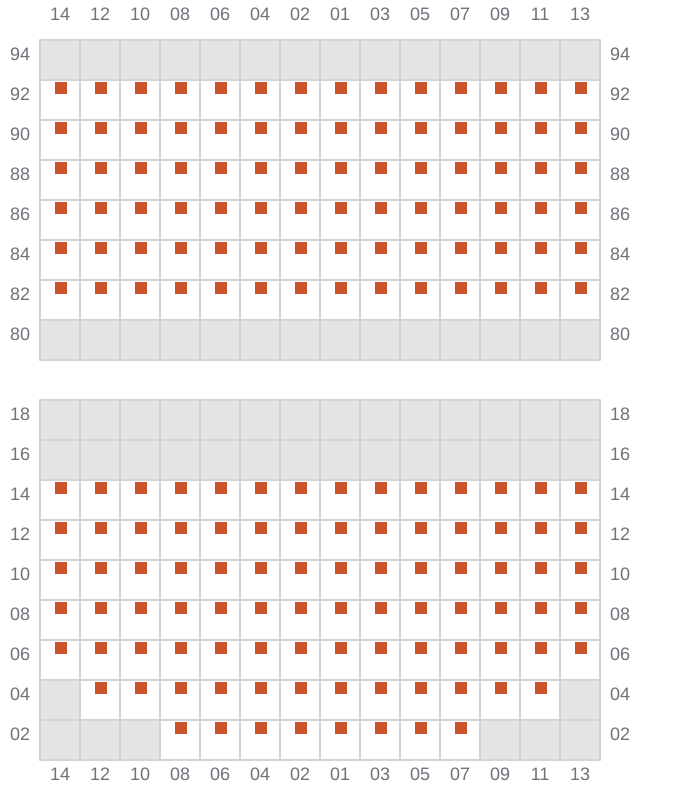

043
- ←
045 (046)
- →
047
- ←

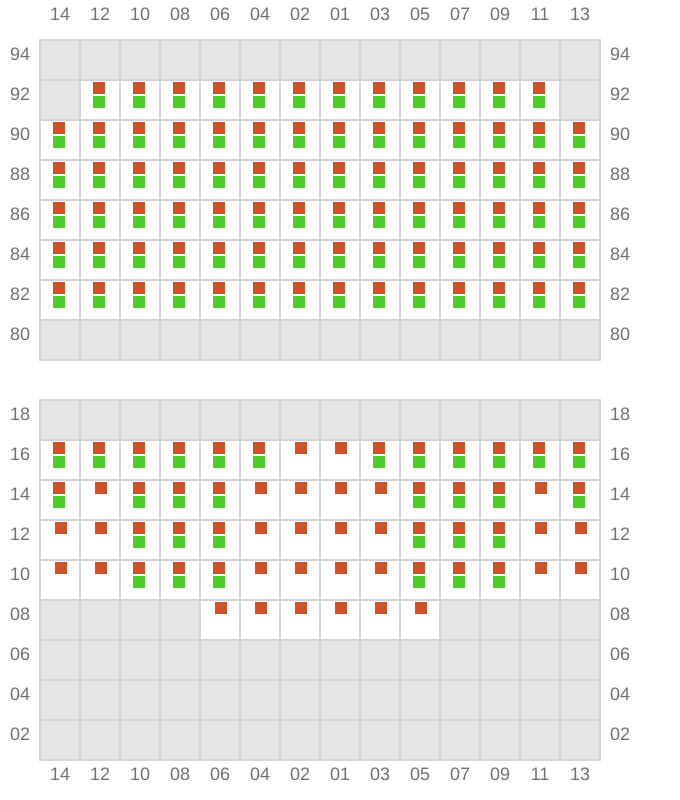

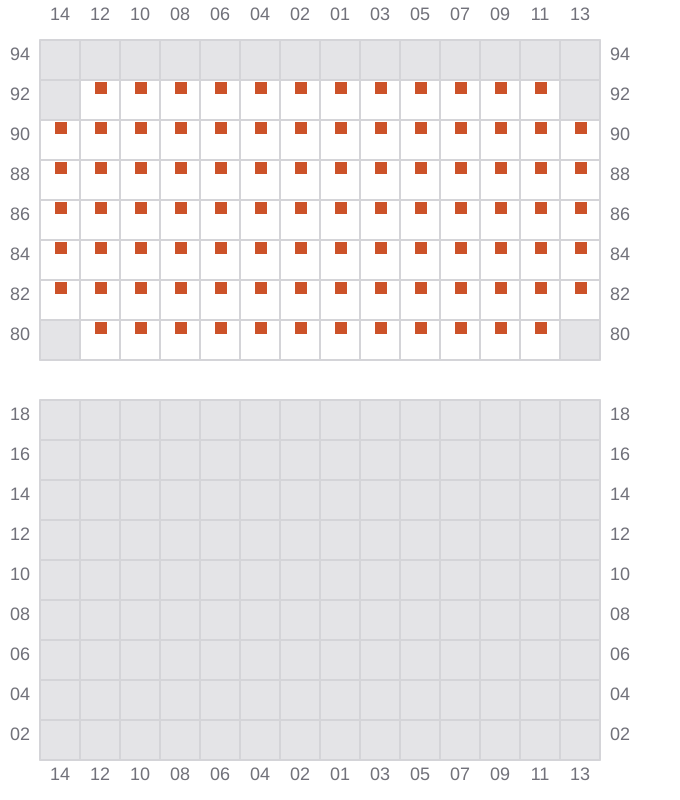

049 (050)
- →

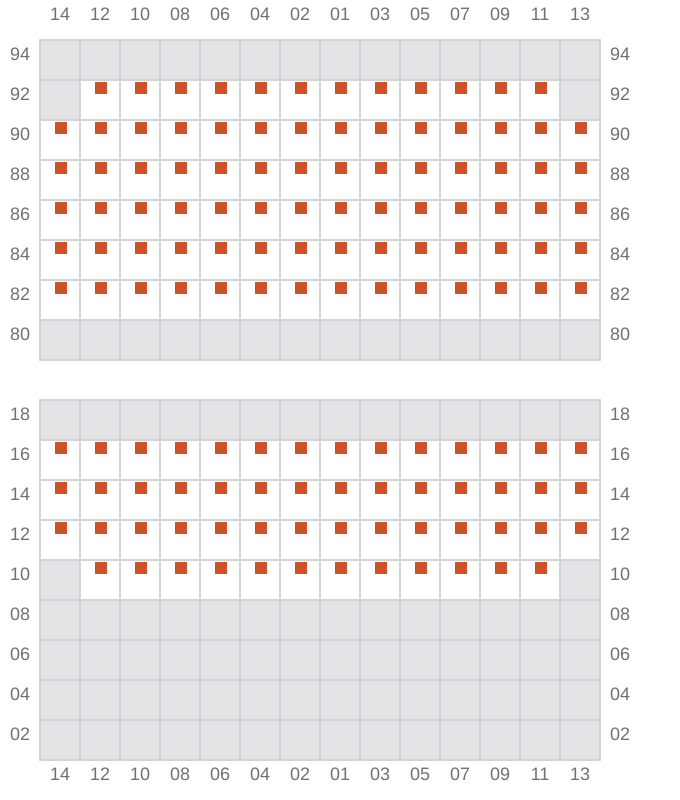

051
- ←
053 (054)
- →

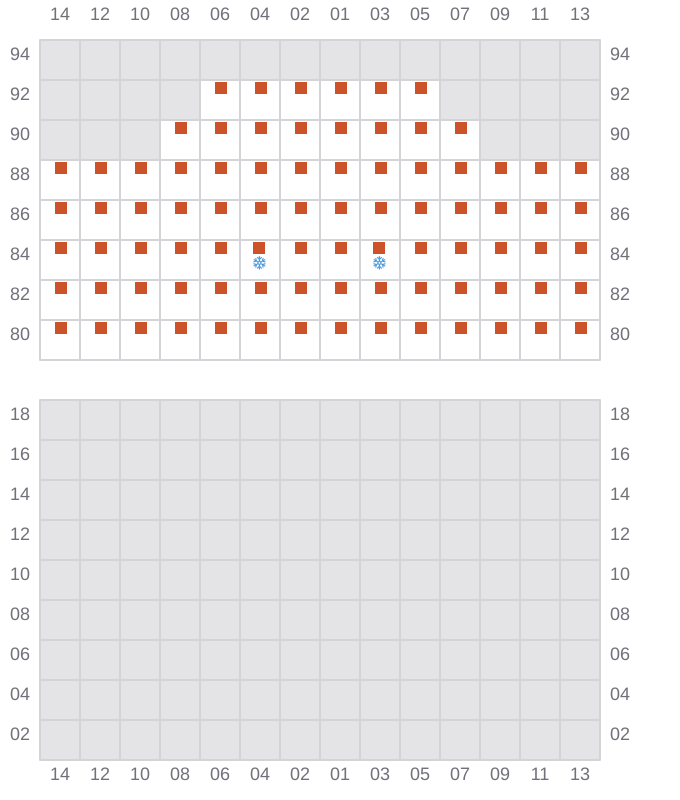

055
- ←
